| Product Type | Cordless hammer drill/driver |
| Brand | Westfalia |
| Model | WASB18BL |
| Rated voltage | 18 V |
| Battery type | Lithium-ion (Li-ion) |
| Battery capacity | 2.0 Ah (typical) |
| Motor | Brushless |
| Chuck | Keyless, capacity 1-10 mm |
| No-load speed (1st gear) | 0-550 rpm |
| No-load speed (2nd gear) | 0-2000 rpm |
| Maximum torque | 30 Nm |
| Hammer function | Yes, variable hammer frequency |
| Weight (without battery) | Approximately 1.2 kg |
| Power supply | Rechargeable 18 V battery (not included) |
| Charger | Suitable charger for 18 V Li-ion battery (not included) |
| Main functions | Drilling, screwdriving, hammer drilling |
| Maintenance and cleaning | Clean with a dry cloth; do not use solvents |
| Safety | Wear safety goggles; do not expose to moisture |
| Spare parts and repairability | Contact Westfalia after-sales service |
| General information | Domestic use; ensure adequate ventilation during use |
Frequently Asked Questions - WASB18BL Westfalia
User questions about WASB18BL Westfalia
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Drill in PDF format for free! Find your manual WASB18BL - Westfalia and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WASB18BL by Westfalia.
USER MANUAL WASB18BL Westfalia
GB Original Instructions
Instruction manuals provide valuable hints for using your new device. They enable you to use all functions, and they help you avoid misunderstandings and prevent damage. Please take the time to read this manual carefully and keep it for future reference.
Chers clients,
*ENGLISH The declared vibration total value and the declared noise emission values have been measured in accordance with a standard test
method. The declared vibration total value may also be used in a preliminary assessment of exposure.
Warning!
The vibration and noise emission during actual use of the power tool can differ from the declared total value depending on the ways in which
the tool is used, in particular, what kind of work piece is machined. It is necessary to identify safety measured to protect the operator that
are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times
when the tool is switched off and when it is running idle in addition to the trigger time). Try to minimize the impact of vibration and noise.
Exemplary measures to reduce vibration exposure include wearing gloves while using the tool, limiting working time, and using accessories in good condition.

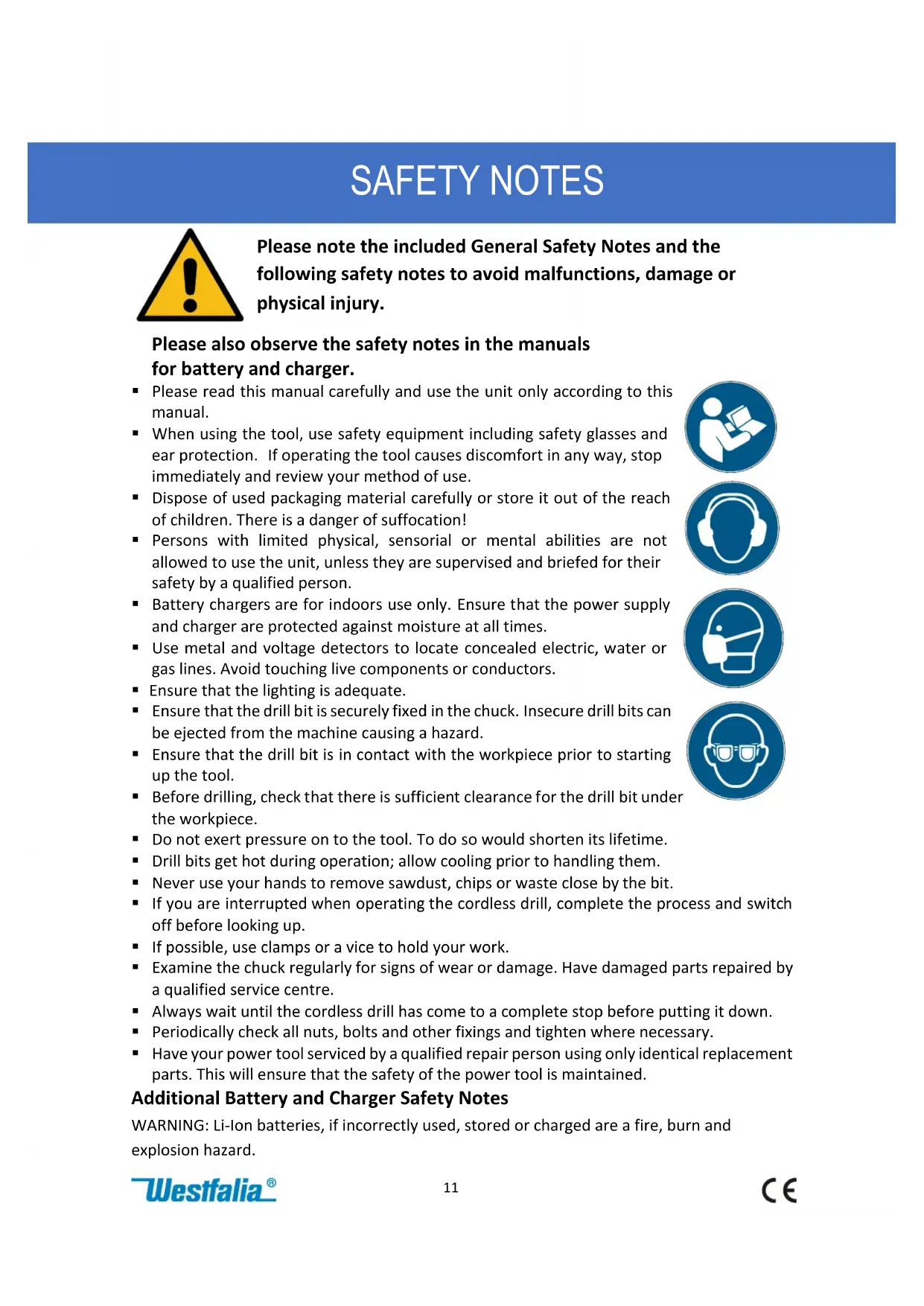

SICHERHEITSHINWEISE
Please note the included General Safety Notes and the following safety notes to avoid malfunctions, damage or physical injury.
Please also observe the safety notes in the manuals for battery and charger.
- Please read this manual carefully and use the unit only according to this manual.
- When using the tool, use safety equipment including safety glasses and ear protection. If operating the tool causes discomfort in any way, stop immediately and review your method of use.
- Dispos of used packaging material carefully or store it out of the reach of children. There is a danger of suffocation!
- Persons with limited physical, sensorial or mental abilities are not allowed to use the unit, unless they are supervised and briefed for their safety by a qualified person.
- Battery chargers are for indoors use only. Ensure that the power supply and charger are protected against moisture at all times.
- Use metal and voltage detectors to locate concealed electric, water or gas lines. Avoid touching live components or conductors.
- Ensure that the lighting is adequate.
- Ensure that the drill bit is securely fixed in the chuck. Insecure drill bits can be ejected from the machine causing a hazard.
- Ensure that the drill bit is in contact with the workpiece prior to starting up the tool.
- Before drilling, check that there is sufficient clearance for the drill bit under the workpiece.
- Do not exert pressure on to the tool. To do so would shorten its lifetime.
- Drill bits get hot during operation; allow cooling prior to handling them.
- Never use your hands to remove sawdust, chips or waste close by the bit.
If you are interrupted when operating the cordless drill, complete the process and switch off before looking up.
If possible, use clamps or a vice to hold your work. - Examine the chuck regularly for signs of wear or damage. Have damaged parts repaired by a qualified service centre.
Always wait until the cordless drill has come to a complete stop before putting it down.
Periodically check all nuts, bolts and other fixings and tighten where necessary. - Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Additional Battery and Charger Safety Notes
WARNING: Li-Ion batteries, if incorrectly used, stored or charged are a fire, burn and explosion hazard.
Use the battery charger correctly
Refer to the section of this manual relating to use of the battery charger before attempting to charge the battery.
- Do not attempt to use the charger with other batteries. Keep the battery charger clean; Foreign objects and dirt can cause a short circuit and block the ventilation holes. Failure to follow these instructions may result in overheating or fire.
- Allow batteries to cool for 15 minutes after charging or heavy use. Failure to follow these instructions may cause overheating or fire.
- Use only chargers recommended by the manufacturer to charge the batteries. If a charger is not suitable for a certain kind of battery there is a risk of fire.
- Use power tools only with specifically designated battery packs.
- Use of any other battery packs may create a risk of injury and fire.
- The device is designed for operation in altitudes of up to 2000m above sea level. Keep the battery out of reach of children. When not in use batteries should be stored at room temperature (approx. 20^ ).
- Do not open, disassemble, crush, heat above 60^ or incinerate. Do not dispose of in fire or similar.
- Keep the battery away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
- If used incorrectly, liquid may leak from the battery. Avoid contact with it. In case of accidental contact, rinse with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
- Always switch off the heat gun after work. Please note that the device is still very hot. There is risk of injuries and fire!
- Be careful when using the unit near flammable or easy fusible materials such as plastics or glass. Do not direct the unit for long time at the same place. Never point the running unit to people, animals, plants, flammable objects or liquids.
- Do not use the unit in explosive atmosphere.
- Be aware that heat may be conducted to combustible materials that are out of sight.
- Please note that poisonous gases may be emitted while removing paint. Use suitable inhalation protection and ensure adequate ventilation.
- Keep the air slots and the nozzle clean to avoid overheating the unit and to prevent from fire hazard.
- Use original accessory only.
- Should the unit become damaged do not use it any further and have it repaired by a professional or contact our customer service. Do not disassemble the unit or try repairing it yourself. Please read this manual carefully and use the unit only according to this manual.
- When using the tool, use safety equipment including safety glasses and ear protection. If operating the tool causes discomfort in any way, stop immediately and review your method of use.
- Dispos of used packaging material carefully or store it out of the reach of children. There is a danger of suffocation!
- Persons with limited physical, sensorial or mental abilities are not allowed to use the unit, unless they are supervised and briefed for their safety by a qualified person.
- Battery chargers are for indoors use only. Ensure that the power supply and charger are protected against moisture at all times.
- Use metal and voltage detectors to locate concealed electric, water or gas lines. Avoid touching live components or conductors.
- Ensure that the lighting is adequate.
- Ensure that the drill bit is securely fixed in the chuck. Insecure drill bits can be ejected from the machine causing a hazard.
- Ensure that the drill bit is in contact with the workpiece prior to starting up the tool.
- Before drilling, check that there is sufficient clearance for the drill bit under the workpiece.
- Do not exert pressure on to the tool. To do so would shorten its lifetime.
- Drill bits get hot during operation; allow cooling prior to handling them.
- Never use your hands to remove sawdust, chips or waste close by the bit.
- If you are interrupted when operating the cordless drill, complete the process and switch off before looking up.
If possible, use clamps or a vice to hold your work. - Examine the chuck regularly for signs of wear or damage. Have damaged parts repaired by a qualified service centre.
Always wait until the cordless drill has come to a complete stop before putting it down.
Periodically check all nuts, bolts and other fixings and tighten where necessary. - Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Additional Battery and Charger Safety Notes
WARNING: Li-ion batteries, if incorrectly used, stored or charged are a fire, burn and explosion hazard.
Use the battery charger correctly
Refer to the section of this manual relating to use of the battery charger before attempting to charge the battery.
- Do not attempt to use the charger with other batteries. Keep the battery charger clean; Foreign objects and dirt can cause a short circuit and block the ventilation holes. Failure to follow these instructions may result in overheating or fire.
- Allow batteries to cool for 15 minutes after charging or heavy use. Failure to follow these instructions may cause overheating or fire.
- Use only chargers recommended by the manufacturer to charge the batteries. If a charger is not suitable for a certain kind of battery there is a risk of fire.
- Use power tools only with specifically designated battery packs.
Use of any other battery packs may create a risk of injury and fire.
- The device is designed for operation in altitudes of up to 2000m above sea level. Keep the battery out of reach of children. When not in use batteries should be stored at room temperature (approx. 20^ ).
- Do not open, disassemble, crush, heat above 60^ or incinerate. Do not dispose of in fire or similar.
- Keep the battery away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
- If used incorrectly, liquid may leak from the battery. Avoid contact with it. In case of accidental contact, rinse with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
Always switch off the heat gun after work. Please note that the device is still very hot. There is risk of injuries and fire!
- Be careful when using the unit near flammable or easy fusible materials such as plastics or glass. Do not direct the unit for long time at the same place. Never point the running unit to people, animals, plants, flammable objects or liquids.
- Do not use the unit in explosive atmosphere.
- Be aware that heat may be conducted to combustible materials that are out of sight.
- Please note that poisonous gases may be emitted while removing paint. Use suitable inhalation protection and ensure adequate ventilation.
- Keep the air slots and the nozzle clean to avoid overheating the unit and to prevent from fire hazard.
- Use original accessory only. Should the unit become damaged do not use it any further and have it repaired by a professional or contact our customer service. Do not disassemble the unit or try repairing it yourself.
Batteries do not belong in the household garbage.
For battery disposal please check with your local council.
VEILIGHEIDSINSTRUCTIES
Please also observe the safety notes in the manuals for battery and charger.
declare by our own responsibility that the product
18 V SCHLAGBOHRSCHRAUBER WASB18BL
18 V LI-ION IMPACT DRILL WASB18BL
is according to the basic requirements, which are defined in the European Directives and their amendments.
2011/65/EU Restriction of the Use of certain hazardous Substances in electrical and electronic Equipment (RoHS)
2006/42/EG Maschinen
2006/42/EC Machinery EN 62841-1:2015+AC, EN 62841-2-1:2018+A11, EN 60335-1:2012+AC+A11+A13+A15
Please help avoid waste materials.
If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled. Please do not discharge it in the rubbish bin, but check with your local council for recycling facilities in your area.
