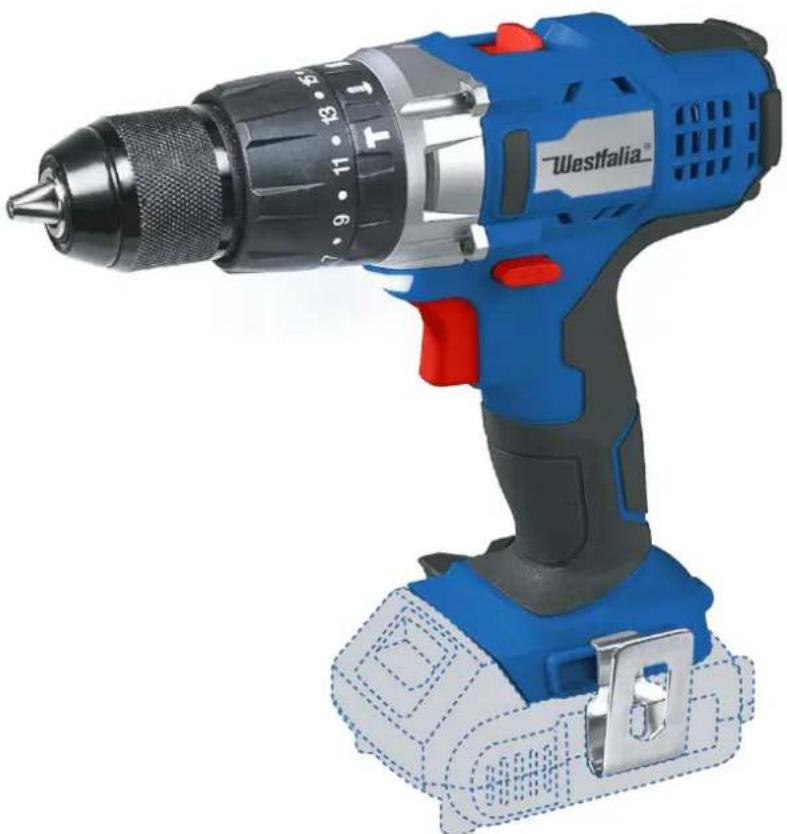

Product type	Cordless drill driver
Brand	Westfalia
Model	ASBS 18
Power supply	18 V lithium-ion battery
Battery type	Lithium-ion
Battery capacity	2.0 Ah (typical)
Charging time	Approximately 1 hour
Variable speed	Yes, with progressive trigger
Rotation direction	Forward and reverse (reversing switch)
Chuck	Keyless, 10 mm (0.8 - 10 mm)
Drilling capacity (steel)	Up to 10 mm
Drilling capacity (wood)	Up to 25 mm
Weight (with battery)	Approximately 1.5 kg
Dimensions (L x W x H)	Approximately 200 x 70 x 200 mm
Housing material	Reinforced plastic
Included accessories	Battery, charger, screwdriver bits, user manual
Safety	Chuck brake, overload protection, double insulation
Maintenance and cleaning	Clean with a dry cloth, do not use solvents
Repairability	Repair by authorized center only, original parts
General information	Indoor use, max altitude 2000 m, storage ambient temperature ~20 °C

Frequently Asked Questions - ASBS 18 Westfalia

What is the battery voltage of the Westfalia ASBS 18 drill?

The Westfalia ASBS 18 drill operates with an 18 V lithium-ion battery.

What type of chuck does the ASBS 18 have?

It is equipped with a keyless chuck with a capacity of 0.8 to 10 mm.

How to charge the battery of the Westfalia ASBS 18?

Use the included original charger. Plug it into a mains socket and insert the battery. Charging time is approximately 1 hour. Never charge a hot battery.

What materials can be drilled with the Westfalia ASBS 18?

You can drill steel up to 10 mm and wood up to 25 mm. Use appropriate drill bits.

Is the ASBS 18 drill reversible?

Yes, it has a rotation direction switch for screwing and unscrewing.

How to clean the Westfalia ASBS 18 drill?

Clean the housing with a dry cloth. Do not use solvents or water. Ensure ventilation openings are clear.

What to do if the battery does not hold a charge?

Check that the charger works and contacts are clean. If the problem persists, the battery may be defective. Replace it with an original Westfalia battery.

Can I use the drill continuously without a break?

It is recommended to take regular breaks to avoid overheating. Let the battery cool for 15 minutes after intensive use.

How to store the battery of the ASBS 18?

Store it in a dry place at room temperature (approximately 20 °C). Do not expose it to more than 60 °C or humidity.

Where can I find spare parts for the Westfalia ASBS 18?

Contact Westfalia customer service or an authorized repair center. Use only original parts.

USER MANUAL ASBS 18 Westfalia

GB Original Instructions - Combi Drill

1 Bohrfutterbacken | Chuck jaws

2 Bohrfutterring | Chuck collar

Instruction manuals provide valuable hints for using your new device. They enable you to use all functions, and they help you avoid misunderstandings and prevent damage. Please take the time to read this manual carefully and keep it for future reference.

*ENGLISH The declared vibration total value and the declared noise emission values have been measured in accordance with a standard test method. The declared vibration total value may also be used in a preliminary assessment of exposure.

Warning!

The vibration and noise emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used, in particular, what kind of work piece is machined. It is necessary to identify safety measured to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). Try to minimize the impact of vibration and noise. Exemplary measures to reduce vibration exposure include wearing gloves while using the tool, limiting working time, and using accessories in good condition.

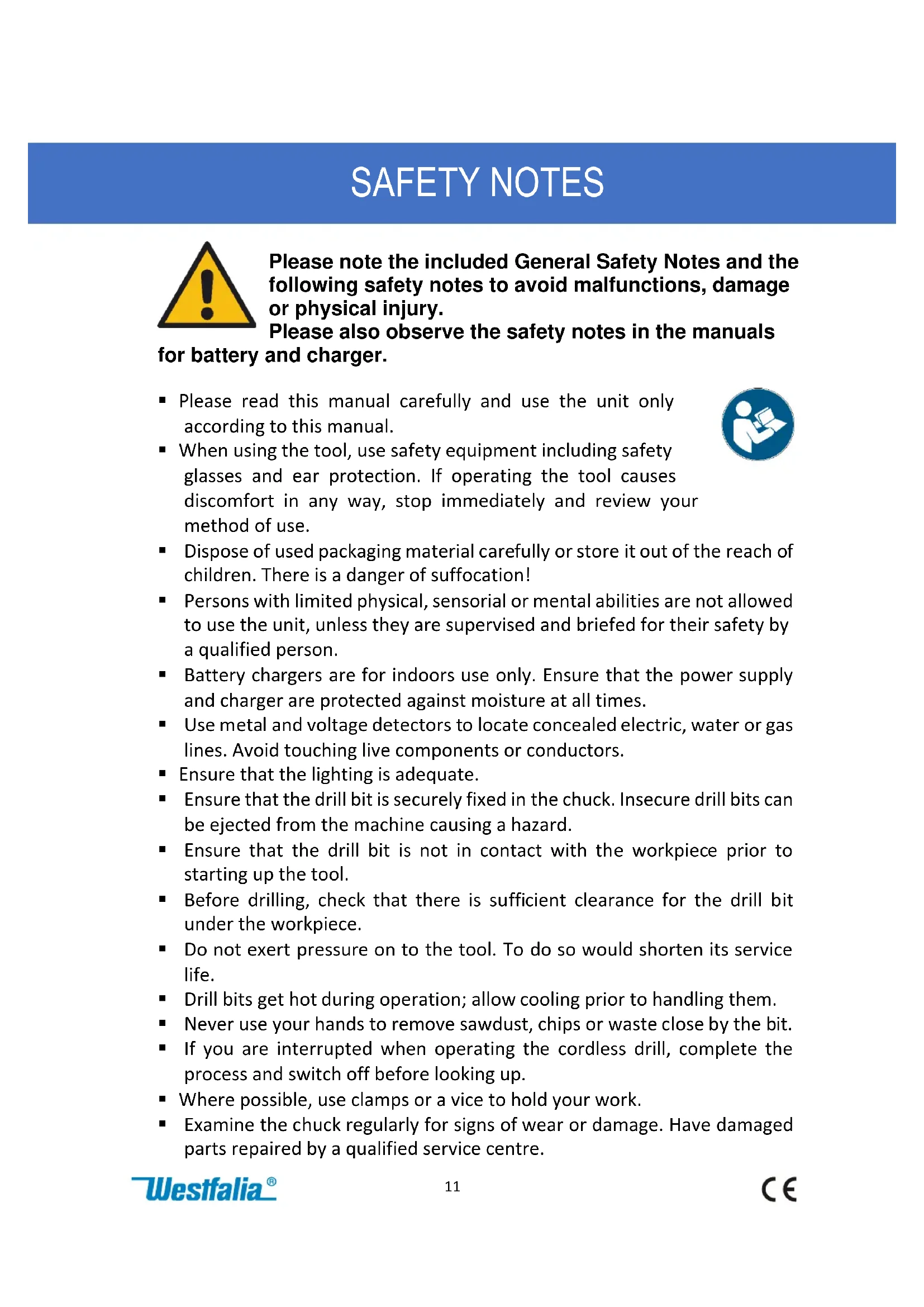

SICHERHEITSHINWEISE

Please note the included General Safety Notes and the following safety notes to avoid malfunctions, damage or physical injury.

Please also observe the safety notes in the manuals

for battery and charger.

• Please read this manual carefully and use the unit only according to this manual.
• When using the tool, use safety equipment including safety glasses and ear protection. If operating the tool causes discomfort in any way, stop immediately and review your method of use.
• Dispose of used packaging material carefully or store it out of the reach of children. There is a danger of suffocation!
• Persons with limited physical, sensorial or mental abilities are not allowed to use the unit, unless they are supervised and briefed for their safety by a qualified person.
• Battery chargers are for indoors use only. Ensure that the power supply and charger are protected against moisture at all times.
• Use metal and voltage detectors to locate concealed electric, water or gas lines. Avoid touching live components or conductors.
• Ensure that the lighting is adequate.
• Ensure that the drill bit is securely fixed in the chuck. Insecure drill bits can be ejected from the machine causing a hazard.
• Ensure that the drill bit is not in contact with the workpiece prior to starting up the tool.
• Before drilling, check that there is sufficient clearance for the drill bit under the workpiece.
• Do not exert pressure on to the tool. To do so would shorten its service life.
• Drill bits get hot during operation; allow cooling prior to handling them.
• Never use your hands to remove sawdust, chips or waste close by the bit.
• If you are interrupted when operating the cordless drill, complete the process and switch off before looking up.
• Where possible, use clamps or a vice to hold your work.

• Examine the chuck regularly for signs of wear or damage. Have damaged parts repaired by a qualified service centre.

• Always wait until the cordless drill has come to a complete stop before putting it down.

• Periodically check all nuts, bolts and other fixings and tighten where necessary.
• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional Battery and Charger Safety Notes

• WARNING: Li-lon batteries, if incorrectly used, stored or charged are a fire, burn and explosion hazard.

Use the battery charger correctly

Refer to the section of this manual relating to use of the battery charger before attempting to charge the battery.
- Do not attempt to use the charger with other batteries. Keep the battery charger clean; Foreign objects and dirt can cause a short circuit and block the ventilation holes. Failure to follow these instructions may result in overheating or fire.
- Allow batteries to cool for 15 minutes after charging or heavy use. Failure to follow these instructions may cause overheating or fire.
- Use only chargers recommended by the manufacturer to charge the batteries. If a charger is not suitable for a certain kind of battery there is a risk of fire.
- Use power tools only with specifically designated battery packs.
Use of any other battery packs may create a risk of injury and fire.
- The device is designed for operation in altitudes of up to 2000m above sea level. Keep the battery out of reach of children. When not in use batteries should be stored at room temperature (approx. 20^ ).
- Do not open, disassemble, crush, heat above 60^ C or incinerate. Do not dispose of in fire or similar.
- Keep the battery away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
If used incorrectly, liquid may leak from the battery. Avoid contact with it. In case of accidental contact, rinse with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Always switch off the heat gun after work. Please note that the device is still very hot. There is risk of injuries and fire!
• Be careful when using the unit near flammable or easy fusible materials such as plastics or glass. Do not direct the unit for long time at the same place. Never point the running unit to people, animals, plants, flammable objects or liquids.
• Be aware that heat may be conducted to combustible materials that are out of sight.
• Use original accessory only.
• Should the unit become damaged do not use it any further and have it repaired by a professional or contact our customer service. Do not disassemble the unit or try repairing it yourself.

Batteries do not belong in the household garbage.

For battery disposal please check with your local council.

VEILIGHEIDSINSTRUCTIES

erklaren in alleiniger Verantwortung, dass das Produkt declare by our own responsibility that the product

is according to the basic requirements, which are defined in the European Directives and their amendments.

2011/65/EU

Restriction of the Use of certain hazardous Substances in electrical and electronic Equipment (RoHS)

2014/30/EU

Hagen, den 7. December 2022

Hagen, 7^th of December, 2022

Shong Jinglebird

Thomas Klingbeil,

Please help avoid waste materials.

If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled. Please do not discharge it in the rubbish bin, but check with your local council for recycling facilities in your area.
