Product Type	Cordless Drill Driver
Brand	Westfalia
Model	ATD18
Battery Voltage	18 V
Battery Type	Lithium-ion
No-load speed (1st gear)	0 - 550 rpm
No-load speed (2nd gear)	0 - 1800 rpm
Max Torque	30 Nm
Torque Setting	20 positions + drilling
Chuck	10 mm keyless chuck
Max drilling in wood	30 mm
Max drilling in steel	10 mm
Weight (without battery)	1.2 kg
Dimensions (L x W x H)	20 x 20 x 7 cm
Sound pressure level	80 dB(A)
Sound power level	91 dB(A)
Vibration value (drilling)	2.5 m/s²
Maintenance and cleaning	Clean with a dry cloth, do not immerse
Safety	Use hearing and eye protection, wear gloves
Spare parts and repairability	Use only original spare parts, have repairs carried out by a qualified professional
General information	Use up to 2000 m altitude

Frequently Asked Questions - ATD18 Westfalia

How to adjust the torque on the ATD18 drill?

For screwdriving, use the torque adjustment ring. In drilling position, the torque adjustment is disabled because drilling always occurs at maximum torque.

Why does my drill automatically switch to first gear when screwdriving?

During screwdriving, the drill automatically selects first gear for high torque, regardless of the selected speed.

What is the weight of the drill without battery?

The weight of the Westfalia ATD18 drill without battery is approximately 1.2 kg.

Can I use this drill for sanding?

No, the ATD18 drill is not designed for sanding. Use it only for drilling and screwdriving.

How to clean the device?

Clean the drill with a dry cloth. Never immerse it in liquid.

What to do if the drill stops working?

Check the battery and connections. If the problem persists, have the repair carried out by a qualified professional using original spare parts.

Is it necessary to wear protective equipment?

Yes, wear safety glasses, hearing protection and gloves to reduce exposure to vibration and noise.

What is the recommended battery voltage?

The ATD18 drill operates with an 18 V Lithium-ion battery.

Can I use the drill continuously for a long time?

Limit working hours and take breaks to reduce exposure to vibrations. Keep the tool and accessories in good condition.

How to know if the battery is charged?

The manual does not specify an indicator on the drill. Use a compatible charger and check the charger's LED indicators.

USER MANUAL ATD18 Westfalia

Instruction manuals provide valuable hints for using your new device. They enable you to use all functions, and they help you avoid misunderstandings and prevent damage. Please take the time to read this manual carefully and keep it for future reference.

EN In the drilling position, the torque setting is deactivated, since drilling is always carried out with the maximum torque value.

EN When screwing, you screw automatically in 1st gear, regardless of the gear selected.

Weight (without battery)

Drilling and screwing

Perçage et découpe

0-400 min

Boren en schroeven

Forare e avvitare

Drehzahl

No-Load speed

Ralenti

Stationar torental

Minimo

2. Gang

2nd gear

2ème vitesse

2e versnelling

2a marcia

Bohren

Drilling

Perçage

0-1500 min

Boren

Forare

*ENGLISH The declared vibration total value and the declared noise emission values have been measured in accordance with a standard test method. The declared vibration total value may also be used in a preliminary assessment of exposure.

Warning!

The vibration and noise emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used, in particular, what kind of work piece is machined. It is necessary to identify safety measured to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). Try to minimize the impact of vibration and noise. Exemplary measures to reduce vibration exposure include wearing gloves while using the tool, limiting working time, and using accessories in good condition.

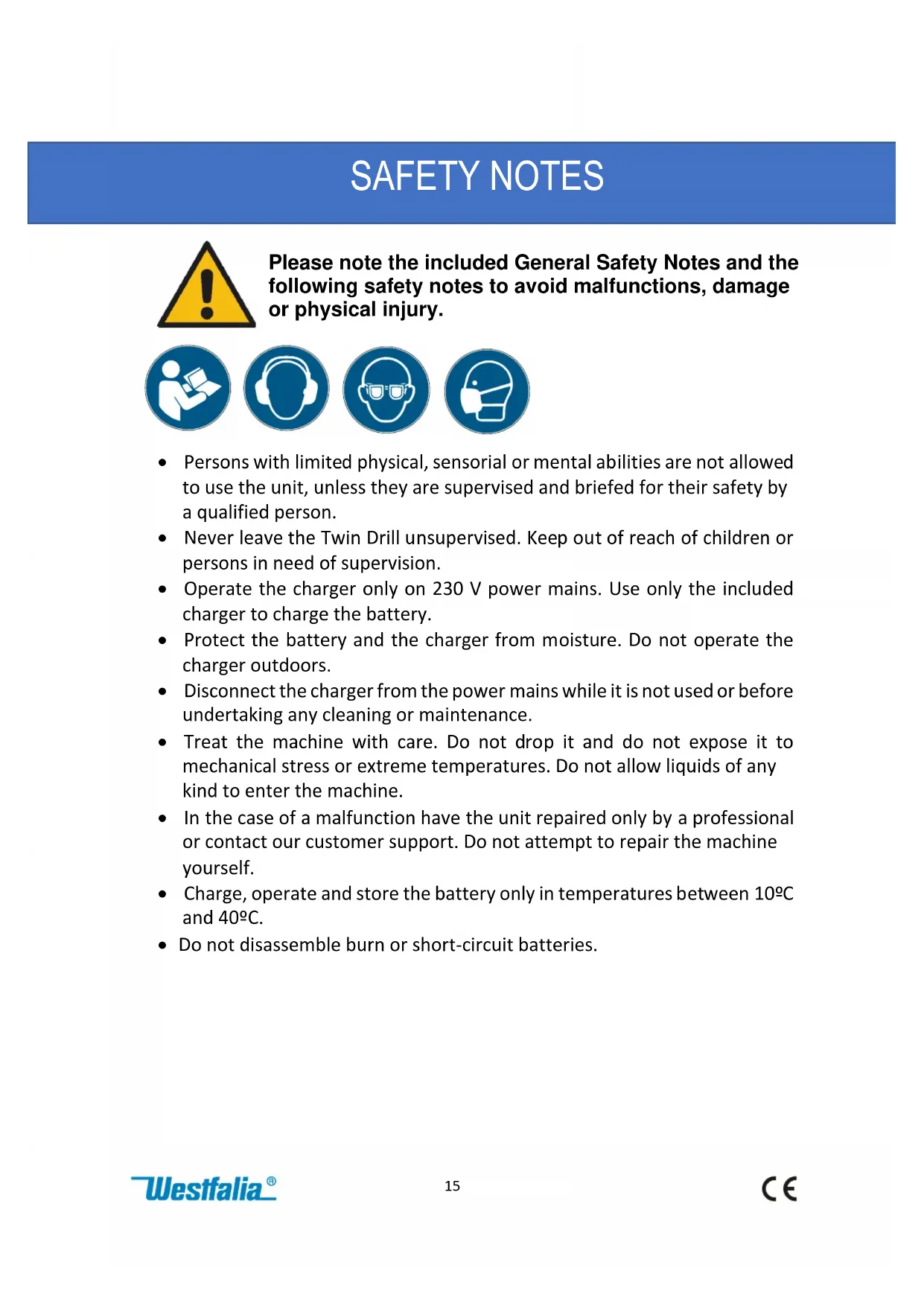

Please note the included General Safety Notes and the following safety notes to avoid malfunctions, damage or physical injury.

• Persons with limited physical, sensorial or mental abilities are not allowed to use the unit, unless they are supervised and briefed for their safety by a qualified person.
• Never leave the Twin Drill unsupervised. Keep out of reach of children or persons in need of supervision.
• Operate the charger only on 230V power mains. Use only the included charger to charge the battery.
• Protect the battery and the charger from moisture. Do not operate the charger outdoors.
• Disconnect the charger from the power mains while it is not used or before undertaking any cleaning or maintenance.
• Treat the machine with care. Do not drop it and do not expose it to mechanical stress or extreme temperatures. Do not allow liquids of any kind to enter the machine.
• In the case of a malfunction have the unit repaired only by a professional or contact our customer support. Do not attempt to repair the machine yourself.
• Charge, operate and store the battery only in temperatures between 10^ and 40^ .
• Do not disassemble burn or short-circuit batteries.

Additional Battery and Charger Safety Notes

WARNING: Li-lon batteries, if incorrectly used, stored or charged are a fire, burn and explosion hazard.

Use the battery charger correctly

• Refer to the section of this manual relating to use of the battery charger before attempting to charge the battery.

• Do not attempt to use the charger with other batteries. Keep the battery charger clean; Foreign objects and dirt can cause a short circuit and block the ventilation holes. Failure to follow these instructions may result in overheating or fire.

• Allow batteries to cool for 15 minutes after charging or heavy use. Failure to follow these instructions may cause overheating or fire.

• Use only chargers recommended by the manufacturer to charge the batteries. If a charger is not suitable for a certain kind of battery there is a risk of fire.

• Use power tools only with specifically designated battery packs.

• Use of any other battery packs may create a risk of injury and fire.

• The device is designed for operation in altitudes of up to 2000m above sea level. Keep the battery out of reach of children. When not in use batteries should be stored at room temperature (approx. 20^ ).

• Do not open, disassemble, crush, heat above 60^ C or incinerate. Do not dispose of in fire or similar.

• Keep the battery away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

• If used incorrectly, liquid may leak from the battery. Avoid contact with it. In case of accidental contact, rinse with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Always switch off the heat gun after work. Please note that the device is still very hot. There is risk of injuries and fire!

• Be careful when using the unit near flammable or easy fusible materials such as plastics or glass. Do not direct the unit for long time at the same place. Never point the running unit to people, animals, plants, flammable objects or liquids.

• Do not use the unit in explosive atmosphere.

• Be aware that heat may be conducted to combustible materials that are out of sight.

• Please note that poisonous gases may be emitted while removing paint. Use suitable inhalation protection and ensure adequate ventilation.

• Keep the air slots and the nozzle clean to avoid overheating the unit and to prevent from fire hazard.
• Use original accessory only.
• Should the unit become damaged do not use it any further and have it repaired by a professional or contact our customer service. Do not disassemble the unit or try repairing it yourself.

Batteries do not belong in the household garbage.

For battery disposal please check with your local council.

VEILIGHEIDSINSTRUCTIES

declare by our own responsibility that the product

18 V Li-Ion Akku Twin-Drill ATD18

18 V Battery Powerd Twin-Drill ATD18

Articlel Nr. 94 54 61

Article No. 945461

is according to the basic requirements, which are defined in the European Directives and their amendments.

2011/65/EU

2011/65/EU

Restriction of the Use of certain hazardous Substances in electrical and electronic Equipment (RoHS)

2014/30/EU

2014/30/EU

Hagen, 01stof January, 2022

Thomas Klingbeil,

Please help avoid waste materials.

If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled. Please do not discharge it in the rubbish bin, but check with your local council for recycling facilities in your area.
