WA2BS12 - Drill Westfalia - Free user manual and instructions

Product type	Cordless drill/driver
Brand	Westfalia
Model	WA2BS12
Rated voltage	12 V
Battery type	Lithium-ion
Dimensions (approx.)	20 x 6 x 25 cm
Weight (approx.)	1.5 kg
Chuck	Keyless, capacity 10 mm
No-load speed	0-600 rpm (estimated)
Max torque	30 Nm (estimated)
Main functions	Drilling, screwdriving, forward/reverse
Lighting	Integrated work LED
Sound level	Less than 70 dB(A) (estimated)
Power supply	12 V lithium-ion battery
Charger	Mains charger 230 V, 50 Hz
Charging time	Approximately 1 hour
Maintenance and cleaning	Clean with a dry cloth, do not use water
Safety	Wear safety glasses and hearing protection recommended, do not drill into electrical cables
Spare parts and repairability	Contact Westfalia customer service for original parts
General information	Compact cordless drill, ideal for DIY
Max operating altitude	2000 m
Intended use	Drilling in wood, metal, and plastic, screwdriving

Frequently Asked Questions - WA2BS12 Westfalia

What are the essential safety instructions for using the WA2BS12 drill?

Always wear safety glasses and hearing protection. Make sure the work area is well lit and there are no hidden electrical cables or water/gas pipes. Use a metal and voltage detector if necessary.

How to properly charge the battery?

Use only the charger supplied with the appliance. Charge the battery in a dry, indoor location at room temperature (approx. 20°C). Never charge a hot battery; let it cool down for 15 minutes after use.

What types of materials can I drill with this drill?

This drill is designed for drilling wood, metal, and plastic. Do not use unsuitable drill bits and respect the speed and torque limits.

How to maintain the WA2BS12 drill?

Clean the device with a dry cloth after each use. Regularly check the tightness of screws and the chuck. Never immerse the tool in water and avoid aggressive solvents.

What to do if the battery does not hold a charge?

Make sure the battery is correctly inserted in the charger. If the problem persists, the battery may be worn out. Contact Westfalia customer service for a replacement.

Can I use the cordless drill continuously for long periods?

It is recommended to take breaks to avoid overheating the motor and battery. If the device becomes hot, stop it and let it cool down for 15 minutes before resuming.

How to change the drill bit?

Open the keyless chuck by turning the ring counterclockwise. Insert the drill bit and tighten firmly by turning clockwise. Check that the bit is centered.

What is the warranty on the WA2BS12 drill?

Westfalia usually offers a 2-year warranty on its tools. Keep the purchase receipt as proof of warranty. For any repairs, contact an authorized center.

What to do in case of chuck failure?

Stop using the device immediately. Do not attempt to repair the chuck yourself. Contact an authorized repair center or Westfalia customer service.

Can I use accessories not supplied by Westfalia?

It is recommended to use only original accessories to ensure safety and performance. Using unsuitable accessories can damage the tool or cause injury.

USER MANUAL WA2BS12 Westfalia

Blue and black Westfalia electric drill put tool (no visible text or symbols on body)

1 2 3 4 5 6 7 8

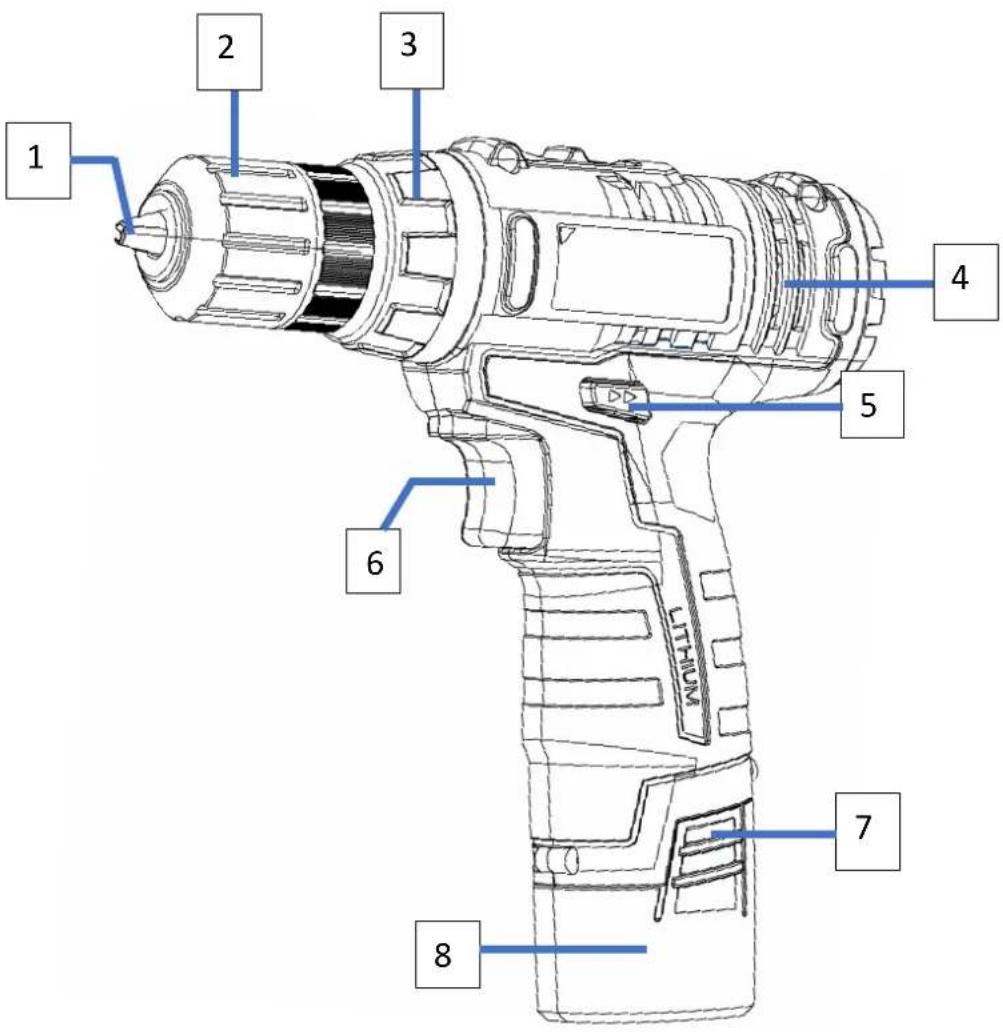

1 Bohrfutterbacken | Chuck jaws
2 Bohrfutterring | Chuck collar

Drehmomentskala |

Torque selector with torque scale

Instruction manuals provide valuable hints for using your new device. They enable you to use all functions, and they help you avoid misunderstandings and prevent damage. Please take the time to read this manual carefully and keep it for future reference.

Diagram showing various electronic components and their corresponding safety or resistance conditions, including a device, battery, thermometer, battery, and battery with percentage values.

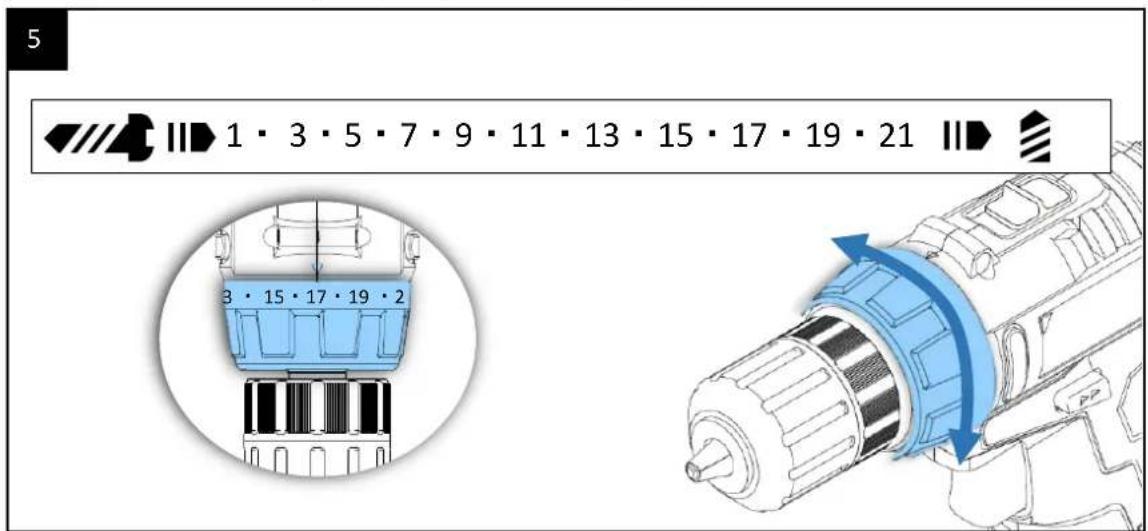

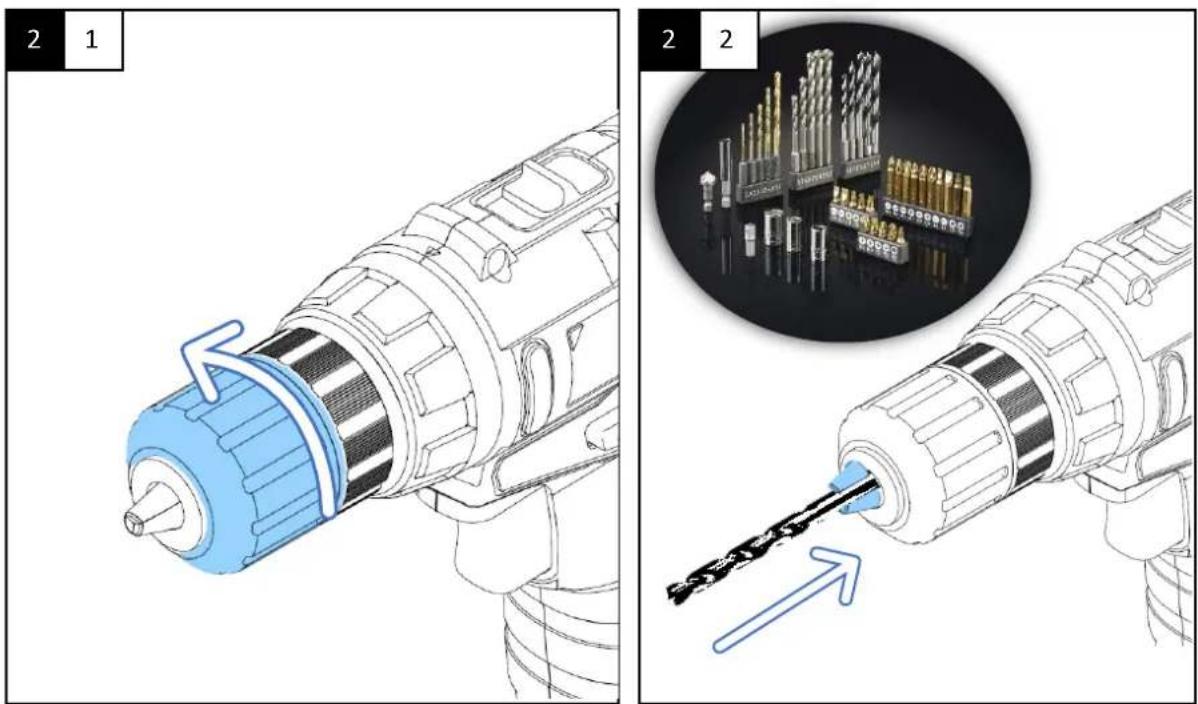

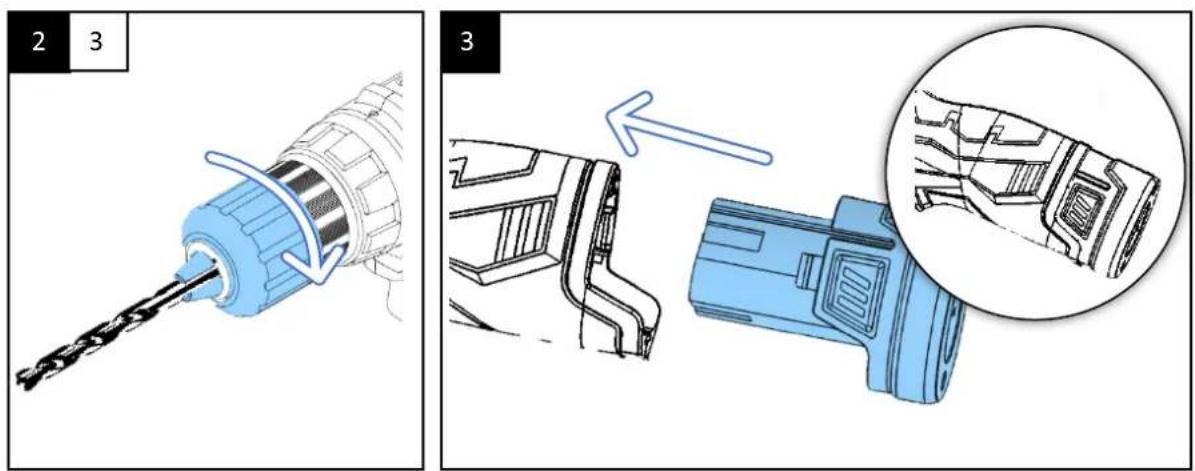

Technical diagram illustrating the process of a drill bit tool, showing step-by-step assembly and final inspection with a magnified view.

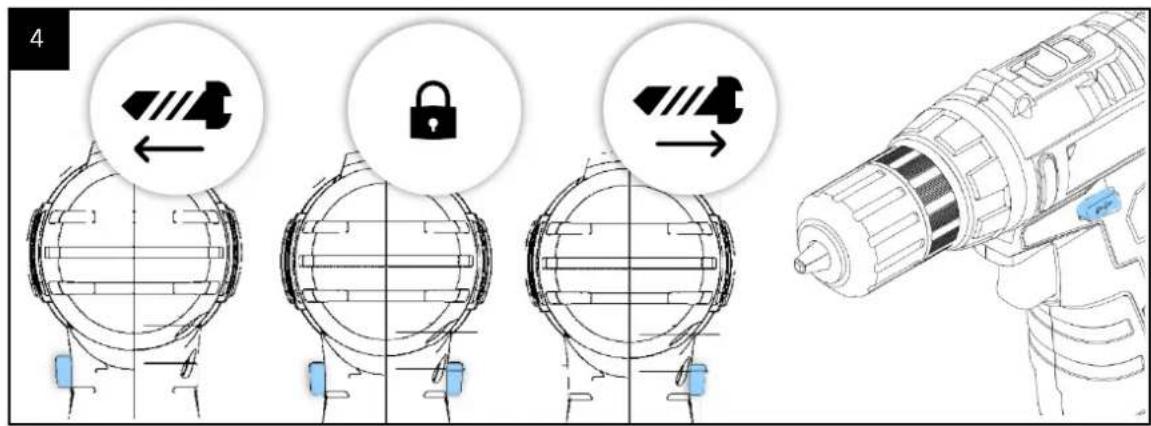

Technical diagram showing mechanical assembly steps with numbered instructions and magnified detail view

4

Technical line drawing of a drill bit with a blue highlighted component and a power button indicator (no text or symbols)

*ENGLISH The declared vibration total value and the declared noise emission values have been measured in accordance with a standard test method. The declared vibration total value may also be used in a preliminary assessment of exposure.

Warning!

The vibration and noise emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used, in particular, what kind of work piece is machined. It is necessary to identify safety measured to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). Try to minimize the impact of vibration and noise. Exemplary measures to reduce vibration exposure include wearing gloves while using the tool, limiting working time, and using accessories in good condition.

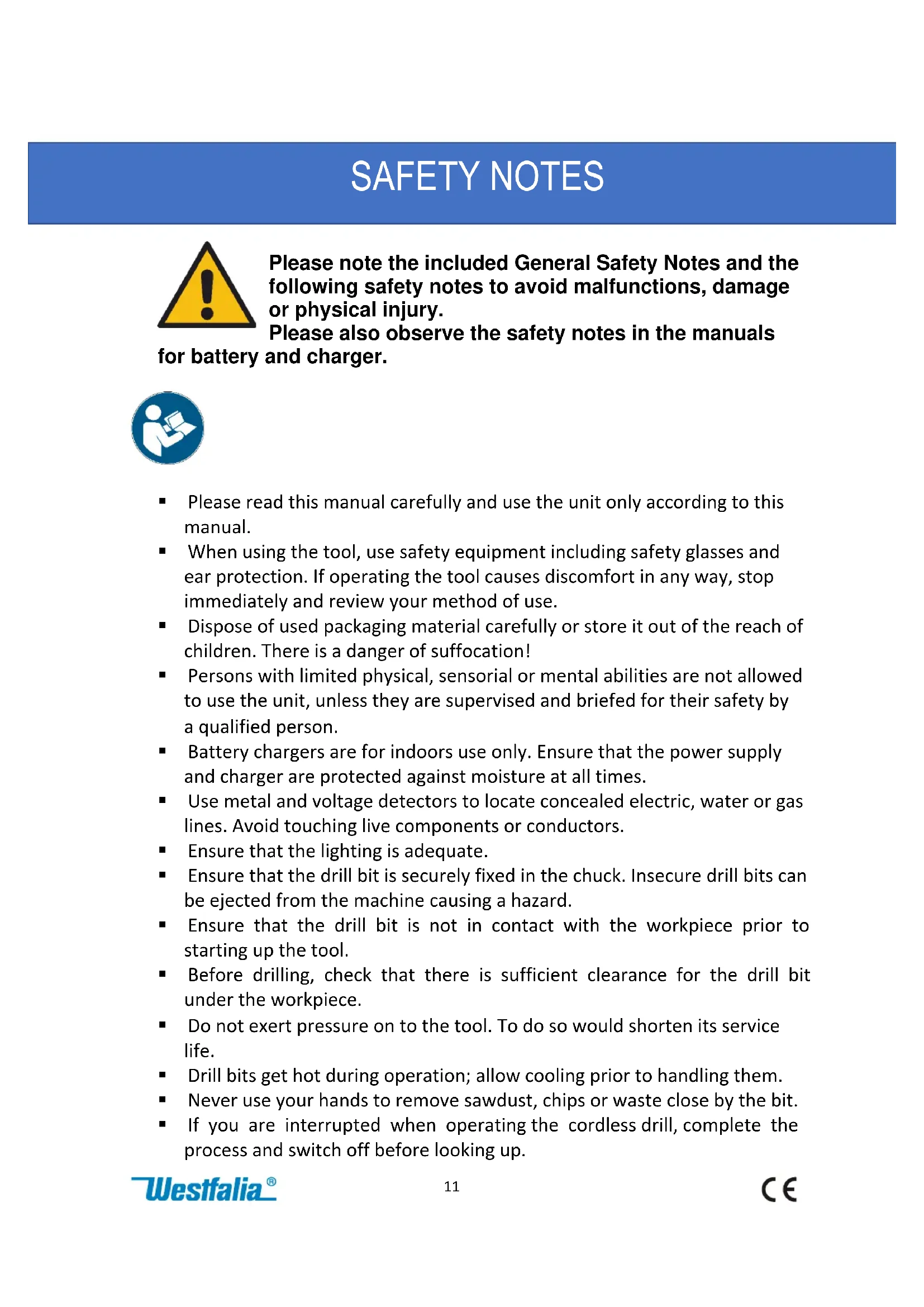

SICHERHEITSHINWEISE

Yellow triangular warning sign with black exclamation mark symbol

Please note the included General Safety Notes and the following safety notes to avoid malfunctions, damage or physical injury.

for battery and charger.

Please also observe the safety notes in the manuals

• Please read this manual carefully and use the unit only according to this manual.
• When using the tool, use safety equipment including safety glasses and ear protection. If operating the tool causes discomfort in any way, stop immediately and review your method of use.
  ■ Dispose of used packaging material carefully or store it out of the reach of children. There is a danger of suffocation!
  ■ Persons with limited physical, sensorial or mental abilities are not allowed to use the unit, unless they are supervised and briefed for their safety by a qualified person.
  ■ Battery chargers are for indoors use only. Ensure that the power supply and charger are protected against moisture at all times.
  ■ Use metal and voltage detectors to locate concealed electric, water or gas lines. Avoid touching live components or conductors.
  ■ Ensure that the lighting is adequate.
  ■ Ensure that the drill bit is securely fixed in the chuck. Insecure drill bits can be ejected from the machine causing a hazard.
  ■ Ensure that the drill bit is not in contact with the workpiece prior to starting up the tool.
  ■ Before drilling, check that there is sufficient clearance for the drill bit under the workpiece.
• Do not exert pressure on to the tool. To do so would shorten its service life.
• Drill bits get hot during operation; allow cooling prior to handling them.
  ■ Never use your hands to remove sawdust, chips or waste close by the bit.
  ■ If you are interrupted when operating the cordless drill, complete the process and switch off before looking up.

■ Where possible, use clamps or a vice to hold your work.
- Examine the chuck regularly for signs of wear or damage. Have damaged parts repaired by a qualified service centre.
■ Always wait until the cordless drill has come to a complete stop before putting it down.
- Periodically check all nuts, bolts and other fixings and tighten where necessary.
- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional Battery and Charger Safety Notes

■ WARNING: Li-Ion batteries, if incorrectly used, stored or charged are a fire, burn and explosion hazard.

Use the battery charger correctly

• Refer to the section of this manual relating to use of the battery charger before attempting to charge the battery.
• Do not attempt to use the charger with other batteries. Keep the battery charger clean; Foreign objects and dirt can cause a short circuit and block the ventilation holes. Failure to follow these instructions may result in overheating or fire.
• Allow batteries to cool for 15 minutes after charging or heavy use. Failure to follow these instructions may cause overheating or fire.
• Use only chargers recommended by the manufacturer to charge the batteries. If a charger is not suitable for a certain kind of battery there is a risk of fire.
  ■ Use power tools only with specifically designated battery packs.
  ■ Use of any other battery packs may create a risk of injury and fire.
• The device is designed for operation in altitudes of up to 2000 m above sea level. Keep the battery out of reach of children. When not in use batteries should be stored at room temperature (approx. 20°C).
• Do not open, disassemble, crush, heat above 60° C or incinerate. Do not dispose of in fire or similar.
• Keep the battery away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
  If used incorrectly, liquid may leak from the battery. Avoid contact with it. In case of accidental contact, rinse with water. If liquid contacts eyes,

additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Be careful when using the unit near flammable or easy fusible materials such as plastics or glass. Do not direct the unit for long time at the same place. Never point the running unit to people, animals, plants, flammable objects or liquids.
• Do not use the unit in explosive atmosphere.
• Be aware that heat may be conducted to combustible materials that are out of sight.
• Please note that poisonous gases may be emitted while removing paint. Use suitable inhalation protection and ensure adequate ventilation.
• Keep the air slots and the nozzle clean to avoid overheating the unit and to prevent from fire hazard.
  ■ Use original accessory only.
• Should the unit become damaged do not use it any further and have it repaired by a professional or contact our customer service. Do not disassemble the unit or try repairing it yourself.

Batteries do not belong in the household garbage.

For battery disposal please check with your local council.

VEILIGHEIDSINSTRUCTIES

Yellow triangular warning sign with black exclamation mark symbol

declare by our own responsibility that the product

12 V Cordless Drill WA2BS12

Article No. 94 92 32

is according to the basic requirements, which are defined in the European Directives and their amendments.

2011/65/EU

2011/65/EU

Restriction of the Use of certain hazardous Substances in electrical and electronic Equipment (RoHS)

2014/30/EU

2014/30/EU

The technical documentations are on file at the QA department of the Westfalia Werkzeug-company.

Hagen, 27 ^th of October, 2020

Thomas Klingbeil,

Jhomo Jclinsheil

Symbol of a trash bin with no text or numbers, enclosed in a rounded square frame (no readable text or labels)

Werter Kunde,

Please help avoid waste materials.

If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled. Please do not discharge it in the rubbish bin, but check with your local council for recycling facilities in your area.
