Product type	Battery charger
Brand	Ansmann
Model	Powerline 2
Power supply	100-240 V AC, 50/60 Hz, max. 70 mA
Charging current	70 mA per battery
Maximum charging capacity	420 mAh per battery
Compatible battery types	NiMH and NiCd 9 V (nominal voltage 8.4 V)
Number of slots	2, individual charging
Status display	Multicolor LED per slot: red (charging), green (full), blinking red (defective)
Protections	Voltage monitoring (-dU), safety timer, defective battery detection, reverse polarity protection
Functions	Smart charging, pulse maintenance charging, automatic start
Worldwide use	Yes, compatible with 100-240 V
Warranty	3 years
Maintenance and cleaning	Clean with a dry cloth, unplug before any maintenance
Safety	Do not open, protect from moisture, use only suitable batteries

Frequently Asked Questions - Powerline 2 ANSMANN

What types of batteries can I charge with the Powerline 2?

You can charge NiMH and NiCd 9 V batteries with a nominal voltage of 8.4 V. Never use other battery types (alkaline, lithium, etc.) risk of explosion.

How to connect the power plug?

Place the power plug onto the two contacts of the charger and push it until it clicks into place. To remove, press the release tab with a pen and pull.

What do the LED indicators mean?

Steady red LED: charging in progress. Steady green LED: battery fully charged, switches to maintenance charging. Flashing red LED: defective battery.

Can I charge only one battery at a time?

Yes, each slot is monitored independently. You can charge one or two batteries in any order.

Is the charger suitable for worldwide use?

Yes, it operates on an input voltage of 100-240 V AC, 50/60 Hz. Simply change the power plug according to the country.

How to know if a battery is defective?

The LED flashes red. Remove the battery and do not recharge it. Replace with a new one.

What is the recommended maximum battery capacity?

The charging current is 70 mA, so the recommended maximum capacity is 420 mAh for a charge time of about 7 hours.

Can I leave the batteries charging after they are full?

Yes, the charger automatically switches to pulse maintenance charging (green LED) to maintain the charge without overcharging.

What to do if the charger does not work?

Check the power outlet, connect the plug properly, and ensure you are using compatible batteries. If the LEDs do not light up, contact customer service.

How to maintain the charger?

Unplug it before any cleaning. Use a dry cloth to clean the contacts. Never use water or chemicals.

USER MANUAL Powerline 2 ANSMANN

Many thanks for choosing the POWERLINE 2 charger from ANSMANN. The operating instructions will help you to get the best from the functions of your new charger. We hope you enjoy this new charger.

Your ANSMANN Team

SAFETY INSTRUCTIONS

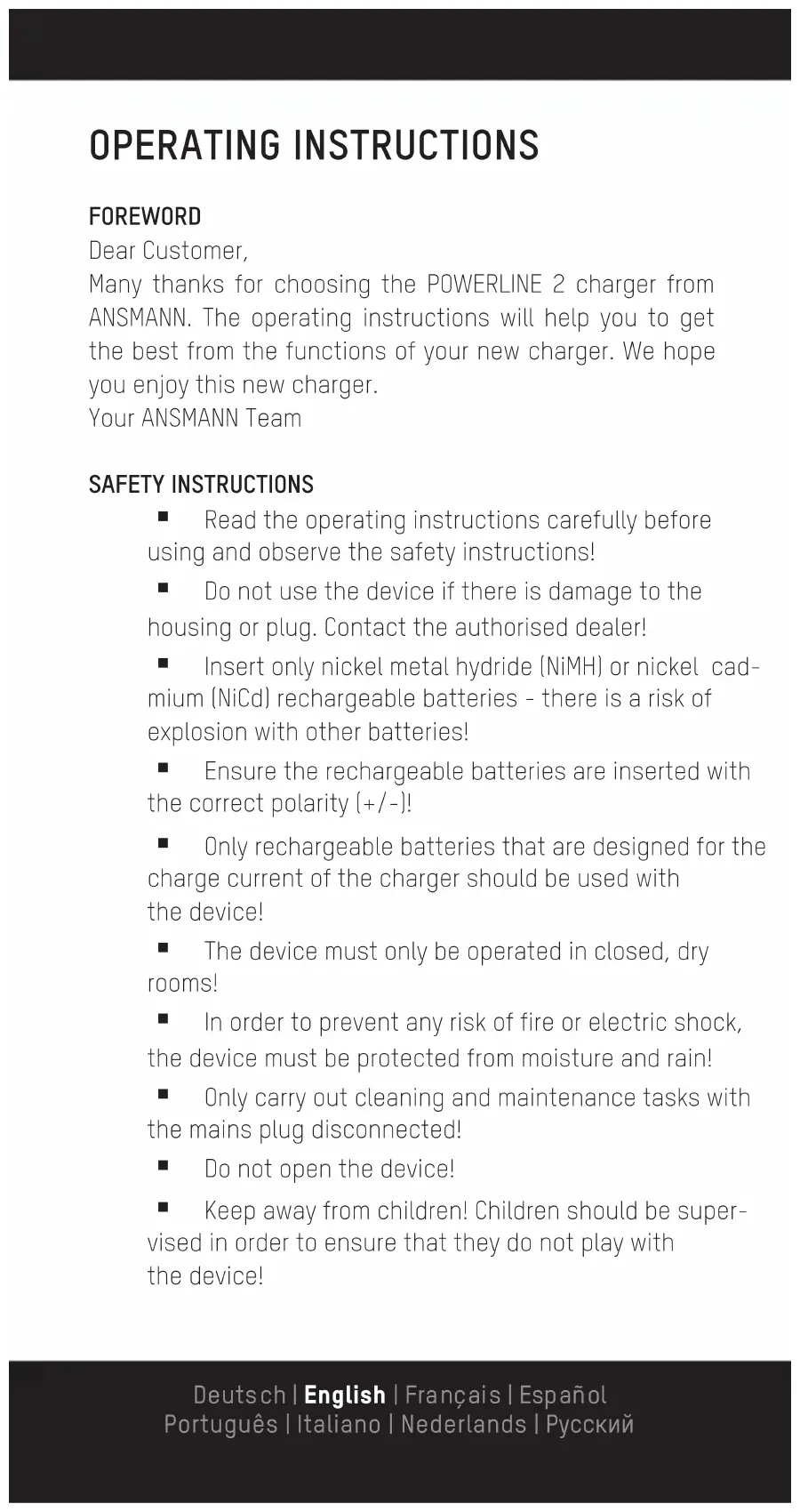

• Read the operating instructions carefully before using and observe the safety instructions!
• Do not use the device if there is damage to the housing or plug. Contact the authorised dealer!
• Insert only nickel metal hydride (NiMH) or nickel cadmium (NiCd) rechargeable batteries - there is a risk of explosion with other batteries!
• Ensure the rechargeable batteries are inserted with the correct polarity (+/-) !
  Only rechargeable batteries that are designed for the charge current of the charger should be used with the device!
  The device must only be operated in closed, dry rooms!
  In order to prevent any risk of fire or electric shock, the device must be protected from moisture and rain!
  Only carry out cleaning and maintenance tasks with the mains plug disconnected!
  Do not open the device!
• Keep away from children! Children should be supervised in order to ensure that they do not play with the device!

This device is not to be used by persons (including children) who have restricted physical, sensory or mental capabilities or who do not have adequate experience and knowledge in handling this device. Such persons must be instructed beforehand by a supervisory person who is responsible for their safety or must be supervised during the use of the device!

Failure to observe the safety instructions can result in dangerous injuries to persons or damage to the device or the rechargeable batteries!
We recommend using ANSMANN rechargeable batteries!

FUNCTIONAL OVERVIEW

Intelligent charger for 1-2 9V PP3 NiMH rechargeable batteries with 8.4V nominal voltage
Automatic charge start after rechargeable battery is inserted
Microcontroller-monitored charge control
Multiple over-charging protection through voltage monitoring (-dU) and safety timer
Fully-charged detection and automatic changeover to pulse maintenance charging
- Individual slot monitoring (separate charging for each rechargeable battery)
- Reverse polarity protection
Defective battery detection
■ Indication of the rechargeable battery status via a multicolour LED for each charge slot
Worldwide use (100V-240V AC / 50-60Hz)

USE

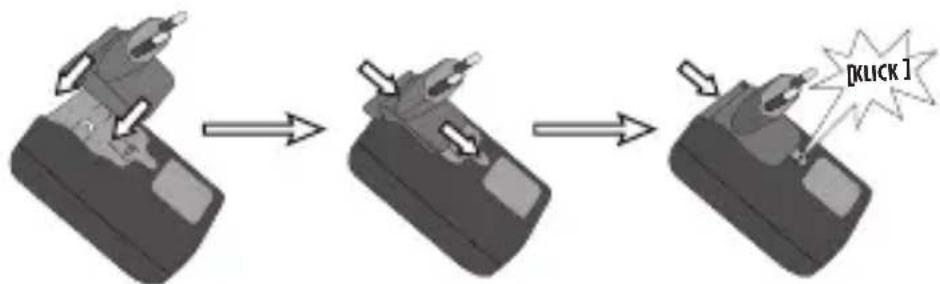

Fit the mains plug (different mains plugs may be included, e.g. Euro, UK, US or AU, depending on the design and the specific country variant) onto the two mains contacts and slide it on until it reaches the stop in the guide (see illustration). Ensure that the plug latches into place audibly when sliding on. The charger is now ready for use.

To release/change the mains plug, press the locking tab carefully (e.g. with a ballpoint pen) downwards a little and slide the plug back.

Plug the charger into a suitable mains outlet. The charger's readiness for operation is indicated by the brief illumination of both LEDs. You can insert one or two NiMH or NiCd 9V PP3 rechargeable batteries with a nominal voltage of 8.4V into the charge slots. Ensure that the rechargeable batteries are inserted with the correct polarity, matching with the symbol beside the charge slot. The charge process starts automatically and is indicated by the red LED for the respective slot illuminating. The rechargeable batteries do not need to be inserted at the same time as the charge process for each rechargeable battery is controlled independently. Warming of the rechargeable batteries during the charge process is normal. After successfully charging a rechargeable battery, the LED illuminates green and the charge process switches automatically to pulse maintenance charging. This function guarantees optimum performance and prevents the self-discharge of the rechargeable battery.

CHARGE STATUS INDICATION

LED illuminates red: Charging

LED illuminates green: Rechargeable battery fully

charged, maintenance charging

LED flashes red: Rechargeable battery faulty

ENVIRONMENTAL INFORMATION

The device should not be discarded in the normal household waste under any circumstances. Dispose of the device via an authorised disposal centre or your communal waste disposal facility. Observe the current applicable regulations. Contact your waste disposal facility in the event of any doubt. Dispose of all packaging materials via an environmentally friendly disposal facility. Rechargeable batteries must not be disposed of in the household waste. Return used rechargeable batteries to your dealer or hand them in to a battery collection facility.

MAINTENANCE / CARE

In order to ensure that the device continues to work without problems, please keep the contacts of the charger and the rechargeable batteries free of dirt and contaminants. Clean the device only when the mains plug is removed from the mains power and with a dry cloth.

TECHNICAL DATA

Input: 100-240V AC / 50-60Hz / max. 70mA

Charge current: 70mA / rechargeable battery

Max. chargeable capacity: 420mAh / rechargeable battery

LIMITATION OF LIABILITY

The information contained within these operating instructions can be changed without prior notification. ANSMANN accepts no liability for direct, indirect, incidental or other damage or consequential damage arising though

improper handling or through disregard of the information contained within these operating instructions.

GUARANTEE INFORMATION

The device has a three year guarantee. The guarantee does not apply to damage to the device arising through a failure to comply with the operating instructions or due to poor-quality rechargeable batteries.

Subject to technical changes. We assume no liability for printing errors. 04/2017
