Product type	LED strip with motion detector
Brand	Livarno Lux
Model	14146506L
Power supply	4 AAA 1.5 V batteries (DC 6 V)
Power	2 W
Number of LEDs	30 LEDs
Protection rating	IP20 (dry indoor use)
Detection range	4 m maximum
Detection angle	110°
LED lifespan	25,000 hours
Strip length	Shortenable (cuttable at markings)
Usage	Indoor, dry enclosed rooms
Package contents	LED strip, adhesive tape, 4 AAA batteries, instructions
Warranty	36 months
Maintenance and cleaning	Dry lint-free cloth, remove batteries before
Rechargeable batteries	Not allowed
Repairability	LEDs not replaceable, product to be replaced at end of life
Ambient temperature	Not specified, avoid extreme heat
Weight	Approx. 150 g (with batteries, estimated)

Frequently Asked Questions - 14146506L Livarno Lux

How to shorten the LED strip?

You can shorten the LED strip at the cutting marks located between the pads. Use scissors and seal the open end with the supplied adhesive tape. Remove the batteries before cutting.

How to install the LED strip?

Clean the mounting surface (dry, grease-free). Remove the protective film on the back of the strip and stick it firmly. Then attach the battery compartment with the adhesive tape. Ensure the motion sensor can detect movements.

How to replace the batteries?

Slide the battery compartment cover and remove it. Replace the used batteries with 4 new AAA batteries, observing polarity (+/-). Close the cover by sliding it until it clicks.

How does the motion detector work?

Set the switch to 'D' (Dynamic). The sensor detects movements within a 110° angle and a range of 4 m. The light turns on automatically for about 35 seconds. In 'M' mode, the detector is disabled and you use the ON/OFF switch.

Can I use rechargeable batteries?

No, do not use rechargeable batteries. Use only non-rechargeable AAA 1.5 V alkaline batteries.

How to clean the LED strip?

Before cleaning, remove the batteries. Use a dry, lint-free cloth. Do not use solvents, benzine, or similar products that could damage the product.

What to do if the LED strip does not light up?

Check that the batteries are correctly inserted (polarity) and not depleted. Ensure the switch is set to 'M' (manual mode) or 'D' (automatic) as needed. Replace the batteries if necessary.

How to dispose of the product and batteries?

Do not dispose of the device or batteries in household waste. Take used batteries to a designated collection point. The product must be recycled in accordance with local regulations. The packaging is recyclable.

What is the lifespan of the LEDs?

The LEDs have a lifespan of approximately 25,000 hours. They are not replaceable; when the lamp reaches the end of its life, it must be replaced entirely.

How to benefit from the warranty?

The warranty is 36 months from the date of purchase. Keep the receipt and the IAN reference 387210_2110. In case of a defect, contact customer service at 00800/27456637 (toll-free) or by email at [e-mail].

USER MANUAL 14146506L Livarno Lux

Black-and-white photo of a closet with hanging clothes and a ceiling-mounted LED array (no visible text or symbols)

LED-LICHTBAND MIT BEWEGUNGSSENSOR / LED LIGHT STRIP WITH MOTION SENSOR / RUBAN LED AVEC DÉTECTEUR DE MOUVEMENTS

DE AT CH

LED LYSBÅND MED BEVÄGELSESSENSOR

LED LIGHT STRIP WITH MOTIONSENSOR

Installation, operating and safety information

NL BE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE Installation, operating and safety information Page 13

Intended use......Page 14

Scope of delivery Page 15

Parts description Page 15

Technical data......Page 15

Safety Page 15

Safety instructions......Page 15

Safety instructions for batteries/rechargeable batteries Page 16

Initial use Page 17

Inserting / replacing batteries......Page 17

Trimming the LED tape Page 17

Installing the LED strip Page 17

Switching the LED strip on/off......Page 18

Motion sensor......Page 18

Maintenance and cleaning......Page 18

Disposal Page 18

Warranty and service......Page 18

Warranty Page 18

Service address......Page 19

Declaration of conformity....Page 19

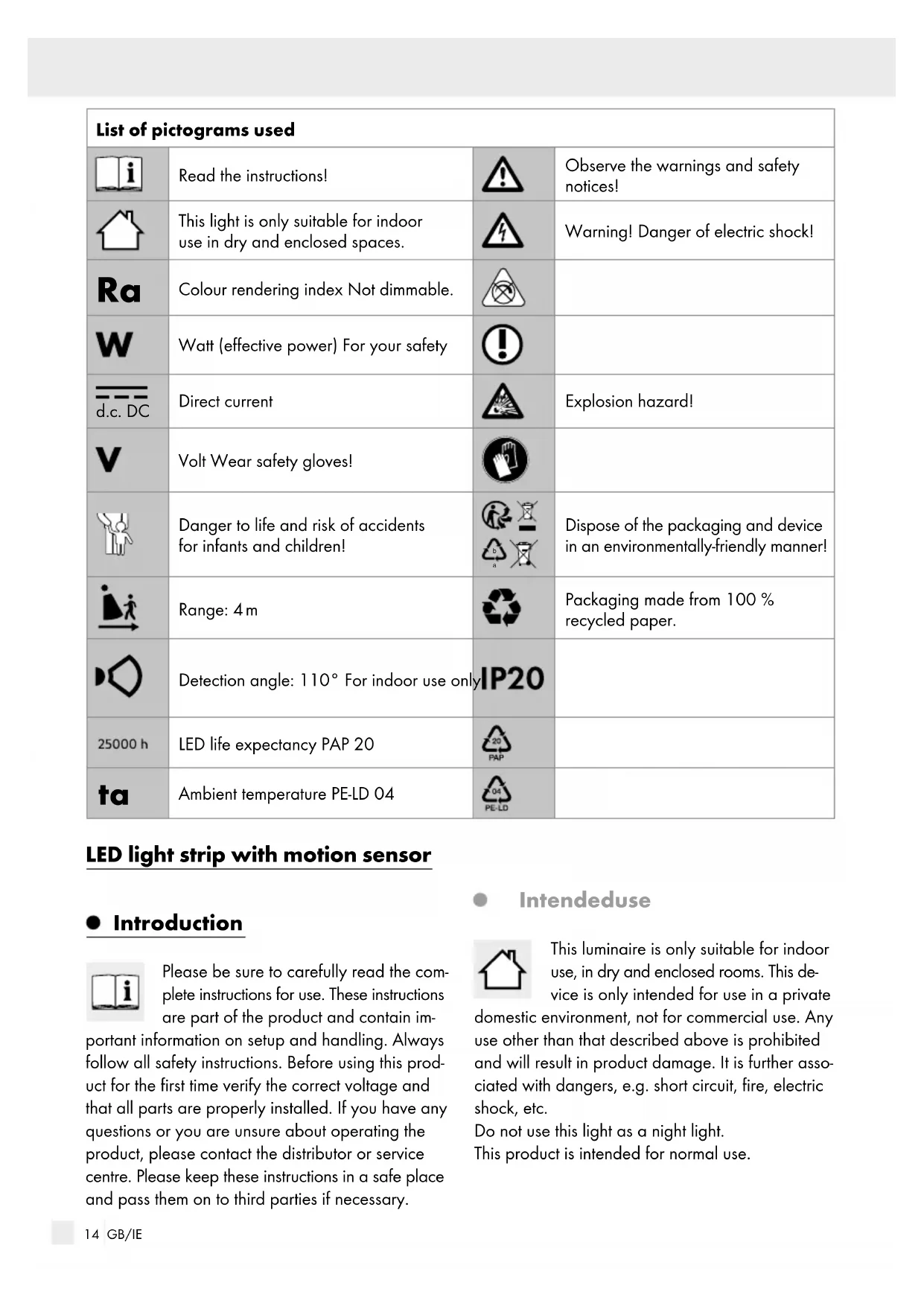

List of pictograms used
	Read the instructions!		Observe the warnings and safety notices!
	This light is only suitable for indoor use in dry and enclosed spaces.		Warning! Danger of electric shock!
	Colour rendering index Not dimmable.
	Watt (effective power) For your safety
	Direct current		Explosion hazard!
	Volt Wear safety gloves!
	Danger to life and risk of accidents for infants and children!		Dispose of the packaging and device in an environmentally-friendly manner!
	Range: 4 m		Packaging made from 100 % recycled paper.
	Detection angle: 110° For indoor use only
25000 h	LED life expectancy PAP 20
	Ambient temperature PE-LD 04

LED light strip with motion sensor

- Introduction

Please be sure to carefully read the complete instructions for use. These instructions are part of the product and contain im-

portant information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. If you have any questions or you are unsure about operating the product, please contact the distributor or service centre. Please keep these instructions in a safe place and pass them on to third parties if necessary.

Intendeduse

This luminaire is only suitable for indoor use, in dry and enclosed rooms. This device is only intended for use in a private

domestic environment, not for commercial use. Any use other than that described above is prohibited and will result in product damage. It is further associated with dangers, e.g. short circuit, fire, electric shock, etc.

Do not use this light as a night light.

This product is intended for normal use.

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 LED rope light
1 adhesive strip
4 batteries 1.5 V AAA
1 set of assembly instructions and instructions for use

Partsdescription

1 Sliding switch (Setting "D" or "M" possible)
2 Battery compartment
3 Battery
4 Battery cover
5 Adhesive strip (Reverse side of battery compartment)
6 ON/OFF button
7 Motion sensor
8 Protective film (Reverse side of LED strip)
9 LED strip
10 Adhesive strip (for LED strip)

- Technicaldata

LED Strip:

Model number: 14146506L

Operating voltage: DC 6 V = 2 W

Batteries: 4 x 1.5 Vd.c. AAA

Illuminant: 30 LEDs

Total wattage: 2 W

Protection type: IP20

Range of the motion

detector: max. 4 m

Detection angle: 110^

- Safety

Safety instructions

Damage due to failure to comply with these instructions for use will void the warranty! We assume no liability for consequential damages! We assume no liability for property damage or personal injury due to improper handling or failure to comply with the safety instructions!

DANGER TO LIFE AND ACCIDENT HAZARD FOR TODDLERS AND SMALL CHILDREN!

Never leave children unsupervised with the packaging materials. The packaging material poses a suffocation hazard. Children frequently underestimate dangers. Please always keep the product out of the reach of children.

This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.

Avoid the risk of fatal injury from electric shock

- Check the LED strip for damage before every use. Never use the LED strip if any damage is detected.

CAUTION!

In the case of damage, repairs or other problems, please contact the service centre or a qualified electrician. If the cable is damaged, the appliance must be disposed of. The appliance contains no parts which may be serviced by the consumer.

■ Never allow the live power leads and contacts to come into contact with water or other liquids.
Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
Do not install the lamp on damp or conductive surfaces.
Do not install the LED strip in a flammable, explosive or corrosive environment.
This LED strip must not be connected electronically with other LED strips.

• Protect the product from sharp edges, mechanical loads and hot surfaces.
• Do not secure with sharp staples or nails.
  ■ Remove the batteries from the battery compartment prior to assembly, disassembly or cleaning.
  ■ Never touch the battery compartment or the LED strip with wet hands.
  ■ Only use the individual parts supplied, otherwise all warranty claims will become invalid.
• Do not operate the LED strip in its packaging. Otherwise there is the risk of overheating.
• Do not operate the LED strip if it is covered with objects or wound around a wheel.
• Do not use rechargeable batteries.
  The light source in this light cannot be replaced. If the light source has reached the end of its operating life, the entire light must be replaced.
• Do not open or cut open/slit open the light strip.
• Avoid excessive bending of the LED strip.
• Do not use the LED strip if it is covered with objects or is inlaid in a surface.

Prevent fire and injury hazards

This product does not contain any parts that can be serviced by the user. The LEDs cannot be replaced.
If the LEDs cease to function at the end of their operational life, the entire item must be replaced.
■ The integrated LEDs are not

dimmable.

Do not look into the LED from a close distance during operation.
Do not look at the LED with an optical instrument (e.g. magnifier).

Safe working

• Do not leave the LED strip or packaging material lying unattended. The packaging material presents a suffocation hazard and there is a risk of loss of life from strangulation.
• Install the light so that it is protected from dirt and excessive heating.

■ Always be attentive! Always pay attention to what you are doing and use common sense. Never use the LED strip if you are having difficulty concentrating or do not feel well.
Before use, familiarise yourself with all the instructions and diagrams in these instructions, as well as with the LED strip itself.
In order to disconnect the LED strip completely from the power supply, the batteries must be removed from it.
■ Do not use this light as a night light.

Safety instructions for batteries/rechargeable batteries

■ DANGER TO LIFE!

Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

■ Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion.

DANGER OF EXPLOSION!

Never recharge non-rechargeable batteries. Do not short-circuit batteries/rechargeable batteries and/or open them. Overheating, fire or bursting can be the result.

- Never throw batteries / rechargeable batteries into fire or water.

Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention.

WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

In the event of a battery leak, immediately remove it from the product to prevent damage.
Only use the same type of batteries / rechargeable batteries. Do not mix used and new batteries/rechargeable batteries.
■ Remove the batteries / rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

Only use the specified type of battery / rechargeable battery!
- Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
Use a dry lint-free cloth or cotton swab to clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries/rechargeable batteries from the product immediately.

- Initial use

☐ Remove all packaging materials before first use.

- Inserting / replacing batteries

☐ Slide the battery cover 4 in the direction of the arrow and remove it.
☐ Insert the batteries into the battery compartment 2 while taking the polarity into account (+ and -).
☐ Only use batteries 3 specified in the chapter "Technical Data".
☐ Slide the battery cover 4 back on in the opposite direction to the arrow.

Hint: Make sure that the battery cover is securely locked in place.

- Trimming the LED tape

The LED strip can be trimmed.

WARNING! DANGER TO LIFE BY ELECTRIC SHOCK!

Before doing any work on the LED strip 9 remove the batteries 3 from the battery compartment 2.

☐ Choose the desired LED strip length.

Note: Ensure that you cut the LED strip at the right place. The cutting point lies exactly between the plus and minus pole and is marked with a black line.

f □ Shorten the LED strip 9 using a pair of scissors.
☐ Be sure to cover the open end of the LED strip 9 with the adhesive strip 10 before use.

- Installing the LED strip

Note: Ensure that the installation area is clean, grease-free and dry. Otherwise the functionality of the adhesive strip may be impaired.

☐ Choose a suitable installation area (window etc.).
☐ Remove the protective film 8 from the reverse side of the LED strip 9.

Note: When removing the protective film 8, make sure to start from the side of the supply cable. Make sure that you do not also peel away the adhesive coating when removing the protective film 8.

☐ Stick the LED strip 9 with the adhesive strip onto the installation area and press it on firmly.
☐ Remove the protective film from the adhesive strip 5 on the reverse side of the battery compartment 2.
☐ Stick the battery compartment 2 to the installation surface.

Note: Make sure that the sliding switch can be operated.

☐ Ensure that the motion sensor 7 can detect movement.

Your lamp is now ready to use.

- Switching the LED strip on / off

☐ If the sliding switch 1 is set to "M", you can manually switch the LED strip 9 on and off.

☐ The motion sensor is deactivated.

☐ Switch the LED strip 9 on and off using the ON/OFF button 6.

- Motion sensor

The LED strip 9 is equipped with a motion sensor 7. You can activate this motion sensor 7 by setting the sliding switch 1 to "D" ("Dynamic"). The motion sensor has a maximum range of 4 m. The light turns on for approx. 35 seconds.

The ON/OFF button 6 is deactivated.

● Maintenance and cleaning

WARNING! DANGER TO LIFE BY ELECTRIC SHOCK!

Before doing any work on the LED strip 9 remove the batteries 3 from the battery compartment 2.

• Do not use solvents, benzene or similar substances. They could damage the light.
  ☐ Use a dry, lint-free cloth to clean the LED strip 9.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibre-board / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Per Directive 2006/66/EC and its amendments, defective or used batteries must be recycled. Return the batteries and / or the product to a collection site.

Improper disposal of batteries can harm the environment!

Never dispose of batteries in your household waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore return used batteries to your local collection site!

● Warranty and service

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect during the warranty period, please send the appliance to the listed Service Centre address, referencing the following item number: 14146506L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

Serviceaddress

Free service number:

Tel.: [phone]

IAN 387210_2110

Please have your receipt and the item number (IAN 387210_2110) ready as your proof of purchase when enquiring about your product.

Declaration of conformity

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

CE

NOSTE OCHRANNÉ RUKAVICE!

NOSTE OCHRANNÉ RUKAVICE!
