USER MANUAL Oxygen 101s ARCHOS

Package contents. 2
Getting started. 3
Description of the device. 4
Through the wizard. 6
Connecting to a WiFi network.. 7
The AndroidTM interface. 8
Getting familiar with AndroidTM 12
Troubleshooting. 14

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. Your deal may be no big deal. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide. Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

Package Content

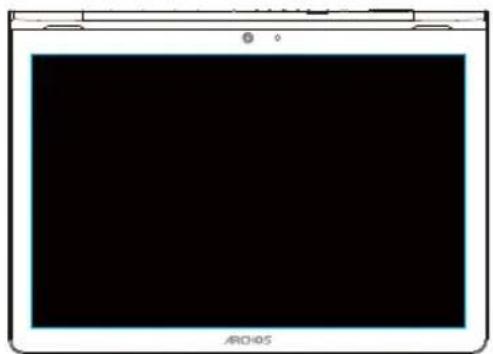

ARCHOS 101 Oxygen

QSG booklet

Warranty, legal & safety booklet

USB cable

Charger

2

Getting Started

Charging

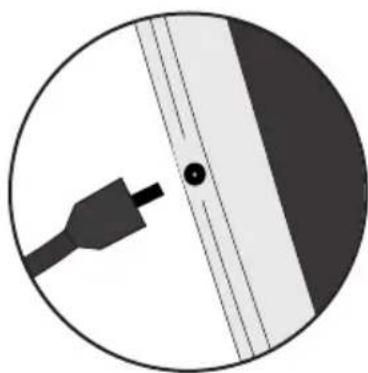

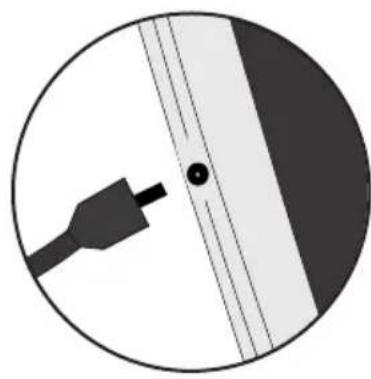

1. Charge your device by plugging your power cable into the power connector. The ARCHOS device will start charging.
2. Press the Power button to turn on the device. The charging indicator light is on when the battery is charging.

-You can use your ARCHOS whilst it charges.
- Let your device charge completely the first time you use it.
- Use only the supplied charger.

When your device is completely discharged, you need to charge it for at least 10 minutes before the charging battery icon can be displayed.

TIP:

To receive more complete service, please register your product.

From a computer, go to www.archos.com/register.

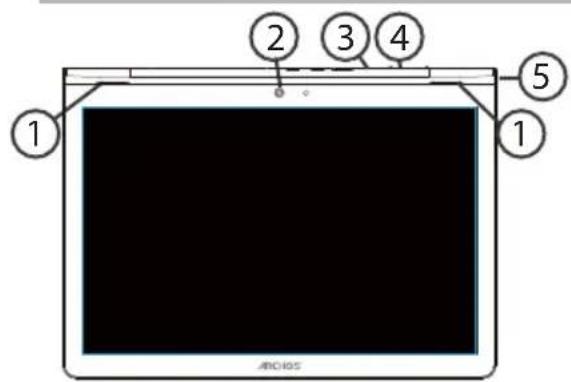

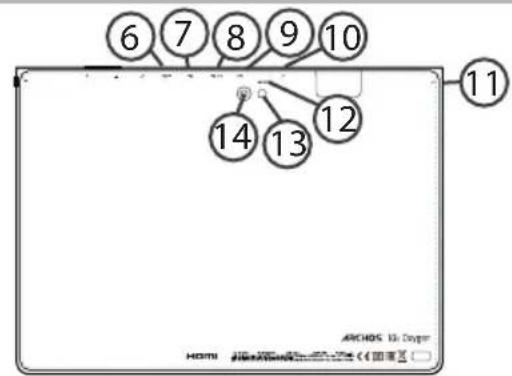

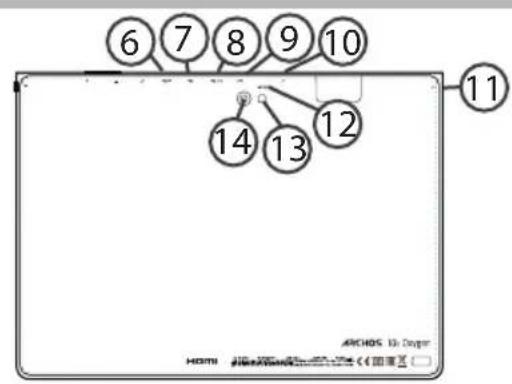

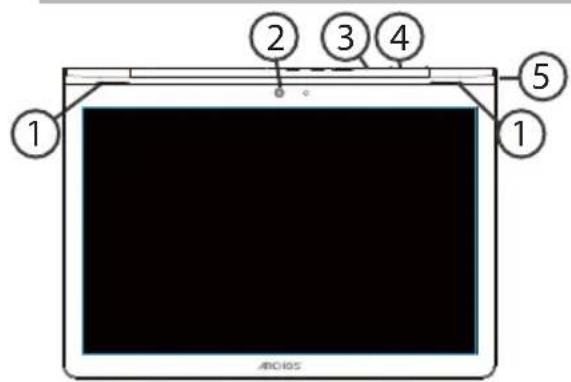

Description of the device

1 Loudspeaker

6 Mini-HDMI video output(1)

11 Headphone jack

② Front camera

Micro-USB port

12 Reset button

Volume buttons

Micro-USB host port(2)

13 Flash light

4 Power connector

9 Microphone

Back camera

ON/OFF button

Micro-SD card slot

(1)With optional Mini-HDMI to HDMI cable. (2)Connect a keyboard, a mouse or a mass storage USB device using the optional USB host adapter

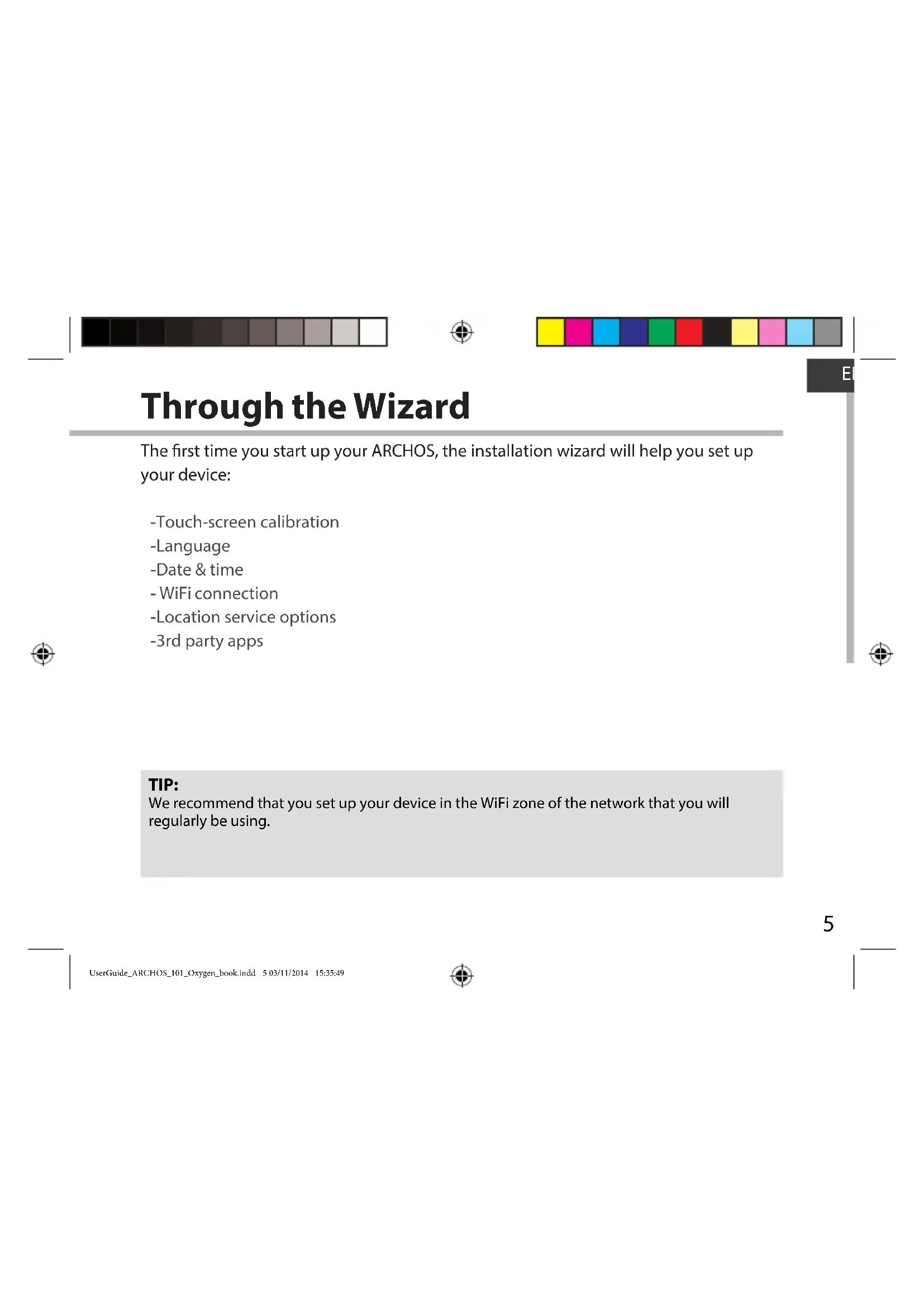

Through the Wizard

The first time you start up your ARCHOS, the installation wizard will help you set up your device:

-Touch-screen calibration
-Language
-Date & time
- WiFi connection
-Location service options
-3rd party apps

TIP:

We recommend that you set up your device in the WiFi zone of the network that you will regularly be using.

Connecting to a WiFi Network

CAUTION: Make sure that you are in a WiFi zone.

Touch and hold the time & battery icons to reveal the status bar. A blue line is displayed.

② Pull the blue line down to display the status dashboard.

③ Touch "WiFi off" in the status dashboard. The WiFi page will be displayed.

④ Slide the WiFi switch to "ON" positon.

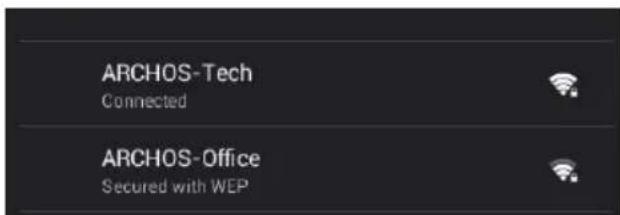

The ARCHOS will scan for Wifi networks in range. Touch the name of network you want to connect to.

Private networks are shown with a lock icon and will require you to enter your password.

TIPS:

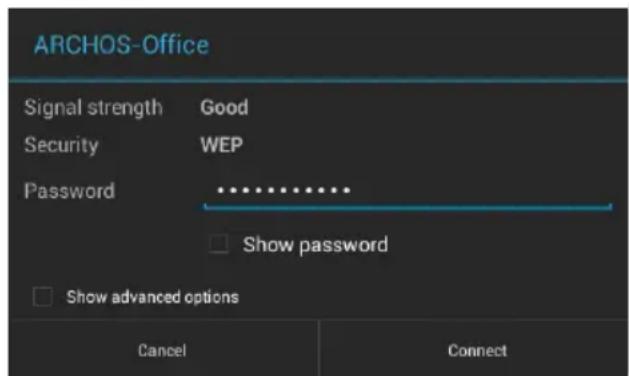

• When entering a WiFi password, we recommend that you select "Show password" so you can see the characters you are typing. To get the correct WiFi password (or settings) for the network, contact the WiFi network provider. If your WiFi is on and you are in range of a network that you previously connected to, your ARCHOS will automatically attempt to connect to it.
• To keep your WiFi connection ON when the device is on sleep, select the Menu icon in the "WiFi" page. Then, select Advanced > Keep WiFi on during sleep > Always.

The Android™ Interface

8

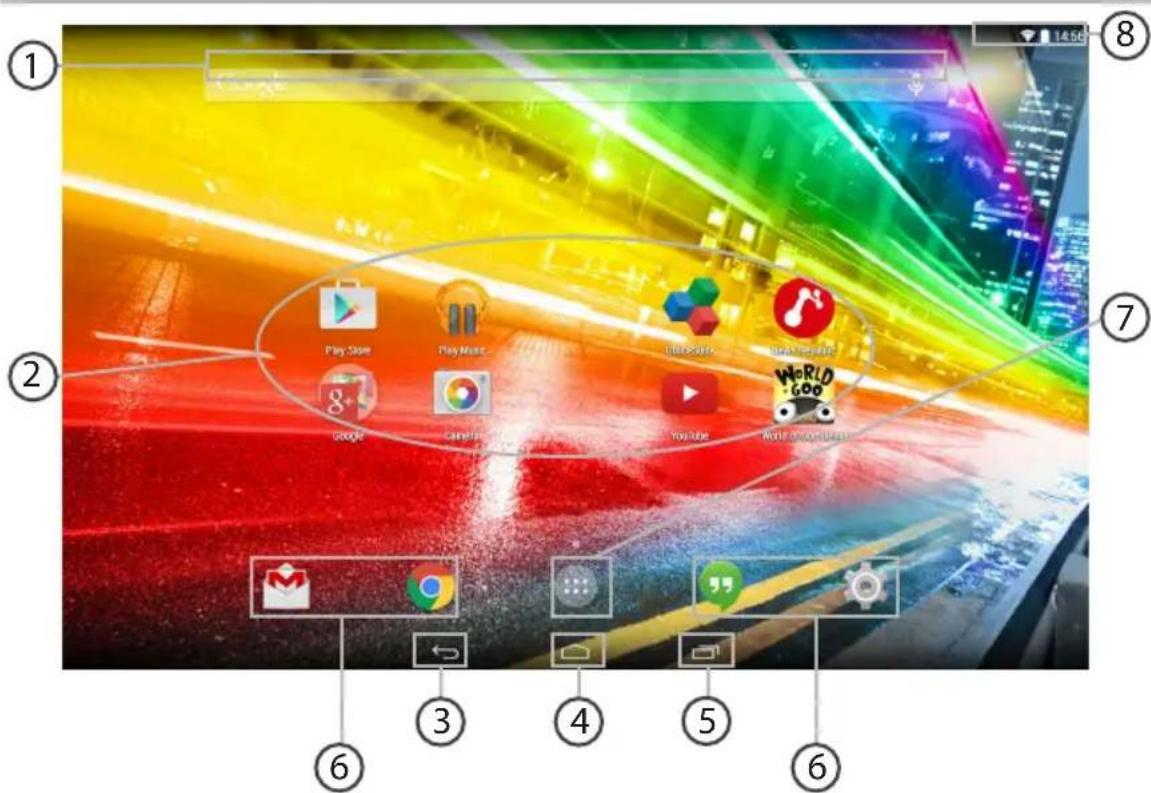

GoogleTM Search

Touch "Google" for text search or touch the microphone icon for voice search.

2 AndroidTM apps shortcuts

Touch to start an application.

Back button

Home button

⑤ Recent apps buttons

Permanent Android™ apps shortcuts

Touch to start an application

All Apps button

Touch this icon to show all the applications and widgets installed on your

ARCHOS. All your downloaded applications are here.

The status bar

Displays notifications and quick settings

The Android™ Interface

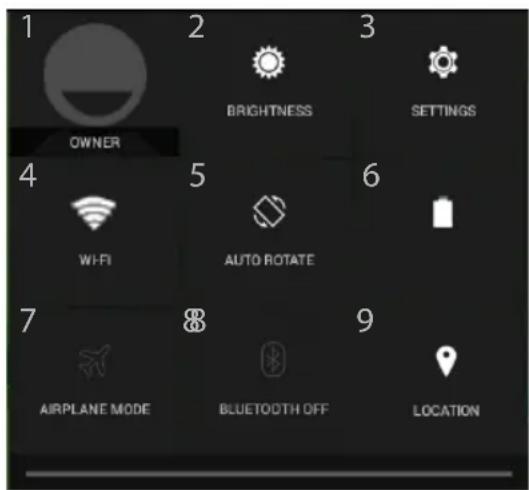

The Quick settings

1 Current user
2 To adjust the screen brightness.
3 To access all your settings.
4 To turn on/off your WiFi connection.
5 To activate/deactivate automatic screen orientation as you turn your ARCHOS.
6 Percentage of battery remaining
7 To activate/deactivate all wireless connections, especially when flying.
8 To turn on/off your Bluetooth connection.
9 Location services

*New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.

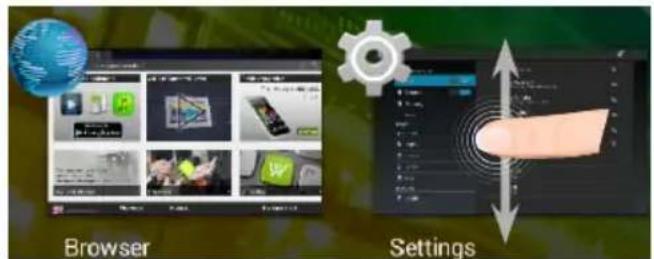

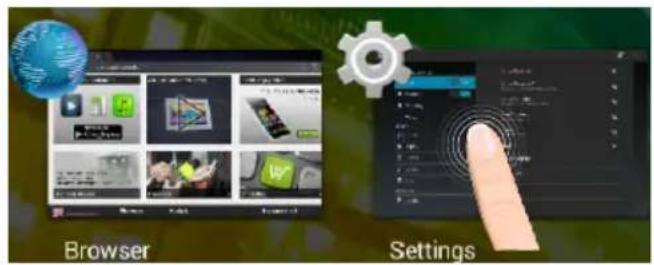

The Recent Apps

Opens a list of thumbnail images of apps you've worked with recently:

Touch: to open an app.

Hold down: to display options

Swipe up or down: to close an app.

Getting familiar with Android™

The extended home screen:

Navigate between different home screen panels by swiping left and right.

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

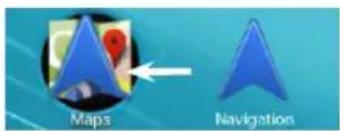

Uninstalling an item:

From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

12

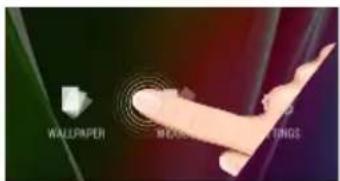

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

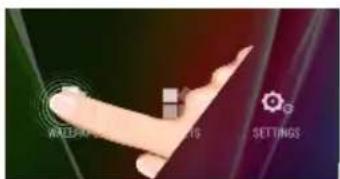

Widgets:

Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Locking the touchscreen:

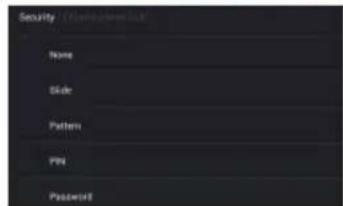

In Settings, scroll down and touch security. Touch Screen lock. Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, PIN or other specified key.

Troubleshooting

If your device is frozen:

Press the ON/OFF button for 10 seconds.

If your device doesn't turn on:

1. Charge your device.
2. Press the ON/OFF button for 10 seconds.

If you want to extend the life of your battery:

Decrease the screen brightness and turn off the wireless connections if not in use.

If your device functioning is too slow:

Close all apps which are not currently used.

If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Update the firmware of the device: http://www.archos.com/support.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.
