Product Type	Graphics Tablet
Brand	ARCHOS
Model	Access 101 WiFi
Operating System	Android
Screen Size	10.1 inches
Screen Resolution	1024 x 600 pixels (estimated)
Processor	Quad-core 1.3 GHz (estimated)
RAM Memory	1 GB (estimated)
Internal Storage	16 GB eMMC (estimated)
WiFi Connectivity	WiFi 802.11 b/g/n (2.4 GHz)
Bluetooth	Bluetooth 4.0
Front Camera	0.3 megapixel (estimated)
Rear Camera	2 megapixels (estimated)
Battery	Lithium-ion 5000 mAh (estimated)
Charging	Micro-USB, AC adapter
Ports	Micro-USB, 3.5 mm headphone jack, microSD card slot
Sensors	Accelerometer
Dimensions (approx.)	240 x 170 x 10 mm
Weight (approx.)	500 g
Maintenance and Cleaning	Clean with a soft, dry cloth; do not use abrasive products or liquids.
Security	Locking by PIN, password, or pattern; Android Device Manager for location and remote wipe.
Warranty	2 years (European legal compliance)

Frequently Asked Questions - Access 101 WiFi ARCHOS

How to turn on the ARCHOS Access 101 WiFi tablet?

Press and hold the ON/OFF button for a few seconds until the screen lights up. If the battery is discharged, plug in the charger first.

How to insert a microSD card?

Locate the microSD card slot on the side of the device. Insert the card with the gold contacts facing down until it clicks. Refer to the diagram in the user manual for more details.

How to reset the tablet to factory settings?

Go to Settings > Backup & Reset > Reset device. Confirm the action. Your data will be erased.

How to charge the battery?

Connect the provided micro-USB cable to the tablet and the AC adapter, then plug the adapter into a power outlet. Allow it to charge fully before first use.

How to connect to WiFi?

In Settings > Network & Internet > WiFi, turn on WiFi and select your network. Enter the password if necessary.

What to do if the tablet becomes unresponsive?

Press and hold the ON/OFF button for 10 seconds to force a restart. If this does not work, use the Reset button located near the micro-USB port with a paperclip.

How to update the system?

Go to Settings > About tablet > Update to check for an update. Follow the on-screen instructions to install it.

How to schedule automatic shutdown and startup?

Go to Settings > Power On/Off Scheduling (or equivalent). Set the shutdown and startup times. This feature helps save battery.

How to locate or lock the tablet if lost?

Use the Android Device Manager service on a web browser (https://www.google.com/android/devicemanager). Sign in with your Google account to locate, lock, or remotely erase the device.

How to clean the tablet screen?

Use a soft, lint-free cloth slightly dampened (preferably a microfiber cloth). Never use abrasive products, alcohol, or solvents. Wipe gently without pressing.

USER MANUAL Access 101 WiFi ARCHOS

Congratulations for the purchase of an ARCHOS device! This quick start guide helps you to start using your device properly. If you have more questions concerning the use of your device, visit us at:

twitter.com/archos

www.facebook.com/archos

Blog

https://blog.archos.com/

http://faq.archos.com/

www.archos.com, click Support > After-sales support

www.archos.com, click Support > Downloads > Declaration of conformity

As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this quick start guide.

Unboxing

Blank rectangular frame with rounded corners and a label 'ARCHS' at the bottom (no other text or symbols)

ARCHOS Access 101 WiFi

Quick start guide

Warranty, legal and safety notice

Charger adapter

Charging cable

Your device is running Android operating system. Updates could be offered to improve the device's performance. To check if any update is available, go to: Settings > About tablet > Check for update.

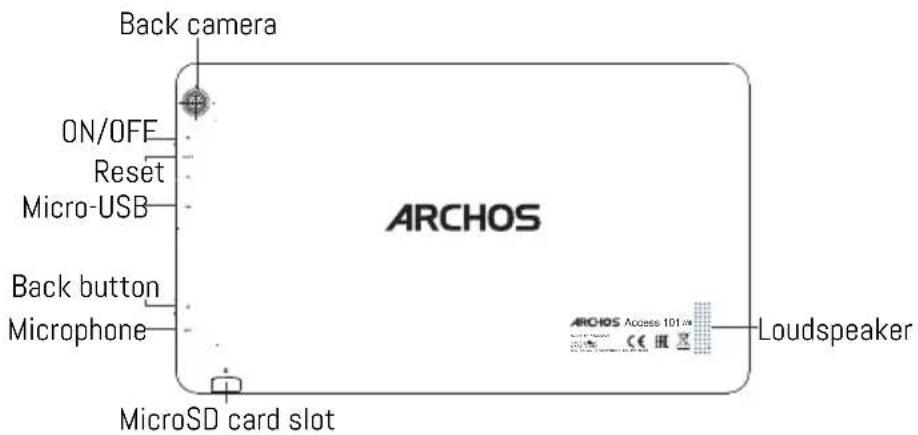

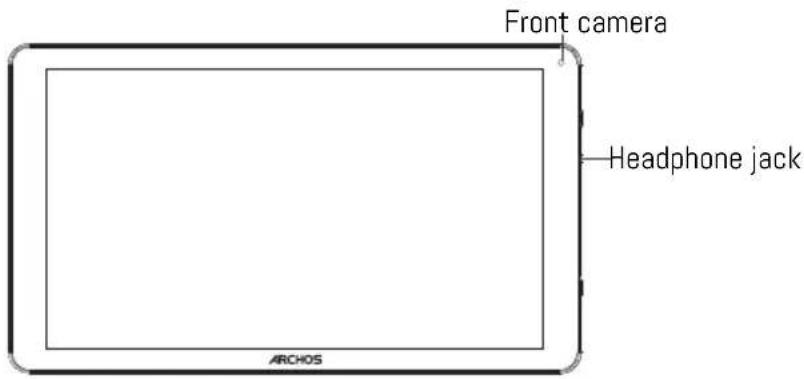

Describing your device

Front camera Headphone jack ARCHOS

Back camera ON/OFF Reset Micro-USB ARCHOS Back button Microphone MicroSD card slot ARCHOS Access 101.0V Loudspeaker

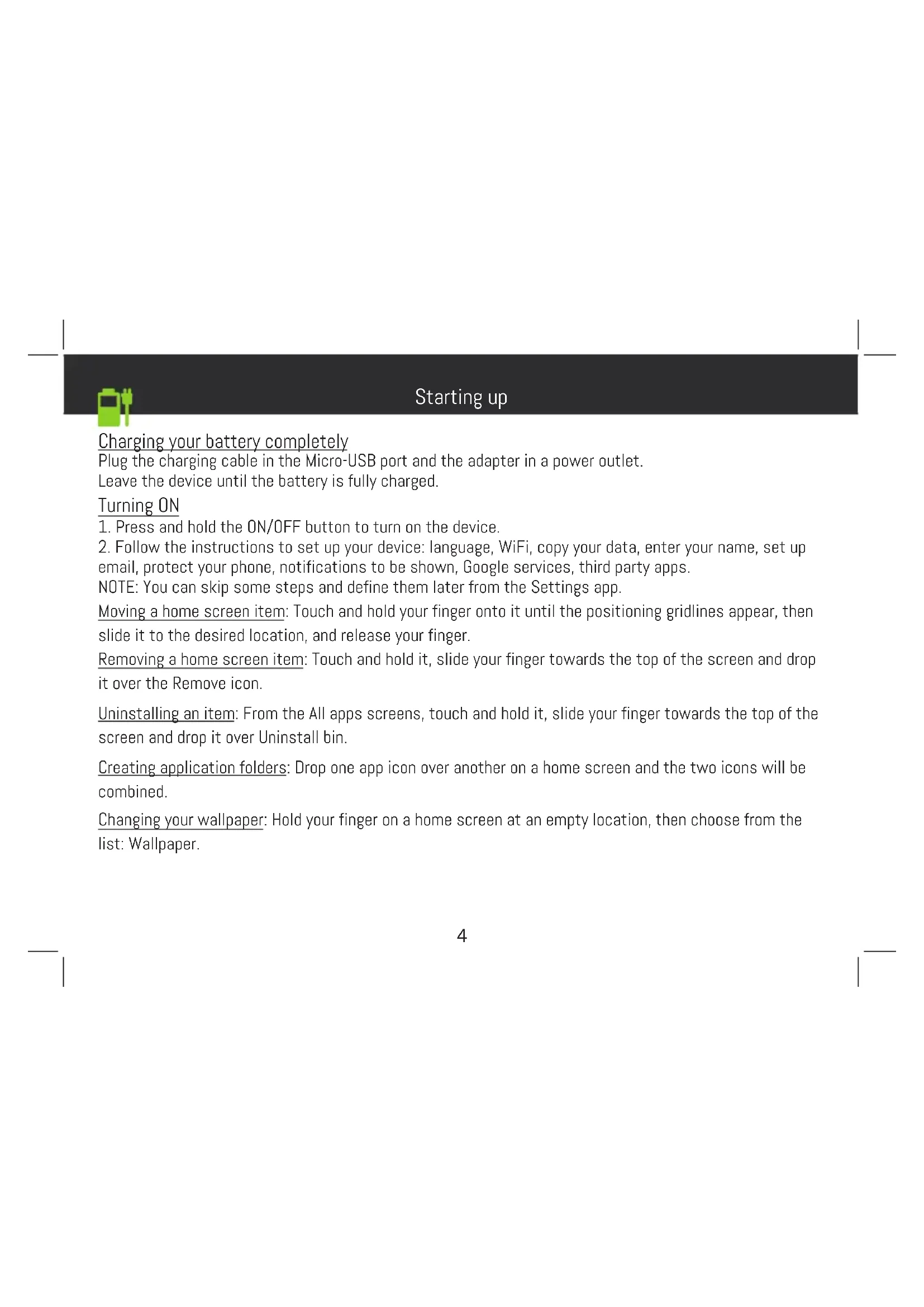

Starting up

Charging your battery completely

Plug the charging cable in the Micro-USB port and the adapter in a power outlet.

Leave the device until the battery is fully charged.

Turning ON

1. Press and hold the ON/OFF button to turn on the device.
2. Follow the instructions to set up your device: language, WiFi, copy your data, enter your name, set up email, protect your phone, notifications to be shown, Google services, third party apps.
   NOTE: You can skip some steps and define them later from the Settings app.

Moving a home screen item: Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item: Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item: From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders: Drop one app icon over another on a home screen and the two icons will be combined.

Changing your wallpaper: Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Hints & tips

Widgets: Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Securing your device: Define a lock screen to protect your privacy. Select the Settings app, then Security.

Choose a screen lock.

Android device manager: When your device is lost, you can use the android device manager page (https://www.google.com/android/devicemanager) to erase all your contents, to lock the device, to locate the device or to make it ring.

Scheduled power on&off: Schedule power on & off to set when the device turns off and turn on. For example, you can set it for sleep time.

Troubleshooting

• If your device is frozen:
  Press the ON/OFF button for 10 seconds or use the reset button.

• If your device doesn't turn on:

• Charge your device.

• Press the ON/OFF button for 10 seconds.
• If your device functioning is too slow:
  Close all apps which are not currently used.

- If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.

- If your device has dysfunctions:

Reinitialize your device. Go to Settings > Backup & reset > Factory data reset. If you can't have access to the settings for any reason, consult our FAQs about the reinitialization process.

For more answers about your technical difficulties, do not hesitate to visit: faq.archos.com

Contactez-nous

www.archos.com, click Support > After-sales support

Blank rectangular frame with rounded corners and a small 'APCOS' label at the bottom (no other text or symbols)

ARCHOS Access 101 WiFi

Blank rectangular frame with rounded corners and a 'ARCHS' label at the bottom (no other text or symbols)

ARCHOS Access 101 WiFi

Benutzerhandbuch

Blank rectangular frame with rounded corners and a label 'ARCHS' at the bottom (no other text or symbols)

ARCHOS Access 101 WiFi

Guía de usuario

Blank rectangular frame with rounded corners and a label 'ARCHS' at the bottom (no other text or symbols)

ARCHOS Access 101 WiFi

Guida dell'utente

Blank rectangular frame with rounded corners and a label 'ARCHS' at the bottom (no other text or symbols)

ARCHOS Access 101 WiFi

Blank rectangular frame with rounded corners and a label 'ARCHS' at the bottom (no other text or symbols)

ARCHOS Access 101 WiFi

Guia do usuário

Blank rectangular frame with rounded corners and a 'APCOS' watermark at the bottom (no other text or symbols)

ARCHOS Access 101 WiFi

Краткое руководство

Blank rectangular frame with rounded corners and a central label 'ARCHOS' at the bottom (no other text or symbols)

Blank rectangular frame with rounded corners and a small 'APC05' label at the bottom (no other text or symbols)

ARCHOS Access 101 WiFi

Blank rectangular frame with rounded corners and a 'APCOS' watermark at the bottom (no other text or symbols)

ARCHOS Access 101 WiFi

Blank rectangular frame with no text, numbers, or symbols inside the frame (no readable content)

ARCHOS Access 101 WiFi

Blank rectangular frame with rounded corners and a 'APCOS' watermark at the bottom (no other text or symbols)

ARCHOS Access 101 WiFi

Krátky návod

Blank rectangular frame with rounded corners and a label 'ARCHS' at the bottom (no other text or symbols)

ARCHOS Access 101 WiFi

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 2014/53/EU) without any limitation except for the countries mentioned below:

Country	Restriction	Reason/remark
Bulgaria	None	General authorization required for outdoor use and public service
Italy	None	If used outside of own premises, general authorization is required.
Luxembourg	None	General authorization required for network and service supply (not for spectrum)
Norway Implemented		This subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund
Russian None		Only for indoor applications
Federation

ARCHOS company (Contact address : ARCHOS SA 12 Rue Ampère 91430 Igny France) declares that this tablet ARCHOS Access 101 Wifi is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU: https://www.archos.com/products/conformity.html

EU Declaration of Conformity

Manufacturer Name:	ARCHOS S.A.
Address:	12,rue Ampere 91430 Igny, France
Equipment
Product Description:	10.1" WiFi Tablet AC101ASWFV2
Model/Type: Brand	ARCHOS
Name: Accessories:	USB Cable, AC/DC Adapter
Software version*:	V05
*Note: Updated software will be released by manufacturer to fix bugs and improve the performance after the product placed on the market. All updated versions released by the manufacturer have been verified to be complied with the applicable regulations. All RF parameters (e.g., RF power, frequency) are not accessible to end users and cannot be changed by any third parties.
We, ARCHOS S.A. hereby declare under our sole responsibility that the above named product(s) conform to the essential requirements of the following European Union directives:
Radio Equipment Directive (RED)	2014/53/EU
Ecodesign Requirements for Energy	2009/125/EC
RoHS Recast Directive	2011/65/EU
The following harmonized standards and normative documents are those to which the product's conformance is declared, and by specific reference to the essential requirements of the referenced Directives:
Health & Safety(Article 3.1(a) of RED)	EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
	EN 62479:2010
EMC(Article 3.1(b) of RED)	Draft EN 301 489-1 v2.2.0 (2017-03)
	Draft EN 301 489-17 V3.2.0 (2017-03)
	EN 55032:2015
	EN 55035:2017
	EN 61000-3-2:2014
	EN 61000-3-3:2013
Spectrum(Article 3.2 of RED)	EN 300 328 V2.1.1 (2016-11)
Product is CE-marked in	Europe
	Signed for and on behalf	Archos SA
	Date of issue:	2019.04.16	Place of issue:	Shenzhen, China
	Name:	Jacky Wu	Position:	General Manager
	Signature
