Product type	Tablet
Brand	Archos
Model	101f Neon
Operating System	Android (estimated version 8.1 Oreo)
Screen	10.1 inches (estimated diagonal)
Dimensions (L x W x H)	240 x 170 x 10 mm (estimated)
Weight	500 g (estimated)
Power supply	5V power adapter via micro-USB cable
Battery	Built-in rechargeable lithium-ion battery
Front camera	Yes
Rear camera	Yes
Connectivity	WiFi 802.11 b/g/n (estimated)
Ports	3.5 mm headphone jack, micro-USB, microSD card slot
Speaker	Built-in
Buttons	Power, Reset, Back (capacitive)
Main functions	Internet browsing, Android applications, camera, video/audio playback, games
Maintenance and cleaning	Use a soft, dry cloth. Do not use chemical products.
Security	Screen lock via code or pattern, Android Device Manager
Spare parts and repairability	Not user repairable. Contact ARCHOS customer service.
General information	Manufactured by ARCHOS SA, France. Compliant with directive 2014/53/EU.

Frequently Asked Questions - 101f Neon ARCHOS

How to turn on the Archos 101f Neon tablet?

Press and hold the Power button on the side of the device for a few seconds until the screen turns on. Then follow the on-screen instructions to set up the tablet.

How to charge the battery?

Plug the provided micro-USB cable into the micro-USB port of the tablet, then connect the other end to the power adapter. Plug the adapter into an electrical outlet. It is recommended to fully charge the battery before first use.

What to do if the tablet does not turn on?

Make sure the battery is charged. Plug the tablet into the charger and wait a few minutes. If it still does not turn on, press and hold the Power button for 10 seconds or use the Reset button located next to the micro-USB port.

How to reset the tablet to factory settings?

Go to Settings > Backup & reset > Reset your device. Confirm the operation. This will erase all your personal data. If you cannot access settings, visit faq.archos.com for the hardware reset procedure.

How to increase battery life?

Reduce screen brightness, disable WiFi and Bluetooth when not in use, close unnecessary applications, and activate Power saving mode in battery settings.

How to connect to a WiFi network?

Go to Settings > WiFi, turn on WiFi, then select your network from the list. Enter the password if necessary. If the connection is weak, move closer to the WiFi router.

How to insert a microSD card?

Locate the microSD card slot on the side of the tablet. Gently insert the card with the contacts facing down until it clicks. To remove, push it until it unlocks.

How to take a screenshot?

Simultaneously press and hold the Power button and the Volume down button for about 2 seconds. The screenshot will be saved in the gallery.

How to update the Android system?

Go to Settings > About tablet > Update. The device will check for an available update. If an update is available, follow the on-screen instructions to install it. Make sure you have a stable WiFi connection and sufficient battery.

How to use Android Device Manager if lost?

Log in to https://www.google.com/android/devicemanager with your Google account associated with the tablet. You can locate the device, make it ring, lock it, or erase all its data remotely.

USER MANUAL 101f Neon ARCHOS

Congratulations for the purchase of an ARCHOS device! This quick start guide helps you to start using your device properly. If you have more questions concerning the use of your device, visit us at:

twitter.com/archos

www.facebook.com/archos

Blog

https://blog.archos.com/

http://faq.archos.com/

www.archos.com, click Support > After-sales support

www.archos.com, click Support > Downloads > Declaration of conformity

As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this quick start guide.

Unboxing

Blank rectangular frame with rounded corners and a label 'ARCHS' at the bottom (no other text or symbols)

ARCHOS 101f Neon

Quick start guide

Warranty, legal and safety notice

Charger adapter

Charging cable

Your device is running Android operating system. Updates could be offered to improve the device's performance. To check if any update is available, go to: Settings > About tablet > Check for update.

Describing your device

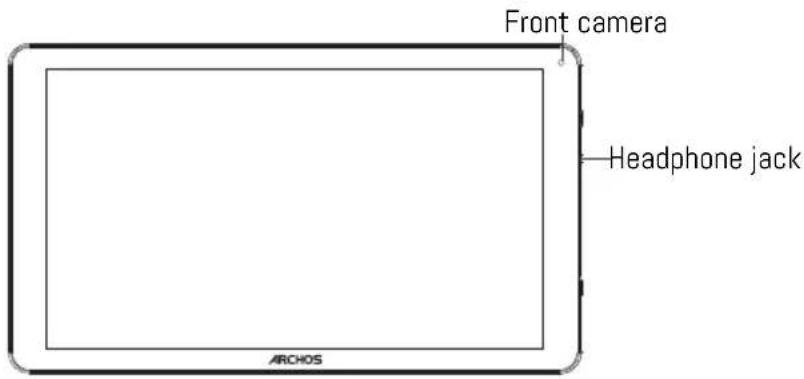

Front camera Headphone jack ARCHOS

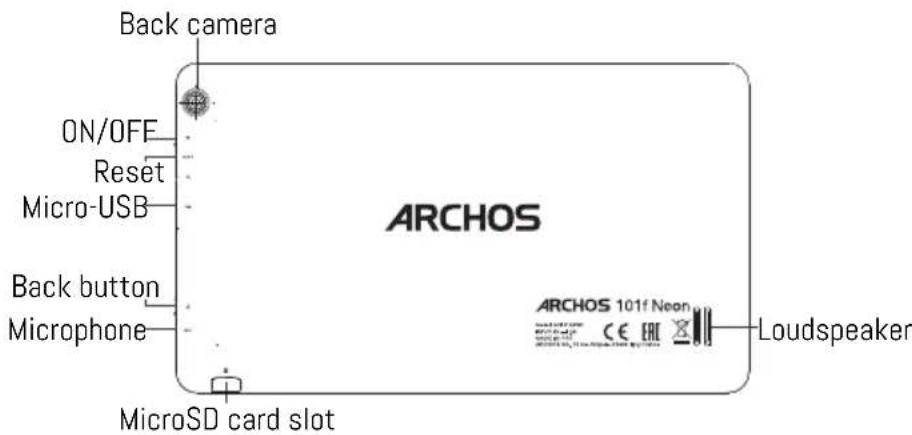

Back camera ON/OFF Reset Micro-USB ARCHOS ARCHOS 101f Neon Loudspeaker Micro-USB Back button Microphone MicroSD card slot

Starting up

Charging your battery completely

Plug the charging cable in the Micro-USB port and the adapter in a power outlet.

Leave the device until the battery is fully charged.

Turning ON

1. Press and hold the ON/OFF button to turn on the device.
2. Follow the instructions to set up your device: language, WiFi, copy your data, enter your name, set up email, protect your phone, notifications to be shown, Google services, third party apps.
   NOTE: You can skip some steps and define them later from the Settings app.

Moving a home screen item: Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item: Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item: From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders: Drop one app icon over another on a home screen and the two icons will be combined.

Changing your wallpaper: Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Hints & tips

Widgets: Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Securing your device: Define a lock screen to protect your privacy. Select the Settings app, then Security. Choose a screen lock.

Android device manager: When your device is lost, you can use the android device manager page (https://www.google.com/android/devicemanager) to erase all your contents, to lock the device, to locate the device or to make it ring.

Scheduled power on&off: Schedule power on & off to set when the device turns off and turn on. For example, you can set it for sleep time.

Troubleshooting

-If your device is frozen:

Press the ON/OFF button for 10 seconds or use the reset button.

-If your device doesn't turn on:

1. Charge your device.

2. Press the ON/OFF button for 10 seconds.

-If your device functioning is too slow:

Close all apps which are not currently used.

-If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.

-If your device has dysfunctions:

Reinitialize your device. Go to Settings > Backup & reset > Factory data reset. If you can't have access to the settings for any reason, consult our FAQs about the reinitialization process.

For more answers about your technical difficulties, do not hesitate to visit: faq.archos.com

Contactez-nous

www.archos.com, click Support > After-sales support

Blank rectangular frame with rounded corners and a label 'ARCHS' at the bottom (no other text or symbols)

ARCHOS 101f Neon

Blank rectangular frame with rounded corners and a label 'ARCHS' at the bottom (no other text or symbols)

ARCHOS 101f Neon

Benutzerhandbuch

Blank rectangular frame with rounded corners and a label 'ARCHS' at the bottom (no other text or symbols)

ARCHOS 101f Neon

Guía de usuario

Blank rectangular frame with rounded corners and a label 'ARCHS' at the bottom (no other text or symbols)

ARCHOS 101f Neon

Guida dell'utente

Blank rectangular frame with rounded corners and a label 'ARCHS' at the bottom (no other text or symbols)

ARCHOS 101f Neon

Blank rectangular frame with rounded corners and a label 'ARCHS' at the bottom (no other text or symbols)

ARCHOS 101f Neon

Guia do usuário

Blank rectangular frame with rounded corners and a label 'APC02A' at the bottom (no other text or symbols)

ARCHOS 101f Neon

Краткое руководство

Blank tablet screen with rounded corners and 'ARCHOS' watermark at bottom (no other text or symbols)

Blank rectangular frame with rounded corners and a small 'APC05' label at the bottom (no other text or symbols)

ARCHOS 101f Neon

Blank rectangular frame with rounded corners and a 'APCOS' watermark at the bottom (no other text or symbols)

ARCHOS 101f Neon

Blank rectangular frame with no text, numbers, or symbols inside the frame (no readable content)

ARCHOS 101f Neon

Blank rectangular frame with rounded corners and a 'APCOS' watermark at the bottom (no other text or symbols)

ARCHOS 101f Neon

Krátky návod

Blank rectangular frame with rounded corners and a label 'ARCHS' at the bottom (no other text or symbols)

ARCHOS 101f Neon

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 2014/53/EU) without any limitation except for the countries mentioned below:

Country Restriction Reason/remark

Bulgaria None General authorization required for outdoor use and public service

France Outdoor use limited to 10

mW e.i.r.p. within the band

2454-2483.5 MHz

Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation

planned 2012

Italy None If used outside of own premises, general authorization is required.

Luxembourg None General authorization required for network and service supply (not for spectrum)

Norway Implemented This subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund

Russian None Only for indoor applications

Federation

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Archos company (Contact address : ARCHOS SA 12 Rue Ampère 91430 Igny France) declares that this tablet ARCHOS 101f

Neon is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU:

https://www.archos.com/products/conformity.html

https://www.archos.com/products/conformity.html

WLAN
Standard	Frequency	Max EIRP (dBm)
802.11b/g	2412 ~ 2472 MHz	12.12
802.11n – HT20	2412 ~ 2472 MHz	10.38
802.11n – HT40	2422 ~ 2462 MHz	9.33
Bluetooth
Bluetooth Version	Frequency Range	Max EIRP (dBm)
BDR	2402 ~ 2480 MHz	6.27
BLE	2402 ~ 2480 MHz	6.31
