49300 - Humidifier TREBS - Free user manual and instructions

Brand	Trebs
Model	49300
Product type	Smart humidifier
Dimensions (L×W×H)	318 × 150 × 290 mm
Weight	2.1 kg
Power supply	220-240 V ~ 50 Hz
Power consumption	21 W
Coverage area	Up to 40 m²
Noise level	32 dB
Humidification technology	Cold water evaporation
Tank capacity	Not specified, do not exceed MAX level
Number of speeds	3: Low, Medium, High
Connectivity	WiFi 802.11 b/g/n 2.4 GHz, compatible with Smart Life app
Indicator lights	WiFi, speed, water level
Smart features	Smartphone control, scheduling, modes
Safety	Automatic shut-off when tank is empty? (not specified), do not immerse, do not use by children under 8 years
Maintenance	Cleaning recommended every 3 days; use distilled water preferably
Warranty	24 months
Included accessories	User manual, power adapter? (not listed)
Country of manufacture	Not specified

Frequently Asked Questions - 49300 TREBS

How to connect the Trebs 49300 to the Smart Life app?

Turn on the humidifier and press and hold the button for 7 seconds until the WiFi indicator blinks. Open the Smart Life app, tap '+' then 'Auto Scan'. Select the detected device and follow the instructions.

What type of water to use in the humidifier?

It is strongly recommended to use clean distilled or descaled water to prevent limescale deposits. Hard water can leave white particles on furniture.

How to clean the Trebs 49300 humidifier?

Turn off and unplug the device. Empty the water from the tank and base. Clean all parts with a clean cloth every 3 days for hygiene reasons.

What is the power consumption of the device?

The power consumption is 21 W at a voltage of 220-240 V ~ 50 Hz.

What to do if the humidifier does not turn on?

Check that the outlet works and the cord is not damaged. Make sure the water tank is properly placed and the water level does not exceed MAX. If the problem persists, contact customer service.

Can the humidifier be used in a child's room?

This product is not suitable for children under 8 years. It must be used under adult supervision.

How to change the speed of the humidifier?

Press the mode button repeatedly to switch between Low, Medium, and High. The indicators show the active mode.

Does the water tank have a specified capacity?

The exact capacity is not specified in the manual. It is indicated not to exceed the MAX level to avoid overflow.

How to reset the humidifier or reconnect it to WiFi?

Press and hold the button for 7 seconds to activate pairing mode. In the app, delete the device and repeat the adding procedure.

Does the humidifier make a loud noise?

The noise level is 32 dB, which is very quiet, comparable to a whisper.

USER MANUAL 49300 TREBS

White rectangular electronic device with a circular top and side panel, no visible text or symbols.

Smart Humidifier Manual Handleiding intelligente luchtbevochtiger Bedienungsanleitung Smarter Luftbefeuchter Mode d'emploi de l'humidificateur intelligent Manual del humidificador inteligente Umidificatore Smart: manuale d'uso Smart luftfuktare – manual Akıllı Hava Nemlendirme Cihazı Kullanma Kılavuzu

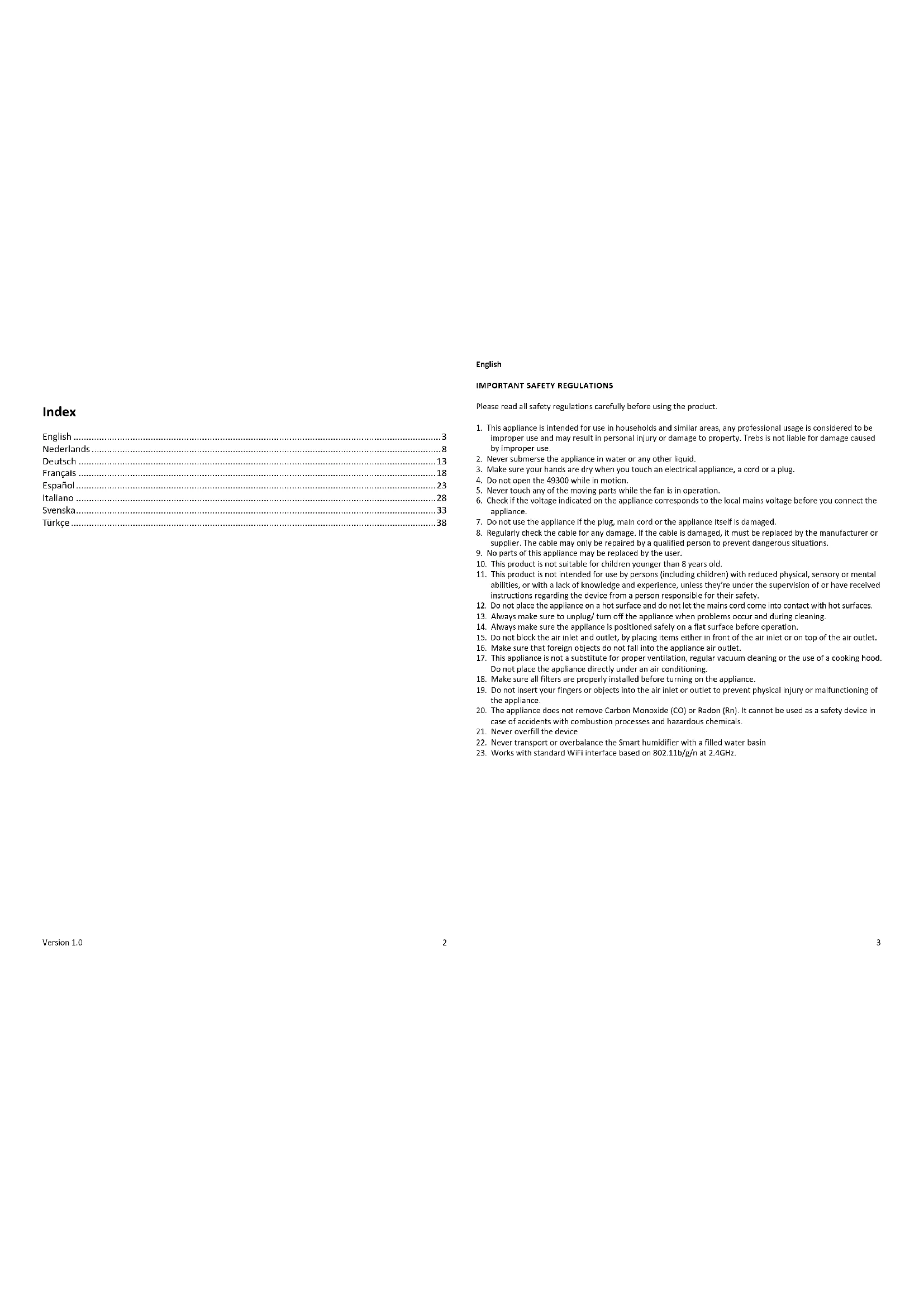

Index

English 3

Nederlands 8

Deutsch 13

Français 18

Español 23

Italiano 28

Svenska....33

Türkçe 38

English

IMPORTANT SAFETY REGULATIONS

Please read all safety regulations carefully before using the product.

1. This appliance is intended for use in households and similar areas, any professional usage is considered to be improper use and may result in personal injury or damage to property. Trebs is not liable for damage caused by improper use.
2. Never submerse the appliance in water or any other liquid.
3. Make sure your hands are dry when you touch an electrical appliance, a cord or a plug.
4. Do not open the 49300 while in motion.
5. Never touch any of the moving parts while the fan is in operation.
6. Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the
7. Do not use the appliance if the plug, main cord or the appliance itself is damaged.
8. Regularly check the cable for any damage. If the cable is damaged, it must be replaced by the manufacturer or
   supplier. The cable may only be repaired by a qualified person to prevent dangerous situations.
9. No parts of this appliance may be replaced by the user.
10. This product is not suitable for children younger than 8 years old.
11. This product is not intended for use by persons (including children) with reduced physical, sensory or mental abilities, or with a lack of knowledge and experience, unless they're under the supervision of or have received instructions regarding the device from a person responsible for their safety.
12. Do not place the appliance on a hot surface and do not let the mains cord come into contact with hot surfaces.
13. Always make sure to unplug/ turn off the appliance when problems occur and during cleaning.
14. Always make sure the appliance is positioned safely on a flat surface before operation.
15. Do not block the air inlet and outlet, by placing items either in front of the air inlet or on top of the air outlet.
16. Make sure that foreign objects do not fall into the appliance air outlet.
17. This appliance is not a substitute for proper ventilation, regular vacuum cleaning or the use of a cooking hood.
    Do not place the appliance directly under an air conditioning.
18. Make sure all filters are properly installed before turning on the appliance.
19. Do not insert your fingers or objects into the air inlet or outlet to prevent physical injury or malfunctioning of
    the appliance.
20. The appliance does not remove Carbon Monoxide (CO) or Radon (Rn). It cannot be used as a safety device in
    case of accidents with combustion processes and hazardous chemicals.
21. Never overfill the device
22. Never transport or overbalance the Smart humidifier with a filled water basin
23. Works with standard WiFi interface based on 802.11b/g/n at 2.4GHz.

COMPONENTS

Technical line drawing of a three-layered electronic device casing with internal components (no text or symbols)

BEFORE FIRST USE

Check if all accessories are complete and undamaged.

Remove all packaging materials from the 49300.

Read the user manual carefully and keep it for future reference.

INSTALLING THE SMARTLIFE APP

Download & Registration

1. Scan the QR code or download the Smart Life App from the App Store or Google Play.
2. Once downloaded, open the Smart Life app.
3. Tap Register to create a new Smart Life account using your email account or telephone number.
4. Sign in using your account.

Make sure you are connected to WiFi when adding the 49300.

ADDING NEW DEVICES.

Open the Smart Life App, choose "add device" or "+" in the top right corner of the App home page. You can select one of two methods to connect with the 49300.

• Auto Scan (Recommended)
• Add manually

Auto Scan

1. Make sure you are connected to WiFi and that Bluetooth is on.
2. Turn on the 49300 and activate the WiFi function by long pressing the button for 7 seconds. The top indicator light will blink indicating the 49300 can be paired with the Smart Life app.
3. In the app start screen, press "+" in the top right corner and select Auto Scan. The app will scan the area for Smart life applicable devices.

All smart devices compatible with the Smart Life app will appear on screen.

1. Make sure only the Trebs Pro-5 Wifi is checked, and press "+" WiFi device.
2. The app confirms the connection has been made and the 49300 has been added to your Smart Life account.
3. Press next to continue or change the name by tapping the pencil next to the Pro-5 Wifi.
4. Once finished, the Smart Life app will automatically open the Trebs 49300 control panel.

Add 49300 manually (AP mode)

1. Make sure you are connected to WiFi and that Bluetooth is on.
2. Turn on the 49300 and activate the WiFi function by long pressing the button for 7 seconds until the top indicator light is blinking.
3. In the App start screen press "+" in the top right corner and select add device manually.
4. Select "small household appliances" in the group list overview and select "Humidifier" in the product section.
5. Confirm that the WLAN symbol is blinking slowly on the 49300.
6. The 49300 (Pro-5 Wifi) will auto register to your account.
7. Press next to continue or change the name by tapping the pencil next to the Pro-5 Wifi.
8. Once finished, the Smart Life app will automatically open the Trebs 49300 control panel.

OPERATIONS INSTRUCTIONS

Attention

It is highly recommended to use clean distilled or descaled water.

The Trebs 49300 works through cold water vaporation. When using regular hard water, the mist could contain small limescale particles which could affect the surface of furniture and floors around the Humidifier.

1. Open the top cover and add water into the water tank. The water tank should never exceed the MAX water level. Using clean distilled or descaled water is highly recommended.
2. Put the top cover back in place and carefully place the water tank on top of the base unit.
3. Plug in the electrical power socket. After a couple of seconds the indicator light will light up for about 1 second, indicating the 49300 has entered stand by mode.
4. Press the button to activate the 49300, the default starting mode is low setting.
5. Pressing the mode repeatedly will switch between modes in the following cycle: Low -> Medium -> High -> Off The current mode can be identified with the indicator lights being on.

○——Indicator light 2

○——Indicator light 1

Mode Low: Indicator 1

Mode Medium: Indicator 2

Mode High: Indicator 1 + 2

Water level indicator light

When the 49300 is operational, the water indicator light can be turned on/off manually by pressing and holding the button for 2 seconds.

CLEANING THE 49300

Due to proper hygiene it is recommended to thoroughly clean the Trebs 49300 every 3 days. Clean the 49300 thoroughly before storing the device for a longer period.

1. Turn off the 49300 and unplug the power cord.
2. Open the top cover and pour out the remaining water in the water tank and base unit.
3. Clean the base unit, water tank and top lid with a clean cloth.

DISCARDING OLD EQUIPMENT

Old electric and electronic devices often contain valuable materials. However, they also contain harmful substances that were necessary for their functionality and safety. If these are placed with the non-recyclable waste or disposed of incorrectly, they can be harmful to human health and the environment. Never place your device with the non-recyclable waste.

REMARK

• Use the collection points available in your community and recycle old electric and electronic devices.
  Contact your town hall, the local waste disposal company or your dealer for more information.
• Make sure that your old device, until it's picked up, is safely stored out of reach of children.

WARRANTY

• We provide a warranty of 24 months for this product. The warranty starts on the date of purchase and is intended for faults due to production or the used materials.
• Your statutory warranty rights in accordance with § 439 ff. BGB-E will remain unaffected by this.
• The warranty does not apply to damages as a result of improper handling or use, nor to malfunctions that only have a minor effect on the functionality or value of the product. Normal wear and tear, transport damage, to the extent that we are not responsible for this, as well as damages caused by repairs not performed by us, are also excluded from the warrant.
  • This device is designed for household use and has the right performance levels.
• Any use in commercial situations is only covered by the warranty if the device is not put under a heavier strain that in a household situation. The device is not intended for additional commercial use.
• In the case of well-founded complaints, we will repair the defective device at our discretion or replace it with a device that shows no problems.

All possible manufacturing faults must be reported within 14 days of delivery. All further claims are excluded. When invoking the warranty, please contact us first before sending us the product (you must always provide us with proof of purchase).

TECHNICAL DETAILS

- Model: 49300 - Smart Humidifier

• Voltage: 220V-240V; 50Hz
• Power consumption: 21 W
• Work area: <40m²
• Noise: 32Db
• Product dimensions: 318*150*290 mm
• Weight: 2.1 kg

SERVICE

If you have any further questions regarding the product after having read the user's manual, please contact the Trebs customer service:

CE Regulations

Hereby, Trebs B.V., Thermiekstraat 1a, 6361 HB Nuth, The Netherlands, declares that this product is in compliance with the essential EU directive requirements.

The declaration of conformity may be consulted via [e-mail]

http://DOC.hesdo.com/49300-DOC.pdf

CE

Nederlands

BELANGRIJKE VEILIGHEIDSVOORSCHRIFTEN

Technical line drawing of a three-tiered electronic device casing with internal components (no text or symbols)

Technical line drawing of a three-part electronic device casing with internal components (no text or symbols)

Technical line drawing of a three-tiered electronic device casing with internal components (no text or symbols)

AVANT LA PREMIÈRE UTILISATION

Technical line drawing of a three-part electronic device casing with internal components (no text or symbols)

INSTALLAZIONE DELL'APP SMART LIFE

Technical line drawing of a three-part electronic device casing with internal components (no text or symbols)

FÖRE FÖRSTA ANVÄNDNING

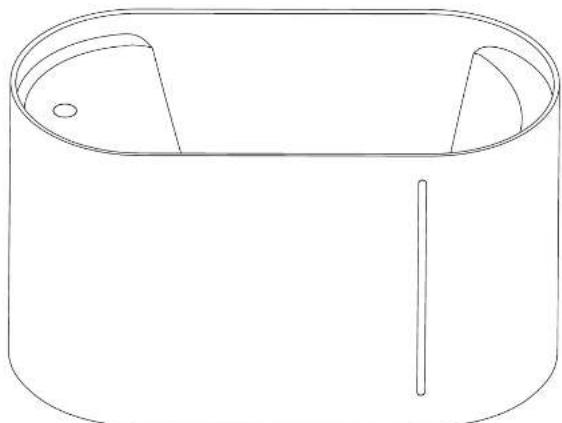

Simple line drawing of an oval object with a small circular mark on the left side (no text or symbols)

Simple line drawing of a cylindrical container with two side compartments and a central vertical rod (no text or symbols)

Line drawing of a smart home control device with no text or symbols

İLK KULLANIMDAN ÖNCE
