Comfortliving 99347 - Trash can TREBS - Free user manual and instructions

Product Type	Automatic infrared sensor trash can
Model	Comfortliving 99347
Brand	Trebs
Total volume	65 liters
Upper compartment	40 liters for kitchen waste
Compost bin	4 liters, removable
Lower drawer	25 liters, with 2 removable compartments
Dimensions (W x D x H)	42 x 31.5 x 74.5 cm
Power supply	6 AA batteries (not included)
Lid opening	Automatic via infrared sensor (15-20 cm distance)
Opening time	Approximately 0.5 seconds
Automatic closing	5 to 6 seconds after removing hand
Manual hold open	Possible via dedicated button
Intended use	Indoor household use only
Maintenance	Soft dry cloth; for stubborn stains, damp cloth with diluted detergent
Safety	Do not expose the sensor to sunlight, do not immerse, do not disassemble
Warranty	24 months from date of purchase
Recommended trash bag	40 liters

Frequently Asked Questions - Comfortliving 99347 TREBS

How to open the lid of the trash can?

Bring your hand or an object to 15-20 cm above the infrared sensor. The lid opens automatically in about 0.5 seconds.

How long does the lid stay open?

The lid stays open as long as your hand or object is detected. It closes automatically 5 to 6 seconds after removing your hand.

What type of batteries should I use?

Use 6 AA batteries (not included). Always replace all batteries at the same time.

How to maintain the trash can?

Clean the exterior with a soft dry cloth. For stubborn stains, use a damp cloth with diluted detergent. Do not use solvents.

What compartments are available?

The 65 L trash can includes: an upper compartment of 40 L for kitchen waste, a removable compost bin of 4 L, and a lower drawer of 25 L with 2 removable compartments.

Can I keep the lid open manually?

Yes, press the open button to keep the lid open. Press the close button to close it and reactivate automatic mode.

What is the warranty on this product?

Trebs offers a 24-month warranty from the date of purchase, covering manufacturing or material defects.

Can the trash can be used outdoors?

No, this product is designed only for indoor use.

What trash bag should I use?

It is recommended to use 40-liter bags for hygiene reasons and to avoid bad odors.

How to dispose of the trash can at the end of its life?

Do not throw it away with household waste. Take it to a collection point for used electrical and electronic equipment.

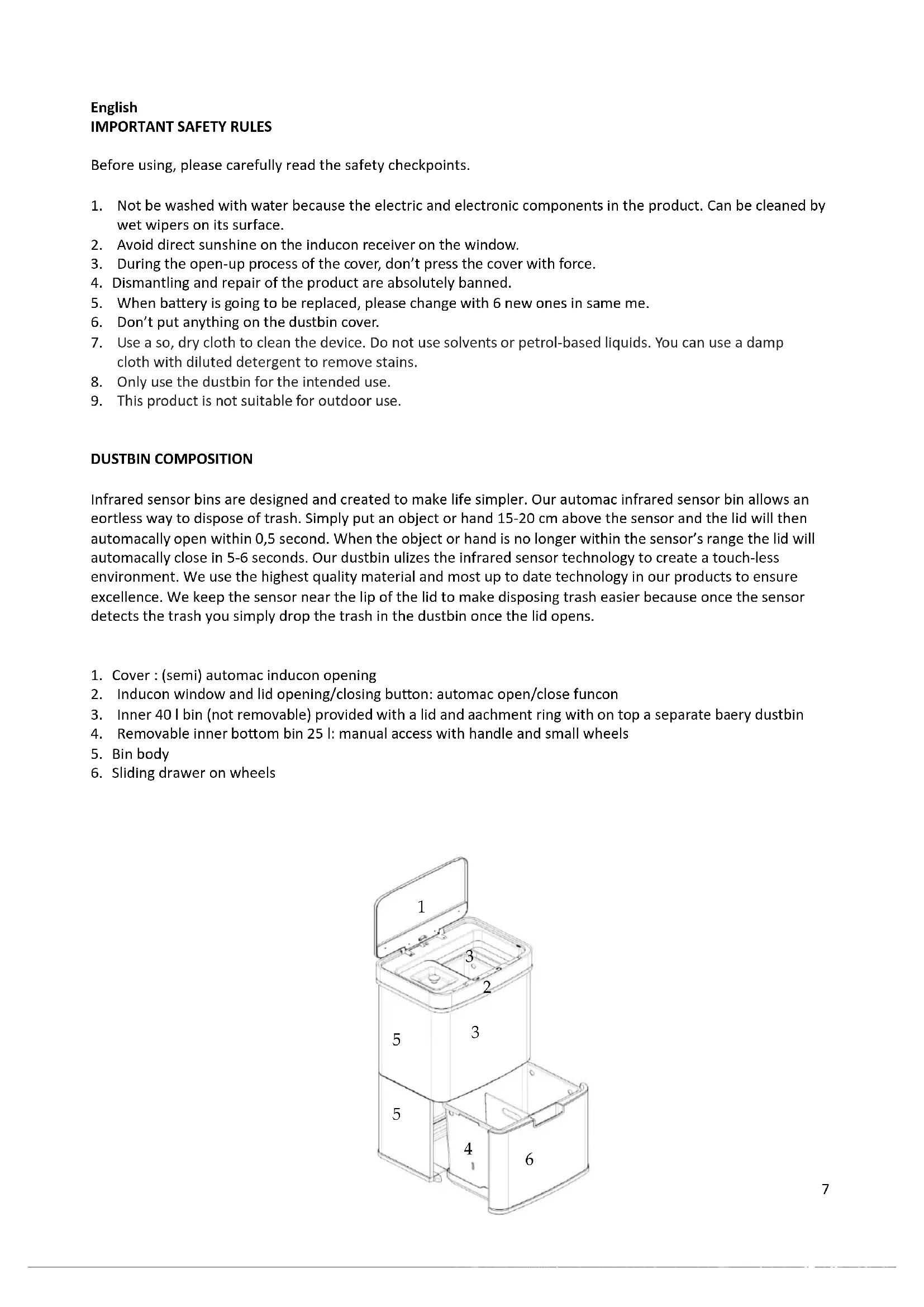

USER MANUAL Comfortliving 99347 TREBS

Exterior view of a modern stainless steel multi-level trash bin with open lid and internal compartments (no text or symbols visible)

Manual Sensor bin 65 liter with 4 compartments

Before using, please carefully read the safety checkpoints.

1. Not be washed with water because the electric and electronic components in the product. Can be cleaned by wet wipers on its surface.
2. Avoid direct sunshine on the inducon receiver on the window.
3. During the open-up process of the cover, don't press the cover with force.
4. Dismantling and repair of the product are absolutely banned.
5. When battery is going to be replaced, please change with 6 new ones in same me.
6. Don't put anything on the dustbin cover.
7. Use a so, dry cloth to clean the device. Do not use solvents or petrol-based liquids. You can use a damp cloth with diluted detergent to remove stains.
8. Only use the dustbin for the intended use.
9. This product is not suitable for outdoor use.

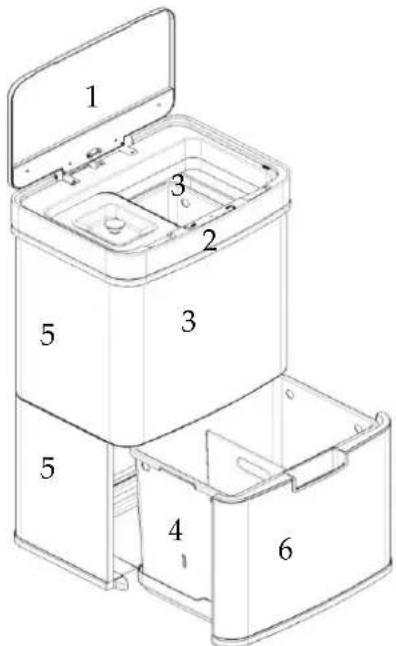

DUSTBIN COMPOSITION

Infrared sensor bins are designed and created to make life simpler. Our automac infrared sensor bin allows an effortless way to dispose of trash. Simply put an object or hand 15-20 cm above the sensor and the lid will then automacally open within 0,5 second. When the object or hand is no longer within the sensor's range the lid will automacally close in 5-6 seconds. Our dustbin ulizes the infrared sensor technology to create a touch-less environment. We use the highest quality material and most up to date technology in our products to ensure excellence. We keep the sensor near the lip of the lid to make disposing trash easier because once the sensor detects the trash you simply drop the trash in the dustbin once the lid opens.

1. Cover : (semi) automac inducon opening
2. Inducon window and lid opening/closing button: automac open/close funcon
3. Inner 40 l bin (not removable) provided with a lid and aachment ring with on top a separate baery dustbin
4. Removable inner bottom bin 25 l: manual access with handle and small wheels
5. Bin body
6. Sliding drawer on wheels

1 2 3 5 3 5 4 6

INSTRUCTIONS HOW TO USE

Step 1 Take the dustbin out of the box

WARNING: unpack all parts and remove protective material. Do not allow children access to plasc bags. The automac opening and closing control system consists of computer chips, infrared detectng device, mechanical transming device and an electric drive system. It is a high-tech product, combining machine, light, and electricity technique. It is made up of the lid (containing all mechanisms and computer chip) and pail. Its advantages are high performance, long service life and low energy consumption.

Step 2 Insert the baeries

Take out the top cover from inside of the pail. Open the cover of the baery case at the boom of the cover and equip it with 6 "A" size baeries. Line it according to the "posive and negave poles". And make sure by placing new baeries there will be place 6 new baeries at the same me.

Step 3 Insert the trash bag

Insert the garbage bag through the liner ring. Wrap the bag over and around the liner ring. Place it into the pail and gently push it down while adjusng.

Step 4 Assembling trash can

Hold the front side of the top cover and press down onto the top of pail. Place the rear side of the top cover on the pail rst, then, press the front side down. Turn on the power on the power switch located inside of the lid on the backside.

Step 5 Infrared moon sensor

When throwing objects into the dustbin, hold the object or hand STILL approximately 15-20 cm above the sensor. The lid will open automacally within 0,5 second, then will close automacally in 5-6 seconds aer your hand or objects depart. If an object or hand does not depart the sensor area, the lid will stay.

The open buon allows the lid to stay open until the close buon is pushed. The close buon closes the lid and resets it back to have it automatically open and close.

**Having the lid stay open manually for a long period of me will consume baery life.

***Pull the inner boom bin to deposit the recycled waste there. The inner top bin is used for non-recycled households wastes.

**** We advise the use of 40 liters bin liners regarding health issue and bad smell.

DISPOSAL OF THE OLD DEVICE

Old electric and electronic devices frequently sill contain valuable materials. However, they also contain damaging substances, which were necessary for their funconality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the

environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

PLEASE NOTE

• Uulize the collecon point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collecon service or your dealer for informaon.
• Ensure that your old device is stored safely away from children until it is taken away.

GUARENTEE

• We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are atributable to producon or material faults.
• Your legal guarantee entitlements in accordance with § 439. BGB-E remain unaacted by this.
• The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfuncons which only have a minor eect on the funcon or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.
• This device is designed for use in domesc situaons and has the appropriate performance levels.
• Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.
• In the event of jused complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.

Any pending faults must be reported within 14 days of delivery. All further claims are excluded.

To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

TECHNICAL DETAILS

• Model: 99347 – Sensor dustbin 65 L with 4 compartments
• Baeries: 6 pieces type AA (not included)
• Volume: 65 liter

■ 40 I top bin for residual trash
■ detachable 4 l bucket for compost
■ drawer (25 l) provided of 2 removable compartments

- Sizes product: 42x31,5x74,5 cm

CE REGULATIONS

Hereby, Trebs B.V., Thermiekstraat 1a, 6361 HB Nuth, The Netherlands, declares that this product is in compliance with the essenal EU direcve requirements.

The declaraon of conformity may be consulted via [e-mail]

CE

SERVICE

If you have any further quesons about the product aer reading this manual, please contact the Trebs customer service:

Trebs BV - Thermiekstraat 1a - 6361 HB Nuth - The Netherlands - Internet: www.trebs.nl / www.trebsshop.com
