Comfortliving 99359 - Trash can TREBS - Free user manual and instructions

Product type	Trash can with infrared sensor
Brand	Trebs
Model	Comfortliving 99359
Capacity	50 liters
Dimensions	42 x 31.5 x 61 cm
Power supply	6 AA batteries (not included)
Sensor type	Passive infrared
Detection distance	15-20 cm above the sensor
Opening time	0.5 second
Automatic closing time	5-6 seconds after hand removal
Manual opening	Button « Open » to keep in open position
Manual closing	Button « Close » to close and reset
Use	Indoor use only
Care and cleaning	Soft, dry cloth or slightly damp with diluted detergent; no solvents
Safety	Do not immerse; do not expose sensor to sunlight; replace all 6 batteries at the same time
Warranty	24 months (manufacturing defects)
Customer service	Trebs BV, Thermiekstraat 1a, 6361 HB Nuth, Netherlands

Frequently Asked Questions - Comfortliving 99359 TREBS

How to open the trash can automatically?

Bring your hand or an object within 15-20 cm above the infrared sensor on the lid. The lid opens in 0.5 seconds.

Why doesn't the trash can close automatically?

The lid remains open as long as an object is detected in the sensor area. Move your hand away to trigger closing after 5-6 seconds.

What type of batteries to use?

Use 6 AA batteries (LR6) not included. Always replace all 6 batteries at the same time to ensure proper operation.

How to replace the batteries?

Remove the top cover, open the battery compartment under the lid, insert 6 AA batteries following the indicated polarity, then close.

How to clean the trash can?

Use a soft, dry cloth. For stubborn stains, a slightly damp cloth with diluted detergent is suitable. Never use solvents or petroleum-based liquids.

What to do if the lid no longer opens?

Check the battery status (replace if necessary) and make sure the sensor is not obstructed or exposed to bright light. If the problem persists, contact customer service.

Can I use the trash can outdoors?

No, this device is designed for indoor use only. Do not expose it to rain or moisture.

How to install a trash bag?

Insert the bag through the hanging frame, then wrap it around the frame and edges of the bin. Make sure the bag does not obstruct the sensor.

How to open the lid in manual mode?

Press the "Open" button to keep the lid continuously open. To close it, press the "Close" button.

Does the trash can consume a lot of energy when left open?

Yes, leaving the lid open for a long time drains the batteries. Use the close button to close it quickly and save energy.

USER MANUAL Comfortliving 99359 TREBS

Exterior view of a modern stainless steel waste bin with black lid (no text or symbols visible)

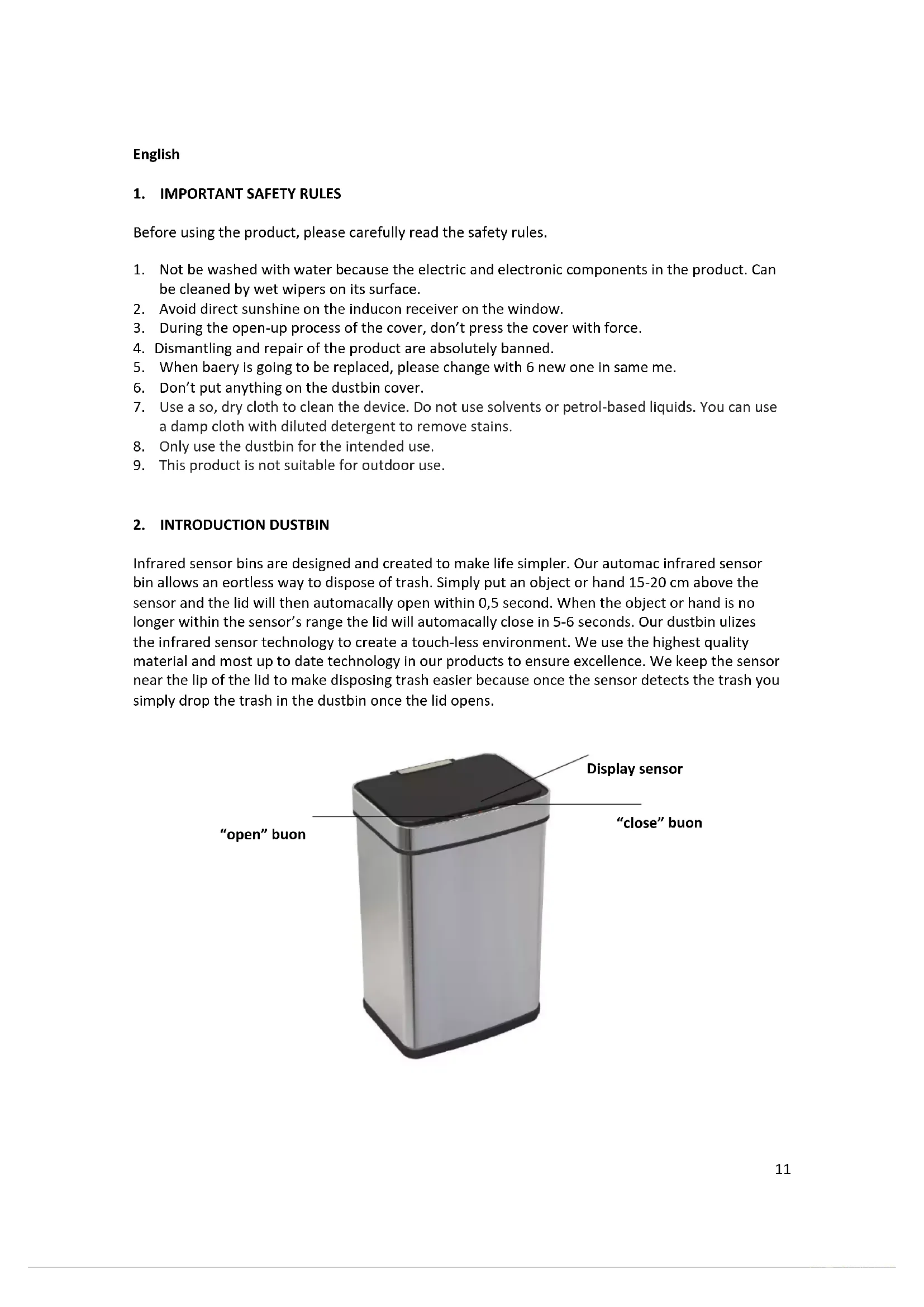

Before using the product, please carefully read the safety rules.

1. Not be washed with water because the electric and electronic components in the product. Can be cleaned by wet wipers on its surface.
2. Avoid direct sunshine on the inducon receiver on the window.
3. During the open-up process of the cover, don't press the cover with force.
4. Dismantling and repair of the product are absolutely banned.
5. When baery is going to be replaced, please change with 6 new one in same me.
6. Don't put anything on the dustbin cover.
7. Use a so, dry cloth to clean the device. Do not use solvents or petrol-based liquids. You can use a damp cloth with diluted detergent to remove stains.
8. Only use the dustbin for the intended use.
9. This product is not suitable for outdoor use.

2. INTRODUCTION DUSTBIN

Infrared sensor bins are designed and created to make life simpler. Our automac infrared sensor bin allows an eortless way to dispose of trash. Simply put an object or hand 15-20 cm above the sensor and the lid will then automacally open within 0,5 second. When the object or hand is no longer within the sensor's range the lid will automacally close in 5-6 seconds. Our dustbin ulizes the infrared sensor technology to create a touch-less environment. We use the highest quality material and most up to date technology in our products to ensure excellence. We keep the sensor near the lip of the lid to make disposing trash easier because once the sensor detects the trash you simply drop the trash in the dustbin once the lid opens.

"open" buon Display sensor "close" buon

3. INSTRUCTIONS

Step 1 Take the dustbin out of the box

WARNING: unpack all parts and remove protective material. Do not allow children access to plastic bags.

The automac opening and closing control system consists of computer chips, infrared detectcng device, mechanical transming device and an electric drive system. It is a high-tech product, combining machine, light, and electricity technique. It is made up of the lid (containing all mechanisms and computer chip) and pail. Its advantages are high performance, long service life and low energy consumpon.

Step 2 Insert the baeries

Take out the top cover from inside of the pail. Open the cover of the baery case at the boom of the cover and equip it with 6 "A" size baeries. Line it according to the "positive and negative poles". And make sure by placing new baeries there will be place 6 new baeries at the same me.

Step 3 Insert the trash bag

Insert the garbage bag through the liner ring. Wrap the bag over and around the liner ring. Place it into the pail and gently push it down while adjusng.

Step 4 Assembling trash can

Hold the front side of the top cover and press down onto the top of pail. Place the rear side of the top cover on the pail rst, then, press the front side down. Turn on the power on the power switch located inside of the lid on the backside.

Step 5 Infrared moon sensor

When throwing objects into the dustbin, hold the object or hand STILL approximately 15-20 cm above the sensor. The lid will open automacally within 0,5 second, then will close automacally in 5-6 seconds aer your hand or objects depart. If an object or hand does not depart the sensor area, the lid will stay.

The open buon allows the lid to stay open until the close buon is pushed. The close buon closes the lid and resets it back to have it automatically open and close.

**Having the lid stay open manually for a long period of me will consume baery life.

4. DISPOSAL OF THE OLD DEVICE

Old electric and electronic devices frequently sll contain valuable materials. However, they also contain damaging substances, which were necessary for their funconality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

Please note

- Uulize the collecon point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collecon service or your dealer for informaon.

- Ensure that your old device is stored safely away from children until it is taken away.

5. GUARENTEE

• We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are aributable to producon or material faults.
• Your legal guarantee entlements in accordance with § 439. BGB-E remain unacted by this.
• The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfuncons which only have a minor eect on the funcon or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.
• This device is designed for use in domesc situaons and has the appropriate performance levels.
• Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.
• In the event of jused complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.

Any pending faults must be reported within 14 days of delivery. All further claims are excluded.

To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

6. TECHNICAL DETAILS

• Model: 99359 – Sensor dustbin
• Capacity: 50 liter
• Baeries: 6 pieces type AA (not included)
• Size product: 42x31,5x61 cm

7. SERVICE

If you have any further quesons about the product aer reading this manual, please contact the Trebs customer service:

Trebs BV

Thermiekstraat 1a

6361 HB Nuth

The Netherlands
