| Product type | Digital ON/OFF temperature controller |
| Brand | Emko |
| Model | ESM3710N |
| Enclosure dimensions | 76 mm x 34.5 mm x 71 mm (W x H x D) |
| Panel cutout dimensions | 71 mm x 29 mm |
| Weight | Approximately 0.20 kg |
| Front panel protection | IP65 / NEMA 4X |
| Rear protection | IP20 |
| Power supply | 100-240 V~ (±15%, +10%) 50/60 Hz, 2.5 VA (standard version); other options: 24 V~, 115 V~, 230 V~, 10-30 V= |
| Display | 4-digit red LED, height 14 mm |
| Temperature sensor inputs | NTC (10 kΩ @25°C), PTC (1000 Ω @25°C), thermocouple J or K (IEC584.1), PT-100 or PT-1000 (IEC751) |
| Accuracy | ±1% of full scale (for thermoresistance) |
| Control mode | ON/OFF with adjustable hysteresis |
| Relay output (compressor) | 16(8) A @ 250 V~, 1 NO, for resistive load |
| Optional SSR output | 20 mA max, 17 V= max |
| Main functions | Heating/cooling control, compressor protection delays, internal audible alarm (≥83 dB), parameter backup via ProKey, Modbus RTU communication (RS-485), password protection |
| Operating temperature | -30 °C to +80 °C |
| Operating humidity | 90% RH max (non-condensing) |
| Max altitude | 2000 m |
| Maintenance and cleaning | Clean the enclosure with a cloth moistened with ethyl alcohol or water. Do not use hydrocarbon solvents. |
| Safety | Do not disassemble, modify or repair the device. Use the rated voltage. Cut off power before any intervention. Install away from explosive or corrosive atmospheres. |

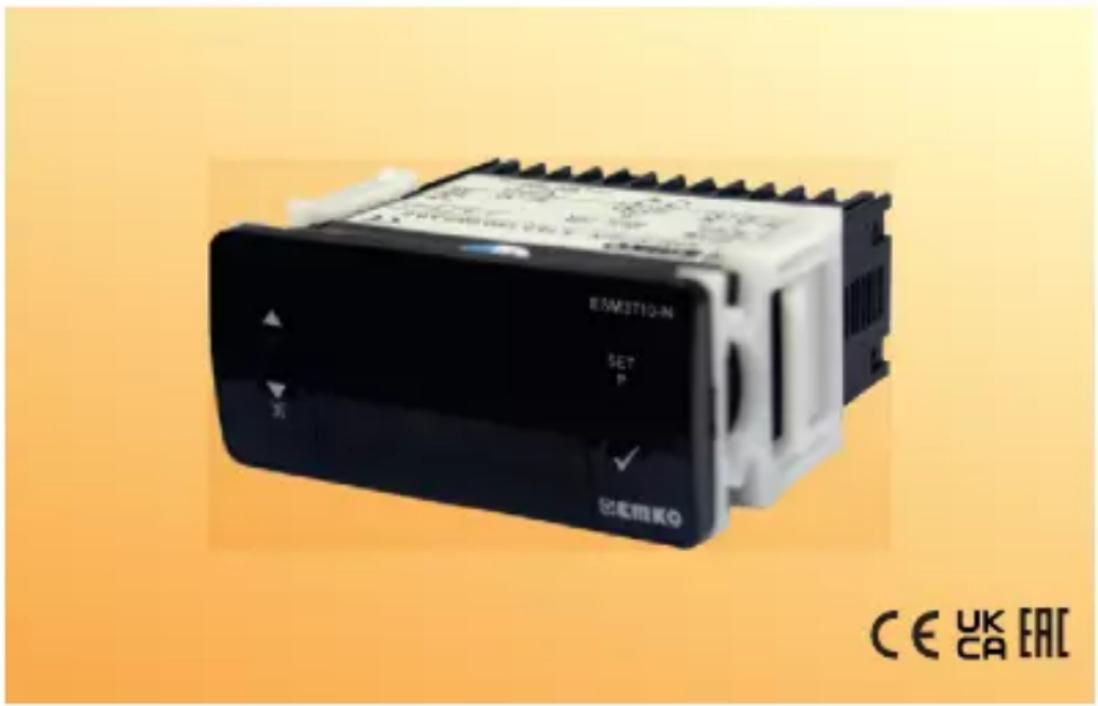

| Optional accessories | RS-485 interface, ProKey (external programmer), temperature probes (PTC or NTC) |
| Warranty | 2 years from delivery date, against defects in materials and workmanship |
| Certifications | CE, UKCA, EAC |
Frequently Asked Questions - ESM3710N Emko
User questions about ESM3710N Emko
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Temperature Controller in PDF format for free! Find your manual ESM3710N - Emko and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ESM3710N by Emko.
USER MANUAL ESM3710N Emko
- 4 Digits Display
- NTC Input or PTC Input or
J Type thermocouple Input or,
K Type thermocouple Input or,
2-Wire PT-100 Input or,
2-Wire PT-1000 Input (Must be determined in order.)
- Adjustable temperature offset
- ON/OFF temperature control
- Selectable heating or cooling function
- Selection of operation with hysteresis
- Adjustable temperature offset
- Set value low limit and set value high limit boundaries
- Operation selection of compressor operates continuously, stops or operates periodically in case of sensor defect
- Compressor protection delays
- Adjustable internal buzzer according to sensor defect status.
- Password protection for programming section
- Installing parameters using Prokey
- Remote access, data collecting and controlling with Modbus RTU
- Having CE mark according to European Norms
ESM-3710N series temperature controllers are designed for measuring and controlling temperature. They can be used in many applications with their On / Off control form, heating and cooling control form and easy-use properties. Some application fields which they are used are below:
Application Fields Applications
Glass Heating
Food Baking Ovens
Plastic Incubators
Petro-Chemistry Storages
Textile, Automotive Air Conditioning
Machine Production Industries Etc... Etc...
Operating Temperature : -30 to 80 °C
Max. Operating Humidity : 90% Rh (non-condensing)

Altitude : Up to 2000 m.
Forbidden Conditions:
Corrosive atmosphere
Explosive atmosphere
Home applications (The unit is only for industrial applications)
Standard
230V (%15) 50/60Hz\~ ±
Optional Supply Voltage
100-240V~(±%15) 50/60Hz,
115 V(±%15) 50/60Hz,
24 V(±%15) 50/60Hz,
24 V(±%)15) 50/60Hz,
10 - 30 V ---
NTC, PTC,
J or K Type TC
2-Wire PT-100
2-Wire PT-1000
ESM-3710-N
Power Supply Input
Temperature Sensor Input
Standard
Output-1
(Relay Output)
Control Output
Alarm Output
Heating or Cooling Function
ON/OFF Operation
Optional
Output-1
(SSR Drive Output)
Control Output
Alarm Output
1.3 Installation
A visual inspection of this product for possible damage occurred during shipment is recommended before installation. It is your responsibility to ensure that qualified mechanical and electrical technicians install this product.
If there is danger of serious accident resulting from a failure or defect in this unit, power off the system and separate the electrical connection of the device from the system.
The unit is normally supplied without a power supply switch or a fuse. Use power switch and fuse as required.
Be sure to use the rated power supply voltage to protect the unit against damage and to prevent failure.
Keep the power off until all of the wiring is completed so that electric shock and trouble with the unit can be prevented.
Never attempt to disassemble, modify or repair this unit. Tampering with the unit may results in malfunction, electric shock or fire.
Do not use the unit in combustible or explosive gaseous atmospheres.
During putting equipment in hole on the metal panel while mechanical installation some metal burrs can cause injury on hands, you must be careful.
Montage of the product on a system must be done with it's fixing clamps. Do not do the montage of the device with inappropriate fixing clamp. Be sure that device will not fall while doing the montage.
It is your responsibility if this equipment is used in a manner not specified in this instruction manual.
1.4 Warranty
EMKO Elektronik warrants that the equipment delivered is free from defects in material and workmanship. This warranty is provided for a period of two years. The warranty period starts from the delivery date. This warranty is in force if duty and responsibilities which are determined in warranty document and instruction manual performs by the customer completely.
1.5 Maintenance
Repairs should only be performed by trained and specialized personnel. Cut power to the device before accessing internal parts.
Do not clean the case with hydrocarbon-based solvents (Petrol, Trichlorethylene etc.). Use of these solvents can reduce the mechanical reliability of the device. Use a cloth dampened in ethyl alcohol or water to clean the external plastic case.
1.6 Manufacturer Company
Manufacturer Information:
Emko Elektronik Sanayi ve Ticaret A.Ş.
Repair and maintenance service information:
Emko Elektronik Sanayi ve Ticaret A.Ş.
2. General Description

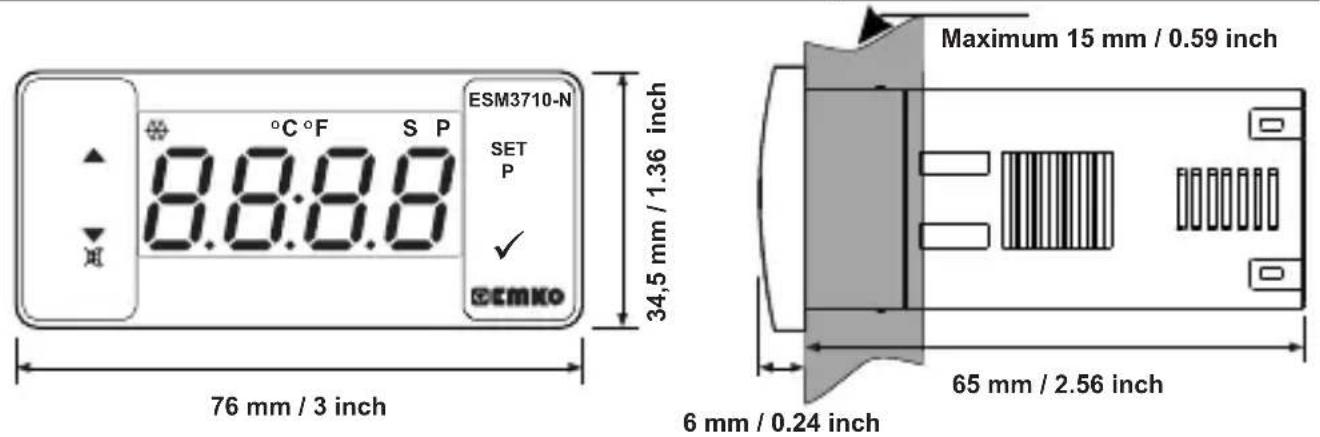

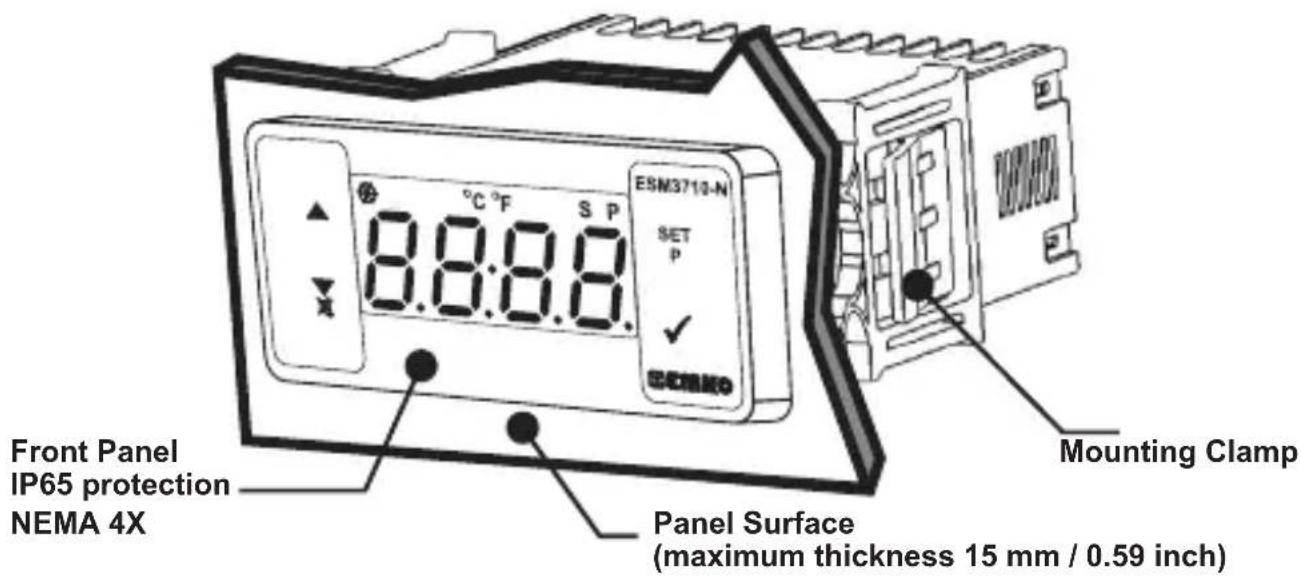

ESM3710-N °C °F S P 8:8:8.8 SET P ✓ ECBNO Front Panel IP65 protection NEMA 4X Panel Surface (maximum thickness 15 mm / 0.59 inch) Mounting Clamp2.1 Front View and Dimensions of ESM-3710-N Temperature Controller

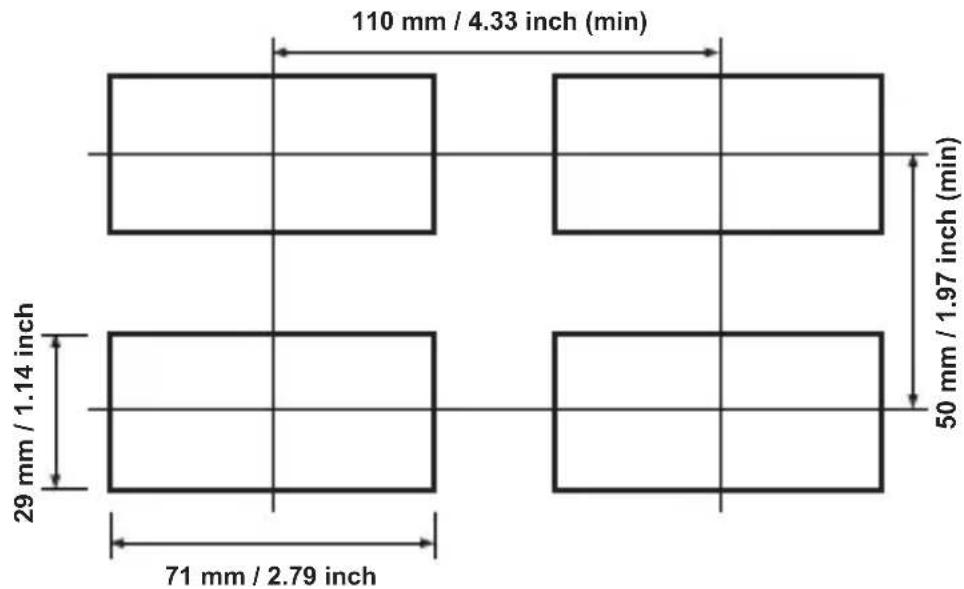

2.2 Panel Cut-Out

other
| Dimension | Value | | ----------------- | ----------- | | Top Left | 110 mm / 4.33 inch (min) | | Top Right | 50 mm / 1.97 inch (min) | | Bottom Left | 29 mm / 1.14 inch | | Bottom Right | 71 mm / 2.79 inch |2.3 Panel Mounting


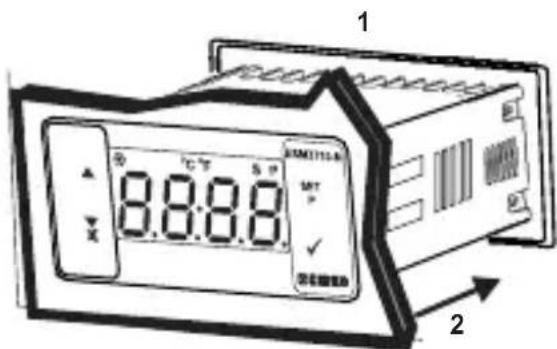

1 8.8.8.8 21-Before mounting the device in your panel, make sure that the cut-out is of the right size.
2-Insert the device through the cut-out. If the mounting clamps are on the unit, put out them before inserting the unit to the panel.


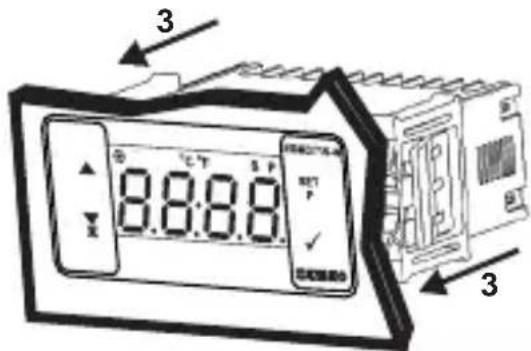

3 8.8:8.8 3 + - × + - SET P ✓ 已知温度 33- Insert the mounting clamps to the fixing sockets that located left and right sides of device and make the unit completely immobile within the panel
2.4 Removing from the Panel


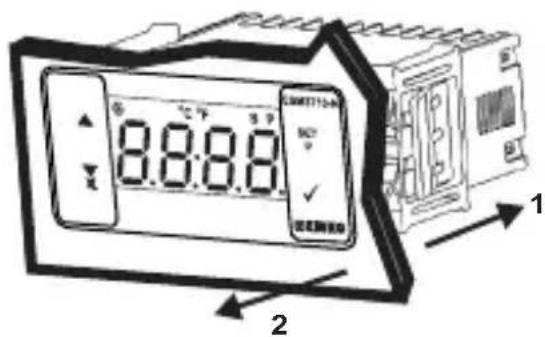

8.8.8 1 21-Pull mounting clamps from left and right fixing sockets.
2-Pull the unit through the front side of the panel

Before starting to remove the unit from panel, power off the unit and the related system.
3. Using Prokey
TO USE PROKEY, VALUE OF THE PrC PARAMETER MUST BE '0'.
IF PrC=1 AND ▼BUTTON IS PRESSED ErrMESSAGE WILL BE SHOWN. 10s. LATER DEVICE TURNS BACK TO THE MAIN OPERATION SCREEN OR YOU CAN PRESS SET BUTTON TO TURN BACK TO MAIN OPERATION SCREEN.
DOWNLOADING FROM DEVICE TO PROKEY
- The device is programmed by using the parameters.
- Energize the device then put in PROKEY and press ▼ button. □P□ Message is shown on the display. When the loading has finished, □End message is shown.
- Press any button to turn back to main operation screen.
- Remove the PROKEY.
NOTE: Err message is shown when an error occurs while programming. If you want to reload, put in PROKEY and press ▼ button. If you want to quit, remove PROKEY and press ▼ button. The device will turn back to main operation screen.
DOWNLOADING FROM PROKEY TO DEVICE
- Switch off the device.
- Put in PROKEY then energize the device.
- When the device is energized, the parameter values in PROKEY, start downloading to the device automatically. At first, message is shown on the display, when loading has finished, message is shown.
- After 10 seconds device starts to operate with new parameter values.
- Remove the PROKEY.
NOTE: Err message is shown when an error occurs while programming. If you want to reload, switch off the device and put in PROKEY then energize the device. If you want to quit remove PROKEY and press ▼ button. The device will turn back to main operation screen.
4. Electrical Wiring Diagram


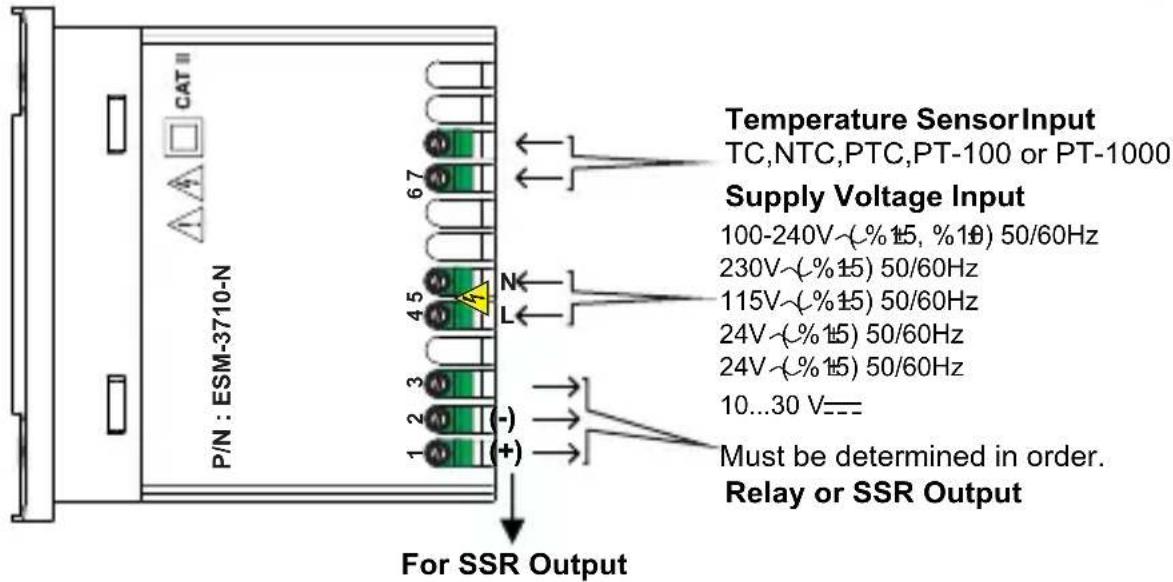

CAT II P/N : ESM-3710-N 67 N L 45 3 (-) (+) Temperature SensorInput TC,NTC,PTC,PT-100 or PT-1000 Supply Voltage Input 100-240V~(% 15, % 16) 50/60Hz 230V~(% 15) 50/60Hz 115V~(% 15) 50/60Hz 24V~(% 15) 50/60Hz 24V~(% 15) 50/60Hz 10...30 V--- Must be determined in order. Relay or SSR Output For SSR Output4.1 Supply Voltage Input Connection of the Device


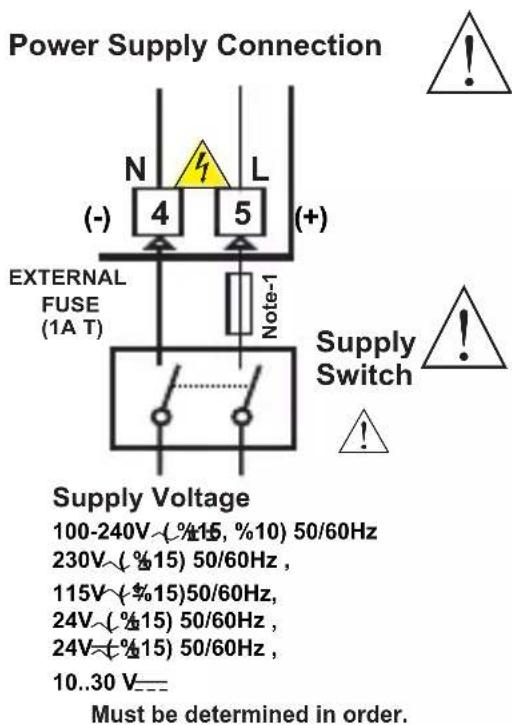

Power Supply Connection N L (-) 4 5 (+) EXTERNAL FUSE (1A T) Note-1 Supply Switch ! Supply Voltage 100-240V~(%15, %10) 50/60Hz 230V~(%15) 50/60Hz, 115V~(%15)50/60Hz, 24V~(%15) 50/60Hz, 24V~(%15) 50/60Hz, 10..30 V—— Must be determined in order.Make sure that the power supply voltage is the same indicated on the instrument.
Switch on the power supply only after that all the electrical connections have been completed.
Supply voltage range must be determined in order. While installing the unit, supply voltage range must be controlled and appropriate supply voltage must be applied to the unit.
There is no power supply switch on the device. So a power supply switch must be added to the supply voltage input. Power switch must be two poled for separating phase and neutral, On/Off condition of power supply switch is very important in electrical connection.
External fuse that on power supply inputs must be on phase connection.
External fuse that on — power supply inputs must be on (+) connection.
Note-1 : External fuse is recommended.
Note-2: Stranded cable cross section: 1,5mm², Solid cable cross-section: 2,5mm²
The stripping length is 7 to 9 mm.
Note-3 : Supply cables must comply with the requirements of IEC 60277 or IEC 60245.

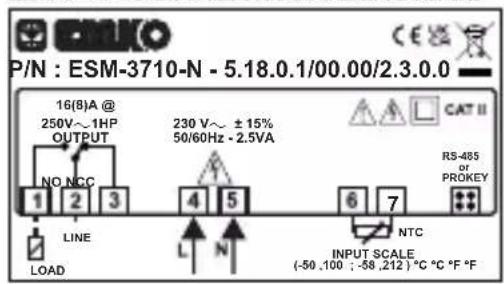

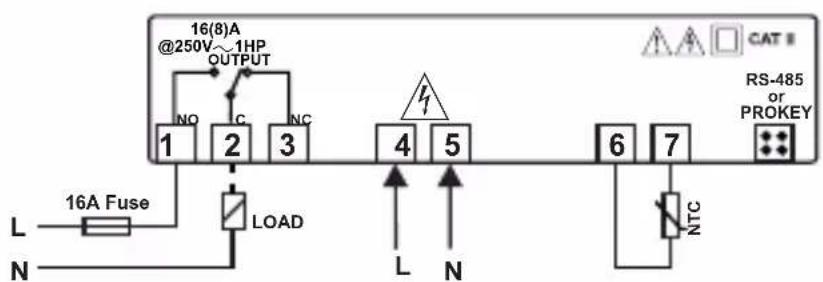

4.2 Device Label and Connection Diagram
230V\~ CONNECTION DIAGRAM
** It is used to increase the value in the Set screen and Programming mode.
2. Decrement, Silencing Buzzer and Downloading to Prokey Button :
** It is used to decrease the value in the Set screen and Programming mode.
** It is used to silence the buzzer.
** If Prc =0, it is used to download from device to prokey.
3. Set Button :
** In the main operation screen; if this button pressed, set value will be displayed. Value can be changed using increment and decrement buttons. When Enter button pressed, value is saved and returns back to main operating screen.
** To access the programming screen; in the main operation screen, press this button for 5 seconds.
4. Enter Button :
** It is used to saving value in the Set screen and programming screen.

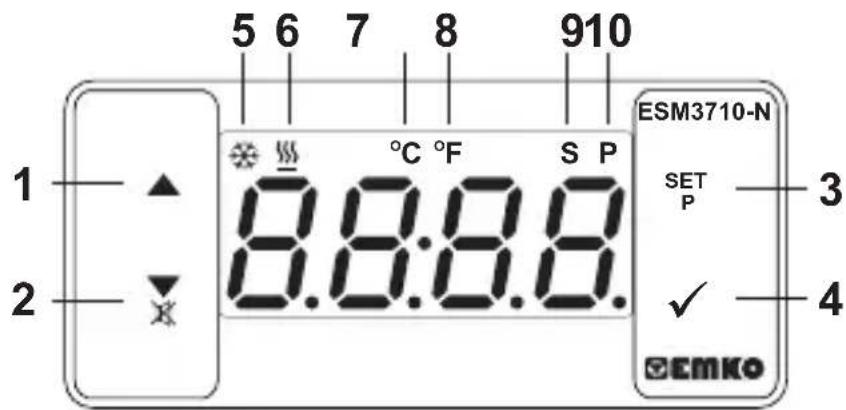

LED DEFINITIONS
5. Cooling led :
** This led indicates that cooling control is selected and process output relay is active. If any of compressor protection time active, this led blinks.
6.Heating led :
** This led indicates that heating control is selected and process output relay is active.
7.Celcius led :
** Indicates that device is in C mode.
8.Fahrenheit led :
** Indicates that device is in F mode.
9.Set led :
** Indicates that device is in Set value changing mode.
10. Program led :
**Blinks in programming mode.
6. Changing and Saving Temperature Set Value
Main Operation Screen


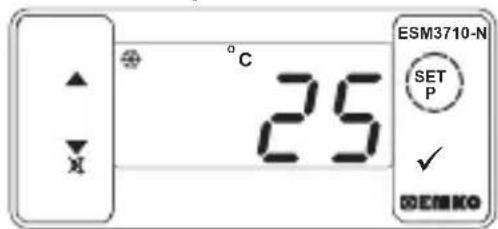

°C 25 ESM3710-N SET P ✓ DEEMKOWhen SET button pressed "S" led will be active and temperature set value will be displayed.
SET Value Screen


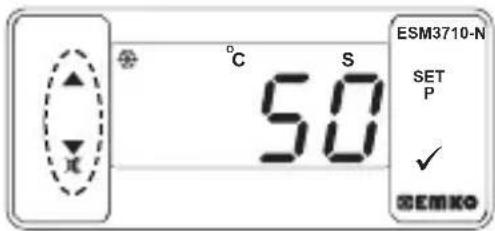

°C S 50 ESM3710-N SET P ✓ SEMKOTemperature set value can be changed with increment and decrement buttons.
Main Operation Screen


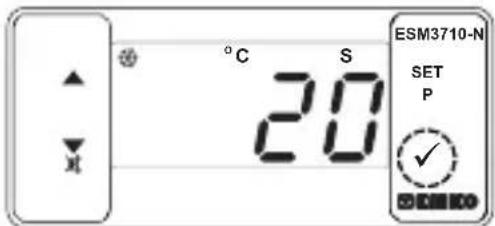

°C S 20 ESM3710-N SET P ✓When ENTER button pressed temperature set value can be saved.
Temperature set value parameter (Default=50) MODBUS ADDRESS:40001
Temperature set value, can be programmed between minimum temperature set value 5uL and maximum temperature set value 5uH.
6.1 Programming Mode Parameter List

Temperature Unit Selection Parameter (Default = 0) MODBUS ADDRESS:40002

°C selected.
°F selected.

Decimal Seperator Enabling Parameter (Default = 0) MODBUS ADDRESS:40003

Disable.
Enable.
Note: If sensor input type is selected J, K, PT-100 or PT-1000 (BC=05,10,11 or 14) parameter is skipped.

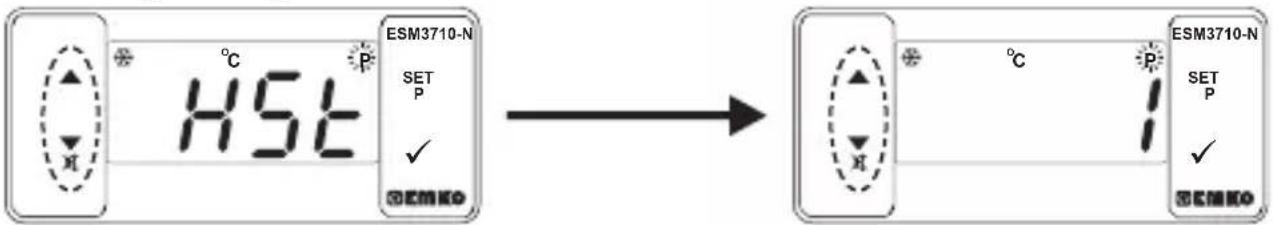

Hysteresis Parameter for Compressor Output (Default = 1) MODBUS ADDRESS:40004
from 1 to 20°C for NTC (-50°C, 100°C) or PTC (-50°C, 150°C) or J Type TC (0°C, 800°C) or K Type TC (0°C, 1000°C or PT-100 Type (-50°C, 400°C) or PT-1000 Type (-50°C, 400°C) or PT-100 Type (-20°C, 100°C), from 1 to 36°F for NTC (-58°F, 212°F) or PTC (-58°F, 302°F) or J Type TC (32°F, 1472°F) or K Type TC (32°F, 1830°F) or PT-100 Type (-58°F, 752°F) or PT-1000 Type (-58°F, 752°F) or PT-100 Type (-4°F, 212°F)
from 0.1 to 10.0°C for NTC(-50.0°C,100.0°C) or PTC (-50.0°C,150.0°C) or PT-100 (-19.9°C,99.9°C),
from 0.1 to 18.0°F for NTC (-58.0°F,212.0°F) or PTC (-58.0°F,302.0°F) or PT-100 (-4.0°F,212.0°F),

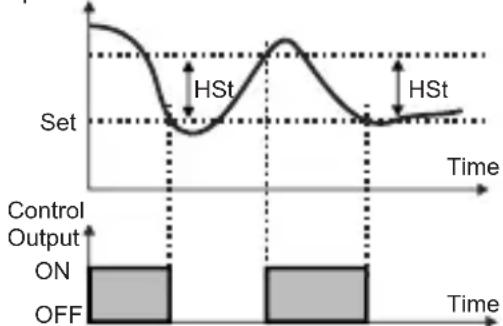

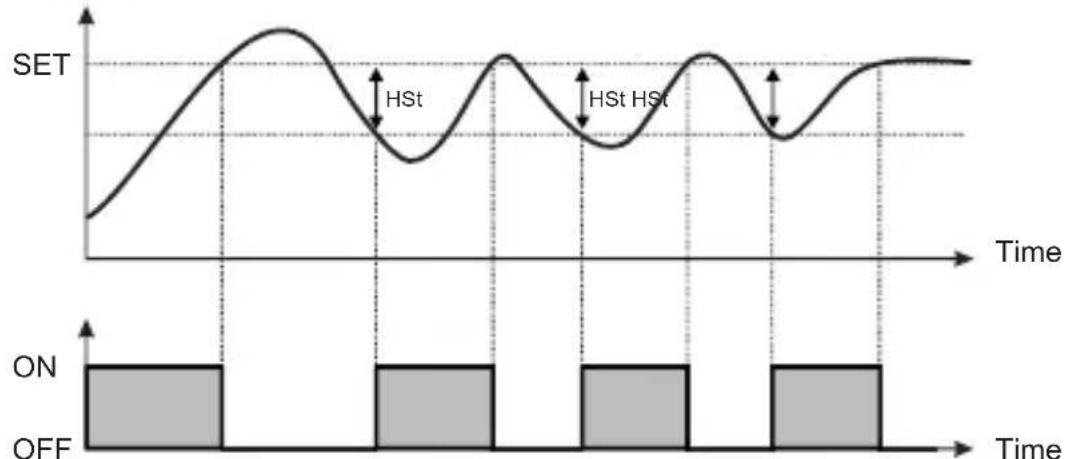

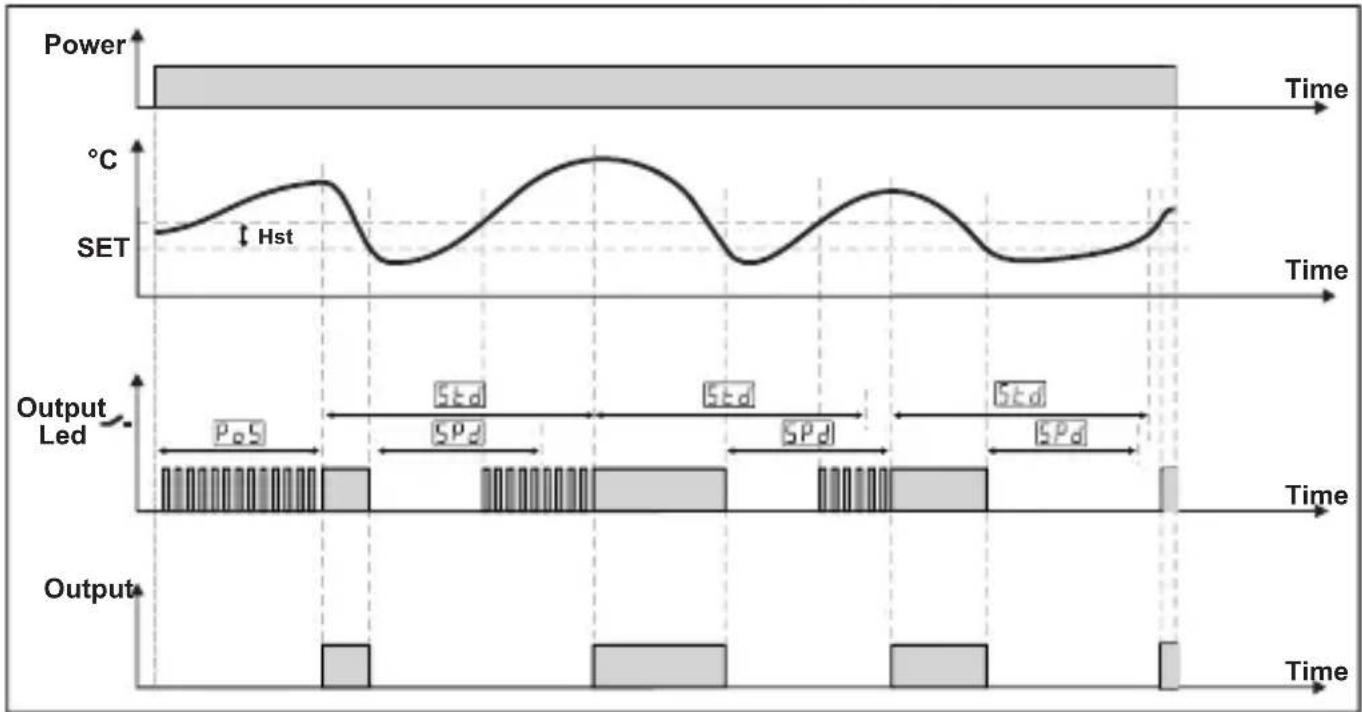

In ON/OFF control algorithm, temperature Temperature
value is tried to keep equal to set value by opening or closing the last control element. ON/OFF controlled system, temperature value oscillates continuously. Temperature value's oscillation period or amplitude around set value changes according to controlled system. For reducing oscillation period of temperature value, a threshold zone is formed below or around set value and this zone is named hysteresis.

line
| Time | Control Output | |------|----------------| | 0 | ON | | 1 | OFF | | 2 | ON | | 3 | OFF | | 4 | ON | | 5 | OFF |
Minimum Temperature Set Value Parameter (Default = Minimum Value of Device Scale) MODBUS ADDRESS:40005
Temperature set value can not be lower than this value.
This parameter value can be adjusted from minimum value of device scale to maximum temperature set value parameter S_uH

Maximum Temperature Set Value Parameter (Default = Maximum Value of Device Scale) MODBUS ADDRESS:40006
Temperature set value can not be bigger than this value.
This parameter value can be adjusted from minimum temperature set value parameter to maximum value of the device scale

Sensor Offset Parameter (Default = 0) MODBUS ADDRESS:40007
from -20 to 20 °C for NTC(-50°C, 100°C) or PTC(-50°C, 150°C) or J Type TC (0°C,800°C) or J Type TC (0°C,1000°C) or PT-100(-50°C, 400°C) or PT-1000 (-50°C, 150°C) or PT-100 (-20°C, 100°C),
from -36 to 36 °F for NTC(-58°F, 212°F) or PTC(-58°F, 302°F) or J Type TC (32°F,1472°F) or K Type TC (32°F,1830°F) or PT-100(-58°F, 752°F) or PT-1000(-58°F, 752°F) or PT-100(-4°F, 212°F),
from -10.0 to 10.0°C for NTC(-50.0°C,100.0°C) or PTC(-50.0°C,150.0°C) or PT-100 (-19.9°C,99.9°C),
from -18.0 to 18.0°F for NTC(-58.0°F,212.0°F) or PTC(-58.0°F,302.0°F) or PT-100 (-4.0°F,212.0°F),

Operating Type Parameter (Default = 0) MODBUS ADDRESS:40008
If parameter value is '0' device skips to uF parameter

Heating
Cooling

Compressor Start Delay at Power On Parameter (Default = 0) MODBUS ADDRESS:40009
When power is first applied to the device, compressor is on when this time delay is expired. It can be adjusted from 0 to 20 minutes.

Compressor Stop-Start Delay Parameter (Default = 0) MODBUS ADRES:40010
When compressor is inactive, this time delay must be expired for activation of the compressor. It can be adjusted from 0 to 20 minutes.

Compressor Start-Start Delay Parameter (Default = 0) MODBUS ADRES:40011
This time delay must be expired between two activation of the compressor. It can be adjusted from 0 to 20 minutes.

Sensor Defect Parameter (Default = 0) MODBUS ADRES:40012

Compressor is OFF in case of sensor defect.
Compressor is ON in case of sensor defect.
Compressor operates periodically according to P_on and P_o Time periods in case of sensor defect.

Compressor is active during this time period in case of probe defect (Default = 0) MODBUS ADRES:40013
If probe defect parameter ,dF is 2, then this parameter is observed. It can be adjusted from 0 to 99 minutes.

Compressor is inactive during this time period in case of probe defect (Default = 0) MODBUS ADRES:40014
If probe defect parameter _dF is 2, then this parameter is observed. It can be adjusted from 0 to 99 minutes.

Buzzer Function Selection Parameter (Default = 0) MODBUS ADDRESS:40015

Buzzer is inactive.
Buzzer is active during sensor failures.

Buzzer is active during this time( Default = - - - ) MODBUS ADDRESS:40016
If buzzer function selection parameter value buF =0, this parameter can not be observed. Buzzer stays active during this time. It can be adjusted from 1 to 99 minutes When this parameter is 1, if decrement button is pressed, --- is observed. In this condition buzzer is active till buzzer silence button is pressed.

Communication Mode Selection Parameter (Default = 0) MODBUS ADDRESS:40017

PROKEY communication selected.
Rs485 communication selected.

Slave ID Parameter (Default = 1) MODBUS ADDRESS=40018
Device communication address parameter (1 to 247).

Programming Section Accessing Password(Default = 0) MODBUS ADDRESS:40019
It is used for accessing to the programming section. It can be adjusted from 0 to 9999. If it is selected 0, password will not be asked

PoS, SPd, Std, Pdf, Pon and Pof Parameters are observed if Operation type is selected "Cooling". If operation type is selected "Heating", skip to the buf parameter.
6.2 Modbus Adresses of Device Status Parameters (Read Input Register)
MODBUS ADDRESS:30001
MODBUS ADDRESS:30002
Temperature Value
Led Status : 0.bit °C Led, 6.bit Compressor Led, 13.bit Program Led, 14.bit Set Led
MODBUS ADDRESS:30003
Device Status : 1.bit Buzzer Status 2.bit Sensor Lost Status
MODBUS ADDRESS:30004
Output Status Device Type and Device Version
MODBUS ADDRESS:30005
6.3 Operation Graphics of ESM-3710-N ControllerTemperature
1-If Operating Type Parameter Value HCS = 1 (Cooling),
Switch On Delay After Power On Parameter Value P_05 ≥ 1 ,
Compressor Stop/Start Time Delay Parameter Value 5Pd ≥ 1 and
Compressor Start/Start Time Delay Parameter Value Std ≥ 1;

line
| Time | Power (°C) | SET (Hz) | Output (Led) | |------|------------|----------|--------------| | 0 | 1 | 1 | Pos | | 1 | 0.5 | 0.5 | Spd | | 2 | 0.7 | 0.7 | Std | | 3 | 0.6 | 0.6 | Spd | | 4 | 0.8 | 0.8 | Std | | 5 | 0.9 | 0.9 | Spd | | 6 | 0.7 | 0.7 | Std | | 7 | 0.6 | 0.6 | Spd | | 8 | 0.8 | 0.8 | Std | | 9 | 0.9 | 0.9 | Spd | | 10 | 1 | 1 | Yes | | 11 | 0.8 | 0.8 | Yes | | 12 | 0.7 | 0.7 | Yes | | 13 | 0.6 | 0.6 | Yes | | 14 | 0.8 | 0.8 | Yes | | 15 | 0.9 | 0.9 | Yes | | 16 | 1 | 1 | Yes | | 17 | 0.8 | 0.8 | Yes | | 18 | 0.7 | 0.7 | Yes | | 19 | 0.6 | 0.6 | Yes | | 20 | 0.8 | 0.8 | Yes | | 21 | 0.9 | 0.9 | Yes | | 22 | 1 | 1 | Yes | | 23 | 0.8 | 0.8 | Yes | | 24 | 0.7 | 0.7 | Yes | | 25 | 0.6 | 0.6 | Yes | | 26 | 0.8 | 0.8 | Yes | | 27 | 0.9 | 0.9 | Yes | | 28 | 1 | 1 | Yes | | 29 | 0.8 | 0.8 | Yes | | 30 | 0.7 | 0.7 | Yes | | 31 | 0.6 | 0.6 | Yes | | 32 | 0.8 | 0.8 | Yes | | 33 | 0.9 | 0.9 | Yes | | 34 | 1 | 1 | Yes | | 35 | 0.8 | 0.8 | Yes | | 36 | 0.7 | 0.7 | Yes | | 37 | 0.6 | 0.6 | Yes | | 38 | 0.8 | 0.8 | Yes | | 39 | 0.9 | 0.9 | Yes | | 40 | 1 | 1 | Yes | | Note: The Power and Output values are labeled as 'Pos' and 'Spd' respectively in the chart, but they are not explicitly provided in the code snippet.2-If Operating Type Parameter Value HCS = 0 (Heating),
Temperature
Value

line
| Time Segment | Value Label | | ------------ | ----------- | | Top Left | SET | | Top Right | HSt | | Bottom Left | ON | | Bottom Right | OFF |Temperature Control Output

In ON/OFF control algorithm, temperature value is tried to keep equal to set value by opening or closing the last control element. ON/OFF controlled system, temperature value oscillates continuously. Temperature value's oscillation period or amplitude around set value changes according to controlled system. For reducing oscillation period of temperature value, a threshold zone is formed below or around set value and this zone is named hysteresis. Action of control output is described with figures above.
6.4 Failure Messages in ESM-3710-N Temperature Controller

Screen Blinking
Sensor failure. Sensor connection is wrong or there is no sensor connection. If buzzer function selection parameter buf is 1, internal buzzer starts to operate.
6.5 Entering To The Programming Mode, Changing and Saving Parameter
Main Operation Screen


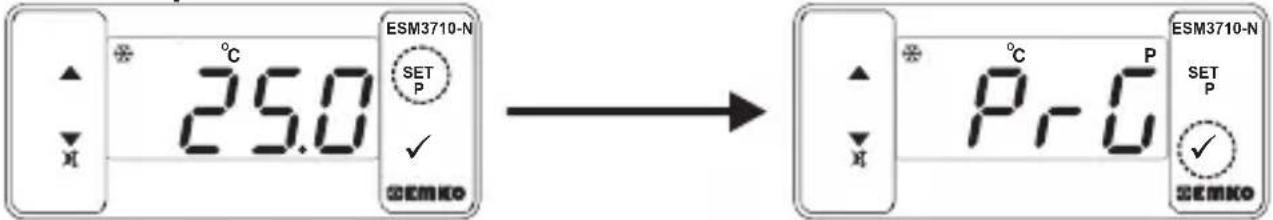

25.0 ESM3710-N SET P ✓ SEMko PR-0 ESM3710-N SET P ✓ SEMkoWhen SET button is pressed for 5 seconds, "P" led starts to blink. If programming mode entering password is different from 0, programming mode entering screen will be observed.
Note1: If programming mode accessing password is 0, [C-F] Temperature Unit screen is observed instead of programming screen
Programming Mode Entering Screen
Press OK button for accessing to the password entering screen.


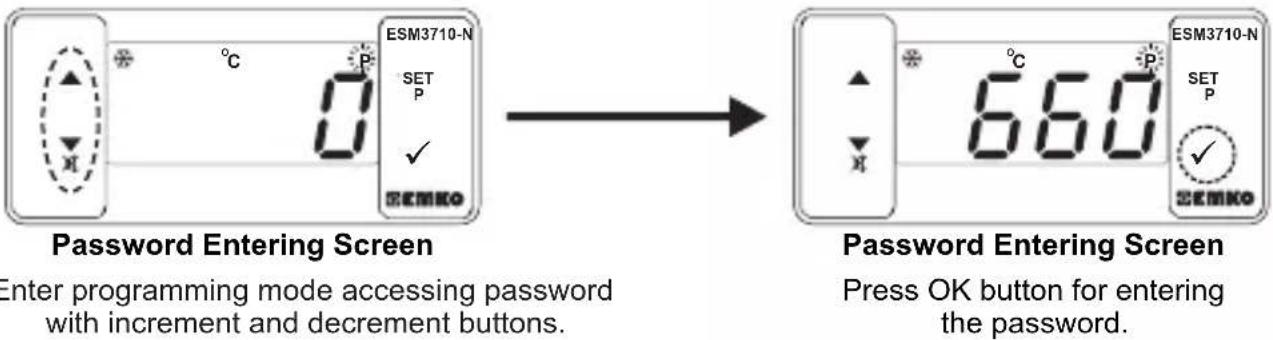

ESM3710-N SET P ✓ SEMko Password Entering Screen Enter programming mode accessing password with increment and decrement buttons. 66.0 ESM3710-N SET P ✓ SEMko Password Entering Screen Press OK button for entering the password.Note2: If programming mode accessing password is 0, only three parameters are accessible, and the parameter values can be changed.
Programming Screen
Hysteresis Value for Compressor Output
Change the value with increment and decrement buttons.
Press increment button for accessing to the next parameter, press decrement button for accessing to the previous parameter

If no operation is performed in programming mode for 20 seconds, device turns to main operation screen automatically..
7. Specifications
Device Type : Temperature Controller
Housing & Mounting : 76mm x 34.5mm x 71mm plastic housing for panel Mounting. Panel cut-out is 71x29mm.
Protection Against
Mechanical Impacts : 1 Joule (IK06)
Protection Class : NEMA 4X (Ip65 at front, Ip20 at rear).
Weight : Approximately 0.20 Kg.
Environmental Ratings : Standard, indoor at an altitude of less than 2000 meters with none condensing humidity.
Storage / Operating Temperature : -30 °C to +80 C / -20 C to +70 C
Storage / Operating Humidity : 90 % max. (None condensing)
Installation : Fixed installation
Overvoltage Category : II.
Pollution Degree : II, office or workplace, none conductive pollution
Operating Conditions : Continuous
Supply Voltage and Power : 100-240V~(-%15, +%10)50/60Hz - 2.5VA
: 230V~(±%15) 50/60Hz - 2.5VA
: 115V~(±%15) 50/60Hz - 2.5VA
: 24V~(±%15) 50/60Hz - 2.5VA
: 24V ( ±%15) 50/60Hz - 2.5VA
:10 - 30V=2.5W
Temperature Sensor Input : NTC, PTC, TC, RTD
NTC input type : NTC (10 kΩ @25 °C)
PTC input type : PTC (1000 Ω @25 °C)
Thermocouple input type : J, K (IEC584.1) (ITS 90)
Thermoresistance input type : PT-100, PT-1000 (IEC751) (ITS 90)
Accuracy : ± 1 % of full scale for thermoresistance
Cold Junction Compensation : Automatically ± 0.1°C / ± 1°C
Sensor Break Protection : Upscale
Sampling Cycle : 3 samples per second
Control Form : ON / OFF
Relay Output : 16(8) A@250 V ∼ for Resistive load (Electrical life : 100.000 switching at full load) or 30(15)A@240 V ∼ for Resistive load (Electrical life : 100.000 switching at full load)
Optional SSR Drive Output : Maximum 20mA, Maximum 17V—
Display : 14 mm Red 4 digits LED Display
LED : S (Green), P (Green), °C (Yellow), °F (Yellow), Compressor Output (Red), Heating Output (Red)
Internal Buzzer : ≥83dB
Approvals : C ∈, UK, CA, EAC
8.Ordering Information
| ESM-3710-N(77x35 DIN Sizes) | A | BC | D | E | FG | HI | / | U | V | W | Z | |||
| 0 | 0 | 0 | / | 00 | 00 | / | ||||||||
| Supply VoltageA | ||||||||||||||
| 1 | 100-240V~(-%15,+%10) 50/60Hz - 2.5VA | |||||||||||||
| 2 | 24V~(±%15) 50/60Hz - 2.5VA | |||||||||||||
| 3 | 24V~(±%15) 50/60Hz - 2.5VA | |||||||||||||
| 4 | 115V~(±%15) 50/60Hz - 2.5VA | |||||||||||||
| 5 | 230V~(±%15) 50/60Hz - 2.5VA | |||||||||||||
| 8 | 10 - 30 V =2.5W | |||||||||||||
| 9 | Customer | |||||||||||||
| BC | Input Type | Scale(°C) | ||||||||||||
| 05 | J ,Fe CuNi IEC584.1(ITS90) | 0°C/32°F ; 800°C/1472°F | ||||||||||||
| 10 | K ,NiCr Ni IEC584.1(ITS90) | 0°C/32°F ; 999°C/1830°F | ||||||||||||
| 11 | PT 100, IEC751(ITS90) | -50°C/-58°F ; 400°C/752°F | ||||||||||||
| 09 | PT 100, IEC751(ITS90) | -19.9°C/-4°F ; 99.9°C/212°F | ||||||||||||
| 14 | PT 1000, IEC751(ITS90) | -50°C/-58°F ; 400°C/752°F | ||||||||||||
| 13 | PT 1000, IEC751(ITS90) | -19.9°C/-4°F ; 99.9°C/212°F | ||||||||||||
| 12 | PTC (Not-1) | -50°C/-58°F ; 150°C/302°F | ||||||||||||
| 18 | NTC (Not-1) | -50°C/-58°F ; 100°C/212°F | ||||||||||||
| E | Output | |||||||||||||
| 1 | Relay Output (16(8) A@250 V ~,at resistive Load, 1 NO , 1NC) | |||||||||||||
| 2 | SSR Driver Output (Maximum 20m, Maximum 17V= ) | |||||||||||||
| V | Temp. Sensor which is given with ESM-3710-N | |||||||||||||
| 0 | None | |||||||||||||
| 1 | PTC-M6L40.K1.5 (PTC Air Probe 1.5 mt Silicon Cable) | |||||||||||||
| 2 | PTCS-M6L30.K1.5.1/8" (PTC Liquid Probe 1.5 mt Silicon Cable) | |||||||||||||
| 3 | NTC-M5L20.K1.5 (NTC Sensor, thermoplastic moulded with 1.5 m cable for cooling application) | |||||||||||||
| 4 | NTC-M6L50.K1.5 (NTC Sensor, stainless steel housing with 1.5 m cable for cooling application) | |||||||||||||
| 9 | Customer | |||||||||||||
All order information of ESM-3710-N Temperature Controller are given on the table at above. User may form appropriate device configuration from information and codes that at the table and convert it to the ordering codes. Firstly, supply voltage then other specifications must be determined. Please fill the order code blanks according to your needs.
Please contact us, if your needs are out of the standards.
Note-1: If input type is selected PTC or NTC (BC= 12, 18), Temperature sensor is given with the device. For this reason, if input type is selected as PTC, sensor type (V = 0,1 or 2) or if input type is selected as NTC, sensor type (V = 0,3 or 4) must be declared in ordering information.

Because of limited mechanical life of relay output contact,
SSRoutput is recommended which the device use PID control algorithm.
The device with ON/OFF control algorithm, hysteresis parameter must be set a suitable value for your system, to avoid too much relay switching.

Before commissioning the device, parameters must be set in accordance with desired use.
Incomplete or incorrect configuration can cause dangerous situations.
1.RS-485 Module 2.PROKEY Programming Module

Vac,
--- Vdc
Vdc or Vac
can be applied


Your Technology Partner
Thank you very much for your preference to use Emko Elektronik products, please visit our web page to download detailed user manual.
www.emkoelektronik.com.tr
Warning symbols including thermometer, landslide, mountain slope, and warning triangle with exclamation marktext_image
°C S 50 ESM3710-N SET P ✓ SEMKOMODBUS ADDRESS:30003
Geräte Status : 1.bit Summer Status
MODBUS ADDRESS:30004
MODBUS ADDRESS:30005
Ausgang Status
line
| Zeit | Temperature Wert | |------|------------------| | 0 | Low | | 1 | Medium | | 2 | High | | 3 | Medium | | 4 | Low | | 5 | Medium | | 6 | High | | 7 | Medium | | 8 | Low | | 9 | Medium | | 10 | High |Your Technology Partner
ESM3710-N °C S 50 SET P ✓ EMKOtext_image
ESM3710-N ° C S 20 SET P ✓ DEEMKOline
| Time Period | Value | |-------------|-------| | Start | High | | Peak | HSt | | End | Low |
line
| Time Segment | ALIMENTATION (°C) | SET (Hst) | | ------------ | ----------------- | --------- | | Top Left | High | Low | | Middle Right | Medium | Medium | | Bottom Right | Low | Low | | Bottom Left | Low | Low | | Middle Right | Medium | Medium | | Bottom Right | Low | Low |line
| Temps | Value | |-------|-------| | Start | Low | | Peak 1 | High | | Peak 2 | Low | | Peak 3 | High | | End | Low |text_image
°C 25.0 ESM3710-N SET P ✓ @EMKO → °C Pr-0 ESM3710-N SET P ✓ @EMKOtext_image
°C HSL ESM3710-N SET P ✓ EMKO → °C ESM3710-N SET P ✓ EMKOtext_image
°C 5 ESM3710-N SET P ✓ EMKO → °C HSL ESM3710-N SET P ✓ EMKOtext_image
1 2 8.8.8.0 SET P ✓ EEMEREDtext_image
8.8:8.8 °C S P SC P ✓ 20000 1 2text_image
°C 25 ESM3710-N SET P ✓ DEEMKOtext_image
°C S 20 ESM3710-N SET P ✓ DEEMKOline
| Tiempo | Temperature | | ------ | ----------- | | Start | High | | Peak | HSt | | End | Low |
ESM3710-N SET P ✓ DETEQ CE UK CA EACtext_image
8.8:8.8 °C T 8 P 1 2TC,NTC,PTC,PT-100 o PT-1000
line
| Uscita di controllo della temperatura | Valore di temperatura | | ------------------------------------- | --------------------- | | 0 | ON | | 1 | OFF | | 2 | ON | | 3 | OFF | | 4 | ON | | 5 | OFF | | 6 | ON | | 7 | OFF | | 8 | ON | | 9 | OFF | | 10 | ON | | 11 | OFF | | 12 | ON | | 13 | OFF | | 14 | ON | | 15 | OFF | | 16 | ON | | 17 | OFF | | 18 | ON | | 19 | OFF | | 20 | ON | | 21 | OFF | | 22 | ON | | 23 | OFF | | 24 | ON | | 25 | OFF | | 26 | ON | | 27 | OFF | | 28 | ON | | 29 | OFF | | 30 | ON | | 31 | OFF | | 32 | ON | | 33 | OFF | | 34 | ON | | 35 | OFF | | 36 | ON | | 37 | OFF | | 38 | ON | | 39 | OFF | | 40 | ON | | 41 | OFF | | 42 | ON | | 43 | OFF | | 44 | ON | | 45 | OFF | | 46 | ON | | 47 | OFF | | 48 | ON | | 49 | OFF | | 50 | ON | | 51 | OFF | | 52 | ON | | 53 | OFF | | 54 | ON | | 55 | OFF | | 56 | ON | | 57 | OFF | | 58 | ON | | 59 | OFF | | 60 | ON | | 61 | OFF | | 62 | ON | | 63 | OFF | | 64 | ON | | 65 | OFF | | 66 | ON | | 67 | OFF | | 68 | ON | | 69 | OFF | | 70 | ON | | 71 | OFF | | 72 | ON | | 73 | OFF | | 74 | ON | | 75 | OFF | | 76 | ON | | 77 | OFF | | 78 | ON | | 79 | OFF | | 80 | ON | | 81 | OFF | | 82 | ON | | 83 | OFF | | 84 | ON | | 85 | OFF | | 86 | ON | | 87 | OFF | | 88 | ON | | 89 | OFF | | 90 | ON | | 91 | OFF | | 92 | ON | | 93 | OFF | | 94 | ON | | 95 | OFF | | 96 | ON | | 97 | OFF | | 98 | ON | | 99 | OFF | | 100 | ON |
