Product Type	PID Temperature Controller
Brand	Emko
Model	ESM-9920
Dimensions (front panel)	96 x 96 mm
Depth	96 mm
Weight	340 g
Process display (PV)	4-digit red LED display, height 19 mm
Setpoint display (SV)	4-digit green LED display, height 10.8 mm
Measurement inputs	Thermocouple (J, K, R, S, T) and Pt100 RTD
Control output	Relay 5A@250V~ or SSR driver (24 mA / 12 V=)
Alarm outputs	2 outputs: relay 5A@250V~ or SSR driver (depending on model)
Control modes	ON/OFF, P, PI, PD, PID with adaptive tuning
Accuracy	±0.25% of full scale for TC and RTD
Power supply	100-240 V AC, 50/60 Hz (typical)
Protection rating	IP65 (front panel), IP20 (rear)
Operating temperature	0 to 50°C
Humidity	0-90% RH non-condensing
Main features	PID control, auto-tuning, programmable alarms, password protection, cold junction compensation
Maintenance and cleaning	Clean the housing with a slightly damp cloth (water or ethyl alcohol). Do not use solvents.
Safety	Disconnect power before intervention. Installation by qualified technician.
Warranty	2 years from delivery date

Frequently Asked Questions - ESM-9920 Emko

How to set the temperature setpoint?

Press the SET key to access the setpoint display. Use the arrow keys to change the value. Press SET again to confirm. If no action for 120 seconds, the device returns to the main screen.

How to configure an alarm?

Access the AL (Alarm) menu in the programming section. Use the parameters ALo1 (low limit), AUP1 (high limit), AHS1 (hysteresis), and Aon1/AoF1 (delays). The alarm type is selected with AAS1 (e.g., PH,R for high with latching).

What to do if the screen displays 'Sensor Error'?

Check the sensor connection (thermocouple or Pt100). Make sure it is properly connected and that the input type matches the sensor used. If the problem persists, replace the sensor.

How to clean the device housing?

Use a soft cloth slightly dampened with water or ethyl alcohol. Never use hydrocarbon-based solvents (petroleum, trichlorethylene) which could damage the plastic.

What is the panel mounting procedure?

Cut an opening of 92x92 mm (tolerance ±1 mm). Insert the sealing gasket, place the device from the front, then secure it using the two mounting brackets provided by tightening the screws.

How to start the PID auto-tuning?

Go to the Cont (Control) menu and set tune to SELF. Press ASET/OK to confirm. The device automatically calculates the PID parameters. Ensure the process temperature is below the setpoint by at least 5% of full scale for heating.

Which sensor types are compatible?

The device accepts thermocouples type J, K, R, S, T and Pt100 probes (2 or 3 wires). Refer to table 1 in the manual for the corresponding measuring ranges.

How to change the temperature unit between °C and °F?

In the ProS (Process) menu, set the parameter Un to °C or °F. The default value is °C. This change affects all displays.

What to do if the device does not turn on?

Check the power connection and the fuse (if present). Make sure the supply voltage matches the one indicated on the label (usually 100-240 V AC). If the device remains off, contact maintenance service.

How to lock access to parameters with a password?

In the Prot (Protection) menu, set PrPS to a code from 0 to 9999 (e.g., 1234). If the value is non-zero, the user must enter this password to access and modify parameters. To disable, set PrPS back to 0.

USER MANUAL ESM-9920 Emko

• 4 digit process (PV) and 4 digit set (SV) display
• Process input (TC, RTD)
• Programmable ON/OFF, P, PI, PD and PID control forms
• Adaptation of PID Coefficients to the system with Self-Tune operation (Step Response Tuning)
  -Programmable Heating or Cooling Functions for Control Output
• Selectable Alarm Functions for Alarm Output

ESM series temperature controllers are designed for measuring and controlling a process value. They can be used in many applications with their TC and RTD temperature measurement input, multi-function control outputs, selectable alarm functions.

They are mainly used in glass, plastic, petro-chemistry, textile, automotive and machine production industries. Accurate and advanced controlling is performed with selectable ON-OFF, P, PI, PD, PID and Self Tune PID functions.

Specifications

Process Input: TC, RTD

Thermocouple (TC): J, K, R, S and T (IEC584.1)(ITS90) Thermoresistance (RTD): PT-100 (IEC751)(ITS90)

Measurement Range : Please refer to Table-1 for selection of input type and scale.

Accuracy: ± 0.25% of scale for thermocouple and thermoresistance

Cold Junction Compensation : Automatically ±0.1°C/1°C

Line Compensation : Maximum 10 Ohm

Sensor Break Protection : Upscale

Sampling Cycle : 3 samples per second

Input Filter : 1.0 second.

Control Form : ON/OFF, P, PI, PD or PID (Control form can be programmed by the user.)

Output

Process Output : Relay (5A@250V~at resistive load) or SSR

Driver Output (Maximum 24mA, Max. 12V ---)

Alarm Output: Relay(5A@250V~ at resistive load) or SSR Driver

Output(Alarm Output - 2) (Maximum 24mA, Max. 12V ---)

Supply Voltage

24V (± 15%) 50 / 60Hz - 3VA or 24V = (± % 15) -3W

230V～（±15%）50/60 Hz - 3VA

115V～（±15%）50/60 Hz - 3VA

24V (± 15%) 50 / 60Hz - 3VA

(It must be determined in order)

Display

Process Display :

ESM-4420 : 10.1 mm Red 4 digit LED Display

ESM-4920 : 13.2 mm Red 4 digit LED Display

ESM-7720 : 13.2 mm Red 4 digit LED Display

ESM-9420 : 10.1 mm Red 4 digit LED Display

ESM-9920 : 19 mm Red 4 digit LED Display

Set Value Display :

ESM-4420 : 8 mm Green 4 digits LED Display

ESM-4920 : 8 mm Green 4 digits LED Display

ESM-7720 : 9.1 mm Green 4 di gits LED Display

ESM-9420 : 8 mm Green 4 digits LED Display

ESM 9920 : 10.8 mm G reen 4 digits LED Display

Leds : PS (Process Set Value), PO (Process Output Status Led) ,

AS1, AS2 (Alarm Set Values), AO1, AO2 (Alarm Output Status)

Environmental Ratings and Physical Specifications

Operating Temperature: 0...50°C

Humidity: 0-90%RH (none condensing)

Protection Class : IP65 at front, IP20 at rear

Weight: ESM-4420: 220 gr., ESM-4920: 240 gr.

ESM-7720:270 gr., ESM-9420:230 gr.

ESM-9920 : 340 gr.

Dimension :

ESM-4420: (48× 48mm Depth:95mm

ESM-4920: (96 x 48mm, Depth : 94.5mm)

ESM-7720: (72 x 72mm, Depth : 95.5mm)

ESM-9420: (48× 96mm Depth: 94.5mm)

ESM-9920: (96 x 96mm, Depth : 96mm)

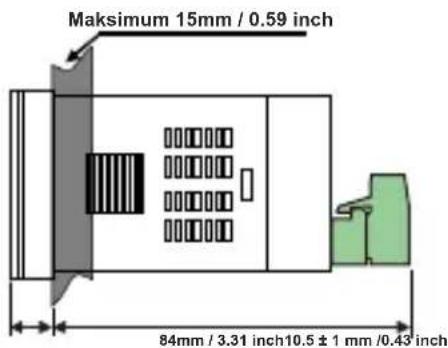

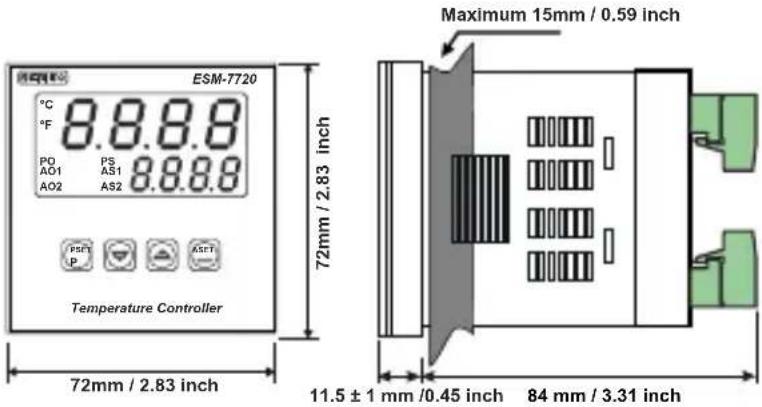

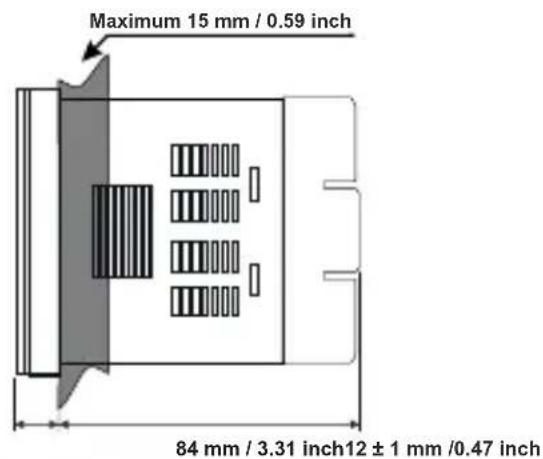

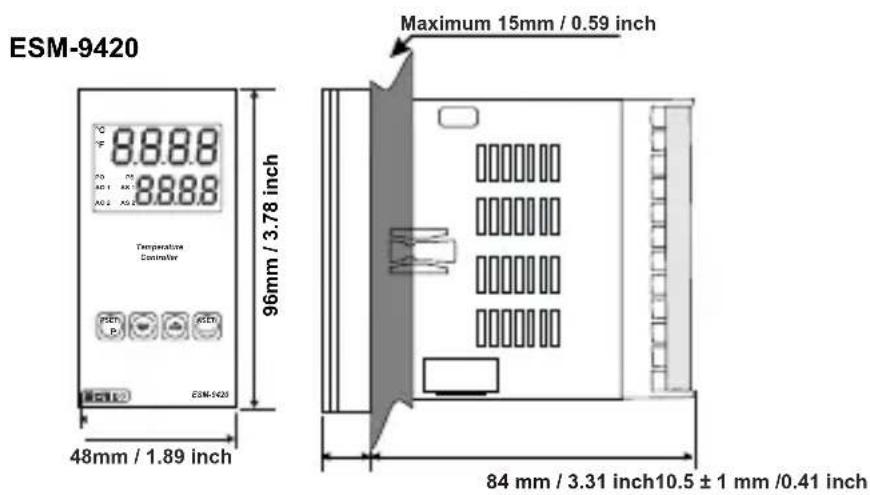

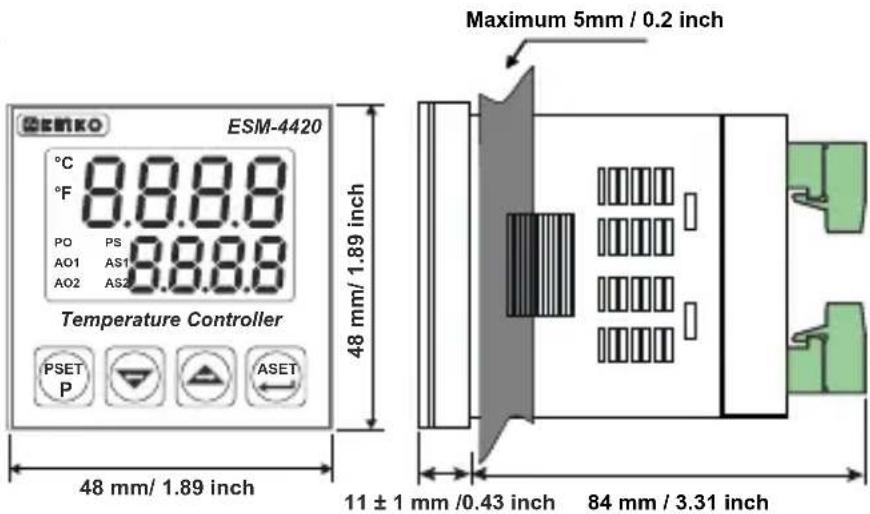

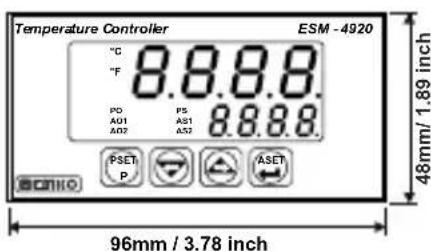

Panel CutOut :

ESM-4420:(46x46mm)

ESM-4920: (92 x 46mm)

ESM-7720: (69× 69mm)

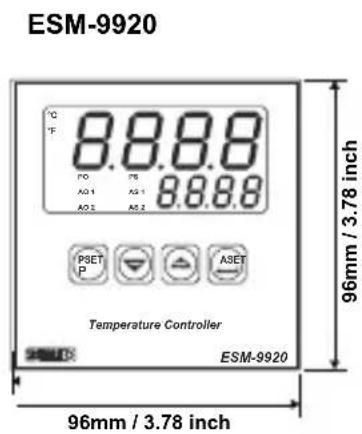

ESM-9920

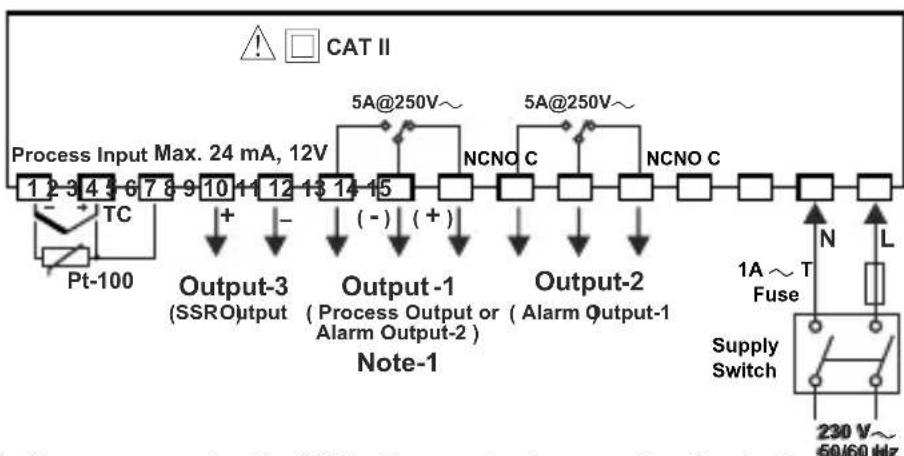

Note-1: If process output is SSR driver output, pay attention to the (+) and (-) pins while doing the connection of the device

ESM-4420

ESM-4920

ESM-7720

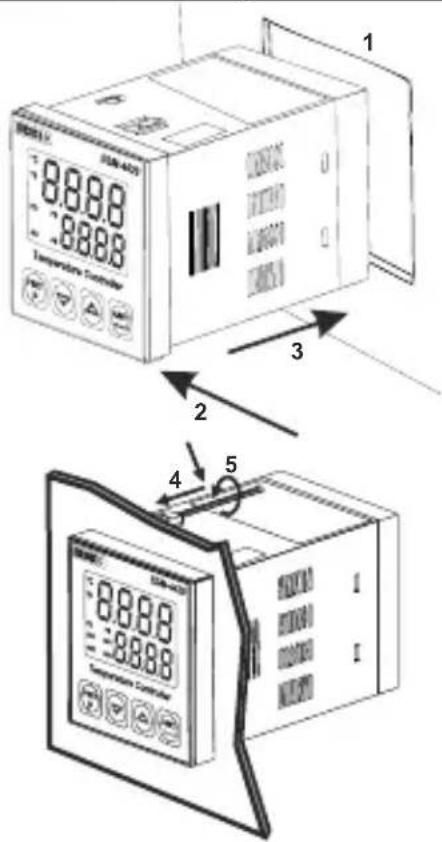

Panel Mounting

1-Before mounting the device in your panel, make sure that the cutout is of the right size.
2-Check front panel gasket position
3-Insert the device through the cutout.If the mounting clamps are on the unit, put out them before inserting the unit to the panel.

4-Insert the unit in the panel cut-out from the front side.

5- Insert the mounting clamps to the holes that located top and bottom sides of device and screw up the fixing screws until the unit completely immobile within the panel.

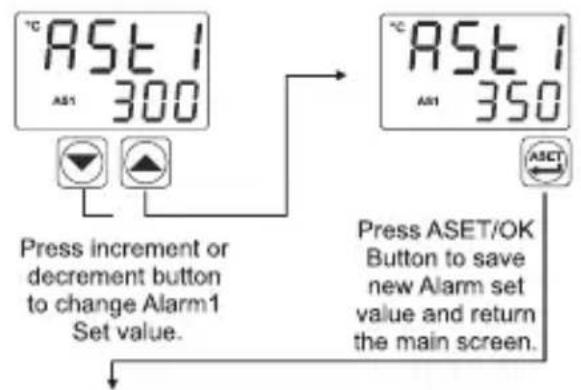

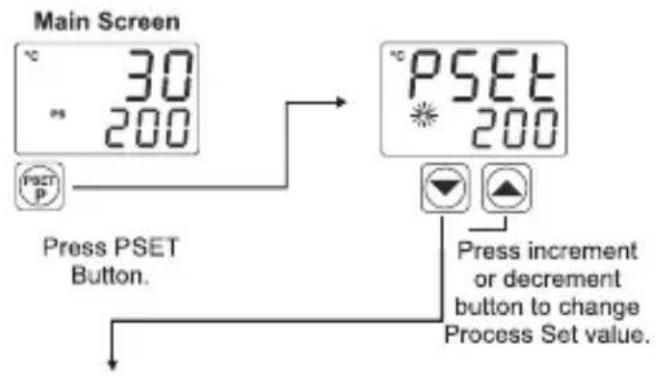

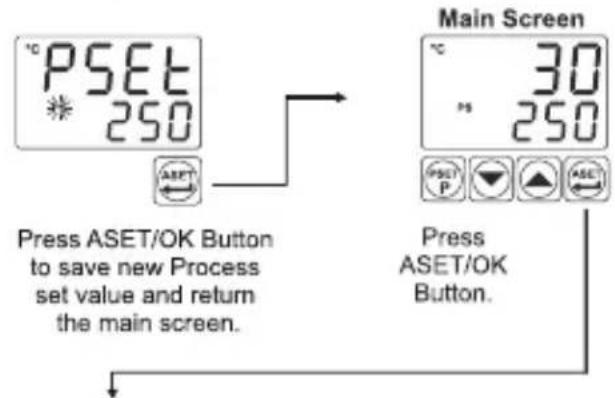

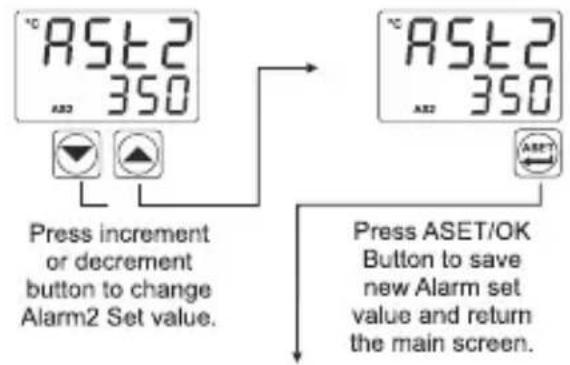

Access and Change Set Values

Note: User can exit from Set Value section without saving the values by pressing button. If no operation for 120 seconds, device automatically exits from Set Value section.

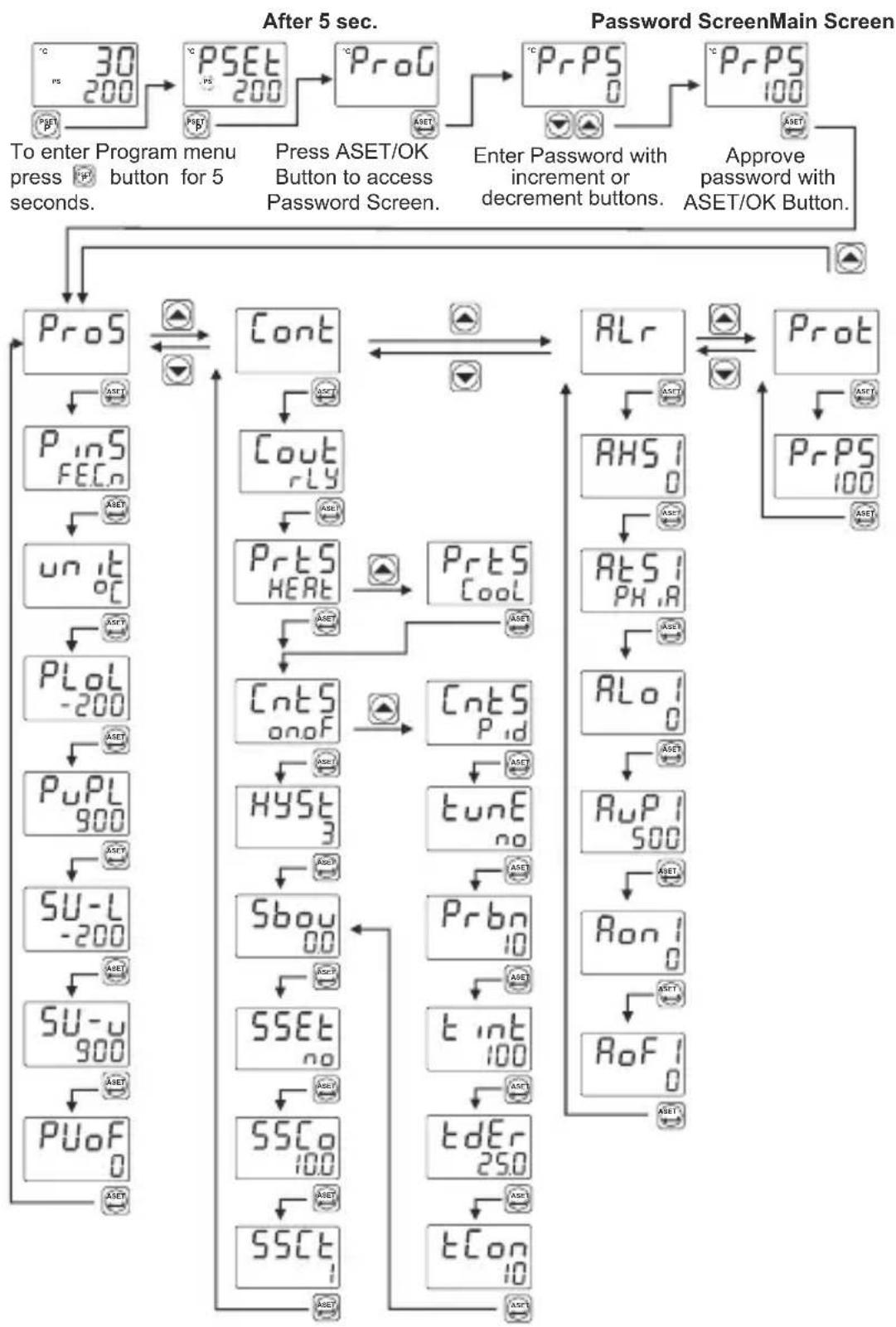

Easy Access Diagram For Program Parameters

Note:If user does not do anything for 120 seconds while device is on programming section, device turns to operation screen.

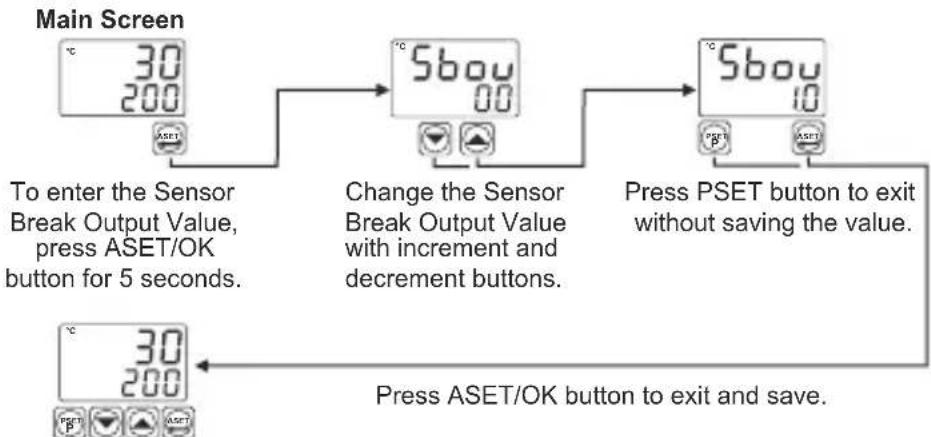

Easy Access Diagram For Sensor Break Output Value

Note:If user does not do anything for 120 seconds while device is on this section, device turns to operation screen.

Note-2: Sensor Break Output Value can be adjusted on programming section too.

Tune Operation

Starting the Tune operation

1-Enter to the programming section
2- Select SELF, Auto, TunE parameter in Cont menu. Press ASET/OK button for saving the parameter and turn to the main operation screen.
3- Observe that " _unE blinks in set display.

Note- For starting the Tune operation,

Heating Tune Operation:Process value must be lower than process set value at least 5 % of full scale

Cooling Tune Operation :Process value must be greater than process set value at least 5% of the full scale. If this condition is not okay, Blinks on the screen for 10 seconds.

Canceling Self Tune operation :

1- If sensor breaks ;
2- If Self Tune operation can not be completed in 8 hours;
3- While heating Self Tune is running, if process value becomes greater than Process Set value
4- While cooling Self Tune is running, if process value becomes less than Process Set value;
5- While Self Tune operation is running, if user changes the process set value;

Then Self Tune operation is canceled, device continues to run with former PID parameters without changing PID parameters.

Pro5: Process Menu Parameters

- L : Process Set value Low Limit. Minimum set value is defined with this parameter. It changes according to the process input type and scale. (Default: -200)
_U - U : Process Set value High Limit. Maximum set value is defined with this parameter. It changes according to the process input type and scale. (Default: 900)
_U_0F : Display offset for process value. It can be adjusted from -10% of scale to 10% of scale. It is added to the process display value. (Default: 0)

Note: If process input type selection( PnS ) is changed, PL, PL SU-L , SU-ω , PUoF , RLoI , RuPI , RLo2 , RPU2 , PSEt , RSt1 and RSt2 parameters may need to be updated according to the input type selection.

Cone : Control Menu Parameters

This parameter determines, which output will be Process control output. If rLY is chosen, process output is relay output, if SSR is chosen, process output is SSR output. (Default: Ssr)
Pr5 : Process Type Selection. It can be HERE or Cool . (Default:HERE)
: Process Control Type Selection. It can be onof or Pd .(Default: onof )
tune: If tune parameter is set to SELF, device start to Self Tune to calculate PID parameters automatically. If tune parameter is set to AUTO, device start to Auto Tune to calculate PID parameters automatically. This parameter is shown if = . (Default: no)
:Proportional band . It can be adjusted from %1 to %100.If Cnt5 = Pd ,then this parameter can be observed. (Default: 10.0)
int : Integral Time. 104ar360asjusted.fom = ,thn5 P.d this parameter can be observed. (Default: 100)
tdEr : Derivative Time.10caandb8adjusefn m = ,then CntS Pid this parameter can be observed. (Default: 25.0)
:Output Control Period.11 dan150 adjusted from If then this parameter can be observed. (Default: 10)
Hysteresis value. It was adjusted from % 0 ile 50 ( - PL Pcl If cS, then this parameter can be observed (Default: 3)
Sbau : Sensor Break Output Value. %0 to %100. It can be adjusted from (Default: 0.0)
: Soft Start Set value. Device operates in Soft Start mode, until the temperature reaches Soft Start set value. (Default: no)
SSC : Soft Start Control Output. This parameter determines soft start mode control output percentage. (Default: 10.0)
SSC : Soft Start Control time. This parameter determines soft start mode control time. (Default:1)

ALP : Alarm Menu Parameters

RH51 : Alarm Hysteresis value.It.can be adjusted from % 0 ile % 50 of the Scale( RPL-RLoL) (Default:0)
RE51 : Alarm Type selection. (Default: PH.R)
ALoI : Alarm Set Low Limit parameter. It can be adjusted from Operation Scale minimum to Alarm Set High Limit. (Default: 0)
_UP! : Alarm Set High Limit parameter. It can be adjusted from Alarm Set Low Limit to Operation Scale maximum. (Default: 500)
: Alarm on Delay Time. It can be adjusted from 0 to 9999 seconds. (Default: 0)
_0F_1 : Alarm off Delay Time. It can be adjusted from 0 to 9998 seconds. If it is higher than 9998, [LECH], is seen on the screen and Alarm Latching Output is selected. (Default: 0)

RH52: Alarm Hysteresis value. It can be adjusted from % 0 ile % 50 of the Scale (AoPL - RLoL). (Default: 0)
BtS2 : Alarm Type selection. (Default: PH, A)
ALoc2: Alarm Set Low Limit parameter. It can be adjusted from Operation Scale minimum to Alarm Set High Limit. (Default: 0)
RUP2 : Alarm Set High Limit parameter. It can be adjusted from Alarm Set Low Limit to Operation Scale maximum. (Default: 500)
: Alarm on Delay Time. It can be adjusted from 0 to 9999 seconds. (Default: 0)
_0F_2 : Alarm off Delay Time. It can be adjusted from 0 to 9998 seconds. If it is higher than 9998, LECH is seen on the screen and Alarm Latching Output is selected. (Default: 0)

NOTE: Alarm-2 parameters(AHS2, AtS2, Alo2, AuP2, Aon2, AoF2) are active, if Cout parameter is set as SSR.

ProE:Protection Menu Parameter

_rP5 : Password for accessing to the programming section. It can be adjusted from 0 to 9999. If _rP5 is 0, password screen is not observed. If _rP5 is different from 0 and user enters to the menu pages without entering the password, all the menus can be observed except protection menu _rP5 . But device does not allow to do any changes in parameters. (Default value is 0)

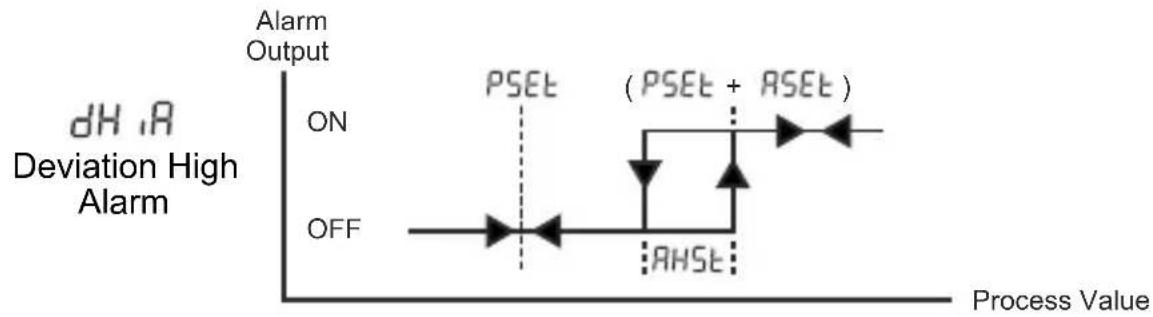

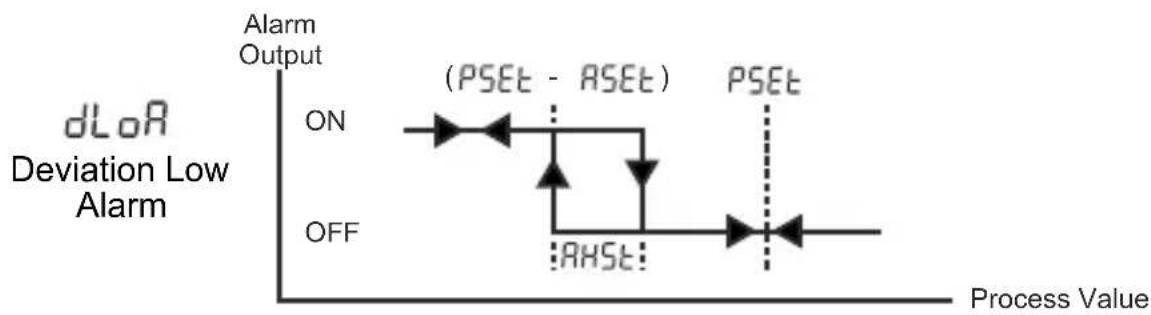

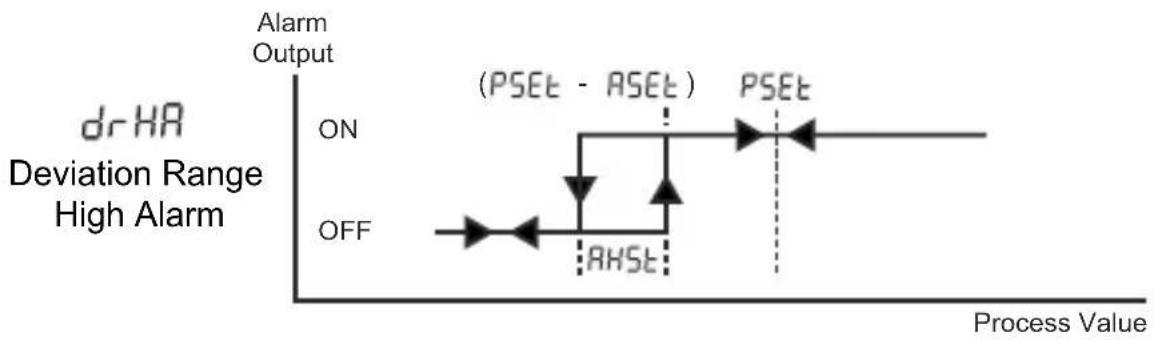

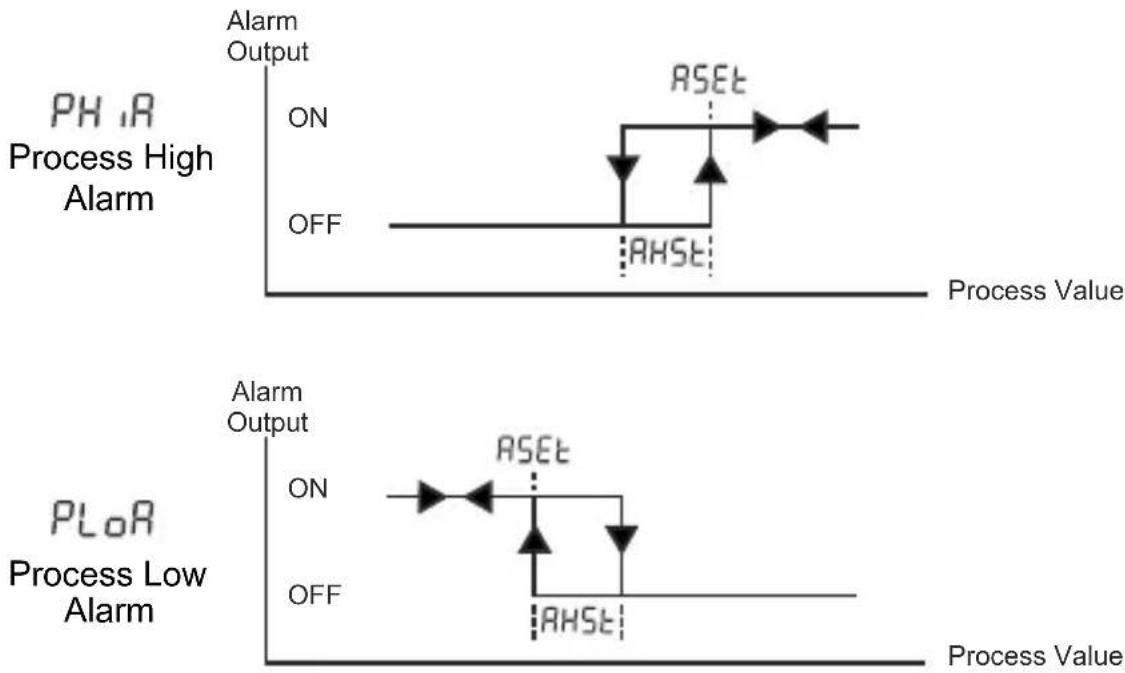

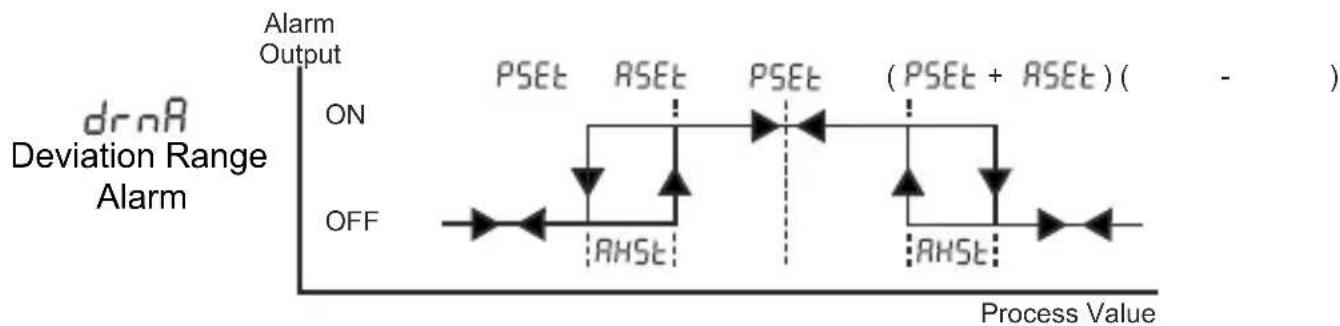

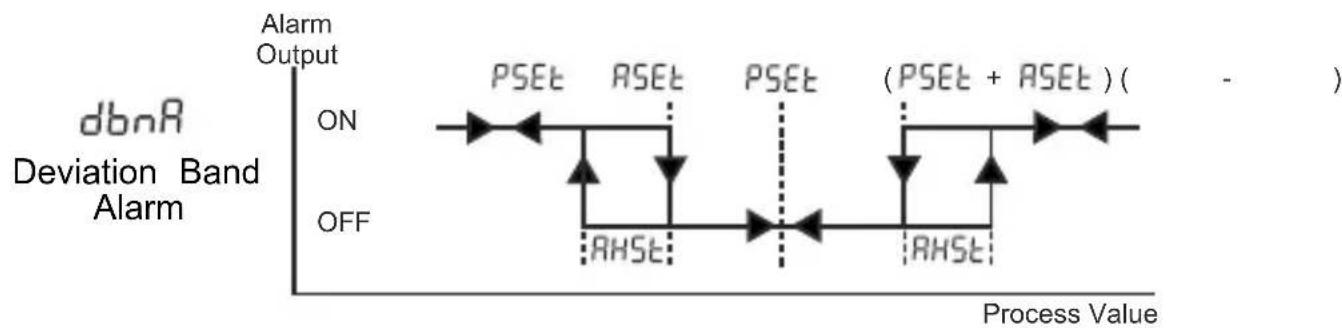

Alarm Types

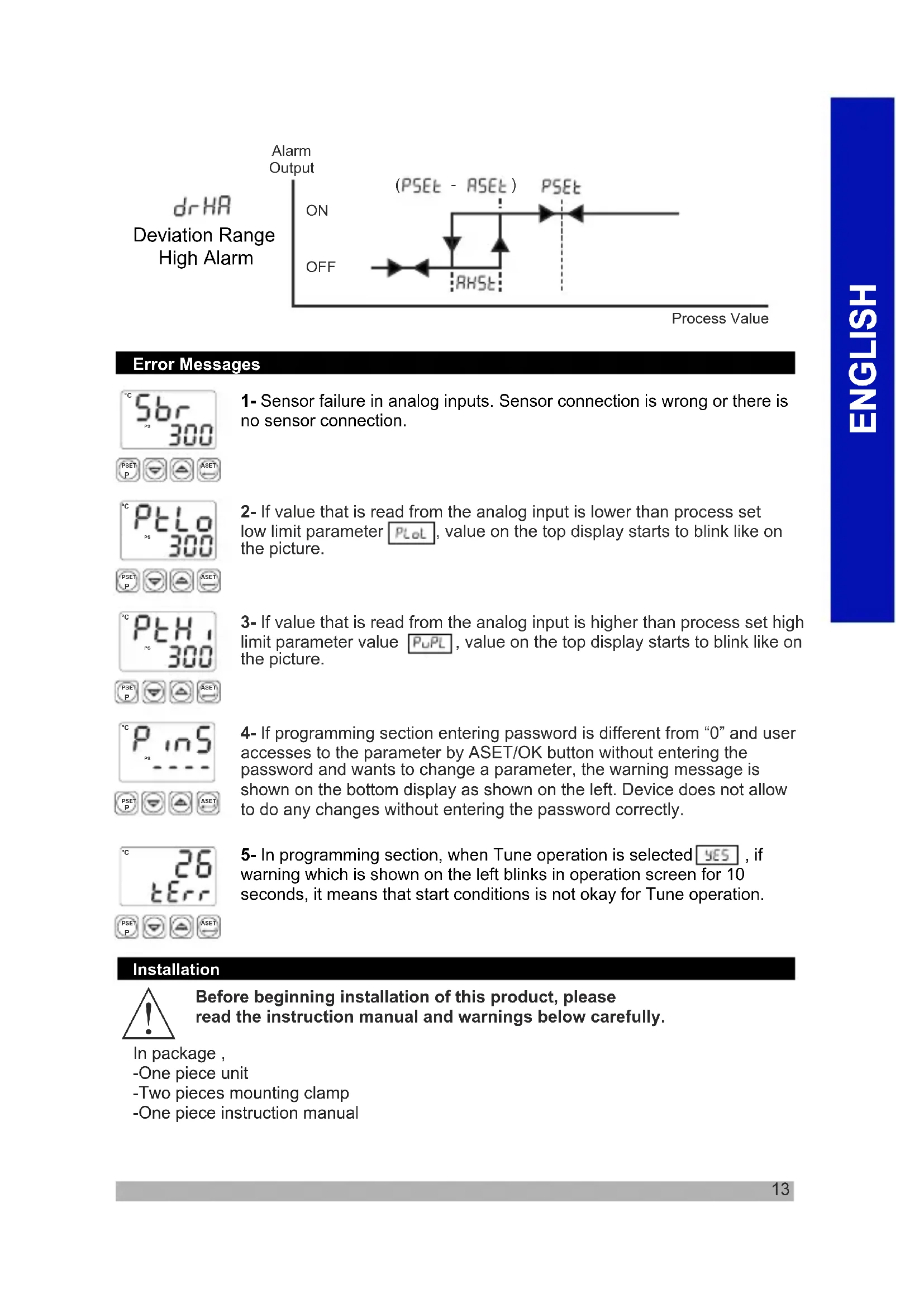

Error Messages

1- Sensor failure in analog inputs. Sensor connection is wrong or there is no sensor connection.

2- If value that is read from the analog input is lower than process set low limit parameter P_Lol , value on the top display starts to blink like on the picture.

3- If value that is read from the analog input is higher than process set high limit parameter value _UP_L , value on the top display starts to blink like on the picture.

4- If programming section entering password is different from "0" and user accesses to the parameter by ASET/OK button without entering the password and wants to change a parameter, the warning message is shown on the bottom display as shown on the left. Device does not allow to do any changes without entering the password correctly.

5-In programming section,when Tune operation is selected YES,if warning which is shown on the left blinks in operation screen for 10 seconds, it means that start conditions is not okay for Tune operation.

Installation

Before beginning installation of this product, please read the instruction manual and warnings below carefully.

In package ,

-One piece unit
-Two pieces mounting clamp
-One piece instruction manual

A visual inspection of this product for possible damage occurred during shipment is recommended before installation. It is your responsibility to ensure that qualified mechanical and electrical technicians install this product.

If there is danger of serious accident resulting from a failure or defect in this unit, power off the system and the electrical connection of the device from the system.

The unit is normally supplied without a power switch or a fuse. Use power switch and fuse as required.

Be sure to use the rated power supply voltage to protect the unit against damage and to prevent failure.

Keep the power off until all of the wiring is completed so that electric shock and trouble with the unit can be prevented.

Never attempt to disassemble, modify or repair this unit. Tampering with the unit may results in malfunction, electric shock or fire.

Do not use the unit in combustible or explosive gaseous atmospheres. During the equipment is putted in hole on the metal panel while mechanical installation some metal burrs can cause injury on hands, you must be careful.

Montage of the product on a system must be done with it's mounting clamp. Do not do the montage of the device with inappropriate mounting clamp. Be sure that device will not fall while doing the montage.

It is your responsibility if this equipment is used in a manner not specified in this instruction manual.

Warranty

EMKO Elektronik warrants that the equipment delivered is free from defects in material and workmanship. This warranty is provided for a period of two years. The warranty period starts from the delivery date.

This warranty is in force if duty and responsibilities which are determined in warranty document and instruction manual performs by the customer completely.

Maintenance

Repairs should only be performed by trained and specialized personnel. Cut power to the device before accessing internal parts. Do not clean the case with hydrocarbon-based solvents (Petrol, Trichlorethylene etc.). Use of these solvents can reduce the mechanical reliability of the device. Use a cloth dampened in ethyl alcohol or water to clean the external plastic case.

Other Information:

Manufacturer Information:

Emko Elektronik Sanayi ve Ticaret A.§

Demirtas Organize Sanayi Bolgesi Karanfil Sk. No:6 16369

BURSA/TURKEY

Phone : [phone]

Fax : [phone]

Repair and Maintenance Service Information:

Emko Elektronik Sanayi ve Ticaret A.Ş.

Demirtas Organize Sanayi Bolgesi Karanfil Sk. No:6 16369

BURSA/TURKEY

Phone : [phone]

Fax : [phone]

ESM-4420 (48x48 DIN 1/16)

ESM-4920 (96x48 DIN 1/8)

ESM-7720 (72x72 DIN Size)

ESM-9420 (48x96 DIN 1/8)

ESM-9920 (96x96 DIN 1/4)

A	BC	D	E	/	FG	HI	/	U	V	W	Z
		0		/	01	02	/	0	0	0	0

A	Supply Voltage
2	24V ~50/60Hz or 24V=±(±%15)
3	24V ~ (±%15) 50/60Hz
4	115V ~ (±%15) 50/60Hz
5	230V ~ (±%15) 50/60Hz
9	Customer

BC	Input Type	Scale
20	Configurable (Table-1)	(Table-1)

D	Serial Communication
0	None

E	Output-1(Process or Alarm)
1	Relay Output (5A@250V~Resistive Load)
2	SSR Driver Output (Max. 24mA, Max.12V---)

FG	Output-2(Alarm)
01	Relay Output (5A@250V~ Resistive Load)

HI	Output-3(Process)
02	SSR Driver Output (Max. 24mA, Max.12V---)

Table-1
BC	Input Type(TC)	Scale(°C)	Scale(°F)
23	J,Fe CuNi IEC584.1(ITS90)	-200°C,1300°C	-328°F,2372°F
25	K, NiCr Ni IEC584.1(ITS90)	0°C,1700°C	32°F,3092°F
27	R, Pt13%Rh Pt IEC584.1(ITS90)	0°C,1700°C	32°F,3092°F
28	S, Pt10%Rh Pt IEC584.1(ITS90)	0°C,1700°C	32°F,3092°F
29	T, Cu CuNi IEC584.1(ITS90)	-200°C,400°C	-328°F,752°F

BC	Input Type(RTD)	Scale(°C)	Scale(°F)
39	PT 100, IEC751(ITS90)	-200°C,650°C	-328°F,1202°F
40	PT 100, IEC751(ITS90)	-199.9°C,650.0°C	-199.9°F,999.9°F

EMKO

:Pt-100,-199.9°C,650.0°C; -199.9°F,999.9°F

Thermocouple (TC): J, K, R, S ve T (IEC584.1)(ITS90)

Thermoresistance (RTD) : PT-100 (IEC751)(ITS90)

TENSION D'ALIMENTATION

230V (± 15%) 50 / 60Hz - 3VA

115V～（±15%）50/60 Hz-3VA

24V (± 15%) 50/60 Hz - 3VA

:Pt-100,-199,9°C,650,0°C;-199,9°F,999,9°F

A	BC	D	E	/	FG	HI	/	U	V	W	Z
		0		/	01	02	/	0	0	0	0
