USER MANUAL S360DB EDIFIER

• Images are for illustrative purposes only and may dier from the actual product.

• For the need of technical improvement and system upgrade, information and specications contained herein may be slightly dierent from actual product. If any dierence is found, the actual product prevails. RCA-RCA audio cableIllustrations

7. To passive satellite speaker

11. Pair with satellite speaker

12. Connect to active satellite speaker

16. Volume adjustment/input selector

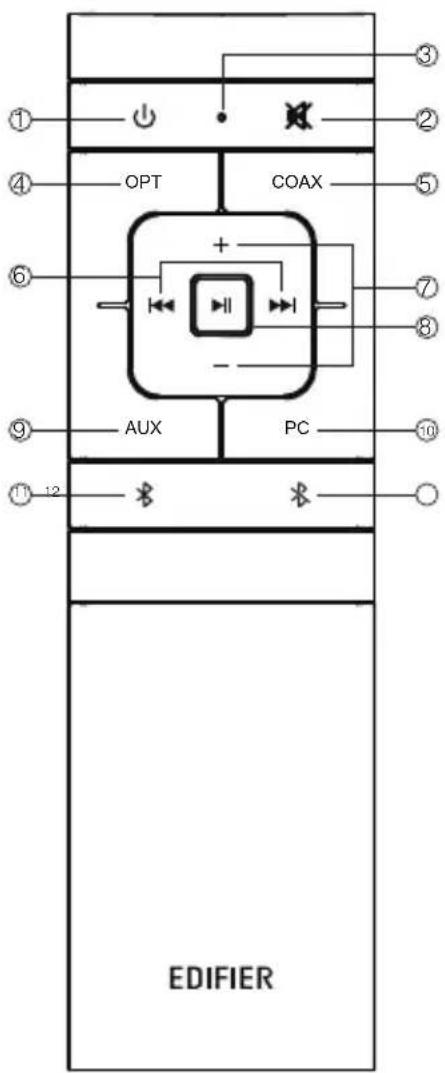

6. Previous/next track

(Bluetooth audio sources only)

(Bluetooth audio sources only)

12. Press and hold to disconnect Bluetooth

(connected status) AUX OPT

1. Do not place the remote control in places that are hot

2. Do not charge the batteries.

3. Remove the batteries when unused for a long period

of time to avoid batte leakage.

4. The batte should not be exposed to excessive heat

such as direct sun, re or similar.

5. Danger of explosion if batte is incorrectly replaced.

Replace only with the same or equivalent type.

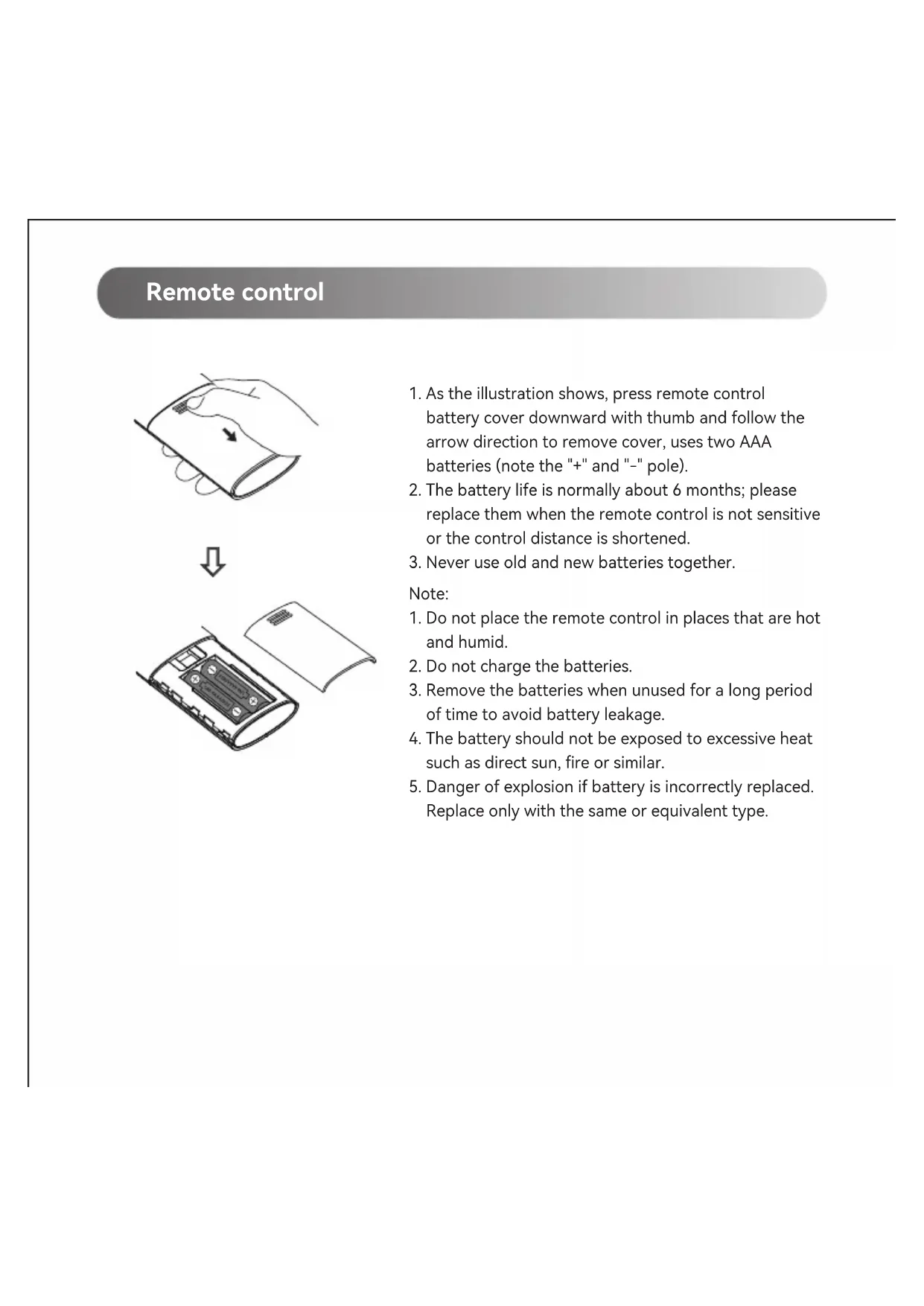

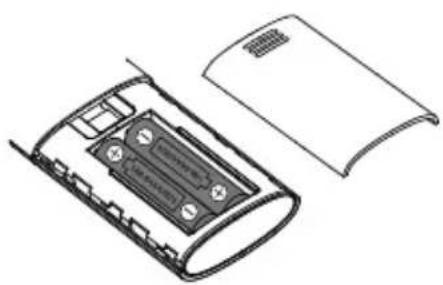

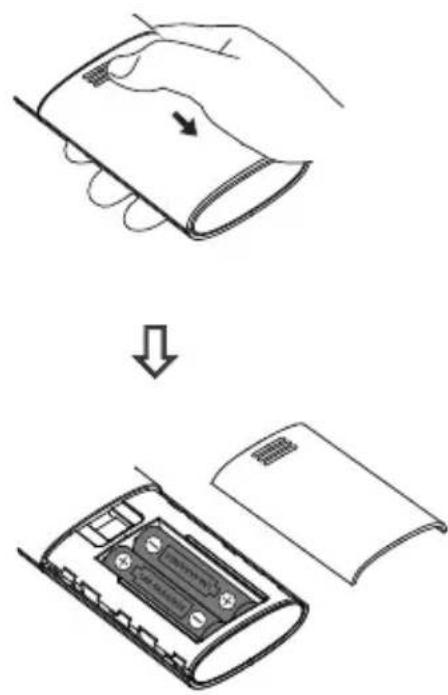

1. As the illustration shows, press remote control

batte cover downward with thumb and follow the arrow direction to remove cover, uses two AAA batteries (note the "+" and "-" pole).

2. The batte life is normally about 6 months; please

replace them when the remote control is not sensitive or the control distance is shoened.

3. Never use old and new batteries together.Connections

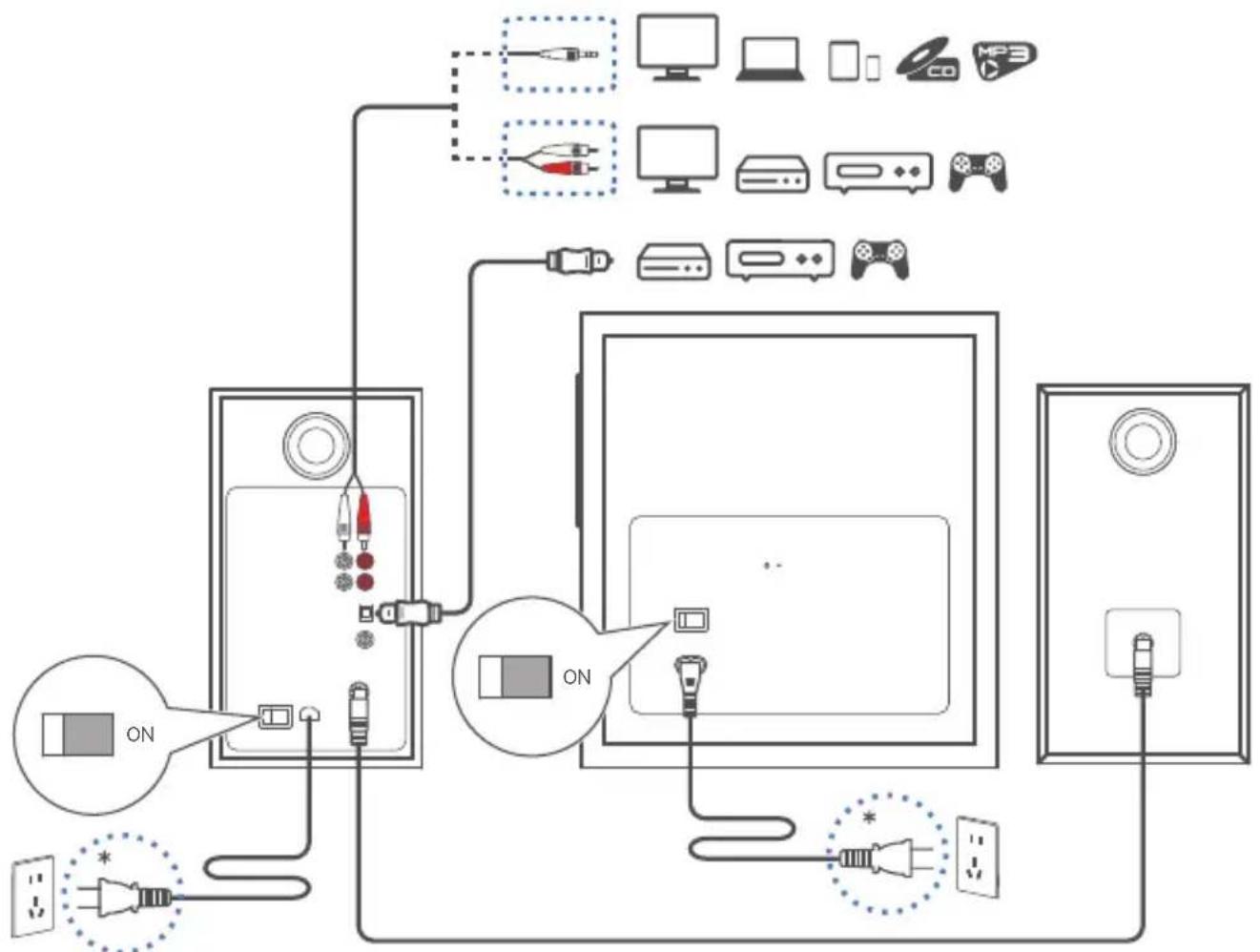

Power input: 100-240V~ 50/60Hz 400mA

• This plug type is meant for illustration purpose only.

ONConnections Manually re-pair the subwoofer and satellite speaker The active satellite speaker has been paired with the subwoofer at the facto before shipment. After powered on, they will reconnect automatically and the indicator on the rear panel of the subwoofer will light in solid red. If the wireless connection fails to resume, follow the steps below for manual pairing.

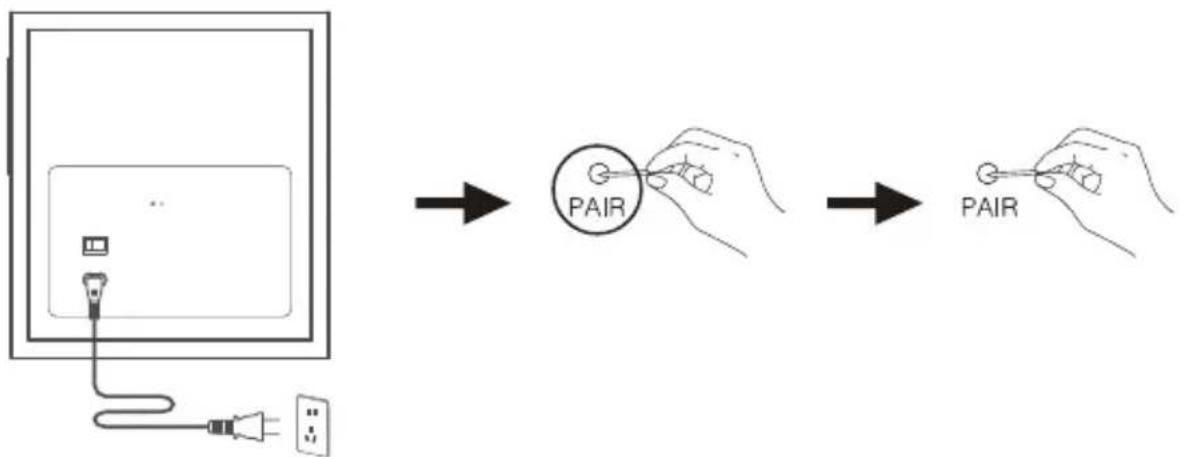

1. Power on the active satellite speaker, and then press and hold the "Pair" button on its rear

panel for 2 seconds.

2. Press and hold the "Pair" button on the rear panel of the subwoofer for 2 seconds. The red

indicator on its rear panel will blink rapidly.

3. Wait until the red indicator on the rear panel of the subwoofer is lit constantly. Then the

pairing is complete and wireless connection is established. Note: If the red indicator on the rear panel of the subwoofer is in a breathing pattern, it indicates that the subwoofer is disconnected and enters standby mode. Repeat the above steps.

• LED indicator blinks in a breathing pattern: subwoofer is disconnected and enters into standby mode

• LED indicator blinks rapidly: subwoofer enters into pairing mode

• LED indicator is constantly lit: subwoofer is connected and operates normallyOptical and Coaxial Input

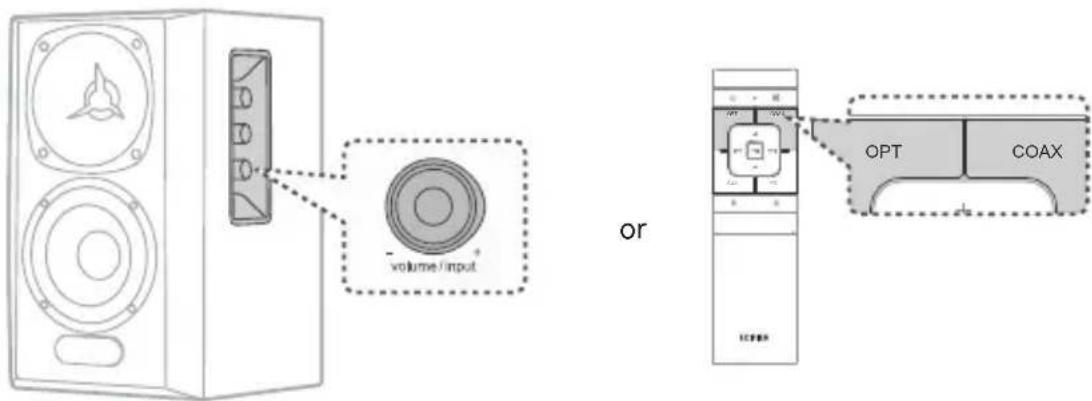

1. Press the "OPT/COX" button on the remote control or the volume adjustment/input selector

knob on the active satellite speaker to select OPT/COX input; indicator on the active satellite speaker is now lit.

2. Connect audio source (such as STB box and Blu-ray player etc) to OPT/COX input on the

active satellite speaker rear panel using ber optic audio cable included or coaxial audio cable excluded.

3. Play music and adjust to the desired volume.

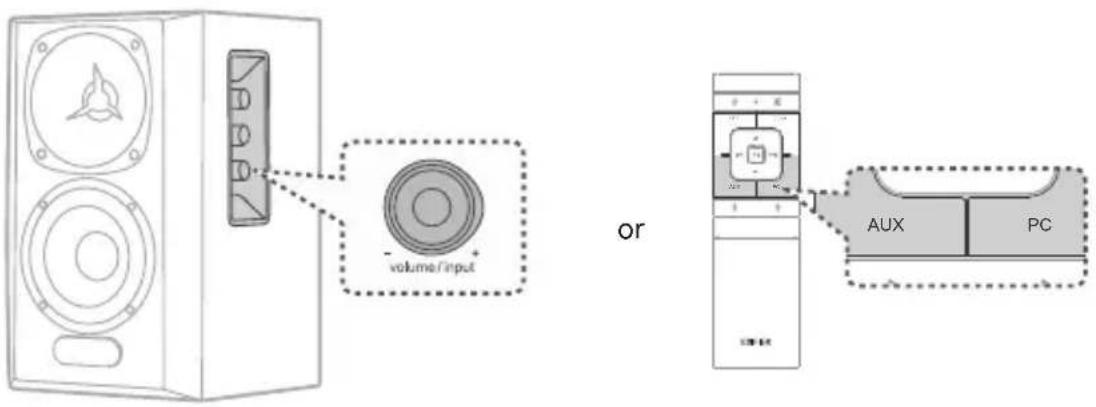

1. Press the "PC/AUX" button on the remote control or the volume adjustment/input selector

knob on the active satellite speaker to select PC/AUX input; indicator on the active satellite speaker is now lit.

2. Connect audio source (such as mobile phone, tablet, etc) to PC/AUX input on the active

satellite speaker rear panel (note the color matching) using 3.5mm to RCA audio cable included. 3. Play music and adjust to the desired volume.1. Press the " " button on the remote control or the volume adjustment/input selector knob on the active satellite speaker to select Bluetooth input; indicator on the active satellite speaker is now lit.

2. Set your Bluetooth device (mobile phone, tablet etc.) to search for and select "EDIFIER S360DB".

• The Bluetooth on S360DB can only be searched for and connected using Bluetooth input. The existing Bluetooth connection will be disconnected once the speaker is switched into other audio inputs. When switched back to Bluetooth input, the speaker will t to connect to the last connected Bluetooth audio source device.

• Pin code for connection is "0000" if needed.

• To disconnect from the current Bluetooth device, press and hold the " " button on the remote control for 2 seconds.

• To enjoy all Bluetooth functions of this product, make sure that your audio source device suppos A2DP and AVRCP proles.

• Bluetooth connectivity and compatibility may be dierent among dierent source devices, depending on the software versions of source devices.

• The built-in Qualcomm® aptX™ decoder in the product helps to achieve better wireless transmission sound quality, therefore please use the device suppoing Qualcomm® aptX™ as the audio source. Bluetooth Input AUX OPT

COAX orSpecications Total output power (RMS): R/L (Treble): 10W+10W R/L (Mid-range and bass): 30W+30W SW (Subwoofer): 75W Frequency response: R/L: 136Hz-40kHz, SW: 41Hz-150Hz Declaration for EU Frequency Band (Bluetooth): 2.402GHz ~ 2.480GHz Frequency Band (5.8G): 5.725GHz ~ 5.820GHz RF Power Output (Bluetooth): ≤10 dBm (EIRP) RF Power Output (5.8G): ≤14 dBm (EIRP) There is no restriction of use.Troubleshooting Cannot connect to your Bluetooth device

• Make sure that the distance between this product and your Bluetooth device is less than 10 meters and there are no obstacles between them.

• Make sure that no device is connected to this product via Bluetooth.

• Make sure that this product is in Bluetooth pairing mode. If not, manually switch it to this mode.

• Resta this product, enable Bluetooth function on your Bluetooth device, and then t again.

• Reset this product to facto settings and t again. No power

• Make sure that the power cable is properly connected.

• Make sure that the power supply is not disconnected.

• Make sure that the main power button on the rear panel is switched to "ON". No sound

• Make sure that this product is powered on.

• Make sure that this product and your device is properly connected.

• Make sure that the playback is not paused.

• Make sure that this product and your device are not muted.

• Increase the volume of this product and your device. Noise coming from speakers
