USER MANUAL Life Q35 soundcore

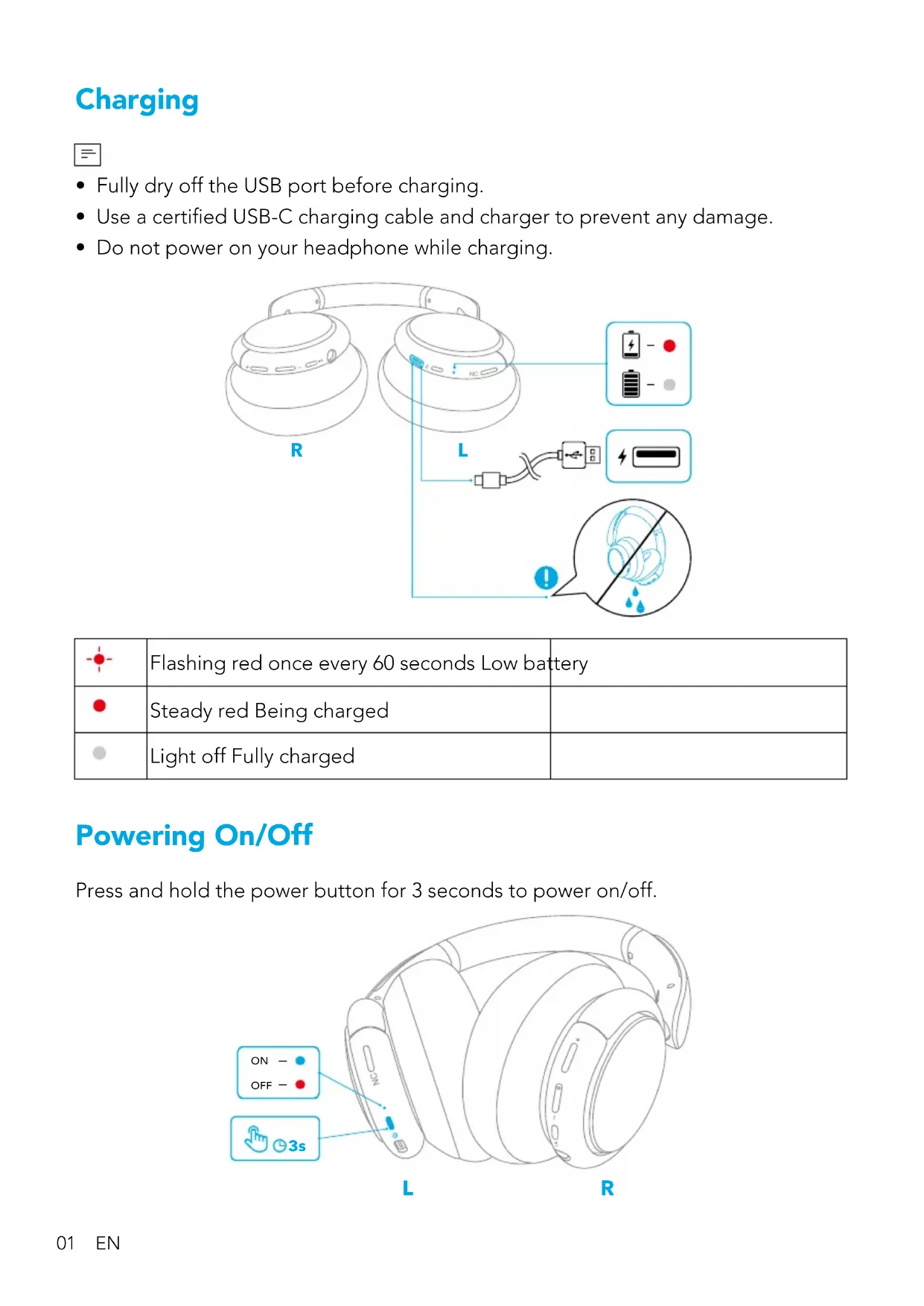

• Fully dry off the USB port before charging.

• Use a certied USB-C charging cable and charger to prevent any damage.

• Do not power on your headphone while charging. R L Flashing red once every 60 seconds Low battery Steady red Being charged Light off Fully charged Powering On/Off Press and hold the power button for 3 seconds to power on/off.

1. When powered off, press and hold the power button for 5 seconds until the LED

ashes blue to enter the Bluetooth pairing mode.

2. Select “Soundcore Life Q35” on your device’s Bluetooth list to connect.

Flashing blue Bluetooth pairing Steady blue (for 2 seconds) Bluetooth connected Pairing with another device When successfully connected with the rst device, press twice the power button to pair up with another device.03 EN

• Your Soundcore headphone can only play music on one mobile device at a time. To play from another connected device, pause the device that's currently active rst.

• Each time you power on your Soundcore headphone, it will automatically connect to your last successfully connected device if available within the Bluetooth range. Button Controls Play/Pause Press Next track Press and hold for 1 second Previous track Press and hold for 1 second Volume up/down PressEN 04 Answer/End a call Press Put the current call on hold and answer a new incoming call Reject a call Press and hold for 1 second Switch between held call and active call Activate Siri or other voice assistant software Press and hold for 1 second NFC Mode Near Field Communication (NFC) is a technology that enables short-range wireless communication between various NFC compatible devices, such as mobile phones and IC tags. If your Bluetooth device supports NFC, you can connect it with your headphone easily.

1. Enable the NFC feature on your Bluetooth device (iOS devices excluded).

2. Tap the right panel of your headphones with the back of your Bluetooth device.

NFC05 EN Noise Cancellation Mode To reduce ambient noise, turn on the active noise cancellation mode by pressing the NC button. Press the NC button again to turn off. NC ON

Transparency Mode To stay aware of your surroundings while listening to music, activate the transparency mode by holding the right panel for 1 second or pressing the NC button.

TRANSPARENCY ON AUX Mode Play audio on an external device by plugging in a 3.5mm AUX cable with remote control.EN 06 mm5.

Soundcore App Download the Soundcore app to enhance your experience. EQ settings: There are more than 20 EQ settings you can choose from in the app to optimize your experience while enjoying different music genres. Noise cancellation: Choose an active noise cancellation mode to reduce ambient noise according to your surroundings.

• Transport: Targets low-end frequencies like engine and road noise for peaceful journeys and commutes.

• Outdoor: Reduces ambient sounds in cities for less distractions.

• Indoor: Reduces voices and mid-frequency noise from coffee shops and other inside spaces. Transparency: Stay aware of your surroundings by allowing ambient sounds in. White noise soundscape: Tailor your own white noise soundscape when you need to rest. Firmware update: You will be informed once the new version of rmware is detected when you connect the headphones with the app. Soundcore Apple and the Apple logo are trademarksof Apple Inc.Google Play and the Google Play logo are trademarks of Google Inc.07 EN Reset You might need to reset your headphone if you experience any connectivity problems or function issues. Press and hold the power button and volume up button simultaneously for 5 seconds until the LED indicator ashes blue and red alternately twice.

Specifications Specications are subject to change without notice. Input 5 V 0.65 A Charging time 2 hours Playtime (with ANC mode turned on) 40 hours Playtime (with ANC mode turned off) 60 hours Driver size 40 mm × 2 Frequency response 20 Hz-20 kHz (Bluetooth) 16 Hz-40 kHz (AUX) Impedance 16 Ω Bluetooth version V5.0 Bluetooth range 15 m / 49.5 ft08 CS Nabíjení
