Life Q35 - Earphones soundcore - Free user manual and instructions

Product type	Bluetooth wireless headphone with active noise cancellation
Brand	Soundcore
Model	Life Q35
Power	Rechargeable USB-C battery, 5V 0.65A
Charging time	2 hours
Battery life (ANC on)	40 hours
Battery life (ANC off)	60 hours
Speaker size	40 mm x 2
Bluetooth range	15 meters
Main features	Active noise cancellation (ANC), Transparency mode, NFC, Bluetooth multipoint
Control buttons	Play/Pause, Volume, Track, Call, Voice command
Mobile app	Soundcore (equalizer, firmware update, soundscape)
Connectors	USB-C, 3.5mm AUX jack
Included accessories	USB-C cable, 3.5mm AUX cable
Maintenance	Dry the USB port before charging, use a certified cable
Safety	Do not turn on the headphone while charging
Reset	Press and hold the power button and volume + for 5 seconds

Frequently Asked Questions - Life Q35 soundcore

How to charge the Soundcore Life Q35 headphone?

Plug the provided USB-C cable into a 5V 0.65A charger. The LED is solid red during charging and turns off when fully charged. Dry the USB port thoroughly before plugging in.

How to turn the headphone on and off?

Press the power button for 3 seconds to turn on/off. To enter Bluetooth pairing mode, press and hold for 5 seconds until the LED flashes blue.

How to connect the headphone via Bluetooth?

Turn on the headphone, it enters pairing mode (flashing blue LED). On your device, select "Soundcore Life Q35" from the Bluetooth list. Confirm if required.

How to activate noise cancellation (ANC)?

Press the NC button to toggle ANC on/off. Long press the right earcup or the NC button to switch to Transparency mode.

What to do if the headphone does not connect?

Make sure the headphone is on and in pairing mode (flashing blue LED). Remove the device from your phone's Bluetooth list and try again. You can also reset the headphone by pressing and holding the power and volume + buttons for 5 seconds.

How to reset the headphone?

Press and hold the power and volume up buttons simultaneously for 5 seconds. The LED will flash blue and red twice.

How to use transparency mode?

Tap the right earcup for 1 second or press the NC button until you hear a voice prompt. This mode lets ambient sounds in to keep you aware of your surroundings.

How to use the Soundcore app?

Download the Soundcore app from Google Play (or App Store, if available). Connect your headphone to access the equalizer, choose noise reduction modes, update firmware, or customize a soundscape of white noise.

What is the battery life?

With ANC on, battery life is 40 hours. Without ANC, it reaches 60 hours. Full charging time is about 2 hours.

How to clean the headphone?

Use a soft, dry cloth. Avoid liquids. For the ear cushions, you can remove them (if removable) and clean with a slightly damp cloth. Make sure the USB port is dry before charging.

USER MANUAL Life Q35 soundcore

Line drawing of a pair of electronic headphones (no text or symbols)

Soundcore Life Q35

USER MANUAL

English 01

Português 92

Čeština 08

Portugues do Brasil 99

Dansk 15

Русский 106

Deutsch 22

Slovenský Jazyk 113

ελληνικά 29

Slovenski Jezik 120

Español 36

Svenska 127

Suomi 43

Türkçe 134

Français 50

Magyar 57

Italiano 64

Nederlands 71

Norsk 78

لعرّبية

Język polski 85

בְרָה

169

176

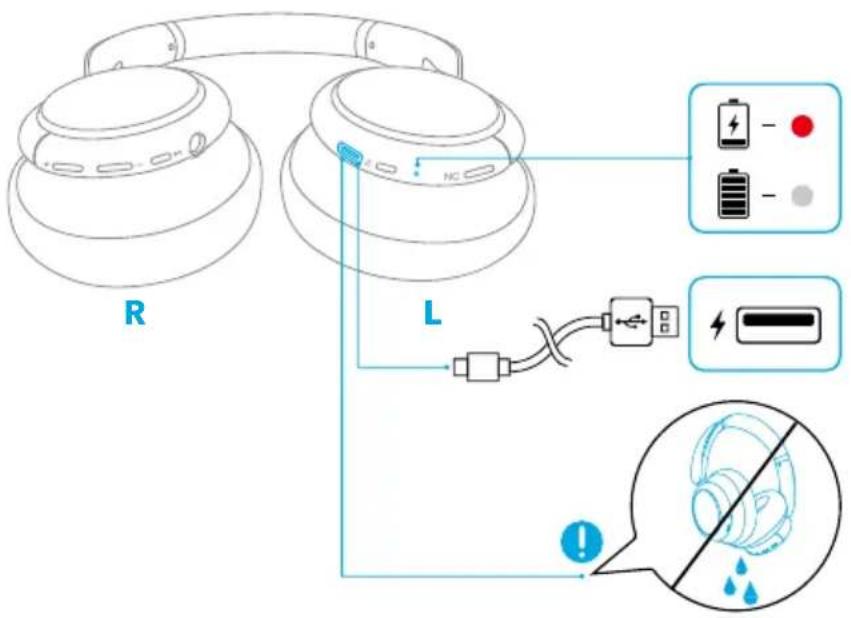

Charging

- Fully dry off the USB port before charging.

- Use a certified USB-C charging cable and charger to prevent any damage.

- Do not power on your headphone while charging.

R L - - - - - - - - - - ! -

	Flashing red once every 60 seconds Low battery
	Steady red Being charged
	Light off Fully charged

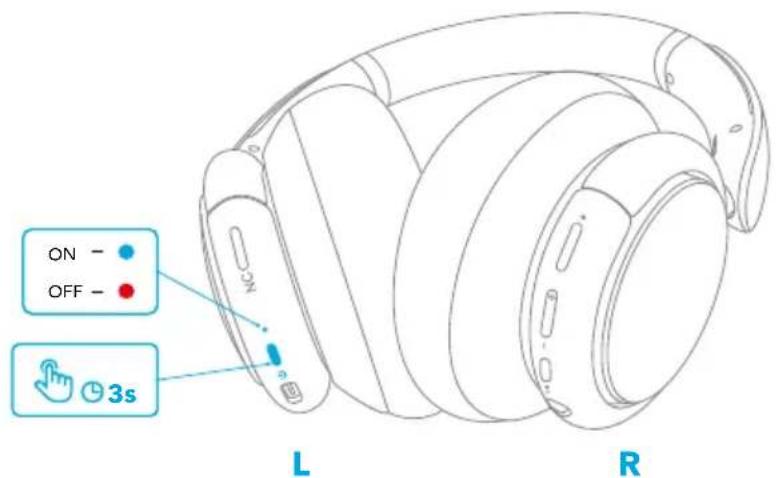

Powering On/Off

Press and hold the power button for 3 seconds to power on/off.

ON - OFF - 3s L R

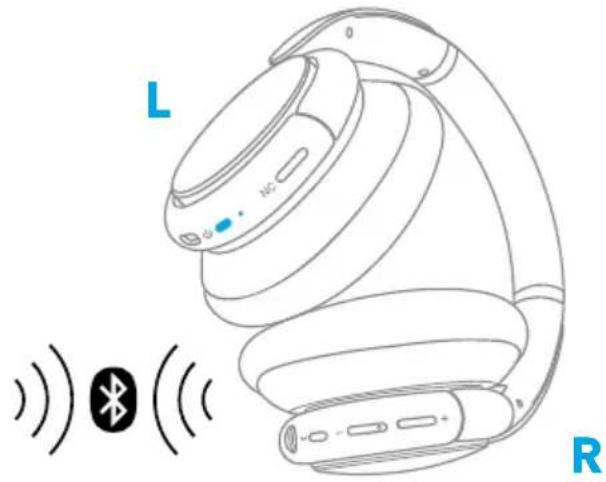

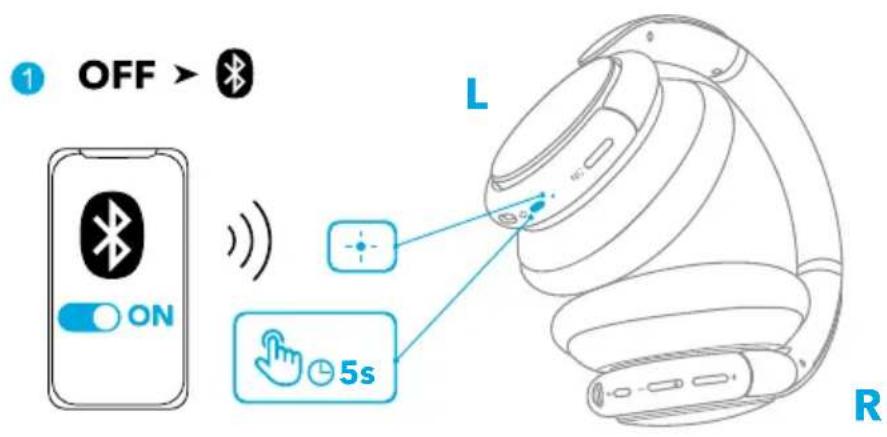

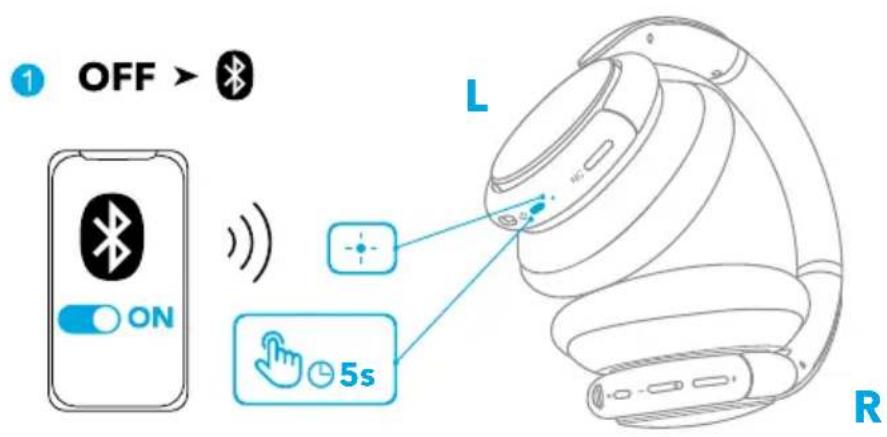

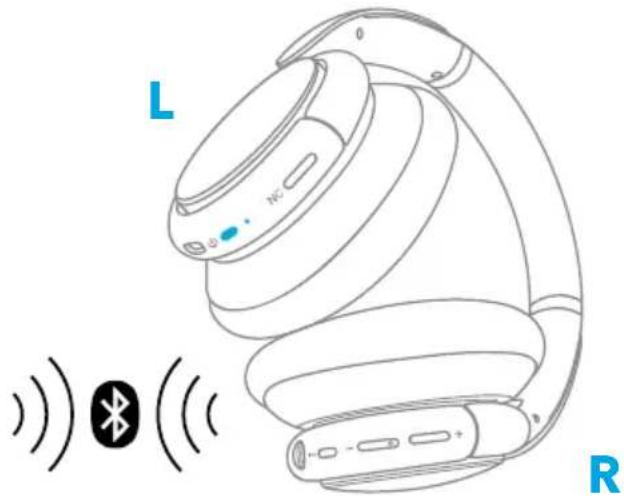

Bluetooth Pairing

1. When powered off, press and hold the power button for 5 seconds until the LED flashes blue to enter the Bluetooth pairing mode.

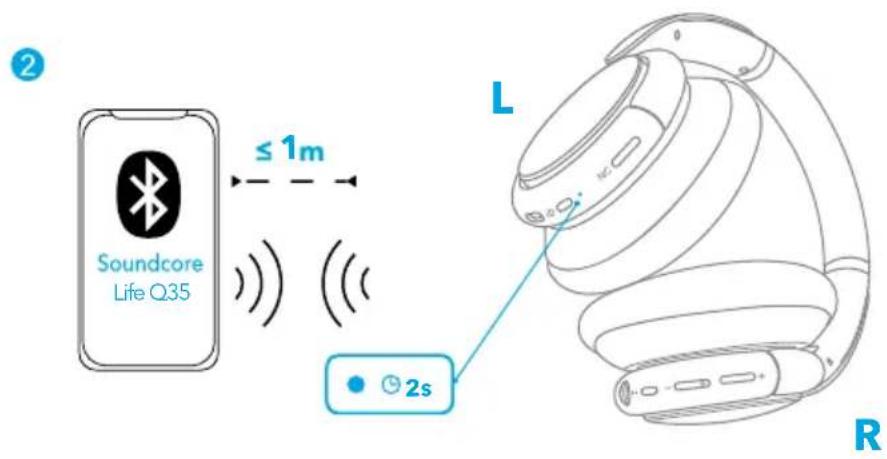

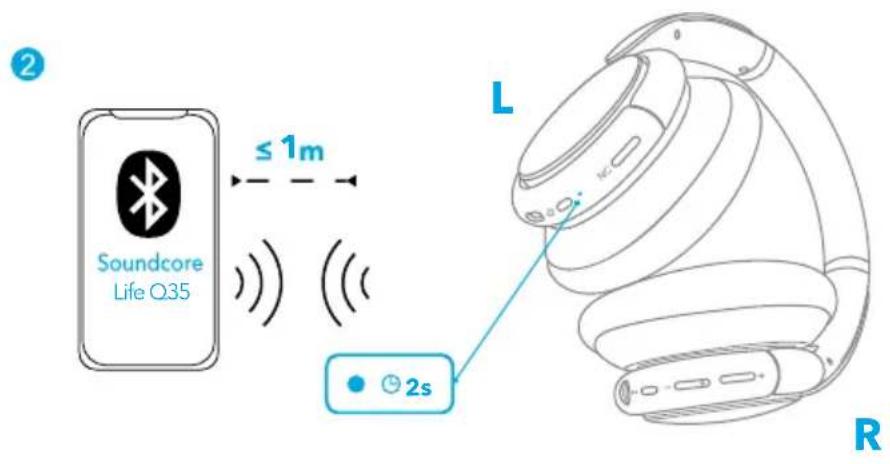

2. Select "Soundcore Life Q35" on your device's Bluetooth list to connect.

OFF > Bluetooth ON 5s L R

Soundcore Life Q35 ≤ 1m 2s L R

	Flashing blue Bluetooth pairing
	Steady blue (for 2 seconds) Bluetooth connected

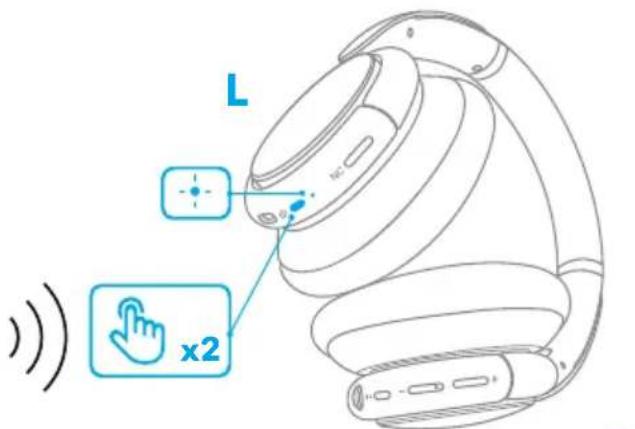

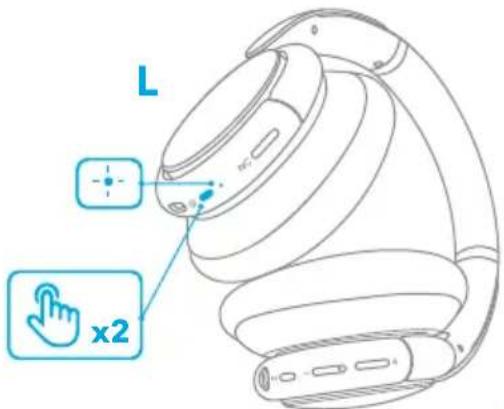

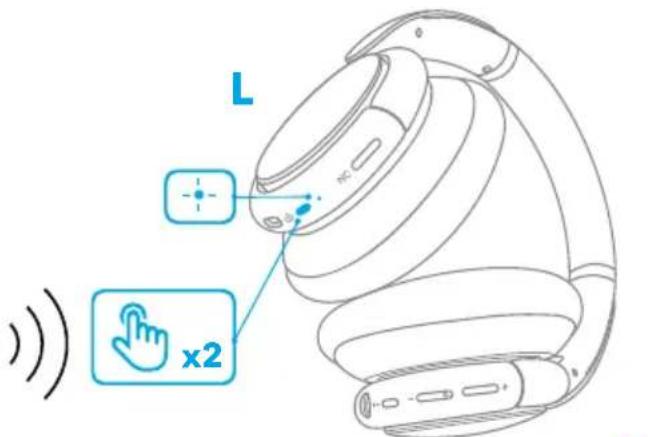

Pairing with another device

When successfully connected with the first device, press twice the power button to pair up with another device.

Soundcore Life Q35 Phone 1 L R

Phone 2 L x2 R

• Your Soundcore headphone can only play music on one mobile device at a time. To play from another connected device, pause the device that's currently active first.
  • Each time you power on your Soundcore headphone, it will automatically connect to your last successfully connected device if available within the Bluetooth range.

Button Controls

Play/Pause Press	▶||
Next track	+	Press and hold for 1 second
Previous track	-	Press and hold for 1 second
Volume up/down	+/-	Press
Answer/End a call	▶II	Press
Put the current call on hold and answer a new incoming call
Reject a call	▶II	Press and hold for 1 second
Switch between held call and active call

Activate Siri or other voice assistant software Press and hold for 1 second

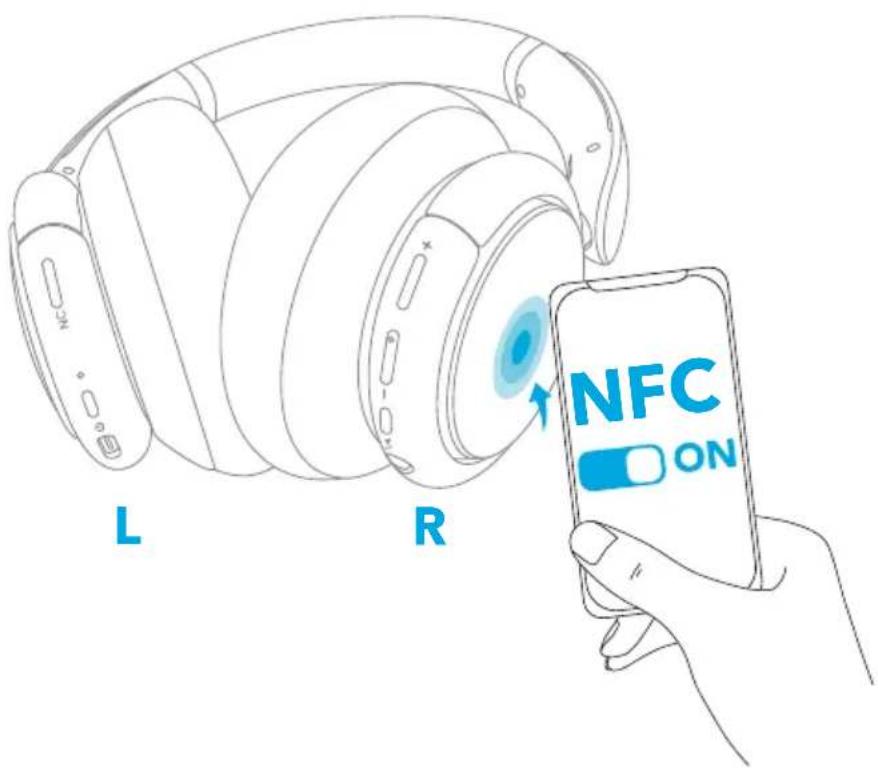

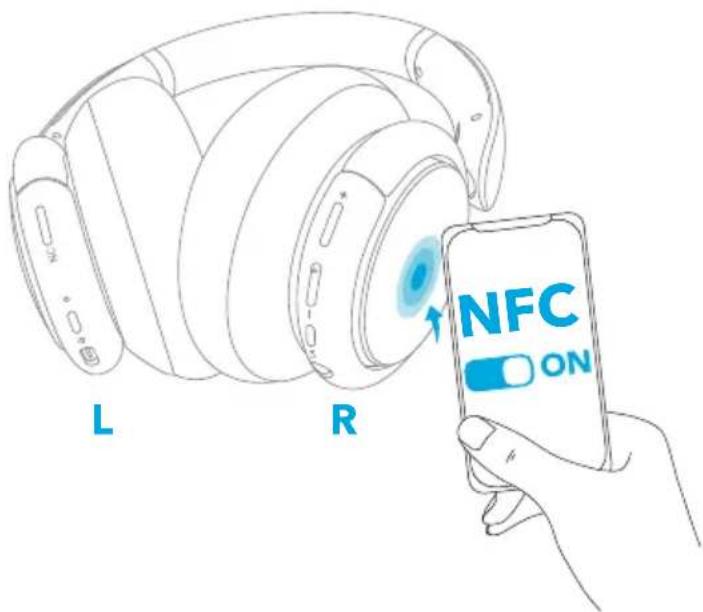

NFC Mode

Near Field Communication (NFC) is a technology that enables short-range wireless communication between various NFC compatible devices, such as mobile phones and IC tags. If your Bluetooth device supports NFC, you can connect it with your headphone easily.

1. Enable the NFC feature on your Bluetooth device (iOS devices excluded).
2. Tap the right panel of your headphones with the back of your Bluetooth device.

L R NFC ON

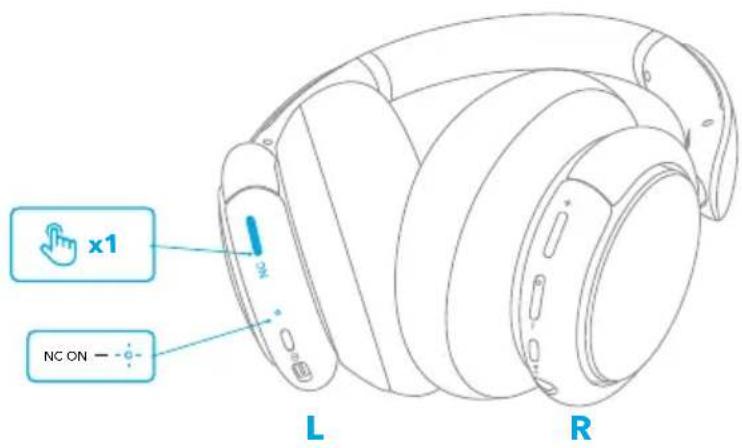

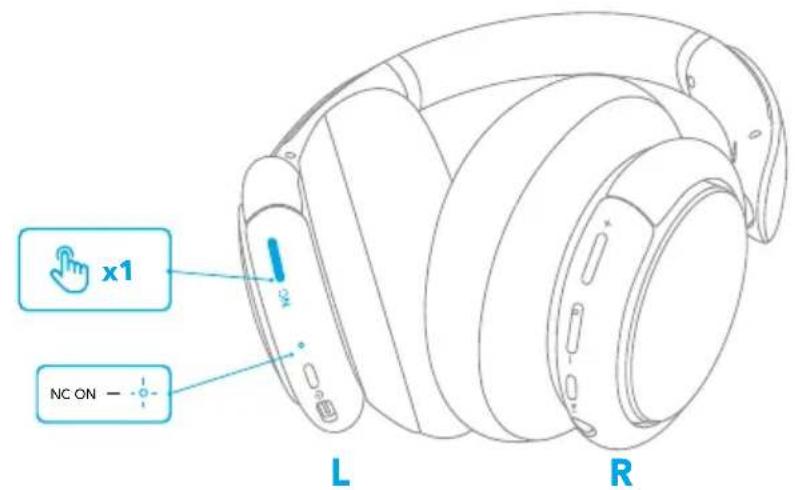

Noise Cancellation Mode

To reduce ambient noise, turn on the active noise cancellation mode by pressing the NC button. Press the NC button again to turn off.

x1 NC ON - L R

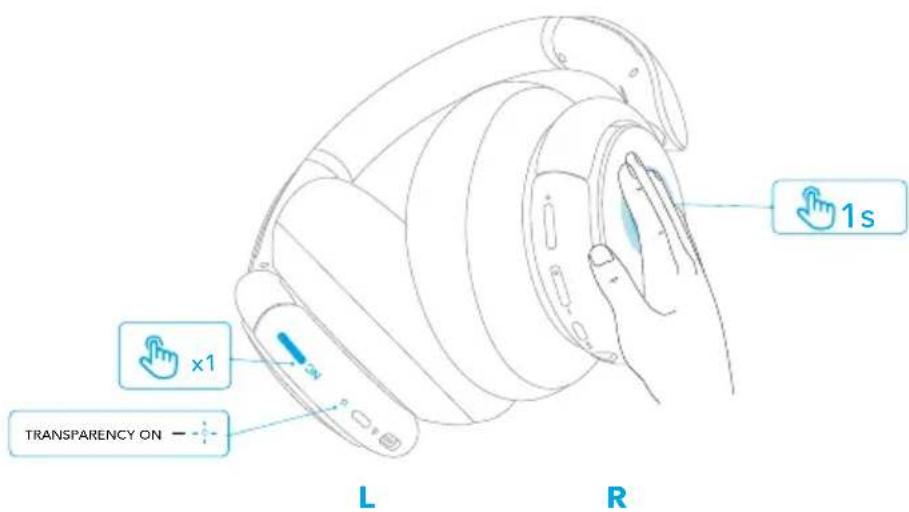

Transparency Mode

To stay aware of your surroundings while listening to music, activate the transparency mode by holding the right panel for 1 second or pressing the NC button.

1s x1 TRANSPARENCY ON - L R

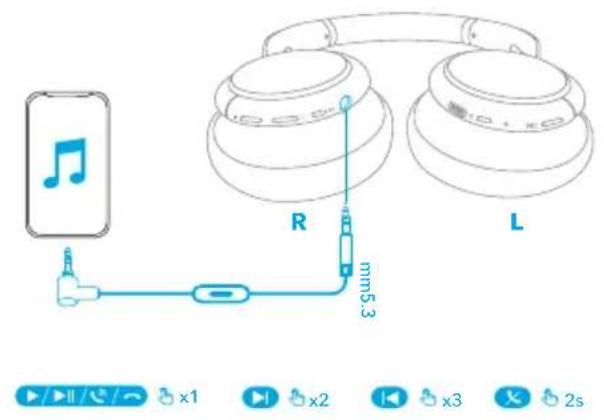

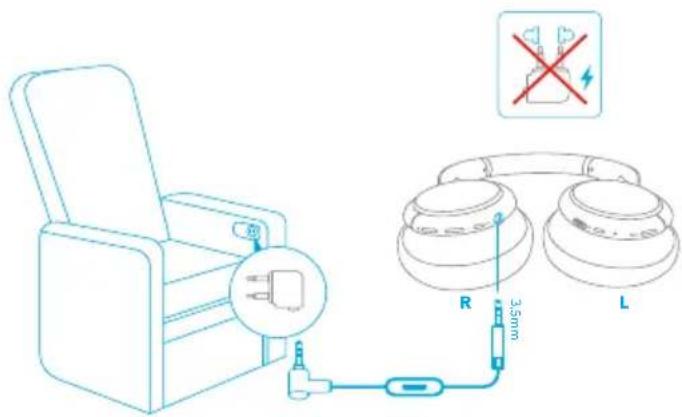

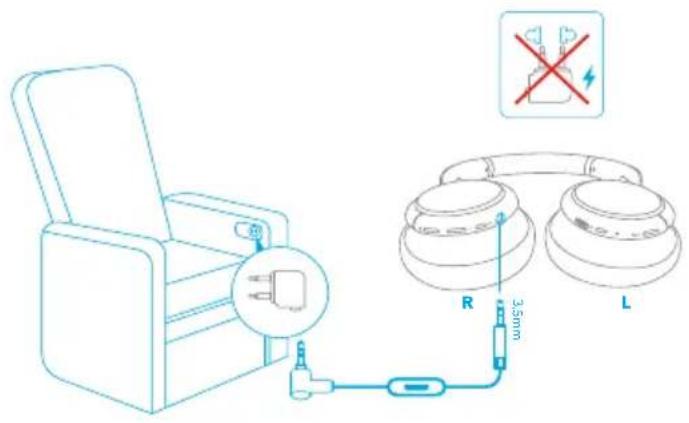

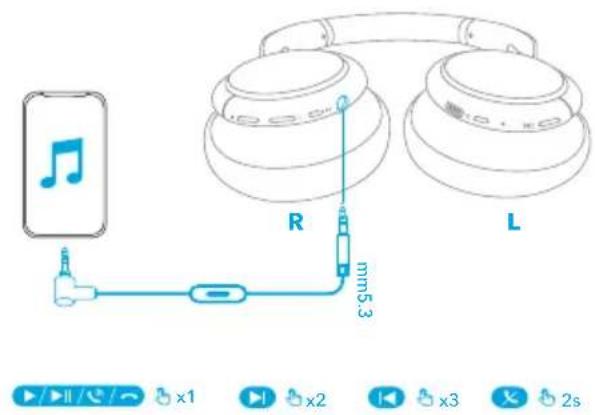

AUX Mode

Play audio on an external device by plugging in a 3.5mm AUX cable with remote control.

R mm5.3 L x1 x2 x3 2s

Diagram showing a device connected to two labeled devices (R and L) with a 3.5mm cable, accompanied by a no-smoking symbol.

Soundcore App

Download the Soundcore app to enhance your experience.

EQ settings: There are more than 20 EQ settings you can choose from in the app to optimize your experience while enjoying different music genres.

Noise cancellation: Choose an active noise cancellation mode to reduce ambient noise according to your surroundings.

• Transport: Targets low-end frequencies like engine and road noise for peaceful journeys and commutes.
• Outdoor: Reduces ambient sounds in cities for less distractions.
• Indoor: Reduces voices and mid-frequency noise from coffee shops and other inside spaces.

Transparency: Stay aware of your surroundings by allowing ambient sounds in.

White noise soundscape: Tailor your own white noise soundscape when you need to rest.

Firmware update: You will be informed once the new version of firmware is detected when you connect the headphones with the app.

soundcore

GET IT ON Google Play

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

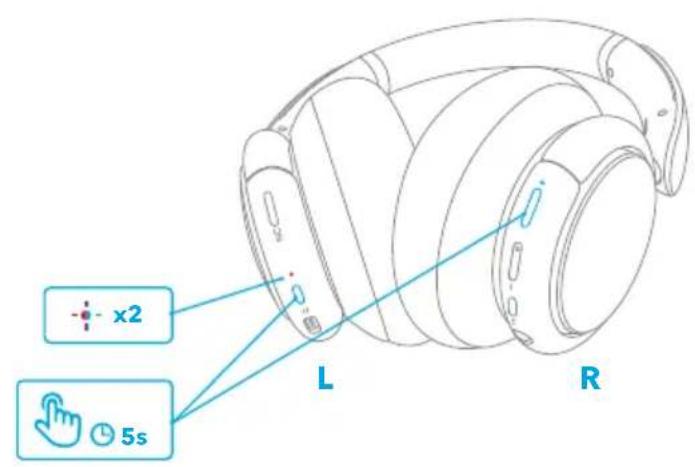

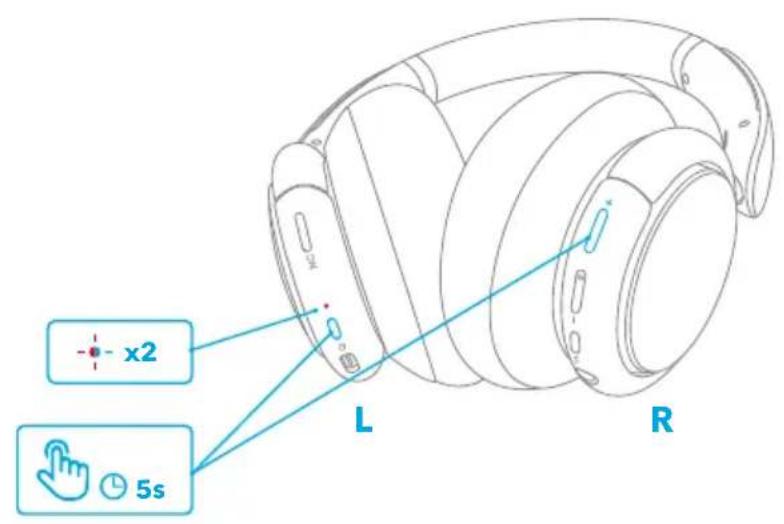

Reset

You might need to reset your headphone if you experience any connectivity problems or function issues.

Press and hold the power button and volume up button simultaneously for 5 seconds until the LED indicator flashes blue and red alternately twice.

x2 L R 5s

Specifications

Specifications are subject to change without notice.

Input 5 V 0.65 A

一

Charging time 2 hours

Playtime (with ANC mode turned on) 40 hours

Playtime (with ANC mode turned off) 60 hours

Driver size 40 mm × 2

Frequency response

20 Hz-20 kHz (Bluetooth)

16 Hz-40 kHz (AUX)

Impedance 16 Ω

Bluetooth version V5.0

Bluetooth range 15 m / 49.5 ft

Nabíjení

ON - OFF - 3s L R

Párování Bluetooth

Mobile phone screen icon with Bluetooth symbol and ON button

Phone 2

L x2

R

L R NFC ON

x1 NC ON — L R

Transparentní režim

1s x1 TRANSPARENCY ON - L R

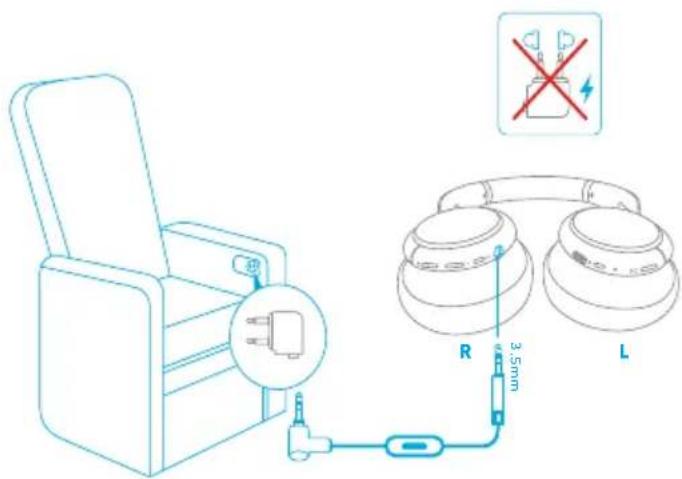

Režim AUX

R mm 5.3 L x1 x2 x3 2s

Diagram showing a device connected to two headphones with labeled components and a speaker symbol indicating no sound.

Aplikace Soundcore

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Resetování

x2 L R 5s

Specifikace

20 Hz-20 kHz (Bluetooth)

16 Hz-40 kHz (AUX)

Impedance 16 Ω

Bluetooth version V5.0

R L Battery Battery Battery

ON - OFF - 3s L R

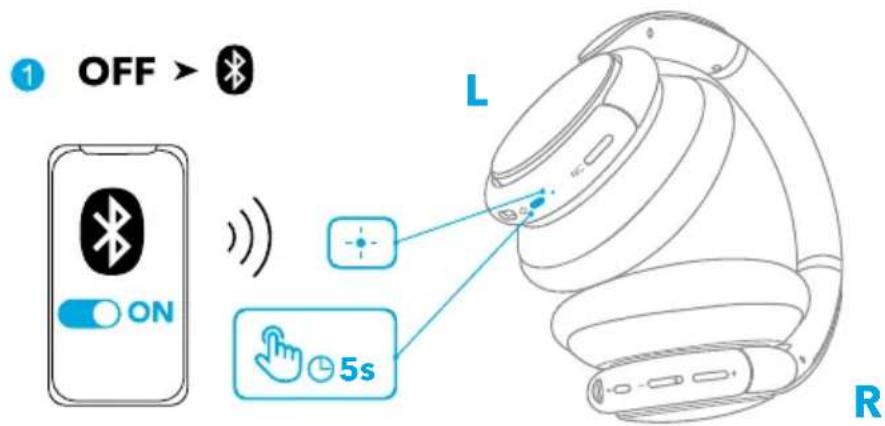

Bluetooth-parring

1. Når der er slukket, tryk og hold på strømknappen i 5 sekunder, indtil LED'en blinker blåt for at gå til Bluetooth-parringstilstand.

2. Vælg "Soundcore Life Q35" i din enheds Bluetooth-liste for at oprette forbindelse.

OFF > Bluetooth ON 5s L R

Soundcore Life Q35 ≤ 1m 2s L R

	Blinker blåt Bluetooth-parring
	Lyser blåt (i 2 sekunder) Bluetooth tilsluttet

Phone 2 ON L x2 R

L R NFC ON

x1 NC ON — L R

Transparenstilstand

1s x1 ON TRANSPARENCY ON - L R

AUX-tilstand

R mm 5.3 L

Diagram showing a device connected to two headphones labeled R and L, with a speaker symbol indicating no speaker.

Soundcore-app

Hent Soundcore-appen for at få en forbedret oplevelsen med din hovedtelefon.

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Nulstil

x2 L R 5s

Specifikationer

20 Hz-20 kHz (Bluetooth)

16 Hz-40 kHz (AUX)

Impedans 16 Ω

Bluetooth-version V5.0

Bluetooth-dækning 15 m / 49,5 ft

Ladevorgang

ON - OFF - 3s L R

Bluetooth-Kopplung

Phone 2 ON x2 L R

L R NFC ON

x1 NC ON — L R

Transparenzmodus

1s x1 TRANSPARENCY ON — L R

AUX-Modus

R mm 5.3 L

Diagram showing a device connected to two headphones labeled R and L, with a warning symbol indicating no liability.

Soundcore-App

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Zurücksetzen

x2 L R 5s

Technische Daten

20 Hz-20 kHz (Bluetooth)

16 Hz-40 kHz (AUX)

Impedanz 16 Ω

Bluetooth-Version V5.0

R L ● ● ● ● ● ● ●

ON - OFF - 3s L R

Line drawing of a smart ear with labeled components (L, R) and Bluetooth signal icon, no readable text or symbols beyond labels

2

Phone 2

L x2

R

L R NFC ON

x1 NC ON - L R

1s x1 TRANSPARENCY ON - L R

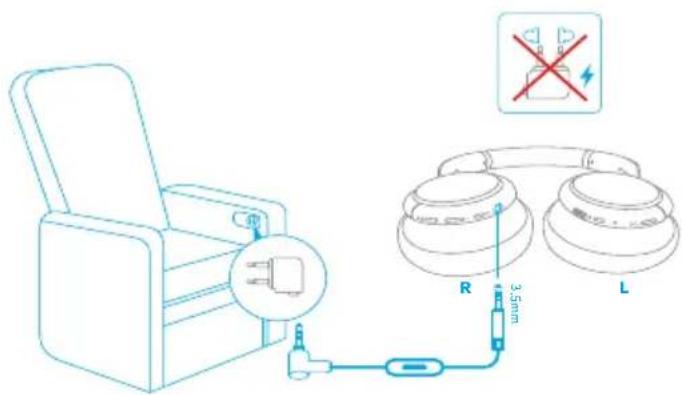

Λειτουργία AUX
