WSSAFM1B2 - Speaker stands SANUS - Free user manual and instructions

Brand	SANUS
Model	WSSAFM1B2
Product type	Soundbar mount
Compatibility	Sonos Ray (and other compatible soundbars)
Mount weight	0.9 kg
Maximum soundbar weight	2.27 kg (5 lb)
Material	Steel
Finish	Black
Feature	Adjustable tilt
Mounting type	Under TV, attaches to TV wall mount
Fixing	Uses TV mounting screws (spacers included)
Safety	Requires a certified TV wall mount
Installation	Requires a certified TV wall mount
Kit contents	Soundbar brackets, hardware, hex key, spacers
Note	Do not use with wall mounts with integrated spacers or mounting holes >11 mm
Care	Clean with a soft dry cloth, avoid abrasive products
Repairability	Contact customer service for spare parts

Frequently Asked Questions - WSSAFM1B2 SANUS

Which soundbars are compatible with this mount?

This mount is specially designed for the Sonos Ray, but may also suit other soundbars with compatible dimensions and weight (max 2.27 kg).

What is the maximum weight supported by the mount?

The maximum weight of the soundbar must not exceed 2.27 kg (5 lb). The mount itself weighs 0.9 kg.

Can I use this mount without a TV wall mount?

No, this mount is designed to be mounted under a TV that is already mounted on the wall via a certified wall mount. It cannot be used alone.

Does this work with all TV wall mounts?

It requires a certified wall mount and must not be used with wall mounts having integrated spacers or mounting holes larger than 11 mm.

How to adjust the tilt of the soundbar?

Use the tilt buttons Ⓣ and the included hex key (H1) to adjust the angle and then tighten.

What to do if parts are missing or damaged?

Contact SANUS customer service (not the retailer) for replacement parts. Never use damaged parts.

Is it possible to mount a soundbar above the TV?

No, this mount is designed only for mounting below the TV (see Figure 3 of the manual).

What are the essential safety precautions?

Ensure that the total weight (TV + mount + soundbar) does not exceed the capacity of the wall mount. The wall must support 5 times this weight. Follow the manual instructions.

Is this mount compatible with curved TVs?

Yes, thanks to the provided spacers, it can adapt to irregular or curved TV backs. Follow steps 3.2b for installation.

How to clean the mount?

Use a soft dry cloth to dust. Avoid abrasive products or solvents that could damage the finish.

USER MANUAL WSSAFM1B2 SANUS

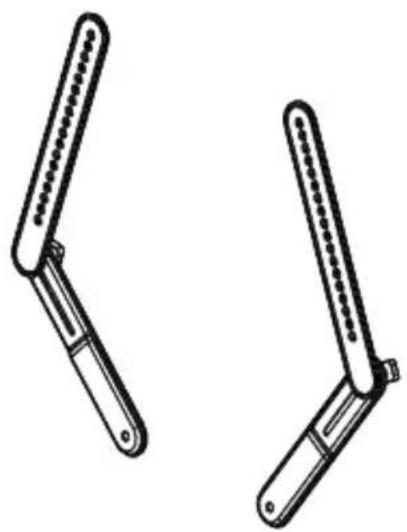

WSSAFM1-B2

SOUNDBAR MOUNT DESIGNED

FOR Sonos ^* Ray ^TM

INSTRUCTION MANUAL

Two identical mechanical lever arms shown in side profile, no text or symbols present

WE'RE HERE TO HELP

If you have any questions along the way, just give us a call or visit SANUS.com

US: [phone] · UK: [phone] · EMEA: [phone]

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS - PLEASE READ ENTIRE MANUAL PRIOR TO USE

Before getting started, let's make sure this mount is perfect for you!

• Your TV, soundbar, soundbar mount, and any accessories you plan to install DO NOT EXCEED the specified weight limit of your TV or TV wall mount.
  ■ Refer to the documentation that came with your soundbar, your TV and your TV wall mount for additional guidance.

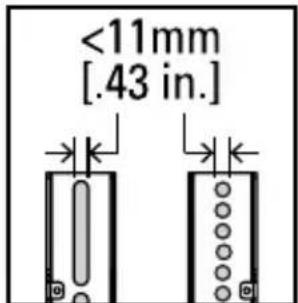

• You CANNOT use this product if your TV mount's interface bracket: includes built-in/integrated spacers (Figure 1), or the mounting holes/slots are greater than 11mm [.43 in.] (Figure 2).

Diagram of a mechanical assembly with no visible text or symbols, featuring a circular arrow and a gear-like component (no text or labels)

Figure 1

Figure 2

WARNING:

This soundbar mount is only designed for use with TV wall mounts that meet third party safety certifications (UL Certified).

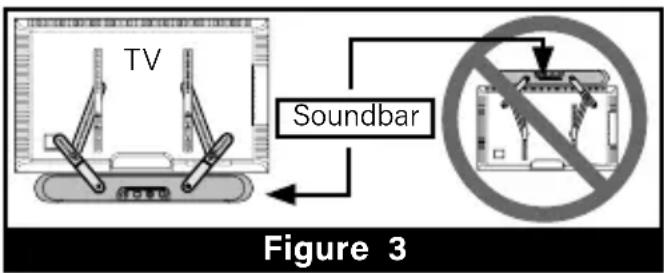

■ This soundbar mount is ONLY designed to mount below the television (Figure 3).
This soundbar mount is designed to be installed and utilized only as specified in this manual. The manufacturer is not responsible for improper assembly, use, or handling of this product.
■ For wall mounted TVs: Your wall must be capable of supporting five times the weight of your TV, TV mount, and soundbar combined.
■ Failure to follow these instructions could result in an unstable situation that may result in property damage or personal injury.

If you have any questions, please contact customer service.

US: [phone]

UK: [phone]

EMEA: [phone]

Weight Restrictions

Weight Limit for WSSAFM1-B2

DO NOT EXCEED 5 lbs. (2.27 kg) for this Soundbar Mount.

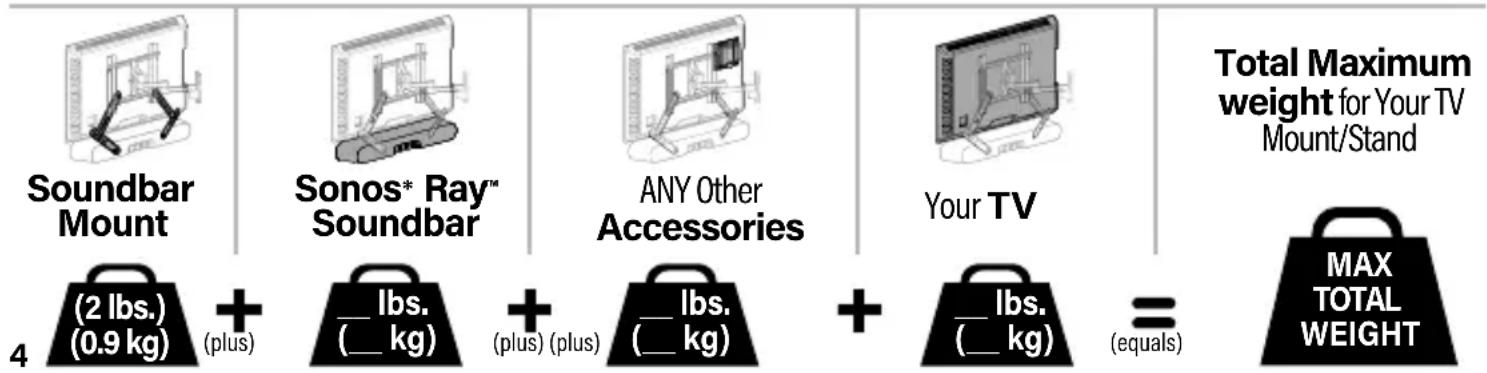

TOTAL Weight Limit for Your TV Mount/Stand

CAUTION: Avoid potential personal injuries and property damage!

The weight of your TV/ this soundbar mount/your soundbar/any accessories, MUST BE LOWER than the maximum weight rating of your TV mount.

See your TV mount's manual for maximum weight allowed.

Tools Needed

Line drawing of a screwdriver with a flat blade and threaded shaft (no text or symbols)

Phillips Screwdriver

Level

INCLUDED

Hex Key

H1

Technical line drawings of two mechanical components: a mounted frame and a multi-panel assembly (no text or symbols)

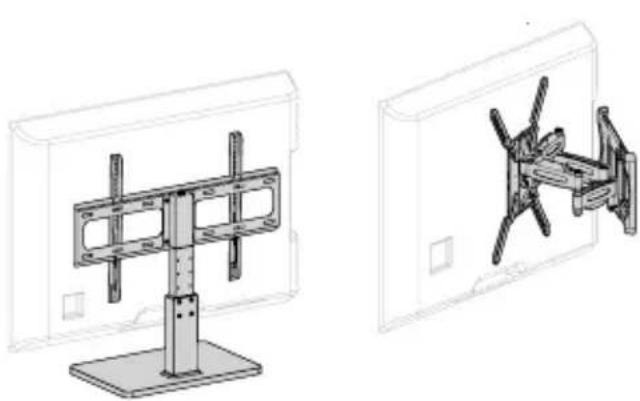

3 ^rd Party Certified TV stand or Wall Mount**

**The TV mount styles illustrated will vary, though the install procedures are the same.

Supplied Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

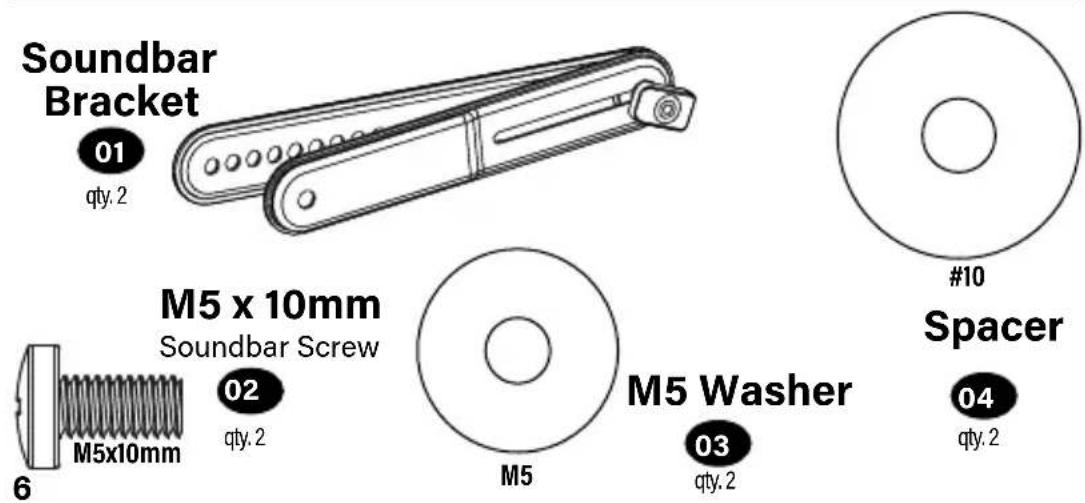

Parts and Hardware for STEP 1

Part for STEP 3

Mount Spacer

Parts and Hardware for STEP 3

Washers \$pacers

07 qty.4
08 qty.4

M4 / M5 Washer

M6 / M8 Washer

Simple line drawing of a cylindrical mechanical part with a flanged end (no text or symbols)

TV Spacer 22mm

5mm

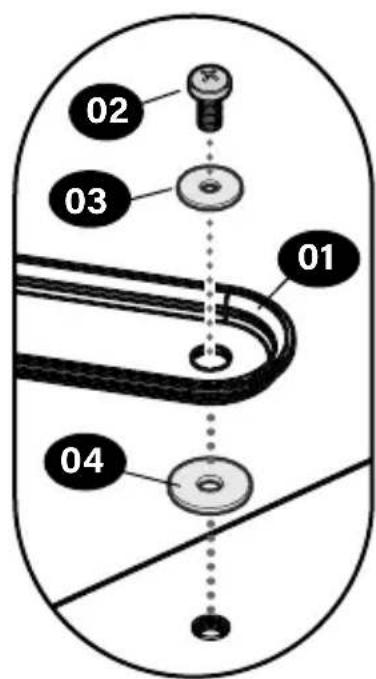

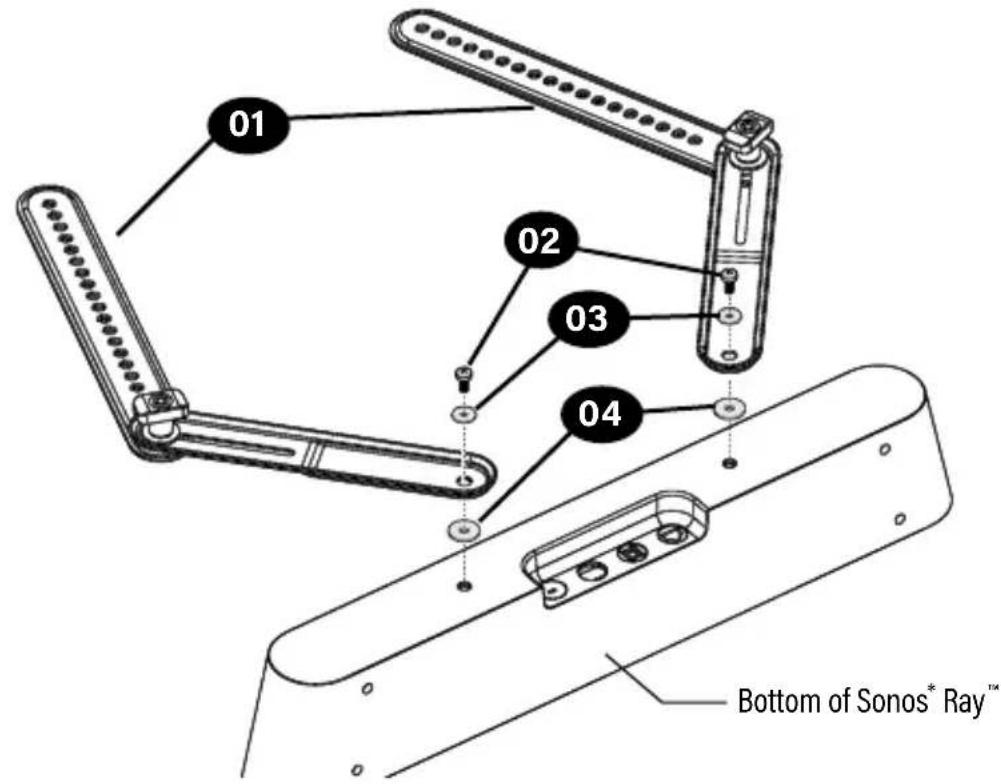

STEP 1

Install Brackets on Sonos ^* Ray ^™

STEP 2

Position Sonos\* Ray™ Soundbar

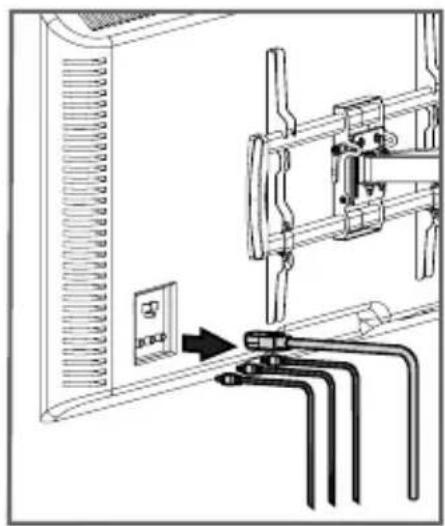

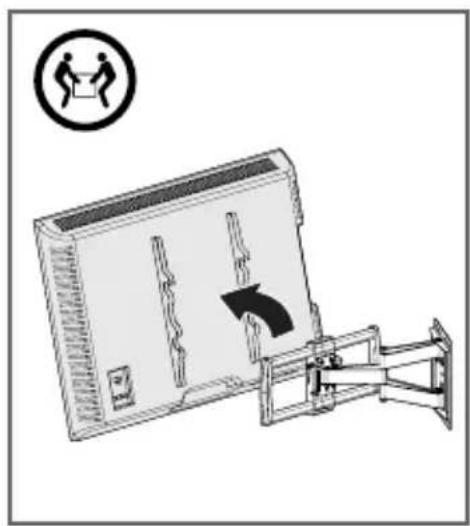

STEP 2.1

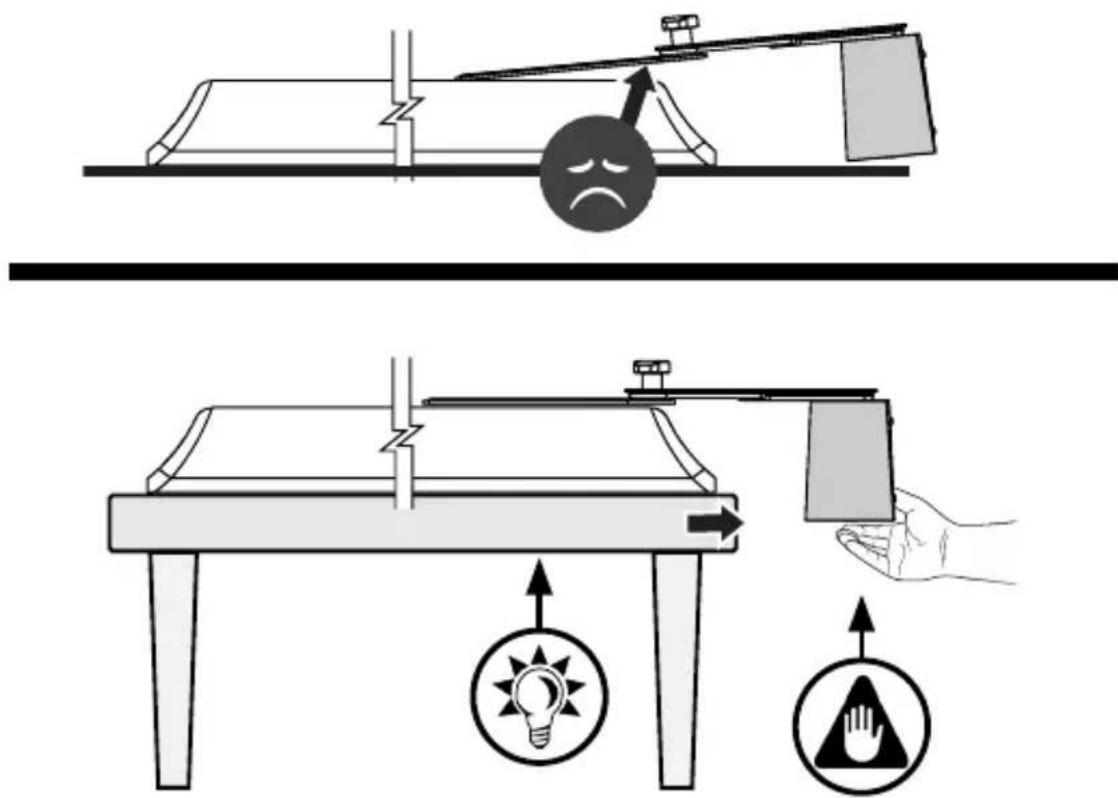

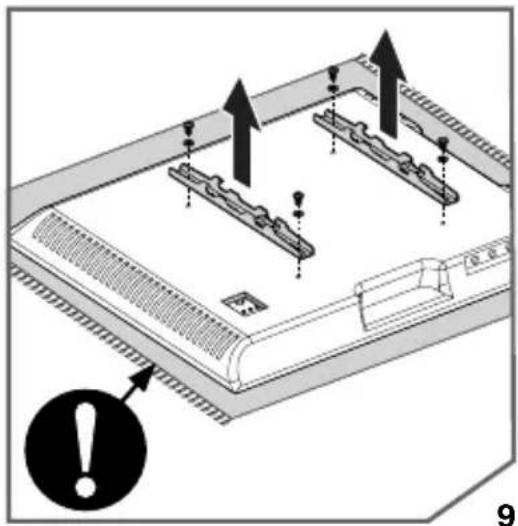

Prep Your TV (if mounted on a wall or stand)

CAUTION: Follow your TV mount's manual for instructions on how to safely remove your TV and TV bracket.

Diagram of a wall-mounted electrical panel with multiple metal fittings and a switch, showing no text or symbols.

Diagram of a device with a directional arrow and two people holding a box, no text or symbols present

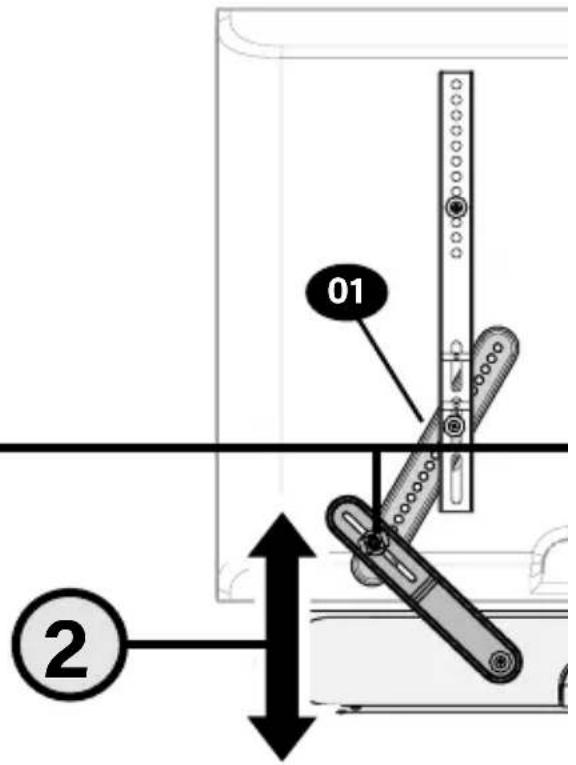

STEP 2.2

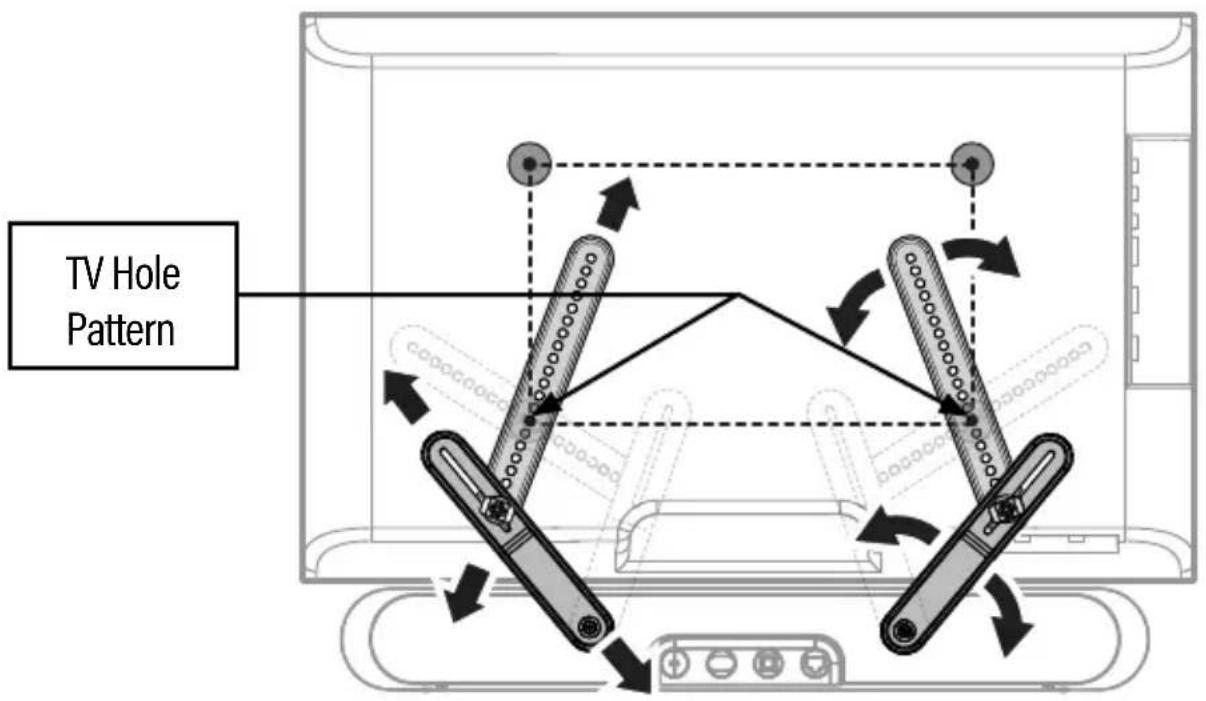

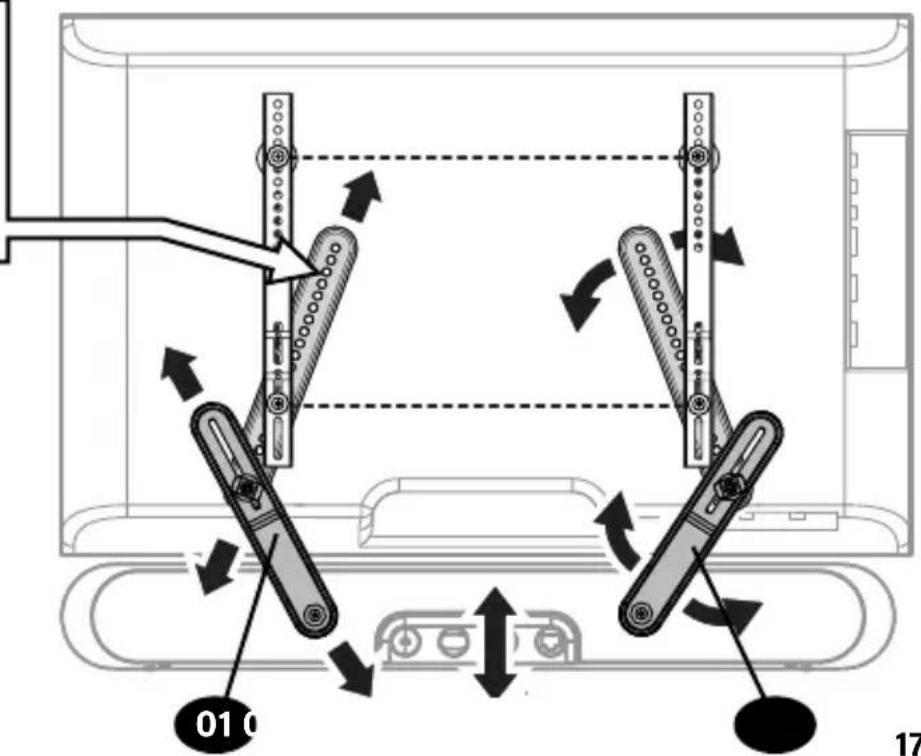

Adjust Soundbar Mount to Match Your TV (VESA) Hole Pattern

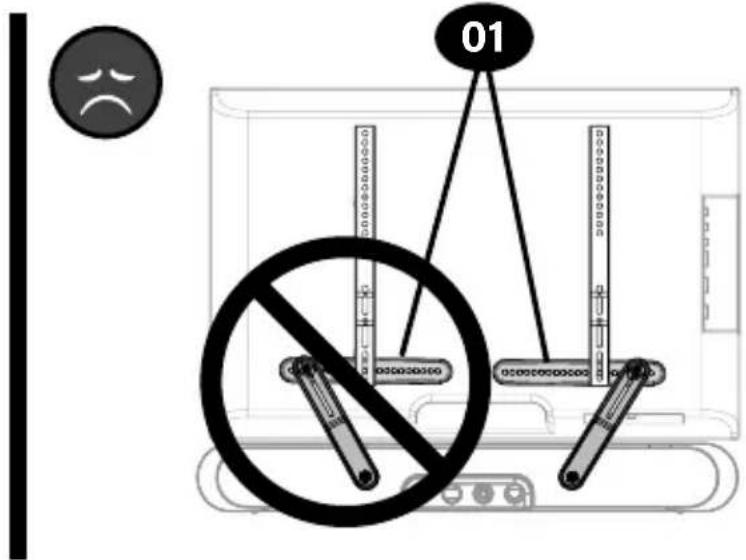

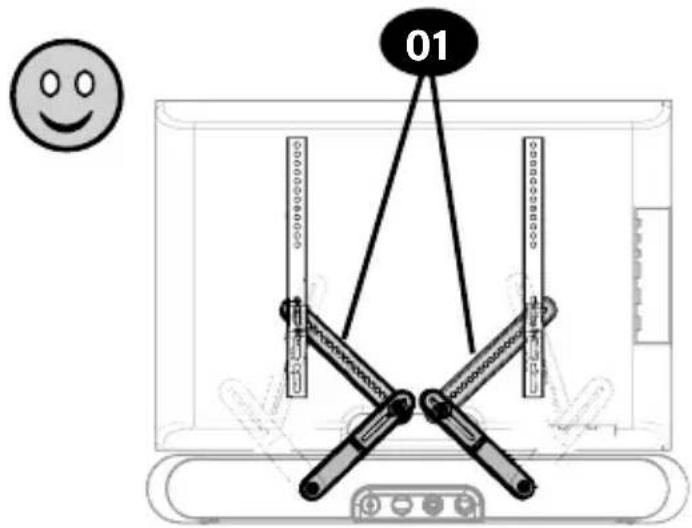

NOTE: Position the soundbar brackets 01 as vertically as possible.

STEP 3

Install Sonos\* Ray™ Soundbar Mount to Your TV

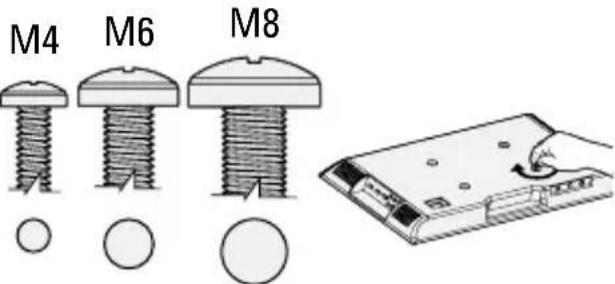

3.1

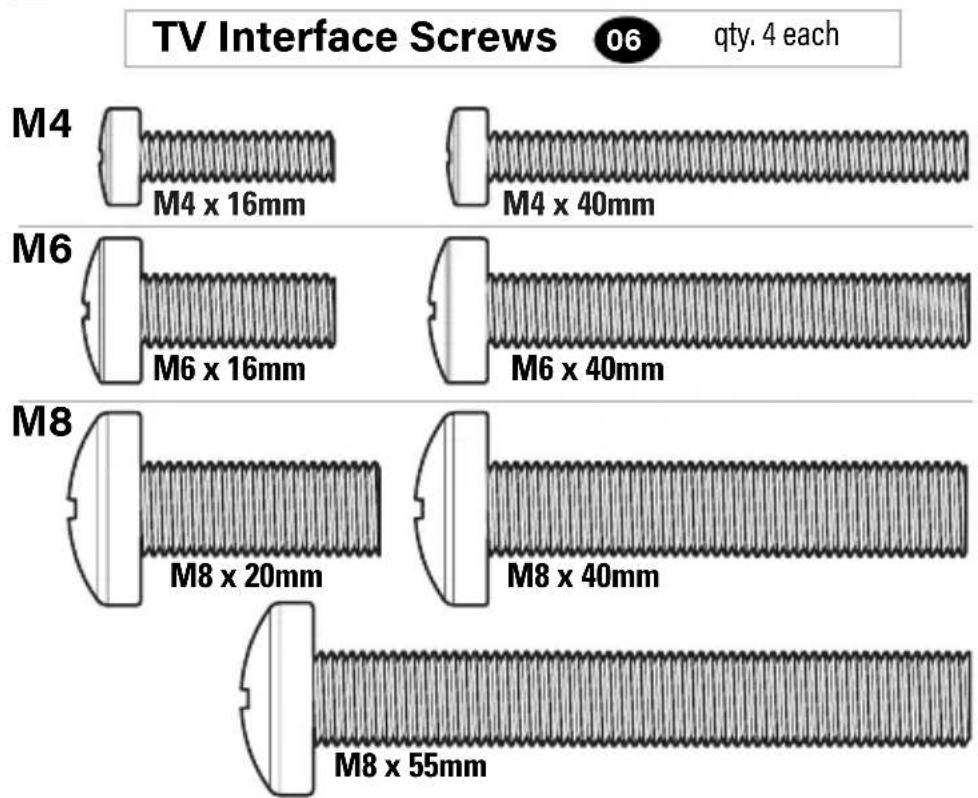

TV Screw Diameter

Only one screw size 06 fits your TV.

NOTE: If

your TV included

inset spacers or

adapters, use them

UNDER the mount

hardware.

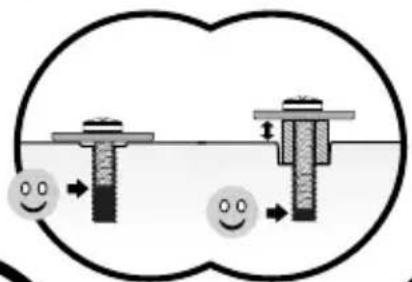

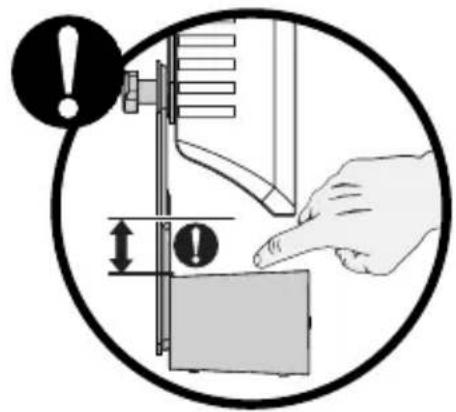

CAUTION: Verify adequate thread engagement with your screw 06, washer 07, spacer 08 combination AND TV/ sound bar brackets.

Too short will not hold your TV.

Too long will damage your TV.

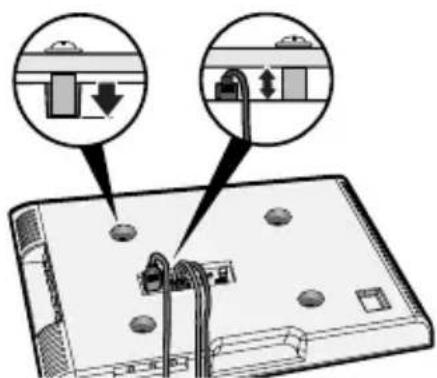

3.2

TV Screw Length

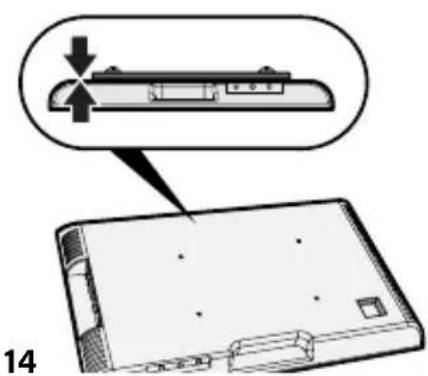

NO SPACER

Flat Back TV

[TV brackets lay flat on your TV]

GO TO PAGE 15 GO TO PA

Diagram showing a device with a lock mechanism and an arrow indicating the process (no text or symbols present)

SPACER NEEDED

Flat Back TV

with Extra Space Needed

[for deep inset holes or cable interference]

6 GO TO PAGE 16

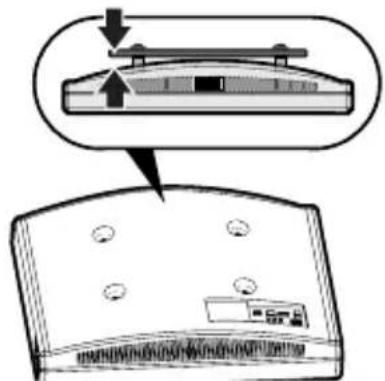

Rounded or Irregular Back TV

[TV brackets NOT resting flat on your TV]

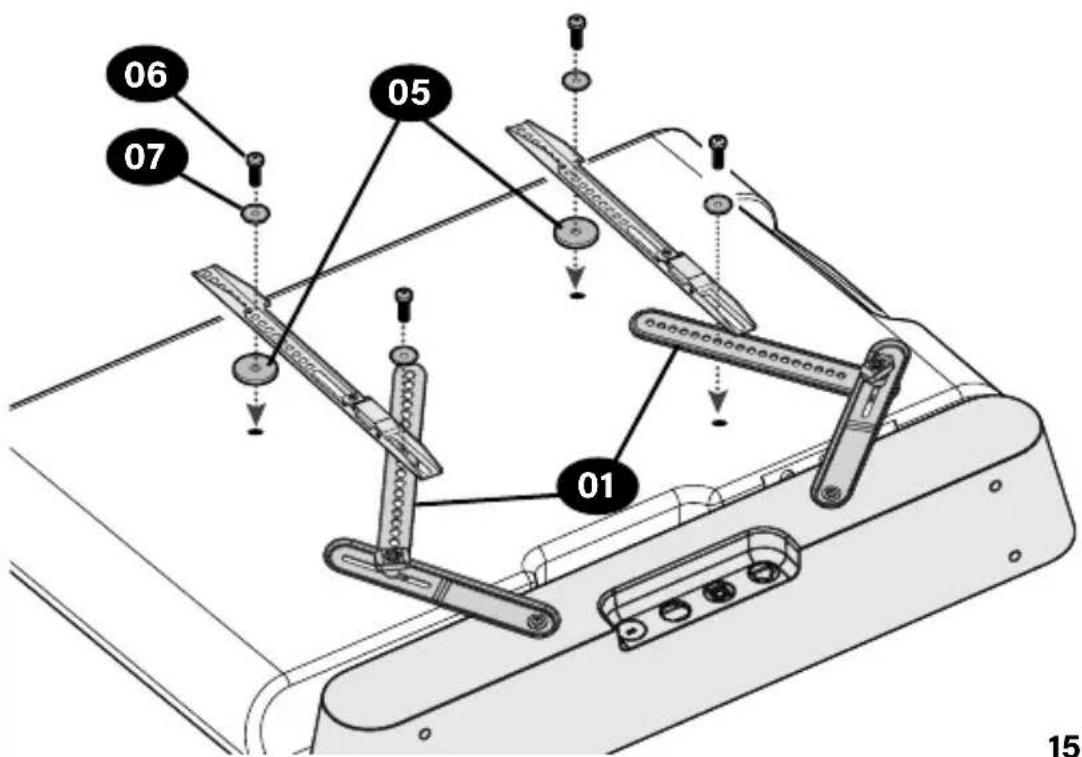

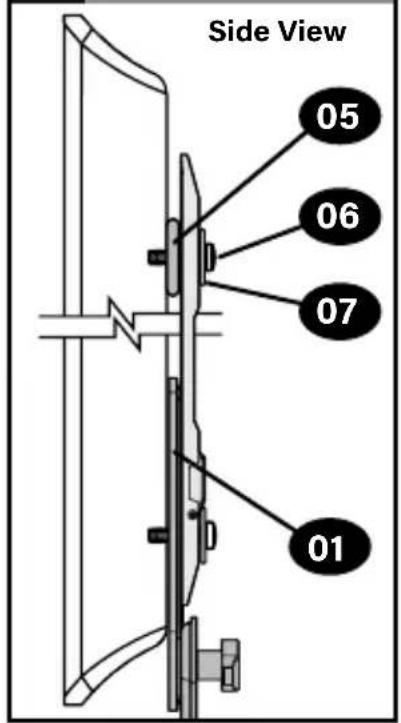

3.3a

Assemble (No Spacer)

NO SPACER

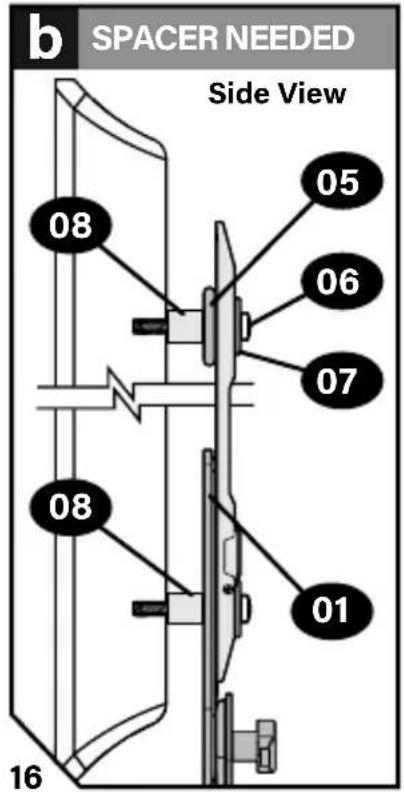

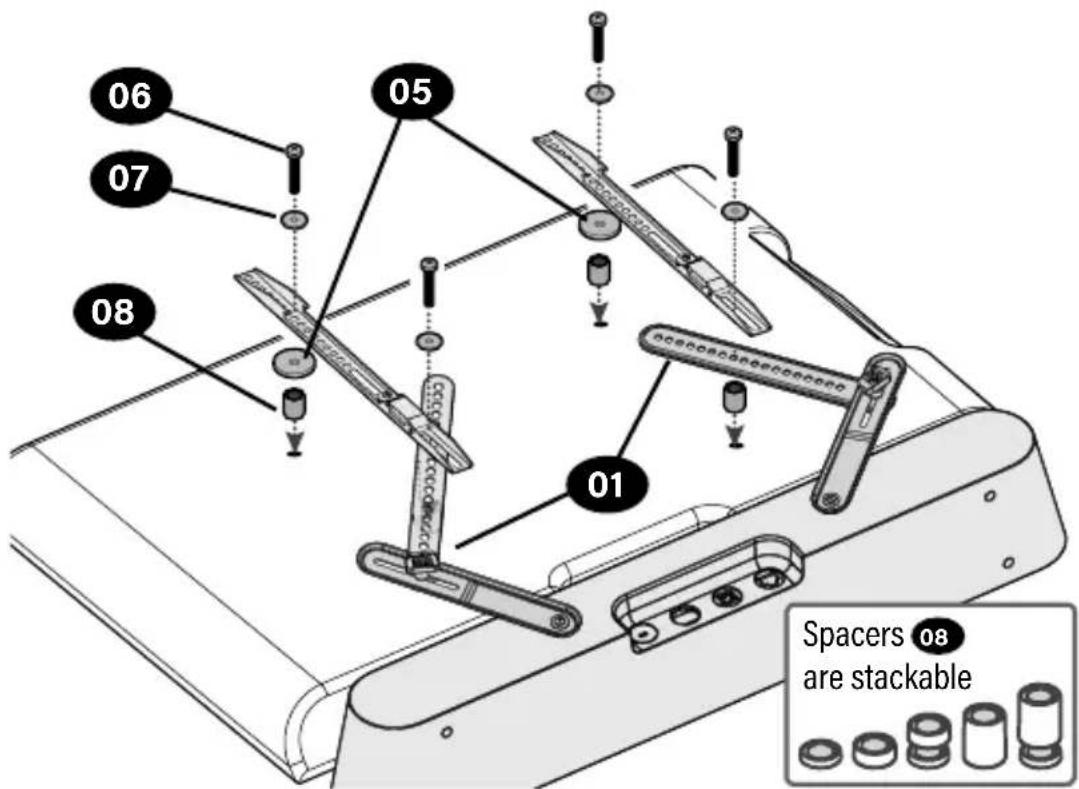

3.3b

Assemble (Spacer Needed)

STEP 4

Adjust Soundbar Bracket

NOTE: You may need to reposition the hole locations in soundbar brackets 01 to adjust your soundbar to the desired position.

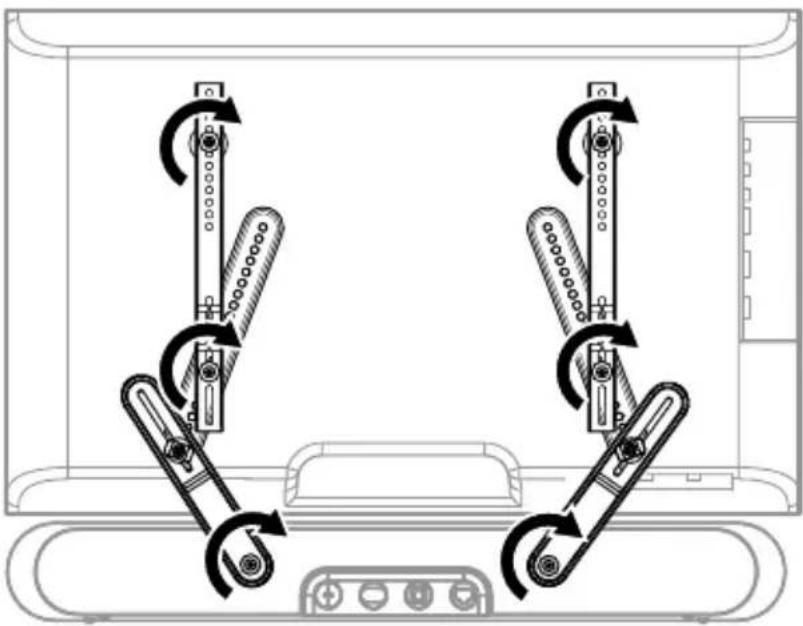

STEP 5

Tighten Connections

Line drawing of a screwdriver with a pointed tip (no text or symbols)

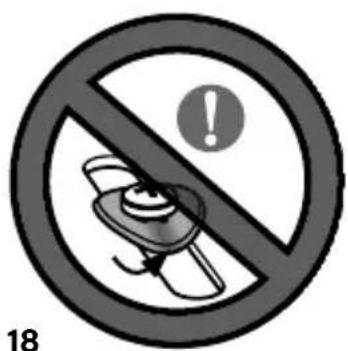

IMPORTANT!

Do not over-tighten the screws — this will deform the washers.

Prohibition sign showing a raised fist crossed out of the other hand, enclosed in a circle (no text or symbols)

Diagram of a mechanical device with two arms and rotating components, no text or symbols present

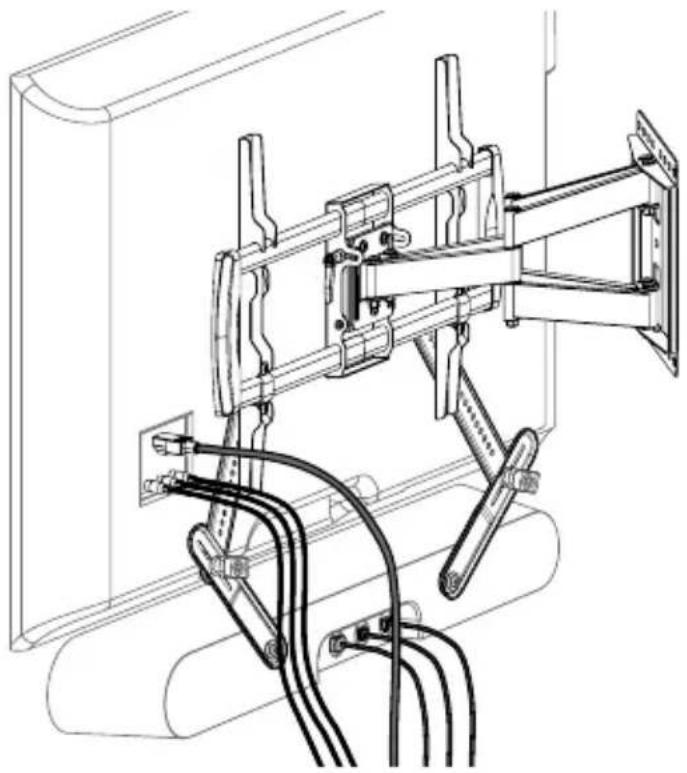

STEP 6

Hang Up the TV / Sonos\* Ray™ Assembly

Follow your TV wall mount installation manual to hang your TV assembly.

Technical line drawing of a mechanical assembly with cables and brackets (no text or symbols)

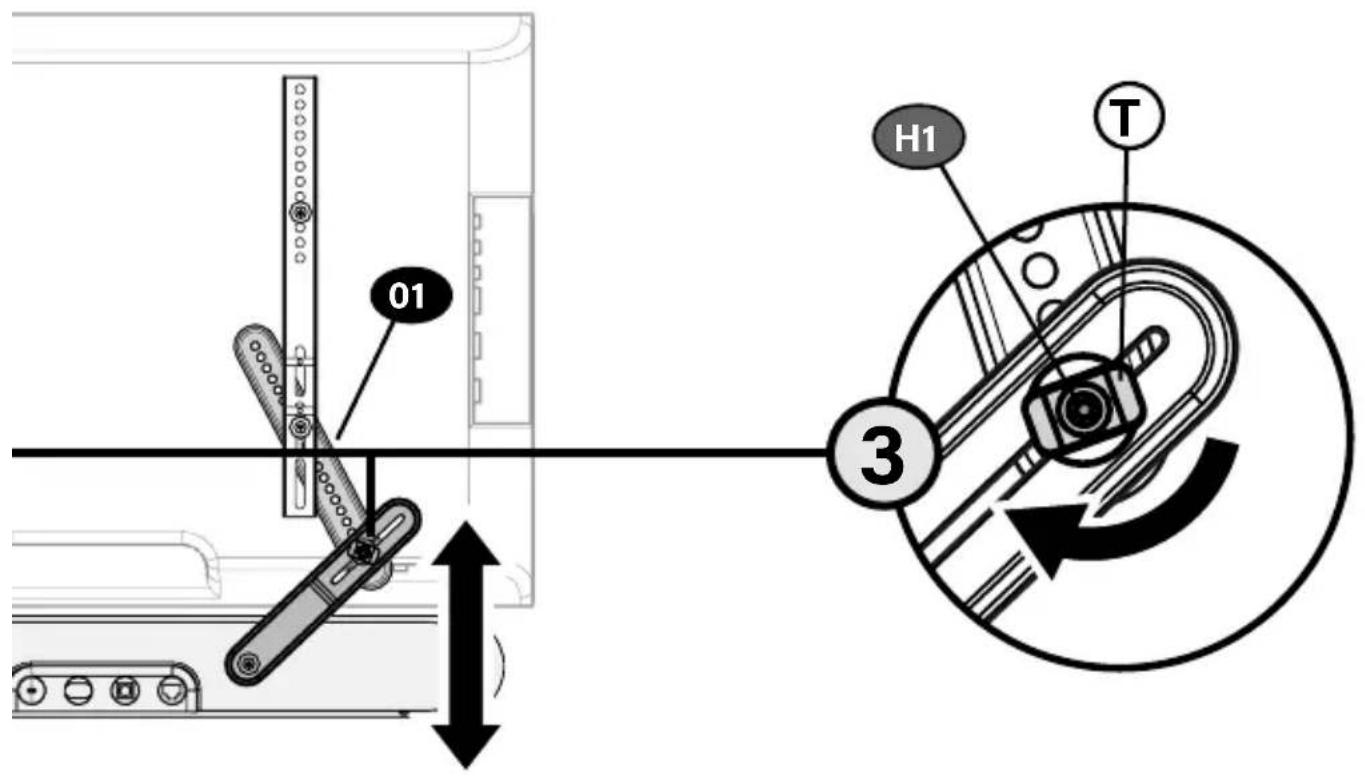

Adjustments

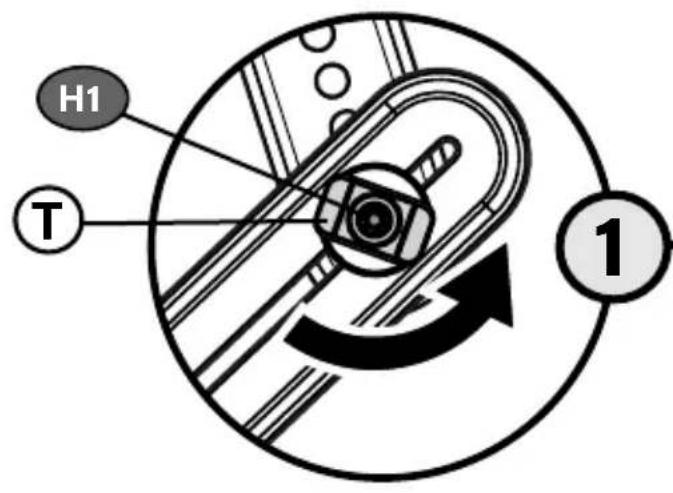

TIP: Use tilt knobs Ⓣ to get soundbar mount to desired location, then use included hex key H1 to tighten.
