SSFM 35 A1 - Massage device SILVERCREST - Free user manual and instructions

Product type	Shiatsu foot massage device
Brand	SilverCrest
Model	SSFM 35 A1
Power supply	220-240 V~, 50-60 Hz
Power consumption	35 W
Protection class	II
Massage method	Shiatsu (9 rotating heads per side)
Number of massage levels	2 (slow and fast)
Heating function	Yes, can be switched on/off
Automatic timer	15 minutes
Height adjustment	Rear feet height-adjustable
Dimensions (approx.)	40 x 30 x 15 cm
Weight (approx.)	2 kg
Material	Plastic, textile covering
Color	Black / grey
Cable length	Approx. 1.5 m (with winder)
Package contents	Massage device, instruction manual
Maintenance	Clean with a damp cloth, do not immerse
Safety	Automatic shut-off, temperature sensor, non-slip feet
Warranty	3 years (subject to conditions)
After-sales service	Phone France: 0800904879, Belgium: 080071011
Reference (IAN)	394266_2104

Frequently Asked Questions - SSFM 35 A1 SILVERCREST

What is the maximum recommended usage time?

It is recommended not to use the device for more than 15 minutes consecutively to avoid overstimulation of the muscles. The device switches off automatically after this time.

How to clean the massage device?

Always unplug the device before cleaning. Use a slightly damp cloth to wipe the surface. Never immerse the device in water and do not use abrasive products.

Can I use the device on other parts of the body?

No, this device is designed only for the feet. Using it elsewhere could cause injury. Follow the prescribed use.

Can children use the device?

Children over 8 years old can use it under adult supervision. Children should not play with the device. Cleaning should not be performed by children without supervision.

What to do if the device stops working?

First check that the plug is properly connected and that the socket is powered. If the problem persists, contact after-sales service at the numbers provided in the manual. Do not attempt to repair it yourself.

Can the heating function be turned off?

Yes, the heating function can be activated or deactivated by pressing the speed/heat adjustment button. It switches off automatically if the temperature becomes too high thanks to the temperature sensor.

How to adjust the height of the feet?

Turn the adjustable rear feet: clockwise to increase height, counterclockwise to decrease height. This allows you to position the device as desired.

Is the device noisy?

The noise level is moderate for a massage device. The rotating heads produce a slight hum. If the noise becomes abnormal, check that no object is obstructing the heads.

Can I use the device if my feet are wet?

No, your feet must be dry and clean. Do not use the device with wet hands or on a wet floor to avoid any risk of electric shock.

How to claim the warranty?

Keep the receipt and the IAN reference (394266_2104). Contact after-sales service by phone or email. If necessary, return the device with a description of the defect.

USER MANUAL SSFM 35 A1 SILVERCREST

PDF ONLINE www.lidl-service.com

Black fitness device with 'SHIVERCREST' branding and a digital display (no visible text or symbols on body)

FUSSMASSAGEGERÄT / FOOT MASSAGER / APPAREIL DE MASSAGE POUR PIEDS SSFM 35 A1

DE AT CH

FUSSMASSAGEGERÄT

Operation and safety notes

FR BE

APPAREIL DE MASSAGE POUR PIEDS

VOETMASSAGE-APPARAAT

MASÁŽNY PRÍSTROJ NA NOHY

Pokyny pre obsluhu a bezpečnostné pokyny

ES

Diagram of a device with labeled ports and connection points, showing two circular components and two labeled ports.

Warnings and symbols used Page 15

Introduction Page 15

Intended use.... Page 15

Scope of delivery.... Page 16

Parts description.... Page 16

Technical data Page 16

Safety instructions.... Page 16

Before first use Page 19

Operation Page 19

Setting up the product ...... Page 19

Use massage and heat function.... Page 20

Switching off the product.... Page 20

Troubleshooting...... Page 21

Cleaning and care Page 21

Storage Page 21

Disposal Page 21

Warranty Page 22

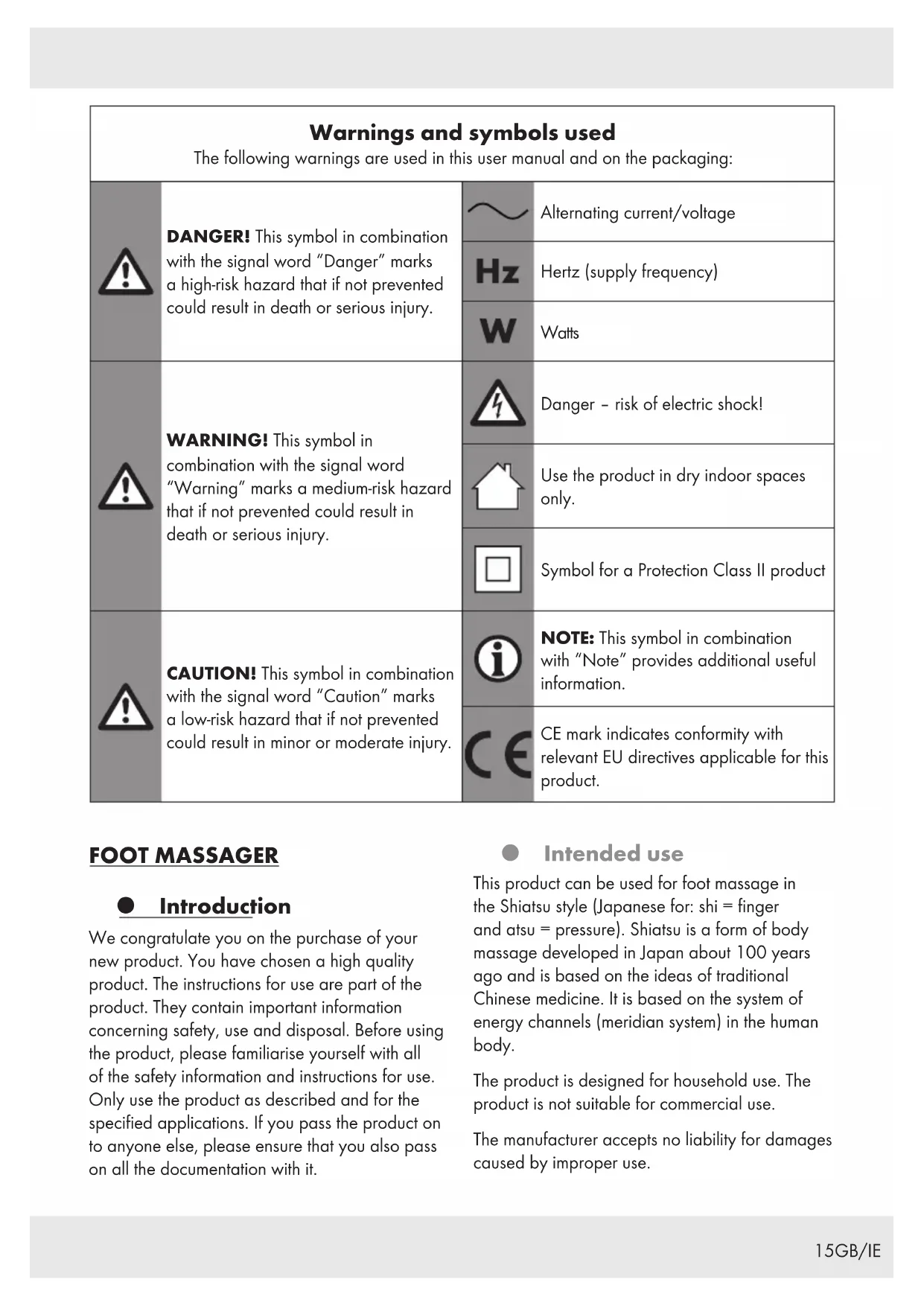

Warnings and symbols usedThe following warnings are used in this user manual and on the packaging:
	DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury.		Alternating current/voltage
		Hz	Hertz (supply frequency)
		W	Watts
	WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury.		Danger - risk of electric shock!
			Use the product in dry indoor spaces only.
			Symbol for a Protection Class II product
	CAUTION! This symbol in combination with the signal word “Caution” marks a low-risk hazard that if not prevented could result in minor or moderate injury.		NOTE: This symbol in combination with “Note” provides additional useful information.
			CE mark indicates conformity with relevant EU directives applicable for this product.

FOOT MASSAGER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product can be used for foot massage in the Shiatsu style (Japanese for: shi = finger and atsu = pressure). Shiatsu is a form of body massage developed in Japan about 100 years ago and is based on the ideas of traditional Chinese medicine. It is based on the system of energy channels (meridian system) in the human body.

The product is designed for household use. The product is not suitable for commercial use.

The manufacturer accepts no liability for damages caused by improper use.

- Scope of delivery

After unpacking the product, make sure that the product is in orderly condition. Remove all packaging materials before use.

1x Foot massager

1x Instruction manual

Parts description

(Fig. A)

1 Massage surface
(with 9 Shiatsu massage heads on both sides)
2 (speed/warming button with indicator light)
3 (on/off button with indicator light)
4 Height-adjustable feet
5 Power cord and power plug
6 Power cord storage

- Technical data

Input voltage: 220-240 V\~, 50-60 Hz

Protection class: II/回

Power consumption: 35 W

Safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Children and persons with disabilities

⚠ WARNING! RISK OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation.

Children frequently underestimate the dangers. Always keep children away from the packaging material.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

- Children shall not play with the product. - Cleaning and user maintenance must not be performed by children without supervision.

⚠️ CAUTION! The product has a heated surface. Persons insensitive to heat must be careful when using the product.

Intended use

⚠ WARNING! Misuse may lead to injury. Use this product solely in accordance with these instructions.

Do not attempt to modify the product in any way.

Electrical safety

⚠️ DANGER! Risk of electric shock! Never attempt to repair the product yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.

WARNING! Risk of electric shock! Do not immerse the product's electrical components in water or other liquids. Never hold the product under running water.

⚠ WARNING! Risk of electric shock! Never use a damaged product. Disconnect the product from the power supply and contact your retailer if it is damaged.

■ Regularly check the power plug and the supply cord for damages. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Ensure the rated voltage shown on the rating label corresponds with the voltage of the power supply.

- Do not insert needles or pointed objects into the massage surface.

Use

⚠ WARNING! Risk of injury! Turn off the product and disconnect it from the mains before cleaning and when the product is not in use.

■ The product must be used and rested on a flat, stable surface.
■ The product is not to be used if it has been dropped, or if there are visible signs of damage.
- Do not operate the product with a damaged power cord or plug, when the product malfunctions or has been damaged in any manner.
■ Only use the product in dry indoor rooms.
- Do not use the product with wet feet or while the product is standing on a wet floor. Do not touch the power plug with wet hands.

■ Protect the product against heat. Do not place the product close to open flames or heat sources such as stoves or heating appliances.
■ Protect the power cord against damages. Ensure that nobody can pull on or trip over it unintentionally.
- Do not pull the power plug out of the power outlet by the power cord. Do not wrap the power cord around the product.
■ Protect the product, its power cord and power plug against dust, direct sunlight, dripping and splashing water.
■ Store the product in a cool, dry place, protected from moisture and out of the reach of children.

Before first use

■ Remove the packing materials.

Operation

CAUTION! Risk of injury! Do not press any parts of the body, especially fingers, between the rotating massage heads 1 and their holders in the product.

NOTES:

■ Never stand on the product.
Do not use the product for more than 15 minutes. Prolonged use may cause over stimulation of muscles, leading to tension.
- Do not use the product on swollen, burnt, inflamed, diseased or injured skin areas.
■ Always remove your shoes before use.
■ Use the product only with dry and clean feet.
The heat function can only be switched on, if the massage function is switched on.
The product switches off automatically after 15 minutes. Let the product cool down before switching it on again.

Setting up the product

■ Unroll the power cord 5 from the power cord storage 6.
For an optimal massage position, the rear feet 4 can be adjusted. Place the product on a flat surface with the massage surface 1 facing downwards.
- Rotate the feet 4 as follows to adjust the foot height:

Direction of rotation Foot height

Clockwise Increasing

Counter-clockwise Decreasing

• Place the product on a flat surface.
  Slippage of the product is prevented by the rubber feet 4 on the bottom of the product. If necessary, place the product on a mat to protect the floor.
• Check the stability of the product.

Use massage and heat function

Setting Massage level Heat function

button 2

1 Slow On Lights green

2 Slow Off Flashes green

3 Fast On Lights blue

4 Fast Off Flashes blue

■ Connect the power plug 5 to a power outlet.

■ Switching on the product:

• Press the ⏻ button 3.
• The indicator light of the ⏻ button 3 lights up red.
• The massage heads 1 rotate slowly.
• The heat function is switched on.
• The left indicator light of the 🎨 button 2 lights up green.
• The product is set to massage level 1.

Assume a comfortable sitting posture. Place your feet on the massage heads 1.
This product is equipped with 2 adjustable massage levels, each with a switchable heat function (see table).

Change settings: Press the 🎨 button 2 again.

Each time you press the 🎨 button 2, the setting increases:

One of the indicator lights of the 🎨 button 2 lights up or flashes, depending on the selected setting:

Setting 1 or 2: Setting 3 or 4: Left indicator Right indicator lights/flashes green lights/flashes blue

Diagram of a control panel with labeled ports and connection points

- Switching off the product

NOTE: The product is equipped with a temperature sensor. When the temperature reaches a certain level, the heat function switches off temporarily. The heat function switches on again when the product has cooled.

■ Switching off the product:
- Press the ⏻ button 3.
- The massage heads 1 no longer rotate.
- The indicator lights of the ① 3 and buttons 2 go off.

■ Switching off the product completely: Unplug the power plug 5 from the power outlet.

Troubleshooting

Problem Cause Solution

Massage heads 1 rotate slowly.	Pressure on massage heads 1 is too strong.	Remove pressure from massage heads 1.
Massage heads 1 do not move.	Power plug 5 is not connected to a power outlet.	Connect the power plug 5 with a power outlet. Switch on the product.

● Cleaning and care

⚠️ DANGER! Risk of electric shock!

Before cleaning or maintaining the product: Disconnect the power plug 5 from the power outlet.

⚠ WARNING! Risk of electric shock!

Do not immerse the product in water or other liquids. Never hold the product under running water.

■ Clean the product with a slightly damp cloth.
- Do not allow water or other liquids to get inside the product.
- Do not use any abrasive, aggressive cleaners to clean the product.
■ After cleaning: Allow the product to dry.

Storage

• Roll the power cord 5 onto the power cord storage 6.
  ■ Store the product in the original packaging when it is not in use.
  ■ Store the product at a dry location out of the reach of children.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment.

The Triman logo is valid in France only. Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 394266_2104) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB

Service Great Britain

Tel.: [phone]

E-Mail:[e-mail]

IE

Service Ireland

Tel.: [phone]

E-Mail:[e-mail]

CE

VOETMASSAGE-APPARAAT

Inleiding

⚠ WAARSCHUWING! Verwondingsgevaar!

Electrical schematic diagram showing two circular components with labeled terminals 2 and 3, connected to a power button.

Diagram showing two circular components with labeled ports and connection points, including a power button and numbered labels 2 and 3.

Electrical terminal diagram with labeled components including power, switch, and two numbered connection points

Vypněte výrobek

MASÁŽNY PRÍSTROJ NA NOHY

• Úvod

Diagram of a device with labeled ports and connection points, showing two circular components and numbered labels 2 and 3.

Vypnutie produktu

i UPOZORNENIE: Produkt je vybavený senzorom teploty. Akonáhle teplota dosiahne určitú hodnotu, tepelná funkcia sa dočasne vypne. Ked' sa produkt ochladí, tepelná funkcia sa znova zapne.

Vypnutie produktu:

• Stlačte tlačidlo ⏻ 3.
• Masážne hlavice 1 sa neotáčajú.
• Ukazovatele tlačidiel ⏻ a 📌 2 zhasnú.

Diagram of a device with labeled ports and connection points, showing two circular components and two labeled ports.

Diagram of a device control panel with labeled buttons and indicator lights
