4102 - Anemometer Testo - Free user manual and instructions

Product type	Combined anemometer (airflow meter, hygrometer, thermometer)
Brand	Testo
Model	4102
Dimensions	133 x 46 x 25 mm (incl. protective cap)
Weight	110 g (incl. batteries and protective cap)
Power supply	2 batteries 1.5 V type AAA
Battery life	Approx. 60 h (without display backlight)
Measuring ranges - Air velocity	0.4 ... 20 m/s; 80 ... 4000 fpm
Measuring ranges - Temperature	-10 ... 50 °C; 14 ... 122 °F
Measuring ranges - Humidity	0 ... 100 %RH
Resolution - Air velocity	0.1 m/s; 1 fpm
Resolution - Temperature	0.1 °C; 0.1 °F
Resolution - Humidity	0.1 %RH
Accuracy - Air velocity	±(0.2 m/s + 2% of measured value); ±(40 fpm + 2%)
Accuracy - Temperature	±0.5 °C; ±0.9 °F
Accuracy - Humidity	±2.5 %RH (5 ... 95 %RH)
Main functions	Airflow measurement, temperature, humidity, dew point, wet bulb, Wind Chill, min/max values, hold, time average
Display	Digital display with backlight (10 s)
Protection type	IP10
Operating temperature	-10 ... 50 °C; 14 ... 122 °F
Storage temperature	-40 ... 70 °C; -40 ... 158 °F
Maintenance	Clean the housing with a damp cloth (soapy water); do not use solvents
Safety	Use in accordance with technical specifications; do not store with solvents or acids
Spare parts and repairability	Use only original Testo spare parts; contact Testo customer service
General information	Complies with directive 2014/30/EU

Frequently Asked Questions - 4102 Testo

How to turn on the Testo 4102 anemometer?

Press the ⏻ button (on/off) briefly to turn on the device. The display lights up and measurement mode opens.

How to change the measurement unit (m/s, km/h, etc.)?

Turn off the device, then press and hold the button for 2 seconds to enter configuration mode. Use the ▲ button to select the desired unit (m/s, km/h, fpm, mph, kts, Beaufort) and confirm with the Mode button.

What to do if the display shows 'Lo' or 'Hi'?

The 'Lo' or 'Hi' values indicate that the measurement is outside the allowed range. Check that air velocity is between 0.4 and 20 m/s, temperature between -10 and 50 °C, and humidity between 0 and 100 %RH. If the problem persists, replace the batteries.

How to activate the display backlight?

When the device is on, press the ⏻ button to turn on the display backlight. It turns off automatically after 10 seconds of inactivity.

How to replace the batteries of the Testo 4102?

Slide the battery compartment cover (on the back) downwards to open. Remove the old batteries and insert two new 1.5 V type AAA batteries, respecting polarity. Close the cover by sliding it upwards.

How to perform a time average measurement of airflow?

Press Mode several times until 'Hold' and 'Avg' are displayed. Hold down Mode until '- - - -' appears, then release: the average measurement starts. To finish, press Mode; the calculated average is displayed.

How to display the maximum and minimum values?

Press the selection button (▼/▲) several times until 'Max' or 'Min' is displayed. To reset these values, hold down Mode until '- - - -' appears.

What type of batteries to use and what is the battery life?

Use two 1.5 V type AAA alkaline batteries. Battery life is approximately 60 hours without using the backlight.

How to clean the anemometer?

Clean the housing with a damp cloth (soapy water). Never use solvents or aggressive cleaning products, as they could damage the device.

What to do if the device does not turn on?

First check the batteries: replace them if necessary. Ensure the batteries are inserted with correct polarity. If the problem persists, contact Testo customer service.

USER MANUAL 4102 Testo

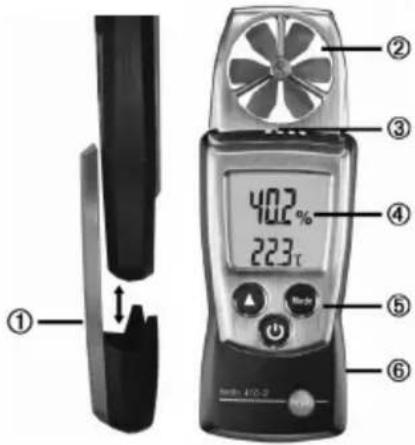

① 40.2% 223T ② ③ ④ ⑤ ⑥ Balance 1:0-2

① Protection cap: Park position
② Impeller
③ Humidity/temperature sensor
④Display
⑤ Control keys
⑥ Battery compartment (on rear)

enfr

Basic settings

Instrument off >press and hold ⏻s > select with ⚠️ ▲ confirm with ⏻).

Unit of temperature: °C, °F > Unit of humidity: %, td (dew point) > WB (wet bulb) > Unit of velocity: m/s, km/h, fpm, mph, kts, Beau > Auto off-Funktion: OFF, ON

Switching the instrument on

Press Ⓧ

Switching the display light on (for 10s)

Instrument on > press ⏻

Select display size

Instrument on > select with

Velocity, humidity, wind chill temperature ( )

Select display mode

Instrument on > select with Mode

Current reading > Hold: Readings are held > Max: Maximum values > Min: Minimum values > Hold Avg: Timed mean value calculation, see below

Timed mean value calculation for flow

Press Mode several times, until Hold and Avg appear > Hold Mode down until - - - - appears > Releasing Mode starts mean value calculation, the current readings are displayed > End measurement: press Mode the mean value is displayed.

Switching the instrument off:

Instrument on >press and hold ⏻2s.

Safety and the environment

About this document

Please read this documentation through carefully and familiarise yourself with the product before putting it to use. Keep this document to hand so that you can refer to it when necessary. Hand this documentation on to any subsequent users of the product.

Pay particular attention to information emphasised by the following symbols:

i Important.

Avoid personal injury/damage to equipment

Only operate the measuring instrument properly, for its intended purpose and within the parameters specified in the technical data. Do not use force.
Never store the product together with solvents, acids or other aggressive substances.
Only carry out the maintenance and repair work that is described in the documentation. Follow the prescribed steps when doing so. Use only OEM spare parts from Testo.
Do not use the device in a polluted environment (heavily dusty, oil, foreign matter, volatile chemicals).

Protecting the environment

Take faulty rechargeable batteries as well as spent batteries to the collection points provided for them.
Send the product back to Testo at the end of its useful life. We will ensure that it is disposed of in an environmentally friendly manner.

Specifications

en

The testo 410-2 is a flow/humidity/temperature measuring instrument. It is normally used to measure the air speed at ventilation outlets. In addition to the simultaneous measurement of humidity and temperature, climatic conditions can also be analysed.

Technical data

Measurement data

• Sensors: Plastic impeller, Testo humidity sensor, NTC temperature sensor
• Parameters: m/s, km/h, fpm, mph, kts, Beaufort, °C, °F, wind chill, %rH, wet bulb, td
• Measuring ranges: 0.4...20 m/s, 80... 4000 fpm -10...50 °C, 14...122 °F, 0...100 %rH
• Resolutions: 0.1 m/s, 1 fpm 0.1 °C, 0.1 °F, 0.1 %rH
• Accuracies (Nominal temperature 22°C, ±1 Digit): ±(0.2 m/s +2 % of reading), ±(40 fpm +2 % of reading), ±0.5 °C, ±0.9 °F, ±2.5 %rH (5...95%rH) Long-term stability: ±1 %rF / year
  • Measuring rate: 0.5 s, humidity: 1 s

Further instrument data

• Protection class: IP10
• Ambient conditions: -10...50 °C, 14...122 °F
• Storage/transport conditions: -40...70 °C, -40...158 °F
  • Temperature coefficient: type (k=1) 0.06 %rF / K
  • Voltage supply: 2x 1.5 V type AAA
• Battery life: 60 h (without display light)
• Dimensions: 133x46x25mm / 5.2x1.8x1.0 in (inc. protection cap)
• Weight: 110 g / 3.9 oz (inc. batteries and protection cap)

Directives, standards and tests

• EC Directive: 2014/30/EC

Product description

At a glance

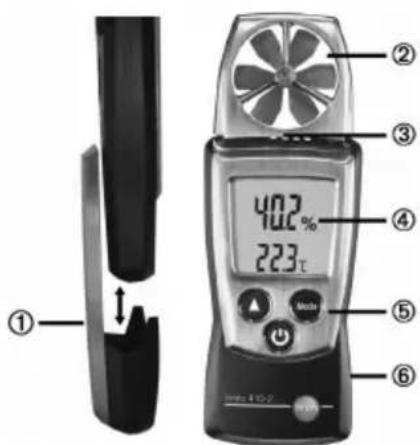

① ② ③ ④ 40.2 % 223℃ ⑤ ⑥

① Protection cap: Park position
② Impeller
③ Humidity/temperature sensor
④Display
⑤ Control keys
⑥ Battery compartment (on rear)

First steps

▶ Inserting batteries:

1 To open the battery compartment, push the battery cover down.
2 Insert batteries (2x 1.5 V type AAA). Observe the polarity!
3 To close the battery compartment, push the battery cover back on.

▶ Basic settings (configuration mode):

Adjustable functions

• Unit of temperature: ^ C,^ F
• Unit of humidity: %, td (dew point), WB (wet bulb)
• Unit of velocity: m/s, km/h, fpm, mph, kts, Beau
• Auto off function: OFF, ON (instrument switches off automatically if no key is pressed for 10 minutes)

1 When switching the instrument on, press and hold ⏻ until ▲ and ← appear on the display (configuration mode). - The adjustable function is displayed. The current setting flashes.

2 Press ⬆ (▲) several times until the desired setting flashes.
3 Press Mode (←) to confirm the input.

4 Repeat steps 2 and 3 for all functions.

- The instrument changes to measuring mode.

Using the product

To ensure correct readings:

- Position instrument so that flow impacts at the rear.

- Keep temperature and humidity sources which may falsify the measurement (e.g. hands) away from the sensor.

▶ Switching the instrument on:

Press ⏻.

- Measuring mode is opened.

▶ Switching the display light on:

√ The instrument is switched on.

Press ⏻.

- The display light goes out automatically if no key is pressed for 10 seconds.

▶ Changing the parameter:

The parameter in the top display line can be changed. The bottom display line always shows the temperature.

Adjustable parameters

- Velocity

- Humidity

- Wind chill temperature ( 12 ) perceived temperature (only deviates from ambient temperature at temperatures <10^ / <50^ and wind speeds >1.34m/s / >264 fpm )

Press ⬆ several times until the desired parameter appears.

▶ Changing the display view:

Adjustable views

- Current reading

- Hold: Readings are held.

- Max: Maximum values since the instrument was last switched on or last reset.

- Min: Minimum values since the instrument was last switched on or last reset.

- Hold Avg: Timed mean value calculation, see below.

Press Mode several times until the desired view appears.

➢ Timed mean value calculation for flow:

1 Press Mode several times, until Hold and Avg appear in the display. The last result of mean value calculation is displayed.

2 Hold Mode down until ---- appears. Releasing Mode starts mean value calculation automatically, the current readings are displayed.

Using the product16

3 End measurement: press Modc The mean value is displayed.
4 For further mean value calculation: hold down Mode
5 End mean value calculation: press 📂 briefly.

▶ Resetting Max/Min values:

1 Press Mode several times until the desired view appears.
2 Press Mode and hold until - - - - appears.
3 Repeat steps 1 and 2 for all values that are to be reset.

Switching the instrument off:

Press ⏻ and hold until the display goes out.

Maintaining the product

Changing batteries:

1 To open the battery compartment, push the battery cover down.
2 Remove used batteries and insert new batteries (2x 1.5 V type AAA). Observe the polarity!
3 To close the battery compartment, push the battery cover back on.

▶ Cleaning the housing:

Clean the housing with a moist cloth (soap suds) if it is dirty. Do not use aggressive cleaning agents or solvents!

Tips and assistance

Questions and answers

Question Possible causes/solutions

Hi or Lo · Readings outside the measuring range (too high, too

low): Keep to the permitted measuring range.

Residual capacity <10 min: Change batteries.

If we could not answer your question, please contact your dealer or Testo Customer Service. For contact details, please visit wwwtesto.com/service-contact.

Notes18

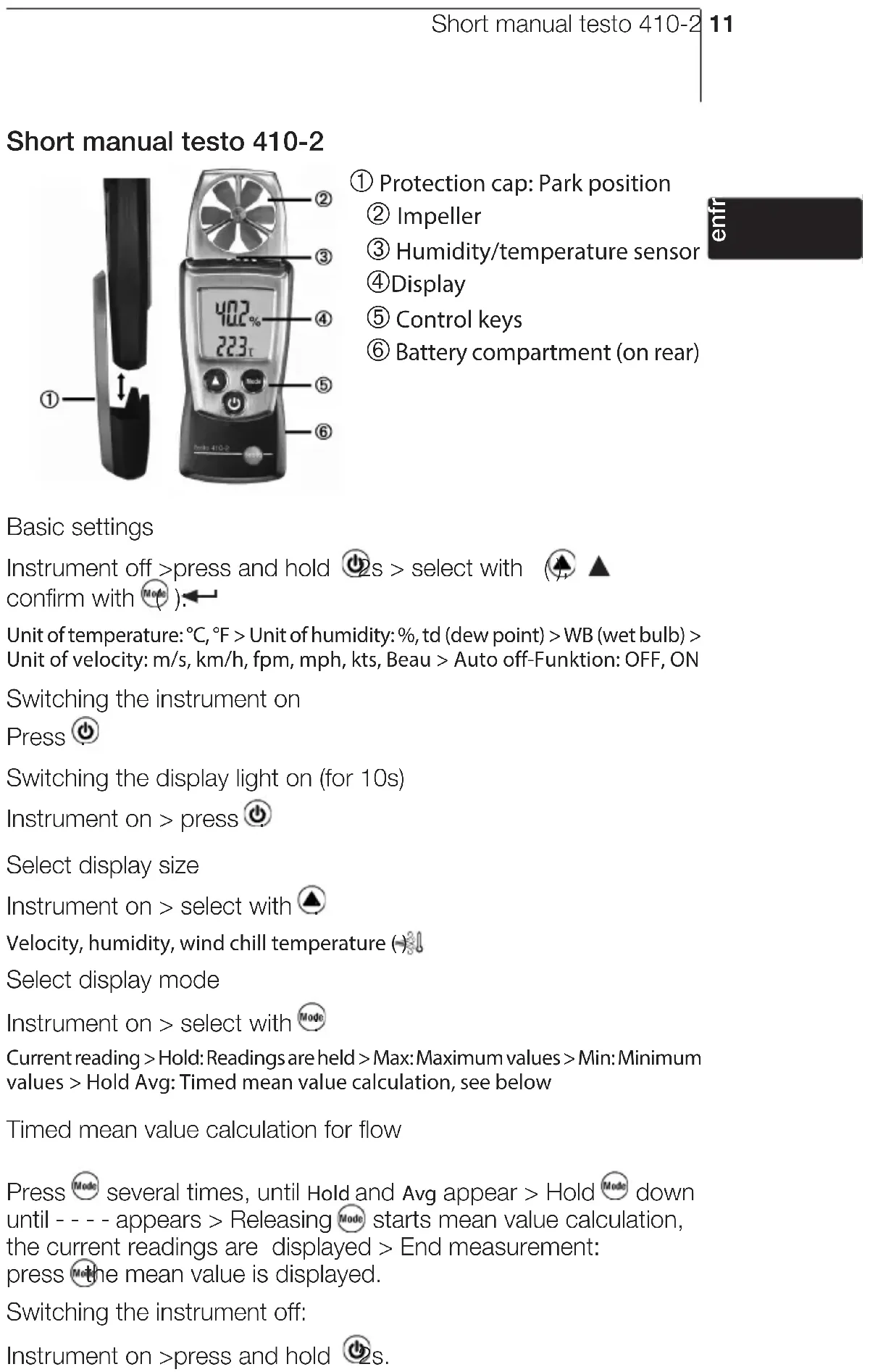

Instructions succinctes testo 410-2
