Product type	Anemometer with thermometer
Brand	Testo
Model	4101
Dimensions (L x W x H)	133 x 46 x 25 mm (incl. protective cap)
Weight	110 g (incl. batteries and protective cap)
Power supply	2 AAA 1.5 V batteries
Battery life	100 h (without backlight)
Measurement range (velocity)	0.4…20 m/s
Measurement range (temperature)	-10…50 °C
Resolution (velocity)	0.1 m/s
Resolution (temperature)	0.1 °C
Accuracy (velocity) (at 22 °C)	±(0.2 m/s + 2% of measured value)
Accuracy (temperature) (at 22 °C)	±0.5 °C
Measurement units	m/s, km/h, fpm, mph, kts, Beaufort, °C, °F
Functions	Current value, Hold, Min, Max, Hold Avg (time average), Wind Chill
Backlight	Yes (10 s after last press)
Auto-off	Yes, adjustable (10 min)
Protection type	IP10
Operating temperature	-10…50 °C
Storage/transport temperature	-40…70 °C
Maintenance and cleaning	Clean the housing with a damp cloth (soapy water). Do not use solvents or strong cleaning agents.
Safety	Use as intended. Do not apply force. Do not store with solvents, acids, or other aggressive substances. Use only original Testo replacement parts.
Spare parts and repairability	1.5 V AAA batteries; protective cap. For repairs, contact Testo after-sales service.
Box contents	Instrument, protective cap, batteries, instruction manual

Frequently Asked Questions - 4101 Testo

How to turn on the device?

Briefly press the ⏻ button.

How to change the velocity measurement unit?

Turn off the device, hold the Ⓞ button for 2 s to enter configuration mode. Use the ⬆ or ⬇ buttons to select the desired unit (m/s, km/h, fpm, mph, kts, Beaufort) and confirm with Mode.

How to use the Hold function?

Press the Mode button several times until Hold is displayed. The measurement values are then frozen on the screen.

How to perform a time average of the flow?

Press Mode several times until Hold and Avg are shown. Hold Mode until ---- appears. Release to start averaging. Press Mode to finish and display the average.

What does 'Hi' or 'Lo' on the display mean?

These indications mean that the measured value is outside the permitted measurement range. Check the measurement conditions and observe the ranges specified in the technical data.

How to turn off the device?

Hold the ⏻ button until the display turns off (approx. 2 s).

How to change the batteries?

Slide the battery compartment cover down. Remove the used batteries and insert two new AAA 1.5 V batteries, observing polarity. Close the cover.

How to clean the device?

Clean the housing with a damp cloth and soapy water. Do not use solvents or aggressive cleaning products.

What to do if the display shows nothing?

Check that the batteries are correctly inserted and not empty. If the problem persists, contact Testo after-sales service.

What is the battery life?

Approximately 100 hours without using the backlight. Frequent use of the backlight reduces this time.

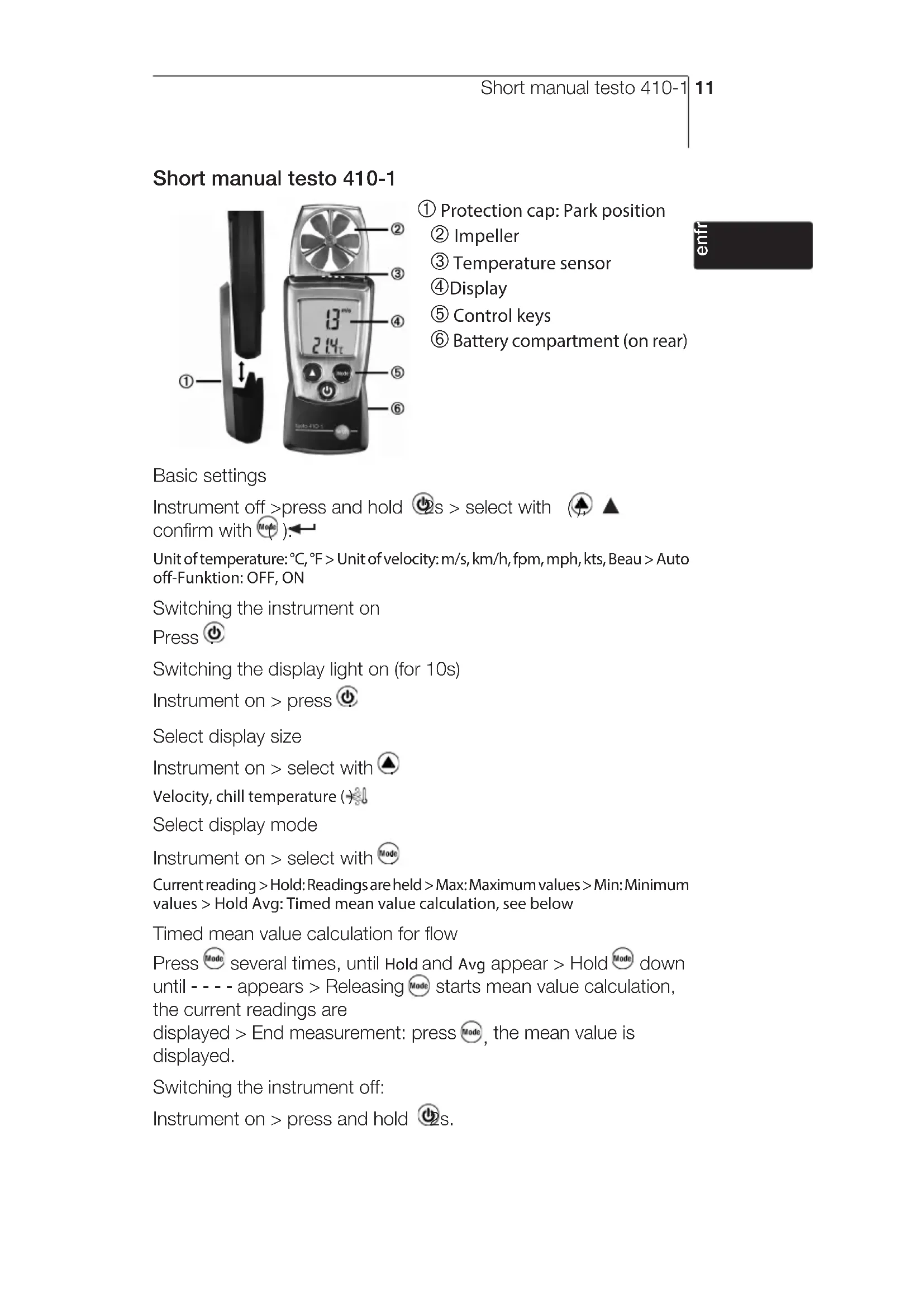

USER MANUAL 4101 Testo

Diagram of a digital timer with labeled parts including a left-side device and a right-side device, showing Chinese labels.

① Protection cap: Park position
② Impeller
③ Temperature sensor
④Display
⑤ Control keys
⑥ Battery compartment (on rear)

enfr

Basic settings

Instrument off >press and hold ⏻s > select with ⬆, ▲ confirm with ⭕);

Unit of temperature: °C, °F > Unit of velocity: m/s, km/h, fpm, mph, kts, Beau > Auto off-Funktion: OFF, ON

Switching the instrument on

Press Ⓧ

Switching the display light on (for 10s)

Instrument on > press ⏻

Select display size

Instrument on > select with

Velocity, chill temperature (→)

Select display mode

Instrument on > select with Mode

Current reading > Hold: Readings are held > Max: Maximum values > Min: Minimum values > Hold Avg: Timed mean value calculation, see below

Timed mean value calculation for flow

Press Mode several times, until Hold and Avg appear > Hold Mode down until - - - - appears > Releasing Mode starts mean value calculation, the current readings are

displayed > End measurement: press Mode, the mean value is displayed.

Switching the instrument off:

Instrument on > press and hold ⏻2s.

Safety and the environment

About this document

Please read this documentation through carefully and familiarise yourself with the product before putting it to use. Keep this document to hand so that you can refer to it when necessary. Hand this documentation on to any subsequent users of the product.

Pay particular attention to information emphasised by the following symbols:

i Important.

Avoid personal injury/damage to equipment

Only operate the measuring instrument properly, for its intended purpose and within the parameters specified in the technical data. Do not use force.
Never store the product together with solvents, acids or other aggressive substances.
Only carry out the maintenance and repair work that is described in the documentation. Follow the prescribed steps when doing so. Use only OEM spare parts from Testo.

Protecting the environment

Take faulty rechargeable batteries as well as spent batteries to the collection points provided for them.
Send the product back to Testo at the end of its useful life. We will ensure that it is disposed of in an environmentally friendly manner.

Specifications

The testo 410-1 is a flow/temperature measuring instrument. It is normally used to measure the air speed at ventilation outlets. In addition to the measurement of temperature, climatic conditions can also be analysed.

Technical data

Measurement data

• Sensors: Plastic impeller, NTC temperature sensor
• Parameters: m/s, km/h, fpm, mph, kts, Beaufort, °C, °F, wind chill
• Measuring ranges: 0.4...20 m/s, 80... 4000 fpm, -10...50 °C, 14...122 °F
• Resolutions: 0.1 m/s, 1 fpm, 0.1 °C, 0.1 °F
• Accuracies (Nominal temperature 22 °C, ±1 Digit): ±(0.2 m/s +2 % of reading), ±(40 fpm +2 % of reading), ±0.5 °C, ±0.9 °F
  • Measuring rate: 0.5 s

Further instrument data

• Protection class: IP10
• Ambient conditions: -10...50 °C, 14...122 °F
• Storage/transport conditions: -40...70 °C, -40...158 °F
  • Voltage supply: 2x 1.5 V type AAA
• Battery life: 100 h (without display light)
• Dimensions: 133x46x25 mm (inc. protection cap)
• Weight: 110 g (inc. batteries and protection cap)

Directives, standards and tests

• EC Directive: 2014/30/EU

Product description

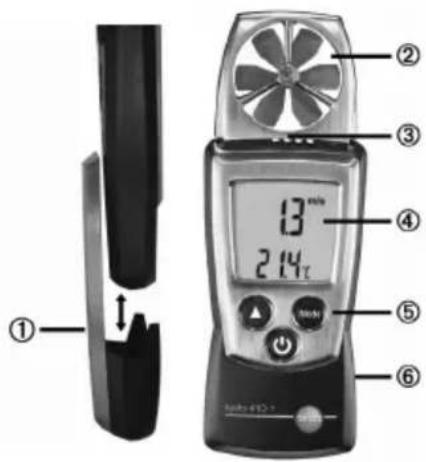

At a glance

Diagram of a digital thermometer with labeled parts including an analog device and its function dial.

① Protection cap: Park position
② Impeller
③ Temperature sensor
④Display
⑤ Control keys
⑥ Battery compartment (on rear)

First steps

▶ Inserting batteries:

1 To open the battery compartment, push the battery cover down.
2 Insert batteries (2x 1.5 V type AAA). Observe the polarity!
3 To close the battery compartment, push the battery cover back on.

▶ Basic settings (configuration mode):

Adjustable functions

• Unit of temperature: ^ C,^ F
• Unit of velocity: m/s, km/h, fpm, mph, kts, Beau
• Auto off function: OFF, ON (instrument switches off automatically if no key is pressed for 10 minutes)

1 When switching the instrument on, press and hold until ▲ and ← appear on the display (configuration mode).

- The adjustable function is displayed. The current setting flashes.

2 Press ⬆ (▲several times until the desired setting flashes.

3 Press Mode (←) to confirm the input.

4 Repeat steps 2 and 3 for all functions. - The instrument changes to measuring mode.

Using the product

To ensure correct readings, align the instrument so that it has its back to the flow.

▶ Switching the instrument on:

Press ⏻.

- Measuring mode is opened.

▶ Switching the display light on:

√ The instrument is switched on.

Press ⏻.

- The display light goes out automatically if no key is pressed for 10 seconds.

▶ Changing the parameter:

The parameter in the top display line can be changed. The bottom display line always shows the temperature.

Adjustable parameters

- Velocity

- Wind chill temperature ( ) perceived temperature (only deviates from ambient temperature at temperatures < 10^ / < 50^ and wind speeds >1.34m / s / >264 fpm)

Press ⬆ several times until the desired parameter appears.

▶ Changing the display view:

Adjustable views

- Current reading

- Hold: Readings are held.

- Max: Maximum values since the instrument was last switched on or last reset.

- Min: Minimum values since the instrument was last switched on or last reset.

- Hold Avg: Timed mean value calculation, see below.

Press Mode several times until the desired view appears.

▶ Timed mean value calculation for flow:

1 Press Mode several times, until Hold and Avg appear in the display. The last result of mean value calculation is displayed.

2 Hold Mode down until ---- appears. Releasing Mode starts mean value calculation automatically, the current readings are displayed.

3 End measurement: press Mod. The mean value is displayed.

4 For further mean value calculation: hold down Mode

5 End mean value calculation: press Ⓜ briefly.

Resetting Max/Min values:

1 Press 📂 several times until the desired view appears.

2 Press Mode and hold until ---- appears.

3 Repeat steps 1 and 2 for all values that are to be reset.

Switching the instrument off:

Press ⏻ and hold until the display goes out.

Maintaining the product

Changing batteries:

1 To open the battery compartment, push the battery cover down.
2 Remove used batteries and insert new batteries (2x 1.5 V type AAA). Observe the polarity!
3 To close the battery compartment, push the battery cover back on.

▶ Cleaning the housing:

Clean the housing with a moist cloth (soap suds) if it is dirty. Do not use aggressive cleaning agents or solvents!

Tips and assistance

Questions and answers

Question Possible causes/solutions

Hi or Lo · Readings outside the measuring range (too high, too low): Keep to the permitted measuring range.

Residual capacity <10 min: Change batteries.

If we could not answer your question, please contact your dealer or Testo Customer Service. For contact details, please visit wwwtesto.com/service-contact.

Notes18

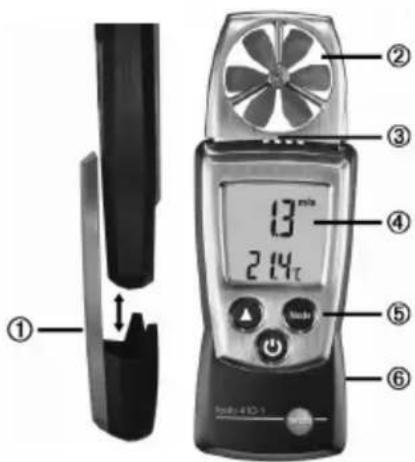

Instructions succinctes testo 410-1
