USER MANUAL IAN 373430 PARKSIDE

PDF ONLINE www.lidl-service.com

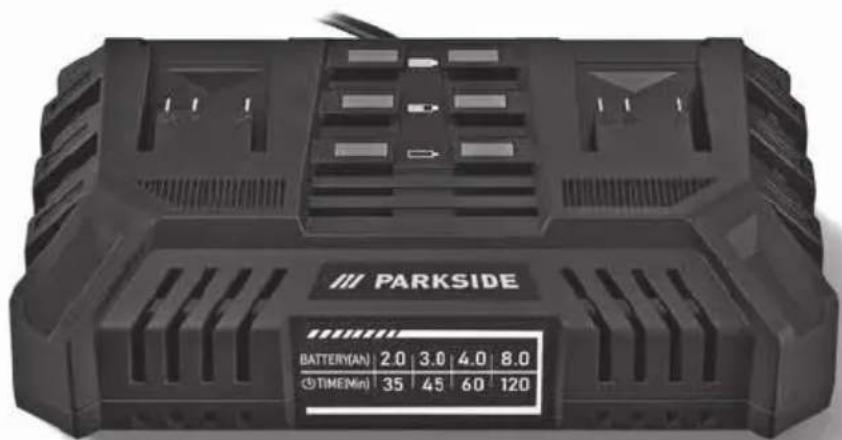

PARKSIDE BATTERY(AN) 2.0 3.0 4.0 8.0 TIME(Min) 35 45 60 120

DUAL QUICK BATTERY CHARGER 20V 2X 4.5A / DOPPEL-SCHNELLLADEGERÄT 20 V 2 X 4,5 A / DOUBLE CHARGEUR RAPIDE 20 V 2 X 4,5 A PDSLG 20 A1

GB IE

DUAL QUICK BATTERY CHARGER 20V 2X 4.5A

Translation of the original instructions

FR BE

DOUBLE CHARGEUR RAPIDE 20 V 2 X 4,5 A

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB /IE Translation of the original instructions Page 1

6"×152.4mm

Technical line drawing of a multi-level industrial or mechanical structure with no visible text or symbols

Line drawing of a modern building with tiered structure and chimney (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

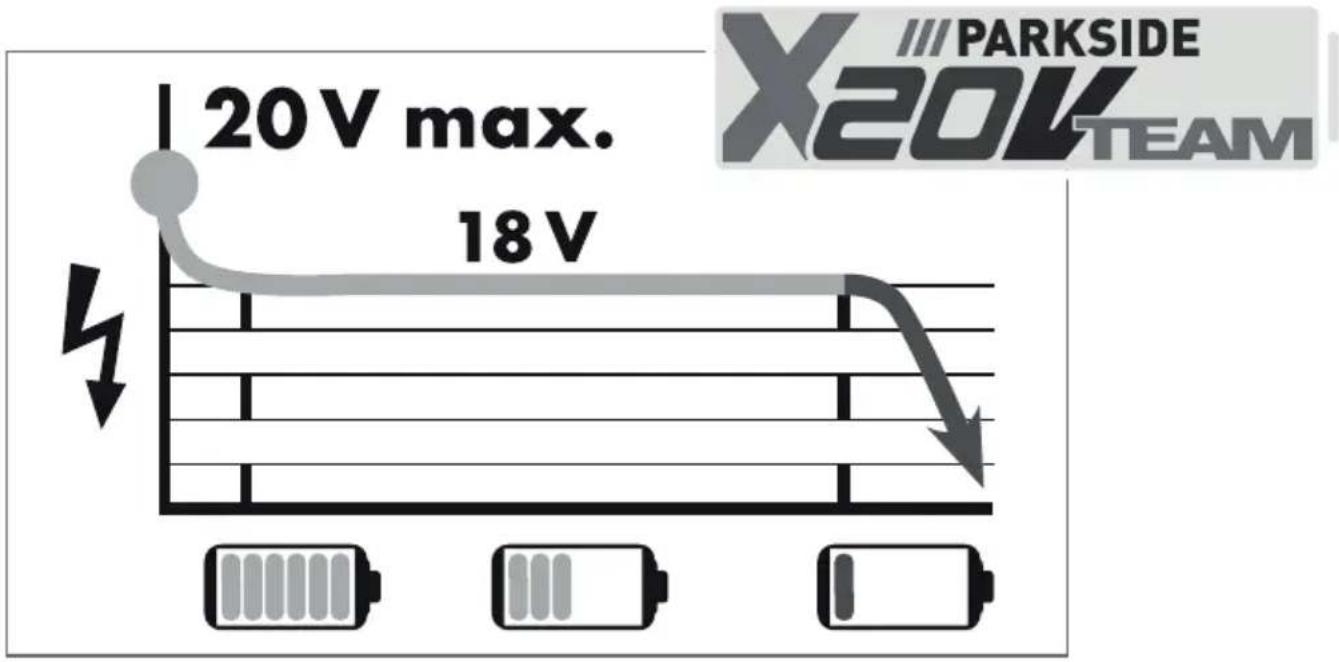

All Parkside tools and the chargers PLG 20 A1/A4/C1/A2/C2/A3/C3/PDSLG 20 A1 of the X20V Team series are compatible with the PAP 20 A1/A2/A3/B1/B3/PAPS 204 A1/PAPS 208 A1 battery pack.

General safety information 2

Use and handling of the cordless electrical appliance....2

Extended safety guidelines 3

Safety guidelines for battery chargers....3

Use 4

Installation on a wall 4

Charging the battery pack 4

Cleaning....4

Maintenance and storage 4

Translation of the original Conformity Declaration 7

Ordering a replacement battery 8

Telephone ordering 8

Introduction

Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all the operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This charger is intended exclusively for charging PARKSIDE PAP 20 A1/A2/A3/B1/B3/PAPS 204 A1/PAPS 208 A1 series batteries. This rechargeable battery is suitable for:

The appliance is not intended for commercial use. Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage attributable to misuse.

Features

1 LED 3
② LED 2
③ LED 1

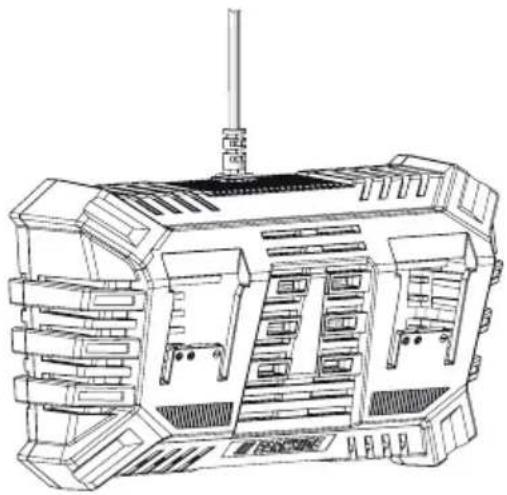

4 Dual high-speed charger

Package contents

1 dual quick battery charger 20V 2x 4.5A 1 set of operating instructions

Technical data

Dual Quick Battery Charger 20V 2x 4.5A PDSLG 20 A1

INPUT

Rated voltage 230-240 V\~, 50 Hz (AC)

Rated power

consumption 200 W

Fuse (internal) 3.15 A T3.15A

OUTPUT (both outputs)

Rated voltage 21.5 V = (DC)

Rated current 4.5 A

Protection class II / (double insulation)

Charging time approx. 30 min

(2 Ah - Ready to use)

approx. 35 min (2 Ah - 100%)

approx. 45 min (3 Ah)

approx. 60 min (4 Ah)

approx. 120 min (8 Ah)

General safety information

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Use and handling of the cordless electrical appliance

a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.

b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.

c) When they are not being used, store rechargeable battery units away from paper-clips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.

d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.

CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries.

Protect the rechargeable battery from heat; for example, from continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.

Extended safety guidelines

- Do not use a damaged or modified battery. Damaged or modified batteries may behave unexpectedly and cause fires, explosions or pose a risk of injury.

■ Do not expose a battery to fire or excessively high temperatures. Fire or temperatures in excess of 130^ C ( 265^ F) can cause an explosion.

■ Follow all instructions regarding charging and never charge the battery or the cordless tool outside the temperature range given in the operating instructions.

Incorrect charging or charging outside of the permissible temperature range can destroy the battery and increase the risk of fire.

Safety guidelines for battery chargers

■ This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to play with the appliance. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

■ To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person.

The charger is suitable for indoor use only.

ATTENTION!

This charger can only charge the following batteries: PAP 20 A1/PAP 20 A2/PAP 20 A3/PAP 20 B1/PAP 20 B3/PAPS 204 A1/PAPS 208 A1.
▶ An up-to-date battery compatibility list can be found at www.lidl.de/akku.

WARNING!

■ To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person.

Use

Installation on a wall

WARNING!

Before wall mounting, make sure that there is no damage to any cables in the vicinity of the drill holes required for the mounting.
Route the mains cable so that it does not obstruct you and no one can pull on it accidentally.
- Do not allow children to play with the appliance, even when it is mounted on the wall.
■ Never operate the charger on a combustible surface.
■ Never place the charger on a damp surface.
■ Mounting the charger behind doors or within their swinging range is not recommended, as there is a risk of it being torn off or otherwise damaged.

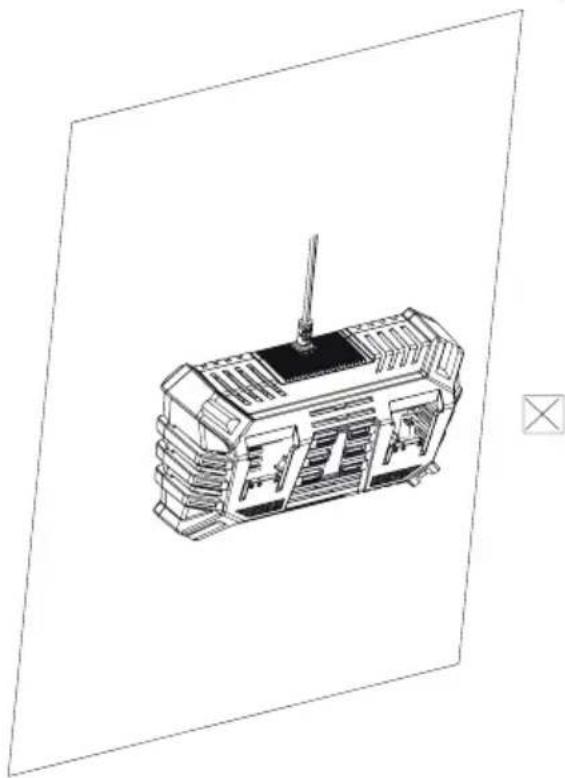

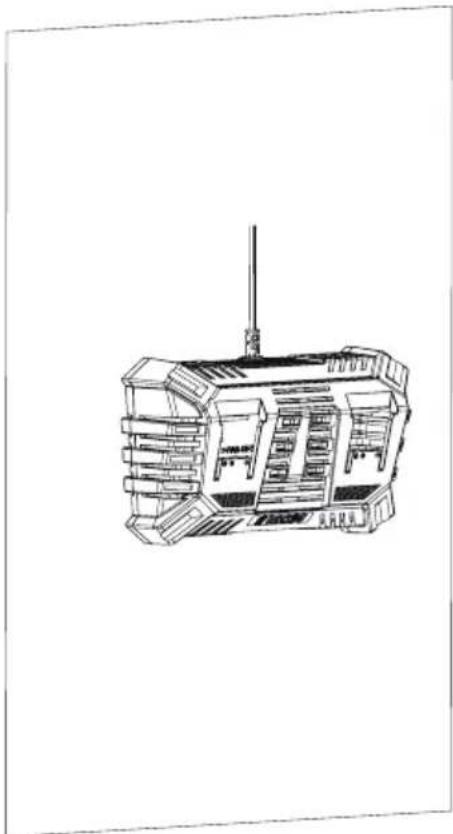

The charger has two holes on the back for wall installation. You can hang it on a wall, taking the safety instructions into account. To do this, use two screws (not supplied) with the specified dimensions and spacing (see fig. on the fold-out page).

Charging the battery pack

CAUTION!

▶ Always unplug the appliance before you remove a battery pack from or connect a battery pack to the dual high-speed charger.

NOTE

▶ Never charge the battery pack at an ambient temperature of below 10^ C or above 40^ C. If a lithium-ion battery is going to be stored for an extended period, the charge level must be checked at regular intervals. The optimum charge level is between 50% and 80%. The storage climate should be cool and dry, and the ambient temperature should be between 0^ C and 50^ C.

◆ Slide one or two battery packs into the dual high-speed charger 4.
◆ Insert the power plug into the socket.

The charge level of the respective battery pack is indicated by the corresponding LEDs 1/2 3 and the adjacent illustrations:

LED 1 ③ flashes: The battery pack is empty

LED 2 ② flashes: The battery pack is 1/3 charged.

LED 3 ① flashes: The battery pack is 2/3 charged.

All LEDs 1/2 light up permanently: The battery pack is fully charged.

ATTENTION!

If all of the LED ^1/2 fish, this means the battery pack has overheated and cannot be charged.
When charging is complete, disconnect the dual high-speed charger 4 from the mains and remove the respective battery packs.
You should always switch the dual high-speed charger 4 off for at least 15 minutes between successive charging processes. To do this, disconnect the power plug from the mains power socket.

Cleaning

CAUTION!

▶ Always unplug the charger before cleaning it.
▶ Do not clean the charger with water.

■ Clean the appliance with a dry or slightly moistened cloth.

Maintenance and storage

If you do not intend to use the appliance for an extended period, remove the batteries and store it in a clean, dry place away from direct sunlight.
If a lithium-ion battery is going to be stored for an extended period, the charge level must be checked at regular intervals. The optimum charge level is between 50% and 80%. The optimum storage environment is cool and dry.

■ Never try to repair damaged batteries. Batteries should only be maintained by the manufacturer or an approved customer service centre.

KompernassHandelsGmbH warranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).

This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

X 12 V and X 20 V Team Series battery packs come with a 3-year warranty valid from the date of purchase.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

The warranty period does not apply to

■ Normal reduction of the battery capacity over time

■ Commercial use of the product

■ Damage to or alteration of the product by the customer

■ Non-compliance with safety and maintenance instructions, operating errors

■ Damage caused by natural hazards

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 421306_2201 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 421306_2201.

WARNING!

▶ Have your appliances repaired by the Service Centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.

▶ Always ensure that the power plug and power cord are replaced only by the manufacturer of the appliance or the company customer service. This will ensure that the safety of the appliance is maintained.

Service

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Servicelreland

Tel.: [phone]

E-Mail: [e-mail]

IAN 421306_2201

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Disposal

FR

The product and its packaging are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Do not dispose of power tools in your normal domestic waste!

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

If it is possible to do so without destroying the old appliance, remove the old batteries or rechargeable batteries before returning the appliance for disposal and take them to a separate collection point. In the case of permanently installed rechargeable batteries, you must indicate during disposal that the appliance contains a battery.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Do not dispose of batteries in your normal household waste!

Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Batteries/rechargeable batteries must be treated as hazardous waste and must therefore be disposed of in an environmentally sound manner by appropriate bodies (dealers, specialist dealers, public municipal bodies, commercial disposal companies). Batteries/rechargeable batteries may contain toxic heavy metals.

For this reason, do not dispose of batteries/rechargeable batteries in domestic waste. Take them to a specialist collection point. Only return batteries that are fully discharged.

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

Dispose of the packaging in an environmentally friendly manner.

Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

Translation of the original ConformityDeclaration

We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

EC Low Voltage Directive (2014/35/EU)

EMC (Electromagnetic Compatibility) (2014/30/EU)

RoHS Directive (2011/65/EU)\*

* The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards

EN 60335-2-29:2004/A11:2018

EN 60335-1:2012/A2:2019

EN 62233:2008

EN 55014-1:2017/A11:2020

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013/A1:2019

EN IEC 63000:2018

Type designation of machine: Dual Quick Battery Charger 20V 2x 4.5A PDSLG 20 A1

Year of manufacture: 05–2022

Serial number: IAN 421306_2201

Bochum, 14/06/2022

Jodine 1960

CE

Semi Uguzlu

- Quality Manager -

We reserve the right to make technical changes in the context of further product development.

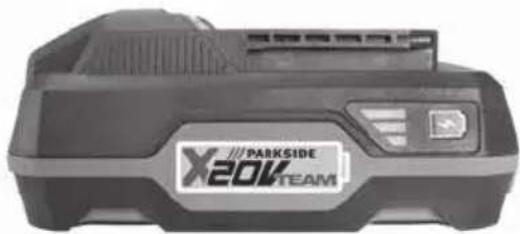

Ordering a replacement battery

If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone.

Due to limited stocks, this item may sell out in a relatively short time.

Exterior view of a black Parkside X20V team electronic device (no visible text or symbols beyond branding)

NOTE

It might not be possible to order replacement parts online in some countries. In this case, please contact the Service hotline.

Telephone ordering

GB Service Great Britain Tel.: [phone]
IE ServiceIrelandTel.: 1800 101010

To ensure fast processing of your order, have the article number of your appliance to hand (IAN 421306_2201) in case of questions. The article number can be found on the type plate or the title page of these instructions.

Inhaltsverzeichnis

Einleitung 10

(2 Ah - Ready to use)

ca. 35 min (2 Ah - 100%)

ca. 45 min (3 Ah)

ca. 60 min (4 Ah)

ca. 120 min (8 Ah)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Entsorgung

FR

Exterior view of a Parkside X20V team electronic device (no visible text or symbols beyond branding)

HINWEIS

Installation murale 22

(2 Ah - Ready to use)

env. 35 min (2 Ah - 100%)

env. 45 min (3 Ah)

env. 60 min (4 Ah)

env. 120 min (8 Ah)

Consignes

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Mise au rebut

FR

Sofia Fjord CE

Semi Uguzlu

Exterior view of a Parkside X20V team electronic device (no visible text or symbols beyond branding)

REMARQUE

(2 Ah - Ready to use)

ca. 35 min (2 Ah - 100%)

ca. 45 min (3 Ah)

ca. 60 min (4 Ah)

ca. 120 min (8 Ah)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Afvoeren

FR

Exterior view of a black X20V team electronic device (no visible text or symbols on body)

OPMERKING

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Likvidace

FR CR

Exterior view of a Parkside X20V team electronic device (no visible text or symbols beyond branding)

UPOZORNĚNÍ

(2 Ah - Ready to use)

ok. 35 min

(2 Ah - 100%)

ok. 45 min (3 Ah)

ok. 60 min (4 Ah)

ok. 120 min (8 Ah)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Utylizacja

FR

Exterior view of a black Parkside X20V team device (no visible text or symbols beyond branding)

WSKAZÓWKA

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Likvidácia

FR

Sofia Foushe CE

Semi Uguzlu - Manažér kvality -

Exterior view of a black Parkside X20V team device (no visible text or symbols beyond branding)

UPOZORNENIE

(2 Ah - Ready to use)

Aprox. 35 min

(2 Ah - 100%)

Aprox. 45 min (3 Ah)

Aprox. 60 min (4 Ah)

Aprox. 120 min (8 Ah)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Desecho

FR FR

Exterior view of a Parkside X20V team electronic device (no visible text or symbols beyond branding)

INDICACIÓN

(2 Ah - Ready to use)

ca. 35 min (2 Ah - 100%)

ca. 45 min (3 Ah)

ca. 60 min (4 Ah)

ca. 120 min (8 Ah)

Generelle

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Bortskaffelse

FR FR

Sofia Foushe CE

Semi Uguzlu

- Kvalitetschef -

Exterior view of a black X20V team electronic device (no visible text or symbols on body)

BEMARK

(2 Ah - Ready to use)

circa 35 min (2 Ah - 100%)

circa 45 min (3 Ah)

circa 60 min (4 Ah)

circa 120 min (8 Ah)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Smaltimento

FR

Exterior view of a Parkside X20V team electronic device (no visible text or symbols beyond branding)

NOTA

(2 Ah - Ready to use)

kb. 35 min (2 Ah - 100%)

kb. 45 min (3 Ah)

kb. 60 min (4 Ah)

kb. 120 min (8 Ah)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

Ártalmatlanítás

FR FR

Jodzky CE

Semi Uguzlu

Exterior view of a Parkside X20V team device (no visible text or symbols beyond branding)

TUDNIVALÓ

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMČIJA

www.kompernass.com

Pooblaščeni serviser

SI

ServisSlovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN 421306_2201

OPOZORILO!

▶ Naprave dajte v popravilo samo servisni službi ali strokovnjaku za elektrotehniko, ki naj uporablja le originalne nadomestne dele. S tem zagotovite, da se ohrani varnost naprave.
Zamenjavo vtiča ali priključne napeljave zmeraj prepustite proizvajalcu naprave ali njegovi servisni službi. S tem zagotovite, da se ohrani varnost naprave.

Garancijski list

Exterior view of a Parkside X20V team electronic device (no visible text or symbols beyond branding)

OPOMBA

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie · Stav informaci · Stan informacji Stav informacií · Estado de las informaciones · Tilstand af information · Versione delle informazioni · Információk állása · Stanje informacij: 05 / 2022 · Ident.-No.: PDSLG20A1-052022-1
