Product type	No-Frost Upright Freezer
Brand	Hoover
Model	HFF 1854 DX
Height (mm)	1850
Width (mm)	600
Depth (mm)	650
Estimated weight (kg)	70
Electrical supply	220-240 V ~ 50 Hz
Climate class	SN, N, ST, T
Cooling technology	Total No-Frost (automatic defrost)
Freezing capacity (kg/24h)	Not specified in the manual
Adjustable freezing temperature	From -14°C to -22°C
Special functions	Super mode (fast freezing), ECO mode, Door alarm, High temperature alarm, Child lock
Display	LED, temperature and icons
Refrigerant type	R600a (flammable)
Door reversibility	Yes, possible to change the opening direction
Interior lighting	LED (replacement by a professional)
Maintenance and cleaning	Clean the interior every 4 weeks with warm water and mild soap
Safety	Control panel lock, door and temperature alarms
Available spare parts	Thermostats, sensors, printed circuit boards, LED (7 years); handles, hinges, bins (7 years); door gaskets (10 years)
General information	Household use; do not build-in; keep the manual

Frequently Asked Questions - HFF 1854 DX HOOVER

How to set the temperature of my Hoover HFF 1854 DX freezer?

Press the FREEZER button several times to scroll through temperatures from -14°C to -22°C. After 5 seconds of blinking, the temperature is saved. The panel must be unlocked (press LOCK for 3 seconds).

How to activate Super mode (fast freezing)?

Press the SUPER button; the icon blinks then stays on. The temperature goes to -25°C for up to 50 hours. To exit, press SUPER again or wait 50 hours.

What to do if the audible alarm sounds?

If the door is left open for more than 90 seconds, the door alarm activates. Close the door or briefly press ALARM/ECO to stop it. In case of high temperature alarm (display 'ht'), the same button turns it off.

How to lock or unlock the control panel?

Press the LOCK button for 3 seconds to lock (lock icon on). To unlock, do the same again. The panel locks automatically after 25 seconds of inactivity.

What is the recommended maintenance for the freezer?

Clean the interior and accessories every 4 weeks with warm water and mild soap. Dry thoroughly. Do not use abrasive cleaners or dishwasher. Always unplug before cleaning.

The appliance makes noise, is that normal?

Yes, normal compressor and refrigerant circulation noises. If the appliance is not level or touches a wall, adjust the feet or move it away.

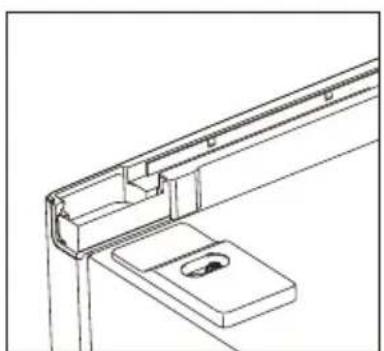

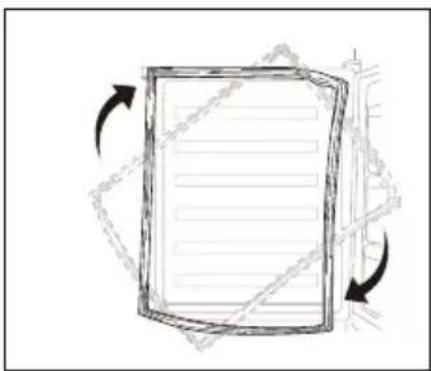

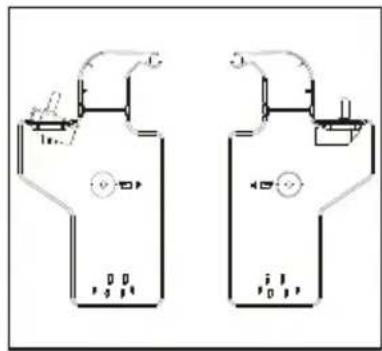

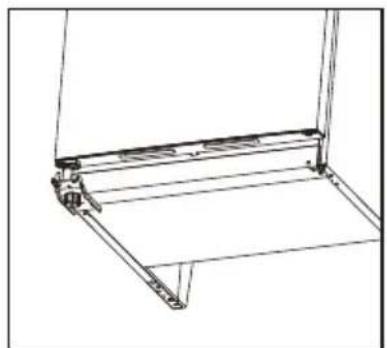

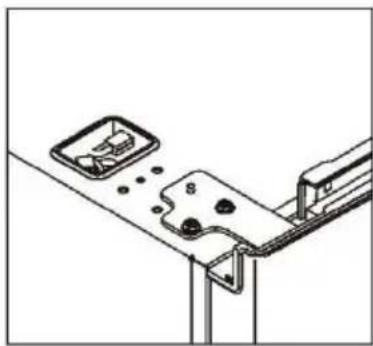

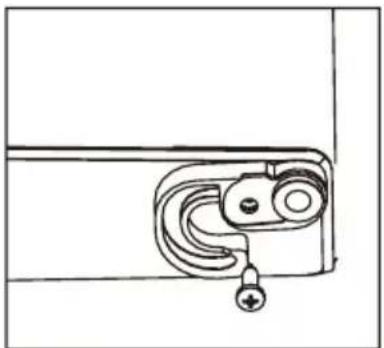

How to change the door opening direction?

The manual describes the steps: unscrew hinges, remove door, reverse parts (door closer, switch, gaskets) and reassemble. Requires tools and a screwdriver. Refer to the manual for detailed diagrams.

What to do in case of prolonged power outage?

Open the door as little as possible. The storage time without power is indicated on the rating plate. If expected, prepare ice cubes and place them on top. Thawed food should be consumed or cooked quickly.

The interior light no longer works, how to replace it?

The lamp is an LED that must be replaced by a qualified technician. Contact after-sales service. Do not attempt to change it yourself.

Where to find spare parts for my freezer?

Parts like thermostats, sensors, LED, hinges and gaskets are available for 7 to 10 years after last production. Visit the Hoover website (Haier brand) to contact technical support.

USER MANUAL HFF 1854 DX HOOVER

Total No-Frost Freezer

Content
1. Safety Information	Page 1~9
2. Overview	Page 10
3. Installation	Page 11~19
4.User interface	Page 20~22
5. Daily Use	Page 23~26

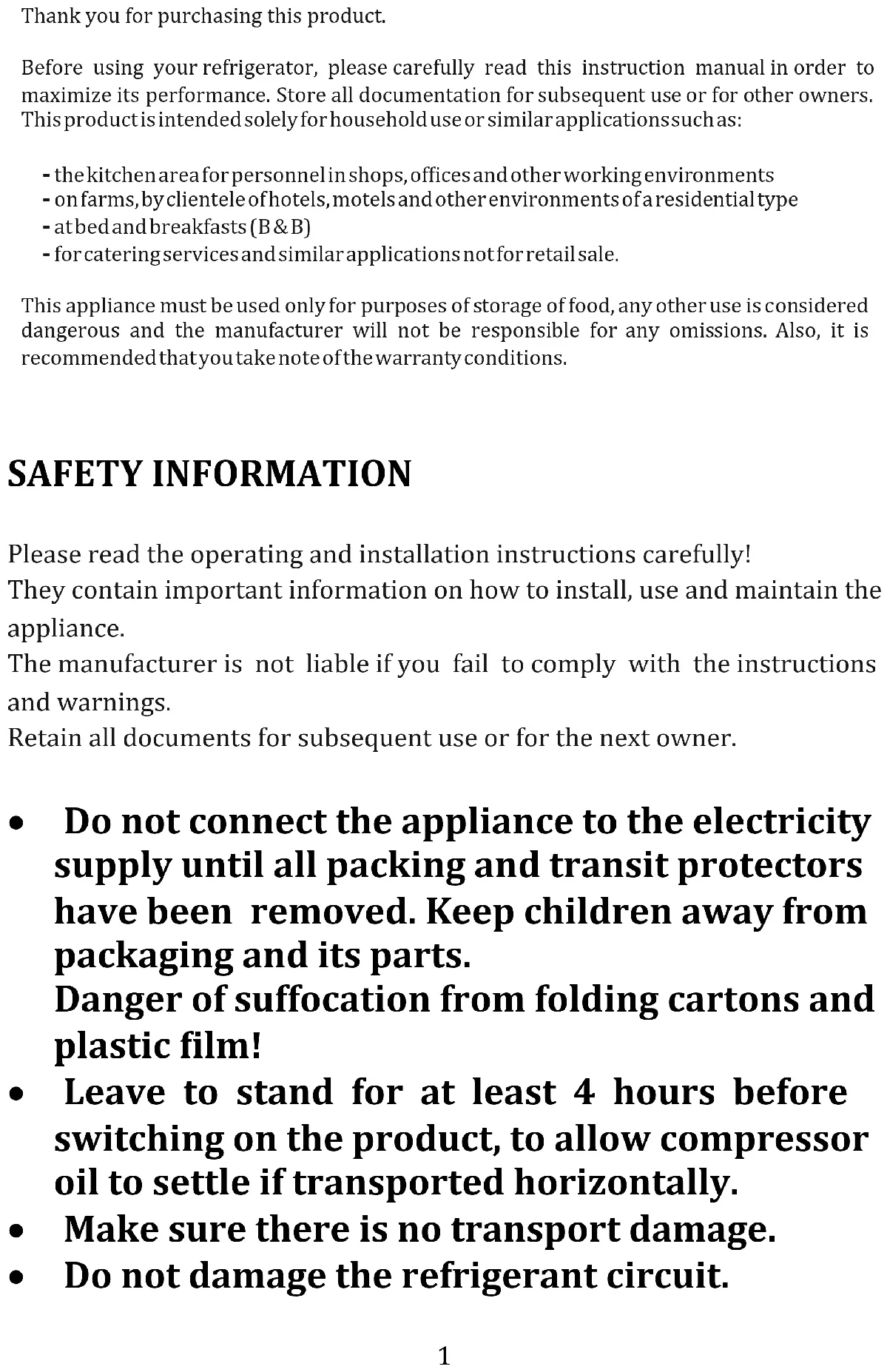

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:

• the kitchen area for personnel in shops, offices and other working environments
• on farms, by clientele of hotels, motels and other environments of a residential type
• at bed and breakfasts (B & B)
• for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

SAFETY INFORMATION

Please read the operating and installation instructions carefully!

They contain important information on how to install, use and maintain the appliance.

The manufacturer is not liable if you fail to comply with the instructions and warnings.

Retain all documents for subsequent use or for the next owner.

• Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed. Keep children away from packaging and its parts.

Danger of suffocation from folding cartons and plastic film!

• Leave to stand for at least 4 hours before switching on the product, to allow compressor oil to settle if transported horizontally.
• Make sure there is no transport damage.

• Do not damage the refrigerant circuit.

• Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.

• Never use water to wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.
• Handle the appliance always with at least two persons because it is heavy.
• Install and level the appliance in an area suitable for its size and use.
• Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
• The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
• Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.
  Make sure that mains cable is not caught under the appliance during and after

carrying/moving the appliance, to avoid the mains cable becoming cut or damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

• Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.
• Do not install the appliance near heaters or inflammable materials.
  FOR appliances with a freezer compartment: if there is a power failure do not open the lid. Frozen food should not be affected if the failure lasts for less than the hours indicated on the rating label (Temperature rise time). If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.
• If you find that the lid of the appliance is difficult to open just after you have closed it, don't worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes.
• Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance, it is not recommended to store materials that require strict temperatures.
• Do not excessively pull or fold the power cord

or touch the plug with wet hands.

• Do not store products which contain flammable propellant (e.g. spray cans) or explosive substances in the appliance. Risk of explosion!
• Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water.
• Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
• Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.
• At risk here are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.
• Check that children and vulnerable people have understood the hazards. A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance. Only children aged 8 years and above may use the appliance.
  Children should not play with the appliance.

Children aged from 3 to 8 years are allowed to load and unload this appliance.
FOR appliances with a freezer compartment: do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst!
FOR appliances with a freezer compartment: never put frozen food straight from the freezer compartment in your mouth. Risk of low-temperature burns!
- Keep plastic parts and the door seal free of oil and grease. Otherwise, plastic parts and the door seal will become porous.
- Before performing any operation, unplug the power cord from the power socket.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.
- Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.
- It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.
- Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact always our customer service.

• Supervise children while the appliance is being cleaned or maintained.

• Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

• WARNING: The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a) and insulating gas (cyclopentane). It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite.

• If the refrigerant circuit should be damaged:

• Switch off the appliance and pull out the mains plug,

• Keep naked flames and/or ignition sources away from the appliance,

• Thoroughly ventilate the room for several minutes,

• Inform customer service.

• WARNING: Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.

• WARNING: Do not use multiple portable socket-outlets or portable power supplies. We do not recommend the use of extension leads and multi-way adapters.

• Do not attempt to sit or stand on the top of the

appliance. You could injure yourself or damage it. This appliance is not designed for stacking with any other ones.

• The product is designed and built for domestic household use only.

• Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.

• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three -star compartments, if present in the appliance, are not suitable for the freezing of fresh food.

-If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance.

FOR Wine Coolers: this appliance is intended to be used exclusively for the storage of wine
FOR a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance
FOR appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs
- Replaceable (LED only) light source by a professional
- This product contains a light source of energy efficiency class F.

Scrapping old appliances

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

• WEEE should not be treated as household waste;

• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

• The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product and fan to be off, please refer to the above pictures.

** The pictures above are only for reference. The actual configuration will depend on the physical product or statement by the distributor.

Note: Above picture is for reference only. Real appliance probably is different.

INSTALLATION

WARNING! The appliance is heavy. Always handle with at least two persons.

Before first use

Remove all packaging materials.
Clean the appliance with water and a mild detergent and dry it with soft cloth.
Check if power supply, socket and fusing are appropriate to the rating plate.
Check if the power socket is earthed and no multi-plug or extension is present.
Check if the power plug is accessible after the appliance has been positioned.
Refrigerator and freezer temperature are automatically set at 4^ and -18^ respectively. These are the recommended settings. If desired, you can change these temperature manually. See Adjust the temperature.

Environmental conditions

This appliance should be installed in a room that is dry and well ventilated.

Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation or exposed to direct sunlight.
If this appliance is situated in a cold environment (such as a shed, outhouse or garage), the performance will be affected and this may damage the food.

Install this product in a position where the ambient temperature is not lower or higher than the operating temperature: in this case the appliance does not work properly.

• Extended temperate (SN): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10^ to 32^ '.
• Temperate (N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 32^' .
• Subtropical (ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ to 38^ .
• Tropical (T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 43^ C .

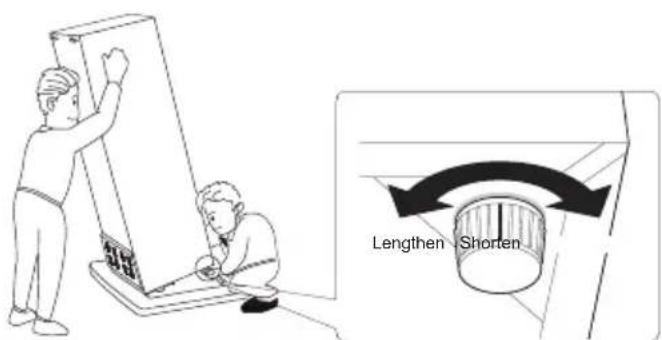

Levelling the appliance

The appliance should be placed on a flat and solid surface

1. Tilt the appliance slightly backwards.
2. Turn the feet clockwise to raise the refrigerator.
3. Turn the feet counter clockwise to lower the refrigerator. 11

Moving the appliance

1. Remove all food and unplug the appliance
2. Secure shelves and other moveable parts in the fridge and in the freezer with adhesive tape.
3. Do not tilt the refrigerator more than 45^ to avoid damaging the refrigerating system.

TIPS FOR FOOD STORAGE

Position different food in different compartments according to be below table:

Refrigerator compartment	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams, juices, drinks, condiments ·Do not store perishable foods
Crisper drawers (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the crisper bin ·Do not store bananas, onions, potatoes, garlic in the refrigerator
Fridge shelf – middle	·Dairy products, eggs
Fridge shelf – top	·Foods that do not need cocking, such as ready-to-eat foods, deli meats, leftovers
Freezer drawer(s)/tray	·Foods for long-term storage ·Bottom drawer for raw meat, poultry, fish ·Middle drawer for frozen vegetables, chips ·Top tray for ice cream, frozen fruit, frozen baked goods

It's suggested to set the temperature at 4^ in the fridge compartment, and, whether possible, at -18^ in the freezer compartment.
For most food categories, the longest storage time in the fridge compartment is achieved with colder temperatures. Since some particular products (as fresh fruits and vegetables) may be damaged with colder temperatures, it is suggested to keep them in the crispier drawers, whenever present. If not present, maintain an average setting of the thermostat.
For frozen food, refer to the storage time written on the food packaging. This storage time is achieved whenever the setting respects the reference temperatures of the compartment (one-star -6^ , two stars -12^ , three stars -18^ )

Tips for storing food in the fridge

Keep your fridge temperature below 5^
Hot food must be cooled to room temperature before storing in the appliance.
Foods stored in the refrigerator should be washed and dried before storing.
Food to be stored should be properly sealed to avoid odour or taste alterations. It is advisable to keep food covered with materials that are tasteless, impermeable to air and water, non-toxic and free of pollution, to avoid contamination or odour transfer.
It is recommended not to obstruct the air outlets of the refrigerator compartment.
Do no store excessive quantities of food. Leave spaces between foods to allow cold air flowing around them, for a better and more homogenous cooling.
Leave a gap between foods and the inner walls, allowing air flowing. In special way don't

store foods against the rear wall, as food could freeze.

The ageing process of some fruit and vegetables (such as melons, papaya, banana, pineapple etc) can be accelerated in the refrigerator; therefore, it is not advisable to store them in the refrigerator. However, the ripening of strongly greed fruits can be promoted for a certain period. Onions, garlic, ginger and other root vegetables should also be stored at room temperature.

Tips for freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time

Place the fresh food to be frozen in the freezer compartment
The maximum amount of food that can be frozen in 24 hours is specified on the rating plate
The freezing process lasts 24 hours: during this period do not add other food to be frozen

Tips for storing food in the freezer

Keep the freezer temperature at -18^
Hot foot must be cooled to room temperature before storing in the freezer compartment
Food cut into small portions will freeze faster and will be easier to defrost and cook. The recommended weight for each portion is less than 2.5kg
It is better to pack the food before putting it into the freezer.
Defrosted food cannot be re-frozen unless it is first cooked
Do not load excessive quantities of fresh food in the freezer compartment
Food can be stored in the freezer at a temperature of at least -18^ for 2 to 12 months, depending on its properties (e.g. meat: 3-12 months, vegetables 6-12 months). Do not exceed the food storage time recommended by the manufacturers.

CARE AND CLEANING

WARNING! Disconnect the appliance from the power supply before cleaning

General

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odours.

Clean the inside and housing of the appliance with lukewarm water and some neutral soap.
Rinse and dry with soft cloth.
Clean the accessories only with lukewarm water and neutral detergent. Make sure that all soap is rinsed off and all parts are dry before replacing them inside the appliance.
Do not clean any of the parts of the appliance in a dishwasher.
Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor.

TROUBLESHOOTING

In case of a problem please check all shown possibilities and follow below instructions before contacting an after sales service.

Problem	Possible cause	Possible solution
The appliance does not work	The appliance is turned off	Press the ON/OFF key to turn on the appliance
	Mains plug is not connected in the mains socket	Connect the mains plug
	Fuse has blown or is defective	Check the fuse and replace it if necessary
	Socket is defective	Mains malfunctions should be corrected by an electrician
The appliance runs frequently or runs for a too long period of time	The indoor or outdoor temperature is too high	It is normal for the appliance to run longer
	The appliance has been off power for a period of time	Normally, it takes 8 to 12 hours for the appliance to cool down completely
	A door/drawer of the appliance is not tightly closed	Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door
The inside of the refrigerator is dirty and/or smells	The inside of the refrigerator needs cleaning	Clean the inside of the refrigerator
	Food of strong odour is stored in the refrigerator	Wrap the food thoroughly
Moisture formation on the inside of the refrigerator	The climate is too warm and too damp	Increase the temperature
	A door/drawer of the appliance is not tightly closed.	Close the door/drawer
	Food containers or liquids are left open	Let hot foods cool to room temperature and cover foods and liquids
Moisture accumulates on the refrigerators outside the surface or between the doors/door and drawer	The climate is too warm and too damp	This is normal in damp climate and will change when the humidity decreases
	The door/drawer is not closed tightly	Ensure that the door/drawer is tightly shut
Strong ice and frost in the freezer compartment	The goods were not adequately packaged	Always pack the goods well
	A door/drawer of the appliance is not tightly closed	Close the door/drawer
Unusual noises	The appliance is not at level	Re-adjust the feet
	The appliance is touching the wall or other objects	Slightly move the appliance
UI Led's are flashing	One of the sensors is out of range	Contact the assistance
An alarm is beeping	The fridge storage compartment door is open	Close the door or silence the alarm manually
The interior lighting or cooling system does not work	The LED-lamp is out of order	Please call the service for changing the lamp

During operation, the side walls and perimeter of the freezer compartment may be hot: this is normal and is due to the normal working cycle of the product.

3.Unscrew and remove the top hinge, and then remove the door.

1. Remove the right aid-closer, and take out left aid-closer from accessories bag and install it at left side.

5.Unscrew the bottom hinge, and remove the adjustable foot from the left side to the right side.

1. Unscrew and move the bottom hinge pin from the right side to the left side, then install the bottom hinge on the left side of the appliance.

Installation

1. Unscrew and move the top hinge pin from bottom side to upper side. Remove door switch from right hinge cover and then install it in left hinge cover which is placed in accessory bag.

1. Unscrew and move the top decorative cover on the left side, and install it on the right side.

1. Detach the Fridge and the Freezer door gaskets and then attach them after rotating.

10.Install the door, and then move the connecting wires from right side to left side.

Installation

11.Install the top hinge to the left side, please slightly adjust the top hinge while installing to make sure gasket is well sealed.

1. Connect connectors of door switch and display, and install the left top hinge cover.

13.Install the upper wire box covers to the right side.

Install door handle

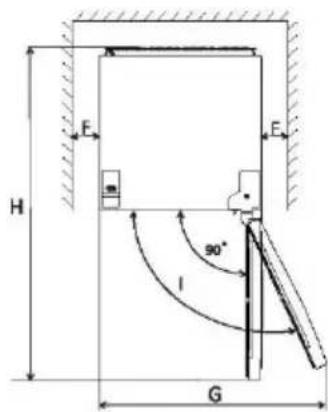

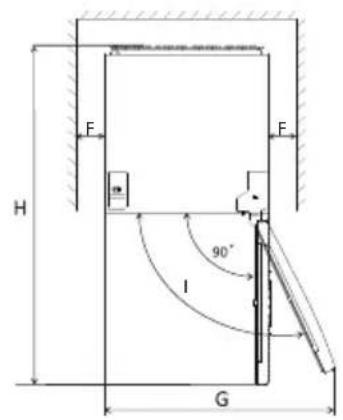

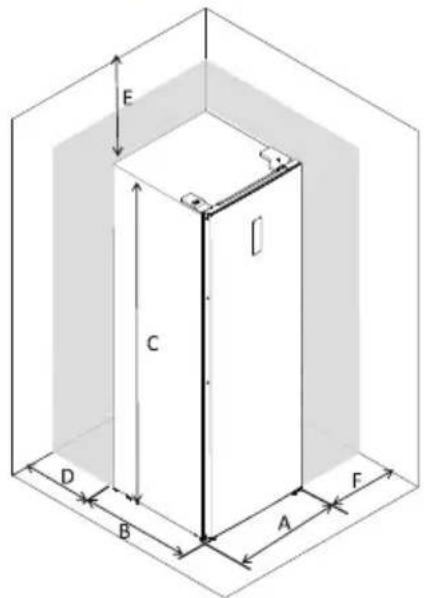

Space Requirement

• Keep enough space of door open.
  It is advisable to keep at least 10mm gap at two sides.

Note: this refrigerating appliance is not intended to be used as a built-in appliance.

A	600
B	650
C	1850
D	min=50
E	min=50
F	min=10
G	835
H	323
I	115°

Levelling the unit

To do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Using the Control Panel

1.0 User interface introduction

1.1 Operation Interface

FREEZER: Temperature control of the appliance

SUPER: Select and deselect super mode control

ALARM/ECO: Clear door opening alarm, select and deselect ECO Mode

LOCK: Locking and unlocking

1.2 LED Display

1.Display window for preset temperature
2. Super mode icon
3.ECO mode icon
4.Locking and unlocking icon

2.0 Illustration of the buttons

All buttons are valid only in unlocking status.

Short beep after per touching of buttons

2.1 FREEZER: temperature control of the appliance available only for user defined mode

Touching "FREEZER" button consecutively, the temperature will change in a circle from -14^ -22^ , stop touching and after 5 seconds flashing, temperature is set.

2.2 SUPER: select and deselect super mode

Press "SUPER" button to select super mode. After 5 seconds flashing of super mode icon, super mode is selected.

When super mode is selected, super mode icon will light on, and display window will show -25 C.

In super mode, touching "FREEZER" button, super mode icon will flash 3 times, but freezer temperature can not be changed.

To exit Super mode,

• Press "SUPER" button to deselect Super mode,
• Or after 50 hours of super mode without any operation, the refrigerator will automatically stop it and enter to previous setting.

Warning:

In super mode, noise of the appliance may be slightly higher than normal running.

2.3 ALARM/ECO: clear door opening alarm and high temperature alarm, select and deselect ECO mode

Short touching "ALARM/ECO" button to clear door opening alarm and high temperature alarm. Touching "ALARM/ECO" button for 3 seconds to select ECO mode. After 5 seconds flashing of ECO mode icon, ECO mode is selected.

When ECO mode is selected, ECO mode icon will light on, and display window will show different preset temperatures, depending on the ambient temperature (Ta) of where the appliance be placed, as below.

Ambient Temperature (Ta)	Ta≤13℃	14℃ < Ta ≤ 20℃	21℃ < Ta ≤ 27℃	28℃ < Ta ≤ 34℃	Ta > 35℃
Preset Temperature	-18℃	-18℃	-18℃	-16℃	-15℃

In ECO mode, "FREEZER" button will not respond to any touching. Touching "ALARM/ECO" button for 3 seconds to deselect ECO mode.

2.4 LOCK: Locking and Unlocking

Touching "LOCK" button for 3 seconds to lock the control panel, then the locking and unlocking icon

will be

In locking status, touch any button, the locking and unlocking icon will flash 3 times.

Touching "LOCK" button for 3 seconds to unlock the control panel, then the locking and unlocking icon

will be

In unlocking status, all buttons are available.

If no operation in 25 seconds, the control panel will be locked automatically.

3.0 Door opening alarm

If the door keeps opening for 90 seconds, door opening alarm sounds.

Close the door to stop the door opening alarm.

Or short touching "ALARM/ECO" button to clear door opening alarm.

4.0 High temperature alarm

If high internal temperature of the appliance is detected, high temperature alarm will sound, "ht" and detected temperature will display alternately on display window.

Short touching "ALARM/ECO" button to stop door opening alarm.

High temperature display will disappear automatically only if detected temperature goes back to normal.

First use

Cleaning the Interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Daily use

Position different food in different compartments according to be below table

Freezer drawer(s)/shelf

·Foods for long-term storage. ·Bottom drawer/shelf for raw meat, poultry, fish. ·Middle drawer/shelf for frozen vegetables, chips. ·Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

Storing frozen food

When first starting-up or after a period out of use. Before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Temperature setting recommendation: -18^ is recommended.

Under recommended setting, the best storage time of freezer is no more than 1 month.

The best storage time may reduce under other settings.

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Accessories Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Positioning the door balconies

Door balconies can be disassembled for cleaning. 80 make the disassembling as follows: gradually pull the balcony in the direction of the arrows until it comes free, after cleaning, reposition it.

Disassemble the bottom drawer

1.Pull out the bottom drawer to stopper position.
2.Push up the elastic buckles on both sides of the bottom drawer.
3.Pull out the bottom drawer.

Helpful hints and tips

Hints for freezing

8o help you make the most of the freezing process, here are some important hints:
- the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
- the freezing process takes 24 hours. No further food to be frozen should be added during this period;
- only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
- prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
- wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
- do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
- lean foods store better and longer than fatty ones; salt reduces the storage life of food;
- water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
- it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
- it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;

not open the door frequently or leave it open longer than absolutely necessary.

Once defrosted, food deteriorates rapidly and cannot be refrozen.

Do not exceed the storage period indicated by the food manufacture.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! 8he appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. 8he appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
  -Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
  After everything is dry place appliance back into service.

Replace the lamp

The internal light is a LED type. To replace the lamp, please contact qualified technician.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Non-use for long periods

If the appliance is not used for an extended period of time:

Take out the food and unplug the power cord.

Clean the appliance as described in the "Care and cleaning - General" section.
Keep the door and freezer drawers/door open to prevent the creation of bad odors inside.

Power interruption

In the event of power cut, food should remain safely cold for see rating plate. Follow these tips during a prolonged power interruption, especially in summer:

Open the door/drawer as few times as possible.
Do not put additional food into the appliance during a power interruption.
If prior notice of a power interruption is given and the interruption duration is longer than the amount of hours indicated on the rating plate, make some ice and put it in the top of the refrigerator compartment.
The storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) in order to prevent health risks.

Availability of spare parts

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of 7 years after placing the last unit of the model on the market.
Door handles, door hinges, trays and baskets for a minimum period of 7 years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

To contact the technical assistance, visit our website: https://

corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR on the energy label supplied with the appliance

Mraznička Total No-Frost

1.1 Ovladaci Rozhrani

FREEZER: Ovladani teploty spotbrebie

Kort bip after tryk pa knapper

Brugergrænseflade

Sādan afluttes Super-tilstand,

https://corporate.haier-europe.com/en/.

Accessoires Clayettes mobiles

SIGURNOSNE INFORMACije

Congelator Total No-Frost

Raft/sertar(e) frigorific(e)

3.0 Larm for oppen dorr

a jlll lalj g ailll lalbll pabll sio

45 100000000000000000000000000000000000000000

.

aXuull clog2

1yliy 111111111111111

aaii g aalddiw jglall jgagao lgaeg

1 1

1

Jg jz g aag 1 Jg 1

1

clll 1 4 dal

i

Jaiil 1i i 0g j 5

y

jglal 156

g i .

i bcll gao Jwclll puiy

i

J 1

aaiia aibia g aigg jglal

alilg

a a

a

240-220 240-220

50/

i 1

a 1

J 3 0

3

.

•

•

y

A

a

.

Xg .slalgo

J

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

•

.

1 1

Jg j 1000000000000000000000000000000000000000000000000000000

y

gag (a)!

（c）

ailll aill yll lll aal gl glln e aill

.

paae aee

aaiaii aiee iie eae ee e 1

i 1

Lg

i 1

Jn

J 1

JbI 10000000000000000000000000000

jlll lnnn nnnn nn nnnn nnnn nnnn

1 1

.

JJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJ

3 18

1

$$ : \because \therefore \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} \text {i} $$

$$ \left. \cdot \right| _ {i} \cdot \left| _ {j} \right| _ {k} \cdot \left| _ {l} \right| _ {n} \cdot \left| _ {o} \right| _ {q} \cdot \left| _ {r} \right| _ {s} \cdot \left| _ {t} \right| _ {u} $$

$$ \int d y \int d z \int d y \int d z g / g \dot {g} \dot {g} \dot {g} \dot {g} \dot {g} \dot {g} \dot {g} \dot {g} $$

$$ j l g = 1 $$

$$ \therefore \vec {a} _ {i j k} \cdot \vec {a} _ {j k l} = 0 $$

$$ " s l a e l i o d " i j i - $$

1 2

$$ \cdot \vec {q} \cdot \vec {r} \cdot \vec {g} \cdot \vec {a} \cdot \vec {b} \cdot \vec {c} \cdot \vec {d} \cdot \vec {e} \cdot \vec {f} $$

aagaa aal 1dla! g algaaas gpaia:

$$ \therefore \Delta A E B = 1 $$

Jg j 1

a a

Jz

a bae eJzI 0n J aeaal aaas naa

a

a

J 1

aai g aal 20 1

1

48 1al gaii jai

5

a 1

aai iiaiie aalnnae

.

g 1

j 1

1

-

jll pabil jaii iuiu 1jgl 1d g

-

i 1

jgl jld lal gai gai la gia

aai jll 1:iiill

4 4

aaiiaai

aaiiaiei iiaaiy jlllilililililililililililililililililil

F 1

2012/19/

）WEEE.（

（）HgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIgIg

pall . (golduil 1e! jy yill) aulwyl cll goll (aullle

(WEEE)

Jg 1

jlll jlll jlll jlll jlll

aclil jllababagabla

dai aal alalalalalalalalalalalalalalalalalalal

.5yall yjell alalll eblc s jy jy jy jyall aalw gll llae Jua 12

jaiil gale agalld kaii jaiiaai 13

J
aLwll 1

10. 以 + =

600	A
650	B
1	C
50=الadiesdong	D
50=الadiesdong	E
10=الadiesdong	F
835	G
1323	H
115°

jss s jss ss

bui

aeg aiee eae
a 1

1.0

1.1 aalaa

:

a eell, yolal 1y jll jll jll

（）

LED 1.2

1

gai j 2

Juaaia jra.3

aill, jall 4

2.0

iill lll g hie jj jn

j 1

22-14

aaii" aaii" i jj j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

5

gll 2.2

gill 5 5

25- 25

glll glll

gll gll lgl dyl "gll" 1e baiol

50 50

：

Jlll

2.3

a j 5 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3

a 1

\( 35 < {T}_{a} \) \( {\mathrm{m}}^{\text{g }} \)

\( {28} \sim \) \( \geq {34} > {34} \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( \geq {27} > {27} \)

\( {21} \sim \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( 18 - \)

\( {24} \sim \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( \geq {27} > {27} \)

\( {24} \sim \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( \geq {27} > {27} \)

\( {13} \geq {T}_{a} \) \( {\mathrm{m}}^{\text{g }} \)

\( {30} \sim \) \( \geq {34} > {34} \) \( \geq {34} > {34} \) \( \geq {34} > {34} \) \( \geq {34} > {34} \) \( \geq {34} > {34} \) \( \geq {34} > {34} \) \( \geq {34} > {34} \) \( 18 - \)

\( {15} - \)

\( {21} \sim \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( \geq {27} > {27} \) \( \geq {27} \sim {27} \) \( \geq {27} \sim {27} \) \( \geq {27} \sim {27} \) \( \geq {27} \sim {27} \) \( \geq {27} \sim {27} \) \( \geq {27} \sim {27} \) \( \geqq {27} \sim {27} \) \( \geqq {27} \sim {27} \) \( \geqq {27} \sim {27} \) \( \geqq {27} \sim {27} \) \( \geqq {27} \sim {27} \) \( \geqq {27} \sim {18} - \)

"201 1 1 1 1 1 1 1 1 1 1 1 1 1 1

2.4:Jaiai

"Jieiiei, jaij jn jui jai jia 3'ad Jai

ailll 1

"Jle gill jall jor jss sll 3" 1

1234567890

25 1

3.0

90 9

aaiia

a 1

4.0

"ht" 1

aai jll i 1i 1i 1i 1i 1i 1i

j

aalaa aalaa aalaa aalaa aalaa aalaa aalaa

g 1

1 1

aill aill as jill lal

1

aaiy aiaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiiaaiia

J 1

jill jiasie g jai gill ciaiaai j ay

. jzgl ai zai
- abis
j0 = 25,k0 = 2

alall g jillll lgl 1g jg jg jg jg jg jg jg jg jg jg jg

a j 111111111111111111111111111111

e 15

L

. LED

. d( x,y) = | x - y| = | 12x + 12y| .

LgXuJg Jbcjclis

J 1

1aia aiaia 1aiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaiaia

（）

aegb jaijai

aagll jaiyobjgljgall piaipd

"ole 1i j- iii yieill" piae gao gao los jieell

.1

a + b = 1

y

i 1

aall Jaa aal aai jai jai tll

J 1

yll jll eIbai elj gllgai lalab

ylll lcll 100g E Ia y 100g E Ia y

a 1

aal jblao jol no (cliay) o

j

7

7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7

10 1

:gi jki li gao jy j j yj j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

https://corporate.haier-europe.com/en/

1 1

aiee iaeelally jaiaiyjaiaiy jaii y jaiy jaiy jaiy

aee aee eae ee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eee eeee

jglal jgall aal lal gol gall
