Product Type	Wireless video doorbell with HomeBase 2 base station
Brand and Model	eufy Video Doorbell Dual 2 Pro (T8213) + HomeBase 2 (T8010X)
Power Supply	Rechargeable built-in battery or existing doorbell wiring (8-24 V AC)
Battery Charging	Micro-USB port, charging time: 6 hours (0 to 100%)
Battery Life	Up to 6 months (depending on usage, approx. 10 events/day)
Sensors	PIR motion detector, ambient light sensor
Camera	Dual camera (main lens + secondary lens), infrared night vision
Audio	Built-in microphone and speaker, two-way communication
Connectivity	2.4 GHz Wi-Fi (doorbell), Ethernet connection for HomeBase 2
Storage	Local on HomeBase 2 (built-in storage, capacity not specified)
LED Indicator	LED ring around the doorbell button
Mounting	Wall mount with 15° mounting wedge (optional), recommended height 1.2 m
Dimensions (approximate)	Approximately 130 x 66 x 30 mm (doorbell)
Weight (approximate)	Approximately 200 g (doorbell)
Operating Temperature	-20 °C to 45 °C
Maintenance and Cleaning	Clean with a soft, dry cloth; do not use chemical products
Security	Encrypted transmission, local storage, short-circuit protection
Spare Parts and Repairability	Non-user-replaceable built-in battery; support and accessories available via eufy
General Information	eufy Security app required for setup; compatible with iOS and Android

Frequently Asked Questions - Video Doorbell Dual 2 Pro eufy

How to install the eufy Dual 2 Pro video doorbell?

Installation consists of two main steps: connect the HomeBase 2 to the internet via Ethernet, then download the eufy Security app to add the doorbell. Follow the provided quick start guide.

Can I use the doorbell without existing wiring?

Yes, the doorbell operates on a built-in battery. You can mount it wire-free, but it will need periodic recharging (battery life up to 6 months depending on usage).

How to recharge the doorbell battery?

Detach the doorbell from the mount using the provided pin, then plug the micro-USB cable into the rear charging port. Full charge takes about 6 hours (solid green LED).

What is the Wi-Fi range for the doorbell?

The doorbell uses 2.4 GHz Wi-Fi. The range depends on your network, but the HomeBase 2 acts as a relay to extend coverage. Place the HomeBase within 10 meters of the doorbell if possible.

Does the doorbell detect motion at night?

Yes, thanks to the PIR motion detector and infrared night vision. The secondary lens improves blind spot detection.

How to reset the doorbell?

Press and hold the SYNC/RESET button on the back for 10 seconds until you hear a beep. The doorbell will reset and be ready to reconfigure.

What to do if the doorbell does not connect to the HomeBase?

Check that the HomeBase is powered on (blue LED), the Ethernet cable is connected to the router, and the doorbell is within range. Try holding down the SYNC button until you hear the add beep.

Can I use the doorbell with an existing chime?

No, this doorbell is designed to work with the included HomeBase 2, which acts as a chime. You can set up alerts on your smartphone via the app.

How to clean the video doorbell?

Use a soft, dry cloth to wipe the surface. Avoid abrasive products or direct water, as this could damage the electronic components.

What is the product warranty?

The standard warranty is 12 months. Check the eufy website for more details. Keep your proof of purchase.

USER MANUAL Video Doorbell Dual 2 Pro eufy

Anker Innovations Limited. All rights reserved eufy Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners.

51005003046 V01

QUICK START GUIDE

eufy Security Video Doorbell Dual (Battery)

KURZANLEITUNG

Line drawing of a dual-camera security device with two circular buttons and a 'eufy SECURITY' logo (no additional text or symbols)

English

Deutsch

Español

Français

Italiano

Nederlands

Portuguese

197

For Video Doorbell Installation

Simple line drawing of a rectangular device with two circular buttons and a top panel (no text or symbols)

eufy Security Video Doorbell Dual (Battery)
Model: T8213

Simple diagram of a vertical rectangle with three rounded square buttons on both sides (no text or symbols)

Mounting Bracket

Simple line drawing of a rectangular device with four circular ports, no text or symbols present.

15° Mounting Wedge (Optional)

Simple line drawing of a vertical rectangular panel with three small circular holes (no text or symbols)

Screw Hole Positioning Card

Six different screw or screw installation variants shown in line drawings (no text or symbols)

Screw Pack

Illustration of two dental tools with curved leads and two separate cup holders (no text or symbols)

Extension Wires and Wire Nuts (Optional)

micro-USB charging cable

Detaching Pin

Quick Start Guide

For HomeBase 2 Installation

HomeBase 2 Model: T8010X

Simple line drawing of a connected device with a cable (no text or symbols)

Power Adapter for HomeBase 2

Simple line drawing of two connected electrical connectors (no text or symbols)

Ethernet Cable for HomeBase 2

Note: Power plug may vary in different regions.

2 EN

2 / PRODUCT OVERVIEW

Video Doorbell

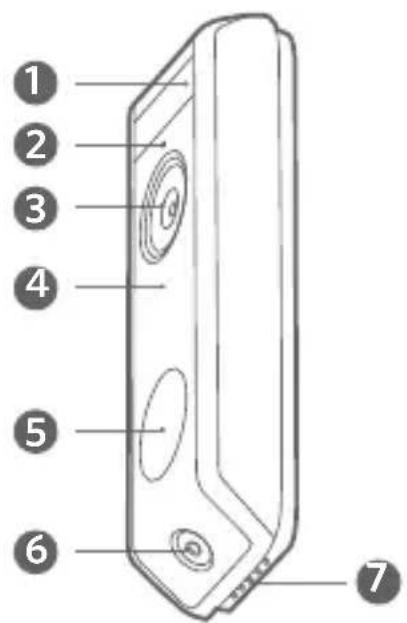

Front View:

I. Motion Sensor
2. Microphone
3. Primary Camera Lens
4. Ambient Light Sensor
5. LED Ring / Doorbell Button
6. Secondary Camera Lens
7. Speaker

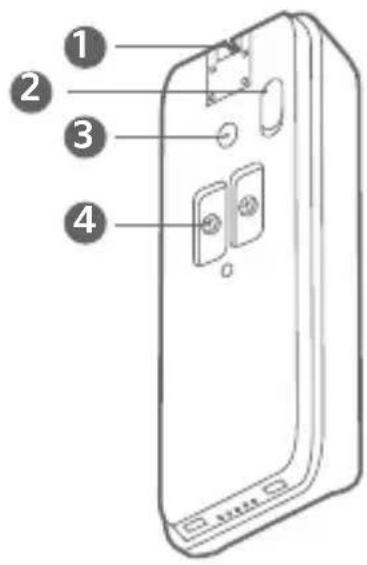

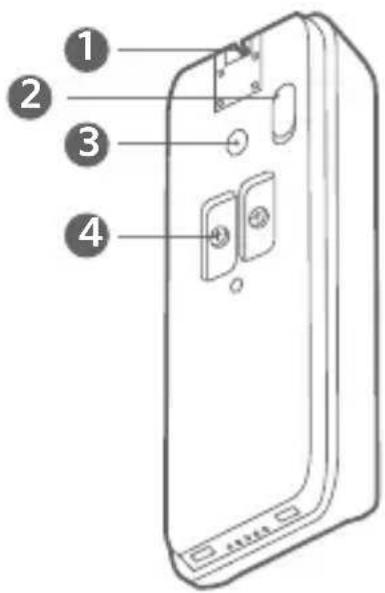

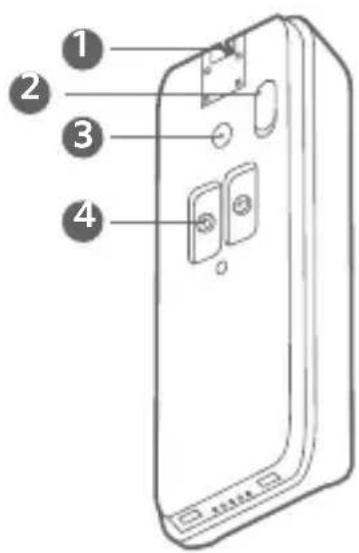

Rear View:

I. Detaching Mechanism
2. Micro USB Charging Port
3. SYNC/RESET Button
4. Power Terminals for Existing Doorbell Wires (Optional)

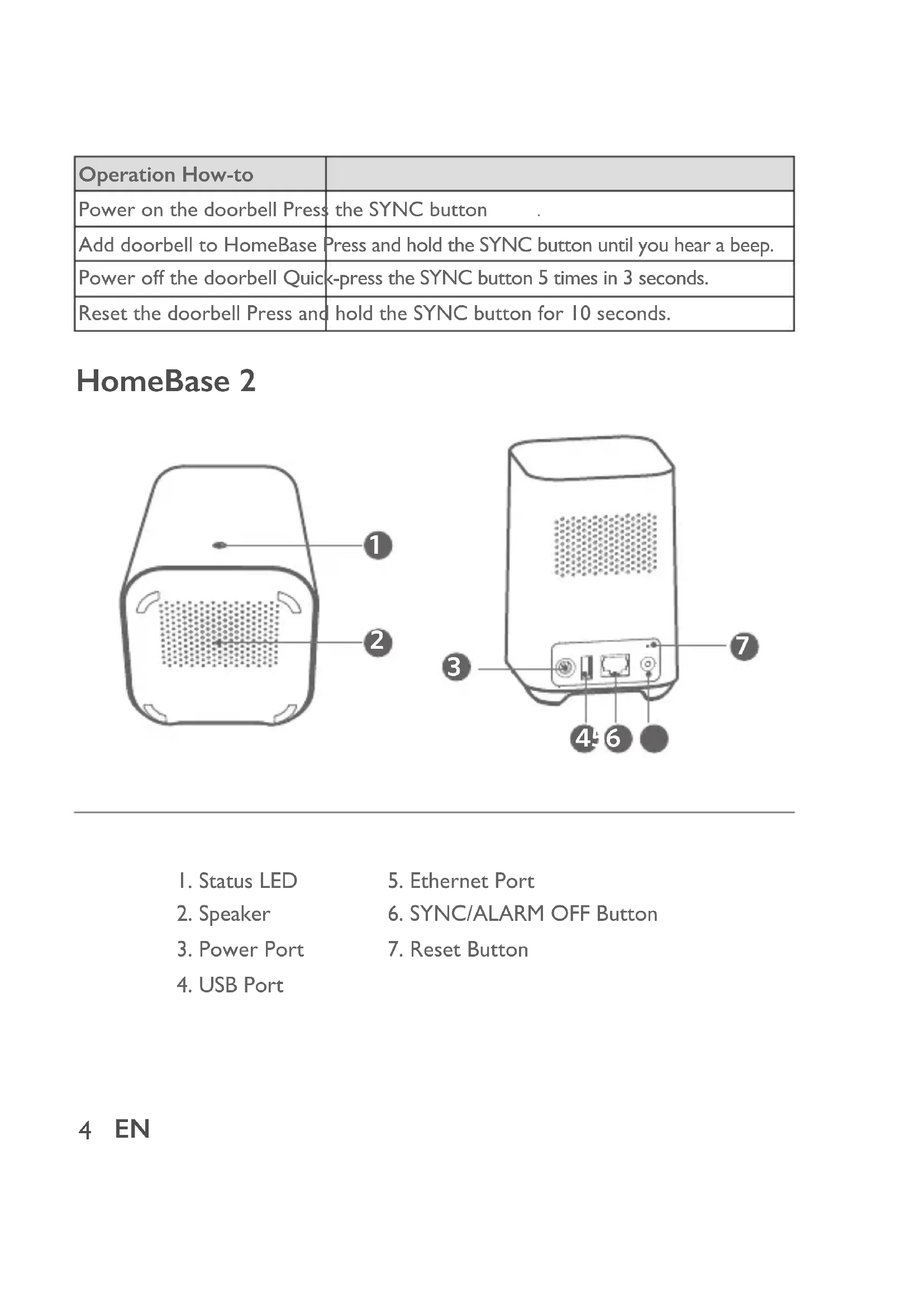

Operation How-to
Power on the doorbell Press	the SYNC button .
Add doorbell to HomeBase	Press and hold the SYNC button until you hear a beep.
Power off the doorbell Quick	-press the SYNC button 5 times in 3 seconds.
Reset the doorbell Press and	hold the SYNC button for 10 seconds.

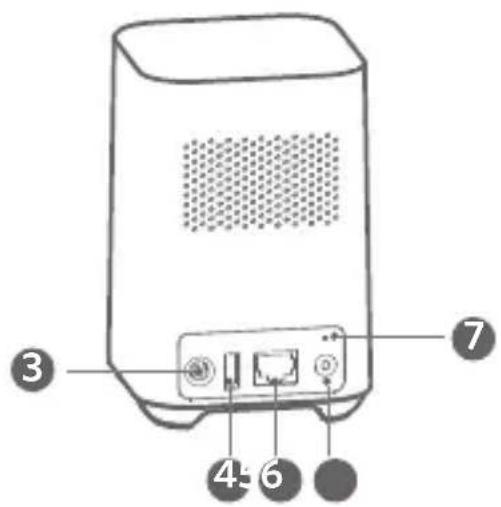

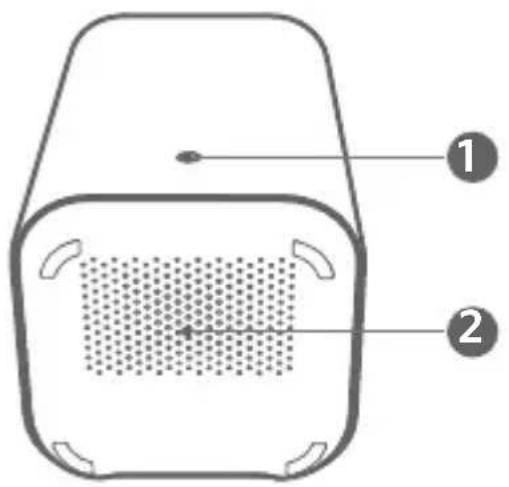

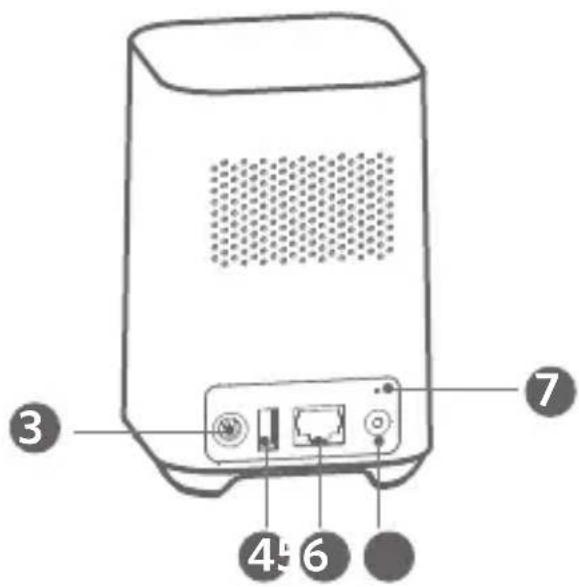

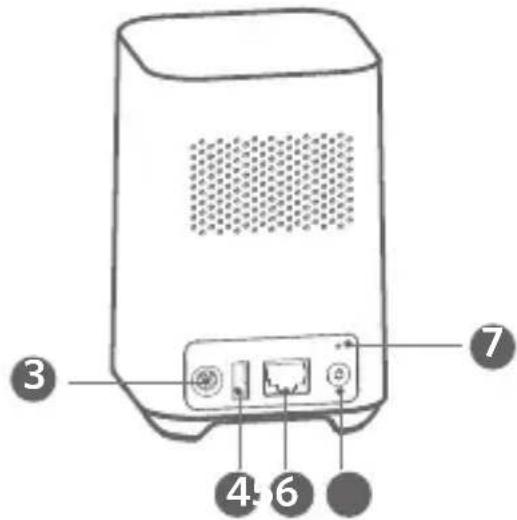

HomeBase 2

I. Status LED

1. Ethernet Port

2. Speaker

3. SYNC/ALARM OFF Button

4. Power Port

5. Reset Button

6. USB Port

4 EN

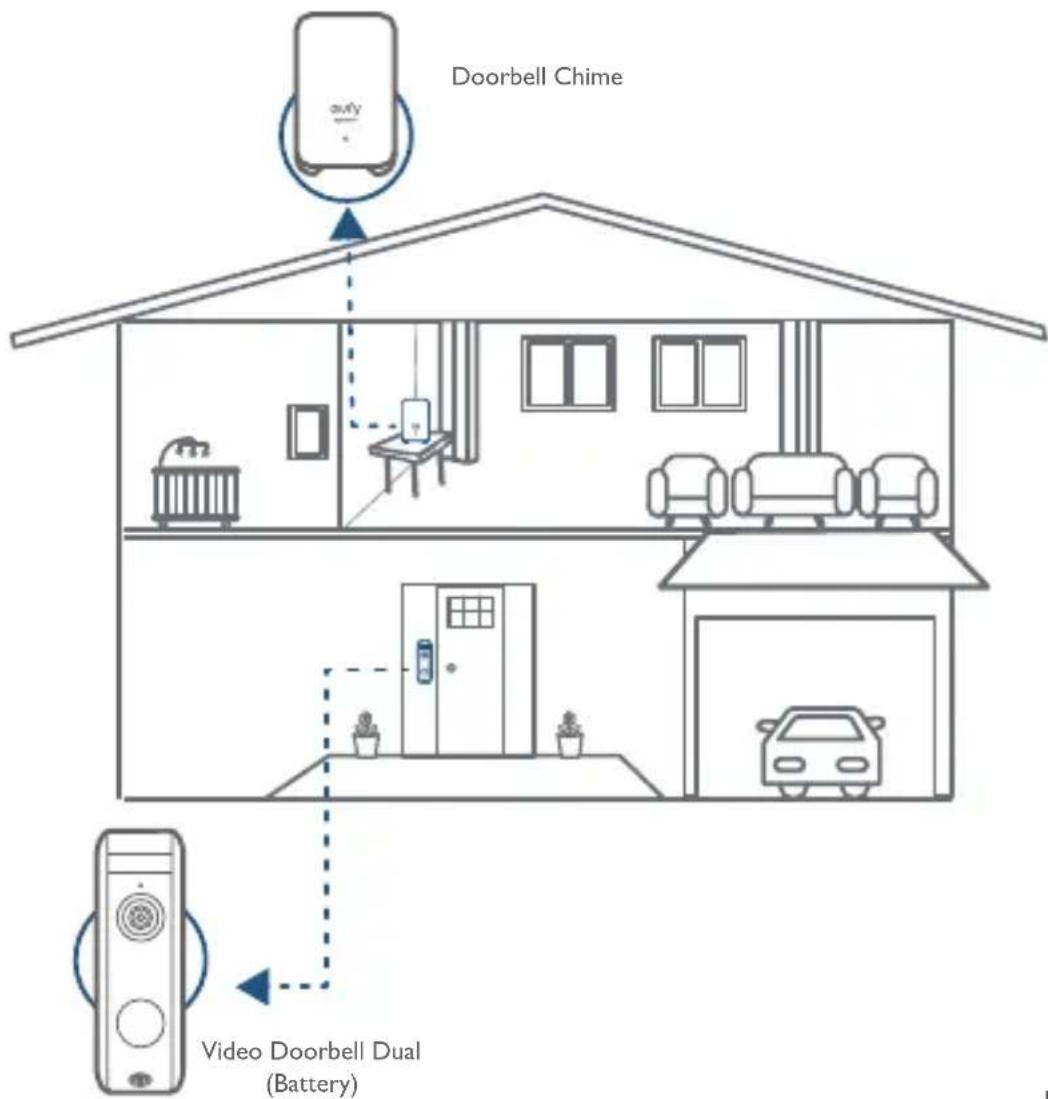

How the System Works

The video doorbell system includes 2 parts. One is the video doorbell at your door. The other is the HomeBase in your house.

The video doorbell detects motion at your porch and allows you to answer the door anytime and anywhere. The HomeBase stores video clips on its built-in storage. When someone rings the doorbell, people in the house will be notified.

EN 5

4 / STEP I CONNECTING THE HOMEBASE

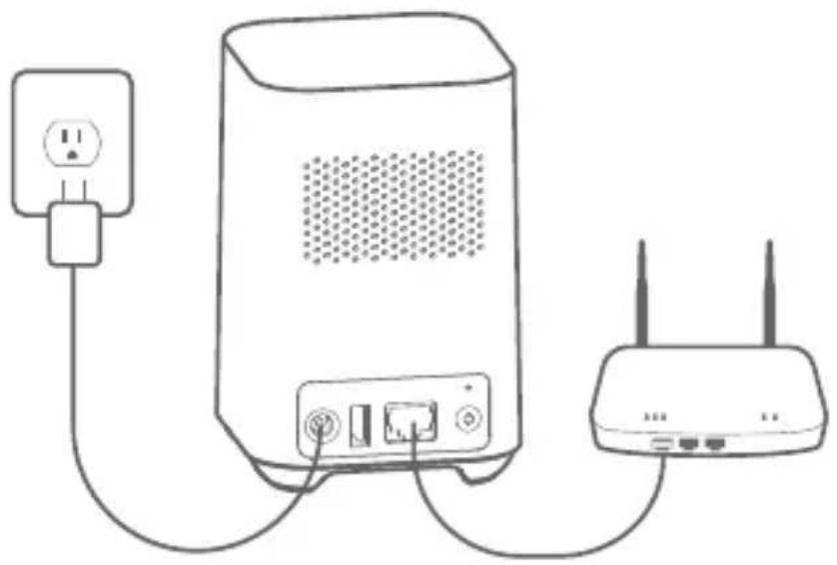

Connect HomeBase 2 to the Internet

I. Power on the HomeBase 2, then use the ethernet cable provided to connect the HomeBase 2 to your home router.

Line drawing of a network device with two connected devices, one connected to a power outlet and the other to a router (no text or symbols present)

1. The LED indicator turns blue (this may take up to 1 min) when HomeBase 2 is ready for setup.

6 EN

5 / STEP 2 SETTING UP THE SYSTEM

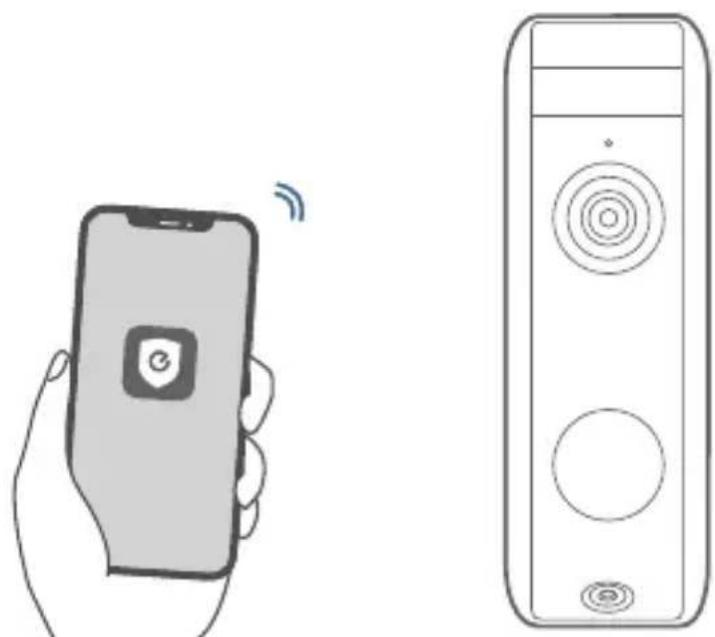

Download the App and Set up the System

Download the eufy Security app from the App Store (iOS devices) or Google Play (Android devices).

Blue shield icon with a white circular symbol inside, resembling a refresh or power button (no text or numbers)

Sign up for a eufy Security account, then follow the onscreen instructions to complete the setup.

Illustration of a hand holding a smartphone with wireless signal and a vertical device emitting sound waves (no text or symbols)

EN 7

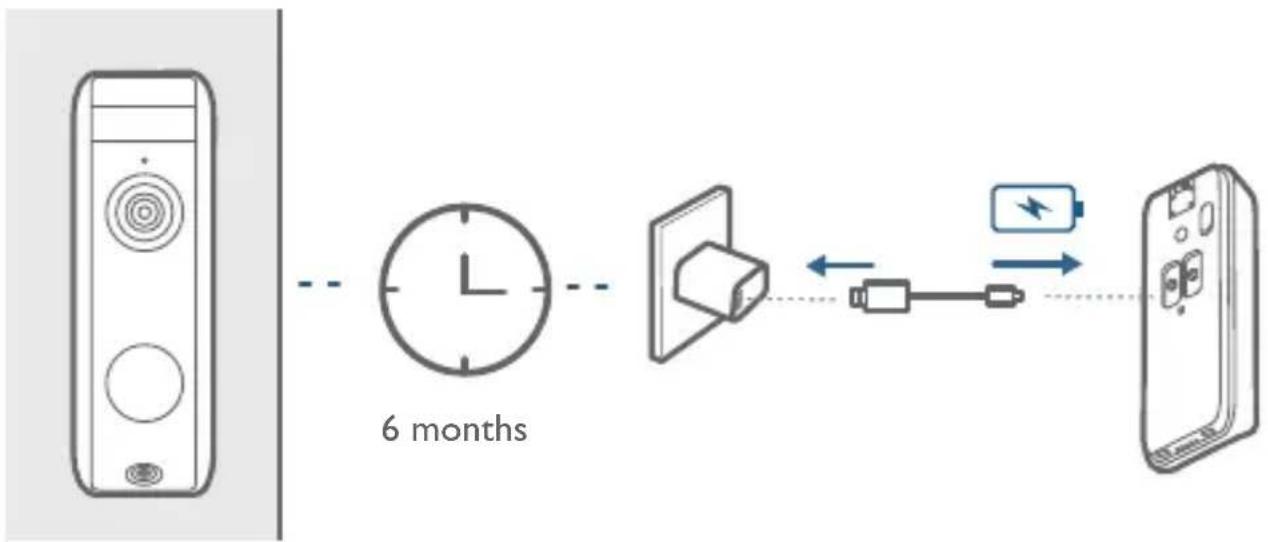

Option I - Battery Powered

I. If you don't have existing doorbell wiring at the front door, use the built-in battery. You are free to determine the doorbell position and the mounting is easy and quick.
2 When the doorbell battery level is low, you need to detach and charge it.
3. If you choose this option, please jump to STEP 4 FINDING A MOUNTING SPOT.

Note: The battery life varies depending on usage. In most common cases, a doorbell may have up to 10 events per day and each recording lasts 20 seconds on average. Under this scenario, the doorbell battery life can last up to 6 months.

8 EN

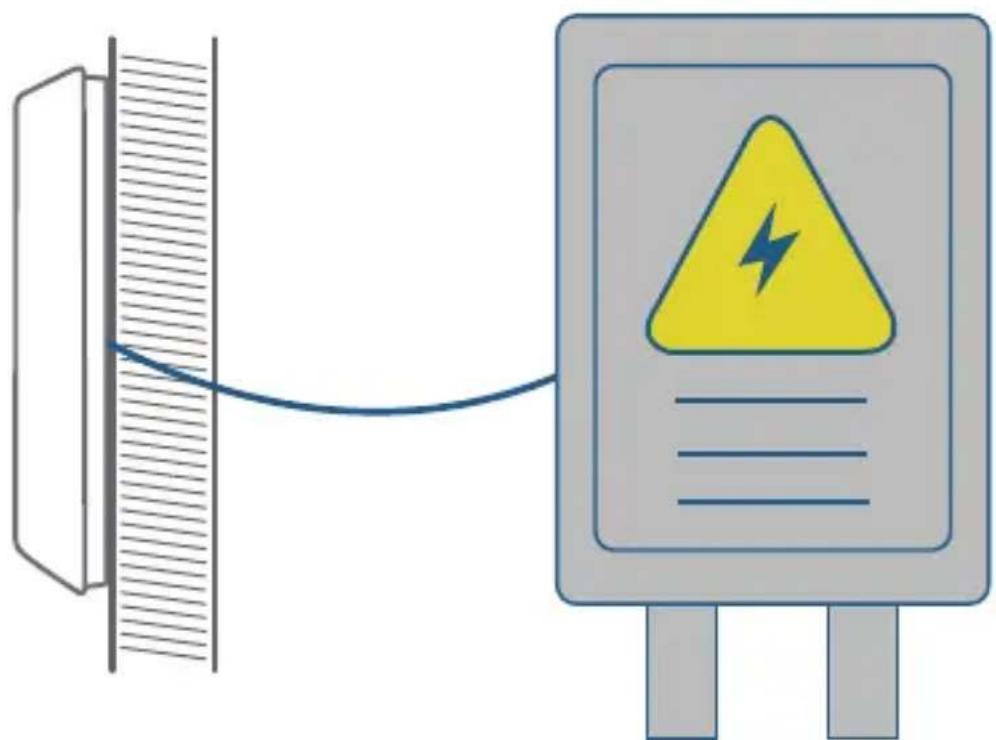

Option 2 - Doorbell Wire Powered

I. If you have existing and working doorbell wiring at the front door, the doorbell will be powered by the wires constantly. So you don't need to detach and charge it after installation.
2. Since the doorbell is connected to the wires, the mounting position is limited.
3. If you choose this option, please jump to APPENDIX 3 POWERING THE DOORBELL WITH EXISTING DOORBELL WIRES.

Illustration of a warning sign with a yellow triangle and lightning bolt connected to a wall-mounted device (no text or symbols)

8 - 24V AC Doorbell Wiring

7/

STEP 4

FINDING A MOUNTING SPOT

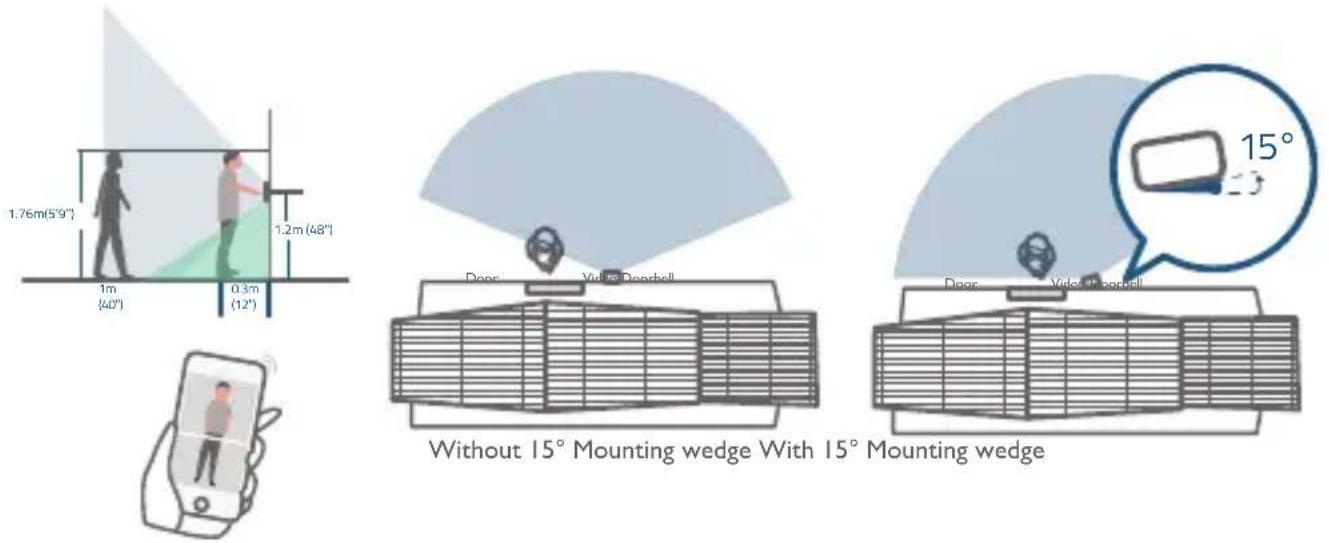

Find a Mounting Spot

Take the video doorbell to your front door and check the live view on the app at the same time. Find a location where you can see the desired field of view.

Consider the following factors:

1. Check if you can reuse the existing holes and anchors on the wall or door frame.

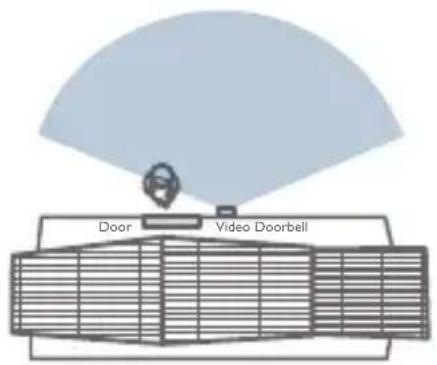

2. If you want to place the doorbell close to a side wall, make sure the wall doesn't show up in the field of view. Otherwise IR light will be reflected and night vision will become blurry.
3. If you are drilling the mounting holes for the first time, the recommended mounting height is 48" / 1.2 m from the ground.

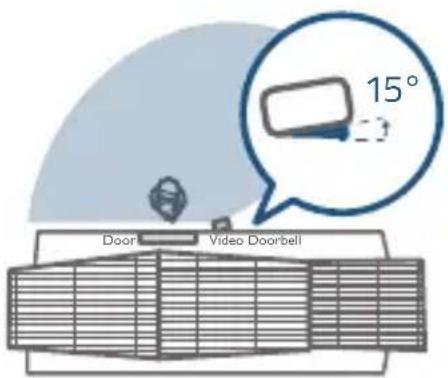

4. To adjust the angel, use the 15^ mounting wedge as a supplementary mounting bracket.

Without 15° Mounting wedge With 15° Mounting wedge

10 EN

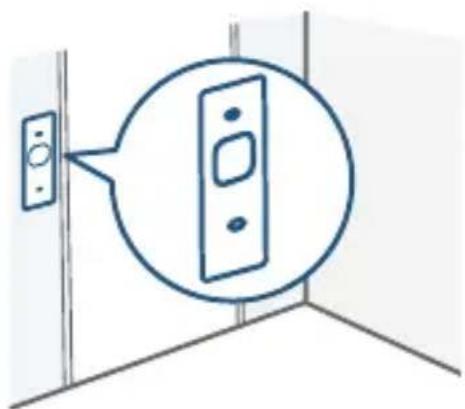

Place the screw hole positioning card against the wall to mark the position.

Simple line drawing of a door with a speech bubble and two buttons, no text or symbols present.

8/STEP 5 MOUNTING THE BRACKET

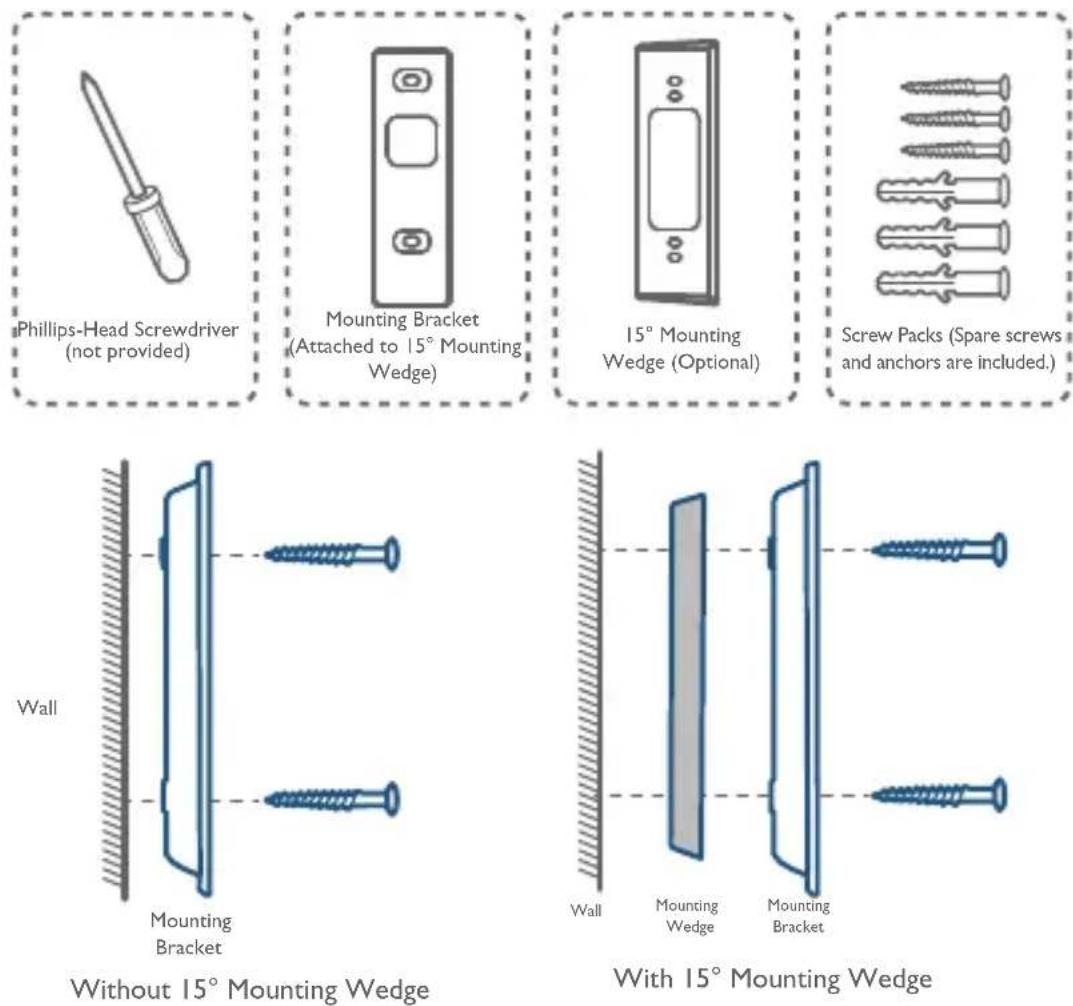

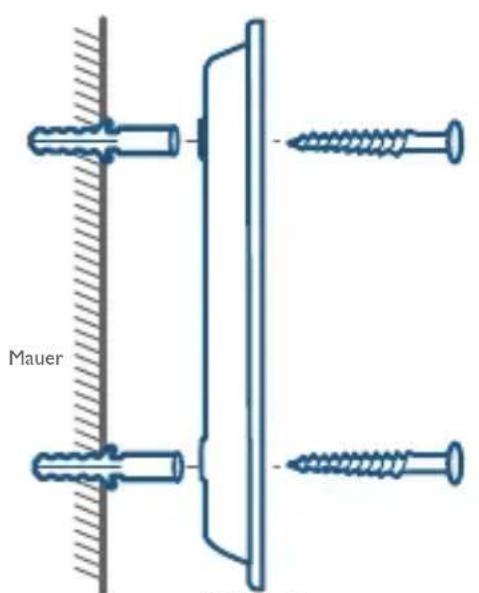

Mount the Doorbell on a Wooden Surface

If you're mounting the doorbell on a wooden surface, you don't need to pre-drill pilot holes. Use the provided screws to secure the mounting bracket on the wall, the screw hole positioning card indicates the position of the screw holes.

What you need: Screwdriver, Mounting Bracket, 15° Mounting Wedge (Optional), Screw Packs

12 EN

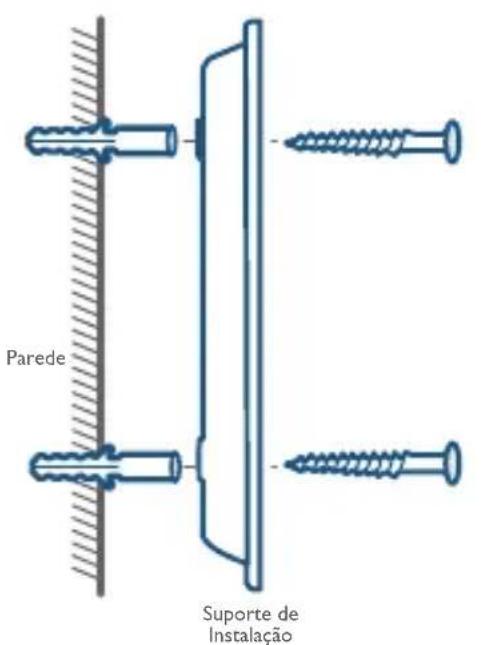

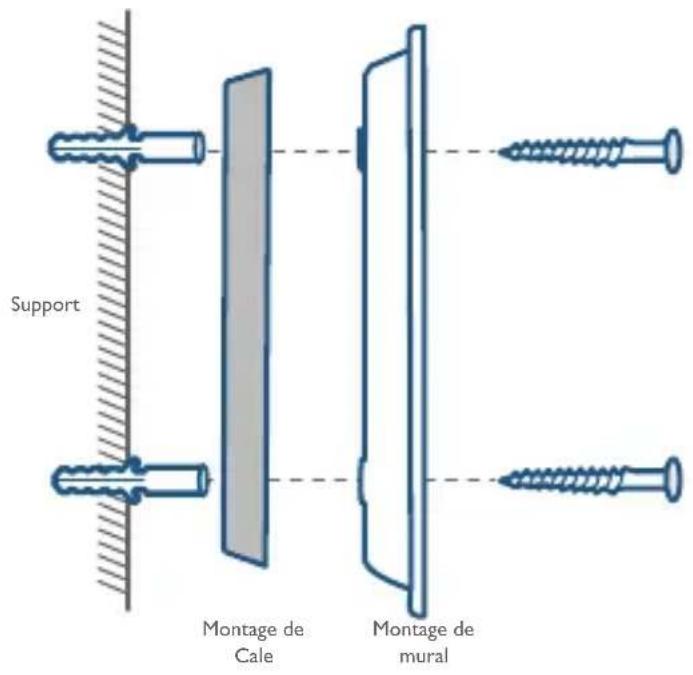

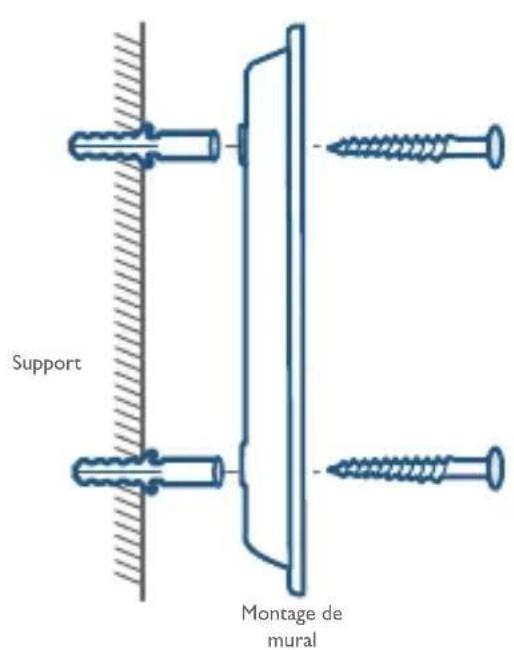

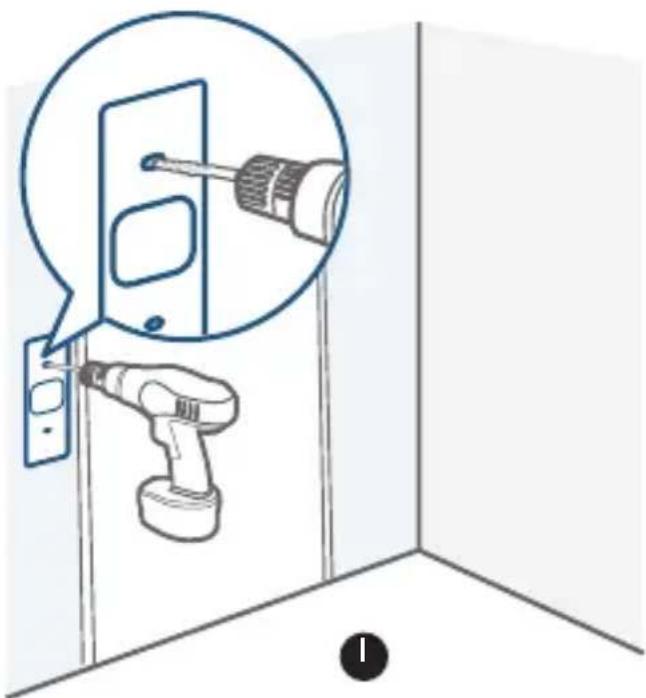

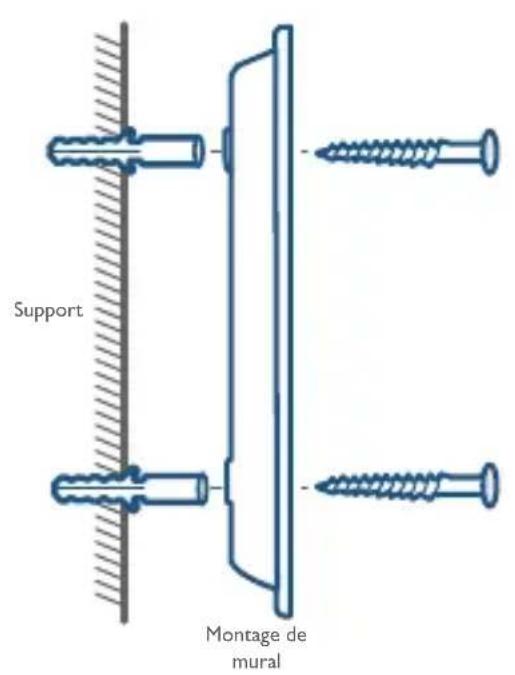

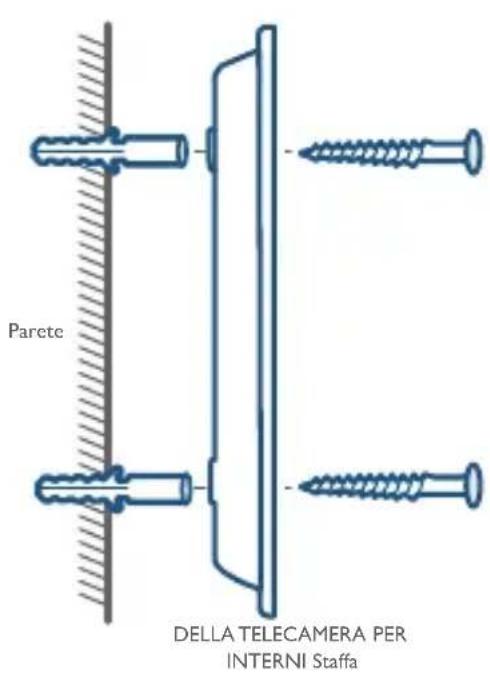

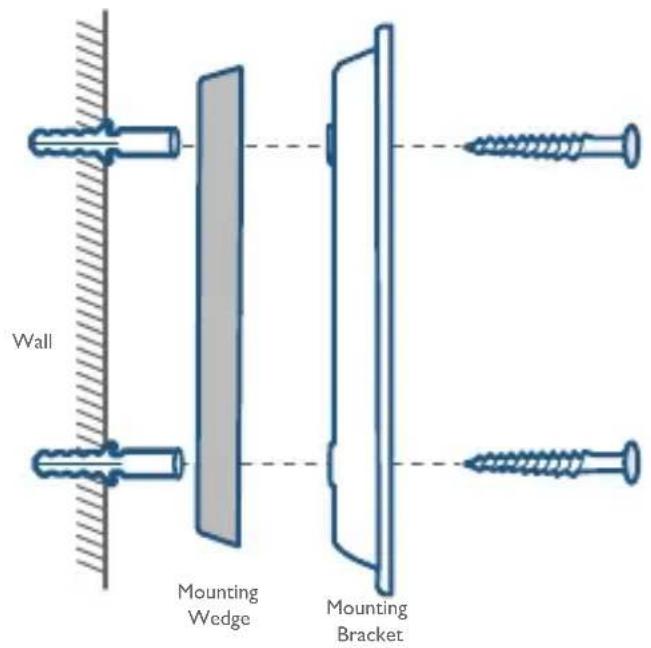

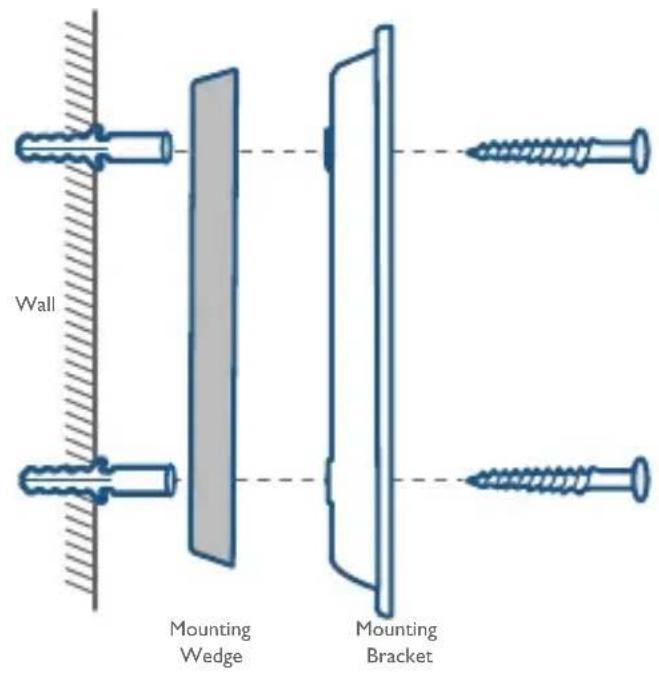

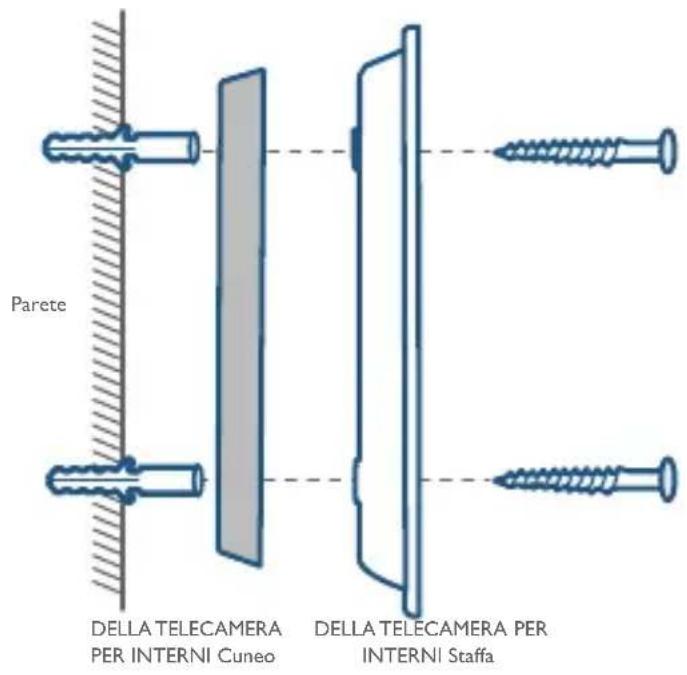

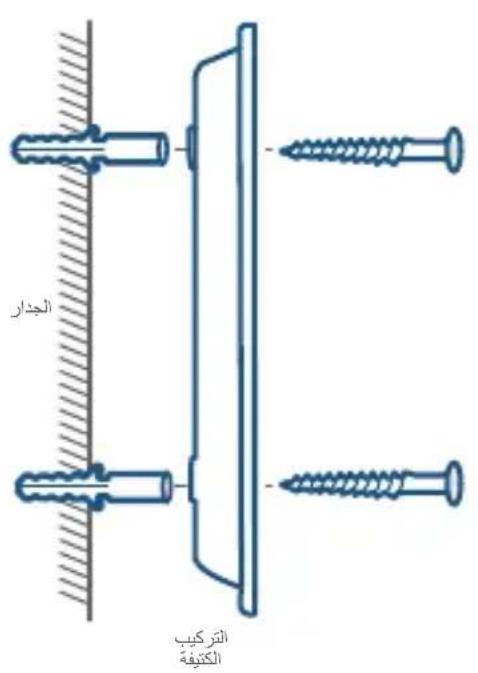

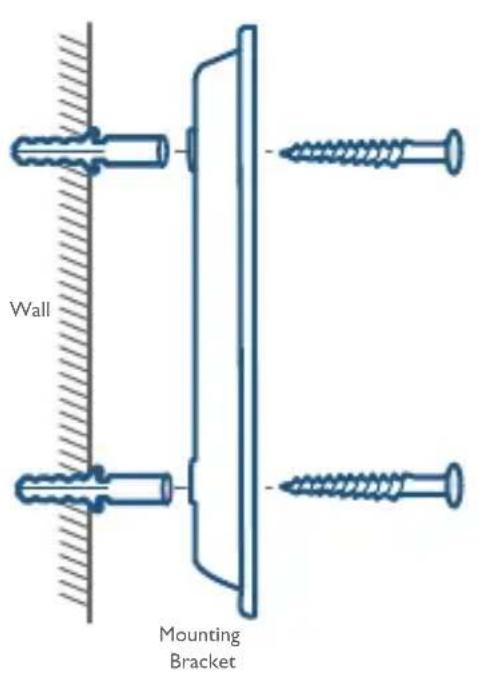

Mount the Doorbell on Surfaces Made Out of Hard Materials

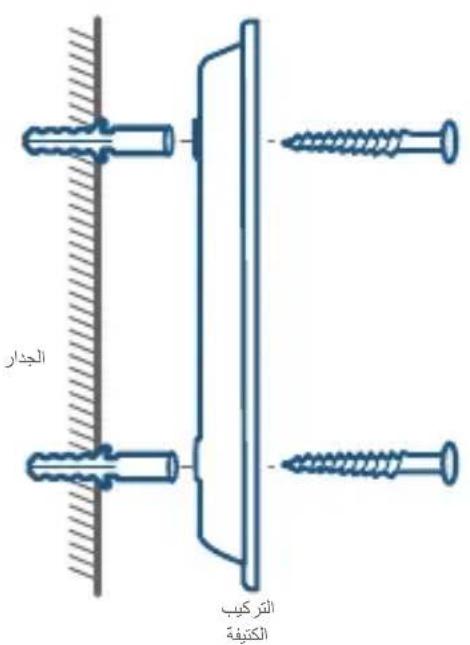

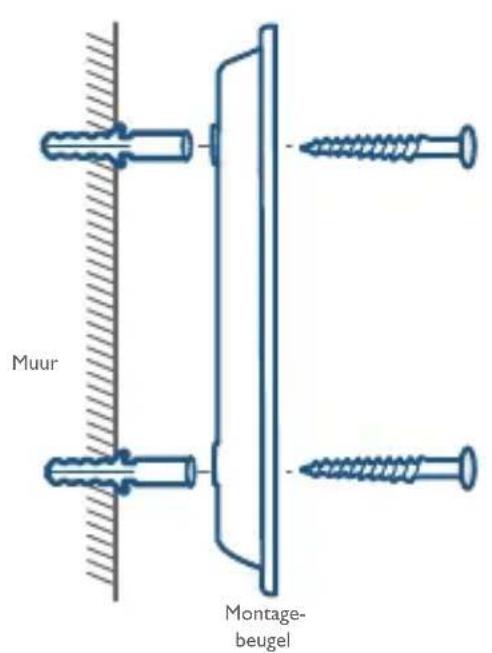

I. If you're mounting the doorbell on a surface made out of hard materials, like brick, concrete, stucco, drill 2 holes through the screw hold positioning card with a 15/64"(6mm) drill bit.
2. Insert the provided anchors, and then use the provided long screws to secure the mounting bracket on the wall.

What you need: Power Drill, 15/64"(6 mm) Drill Bit, Mounting Bracket, 15° Mounting Wedge (Optional), Screw Packs

Power Drill (not provided)

15/64"(6 mm) Drill Bit

Mounting Bracket (Attached to 15° Mounting Wedge)

15° Mounting Wedge (Optional)

Screw Packs (Spare screws and anchors are included.)

Diagram showing a robotic arm installing a door panel, with a magnified inset highlighting the component (no text or symbols present)

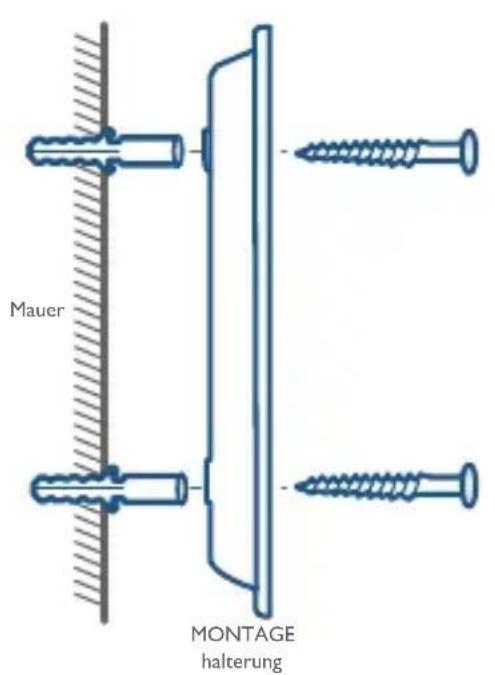

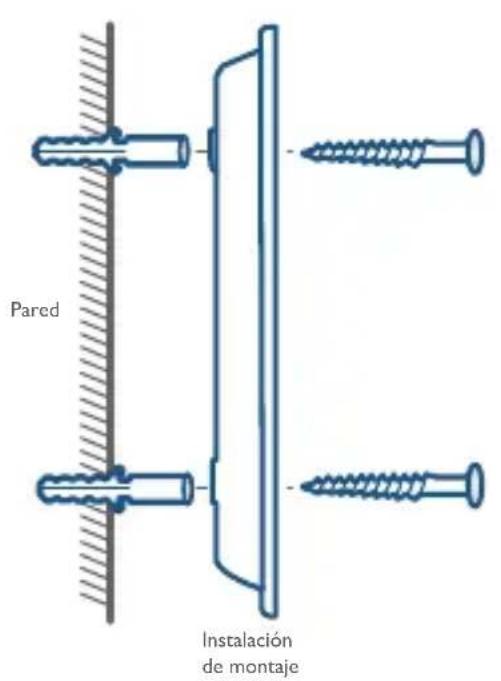

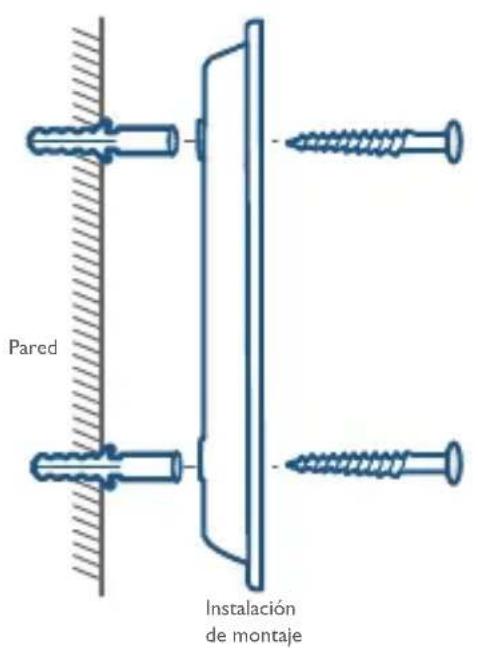

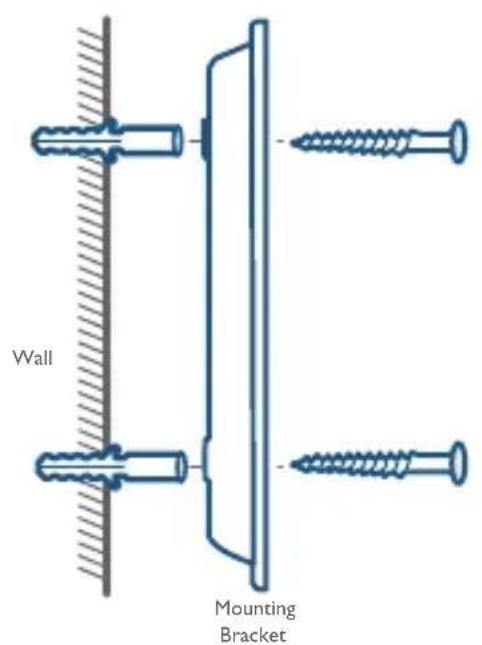

Without 15° Mounting Wedge

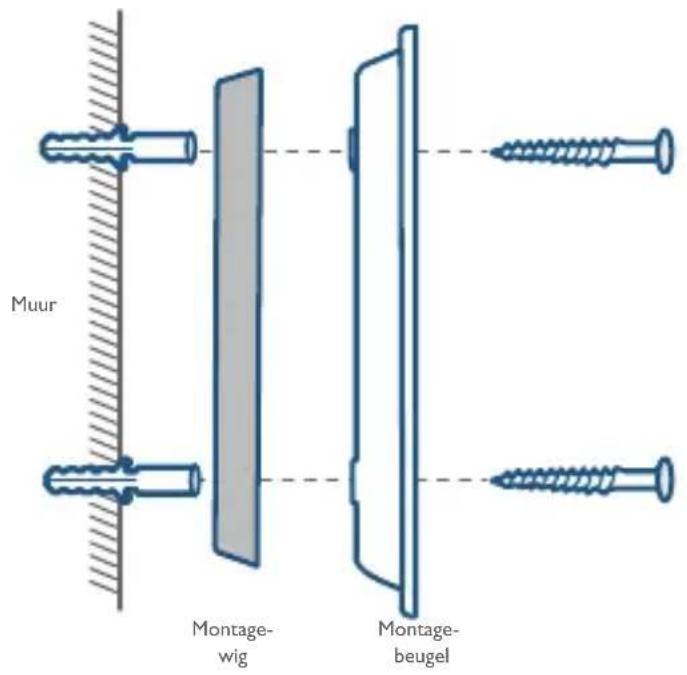

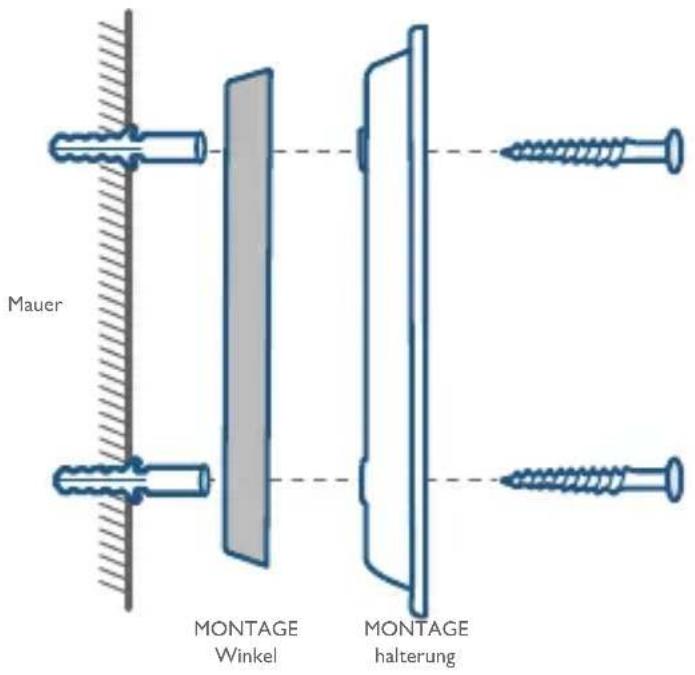

With 15° Mounting Wedge

2

2

9/STEP 6 MOUNTING THE DOORBELL

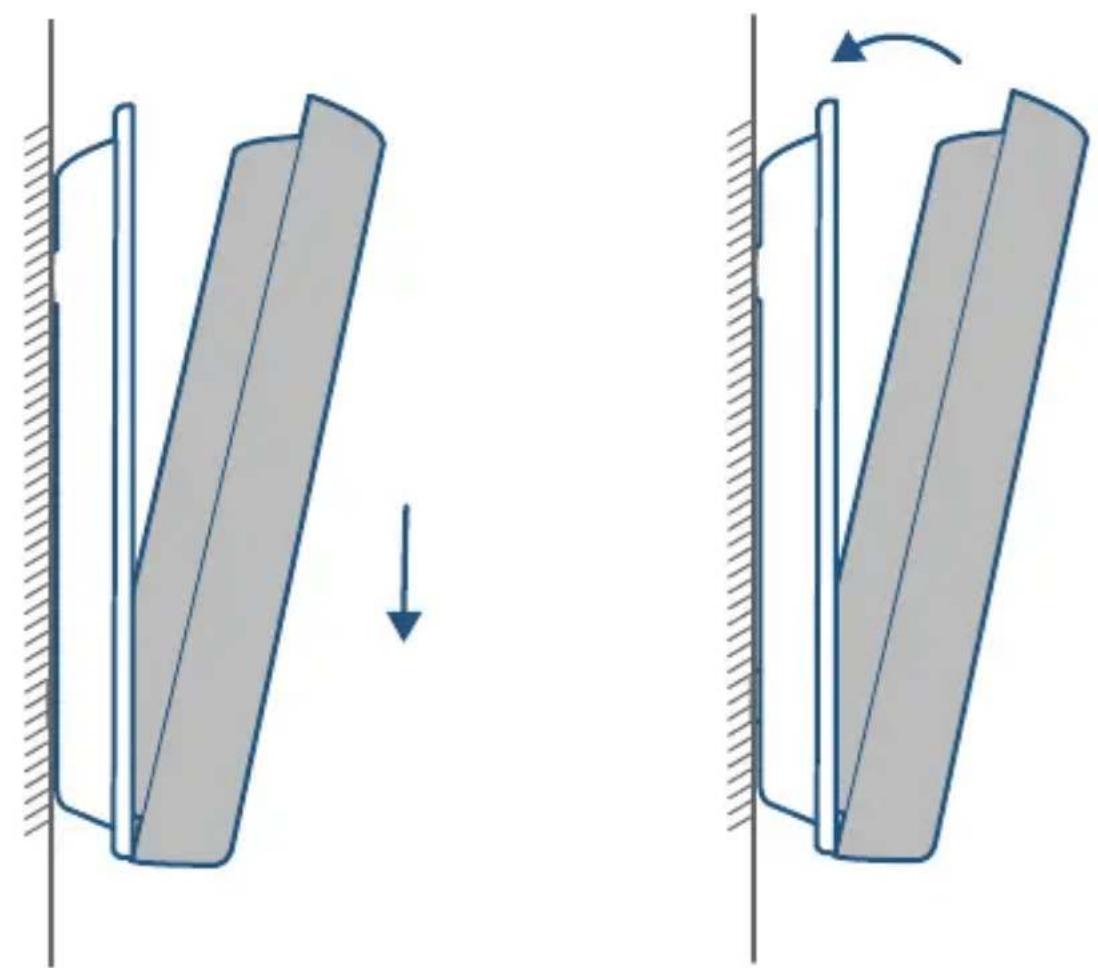

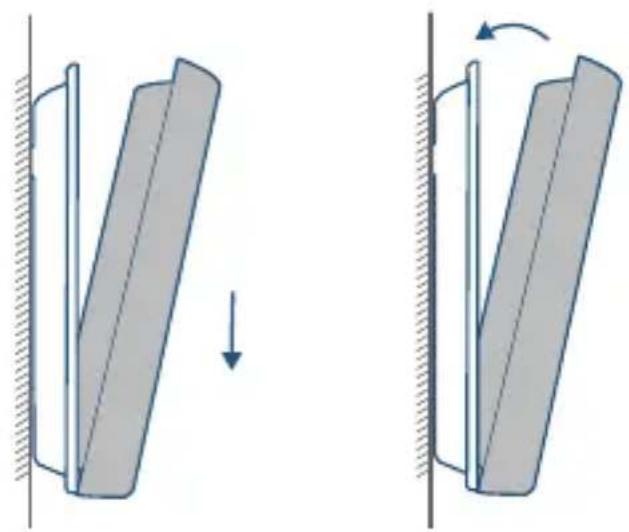

Mount the Doorbell

Align the doorbell on the bottom, and then move it into place on top. Press the doorbell down until it clicks.

Diagram showing two mechanical components with a downward arrow indicating motion, no text or symbols present

You're all set!

If you want to detach the doorbell or recharge it, please refer to the following sections.

EN 15

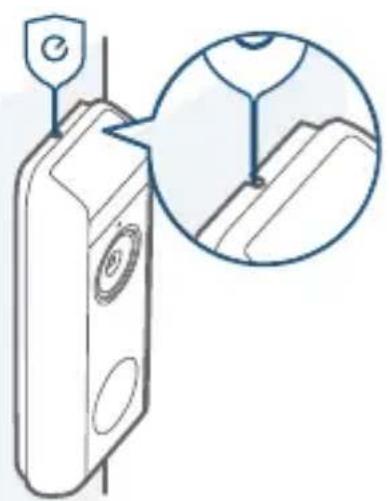

10 / APPENDIX I DETACHING THE DOORBELL

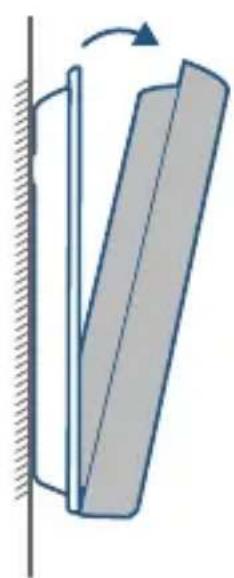

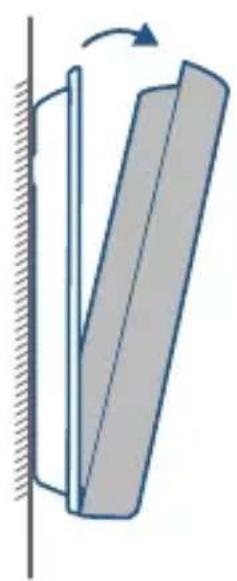

Detach the Doorbell

I. Use the doorbell detaching pin provided if you wish to detach the doorbell from the mounting bracket.
2. Press into the pinhole on top of the doorbell, and then lift the top for removal.

What you need: Doorbell Detaching Pin

Diagram of a device with a magnified inset showing internal components (no text or symbols)

Diagram of a mechanical or structural component with a curved arrow indicating rotation, no text or symbols present

16 EN

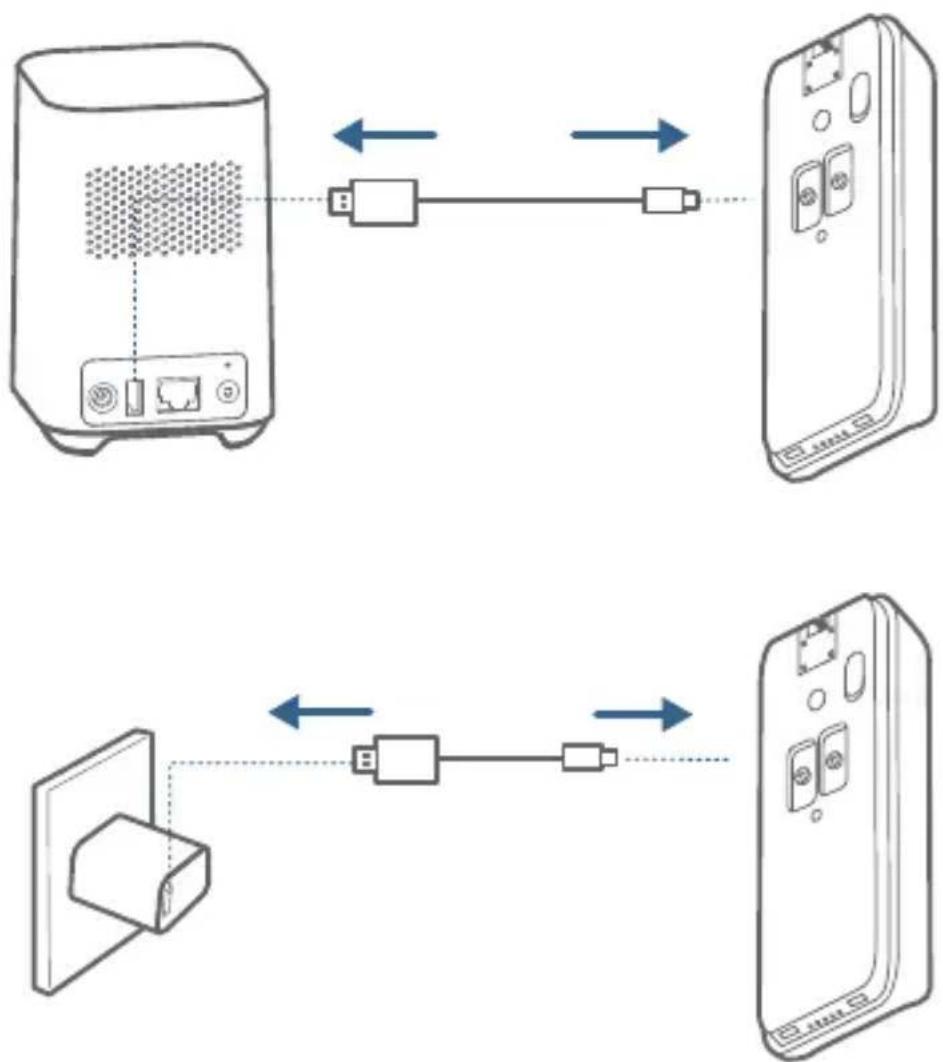

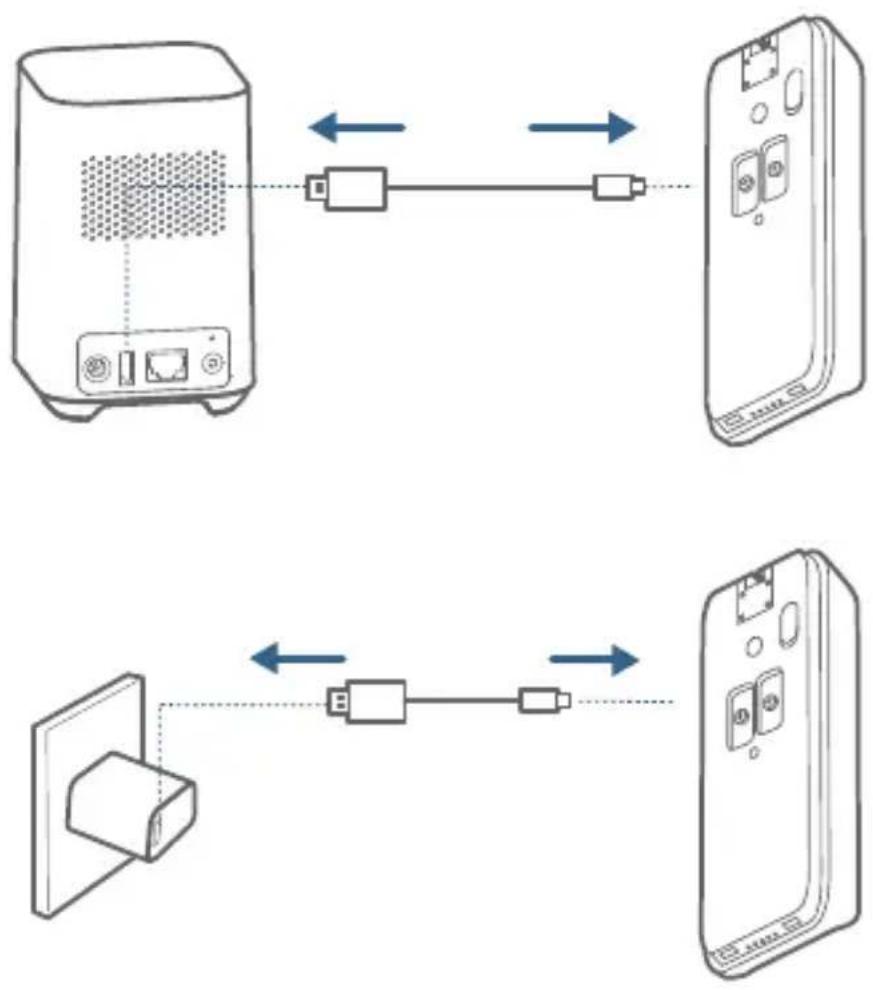

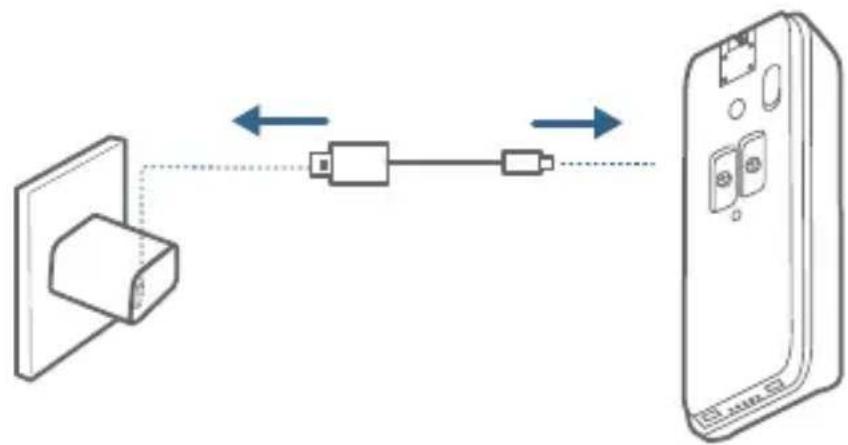

Recharge the Doorbell

LED indicator	Charging: Flashing Green
	Fully charged: Green
Charging time 6 hours from	0% to 100%

12/

APPENDIX 3

POWERING THE DOORBELLWITH EXISTING DOORBELL WIRES

3. I Verify whether the doorbell wires are working

I. Ring the existing doorbell to check if it is working. If the doorbell doesn't ring, your doorbell wires may be defective. Power the doorbell on its own battery or consult an electrician to fix the wires.

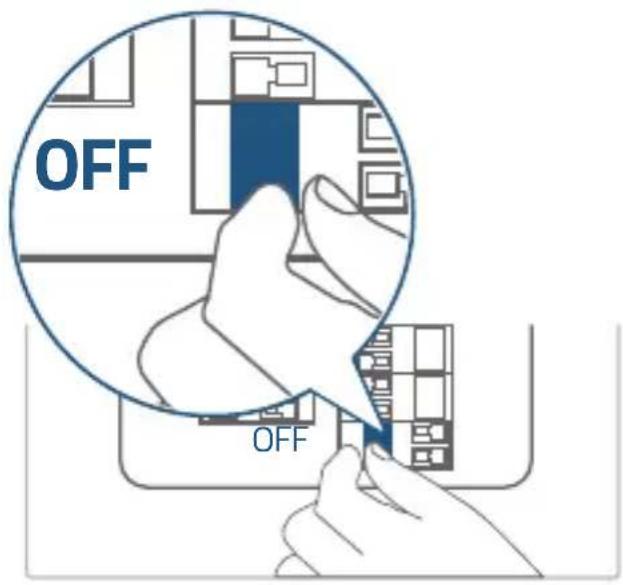

1. Shut off power at the breaker. Turn the lights on / off in your home to make sure the electricity in your house is properly shut off.

Always be careful when handling wires. If you're not comfortable installing it yourself, have a qualified electrician do it.

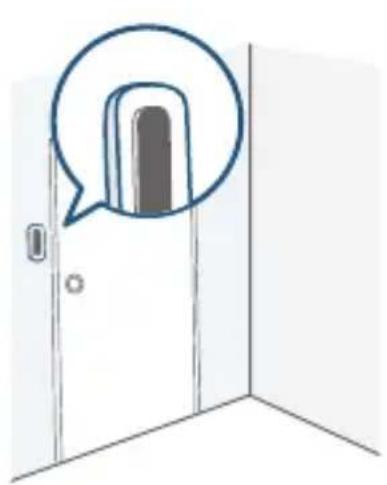

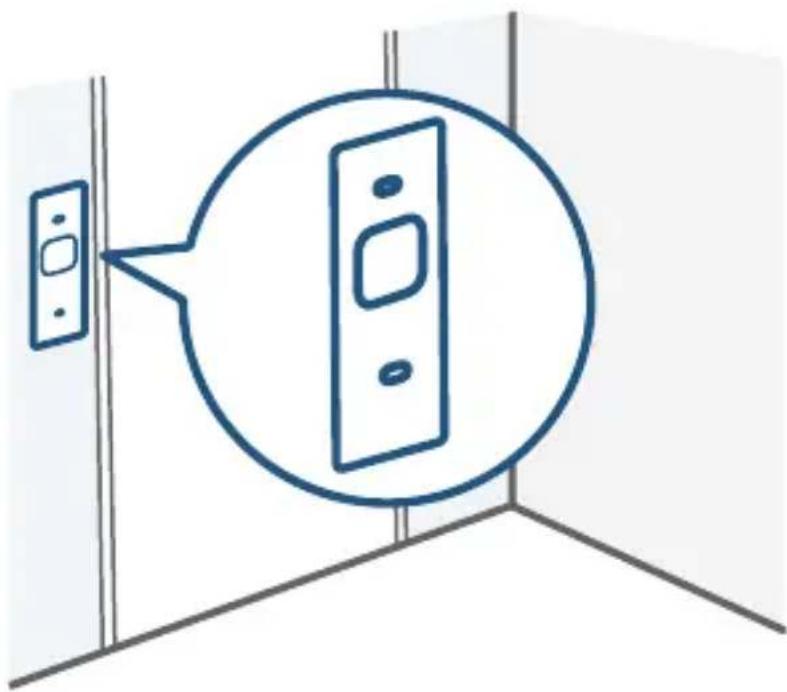

3.2 Detach the Existing Doorbell Button

If you already have existing doorbell wiring:

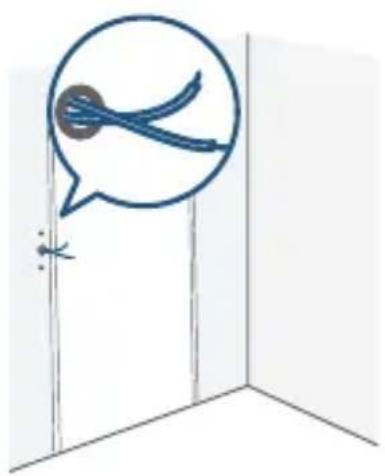

I. Remove the existing doorbell button with a Phillips-head screwdriver (not provided).

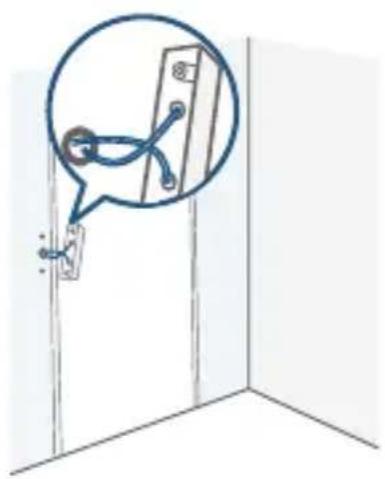

1. Pull the two wires out carefully when removing the existing doorbell. Straighten the wire ends if necessary.

What you need: Philips-Head Screwdriver

Simple line drawing of a door with a speech bubble highlighting the interior (no text or symbols)

Simple line drawing of a door with a speech bubble and hanging lock, no text or symbols present

Simple line drawing of a door with a speech bubble containing a blue object, no text or symbols present.

3.3 Find a Mounting Spot

I. When determining the mounting position of the doorbell, consider these factors:

① Check if you can reuse the existing holes and anchors on the wall or door frame.
② If you are drilling the mounting holes for the first time, the recommended mounting height is 48" / 1.2 m from the ground.
③ To adjust the angel, use the 15^ mounting wedge as a supplementary mounting bracket.

1. Place the screw hole positioning card against the wall to mark the position.

Simple line drawing of a door with a circular label and two switches, no text or symbols present.

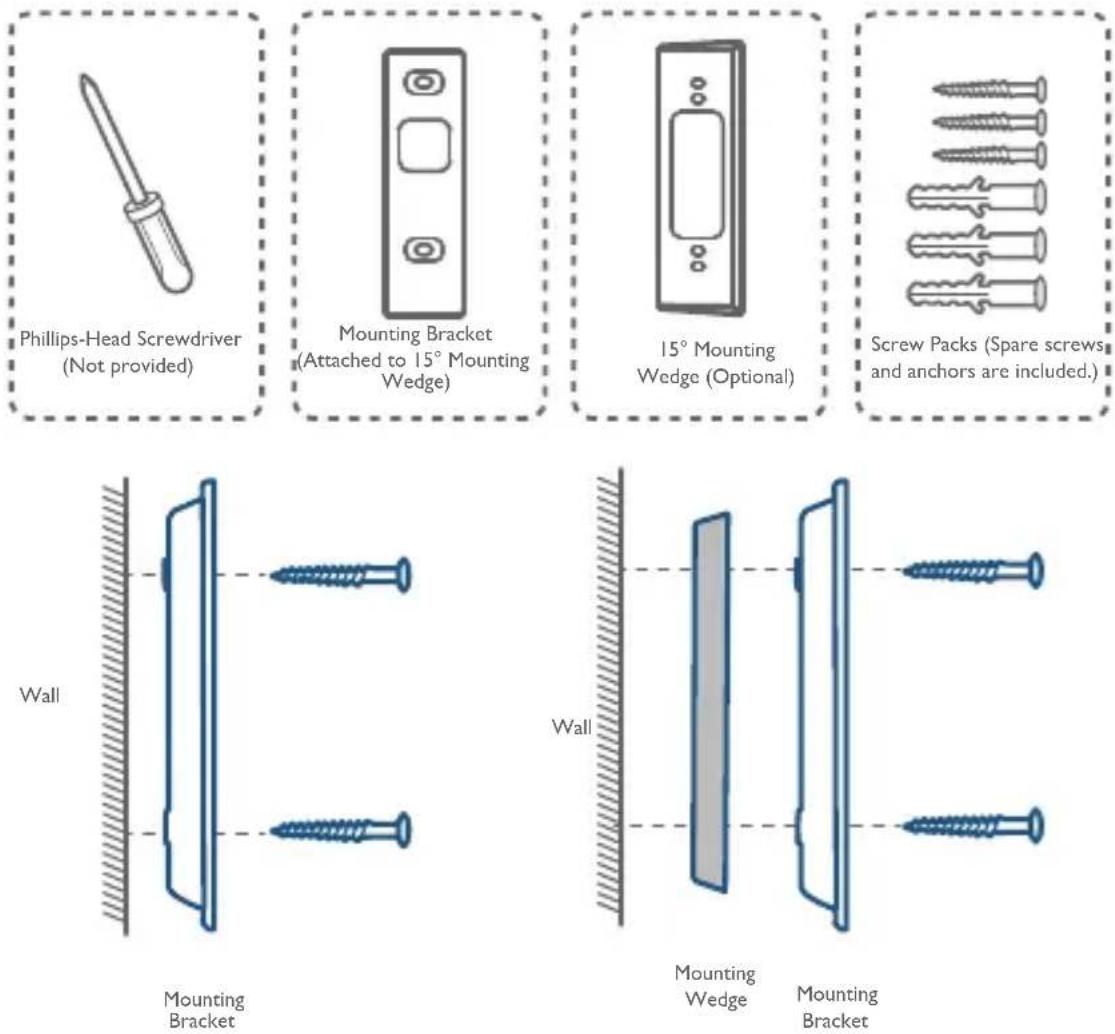

3.4 Mount the Bracket

If you're mounting the doorbell on a wooden surface, you don't need to pre-drill pilot holes. Use the provided screws to secure the mounting bracket on the wall. The screw hole positioning card indicates the position of the screw holes.

What you need: Power Drill, Mounting Bracket, 15° Mounting Wedge (Optional), Screw Packs

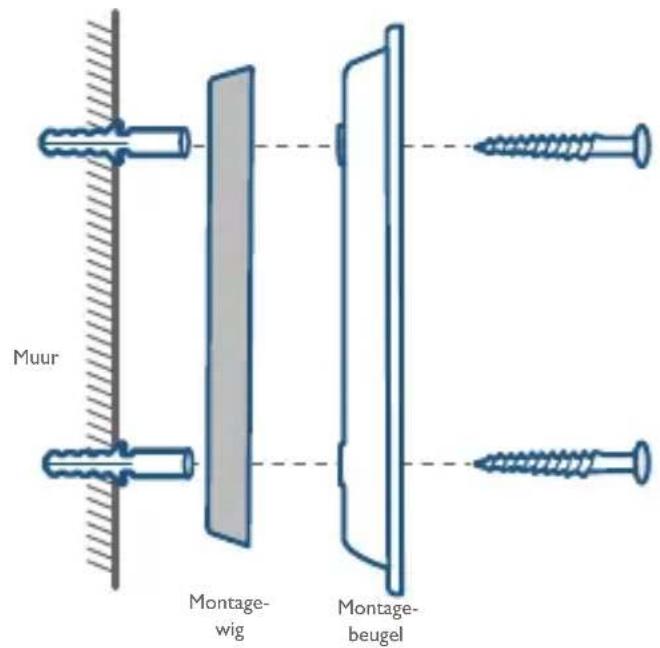

Without 15° Mounting Wedge With 15° Mounting Wedge

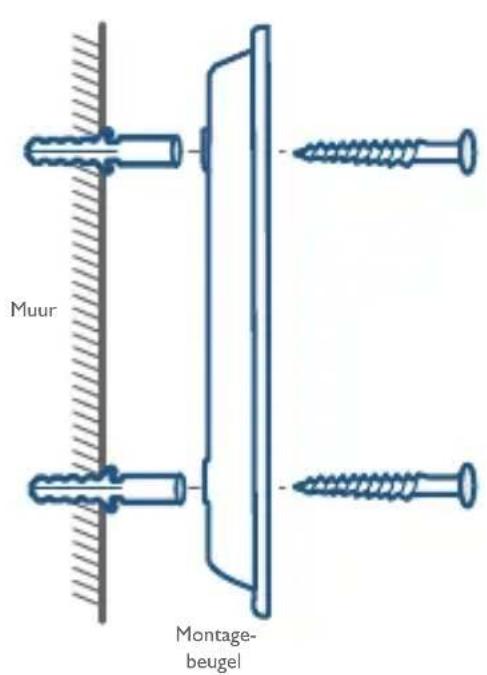

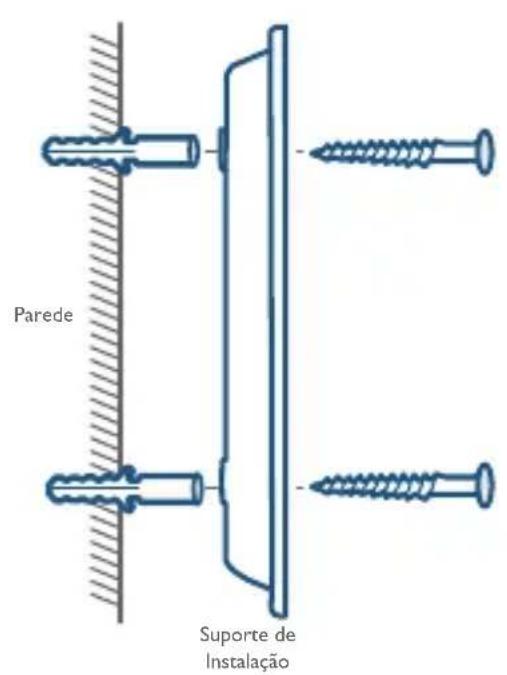

If you're mounting the doorbell on a surface made out of hard materials, like brick, concrete, stucco:

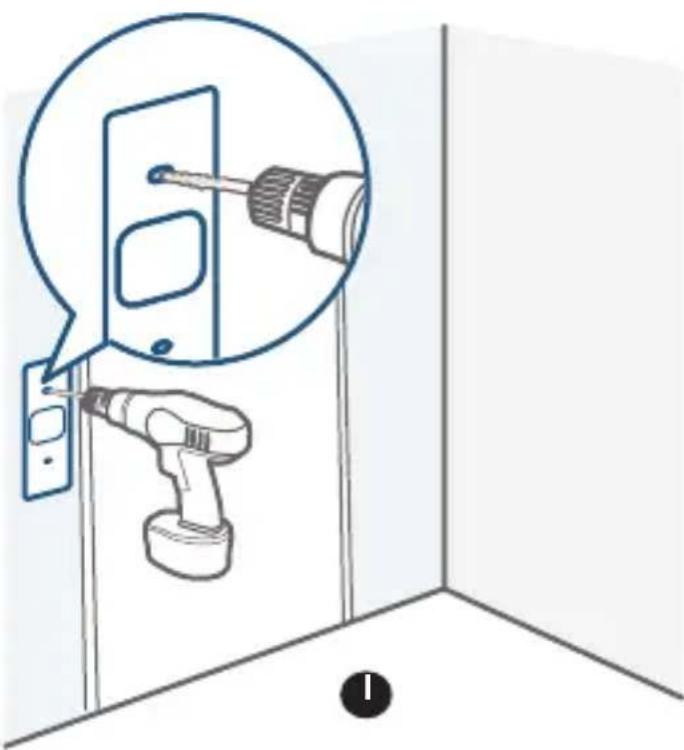

① Drill 2 holes through the screw hole positioning card with 15/64"(6mm) drill bit.
② Insert the provided anchors, and then use the provided long screws to secure the mounting bracket on the wall.

What you need: Power Drill, 15/64"(6mm) Drill Bit, Mounting Bracket, 15° Mounting Wedge (Optional), Screw Packs

Power Drill (not provided)

15/64"(6 mm) Drill Bit

Mounting Bracket (Attached to 15° Mounting Wedge)

15° Mounting Wedge (Optional)

Screw Packs (Spare screws and anchors are included.)

Diagram showing a robotic arm connecting a wall-mounted device to a door panel, with an inset magnified view of the device (no text or symbols present)

22 EN

Without 15° Mounting Wedge With 15° Mounting Wedge
2
2

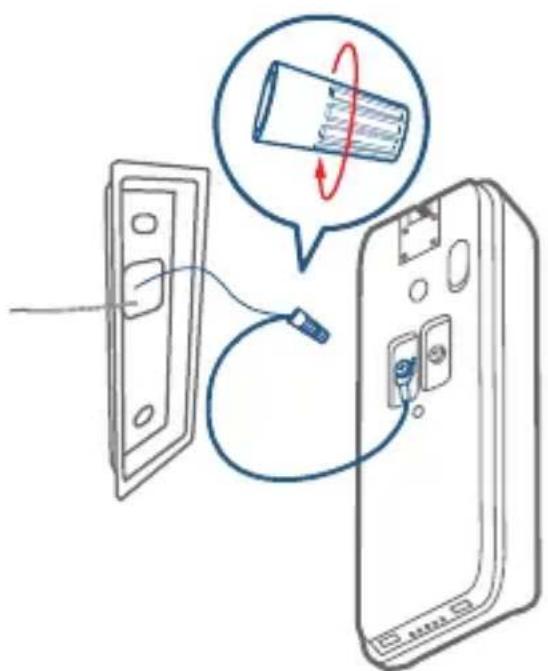

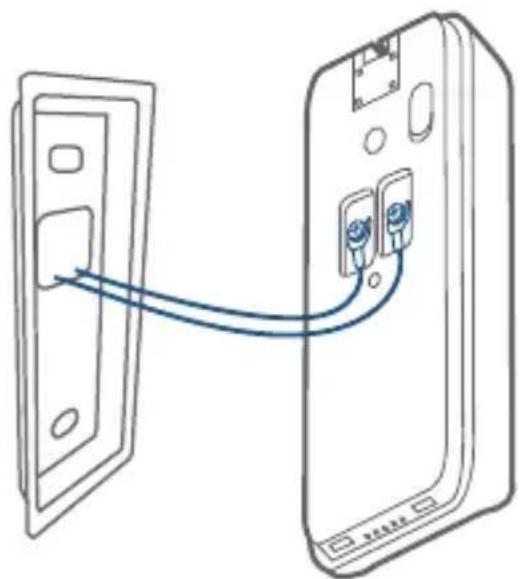

3.5 Connect the Doorbell Wires to the Doorbell

Connect the wires to the terminals at the back of the doorbell, then tighten the terminal screws. Wire can connect to any terminal.

What you need: Wires and Wire Nuts (Optional), Video Doorbell, Philipshead Screwdriver

Diagram of a device showing two connected components with a blue cable, no text or symbols present

Diagram showing a device being connected to a smartphone via cable, with a magnified inset illustrating the cable rotation (no text or symbols present)

Note:

• To prevent short-circuiting, make sure the wires are not touching each other after connecting them to the terminals.
- If the wires are too short, use the extension wires and wire nuts provided to make them longer. Use electrical wiring tape instead if there is no more space on the wall for wire nuts.

24 EN

3.6 Mount the Doorbell on the Bracket

Align the doorbell on the bottom, and then move it into place on top. Press the doorbell down until it clicks.

Diagram showing two mechanical or structural changes with arrows indicating direction of movement (no text or symbols)

3.7 Restore Power

Switch the master circuit breaker back to ON.

You're all set!

If you want to detach the doorbell or recharge it, please refer to the corresponding sections.

EN 25

13/NOTICE

CE This product complies with the radio interference requirements of the European Community

Declaration of Conformity

Hereby, Anker Innovations Limited declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the declaration of conformity, visit the Web site: https://uk.eufylife.com/.

The adapter shall be installed near the equipment and shall be easily accessible. Do not use the Device in the environment at too high or too low temperature, never expose the Device under strong sunshine or too wet environment. The suitable temperature for the product and accessories is -20^ to 45^ .

When charging, please place the device in an environment that has a normal room temperature and good ventilation.

It is recommended to charge the device in an environment with a temperature that ranges from 5^ C\~ 25^ C.

Please ensure to use only the adapter offered by the manufacturer. Using unauthorized charger may cause danger and violate the guarantee article.

This adapter is for indoor use only. The adapter type is KA2401A-1202000DE/, output voltage/current is 12Vdc/2A. The plug considered as disconnect device of adapter.

CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

RF exposure information: The Maximum Permissible Exposure (MPE) level has been calculated based on a distance of d=20 cm between the device and the human body. To maintain compliance with RF exposure requirement, use

26 EN

product that maintain a 20cm distance between the device and human body. The Device T8213 Wifi Operating Frequency Range:2412\~2472 MHz(2.4G); Range:23-24 GHz(24GHz);

Wifi Max Output Power:17.88 dBm(ERIP for 2.4G); Max Output Power:5dbm(EIRP for 24Ghz)

The Device T8010X Wifi Operating Frequency Range:2412\~2472 MHz(2.4G); Range:866-866.8 MHz(Sub-IG);

Wifi Max Output Power: 18.40 dBm (ERIP for 2.4G); Max Output Power: 5.492 dbm (EIRP for Sub-1G)

The following importer is the responsible party (contract for EU and UK matters)

This product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

This product complies with the radio interference requirements of the United Kingdom

Declaration of Conformity

Hereby, Anker Innovations Limited declares that this product is in compliance with Radio Equipment Regulations 2017. The full text of the UK declaration of conformity is available at the following internet address: https://uk.eufylife.com Anker Technology (UK) Ltd I Suite B, Fairgate House, 205 Kings Road, Tyseley,

Simple line drawing of a rectangular device with two circular buttons and a top panel (no text or symbols)

eufy Security Video Doorbell Dual (Battery)
Modell: T8213

Simple line drawing of a vertical rectangular frame with three rounded square buttons at the top (no text or symbols)

Montagehalterung

Simple line drawing of a rectangular device with a central rectangular element and four circular ports (no text or symbols)

15°-Montagewinkel (optional)

Simple line drawing of a vertical rectangular panel with three small circular holes (no text or symbols)

Six different screw fasteners shown in line drawings (no text or symbols)

Schraubenpaket

Illustration of two dental tools with curved leads and two separate cup-like objects (no text or symbols)

Simple line drawing of a connected electrical outlet with a cable (no text or symbols)

Simple line drawing of two connected connectors (no text or symbols)

Rückseite:

Line drawing of a network device with two connected devices, one connected to a power outlet and the other to a router (no text or symbols present)

Blue shield icon with a white circular symbol inside, resembling a refresh or power button (no text or numbers)

Illustration of a hand holding a smartphone with wireless signal and a vertical device emitting sound waves (no text or symbols)

DE 35

Illustration of a safety warning sign with a yellow triangle and lightning bolt, connected to a wall-mounted device (no text or symbols)

8 – 24 V AC Türklingelverkabelung

7 / SCHRITT 4 BESTIMMEN EINER MONTAGEPOSITION

Simple line drawing of a door with a speech bubble and three buttons, no text or symbols present.

Diagram showing a robotic arm installing a door panel, with a magnified inset highlighting the component (no text or symbols present)

Diagram showing two mechanical components with a downward arrow indicating motion, no text or symbols present

Das war's!

Diagram showing a device with a magnified inset of its top view, alongside a simplified panel with an arrow indicating rotation (no text or symbols present)

44 DE

ANHANG 2

AUFLADEN DER TÜRKLINGEL

Türklingel aufladen

Simple line drawing of a door with a speech bubble highlighting the interior (no text or symbols)

Simple line drawing of a door with a speech bubble and hanging lock, no text or symbols present

Simple line drawing of a door with a speech bubble containing a blue object, no text or symbols present.

Simple line drawing of a door with a wall-mounted switch and a circular diagram highlighting the interior (no text or symbols)

Diagram showing a robotic arm inserting a screwdriver into a wall-mounted device, with an inset magnified view of the device (no text or symbols present)

Hinweis:

Diagram showing two mechanical or structural changes with a downward arrow indicating motion (no text or symbols present)

Simple line drawing of a rectangular device with two circular buttons and a top panel (no text or symbols)

eufy Security Video Doorbell Dual (Battery)
Modelo: T8213

Simple line drawing of a vertical rectangular frame with three rounded square buttons at the top (no text or symbols)

Soporte de montaje

Simple line drawing of a rectangular device with three circular ports, no text or symbols present.

Simple line drawing of a vertical rectangular panel with three small circular holes (no text or symbols)

Six different screw or screw installation variants shown in line drawings (no text or symbols)

Illustration of two U-shaped dental tools with a separate pair of circular objects (no text or symbols)

Simple line drawing of a connected electrical outlet with a plug (no text or symbols)

Simple line drawing of two connected connectors (no text or symbols)

Cable Ethernet para HomeBase 2

I.LED de estado

1. Puerto Ethernet

2.Altavoz

6.Botón SYNC/ALARMA

Line drawing of a network device with two connected devices, one connected to a power outlet and the other to a router (no text or symbols present)

Blue shield icon with a white circular symbol inside, resembling a stylized 'e' or refresh symbol (no text or numbers present)

Illustration of a hand holding a smartphone with wireless signal and a separate device with circular buttons (no text or symbols)

ES 63

Illustration of a safety warning sign with a yellow triangle and lightning bolt, connected by a blue cable to a wall-mounted device (no text or symbols present)

Simple line drawing of a door with a speech bubble and three buttons, no text or symbols present.

8 / PASO 5 MONTAJE DEL SOPORTE

Diagram showing a robotic arm installing a door panel, with a magnified inset highlighting the component (no text or symbols present)

Diagram showing two mechanical components with a downward arrow indicating motion, no text or symbols present

¡Ya está!

Diagram of a device with a magnified inset showing internal components (no text or symbols)

Diagram of a mechanical or structural component with a curved arrow indicating rotation, no text or symbols present

72 ES

Recarga del timbre

Simple line drawing of a door with a speech bubble highlighting the interior (no text or symbols)

Simple line drawing of a door with a speech bubble and hanging lock, no text or symbols present

Simple line drawing of a door with a speech bubble containing a blue object, no text or symbols present.

Simple line drawing of a door with a circular annotation highlighting the door handle (no text or symbols)

Diagram showing a robotic arm installing a door panel, with a magnified inset highlighting the component (no text or symbols present)

Nota:

Diagram showing two mechanical components with a downward arrow indicating rotation or change, no text or symbols present.

Simple line drawing of a rectangular device with two circular buttons and a top panel (no text or symbols)

Simple line drawing of a vertical rectangular frame with three rounded square buttons at the top (no text or symbols)

Support de montage

Simple line drawing of a rectangular device with four circular ports, no text or symbols present.

Simple line drawing of a vertical rectangular panel with three small circular holes (no text or symbols)

Six different screw or screw installation variants shown in line drawings (no text or symbols)

Jeu de vis

Illustration of two U-shaped dental tools with a separate inset showing two circular objects (no text or symbols)

Simple line drawing of a connected electrical plug (no text or symbols)

Simple line drawing of two connected connectors (no text or symbols)

I.LED d'état

1. Port Ethernet

2.Haut-parleur

6.Bouton SYNC/ALARM OFF

Line drawing of a network device with two connected devices, one connected to a power outlet and the other to a router (no text or symbols present)

Blue shield icon with a circular symbol inside, no text or numbers present.

Illustration of a hand holding a smartphone with wireless signal and a vertical screen displaying circular elements (no text or symbols)

6 / ÉTAPE 3 DÉTERMINATION DE L'OPTION D'ALIMENTATION

Illustration of a safety warning sign with a yellow triangular hazard symbol connected to a wall-mounted device (no text or labels)

Simple line drawing of a door with a speech bubble and three buttons, no text or symbols present.

8 / ÉTAPE 5 MONTAGE DU SUPPORT

Diagram showing a robotic arm installing a door panel, with a magnified inset highlighting the component (no text or symbols present)

Diagram showing two mechanical components with a downward arrow indicating motion, no text or symbols present

Diagram showing a device with a magnified inset of its internal structure, alongside a close-up of the exterior panel (no text or symbols present)

Simple line drawing of a door with a speech bubble highlighting the interior (no text or symbols)

Simple line drawing of a door with a hanging handle and a speech bubble, no text or symbols present.

Simple line drawing of a door with a speech bubble containing a bird, no text or symbols present

Simple line drawing of a door with a circular icon highlighting a vertical panel (no text or symbols)

104 FR

Diagram showing a robotic arm inserting a screwdriver into a door panel, with a magnified inset highlighting the component (no text or symbols present)

Remarque :

Diagram showing two mechanical components with a downward arrow indicating rotation or change, no text or symbols present.

Simple line drawing of a rectangular device with two circular buttons and a top panel (no text or symbols)

eufy Security Video Doorbell Dual (Battery)
Modello: T8213

Simple diagram of a vertical rectangle with three rounded square buttons on top (no text or symbols)

Staffa di montaggio

Simple line drawing of a rectangular device with internal components (no text or symbols)

Simple line drawing of a vertical rectangular panel with three small circular holes (no text or symbols)

Six different screw designs arranged in a row, no text or symbols present

Pacchetto di viti

Illustration of two dental tools with curved leads and two separate cup holders (no text or symbols)

Simple line drawing of a connected electrical outlet with a plug and cable (no text or symbols)

Simple line drawing of two connected electrical connectors (no text or symbols)

Line drawing of a network device with two connected devices, one connected to a power outlet and the other to a router (no text or symbols present)

Blue shield icon with a white circular symbol inside, resembling a stylized 'e' or refresh symbol (no text or numbers present)

Illustration of a hand holding a smartphone with wireless signal and a separate device (no text or symbols)

6/

PASSAGGIO 3.

Illustration of a warning sign with a yellow triangle and lightning bolt connected to a wall-mounted device (no text or symbols)

Simple line drawing of a door with a speech bubble and three buttons, no text or symbols present.

8 / PASSAGGIO 5. MONTAGGIO DELLA STAFFA

Diagram showing a robotic arm inserting a screwdriver into a door panel, with no text or symbols present.

Diagram showing two mechanical components with a downward arrow indicating motion, no text or symbols present

Technical line drawing of a device with a magnified inset showing internal components (no text or symbols)

Diagram of a mechanical or structural component with a curved arrow indicating rotation, no text or symbols present

Simple line drawing of a door with a speech bubble highlighting the interior (no text or symbols)

Simple line drawing of a door with a speech bubble and hanging lock, no text or symbols present

Simple line drawing of a door with a speech bubble containing blue ribbons, no text or symbols present.

Simple line drawing of a door with a circular annotation highlighting the interior wall (no text or symbols)

3.4 Montare la staffa

Diagram showing a hand operating a screwdriver inside a door, with an inset magnified view of the device (no text or symbols present)

Nota:

Diagram showing two mechanical components with a downward arrow indicating rotation or change, no text or symbols present.

Simple line drawing of a rectangular device with two circular buttons and a top panel (no text or symbols)

eufy Security Video Doorbell Dual (Battery)
Model: T8213

Simple line drawing of a vertical rectangular frame with three rounded square buttons at the top (no text or symbols)

Montagebeugel

Simple line drawing of a rectangular device with a central rectangular slot and four circular holes (no text or symbols)

Simple line drawing of a vertical rectangular panel with three small circular holes (no text or symbols)

Six different screw or screw installation variants shown in line drawings (no text or symbols)

Schroeven

Illustration of two dental tools with curved leads and two separate cup-like objects (no text or symbols)

Simple line drawing of a connected device with a cable (no text or symbols)

Simple line drawing of two connected connectors (no text or symbols)

I. Bewegingssensor
2. Microfoon
3. Primaire cameralens
4. Omgevingslichtsensor
5. Led-ring/deurbelknop
6.Secundaire cameralens
7.Luidspreker

Achteranzicht:

Line drawing of a network device with two connected devices, one connected to a power outlet and the other to a router (no text or symbols present)

Blue shield icon with a white circular symbol inside, resembling a refresh or power button (no text or numbers)

Illustration of a hand holding a smartphone with wireless signal and a separate device (no text or symbols)

NL 147

6 / STAP 3 DEVOEDINGSMETHODE KIEZEN

Illustration of a warning sign with a yellow triangle and lightning bolt connected to a wall-mounted device (no text or symbols)

8 - 24V AC-deurbelbedrading

7/

STAP 4

EEN MONTAGEPLEK VINDEN

Simple line drawing of a door with a speech bubble and two buttons, no text or symbols present.

Diagram showing a robotic arm installing a door panel, with a magnified inset highlighting the component (no text or symbols present)

Zonder montagewig van 15°

Diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

De deurbel opladen

Simple line drawing of a door with a speech bubble highlighting the interior (no text or symbols)

Simple line drawing of a door with a speech bubble and hanging lock, no text or symbols present

Simple line drawing of a door with a speech bubble containing a blue object, no text or symbols present.

Simple line drawing of a door with a circular component and two buttons, no text or symbols present.

160 NL

3.4 De beugel monteren

Diagram showing a robotic arm operating near a door panel, with a magnified inset of the device (no text or symbols present)

Opmerking:

Diagram showing two mechanical components with a downward arrow indicating rotation or change, no text or symbols present.

Simple line drawing of a rectangular device with two circular buttons and a top panel (no text or symbols)

eufy Security Video Doorbell Dual (Battery)
Modelo: T8213

Simple line drawing of a vertical rectangular frame with three rounded square buttons at the top (no text or symbols)

Simple line drawing of a rectangular device with four circular ports, no text or symbols present.

Simple line drawing of a vertical rectangular panel with three small circular holes (no text or symbols)

Six different screw or screw installation variants shown in line drawings (no text or symbols)

Pacote de parafusos

Illustration of two U-shaped dental tools with a separate inset showing two circular objects (no text or symbols)

Simple line drawing of a rectangular device with a cable and connector (no text or symbols)

Simple line drawing of two connected electrical connectors (no text or symbols)

Cabo de Ethernet da HomeBase 2

Line drawing of a network device with two connected devices, one connected to a power outlet and the other to a router (no text or symbols present)

Blue shield icon with a white circular symbol inside, resembling a stylized 'e' or refresh symbol (no text or numbers present)

Illustration of a hand holding a smartphone with wireless signal and a separate device (no text or symbols)

Illustration of a safety warning sign with a yellow triangular hazard symbol connected to a wall-mounted device (no text or labels)

Simple line drawing of a door with a speech bubble and three buttons, no text or symbols present.

Diagram showing a robotic arm installing a door panel, with a magnified inset highlighting the component (no text or symbols present)

Diagram showing two mechanical components with a downward arrow indicating motion, no text or symbols present

Está pronta!

Diagram showing a device with a magnified inset of its internal structure, alongside a close-up of the exterior panel (no text or symbols present)

Recarregar a campainha

Simple line drawing of a door with a speech bubble highlighting the interior (no text or symbols)

Simple line drawing of a door with a speech bubble and hanging lock, no text or symbols present

Simple line drawing of a door with a speech bubble containing a blue object, no text or symbols present.

Simple line drawing of a door with a circular inset showing a control panel (no text or symbols)

3.4 Instalar o suporte

Diagram showing a robotic arm inserting a screwdriver into a door panel, with a magnified inset highlighting the component (no text or symbols present)

Nota:

Diagram showing two mechanical components with a downward arrow indicating rotation or change, no text or symbols present.

Simple line drawing of a rectangular device with circular buttons and a small logo at the bottom (no text or symbols)

eufy Security Video Doorbell Dual (Battery)

T8213 : الطراز

Simple line drawing of a vertical rectangular panel with three rounded square buttons on top (no text or symbols)

كتيفة التركيب

Simple line drawing of a rectangular panel with four circular cutouts (no text or symbols)

Simple line drawing of a vertical rectangular frame with two circular holes, no text or symbols present.

Six different screw thread designs arranged in a row (no text or symbols)

عبوة برا غي

Illustration of two U-shaped tool holders with a separate inset showing two circular objects (no text or symbols)

Simple line drawing of a connected electrical plug (no text or symbols)

Simple line drawing of two connected connectors (no text or symbols)

1. آلية الفصل

1. مؤشر حالة

.2.السماعة

1. منせず الطاقة

USB مزفر.4

Line drawing of a network device with two connected devices, one connected to a power outlet and the other to a router (no text or symbols present)

Blue shield icon with a white circular symbol inside, resembling a stylized 'e' or refresh symbol (no text or numbers present)

Illustration of a hand holding a smartphone with wireless signal and a vertical device emitting sound waves (no text or symbols)

AR 203

Simple line drawing of a rectangular device with circular buttons and a small button at the bottom (no text or symbols)

Line drawing of a smartphone rear panel with buttons and display (no text or symbols)

Illustration of a warning sign with a yellow triangle and lightning bolt connected to a wall-mounted device (no text or symbols)

Simple line drawing of a door with a speech bubble and three buttons, no text or symbols present.

Diagram showing a robotic arm installing a door panel, with a magnified inset highlighting the component (no text or symbols present)

Diagram showing two mechanical or structural changes with a downward arrow, no text or symbols present

كل شيء جاهز للعمل!

Diagram of a device with a magnified inset showing internal structure (no text or symbols)

Diagram of a mechanical or structural component with a rotating arrow indicating rotation (no text or symbols present)

212 AR

Simple line drawing of a door with a speech bubble highlighting the interior (no text or symbols)

Simple line drawing of a door with a speech bubble and handle, no text or symbols present

Simple line drawing of a door with a speech bubble containing a blue object, no text or symbols present.

Simple line drawing of a door with a circular annotation highlighting the interior (no text or symbols)

3.4 تركيب الكتابة

Diagram showing a robotic arm installing a door panel, with a magnified inset highlighting the component (no text or symbols present)

ملاحظة:

Diagram showing two mechanical or structural changes with a downward arrow indicating motion (no text or symbols present)

3.7 استعادة الطاقة

12-month limited warranty

12 Monate eingeschränkte Garantie | Garantía limitada de 12 meses

Garantie limitée de 12 mois | Garanzia limitata di 12 mesi | 12 maanden beperkte garantie | 12 meses de garantia

United States [phone]

Mon-Fri 9AM-5PM (PT)

United Kingdom [phone]

Mon-Fri 6AM-11AM (GMT)

Germany [phone]

Mon-Fri 6:00-11:00

Email Us

Senden Sie uns eine E-Mail | Contacto por correo electrónico | Par e-mail | E-mail

Customer Support: [e-mail]

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

@EufyOfficial @EufyOfficial @EufyOfficial
