Product type	Service wine cellar
Brand	Signature
Model	Cuvee S116
Bottle capacity	11 bottles (recommended, 750 ml format)
Number of shelves	4 wooden shelves
Temperature range	5 °C to 18 °C (adjustable in 1 °C increments)
Display	Digital LED (actual or set temperature)
Interior lighting	LED, switchable
Child safety	Control panel lock
Malfunction alarm	Yes, can be disabled by button
Door reversibility	Yes, right or left opening
Refrigerant type	R600a (37 g)
Insulation foam	Cyclopentane
Rated voltage	220-240 V ~
Frequency	50 Hz
Rated current	0.8 A
Maximum power	70 W
Climate class	SN, N, ST (10 °C to 38 °C)
Protection class	I (grounded)
Noise level	Not specified
Weight	Not specified
Dimensions (W x D x H)	Not specified
Care and cleaning	Unplug before cleaning; use a soft cloth and water; avoid organic solvents, alkaline detergents, boiling water; do not rinse the compartment.
Spare parts availability	5 years
Legal warranty of conformity	2 years
After-sales service	09 78 97 97 97 (Mon-Sat 8am-8pm, local call rate)

Frequently Asked Questions - Cuvee S116 SIGNATURE

How to adjust the temperature of the wine cellar?

Press the + or − button to adjust the temperature in 1 °C increments. The display flashes during adjustment, then the new temperature is saved after 5 seconds of no action.

How to reverse the door opening direction?

Remove the cover of the upper right hinge, unscrew the screws, remove the hinge and the left plastic cover. Lift the door to remove it, then unscrew the lower hinge. Install the lower hinge on the left, replace the door, then fix the upper left hinge and put the covers back.

What to do if the wine cellar does not cool enough?

Check that the set temperature is suitable (5-18 °C), that the appliance is not exposed to sunlight or a heat source, and that the door is not opened too frequently. If the problem persists, contact after-sales service.

How to activate the child lock?

Press the + and − buttons simultaneously for 3 seconds. The panel locks. To unlock, repeat the same action. The lock also activates automatically after 15 seconds without touching any button.

What do the error codes E1 and E2 mean?

E1 indicates an open circuit of the temperature sensor, E2 a short circuit. In both cases, contact qualified after-sales service for sensor replacement.

How to properly clean the interior of the cellar?

First unplug the appliance. Use a soft cloth or sponge soaked in lukewarm water. Never use solvents, alkaline detergents, boiling water or acids. Do not pour water inside the compartment.

Can I store other drinks than wine?

This appliance is designed only for wine storage. Do not place perishable foods, carbonated drinks or flammable substances.

What to do in case of a prolonged power outage?

Avoid opening the door to keep the cold as long as possible. After a long outage, unplug the appliance, empty it, clean it, dry it and leave the door open to prevent mold. Wait 5 minutes before plugging it back in.

How to install the door handle?

Partially remove the door gasket to reveal two holes. Attach the handle to the outside, insert the screws from the inside and tighten with a screwdriver. Then replace the gasket to hide the screws.

What is the disposal procedure for the appliance?

Do not dispose of the appliance with household waste. In accordance with the WEEE directive 2012/19/EU, take it to a public collection point. Remove the door to prevent any risk of entrapment.

USER MANUAL Cuvee S116 SIGNATURE

Front view of a stainless steel refrigerator with multiple shelves and circular cutouts (no visible text or symbols)

SIGNATURE

CAVE À VIN

CUVEE S116

TABLE DES MATIERES

INFORMATIONS DE SECURITE -1-

DESCRIPTION -11-

REVERSIBILITE DE LA PORTE -12-

INSTALLATION ET MISE EN FONCTIONNEMENT -14-

NETTOYAGE ET ENTRETIEN -19-

GUIDE DE DEPANNAGE -20-

SPECIFICATIONS TECHNIQUES -21-

PROTECTION DE L'ENVIRONNEMENT -22-

Symbolic icon of a person walking with arrows indicating rotation or cycle (no text or symbols)

FAITES UN GESTE ECOCITOYEN ENTRIANT VOS EMBALLAGES CARTON

À LA FIN DE VIE DE VOTRE PRODUIT, PENSEZ À LE RAPPORTER DANS UN POINT DE COLLECTE OU DÉPOSER LE À LA DÉCHETERIE PROCHE DE VOTRE DOMICILE

Labeled diagram of a refrigerator interior with numbered components for identification

FR-11

Technical diagram showing exploded view of a mechanical component with numbered parts labeled 1 to 5.

FR-12

Technical diagram of a refrigerator with numbered parts labeled 1 to 5

Technical line drawing of a cabinet with internal components and mounting base (no text or symbols)

FR-13

Line drawing of a rectangular refrigerator with lid and side door (no text or symbols)

INSTALLATION ET MISE EN FONCTIONNEMENT

Technical diagram showing labeled components of a mechanical or structural assembly with numbered parts 1, 2, and 3.

Control panel interface with battery, light bulb, and directional icons including power, ignition, up/down, and checkmark

MARCHE/ARRET

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Front view of a stainless steel double-door refrigerator with black shelves and circular cutouts (no visible text or symbols)

SIGN< TURE

WINE COOLER

CUVEE S116

CONTENTS

SATEFY INSTRUCTIONS -1-

DESCRIPTION -10-

DOOR REVERSING -11-

INSTALLATION & OPERATION -13-

CLEANING AND MAINTENANCE -17-

TROUBLE SHOOTING -18-

TECHNICAL SPECIFICATION -19-

ENVIRONMENTAL PROTECTION -20-

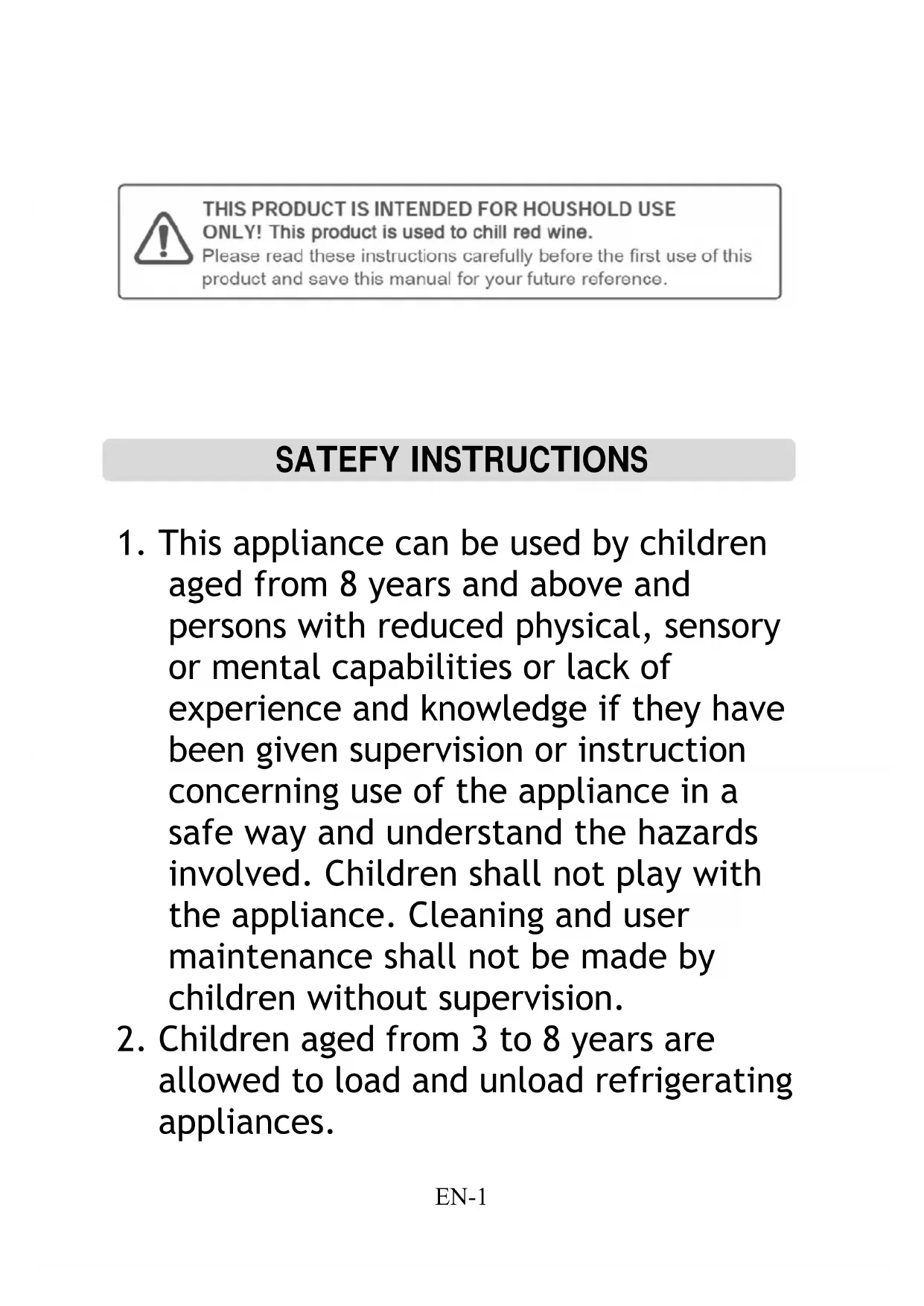

THIS PRODUCT IS INTENDED FOR HOUSHOLD USE

ONLY! This product is used to chill red wine.

Please read these instructions carefully before the first use of this product and save this manual for your future reference.

SATEFY INSTRUCTIONS

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

3. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

4. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

5. WARNING: Do not damage the refrigerant circuit.

6. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

- Please accord to local regulations regarding disposal of the appliance for its flammable refrigerant and blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
  This appliance is intended to be used in household and similar applications such as

- Staff kitchen areas in shops, offices and other working environments;

● Farm houses and by clients in hotels, motels and other residential type environments;

● Bed and breakfast type environments;

● Catering and similar non-retail applications.

1. Make sure the power input meet the product parameter marked in rating label

2. Use a independent grounded outlet with 10A more, do not use a transformer or power strip.

- In any case, please ensure that the use of the ground wire connection socket, and do not modify the power cord and plug

● Power cord should be kept firmly in contact with the socket to avoid fire.
● After installation, the plug can be touch without difficulty to ensure it can be unplug if with any case of accidents

1. When flammable gas leaks

- Turn off the gas leak valve, and then open the doors and windows for ventilation, do not pull out the plug

- Do not store or use gasoline and other flammable materials near the wine cooler to prevent fire.

1. Prohibit flammable/explosive dangerous goods/ corrosive acids, bases materials to the inside of wine cooler.

- DO not use any appliance inside the wine cooler

1. Take Care of kids

● Prevent the kids from entering the wine cooler.

● Prevent the kids from hanging on the door to play, to avoid damage when the whole wine cooler or door tilted

● Prevent the kids from putting the hands, feet to any hole of wine cooler to avoid damage.
● Prevent the kids to climbing or sit in the shelves, so it is possible to damage the appliance and shelves.
- If there is a key for wine cooker, place the key where the kids cannot get to avoid locking themselves in a wine cooler.

1. Attention to water

- Never use water to spray and wash the appliance, and do not place the appliance in moist and splashed water in place, do not fill water to the inside of appliance to avoid affecting the electrical insulation performance, which may result in electric shock, fire and other accidents

1. Careful frostbite

- After running, do not touch the interior surfaces, especially with wet hands. Otherwise, the skin may stick to the interior surface result into damage

1. Do not open the door for long periods. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
2. Prohibit to altering wine cooler

● Prohibit to disassembling, altering or damaging the wine cooler

● Repair the appliance must be performed by qualified personnel

1. Unplug if with following conditions

- Before cleaning and maintenance, or default or power outage, unplug the wine cooler, for at least 5 minutes interval before power again, to prevent damage to the compressor and consecutive starts.

1. Scrap the appliance

- Scrap the appliance away from the fire to prevent accidents. Remove the door in order to avoid accidents of kids into play

- To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the flammable insulation blowing gases. The disposal should only be done through public collection points; contact the waste treatment centre nearest your home for more details on the correct procedures for disposal.

1. Do not damage the power cord

- Do not pull on the cord to unplug the appliance, be sure to hold the plug, and then pull out from the socket.

- Do not allow the cabinet to withhold the power cord or tread the cord.

- When remove the wine cooler, to be careful, tied up the power cord, do not roll the power cord.

1. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

2. This appliance is intended to be used in household but except in similar applications such as:

3. staff kitchen areas in shops, offices and other working environments;

4. farm houses and by clients in hotels, motels and other residential type environments;

5. bed and breakfast type environments;
   ● Catering and similar non-retail applications.

6. For handling:

Always handle the appliance to avoid any damage.

1. For installation, servicing:

appliance should placed on a horizontal floor and keep the ventilation freely. don't try to replace or repair any components by yourself, ask the service agency for help if necessary.

1. LED light cannot be replaced by user in case any problems please ask for the service agent.

Warning

1. Warning: Risk of fire / flammable materials.

There are flammable materials at the back of appliance, please keep the product far away fire source.

1. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

2. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

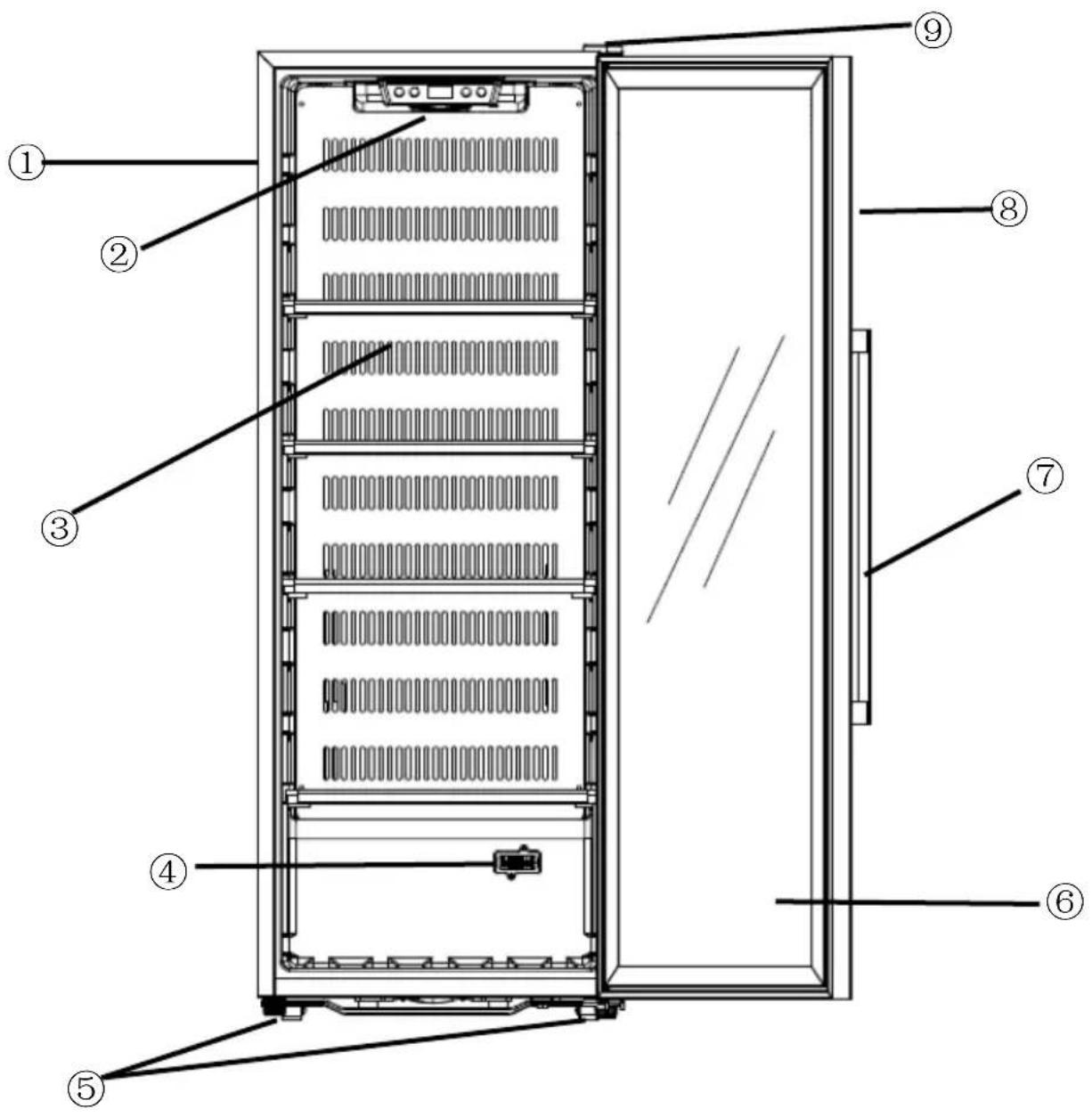

DESCRIPTION

All photos in this manual are for reference. The appliance you buy might not be exactly the same as shown here. Please refer to the actual product.

Labeled diagram of a refrigerator interior with numbered components for identification

1. Casing

2 Control panel

3 Wooden Shelf

4 Sensor shield

5 Adjustable front foot

6 Door

7 Handle

8 Door seal

9 Hinge cover

Note: shelves, door frame, handle and other accessories could be different in accordance with different models and configuration. Please prevail in kind.

DOOR REVERSING

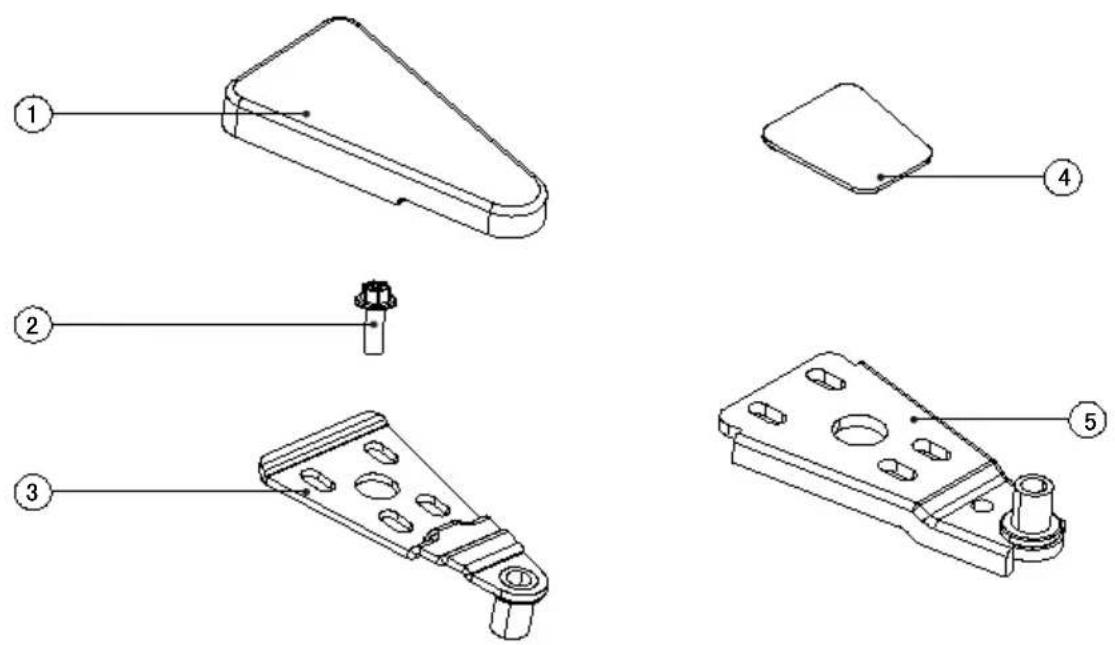

1. introduction of product parts

Technical diagram showing five labeled mechanical components with numbered annotations

① Door hinge cover
② Flange screw
③ Door hinge
④ Cap
⑤ Lower door hinge

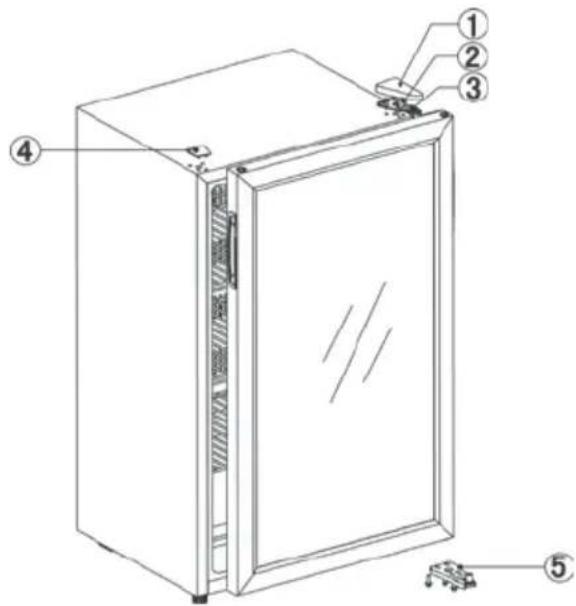

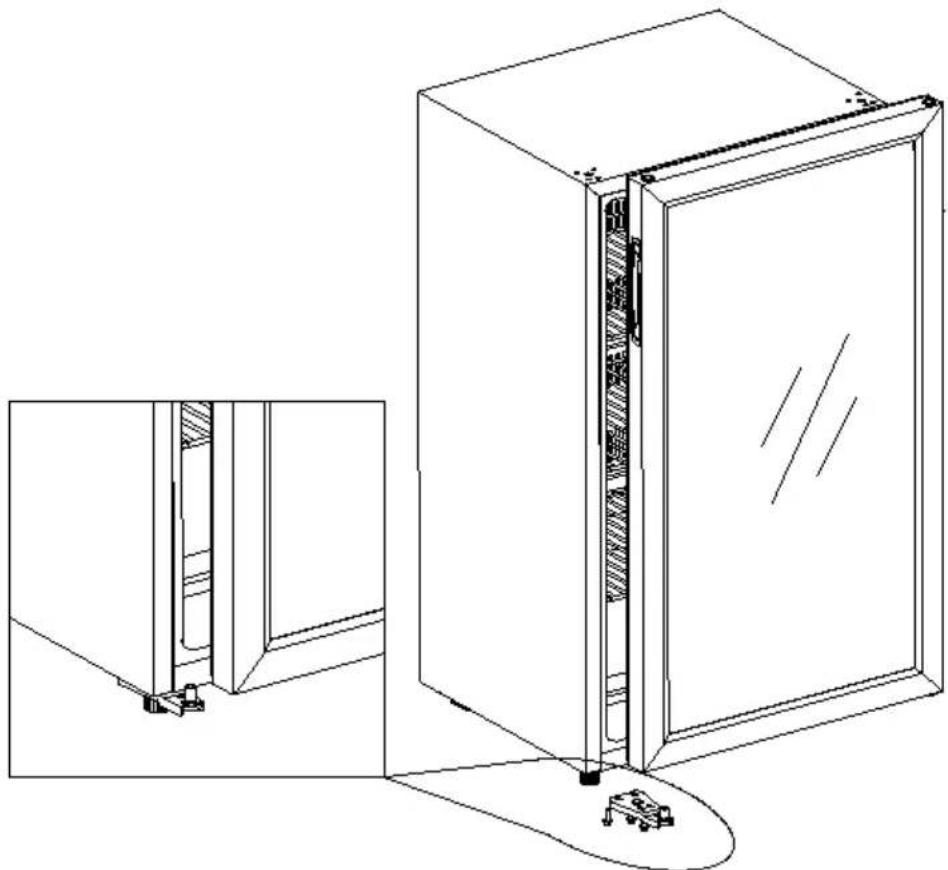

1. Reversing the door. The wine coolers are delivered with the door opening from left to right. To reverse the opening direction:

Technical diagram of a refrigerator with numbered parts labeled 1 to 5

1) Close the door.
2) Take off the door hinge cover on the up right corner; Unscrew the flange screws;
3) Take off door hinge; Remove the up left side cap.
4) Lift the door up until the door gets off the lower door hinge.
5) Unscrew the lower door hinge.
6) Fit the lower door hinge to the down left corner; Put the door above and insert into the lower door hinge.

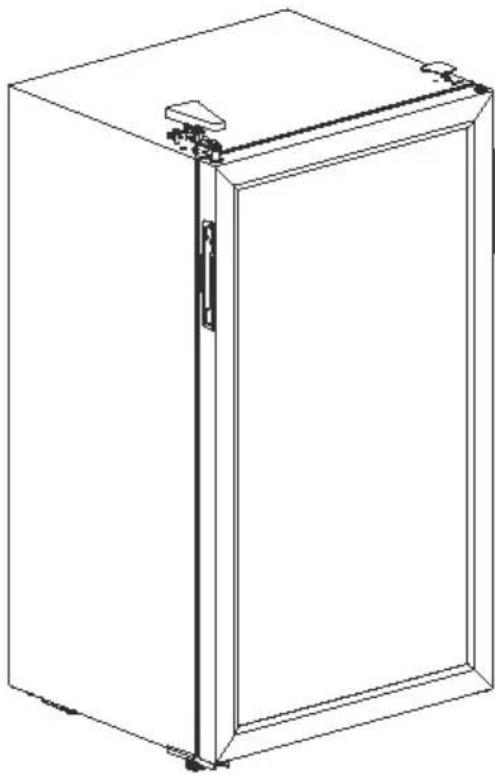

Technical line drawing of a cabinet with structural details and mounting base (no text or symbols)

EN-12

7) Fit the door hinge to the up left corner and screw the flange screws; Put on the door hinge cover; Put the cap to the up right side.

Line drawing of a rectangular refrigerator with lid and side latch (no text or symbols)

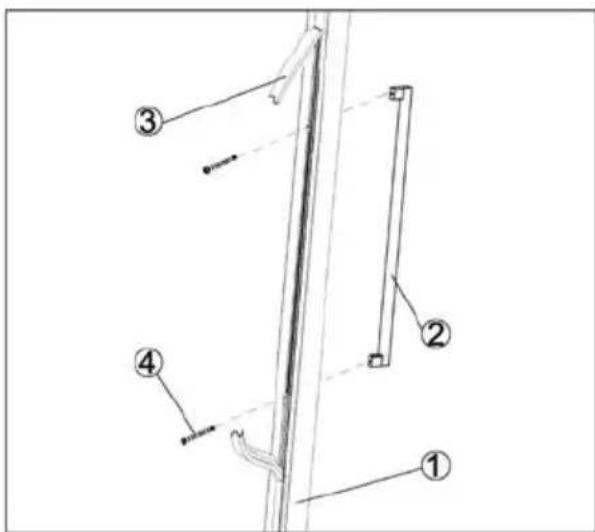

The handle is delivered in a separated package with screws together put inside the cavity of product

1. Reveal two small holes on the door frame from inner side by pulling out a bit the door seal
2. Aim the handle to the holes and insert the screws from inside

Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

1. Screw them up with screw-driver
2. Put back door seal to cover the screws.

Position

Do not lean the appliance over 45^ when moving it to position.

The appliance must be put on flat, firm & dry floor or similar non-combustible pad; do not use the package foam pad.

Do not put the appliance in the wet place

Do not use the appliance in the frozen place.

Do not use the appliance outdoor in case of sunlight or rain.

The appliance must be set with 10 cm wider space around for good ventilation; it is normal for the cabinet getting heat when it's in operation.

Wine bottles could be stored when you feel cooling inside after the appliance operates around 1 hour.

Start operation

1. Cleaning the compartment. Before power on, clean inside of the appliance and check the drainage pipe in good connection. (For details, Please refer to the cleaning and maintenance)
2. Put the appliance still. Before power on, level the appliance on the firm & dry floor for at least 30 minutes.
3. Power on. The appliance start operation and it will cool down inside after 1 hour, otherwise you should check the power connection.

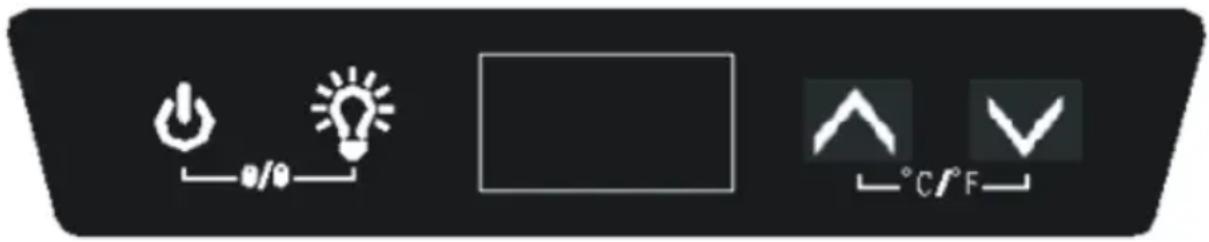

Control Panel

Control panel interface with battery, light bulb, and directional icons including power, ignition, and checkmark

ON/OFF

1. Keep pressing the key 3 seconds, power down, goes to stand-by mode.
2. Keep pressing the key again 3 seconds, returns to normal working.

Light

Press the key, turn on or turn off the LED lights inside. In stand-by mode, the key is invalid.

UP

Press the key once, LED Display in regular flash showing current set temperature. Continue pressing to adjust set temperature, one press increase 1°C. Regular flash quit after 5 seconds detecting no press and new set temperature save. LED display return to show actual temperature inside.

Down

Press the key once, LED Display in regular flash showing current set temperature. Continue pressing to adjust set temperature, one press reduce 1°C. Regular flash quit after 5 seconds detecting no press and new set temperature save. LED display return to show actual temperature inside.

Child Lock (Combination key)

Lock: Press both keys at the same time for 3 seconds to lock or lock automatically in 15 seconds without pressing key.

Unlock: Press both keys at the same time for 3 seconds to unlock.

Fahrenheit/Celsius interchange (Combination key)

Switch temperature display between Fahrenheit and Celsius by pressing both keys at the same time.

Attention

1. The ex-factory temperature of this product is 12^ C, and the corresponding temperature range needs to be set according to the actual wine.

2. Alarm silence: when he system malfunction alarm, press any key on the control panel, alarm eliminate.

3. Temperature sensor failure: When the temperature sensor failures occur, rror displays. E1 for open circuit; E2 for short circuit.

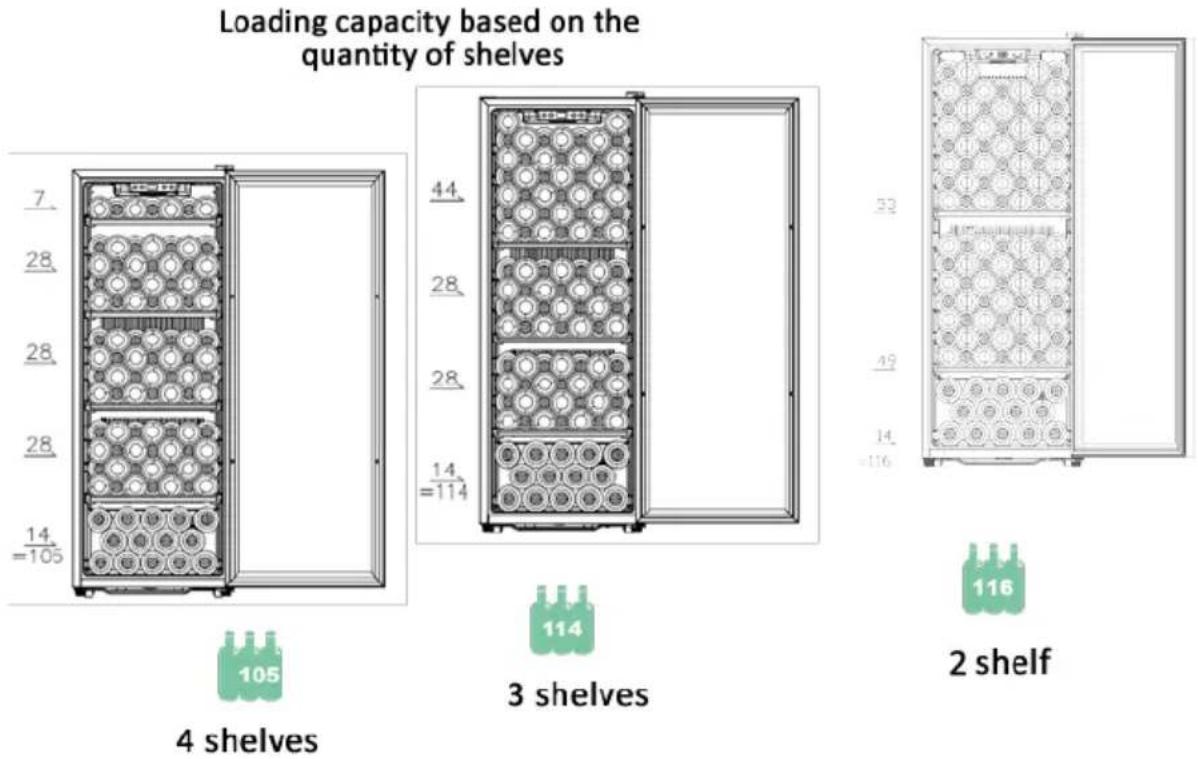

Wine storage

● The appliance equip with independent layers of shelves to allow your collection

Loading capacity based on the quantity of shelves 7. 28. 28. 28. 14. =105 44. 28. 28. 14. =114 3 shelves 114 33 49 14 =116 2 shelf 116 4 shelves

of wine get mature quietly and peacefully.

- Loading capacity: Max.116 bottles with 2 shelves.(standard Bordeaux with 750ml)

Loading capacity will vary in terms of different way of bottle arrangement or different bottle sizes.

• Each shelf could pull out partly to store wine bottles easily.

- Open the door straight enough before pulling out shelves.

- The shelf should be avoided in front of the fan as much as possible to avoid blocking the air inlet and affecting the cooling efficiency.

- If the wine cooler would have no load for a long time, it is recommended to power it off, clean it carefully, and open the door for ventilation.

- Below table is the recommended temperature for wine storing & drinking:

Red Wine	15-18°C
White Wine	9-14°C
Rose wine	10-11°C
Champagne & sparkling wine	5-8°C

CLEANING AND MAINTENANCE

Cleaning

• Please disconnect the appliance before cleaning.
• Please clean the appliance with soft cloth or sponge by using water.
• P lease do not use organic solvents, alkaline detergent, boiling water, washing powder or acid liquid etc. Please do not flush the compartment of the appliance
• Clean regularly surfaces that can come in contact with accessible drainage system

Power cut

Most power cuts could be resolved within a short time. To protect your wines during a power cut, avoid opening the door as much as possible. During very long power cuts, take the necessary measures to protect your wine.

Long Period's shutdown

Remove all bottles from the appliance, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. If the appliance is disconnected or if there is a power cut, you must wait at least five minutes before re-starting.

Moving the appliance

● Cut off the power supply and unplug the appliance.
- Remove all bottles from the appliance.
- When moving the appliance, do not lean the appliance over 45^ .

Within 45^

Illustration of two people pushing a large rectangular object (no text or symbols present)

EN-17

TROUBLE SHOOTING

The appliance makes lots of noise	● Please adjust the front foot, keep the appliance levelling. ● Please keep the appliance a bit space from walls.
Liquid flowing sound inside the cabinet	● It is normal because of the refrigerant working inside.
The ap pliance does not start	● Make sure the appliance is connected to the power properly. ● Make sure switch on the power. ● The compressor re -starts after 5 minutes for a power cut.
Compressor runs continuously	● If no cold is being produced, call the retailer's after-sale service.
Door does not seal tightly	● After long time use, the door seal might get stiff & distorted partially. 1. Heat the door seal with hot-wind blower or hot towel. 2. The door seal get softened and close the door.
The appliance does not cool sufficiently	● Please adjust temperature setting. ● Keep the appliance away from sunlight or heat. ● Please do not open the door frequently.
Unpleasant smells inside cabinet	● A little bit plastic smell for newly-buy appliance is normal and will disappear after a short time. ● Clean the compartment and ventilate it for a few hours.
Condensate on the glass door	● Please do not open the door frequently or for a long time. ● Please do not set the temperature too low. ● High ambient temperature and humidity would cause condensate.
The light is not working	● Check the power supply first. ● Call the retailer's after-sale service if the light is broken.

TECHNICAL SPECIFICATION

Reference:	CUVEE S116
Rated Voltage:	220-240V~
Ampere:	0.8A
Rated frequency:	50Hz
Maximum power:	70W
Climate class:	SN-N-ST
Refrigerant:	R600a(37g)
Protection against electrical shock:	I
Insulation foam:	CYCLOPENTANE

This appliance is intended to be used exclusively for the storage of wine.

Climate class:

-Extended temperate(SN): this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32°C;

-Temperate(N): this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32°C;

-Subtropical(ST): this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38°C;

-Tropical(T): this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43°C;

Note: More data information, please scan the QR code on the energy label.

ENVIRONMENTAL PROTECTION

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice,

Symbol of a trash bin with no text or labels, crossed by diagonal lines and a solid black rectangle below (no text or symbols present)

This appliance is marked according to the European directive 2012/19/EU on Waste electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

To contact our After-Sales Service, before going to BUT store, call 09 78 97 97 97 from Monday to Saturday from 8:00 a.m. to 8:00 p.m. (Price of a local call).

Period of availability of repair spare parts: 5 years.

In accordance with Article L. 217 of the Consumer Code, your product has 2 year legal guarantee of conformity.
