CUVEE S24G - Wine cellar SIGNATURE - Free user manual and instructions

Brand	SIGNATURE
Model	CUVEE S24G
Product type	Wine cellar (wine refrigerator)
Construction	Free-standing
Dimensions (H x W x D)	640 x 470 x 440 mm
Total volume	66 L
Bottle capacity	24 bottles (standard Bordeaux format)
Temperature range	5 °C to 18 °C
Recommended temperature	12 °C
Climate class	SN/N/ST (10 °C to 38 °C)
Energy class	G (IEE 172)
Annual consumption	137 kWh/year
Refrigerant	R600a (22 g)
Insulating foam	Cyclopentane
Noise level	40 dB(A)
Interior lighting	LED
Door type	Glazed (glass)
Control panel	Touch (lock, lighting, temperature adjustment, super cool mode)
Defrost	Manual
Power supply	220-240 V ~ 50 Hz, 0.7 A
Child lock	Yes (activation/deactivation by long press of 3 seconds)
Shelf material	Steel (metal grids)
Legal warranty	2 years
Availability of spare parts	10 years
After-sales service	09 78 97 97 97 (Mon-Sat 8am-8pm, local call rate)

Frequently Asked Questions - CUVEE S24G SIGNATURE

How to correctly install the CUVEE S24G wine cellar?

Place the appliance in a dry, well-ventilated area, away from direct sunlight and heat sources. Leave at least 30 cm of space above and 10 cm on the sides and back. Make sure the floor is flat and stable, and adjust the leveling feet if necessary. After transport, wait at least 2 hours before plugging in the appliance.

How to set the temperature of the wine cellar?

Unlock the appliance by pressing the lock key (☐) for 3 seconds. Then use the temperature up or down keys to adjust by 1 °C or 1 °F per press. The adjustment range is 5 °C to 18 °C (or 41 °F to 64 °F). To switch between Celsius and Fahrenheit, press both temperature keys simultaneously for 3 seconds.

How many bottles can I store in the CUVEE S24G?

The maximum capacity is 24 bottles of standard Bordeaux format. To optimize space, place bottles in a staggered arrangement on the shelves. The 4 top shelves each hold 5 bottles (horizontal in the grooves), and the bottom can hold 4 bottles arranged crosswise (head to tail).

What to do if the screen displays an error code E1, E6 or E7?

The error codes indicate: E1 = temperature sensor fault, E6 = communication error, E7 = ambient temperature sensor fault. In all cases, unplug the appliance for a few minutes, then plug it back in. If the problem persists, contact after-sales service at 09 78 97 97 97. Any intervention on the refrigeration circuit must be carried out by a qualified professional.

Is it normal that my wine cellar makes noise?

Yes, some noises are normal: the compressor makes sounds when starting and stopping, the refrigerant circulates producing gurgling or clicking sounds, and the solenoid valve may make a switching noise. However, if the noise becomes excessive, check that the appliance is level and that accessories are properly placed.

How to clean the interior of the wine cellar?

Turn off and unplug the appliance. Remove bottles and shelves. Clean the interior with a soft cloth dampened with a mixture of baking soda (2 tablespoons) and one liter of warm water. Rinse with clean water and dry with a soft cloth. Never use abrasive detergents, solvents or metal brushes. Leave the door open to dry before putting back into service.

Can I use the wine cellar to freeze food or store perishable goods?

No, this appliance is only designed for storing wine in unopened bottles. It is not suitable for freezing food or preserving fresh products. The temperature range (5-18 °C) is not suitable for perishable goods.

How to activate super cool mode (Fast Cool)?

Make sure the appliance is unlocked. Press the lock and lighting keys simultaneously for 3 seconds. The screen then displays 'FC'. This mode lasts a maximum of 24 hours and ends automatically. To exit manually, repeat the same key combination or turn off the appliance.

What is the warranty period for the SIGNATURE CUVEE S24G wine cellar?

The appliance has a 2-year legal warranty of conformity (pursuant to article L.217 of the consumer code). Spare parts for repairs are available for 10 years. For any request, contact after-sales service at 09 78 97 97 97.

How to change the LED bulb of the wine cellar?

The lighting is provided by an integrated LED that is not user-replaceable. In case of defect, call a qualified professional or after-sales service. Any unauthorized intervention voids the warranty.

USER MANUAL CUVEE S24G SIGNATURE

Line drawing of a 3D rectangular box with a vertical side and a handle, no text or symbols present

SIGNATURE®

CAVE AVIN

CUVEE S24G

TABLE DES MATIERES

Warning sign depicting a flame symbol in yellow and black on white background

Electrical safety instructions showing hand installation, switch protection, and no warning symbol

10A

Simple line drawing of a room with a window and a desk, no text or symbols present

Simple line drawing of a cube with an arrow and a small object nearby (no text or symbols)

Simple line drawing of a cube with a flame inside and a warning symbol (no text or labels)

Illustration of a child climbing inside a cube with a broken handle and a warning symbol (no text or labels)

Cartoon illustration of a sad, anthropomorphic object resembling a document or box with arms and legs, surrounded by a warning symbol (no text or labels)

Diagram showing a hand holding a tray with labeled items including a bottle, boxes, and a cross symbol, alongside a warning icon.

Blood Driven Insulated milk !

Simple line drawing of a person lifting a large box next to a 3D cube (no text or symbols)

Simple line drawing of a cube and a door with a handle (no text or symbols)

Cartoon illustration of a sad cube with arms and eyes, surrounded by sun and a cross symbol (no text or labels)

Simple line drawing of a smiling cube with a small plug attached to its side (no text or symbols)

Diagram of layered cylindrical structures connected to a multi-layered assembly (no text or symbols)

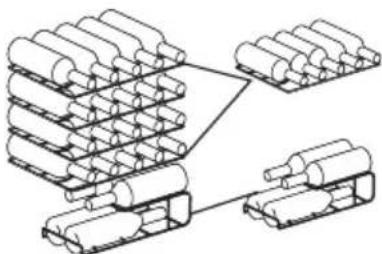

Simple line drawing of two bottles placed on a stand, no text or symbols present

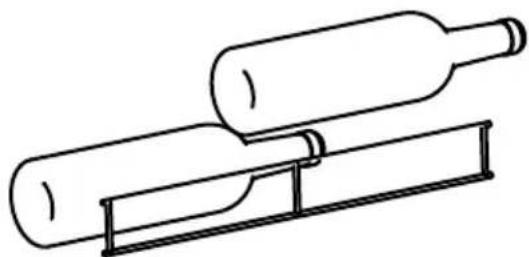

Simple line drawing of a bottle and two cylindrical containers on a stand (no text or symbols)

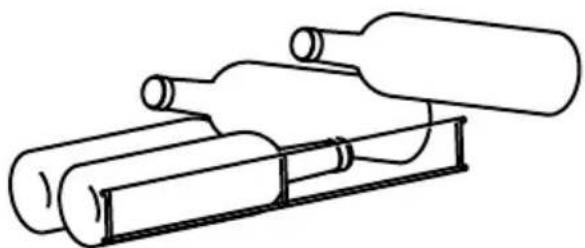

Line drawing of two cylindrical objects with a horizontal support frame, no text or symbols present

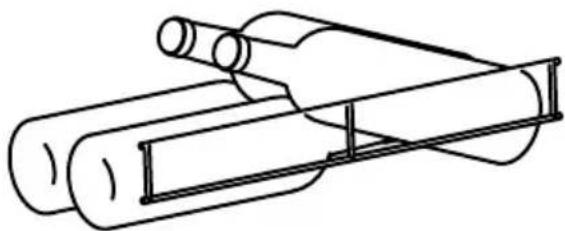

Line drawing of a multi-tiered griddle or tray with a bottle attached (no text or symbols)

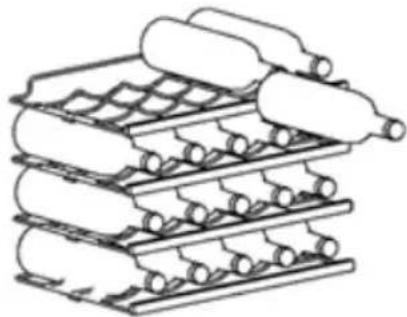

Stacked cylindrical containers with bottles on top (no text or symbols)

Illustration of a row of cylindrical objects on a base plate (no text or symbols)

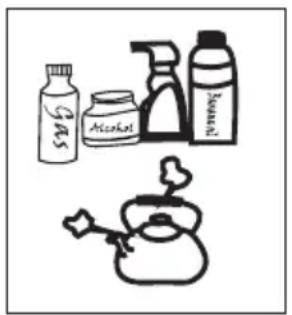

Illustration of various chemical products including bottles, a spray bottle, and a small container (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Line drawing of a 3D rectangular box with a side panel and handle, no text or symbols present

SIGNATURE®

WINE CELLAR

CUVEE S24G

CONTENTS

1. Safety warnings - 24 -

This warning is only for EUROPEAN market only! - 25 -

Electricity related warnings -29-

Related warnings for use -30-

Warnings related to placing items -30-

Warnings for energy -31-

Warnings related to disposal -31-

Disposal of the appliance -31-

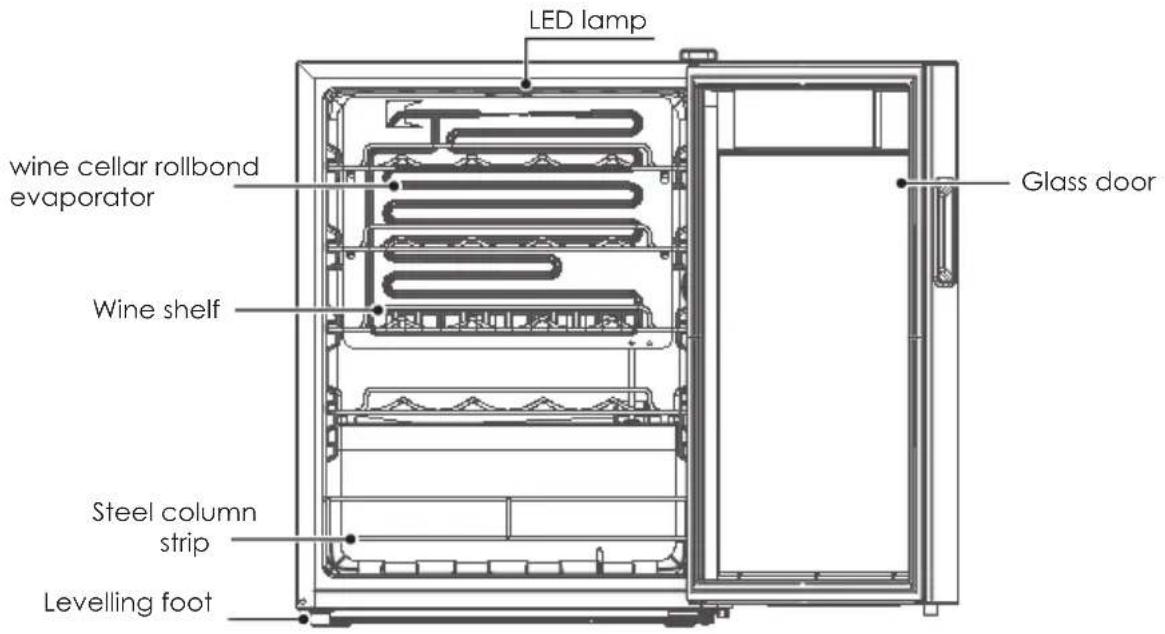

2. Equipment Description - 32 -

3. Proper use of wine cooler - 34 -

Placement -34-

4. Temperature control - 37 -

5. Maintenance of wine cooler - 38 -

Clean the wine cooler -38-

Stop using -38-

6. Trouble shooting - 39 -

7. Technical information - 40 -

8. Correct disposal of this product - 43 -

1. SAFETY WARNINGS

Prohibition symbols

Warning symbols

Note symbols

The symbols indicate prohibited matters, and those behaviors are forbidden. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.

The symbols indicate matters that must be followed, and those behaviors must be strictly executed in line with the operation requirements. Non-compliance with the instructions may result in product damages or endanger the personal safety of users.

The symbols indicate matters to pay attention to, and these behaviors shall be specially noted. Due precautions are needed or minor or moderate injuries or damages of the product will be caused.

This warning is only for EUROPEAN market only!

When using an electrical appliance, basic precautions should always be followed, including the following:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
5. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
6. WARNING: Do not damage the refrigerant circuit.

7. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

8. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

9. This appliance is intended to be used in household and similar applications such as

– staff kitchen areas in shops, offices and other working environments;

– farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

– catering and similar non-retail applications.

1. Placed the appliance against a wall with a free distance not exceeding 75 mm and more than 50mm

2. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

3. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

4. To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

– Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

1. Unplug the appliance from outlet when not in use, before putting on or taking off parts, before cleaning.

2. Make sure to place the plug all the way into socket when connecting your appliance.

3. Insert the plug into a single grounded socket.

4. Never use the appliance in place where combustible and inflammable materials are kept.

5. For safety reason, be sure to repair or replace parts at an authorized service dealers.

6. The motor is permanently lubricated and will require no oil.

7. The appliance must be positioned so that the plug is accessible.

8. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

9. Ensure the wine cellar is unplugged before cleaning or if the product is not in use.
10. To clean the appliance use only mild detergents or glass cleaning products. Never use harsh detergents or solvents.
11. It is not recommended to use this wine cellar with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.
12. Do not place hot food or drink into the wine cellar before it cools down to room temperature.
13. Close the door immediately after putting in any items so the inside temperature will not rise dramatically.
14. Keep appliance away from any heat source or direct sunlight.
15. To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.
16. Do not place any other appliance on top of the wine cellar, and do not wet it.
17. To avoid injury or death from electrical shock do not operate the appliance with wet hands, while standing on a wet surface or while standing in water.
18. Do not use outdoors or in wet conditions.
19. Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.
20. Keep the cord away from heated surfaces.
21. Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.
22. Connect your wine cellar to an independent electrical socket and use a safe ground wire.

23. When there is no electricity or when wine cellar ceases to be used, it should be cleaned in order to prevent it from smelling.

24. Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.

25. Children should be supervised to ensure that they do not play with the appliance.
26. The appliance is not intended to be operated by means of an external timer or a separate remotecontrol system.
27. This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.
28. It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.
29. Regarding the information for replacing of the lamps of the appliance, thanks to refer to the paragraph “CLEANING AND CARE” of the manual.
30. Regarding the information pertaining, handing, maintenance, servicing and disposal of the appliance, thanks to refer to the parag raph «MAINTENANCE OF WINE COOLER» «CORRECT DISPOSAL OF THIS PRODUCT» of the manual.
31. Disposal of the appliance: To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. And the disposal should only be done through public collection points. Old wine cellar can contain CFC that destroy the ozone; contact the waste treatment center nearest your home for more details on the correct procedures for disposal.

Warning sign depicting a flame symbol in a yellow triangle with black border

1. WARNING! Risk of fire – flammable material. Please keep the product far away fire source during using, service and disposal. There are flammable materials at the back of the appliance.

2. This refrigerating appliance is not intended to be used as a built-in appliance.

3. This refrigerating appliance is not suitable for freezing foodstuffs.

4. If the refrigerant circuit is damaged:

5. Avoid naked flames and sources of ignition.

6. Thoroughly ventilate the room in which the appliance is situated."
7. Extreme caution must be used when moving the appliance.
8. This appliance is intended to be used exclusively for the storage of wine

▶ Electricity related warnings

Diagram showing three electrical circuit symbols: a switch, a bulb, and a plug, with checkmarks indicating disconnection or disconnection.

10A

Simple line drawing of a room with a computer monitor and a desk, no text or symbols present

• Do not pull the power cord when pulling the power plug of the wine cooler. Please firmly grasp the plug and pull out it from the socket directly.
• Do not damage the power cord under any condition so as to ensure safety use, do not use when the power cord is damaged or the plug is worn.
• Worn or damaged power cord shall be replaced in manufacture-authorized maintenance stations.
• Please use a dedicated three-hole power socket which is 10A or more and the power socket shall not be shared with other electrical appliances.
• The power cord should be firmly contacted with the socket or else fires might be caused. Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.
• The valve adopts220V-240V/50Hz AC power, voltage fluctuations over the range of 220V-240V±10% will cause malfunction or even damage, so a 750 W automatic voltage regulator must be installed in concert with the AC power.
• Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the wine cellar and other electrical appliances considering that spark may cause a fire.

1. SAFETY WARNINGS

▶ Related warnings for use

Simple line drawing of a cube with an arrow and a small object nearby (no text or symbols)

• Do not arbitrarily disassemble or reconstruct the wine cooler, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist.
• Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger..

Simple line drawing of a cube with a starburst symbol on its side and a hand pointing at it, no text or symbols present.

- The gaps between cooler door and cooler body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when close or open the cooler door to avoid falling articles

Illustration of a child climbing inside a refrigerator with motion lines indicating speed (no text or symbols)

• Do not give package and other components to children to play. The bending board and plastic film may lead to suffocation! Do not allow children to enter or climb the cooler to prevent that children are sealed in the cooler or children are injured by the falling cooler.
• Do not spray or wash the cooler; do not put the cooler in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the cooler.
• Do not use cooler body, cooler door, etc. as pedal or support.

Cartoon character with a sad expression, standing on a block-like structure with an exclamation mark (no text or symbols)

- Do not place heavy objects on the top of the cooler considering that objects may fall when open or close the door, and accidental injuries might be caused.

▶ Warnings related to placing items

Diagram showing a hand holding a tray with labeled items including a bottle, boxes, and a cross symbol, alongside a warning icon.

• Do not put flammable, explosive, volatile and highly corrosive items in the wine cellar to prevent damages to the product or fire accidents.
• Do not place flammable items near the wine cellar to avoid fires.

Blood Draper Liquid intake

- This product is household wine cellar and shall be only suitable for the storage of foods. According to national standards, household wine cellar shall not be used for other purposes, such as storage of blood, drugs or biological products.

▶ Warnings for energy

1) cooler might not operate consistently when sited for an extended period of time below the cold end of the range of temperatures for which the cooler appliance is designed.
2) The need to not exceed the storage time(s) recommended by the wine manufacturers for any kind of wine.
3) The precautions necessary to prevent an undue rise in the temperature of the wine while defrosting the cooler.
4) The fact that a rise in temperature of the wine during manual defrosting, maintenance or cleaning could shorten the storage life.
5) The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the cooler appliance, in order to prevent children from being locking inside.

▶ Warnings related to disposal

Refrigerant and cyclopentane foaming material used for the wine cooler are flammable. Therefore, when the wine cooler is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the wine cooler is abandoned, please remove the door of the wine cooler, when removing the door body, pay attention to prevent pinching hands, and remove the door seal and shelves, put the door and shelves in a suitable position, so that children will not enter to play and have an accident.

▶ Disposal of the appliance

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. And the disposal should only be done through public collection points. Old wine cellar can contain CFC that destroy the ozone; contact the waste treatment center nearest your home for more details on the correct procedures for disposal.

2. Equipment Description

LED lamp wine cellar rollbond evaporator Glass door Wine shelf Steel column strip Levelling foot

• The recommended temperature is 12^ ; the product is most energy efficient when the shelves are placed in their original position.
• Internal humidity range from 50% to 80% for wine storage compartment.
• The temperature in the cooler is 5-18, only used to store unopened bottled wine (red wine, white wine, rose wine).
• Do not place food in the cooler to prevent bacterial contamination. Please keep the interior of the wine cabinet dry, please drink bottled wine during the validity period.

Practical skills for grape wine's storage

• Do not store bottled wine by box or case in wine cellar.
• The cork of the old bottle shall always be soaked in the wine when putting into wine cooler. Air space is not allowed between wine and cork.
• Open-type bottle shelf is helpful, as it does not cut off air circulation. The air moisture that condensed on bottle can be dried out swiftly.
• The wine shall before drinking: Such as put pink red wine onto the table 2-5 hours before drinking and red wine 4-5 hours, then can reach suitable serving temp. White wine, on the contrary, can be served right on the table. Champagne shall always be stored in cooler and taken out only before drinking.
• Please notice that wine's temperature is always lower than ideal serving temp, as the temperature will immediately rise 1 to 2°C when pouring into tumbler.

▶ Serving temperature

The below table shows the temperature generally recommended for wine tasting concerned. To bring the wine to the serving temperature, it is recommended to place it in your wine cellar at least 48 hours before serving.

Wine Kinds	Serving Temp
Bordeaux red	18°C
Louis Family dry red wine/Barolo	17°C
Burgundy red/Bordeaux red	16°C
Port	15°C
Young Burgundy red	14°C
Young red wine	12°C
Young Beaujolais/all white wines with little residual sugar	11°C
Old white wines/Chardonnay	10°C
Sherry	9°C
Young white wines from late vintage	8°C
White wines Loire/Entre-deux-Mers	7°C

▶ Energy saving tips

• The Cooler shall be placed in room dry and ventilated. The cooler cannot be put under direct sunlight or next to hear source (such as radiator, stove, etc.), and a suitable insulation board shall be applied if necessary.
• Try to shorten opening time of cooler's door.

3. PROPER USE OF WINE COOLER

Placement

Simple line drawing of a person lifting a large cardboard box next to a cube (no text or symbols)

● Before using the cooler, remove all packaging materials including bottom cushions and foam pads and tapes inside the cooler, tear off the protective film on the door and the cooler body.

Cartoon illustration of a sad cube character with a frowning expression, surrounded by sun and a cross symbol (no text or labels)

- Avoid direct sunlight and heat sources such as stove, heating radiator, etc.

Simple line drawing of a cube next to a door with windows (no text or symbols)

- The cooler is placed in a wellventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the feet for levelling if unstable).

30cm 10cm 10cm

- The top space of the cooler shall be greater than 30cm, and the distances from bothsides and backside shall be more than 10cm to facilitate heat dissipation.

Start

Simple line drawing of a smiling cube with a small plug and cable attached to its side (no text or symbols)

• After transportation, please let the wine cooler stay for more than 2 hours before turning on the power, otherwise it will lead to a decrease in cooling capacity or a damage to the wine cooler. The cooler shall stay for half an hour before connecting power when it is firstly started. Clean up the inner chamber before put into use for first time.
• Please pull out plug in case of power failure or cleaning. Do not connect the wine cooler to power supply within five minutes to prevent damages to the compressor due to successive starts. In the process of compressor work, water droplets or frost will be formed on the back wall of the refrigerated compartment, which is a normal phenomenon.
• After a period of time, the frost will melt into water and flow into the water tray to evaporate away.
• Do not connect cooler to electronic energy saving plug and converter that can convert DC into AC (E.g.: solar energy system, ship grid).

The arrangement of bottle

• Do not let bottle touch the back side of cooler in order to maintain good air circulation in the cooler.
• The capacity for bottle storage in the wine cabinet is based on the following marked bottle size Oversized bottle may have impact on the number of bottle storage in the wine cabinet.
• While loading multiple levels of bottles on the same shelf, please order delicately your bottles from the 1st row so to prevent them from colliding with the bottles of the 2nd row. Store the bottles in "head spade", ie by crossing the neck and the bottom of each bottle, so that you can approach the maximum capacity announced.
• For model CUVEE S24G: The recommended maximum bottling volume is 24 bottles,

Diagram of stacked cylindrical components connected by a line, showing structural alignment (no text or symbols)

▶ Bottling instructions at the bottom

① Four bottles can be placed at the bottom, in the order shown in the diagram, with two bottles placed horizontally and horizontally at the bottom of the tank.

Simple line drawing of two wine bottles placed on a metal rack (no text or symbols)

②The other two bottles are turned 180° and placed diagonally at the bottom of the case.

Simple line drawing of a wine bottle and its internal components (no text or symbols)

③ Bottom wine bottles are arranged as shown below

Line drawing of a cylindrical mechanical component with two protruding pipes, mounted on a frame (no text or symbols)

▶ Upper bottling instructions

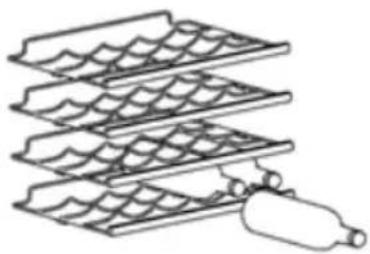

① A total of 4 layers of wine shelves are placed in the upper space, and each layer of wine shelves can be placed 5 bottles of red wine, as shown below: lay the bottle horizontally and lengthwise in the wavy groove of the wine rack, ensure that the bottle body is wavy with the steel wire full contact.

Line drawing of a multi-tiered waffle or griddle with a small bag attached (no text or symbols)

② Other shelves are placed in the same order as above

Stacked cylindrical tanks with white bottles on top, no text or symbols visible

③ The placement of each layer of wine bottles is shown in Figure 5

Illustration of five cylindrical objects arranged on a base plate (no text or symbols)

Lighting key Display area Temperature-rise key

.... Fast Cool. .... 88°F °C ..... °F/°C ......

Locking and unlocking
Temperature-drop key

▶ Display Control

when power-on the cooler, the display screen will display in full last for 3 seconds,

and the start-up tone will ring, and then enter into the display of normal operation;

Normal operation display: ① In case of no failure, set temperature is displayed; ② In case of failure, error code is displayed;

This cooler adopts the touch control of the glass door. Touch slightly when pressing the keys. It is to be avoided that the area of the display panel is scratched by the sharp things and it shall be kept away from the environment of high magnetic field and high humidity. Otherwise the cooler is possible not to be set and operate normally.

▶ Locking and unlocking

Under the locked state, long press the "Lock key ( 🔒 )" continuously for 3 seconds, the locking will be relieved; the display area will blink;

Under the unlocked state, long press the "Lock key (☐)" continuously for 3 seconds to enter into the locked state;

Except the lighting function, the following operations only be able to carried out under the unlock state.

▶ Lighting mode

Press the lighting key until the buzzer rings to turn on/off the internal lamp.

▶ Super cool mode

Mode entry : Continuously press the "locking and unlocking" and the "lighting key" mode button for 3 seconds to enter, the display area shows "FC" and the mode takes effect.

Mode exit: It lasts for 24 hours at most and will exit the mode automatically.

Press the "locking and unlocking" and the "lighting key" mode button continuously for 3 seconds again in this mode, or power off, also can exit the mode.

Switching of the Fahrenheit temperature and Celsius temperature

Press the Temperature-rise key and the Temperature-drop key continuously for 3 seconds to finish the switch of the Celsius temperature and Fahrenheit temperature; the display area will show the setting Fahrenheit temperature or Celsius temperature under the existing mode.

▶ Temperature setting

Press the "Temperature-rise key", the temperature will increase 1 C (or F). After locking, the cooler will operate according to the setting value;

Press the "Temperature-drop key", the temperature will decrease 1 C (or F). After locking, the cooler will operate according to the setting value.

Setting range of the Celsius temperature: 5°C\~18°C; setting range of the Fahrenheit temperature: 41 F\~64 F.

Memory function

The cooler has the power off memory function. After the power is on again, the cooler will work according to the setting before the power-off.

▶ Error code:

If the failure happens, the display area will show corresponding error codes as shown as below table, the user shall contact a specialist for maintenance, so as to make sure the normal use of the cooler.

Error code	E1 E6 E7
Description	Temperature sensor fault	Communication fault	Ambient temperature sensor fault

Storing too many cans or bottles in the cooler may cause the temperature in the cooler to rise temporarily.

5. MAINTENANCE OF WINE COOLER

▶ Clean the wine cooler

• Dusts behind the wine cooler and on the ground shall be timely cleaned to improve the cooling effect and energy saving.
• Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
• The interior of the wine cooler should be cleaned regularly to avoid odor.

Illustration of various chemical products including bottles, containers, spray bottles, and a small container (no text or symbols)

• Please turn off the power before cleaning, remove drinks, shelves, etc.
• Use a soft cloth or sponge to clean the inside of the wine cooler, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and dry with a soft cloth. After cleaning, open the door and let it dry naturally before turning on the power.

Do not use detergent and solvent with sand or acid.

• For areas that are difficult to clean in the wine cooler (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterials accumulation in these areas.
• Do not use soaps, detergents, spray cleaners, etc. to clean the inside of your cooler as these may create odors or contamination.
• Clean the shelves with a soft cloth dampened with soapy water or diluted detergent. Then rinse with water and dry with a soft cloth or dry naturally.
• The wooden wine rack should not be directly immersed in liquid to prevent cracking or mold after moisture. The wooden wine rack is cleaned with a dry soft cloth. The heavily contaminated wooden wine rack should be cleaned with a soft cloth that has been wrung out, and dry naturally.
• Wipe the outer surface of the wine cooler with a soft cloth dampened with soap water, detergent, etc., and then wipe dry. Do not rub or scratch the surface of the glass door to prevent the door from being broken or scratched.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives(such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the wine cooler surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.
• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion. Water should not soak the operating control elements and lighting system in the glass door.

▶ Stop using

Disconnect the wine cooler

Unplug power plug to disconnect the wine cooler.

Stop using the wine cooler

If the cooler left unused for a long time, please:

1. Unplug the cooler;
2. Clean the cooler;
3. Keep the cooler door open.

Once the wine cooler has been started, continuous operation is recommended. Please do not move the fridge under normal conditions as this may affect the life of the fridge.

6. Trouble shooting

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.

Not work	Whether the cooler is plugged and connected to power;Low voltage;Whether temperature control knob is in the work area;Failure power or tripping circuit.
Long-term operation of compressor	It is normal that cooler operates for longer time in summer when the ambient temperature is higher;Do not put too much beverage s in the cooler at one time;Frequent opening of cooler door.
Light not work	Whether the cooler is connected to power, whether the indicator light is damaged.
Loud noises	Whether the floor is flat, whether the placement of cooler is stable;Whether the cooler accessories are properly placed.
Over heat on sidewallSurface condensation	The cooler enclosure may emit heat during running specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon.Condensation: condensation phenomenon will be detectedon the exterior surface and door seals of the cooler when the ambient humidity is high, this is a normal phenomenon, and after wiping with towel, turns up the set temperature of the appliance properly.
Airflow soundBuzzClatter	Refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal does not affect the cooling effect.Buzz will be generated by running compressor specially when starting up or shutting down. The solenoid valve or electric switch valve will clatter which is a normal phenomenon and does not affect the operation.

Warm tips:

If your wine cellar does not seem to work normally, unplug the unit while a few minutes, then plug in again in order to reset the electronics.
If the problem persists or for any other problems, occurring on your device: contact the Service After Sales.
◆ Any intervention on the cold circuit must be performed by a licensed professional (refrigeration technician) who will have to make an inspection of the circuit refrigerant.
◆ Similarly, any intervention on the electrical circuit must be performed by a qualified electrician. Note: Any intervention performed by a technician not approved will void the warranty.

Note:

· In accordance with Article L. 217 of the Consumer Code, your product has 2 year legal guarantee of conformity.

- Period of availability of repair spare parts: 10 years.

• To contact our After-Sales Service, before going to BUT store, call 09 78 97 97 97, from Monday to Saturday from 8:00 a.m. to 8:00 p.m. (Price of a local call).

7. TECHNICAL INFORMATION

Product Information SheetCOMMISSION DELEGATED REGULATION (EU) 2019/2016
Supplier's name or trademark: SIGNATURE
Supplier's address: BUT INTERNATIONAL, 1 AVENUE SPINOZA 77184 EMERAINVILLE, FRANCE
Model identifier: CUVEE S24G
Type of refrigerating appliance:
Low-noise appliance:		No	Design type:	freestanding
Wine storage appliance:		Yes	Other refrigerating appliance:	No
General product parameters:
Parameter		Value	Parameter	Value
Overall dimensions (millimetre)	Height	640	Total volume (dm3 or l)	66
	Width	470
	Depth	440
EEI		172	Energy efficiency class	G
Airborne acoustical noise emissions (dB(A) re 1 pW)		40	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		137	Climate class:	extended temperateTemperateSubtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting		No

7. TECHNICAL INFORMATION

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3l'Annexe IV, Tableau 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	No	-	-	-	-
Wine storage	Yes	66,0	12	-	M
Cellar	No	-	-	-	-
Fresh food	No	-	-	-	-
Chill	No	-	-	-	-
0-star or icemaking	No	-	-	-	-
1-star	No	-	-	-	-
2-star	No	-	-	-	-
3-star	No	-	-	-	-
4-star	No	-	-	-	-
2-star section	No	-	-	-	-
Variable temperature compartment	-	-	-	-	-
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			LED
Energy efficiency class			NA
Minimum duration of the guarantee offered by the manufacturer: 2 YEARS
Additional information:
Weblink to the manufacturer's website, where the information in point 4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.but.fr

Reference:	CUVEE S24G
Rated voltage:	220-240V~
Ampere:	0.7A
Rated frequency:	50Hz
Climate class:	SN/N/ST
Refrigerant:	R600a(22g)
Protection against electrical shock:	I
Insulation foam:	CYCLOPENTANE

Climate classes

-Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatur esranging from 10 °C to 32 °C';
-Temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';
-Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';
-tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Note: More data information, please scan the QR code on the energy label.

8. CORRECT DISPOSAL OF THIS PRODUCT

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of of conformity of 2 years.

Duration of availability of spare parts: 10 years.

To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97,

From Monday to Saturday from 8:00 am to 8:00 pm (local call price).

LE TRI + FACILE BAC DE TRI
