USER MANUAL CUVEES31N SIGNATURE

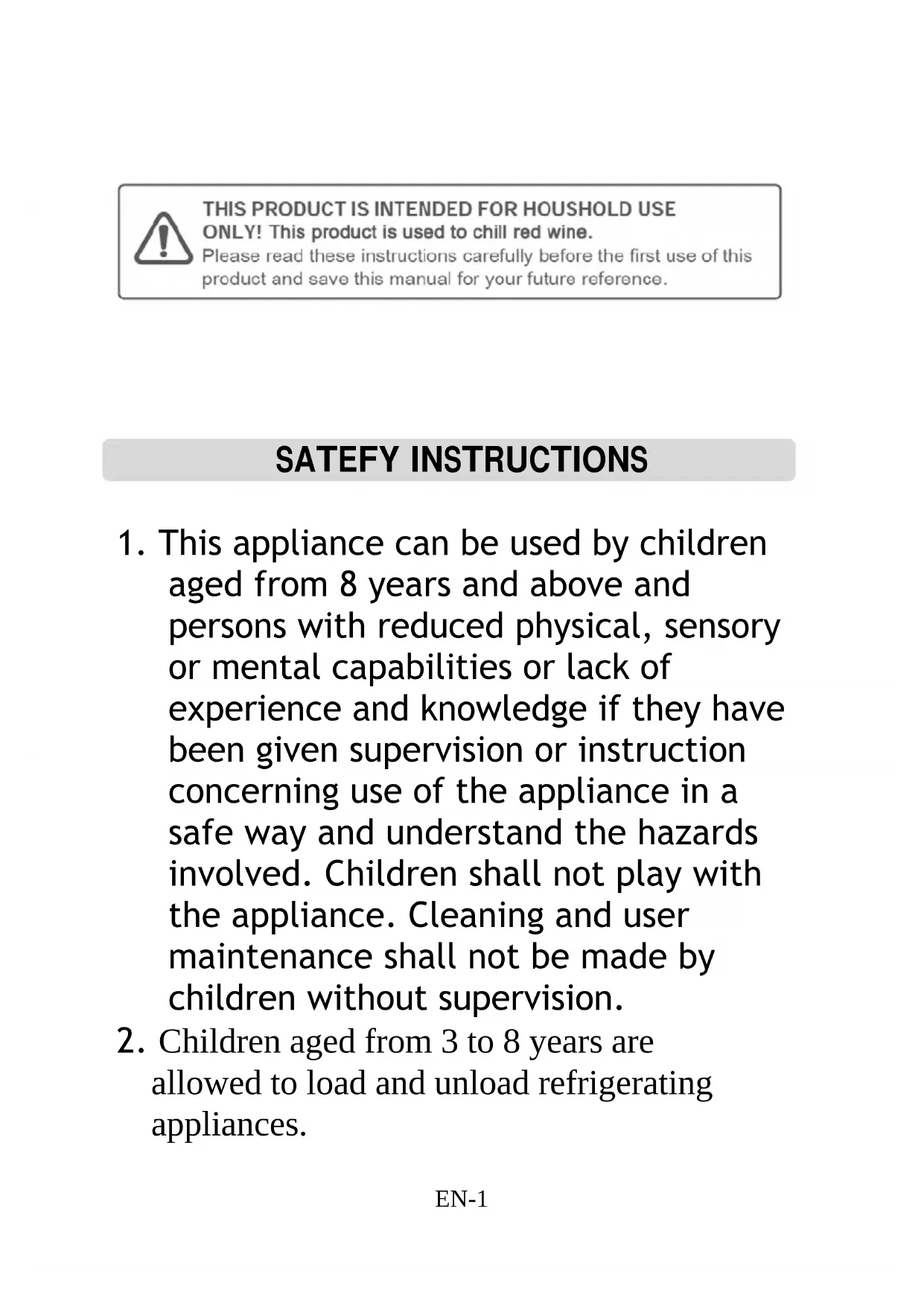

SATEFY INSTRUCTIONS -1-

1. This appliance can be used by children

aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. Children aged from 3 to 8 years are

allowed to load and unload refrigerating appliances.EN-2

3. WARNING: Keep ventilation openings, in

the appliance enclosure or in the built- in structure, clear of obstruction.

4. WARNING: Do not use mechanical

devices or other means to accelerate the defrosting process , other than those recommended by the manufacturer.

5. WARNING: Do not damage the

es inside the food storage compartments of th e ap pliance, unless they are of the type recommended by the manufacturer. Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant. Please accord to local regulations regarding disposal of the appliance for its flammable refrigerant and blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.EN-3 This appliance is intended to be used in household and similar applications such

Staff kitchen areas in shops, offices and other working environments; Farm houses and by clients in hotels, motels and other residential type environments; Bed and breakfast type environments; Catering and similar non-retail applications.

7. Make sure the power input meet the

dependent grounded outlet

any case, please ensure that the use of the ground wire connection socket, and do not modify the power cord and plug Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.EN-4 Power cord should be kept firmly in contact with the socket to avoid fire. After installation, the plug can be touched without difficulty to ensure it can be unplugged if with any case of accidents

hen flammable gas leaks Turn off the gas leak valve, and then open the doors and windo ws f

ventilation, do not pull out the plug Do not store or use gasoline and other flammable materials near the wine cooler to prevent fire.

10. Prohibit flammable/explosive dangerous

goods/ corrosive acids, bas es materials to the inside of wine co oler. DO not use any appliance inside the wine cooler

11. Take Care of kids

Prevent the kids from entering the wine cooler. Prevent the kids from hanging on the door to play, to avoid damage when the whole wine cooler or door tiltedEN-5 Prevent the kids from putting the hands, feet to any hole of wine cooler to avoid damage. Prevent the kids to climbing or sit in the shelves, so it is possible to damage the appliance and shelves. If there is a key for wine cooker, place the key where the kids cannot get to avoid locking themselves in a wine cooler.

12. Attention to water

Never use water to spray and wash the appliance, and do not pla

the appliance in moist and splashed water in place, do not fill water to the inside of appliance to avoid affecting the electrical insulation performance, which may result in electric shock, fire and other accidents

13. Careful frostbite

After running, do not touch the interior surf

es, especially with wet hands. Otherwise, the skin may stick to the interior surface result into damageEN-6

15. Prohibit to altering wine cooler

Prohibit to disassembling, altering or damaging the wine cooler Repair the appliance must be performed by qualified personnel

14. Do not open the door for long periods.

Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

16. Unplug if with following conditions

Before cleaning and maint enance, or default or power outage, unplug the wine cooler, for at least 5 minutes interval before power again, to prevent damage to the compressor and consecutive starts.

17. Scrap the appliance

Scrap the appliance away fro m the fire to prevent accidents. Remove the door in order to avoid accidents of kids into playEN-7 To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly to promote the sustainable reuse of material resources, the refrigerants and the flammable insulation blowing gases. The disposal should only be done through public collection points; contact the waste treatment centre nearest your home for more details on the correct procedures for disposal.

18. Do not damage the power cord

Do not pull on the cord t o unpl ug the appliance, be sure to hold the plug, and then pull out from the socket. Do not allow the cabinet to withhold the power cord or tread the cord. When remove the wine cooler, to be careful, tied up the power cord, do not roll the power cord.EN-8

19. If the supply cord is damaged, it must

be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

20. This appliance is intended to be used in

household but except in similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; Catering and similar non-retail applications.

Always handle the appliance to avo

22. For installation, servicing:

horizontal floor and keep the ventilation freely. don't try to replace or repair any components by yourself, ask the service agency for help if necessary.23. LED light cannot be replaced by user. In case any problems, please ask for the service agent.

24. Regarding the information of the method for

replacing illuminating lamps, thanks to refer to the below paragraph of the manual.

Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. Clean regularly surfaces that can come in contact with food and accessible drainage systems. Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

25. To avoid contamination of food,

please respect the following instructions: EN-9- Avoid naked flames and sources of ignition.

- Thoroughly ventilate the room in which the . Extreme caution must be used when moving the appliance."

28. This appliance must be installed on the

ground, on a flat, horizontal surface, making

29. Regarding the information pertaining to the

installation, handling, servicing and disposal of the appliance, thanks to refer to the surethat the ventilation openings are completely clear. below paragraph of the manual.

30. Replacing certain parts of your household

electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise,

appliance is situated. . If the refrigerant circuit is damaged: please contact a qualified professional. EN-10Warning

1. Warning: Risk of fire / flammable

materials. There are flammable materials at the back of appliance, please keep the product far away from fire source. 2.WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. 3.WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. EN-11All photos in this manual are for reference. The appliance you buy might not be exactly the same as shown here. Please refer to the actual product.

Note: shelves, door frame, handle and other accessories could be different in accordance with different models and configuration. Please prevail in kind.

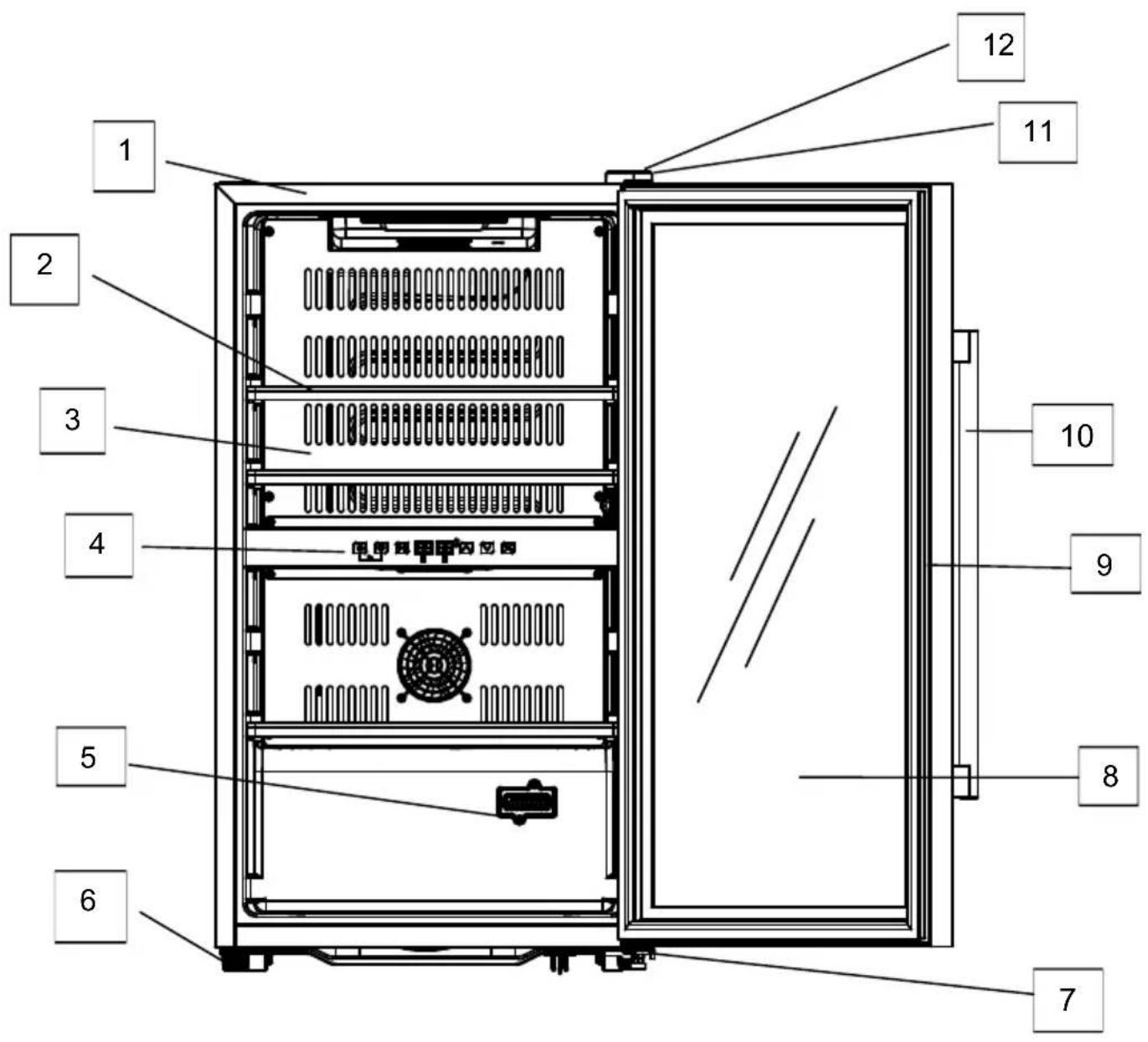

1. Introduction of product parts

Cover board ntrol panel ensor shiled Adjustable front foot Lower hinge Door

Door seal ndle Upper hinge Upper hinge cover

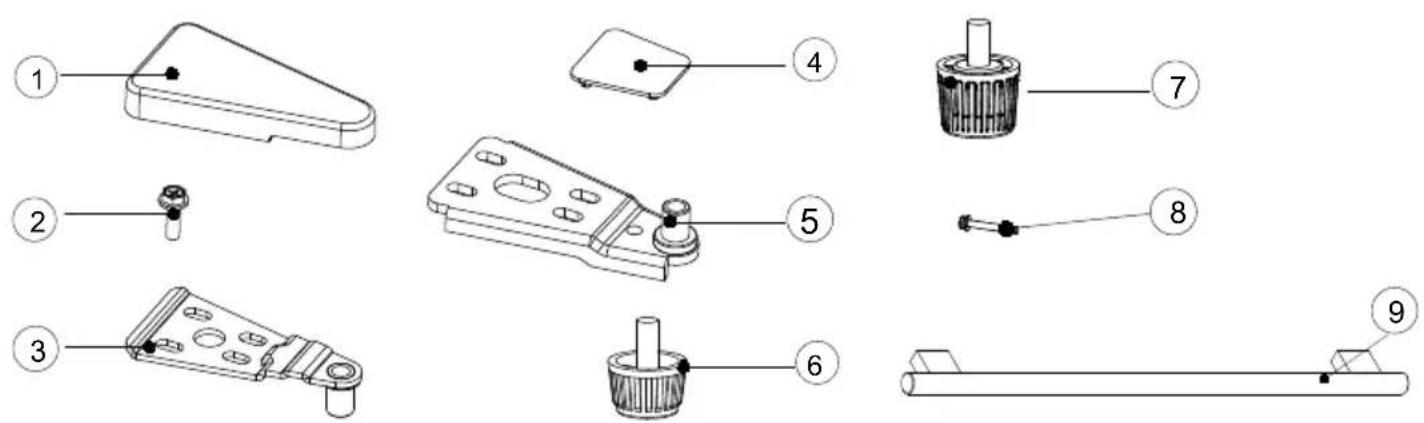

EN-14 Cap Lower door hinge ⑥Short cabinet foot Height cabinet foot Handle screw Handle2.Handle installation 3.Reversing the door Our wine coolers are delivered with the door opening from left to right. To reverse the opening direction: 1)Close the door. 2)Take off the door hinge cover

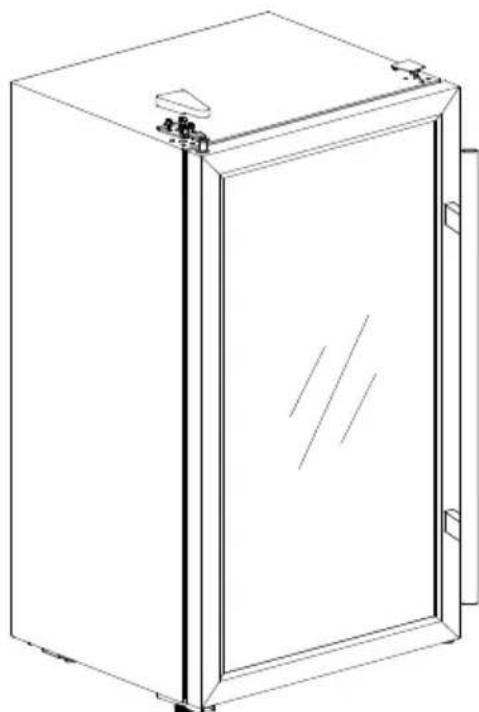

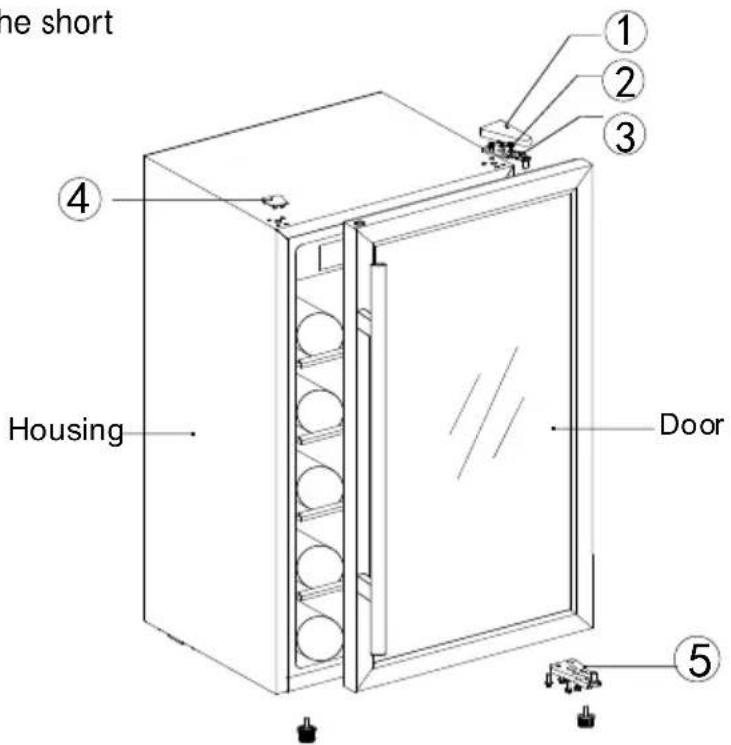

on the up right corner; Unscrew the flange screws ②;Take off door hinge③; Remove the up left side cap④. 3)Lift the door up until the door gets off the lower door hinge

4)Unscrew the lower door hinge. Remove the short cabinet foot⑥ and height cabinet foot⑦.

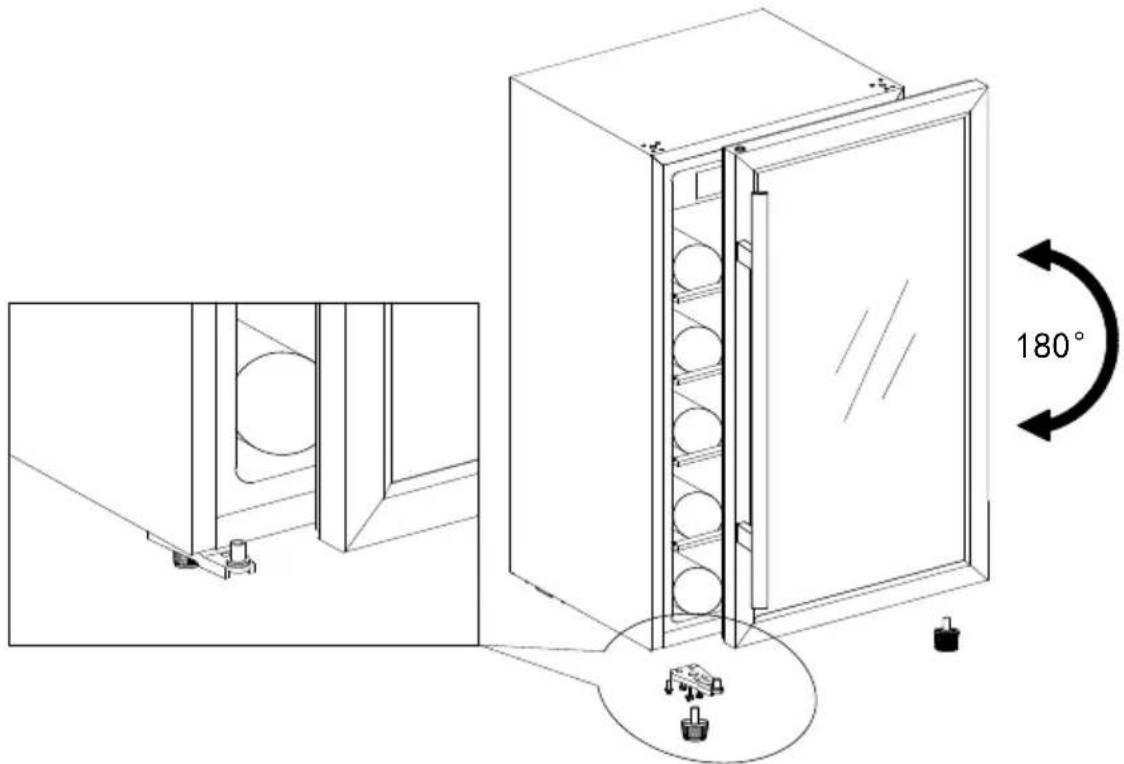

4EN-15 180° 6)Fit the door hinge③to the up left corner and screw the flange screws②; Put on the door hinge cover①; Put the cap to the up right side④. 5)Fit the lower door hinge⑤ to the down left corner; Install the short cabinet foot⑥ and the heght cabinet foot⑦. Put the door above and insert into the lower door hinge.EN-16

Do not lean the appliance over 45°when moving it to position. The appliance must be put on flat, firm & dry floor or similar non-combustible pad; do not use the package foam pad. Do not put the appliance in the wet place Do not use the appliance in the frozen place. Do not use the appliance outdoor in case of sunlight or rain. The appliance must be set with 10 cm wider space around for good ventilation; it is normal for the cabinet getting heat when it’s in operation. Wine bottles could be stored when you feel cooling inside after the appliance Positionoperates around 1 hour.

1. Cleaning the compartment. Before power on, clean inside of the appliance and

check the drainage pipe in good connection. (For details, Please refer to the cleaning and maintenance)

2. Put the appliance still. Before power on, level the appliance on the firm & dry

floor for at least 30 minutes.

3. Power on. The appliance start operation and it will cool down inside after 1

hour, otherwise you should check the power connection.

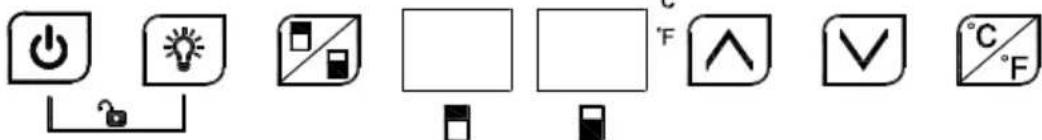

Control Panel All keys would be invalid in lock mode. Please unlock first. ON/OFF 1.Keep pressing the key 3 seconds, power down, goes to stand-by mode. 2.Keep pressing the key again 3 seconds to return back to normal working. Light Press the key, turn on or turn off the LED lights inside. In stand-by mode, the key is invalid.

Zone switch Press the key to switch between upper zone and

lower zone for choosing which zone to set temperature. Press the key once, the LED display in chosen zone flash regularly. Press up and down key to set temperature. Press the key again; switch th e zone to set temperature.

Down Press the key once, LED Display in regular flash showing curret set temperature. Continue pressing to adjust set temperature, one press reduce 1

Fahrenheit/Celsius display interchange Switch temperature display between Fahrenheit and Celsius by pressing and holding the key for 2 seconds. Attention 1.The ex-factory temperature of this product is12

1.Lock：Press both keys at the same time for 3 seconds to lock. 2.Unlock: Press both keys at the same time for 3 seconds to unlock. , and the corresponding

When the temperature sensor of upper zone failure occur, error code displays: E1 for But lower zone temperature will equal to or be higher than upper zone. 3.Alarm sound: when the system malfunction occur and alarm sound, press an

key on the control panel to cancel the alarm sound. 4.Errorcode temperature range needs to be set according to the actual wine. 2.For both upper and lower zone, the cooling temperature could be set from5℃-22℃.

When the temperature sensor of lower zone failure occur, error code displays: E5 for open circuit; E6 for short circuit.of wine get mature quietly and peacefully EN-18

• Each shelf Loading capacity will vary in terms of different way of bottle arrangement or different bottle sizes.could pull out partly to store wine bottles easily.

Open the door straight enough before pulling out shelves.

• If the wine cooler would have no load f or a long time, it is recommended to power it off, cleanThe shelf should be avoided in front of the fan as much as possible to avoid blocking the air inlet and affecting the cooling efficiency. it carefully, and open the door for ventilation.

• Below table is the recommended temperature for wine storing & drinking: Red Wine 15-18℃ White Wine 9-14℃ Rose wine 10-11℃ Champagne & sparkling wine 5- 8℃

• Each shelf is designed to put on 1 or 2 layers of wine bottles. More than 2 layers of bottle arrangement on one shelf are not recommended.

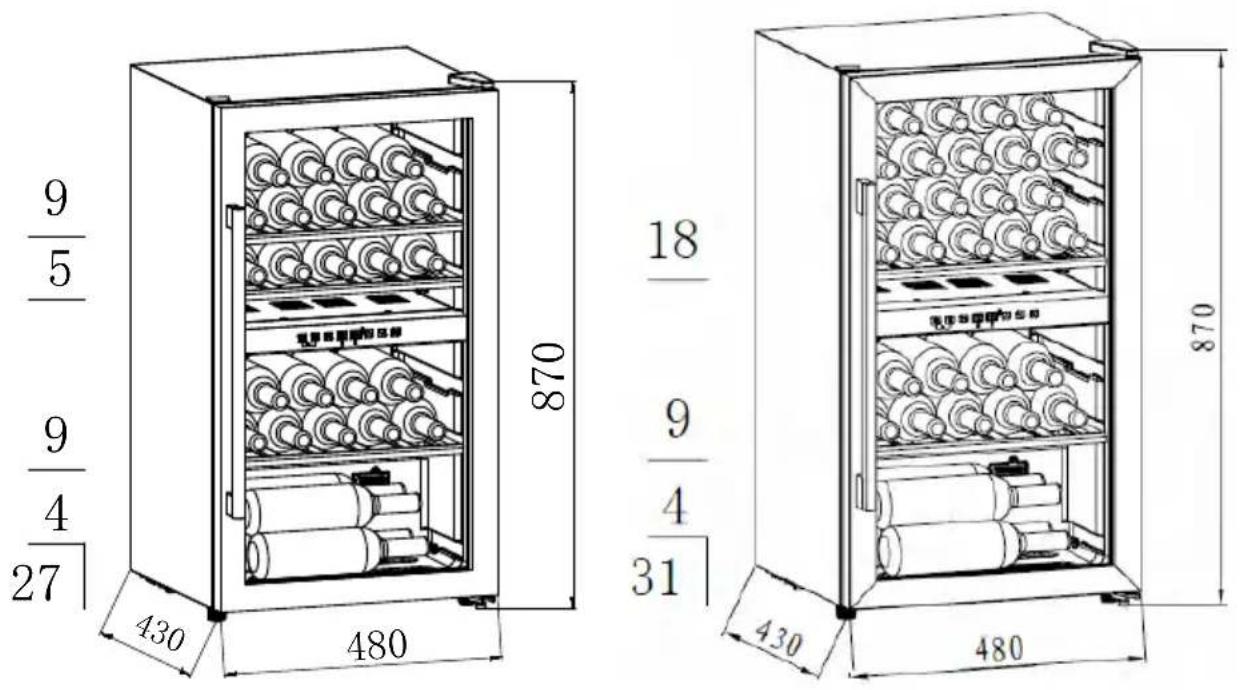

Three shelves loading capacity: 27 bottles. Two shelves loading capacity: 31 bottles. (standard Bordeaux with 750ml )

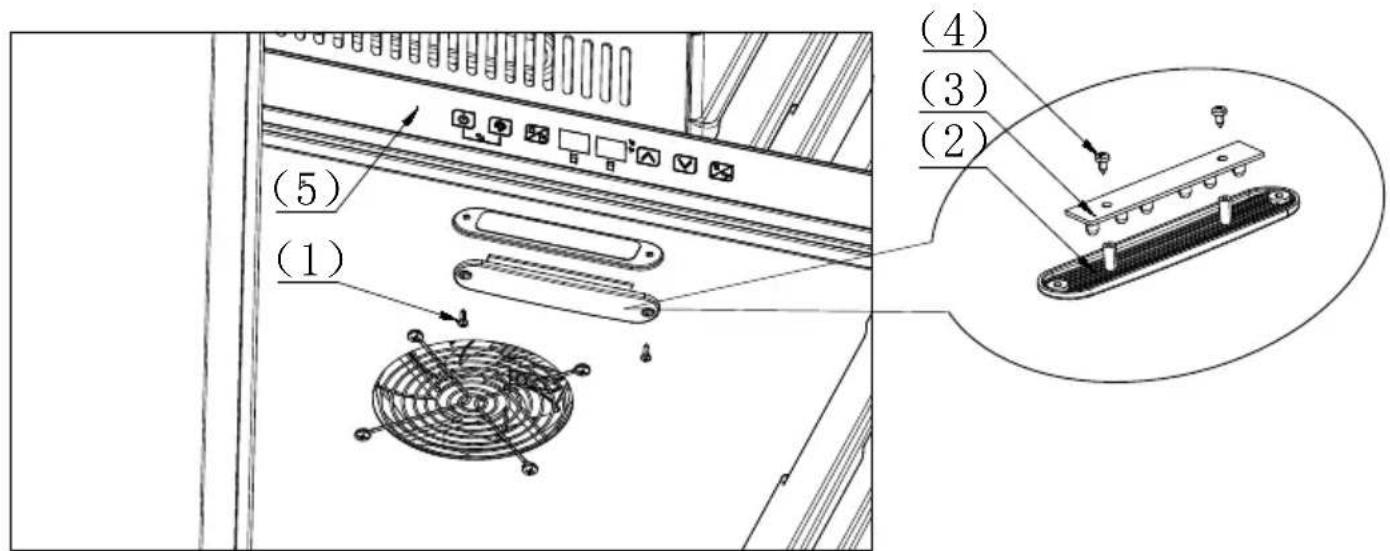

8701. Use a screwdriver to remove a tapping screw in the view (1).

2. Pull out the lampshade to the left by hand. See view(2).

3. Use a screwdriver to remove two tapping screws (3) of the fixed LED lamp

panel (4), remove the LED lamp panel and replace it with a new LED lamp panel, and then reinstall the two screw.

4. Insert the newly removed lamp panel to the right into the slot of the lamp box

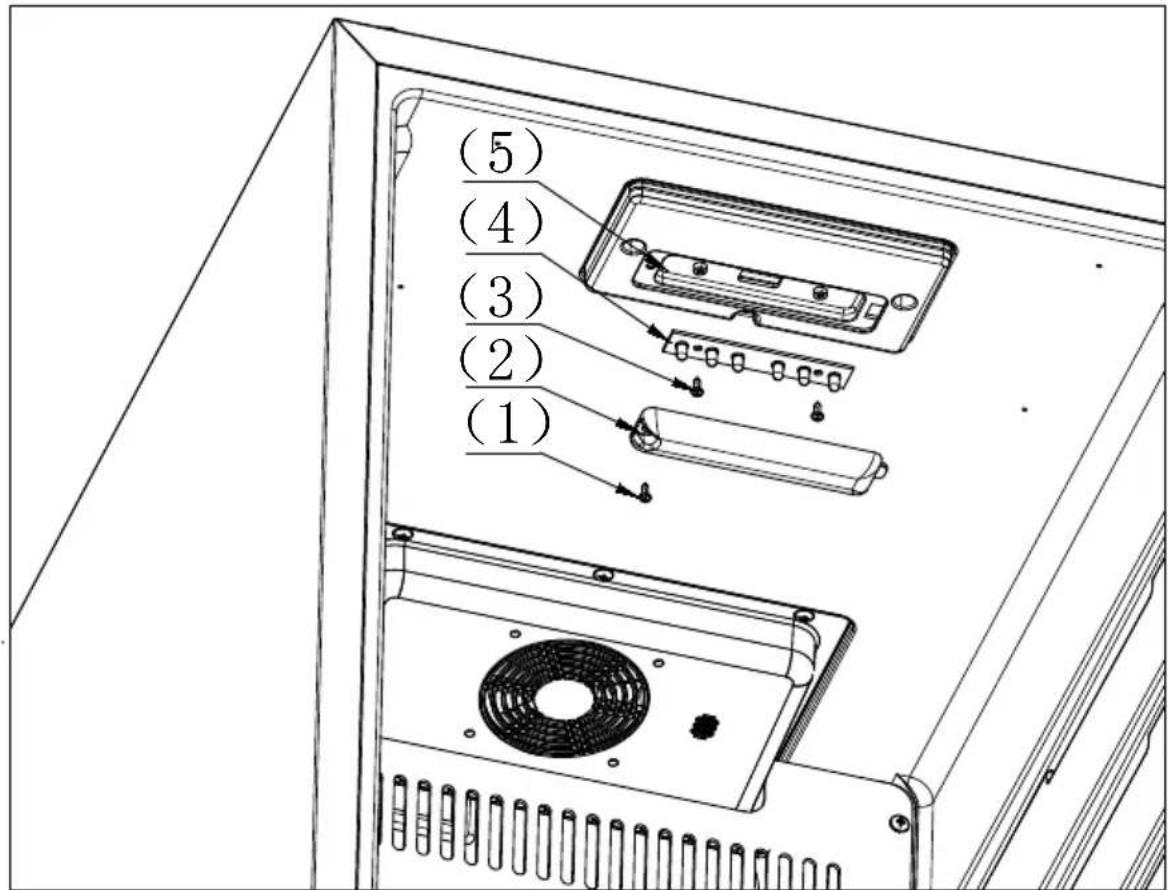

(5) and secure the screws on the left side. LAMP REPLACEMENT Disassembly and assembly the lamp of upper zone Instructions: （5） （4） （3） （2） （1） EN-19Disassembly and assembly the lamp of lower zone Instructions:

1. Use a screwdriver to remove the two tapping screws from the view (1).

2. Remove the entire LED lamp panel (3) and lampshade (2) components directly.

3. The entire lampshade component can be placed on the countertop (with a scratch

resistant pad). Use a screwdriver to remove the two screws (4) that secure the lamp panel, take out the old lamp panel, replace it with a new one and then fix the two screws (4) that were just removed. Last, install the entire lampshade component back to the corresponding position of the lampshade in the partition plate(5). （1） （2） （3） （4） （5） EN-20EN-21 Remove all bottles from the appliance, switch off, defrost, clean, dry,and leave the door open to prevent mould developing within the appliance.

If the appliance is disconnected or if there is a power cut, you must wait at least five minutes before re-starting.

Moving the appliance Cut off the power supply and unplug the appliance. Remove all bottles from the appliance. When moving the appliance, do not lean the appliance over 45°.

Power cut Most power cuts could be resolved within a short time. To protect your wines during a power cut, avoid opening the door as much as possible. During very long power cuts, take the necessary measures to protect your wine.

CLEANING AND MAINTENANCE

Cleaning Please disconnect the appliance before cleaning. Please clean the appliance with soft cloth or sponge by using water.

Clean regularly surfaces that can come in contact with accessible drainage system lease do not use organic solvents, alkaline detergent, boiling water, washing powder or acid liquid etc. Please do not flush the compartment of the applianceEN-22

The appliance makes lots of TROUBLE SHOOTING noise Please adjust the front foot, keep the appliance levelling. Please keep the appliance a bit space from walls. Liquid flowing sound inside the cabinet It is normal because of the refrigerant working inside. Make sure the appliance is connected to th The appliance does not start

power properly. Make sure switch on the power. The compressor re -starts after 5 minutes for a power cut. Compressor runs continuously If no cold is being produced, call the retailer’s after-sale service. Door does not seal tightly After long time use, t he door seal might get stiff & distorted partially.

1. Heat the door seal with hot-wind blower or hot

2. The door seal get softened and close the door.

The appliance does not cool sufficiently Please adjust temperature setting. Keep the appliance away from sunlight or heat. Please do not open the door frequently. Unpleasant smells inside cabinet A little bit plastic smell for newly-buy appliance is normal and will disappear after a short time. Clean the compartment and ventilate it for a few hours. Condensate on the glass door Please do n ot open the d oor frequently or for a long time. Please do not set the temperature too low. High ambient temperature and humidity would cause condensate. The light is not working Check the power supply first. Call the retailer’s after-sale service if the light is broken.EN-23

TECHNICAL SPECIFICATION ENVIRONMENTAL PROTECTION Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice, This appliance is marked according to the European directive 2012/19/EU on Waste electrical and Electronic Equipment (WEEE).By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. sevlehs nedoow 4sevlehS A/NynnoclaB 4evlehs eniW/elttoB A/NrewarD W 1 DELthgiL A/NrewarD A/NthgiL / rueiretni egarialcE INSIDE CHARACTERISTIC FRIDGE COMPARTMENT OUTSIDE CHARACTERISTIC FREEZER COMPARTMENT Bssalc ygrenE NIV A EVACyrogetac tcudorP nA / hWk 802noitpmusmoc ygrenE H42 /hWk 75.0yticapac gnizeerF / noitalegnoc ed riovuoP g24 ,A006RsaG A/NymonotuA TS/N/NSssalc etamilC c ° 02 dna c ° 5 neewteb erutarepmet tneibmAerutarepmet tnaibmA )A( Bd 34level esioN A 8.0erepmA / tnaruoc etisnetnI 5821 x 575 x 084)mc( DxWxH ezis tcudorP 031x5.06x15 )mc( DxWxH ezis gnigakcaP gk34thgiew teN gk94thgiew htworG EAN code

TECHNICAL CHARACTERISTIC ERP Climate class: -Exteneded temperate(SN): this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32°C; -Temperate(N):this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32°C; -Subtropical(ST): this refrigerating appliance is intented to be used at ambient temperatures ranging from 16 °C to 38°C; -Tropical(T):this refrigerating appliance is intented to be used at ambient temperatures ranging from 16 °C to 43°C; Reference: Rated Voltage: Ampere: Rated frequency: Climate class: Refrigerant: Protection against electrical shock: Insulation foam:

1. This appliance is intended to be used exclusively for the storage of wine.

2. The manufacturer reserves all the rights to change the above parameters

without prior notice. Please refer to the name plate of your appliance.EN-24 yes

Exempt from(EU) 2019/2015 -light source Auto 80.0ENVIRONMENTAL PROTEC EN-26 TION European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection. We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

• In accordance with Article L. 217 of the Consumer Code, your product has 2-year legal guarantee of conformity.

• Period of availability of repair spare parts: 10 years.

• To contact our After-Sales Service, before going to BUT store, call 09 78 97 97 97, from Monday to Saturday from 8:00 a.m. to 8:00 p.m. (Price of a local call).
