USER MANUAL UPDF9904ST SIGNATURE

SIGNATURE KITCHEN SUITE

OWNER'S MANUAL DISHWASHER

Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times.

UPDF9904ST

MFL69261710

TABLE OF CONTENTS

2 TABLE OF CONTENTS

3 PRODUCT FEATURES

4 SAFETY INSTRUCTIONS

4 IMPORTANT SAFETY INSTRUCTIONS

8 GROUNDING INSTRUCTIONS

8 TIP OVER HAZARD

9 PRODUCT OVERVIEW

9 Exterior Parts

10 Interior Parts

10 Accessories

11 INSTALLATION

11 Installation Parts and Tools
12 Installation Overview

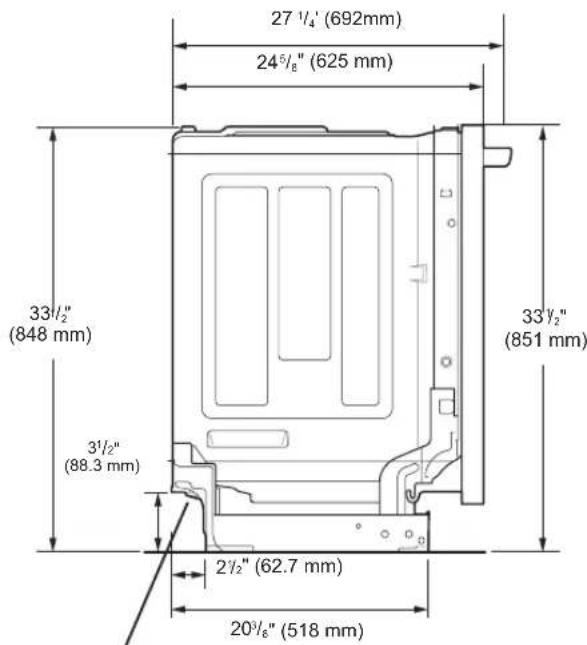

12 Product Dimensions
12 Product Specifications
13 Step1: Preparing Cabinet Opening
13 Step2: Preparing Electrical Wiring
14 Step3: Preparing Water Supply Connection
14 Step4: Preparing Dishwasher
15 Step5: Removing Lower Cover
15 Step6: Sliding Dishwasher into Cabinet
16 Step7: Leveling Dishwasher
16 Step8: Securing Dishwasher to Countertop
17 Step9: Connecting Drain Hose
18 Step10: Connecting Water Supply
19 Step11: Connecting Power
19 Step12: Final Check

20 OPERATION

20 Using the Dishwasher
20 Auto-Off
21 Control Panel
23 Cycle Guide
24 Loading the Lower Rack
25 Folding Down the Lower Tines
25 Difficult to Remove Food on Dishes

26 Loading the Silverware Basket
26 Loading the Upper Rack
27 Folding Down the Upper Tines
27 Height Adjustable Upper Rack
28 Loading the Cutlery Rack
29 Height Adjustable Tray
29 Adding Cleaning Detergent

31 SMART FUNCTIONS

31 Application Installation
31 Product Registration
31 Using the Wi-Fi Function
32 FCC Notice (For transmitter module contained in this product)
32 FCC RF Radiation Exposure Statement
33 Using Smart Diagnosis™

34 MAINTENANCE

34 Cleaning the Filters
35 Cleaning the Interior
35 Cleaning the Exterior
35 Cleaning the Lower Spray Arm
35 Cleaning the Upper Spray Arm
36 Cleaning the Top Spray Arm
36 Seasonal Maintenance and Storage
36 Clogged Drain Air Gap or In-Sink Disposal

37 Troubleshooting

37 FAQs: Frequently Asked Questions
40 Before Calling for Service

43 WARRANTY

PRODUCT FEATURES

LARGE CAPACITY

SIGNATURE KITCHEN SUITE dishwashers allow you to load very large items in both the upper and lower racks. The tall tub provides extra overall capacity and the clearance to accommodate large dishes. Extra large items (max. 14 in.) may be loaded in the lower rack by raising the upper rack.

This system effectively dries dishes without the use of a heating element that would increase energy consumption.

STEAM WASHING

Steam technology provides better cleaning performance than regular wash systems. Steam provides the most energy-efficient gentle care for your finest china and stemware.

VARIABLE SPRAY SYSTEM

Because the water spray alternates between the upper and lower racks, all of the power from the motor is directed to one rack at a time. This concentrates all the cleaning power of the motor on each rack in turn.

SMART FUNCTIONS

Push Alerts - Turn on the Push Alerts to receive appliance status notifications.

Monitoring - Check the current status, cycle, options, running time and cycle end time for the appliance on a single screen.

Smart Diagnosis™ - Should you experience technical difficulty, your appliance has the capability of transmitting data by phone to the Customer Information Center to diagnosis the problem.

SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USE

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or injure you and others.

All safety messages will follow the safety alert symbol and either the word DANGER, WARNING, or CAUTION.

These words mean:

WARNING - You may be killed or seriously injured if you do not follow instructions.

CAUTION - You may be slightly injured or cause damage to the product if you do not follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what may happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

This product contains chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

INSTALLATION

• All electrical wiring and grounding must be done in accordance with national and local codes. Failure to follow these instructions may result in fire, electric shock, or malfunction.
• This dishwasher must be connected to a hot water supply with a temperature range between 120 °F (49 °C) and 149 °F (65 °C). This temperature range provides the best washing results and shortest cycle time. The temperature should not exceed 149°F (65 °C) to prevent damage to dishes. Failure to follow these instructions may result in performance degradation.

• Check the dishwasher for any damage before installing it. Contact the retailer or contractor immediately concerning any damage. Failure to follow these instructions may result in malfunction.

• Use new hoses when connecting the appliance to the water supply. Do not reuse old hoses.
  Failure to follow these instructions may result in electric shock, fire or malfunction.

• This appliance must be positioned near to an electrical power supply. Failure to follow these instructions may result in fire or electric shock.
• The installer must ensure that the dishwasher is completely enclosed at the time of installation.
  Failure to follow these instructions may result in electric shock, fire, or injury.
• Disconnect the power cord or circuit breaker before installing or servicing the dishwasher.
  Failure to follow these instructions may result in death, fire or electric shock.
• After installing, check the hose connection for leaks. Failure to follow these instructions may result in electric shock and property damage caused by water leaking.
• Fix the drain hose securely. Failure to follow these instructions may result in electric shock caused by splashing water.

- When moving or installing the product in a different location, call a qualified SIGNATURE KITCHEN SUITE service center for installation and service. Failure to follow these instructions may result in fire or product failure caused by improper installation.

OPERATION

• Read all instructions before using the dishwasher.
• Use the dishwasher only for its intended purpose.
• Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of the reach of children.
• This appliance is not intended for use by young children.

- When loading items to be washed:

• Locate sharp items so that they are not likely to damage the door seal.
• Load sharp knives with the handles up to reduce the risk of cut-type injuries.

- Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.

- Do not touch the HEATING ELEMENT during or immediately after use.

- Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.

- Do not tamper with controls.

- Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.

- To reduce the risk of injury, do not allow children to play in or on the dishwasher.

- Do not come into contact with the steam outlet. The steam is hot and may cause burns.

- Do not open the door while operating the product. Hot water may splash or hot steam may cause burns.

- For personal safety, remove house fuse or open circuit breaker before installation. Do not use an extension cord or adapter plug with this dishwasher. Electrical and grounding connections must comply with the National Electrical Code/provincial and municipal code and/or other local codes.

- Do not use an extension cord with this appliance. Failure to follow these instructions may result in death, fire, or electric shock.

- Do not use the dishwasher if it has a damaged power cord. Failure to follow these instructions may result in fire or electric shock.

- Do not grasp the power cord or touch the dishwasher controls with wet hands. Failure to follow these instructions may result in electric shock.

- Do not install or store the dishwasher where it will be exposed to weather conditions. Failure to follow these instructions may result in electric shock, fire, malfunction, or deformation of the dishwasher.

- Do not damage or place heavy items on the power cord of the appliance. Failure to follow these instructions may result in fire or electric shock.

- Do not plug the dishwasher into a damaged outlet. Failure to follow these instructions may result in electric shock.

- Do not install or keep the dishwasher near electrical components or exposed flames. Failure to follow these instructions may result in fire or death.

- Disconnect electrical power before you start. Failure to follow these instructions may result in fire, electric shock, or malfunction.

- Do not wash dishes exposed to gasoline, solvents or other flammable materials. Failure to follow these instructions may result in fire or death.

- Do not open the door suddenly while operating. Failure to follow these instructions may result in injury or damage to the product.

- When cleaning, do not spray water on the product directly. Failure to follow these instructions may result in fire or electric shock.

- Do not press buttons with a sharp object such as an awl or pin. Failure to follow these instructions may result in electric shock.

- When gas is leaking, do not operate the product or power cable. Open a window and ventilate the indoors. Failure to follow these instructions may result in fire or explosion by sparks.

• Do not use solvent-based detergent. Failure to follow these instructions may result in toxic gas, damage to product parts, fire, or explosion.
• Do not let children eat detergent or dishwasher rinse agent. Failure to follow these instructions may result in injury.
• If the product has been submerged, contact SIGNATURE KITCHEN SUITE service center for instructions before resuming use. Failure to follow these instructions may result in fire or electric shock.
• If you detect a strange sound, smell or smoke from the product, unplug it immediately, contact an SIGNATURE KITCHEN SUITE service center and follow their instructions. Failure to follow these instructions may result in fire or electric shock.
• After cleaning the dishes, turn off the faucet. Turn on the faucet again and check the connection status of water supply hose before cleaning. Failure to follow these instructions may result in electric shock and property damage of water leaking, if the screw of the water supply hose is loose.
• Be careful not to catch your hand when closing the door of the product. Failure to follow these instructions may result in injury.
• Do not modify the power cord. Failure to follow these instructions may result in fire or electric shock.
• Use the power outlet only for the product, and do not use one outlet for several products. Failure to follow these instructions may result in fire or electric shock.
• Insert the power plug into the outlet firmly. Failure to follow these instructions may result in fire or electric shock.
• Unplug by firmly grasping the plug, not the cord. Failure to follow these instructions may result in fire or electric shock.

MAINTENANCE

- Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

• Small parts, such as rack clips and filter retaining posts can be a choke hazard to small children if removed from the dishwasher. Keep out of reach of small children.
• Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
• Do not store or use gasoline, solvents, or other flammable materials in the dishwasher. Failure to follow these instructions may result in fire or death.
• Keep packing materials out of the reach of children, and dispose of packing materials properly after unpacking the dishwasher. Failure to follow these instructions may result in death or suffocation.
• Do not allow children or pets to play on or in the dishwasher. Failure to follow these instructions may result in injury or malfunction of the dishwasher.
• Do not let the children or small animals go inside the dishwasher before disposing of the dishwasher. Failure to follow these instructions may result in death or injury.
• Disassembly or repair must be performed by experienced service persons. Failure to follow these instructions may result in product failure or electric shock.
• If the electrical supply is damaged, it must only be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard. Failure to follow these instructions may result in fire, electric shock, or malfunction.
• If the power plug is dusty or wet, wipe with a dry towel. Failure to follow these instructions may result in fire or electric shock.
• Keep the interior of the product and the area surrounding the product free from animal, rodent, or insect remains. Failure to follow these instructions may result in fire damage.
• Prevent animals from chewing the power cord or water supply hose. Failure to follow these instructions may result in product or property damage or shock to the animal.
• Before discarding the product, cut off the power cord and destroy the product's control panel. Failure to follow these instructions may result in fire or electric shock if the discarded product is reused.

SAVE THESE INSTRUCTIONS

CAUTION

To reduce injury or damage to the product to persons when using the appliance, follow basic safety precautions, including the following:

INSTALLATION

• Moving or installation of the dishwasher requires two or more people. Failure to follow these instructions may result in injury.
• Do not put the exhaust hose under the dishwasher during installation. Failure to follow these instructions may result in leakage.
• Do not install in a trailer, ship, or airplane. The object may fall while the unit is operating and cause injury.
• Install the product on a firm and level floor. Failure to follow these instructions may result in leak, vibration or noise.
• If the product is delivered during winter or at a temperature below zero, do not operate the product immediately after installing. Failure to follow these instructions may result in product or part failure; if a part is frozen, it may not operate properly.
• After connecting the water supply hose, turn on the faucet and check for water leaks before operating. Failure to follow these instructions may result in property loss due to water damage.

OPERATION

• Turn off the faucet when not in use. Failure to follow these instructions may result in leakage. Outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• Keep hands and feet or metal objects out from under the product. Failure to follow these instructions may result in injury.
• Do not place an object on top of the product. The object may fall while the unit is operating and cause injury.
• Draining water may be hot. Failure to follow these instructions may result in burns, if you are touching.

• Do not wash dishes stained with chemical products such as oil, cream or lotions used in a massage parlor, skin care shop, beauty shop or barber shop. Failure to follow these instructions may result in leaks or product deformation.

• Do not wipe or coat the surface of the product with liquid detergent or bleach (chlorine bleach, oxygen bleach, etc). Failure to follow these instructions may result in corrosion or discoloration of the coating.

• If the drain hose and the water supply hose are frozen in winter, defrost before using. Failure to follow these instructions may result in operation failures or reduction of product life.
• When turning on the faucet again, press the Power button and turn the faucet on slowly. Failure to follow these instructions may result in damage to the main unit or leakage.

MAINTENANCE

- When repairing the product, replace parts with SIGNATURE KITCHEN SUITE genuine parts only. Failure to follow these instructions may result in decreased performance and reduction of product life.

GROUNDING INSTRUCTIONS

WARNING

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

• For a permanently connected dishwasher: This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead to the appliance.
• The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.
• Connect the ground wire to the green ground connector in the terminal box. Failure to follow these instructions may result in death, fire, or electrical shock.
• The dishwasher is designed to be used with a standard household current (120 Volts AC, 60Hz.). Before connecting the dishwasher, ensure that the outlet or cable is properly grounded and polarized by circuit breakers or fuses. Failure to follow these instructions may result in electric shock or malfunction.
• Never unplug your dishwasher by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet. The power cord may be damaged, resulting in a risk of fire and electric shock.

TIP OVER HAZARD

• Do not use the dishwasher until completely installed. Failure to follow these instructions may result in serious injury or cuts.

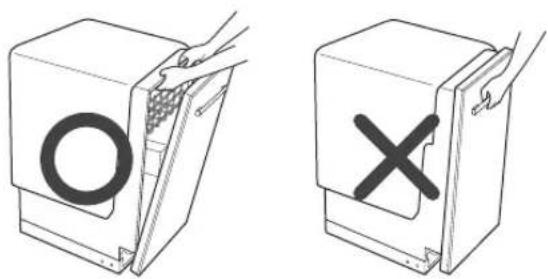

• Do not push down on the open dishwasher door. Failure to follow these instructions may result in serious injury or cuts.

PRODUCT OVERVIEW

Exterior Parts

Fully Integrated

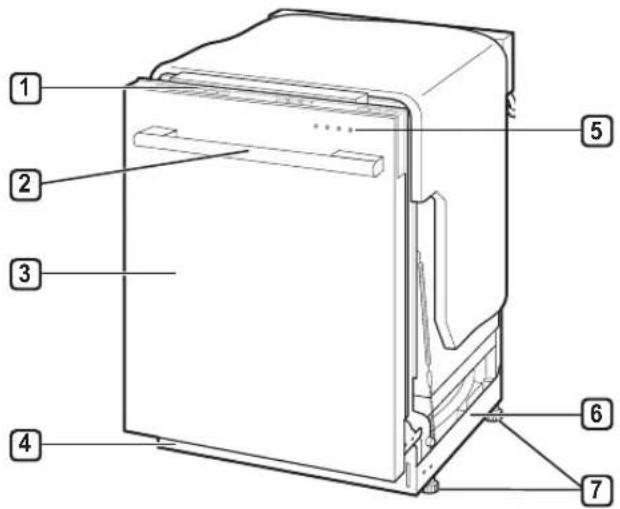

Technical diagram of a refrigerator with numbered parts labeled 1 through 7

① Control Panel
② Door Handle
③ Front Cover
4 Lower Cover
⑤ SignaLight™(Front display)
6 Base
7 Leveling Feet

SignaLight™ (Front display)

When a cycle is running, the SignaLight™ illuminates for the active stage.

- Model with 4 LEDs: Wash – Rinse – Dry – Clean

Once the cycle is complete, the Clean light illuminates for four minutes.

To keep the Clean light on until the door is opened, turn the power on, and then press and hold Extra Dry and Half Load on the control panel simultaneously until OFF or On appears in the display. The dishwasher remembers this setting until manually changed.

Interior Parts

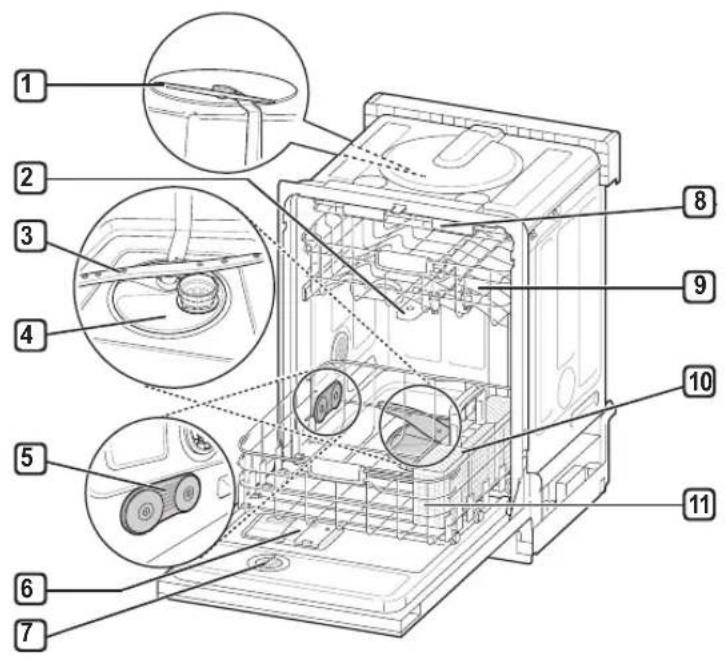

Technical diagram of a washing machine with numbered parts for identification and assembly reference.

① Top Spray Arm
② Upper Spray Arm
③ Lower Spray Arm
④ Filtration System

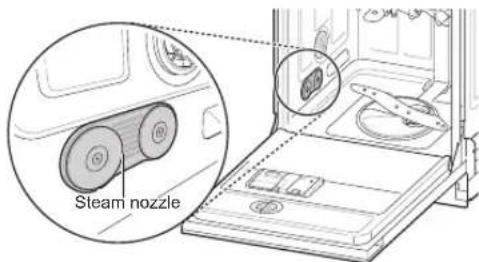

⑤ Steam Nozzle
⑥ Detergent and Rinse Aid Dispenser
⑦ Drying Vent Cover
⑧ Cutlery Rack
⑨ Upper Rack
10 Silverware Basket
11 Lower Rack

Accessories

Included Accessories

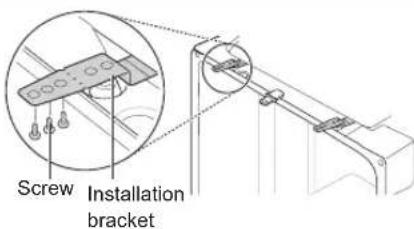

Installation brackets Wood screws Hose clamp

• See step 8 and step 9 of Installation section.

INSTALLATION

Installation Parts and Tools

Parts not Provided

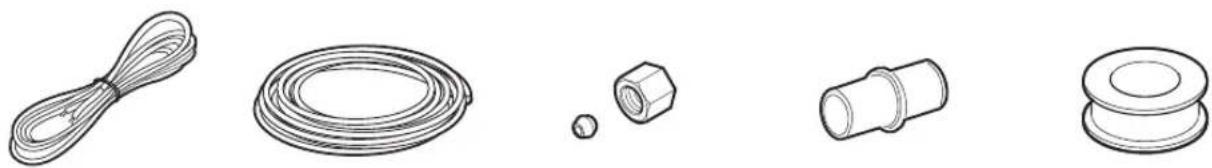

Electrical cable Water supply tube Fittings for tube Rubber connector Teflon™ tape

Air gap

Wire nuts to 16-gauge wiring

Hose clamp

^7/_8 " UL approved strain relief

Electrical tape

Tools Needed

Standard screwdriver

Phillips screwdriver

Hole Saw min. 2½" bit

Electrical drill Gloves

Safety glasses

Adjustable wrench

Tape measure

Cutting knife Level

Tubing cutter Nipper Pliers Wire stripper

14 " Square drive wrench

Installation Overview

Step 1: Preparing Cabinet Opening

Step 2: Preparing Electrical Wiring

Step 3: Preparing Water Supply Connection

Step 4: Preparing the Dishwasher

Step 5: Removing Lower Cover

Step 6: Sliding the Dishwasher into Cabinet

Step 7: Leveling the Dishwasher

Step 8: Securing the Dishwasher to Countertop

Step 9: Connecting the Drain Hose

Step 10: Connecting Water Supply

Step 11: Connecting Power

Step 12: Final Check

Product Dimensions

Back view Side view

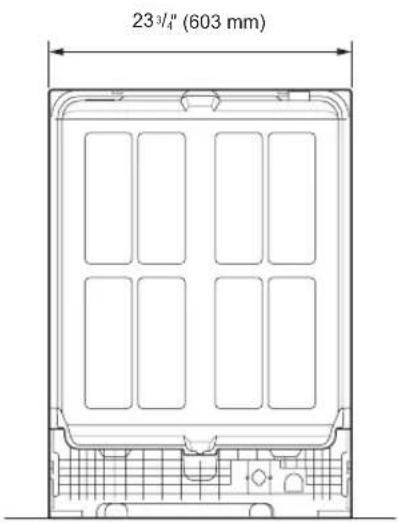

23¾" (603 mm)

27 1/4" (692mm) 24 5/8" (625 mm) 33 1/2" (848 mm) 3 1/2" (88.3 mm) 2 1/2" (62.7 mm) 20 3/8" (518 mm) 33 1/2" (851 mm)

Water supply hose, drain hose and electric cable should be passed through this area.

Product Specifications

The appearance and specifications listed in this manual may vary due to constant product improvements.

Electrical requirement 120 V, 60 Hz AC only, minimum 15 A circuit breaker
Water pressure	20 - 80 psi (140 - 550 kPa)
Dimensions	23^3/4 "(W) X 24^5/8 "(D) X 33^1/2 "(H)603 mm(W) X 625 mm(D) X 851 mm(H)
Inlet water temperature	120 °F (49 °C) minimum
Net weight	85 - 103 lbs. (38 - 47 kg)

Step1: Preparing Cabinet Opening

1 This dishwasher is designed to fit a standard dishwasher opening.
2 Select a location as close to the sink as possible for easy connections to water and drain lines.
3 To ensure proper drainage, the dishwasher should not be installed more than 12 ft. (3.65 m) from the sink.
4 If the dishwasher is to be installed in a corner, a minimum of 2 in. (50 mm) is required between the dishwasher and the adjacent wall.
5 To allow for proper clearance of plumbing and electrical, use the template included with the literature to determine the clearance on the side of the cabinet where the cabinet meets the back wall. Using a 2 ^1/2 " diameter hole saw, drill a hole in the target area as shown on the template. DO NOT USE AN EXISTING HOLE UNLESS IT IS IN THE TARGET AREA.

CAUTION

Failure to properly locate the hole for the water and drain lines may prevent the dishwasher from installing flush with the cabinets and could result in kinked or damaged lines. Installation damage is not covered by the warranty, and leaks caused by improper installation may result in property damage.

An opening may be needed on both sides to route plumbing and electrical connections.

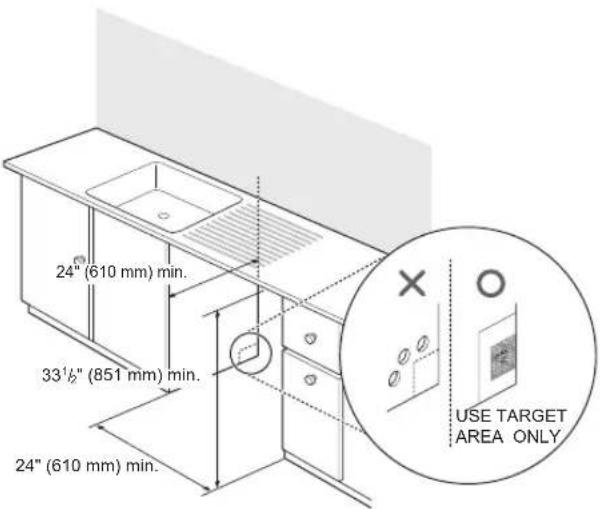

24" (610 mm) min. 33½" (851 mm) min. 24" (610 mm) min. USE TARGET AREA ONLY

WARNING

Don't use existing holes unless they are in the target area. Otherwise, the water supply and drain hose may be damaged by being crushed or kinked.

For flush installations ONLY, you may remove the cabinet brace inside the cabinet.

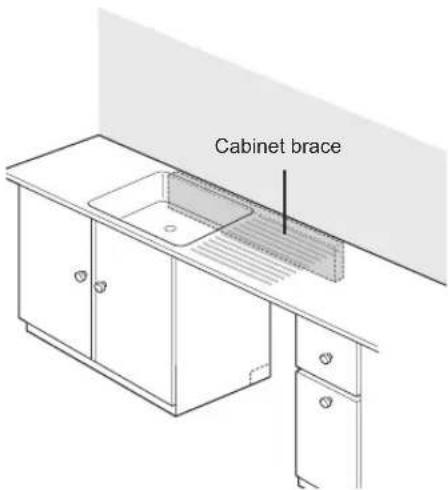

Cabinet brace

Step2: Preparing Electrical Wiring

WARNING

• For personal safety, remove house fuse or open circuit breaker before installation.
• Do not use an extension cord or adapter plug with this dishwasher. Electrical and grounding connections must comply with the National Electrical Code/provincial and municipal code and/or other local codes.

1 This appliance must be operated with correct voltage as shown in this manual and on the rating plate, and connected to a dedicated properly grounded branch circuit, protected by a time-delay fuse. Wiring must be 3 wires including the ground.

2 If an outlet and a three-prong power cord is used, it should be in an accessible location adjacent to and not behind the dishwasher and within 4 ft (1.2 m) of the dishwasher's side.

3 The wiring or cord must be grounded properly. If in doubt, have it checked by a qualified electrician. DO NOT connect any other appliance to the same outlet.

4 The wiring or cord must be routed as shown below.

5 Make sure the electrical cable is oriented in the bottom channel as shown below.

NOTE

• If you find any damage to the dishwasher, please contact your retailer or contractor.
• The included wire nut in 16AWG should be used.

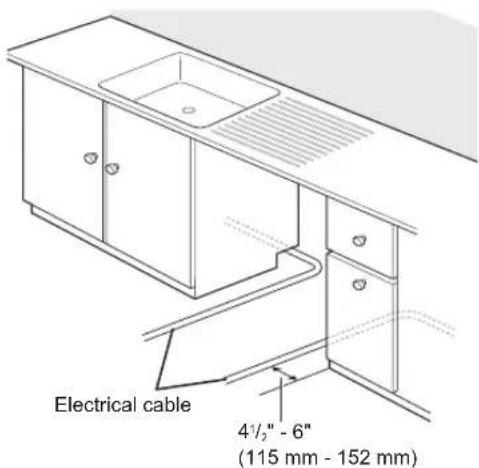

Electrical cable 4½" - 6" (115 mm - 152 mm)

Step3: Preparing Water Supply Connection

Make sure the house water supply is turned off before connecting the dishwasher water lines.

1 This dishwasher must be connected to a hot water supply with a temperature range between 120 °F (49 °C) and 149 °F (65 °C). This temperature range provides the best washing results and shortest cycle time. To prevent damage to dishes, the temperature should not exceed 149 °F (65 °C).
2 When connecting the dishwasher water line, sealing tape or compound should be used on pipe threads to avoid leaks. Tape or compound should not be used on compression fittings.
3 The water supply tube must be located in the left side channel as shown.

NOTE

The instructions for appliances connected to the water mains by detachable hose-sets shall state that the new hose-sets are to be used and that old hose-sets should not be reused.

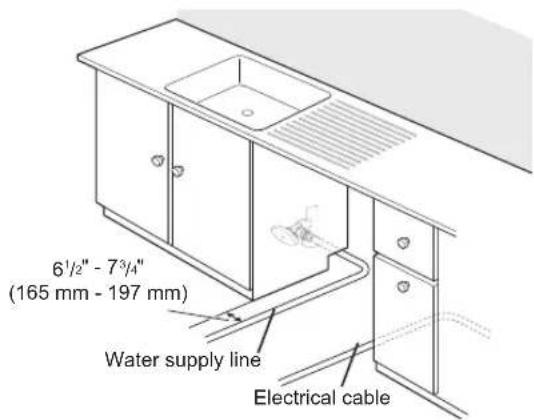

6½" - 7¾" (165 mm - 197 mm) Water supply line Electrical cable

Step4: Preparing Dishwasher

Remove the rear plastic shipping brace for clearance and ease of installation.

Diagram of a drawer with two arrows pointing to a top panel (no text or symbols present)

CAUTION

Don't pull or lift the dishwasher using the handle; doing so can damage the door and hinges. Open the door and grab the body frame and the top front opening of the tub to move or lift the dishwasher.

Two technical illustrations of a door latch mechanism, one with a circular mark and the other with an 'X' symbol (no text or labels)

Step5: Removing Lower Cover

1 Remove the two screws attaching the lower cover to the dishwasher.
2 Remove the lower cover from the base. Remove the insulation pad from behind the access panel.

NOTE

If at any time the dishwasher is laid on its back, take care not to damage the drain hose.

Technical line drawing showing a hand operating a mechanical component with a magnified inset view (no text or symbols)

Step6: Sliding Dishwasher into Cabinet

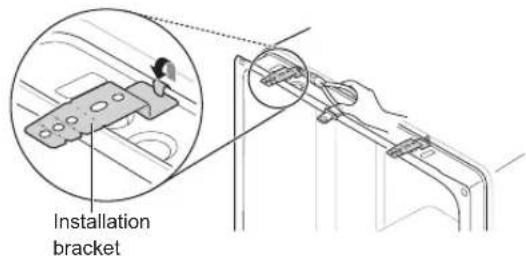

1 Before sliding the unit completely into place you will need to attach the installation brackets.

Installation bracket

2 Before sliding the dishwasher into place, raise the dishwasher by adjusting the front and rear legs of the dishwasher to the approximate height of the opening. Although you will need to make fine adjustments after it is in place, this method will minimize those adjustments.
3 Make sure the water supply line hose and electrical supply line are routed through the designated hooks beside the sump.

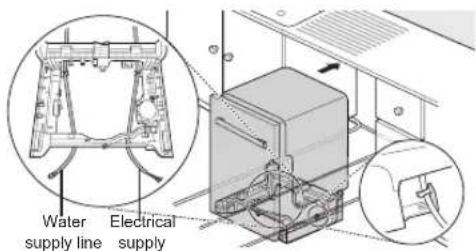

Water supply line Electrical supply

4 Slide the dishwasher carefully into the cabinet opening.

CAUTION

• To avoid a kinked or pinched drain hose, be sure to pull on the drain hose while sliding the dishwasher into place. Do not allow any slack behind the dishwasher.
• After leveling the dishwasher, do not leave the water supply line or power supply line under the sump. This is a potential cause of water leaks. Place the water line and the power supply line beside the sump.

Simple line drawing of a table with a cross mark and cable, no text or symbols present

Adjusting the Legs

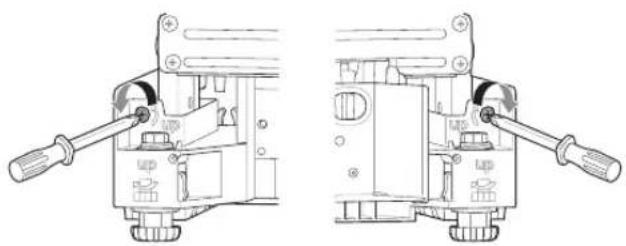

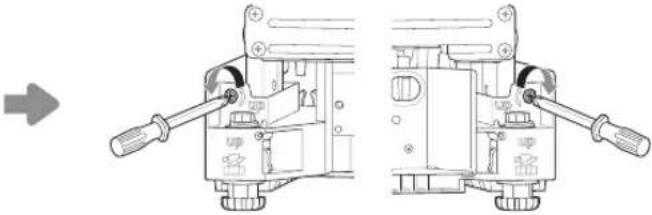

Adjust the rear legs of the dishwasher using the screws just above the front legs of the dishwasher. Use a Phillips #2 screwdriver to make the adjustments.

To raise the back of the dishwasher, lower the legs by turning the screw in the direction of the arrow printed on the base of the unit. To lower the rear of the dishwasher, turn the screw in the direction opposite to the arrow.

NOTE

The right and left side rear adjustments are opposites of each other.

Technical line drawing of two mechanical components with adjustment knobs and fasteners (no text or symbols)

For front leg adjustments use a 14 " ratchet without a socket. Place the ratchet directly onto the front leg and turn it to the right to raise the front of the dishwasher. Turn the ratchet to the left to lower the front of the dishwasher. For the front legs the left and right side adjustments work identically.

Technical line drawing of a mechanical component with no visible text or symbols

Step7: Leveling Dishwasher

1 Make sure that the dishwasher is level. Place a level on the top front opening of the tub from side to side.

Level

2 Make sure that the gap between the door and the tub is equal on both the left and right sides.

3 Make sure that the dishwasher is plumb. Place a level on the front side of the cabinet.

Technical line drawing of a mechanical assembly with no visible text or symbols

4 The water level should be checked after the initial fill on the Normal cycle. If the water level is not near the center of both tub lower indentations, the dishwasher may not be correctly leveled. The dishwasher may leak during operation if it is not correctly leveled.

Technical line drawing of a mechanical component with a central blade and circular base (no text or symbols)

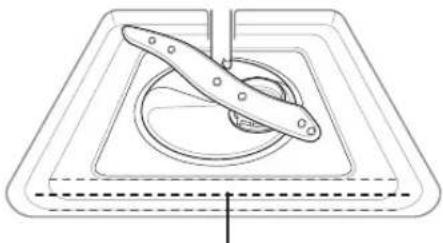

Water level should be near the center of both tub lower indentations.

Step8: Securing Dishwasher to Countertop

For countertops made of wood or other material that will not be damaged by drilling, use Method 1.

For countertops made of granite, marble, or other materials that could be damaged by drilling, use Method 2.

Important Tips

• Cover the filter hole with towels to prevent screws from falling down into the pump.
• Use of a magnetic screwdriver is recommended.

Method 1

1 Insert the installation brackets into the slots in the upper frame.
2 Bend the brackets to secure them to the dishwasher tub.
3 Using the provided screws, secure the dishwasher to the countertop through the holes in the bracket.

NOTE

Installation brackets and screws can be found in the silverware basket.

Screw Installation bracket

Method 2

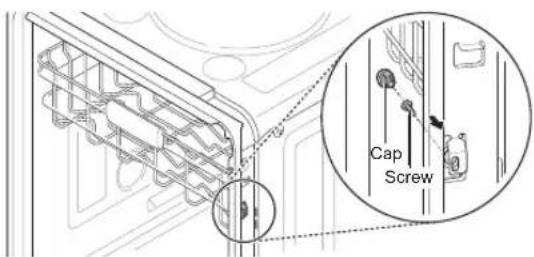

1 Remove the plastic caps from the mounting bracket access holes.
2 Drive a wood screw through the mounting bracket and into the cabinet frame.
3 Reinstall the plastic caps.

Cap Screw

Step9: Connecting Drain Hose

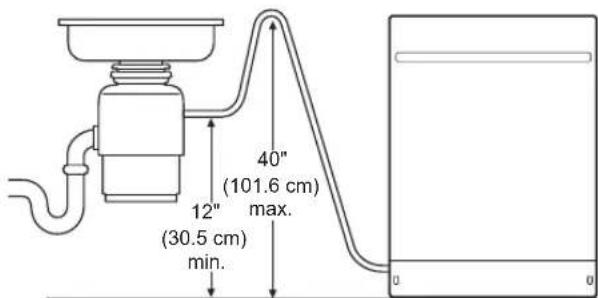

40" (101.6 cm) max. 12" (30.5 cm) min.

If the end of the drain hose does not fit the drain line, use a heat and detergent resistant adapter (not supplied). These may be obtained from a local plumbing shop.

The two typical connections are shown. To prevent siphoning, one of the following connections should be used.

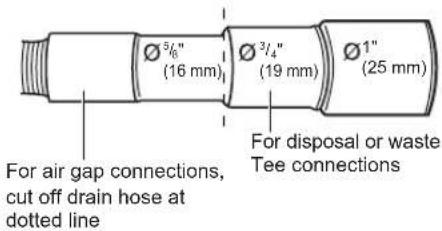

For air gap connections, cut off drain hose at dotted line Ø5/6" (16 mm) Ø3/4" (19 mm) Ø1" (25 mm) For disposal or waste Tee connections

Drain Requirements

1 Follow local codes and ordinances.
2 Do not exceed 12 ft. (3.65 m) distance to drain.
3 Do not connect drain lines from other devices to the dishwasher drain hose.
4 If an extension drain hose is required, use 58 " or 78 " inside diameter, 2-3 ft. length hose and a coupler for connecting the two hose ends.

Hose clamp Coupler Hose clamp

For drain hose installation, use the screw style clamp provided with this dishwasher in the silverware basket.

Connecting to Disposal with No Air Gap

1 Remove the knockout plug with a hammer and screwdriver.

Illustration showing two-step manual techniques for a mechanical or electrical component, including tool application and inspection (no text or symbols present)

2 Attach the drain hose to disposal with the hose clamp provided. Move into position and tighten the hose clamp.

Connecting Waste Tee with No Air Gap

1 Remove the knockout plug with a hammer and screwdriver.

Line drawing of hands using a hammer to handle a pipe fitting (no text or symbols)

2 Attach the drain hose to waste tee with the hose clamp provided. Move into position and tighten the hose clamp.

Connecting to Disposal or Waste Tee with Air Gap

1 Remove the knockout plug with a hammer and screwdriver.

2 Connect end of the drain hose to the air gap with hose clamp provided. It is to avoid water being siphoned from the tub.

Air gap Drain hose Rubber hose connector

3 Attach the rubber connector to disposal or waste tee with the hose clamp provided. Move into position and tighten the hose clamp.

Connecting without Air Gap

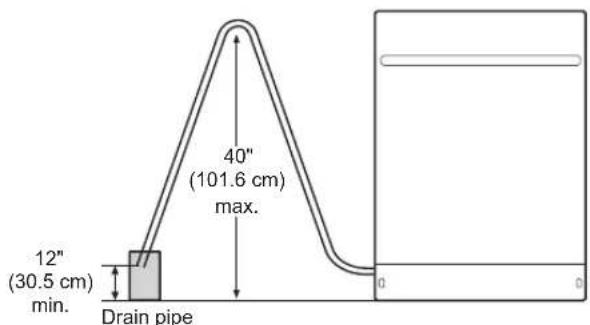

The height of the drain hose end must be at least 12" (30.5 cm) and within 40" (101.6 cm) from the base of the appliance to avoid water being siphoned from the tub.

12" (30.5 cm) min. Drain pipe 40" (101.6 cm) max. 0 0

Step10: Connecting Water Supply

1 Before connecting, turn off the water supply.

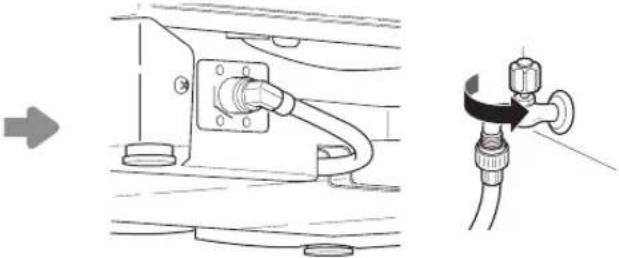

2 Slide the flexible stainless-steel water line or copper tube into the elbow.

3 Tighten the compression nut and make sure that the line is not kinked or pinched.

NOTE

During the final installation check of the dishwasher, an IE error code may appear on the display. Make sure the water line is not kinked and the water supply for the dishwasher has been turned on before calling for service.

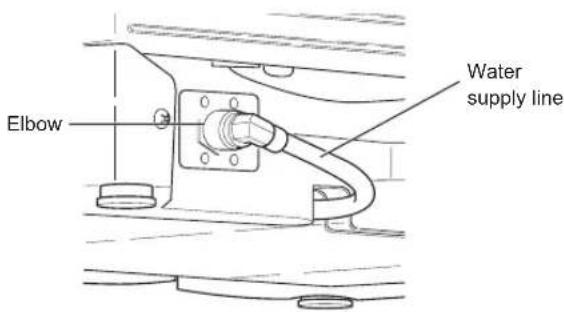

Elbow Water supply line

Step11: Connecting Power

1 Before beginning, turn off electrical power to the unit at the circuit breaker.

2 Remove the junction box cover and then install the strain relief.

Three technical diagrams showing a mechanical component inside a housing, with no visible text or symbols.

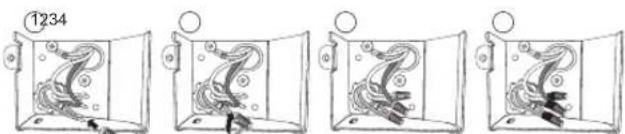

3 Twist the wire nuts tightly onto the wires; then wrap each connection with electrical tape.

1234

4 Check again and make sure that all wires are connected correctly: black to black, white to white, green ground wire to green ground wire.

5 Replace the junction box cover.

WARNING

Verify that the black wire is hot (120 V). If not, or if you are unsure of the power supply, have it checked by a licensed electrician.

CAUTION

Do not leave stripped wire exposed. Trim stripped wire to fit completely inside wire nuts.

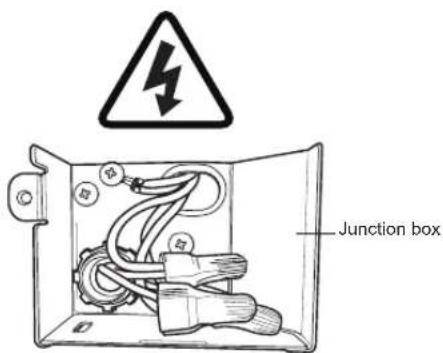

Junction box

Step12: Final Check

1 Turn on electrical power.

2 Turn on house water supply.

3 Make sure the door opens and closes smoothly. If necessary, level the dishwasher again.

4 Run the dishwasher on a Normal cycle to verify proper operation and check for leaks.

CAUTION

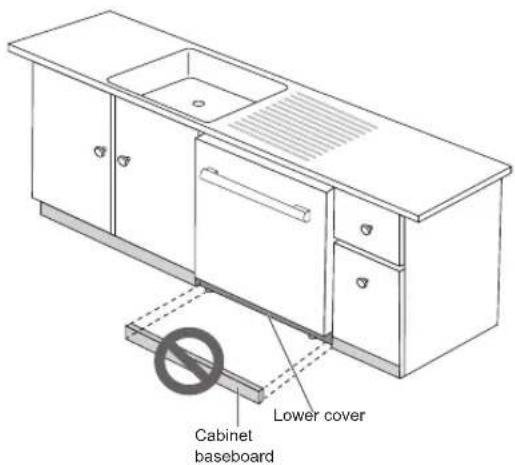

Only install the lower cover provided with the machine. Do not install cabinet baseboard as it may cause noise and leakage.

Lower cover Cabinet baseboard

Error Code	Possible Cause and Solution
OE Error	Drain hose kinked or pinched.Pull on the drain hose while sliding the dishwasher into place. Do not allow any slack in the hoses behind the dishwasher.
	Drain hose connected to disposal.Remove knockout on disposal.
	Waste tee is clogged.Remove knockout plug on waste tee.
IE Error	Water supply line kinked under dishwasher.Pull on the water supply line while sliding the dishwasher into place. Do not allow any slack in the hoses behind the dishwasher.
	House water supply not turned on.Turn water on.

OPERATION

Using the Dishwasher

Before Using the Dishwasher

• Read the Important Safety Instructions.
• Connect to the hot water supply only. The water supply temperature should be a minimum of 120^ F ( 40^ C) for better washing performance and shorter cycle time.
• Follow the instructions for loading the dishwasher to ensure effective cleaning.
• Remove insoluble items such as bones, toothpicks, and pieces of paper while loading the dishwasher.

When loading the dishwasher:

1 Place items with deep dish bottoms at an angle to help water run off and speed the drying process.
2 Remove solid, burned-on scraps from dishes prior to loading in the dishwasher.
3 Only load items that are dishwasher-safe.

NOTE

Do not load utensils that are not heat-resistant or have decorative metal trim.

Quick Start

1 Load the Dishes
Scrape the dishes free of excess food, bones, and any other hard, non-soluble residue. Pull each rack out and load the dishes as described in this manual.
2 Measure the Detergent
Using the guidelines in this manual, fill the detergent cup with the recommended amount of detergent and close the lid. If a prewash is desired, the recess on top of the lid should also be filled with detergent.
3 Turn on the Dishwasher
To turn on the display panel, press the Power button.
4 Check the Rinse Aid
The Rinse Aid indicator light will illuminate if the level of rinse aid in the dishwasher is low. Add rinse aid if the level is low to maintain the effectiveness of the dry cycle.

5 Select the Cycle and Options
Select the cycle and options that best fit the load by referring to the Cycle guide. The display will show the estimated time for the cycle and options selected.

6 Close the Door

The dishwasher will start automatically, after a slight delay, when the door is closed and latched. During the cycle, the display will indicate the estimated time remaining for the cycle and options selected. If the door is opened during the cycle, the dishwasher will stop. When the door is closed, the cycle will resume from the point where it was stopped.

7 End of Cycle

When the cycle is complete, a chime will sound and the display will show End. After a short time, the display and controls will shut off for safety and energy conservation.

CAUTION

Empty the lower rack first and then the upper rack. This will avoid water dripping from the upper rack onto dishes in the lower rack.

WARNING

In general, it is not advisable to open the door while the dishwasher is in operation. If the door is opened, a safety device stops the dishwasher. Care should be taken when opening the door immediately following the cycle, as steam may escape.

Auto-Off

The dishwasher will automatically turn off if a cycle is not selected or if the door is not closed within four minutes of being powered on.

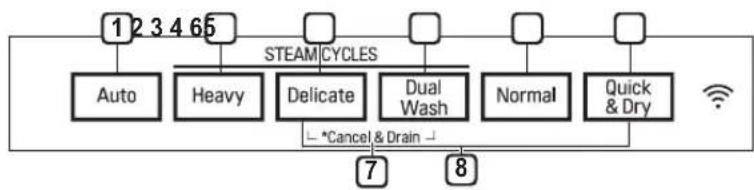

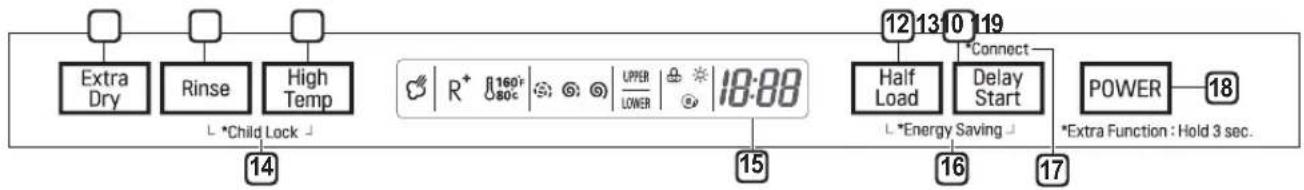

Control Panel

UPDF9904ST

Cycle

Select your desired cycle.

① Auto

This cycle senses the load size, soil amount and soil toughness. This cycle is optimized to achieve the best cleaning.

② Heavy

This cycle is for heavily soiled dishes and dishes with hardened on soil.

③ Delicate

Use this cycle to clean delicate items such as fine china and stemware.

④ Dual Wash

This cycle washes the upper and lower racks at different spray intensities. The default setting for this cycle washes the lower rack with strong spray intensity and the upper rack with soft spray intensity. This provides optimum cleaning performance for mixed loads, including fine china and stemware.

WARNING

Steam can cause burns. Use caution in the area of the steam nozzle on the left side of the dishwasher if the door is opened during the steam portion of a cycle. Contact with the steam or the steam nozzle can cause burns.

5 Normal

This cycle is for normally soiled, everyday loads.

6 Quick & Dry

Use this short cycle for washing and drying recently used dishes or lightly soiled loads. During this cycle, both spray arms operate at the same time.

⑦ Cancel & Drain

1 Open the door.
2 Press and hold Delicate and Dual Wash at the same time for about three seconds. The drain pump activates and the cycle cancels.
3 The display shows dr and the dishwasher drains. Once the dishwasher finishes draining, the power turns off.
4 If the dishwasher is powered on and no cycle is selected for four minutes, the dishwasher powers off.

8 Chime On/Off

To enable or disable the chime, first, turn on the dishwasher. Press and hold Delicate and Quick & Dry simultaneously for approximately three seconds.

Cycle Options

Select the desired cycle button and then select the options for that cycle.

⑨ Extra Dry

Select the Extra Dry option for better drying performance. This option adds 60 minutes of extra drying time to the cycle. The Extra Dry button illuminates when the option is selected.

10 Rinse

Press Rinse repeatedly to select the desired rinse option. The Sanitary, Extra Rinse, or Sanitary and Extra Rinse lights show in the bottom left portion of the display.

Sanitary 160°F 80°C

This high-temperature rinse sanitizes dishes and glassware in accordance with NSF/ANSI Standard 184 for residential dishwashers. Certified dishwashers are not intended for licensed food establishments.

Extra Rinse R^+

The Extra Rinse symbol indicates that an extra rinse has been added to the cycle. An extra rinse can help reduce hard water spotting on dishes. To add an extra rinse, press Rinse repeatedly until the Extra Rinse symbol appears in the display.

Rinse Only

This cycle is a quick rinse for dishes that will not be washed immediately. The cycle rinses dishes that have excess soil to soften dried on residue. Rinsing the dishes helps prevent odors in the dishwasher. No detergent should be used. To select the Rinse Only cycle, turn the dishwasher on, and press Rinse once without pressing any other cycle buttons. The Rinse Only cycle is not available with any other cycles.

NOTE

The Rinse Aid ⚙ symbol indicates that the rinse aid needs to be refilled.

11 High Temp

Raises the main wash temperature to improve cleaning.

12 Half Load UPPER ↗ LOWER ↘

For small loads, use just the upper or lower rack to save energy. Each press of the Half Load button cycles between the upper rack only and the lower rack only.

13 Delay Start

The Delay Start feature delays the start of a selected cycle. Each time the Delay Start button is pressed, the delay time increases by an hour. The delay time can be set from 1 to 19 hours, in one-hour increments.

14 Child Lock

The Child Lock feature helps prevent settings from being changed during a cycle. Selecting this feature locks all of the buttons, except for the Power button, on the control panel. This feature does not lock the door.

Activating the Child Lock

1 Open the dishwasher door.
2 Press Power.
3 Select the cycle (and desired options).
4 Press and hold Rinse and High Temp for three seconds. The Child Lock indicator illuminates on the display once the Child Lock is activated.
5 Close the door to begin the cycle.

15 Digital Display 8:88

The digital display on the control panel shows the ESTIMATED cycle time. When the dishwasher is powered up, the display is blank. When the cycle and options are selected, the display shows the total estimated time to complete those selections. During operation, the display shows the remaining estimated operating time.

NOTE

• The estimated time shown in the display does not include delay times for heating water, etc.
• If Delay Start is selected, the display shows the delay time in hours.
• Cycle time may vary depending on the soil level of your load.

16 Energy Saving

The Energy Saving option saves energy by using less water. This option should only be used with light to medium soiled dishes.

Press and hold Half Load and Delay Start at the same time about three seconds.

17 Connect

When the appliance is connected to the internet through a home Wi-Fi network, this indicator appears.

Press and hold Delay Start for approximately three seconds.

18 Power

• Press Power to turn on the control panel. If no cycle is selected within four minutes, the dishwasher powers off.
• After the cycle is complete, the power automatically turns off for purposes of safety and economy.
• If there is a power surge, power outage, or disruption of any kind, the PF indicator displays and power is automatically turned off for safety. Restart the cycle.

Cycle Guide

= default setting

The cycle guide below shows the available options for each cycle.

Cycle		Auto Heavy Dual Wash Delicate Normal Quick & Dry
Available Spray Level		Strong Strong		Soft (Upper arm)		Strong Strong
		Medium Medium Medium Medium
		Soft		Strong (Lower arm)	Soft Soft
Extra Dry		○	○	○	○	○	○
Sanitary		○	○	○	○	○
Extra Rinse		○	○	○	○	○
Sanitary/ Extra Rinse		○	○	○	○	○
Half Load		○	○	○	○	○
Delay Start		○	○	○	○	○	○
Energy Saving				○	○	○
High Temp		○			○	○
Wash	Pre 1	○	○	○	○	○	○
	Pre 2	○	○	○	○	○	○
	Pre 3	○				○	○
	Main Wash	122 °F50°C	140 °F60°C	154 °F68°C	122 °F50°C	86-122 °F30-50°C	122 °F50°C
Rinse	Rinse 1	○	○	○	○	○	○
	Rinse 2	○	○				○
	Heated Rinse	149-158 °F65-70°C	158 °F70°C	158 °F70°C	154 °F68°C	149-158 °F65-70°C	162 °F72°C
Dry		○	○	○	○	○	○
Water Usage*		6.1 gal23.0 L	6.1 gal23.0 L	4.6 gal17.5 L	4.6 gal17.5 L	1.7-6.4 gal6.5-20.5 L	7.6 gal29.0 L
Time in Min.**		135 165-166 147 141 110-139 79
Spray Intensity		Medium Strong		U: StrongL: Soft	Soft Medium Strong

*Actual water consumption will vary depending on soil level and hardness of water.
**Actual cycle times may vary depending on soil level, water temperature, and hardness of water.

Loading the Lower Rack

CAUTION

Non-Dishwasher safe items

The combination of high water temperature and dishwasher detergents may damage certain items. Do not wash the following items in the dishwasher:

• Hand painted silver or gold leaf dishes
  • Wood or bone handled utensils
• Iron or other rust-prone utensils
• Plastic items that are not dishwasher safe

When in doubt, check the manufacturers' recommendations.

The extra tall tub allows loading of dishes, pans, or other utensils up to 14 inches high.

The lower rack is recommended for dinner plates, soup bowls, dishes, pots, pans, lids, and grill trays. Plates should be positioned vertically and facing the center of the rack. Pots, pans, and large bowls must be turned so that the inside faces downward. The silverware basket may be used in either the lower or upper rack.

The lower rack should not be used for small items such as cups, wine glasses, or small plates. These items should be loaded in the upper rack.

For models with steam, load heavily soiled or stained dishes in the front left side of the lower rack with the dirty side facing down. This is the area in which the stream enters the dishwasher. The use of hot steam maximizes the dishwasher's cleaning performance.

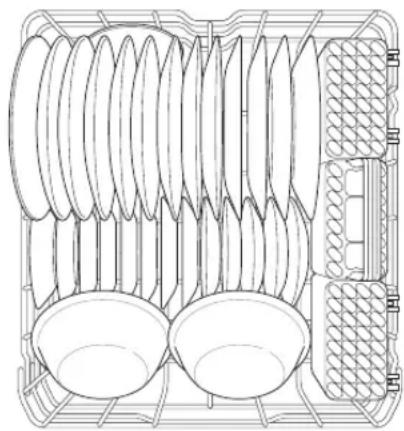

Loading 10 Place Settings

Technical line drawing of a mechanical component with multiple cylindrical parts and a grid-like structure (no text or symbols)

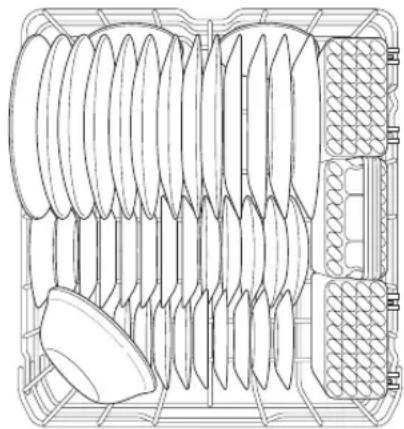

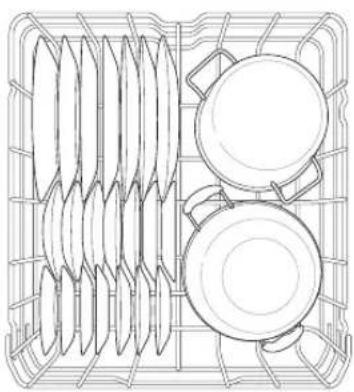

Loading 12 Place Settings

Technical line drawing of a mechanical component with multiple cylindrical parts and a central fan-like structure (no text or symbols)

Lower Rack Loading Tips:

• Load plates, soup bowls etc. between the tines.
• Load cookie sheets, cake pans and other large items on the sides or back of the rack. Loading these items in the front of the dishwasher can prevent the water spray from reaching the detergent dispenser.
• Make sure that pot handles and other large items do not stop the rotation of the spray arms.

NOTE

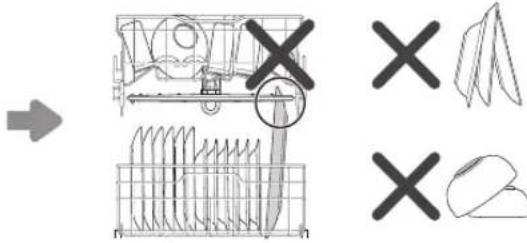

Make sure that large items do not interfere with the rotation of the spray arms, and do not prevent the detergent dispenser from opening.

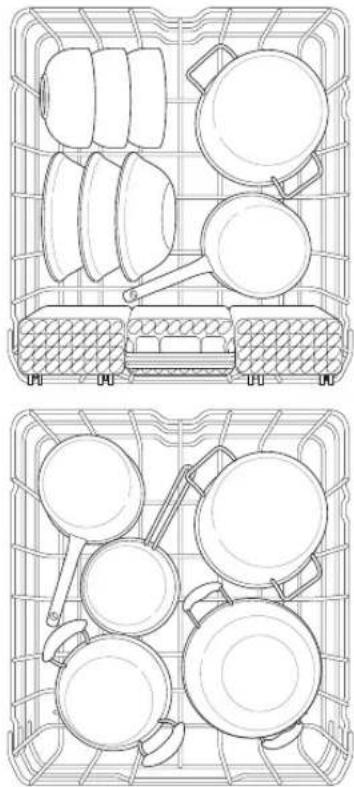

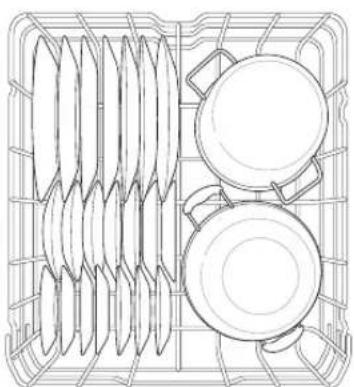

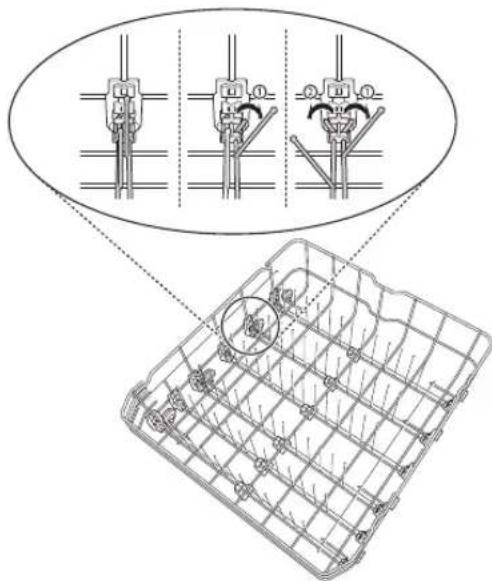

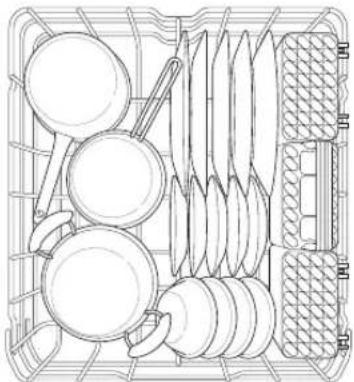

Folding Down the Lower Tines

The tines are adjustable to fit dishes of various sizes.

Technical diagram showing three mechanical assembly steps with magnified views of the component layout

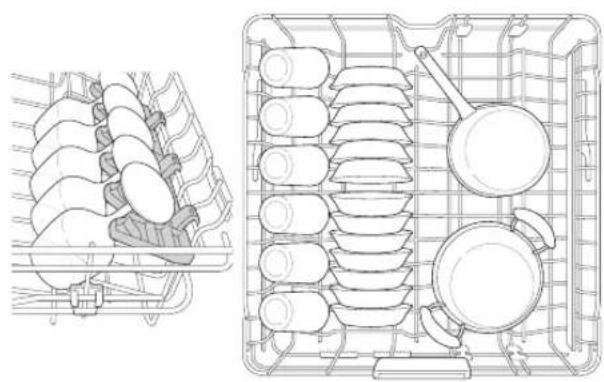

Loading Dishes & Pots

Top-down line drawing of a grocery basket with various kitchen utensils and cutlery (no text or labels)

Line drawing of a multi-tiered kitchen appliance with plates and blades (no text or symbols)

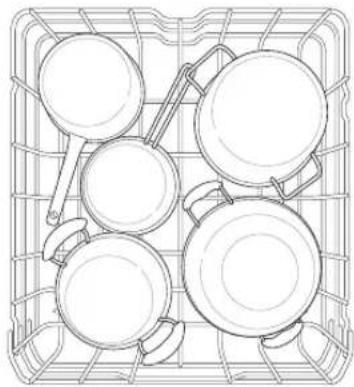

Loading Pots & Bowls

Top-down line drawings of a multi-tiered kitchen appliance grid (no text or symbols)

Difficult to Remove Food on Dishes

Load items with difficult to remove or baked-on food near the steam spray arms, towards the left side of the lower rack, facing down. The dishes will benefit from the direct steam spray and the lower spray arm wash action.

Steam nozzle

Loading the Silverware Basket

The silverware basket has separators to avoid scratching and tarnishing of delicate silverware. The basket can be separated into three separate baskets that can be used individually in both the upper and lower racks. Unlock the tabs above the left and right sides to separate.

WARNING

Be careful when loading and unloading sharp items. Load sharp knives with the handles up to reduce the risk of personal injury.

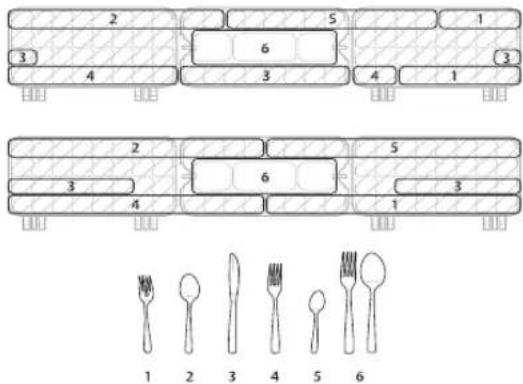

Silverware Loading Tips:

• For best cleaning results, use the top separators in the basket when loading silverware. The separators will prevent nesting of silverware.
• Load sharp items, such as knives, pointing down.
• When unloading the dishwasher, it is best to start with the silverware basket. Doing so will prevent water droplets from falling on your silverware from the upper rack.

2 3 4 5 6 3 4 1 3 4 1 2 3 4 5 6 3 1 1 2 3 4 5 6

Loading the Upper Rack

Use the upper rack for small or delicate items such as small plates, cups, saucers, glasses, and dishwasher-safe plastic items. Cups, glasses, and bowls must be positioned upside down. Extra cups or cooking utensils can be laid on the fold down cup racks, which may also provide support for long stemmed glasses. Make sure items do not interfere with the rotation of the spray arms above and below the upper rack.

NOTE

When loading larger items in the upper rack, such as wine glasses or taller cups, it may be necessary to remove the cutlery rack.

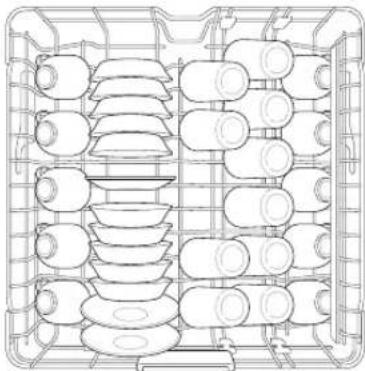

Suggested Loading Pattern

Technical line drawing of a multi-tiered storage unit with circular components (no text or symbols)

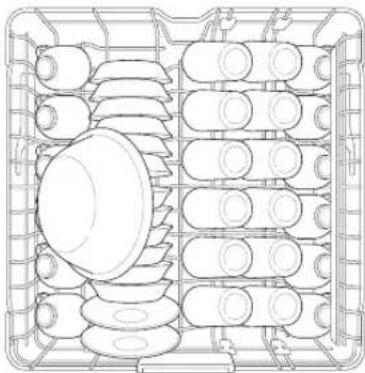

Additional Loading Pattern

Technical line drawing of a multi-layered mechanical or electrical component grid (no text or symbols)

Upper Rack Loading Tips:

• Place cups and glasses in the rows between the rack tines. Placing them over the rack tines can lead to breakage and water spots.
• To avoid chipping, do not let stemware touch other items.
• Place items so that the open end faces down for cleaning and drying.
• Do not stack items on top of each other.

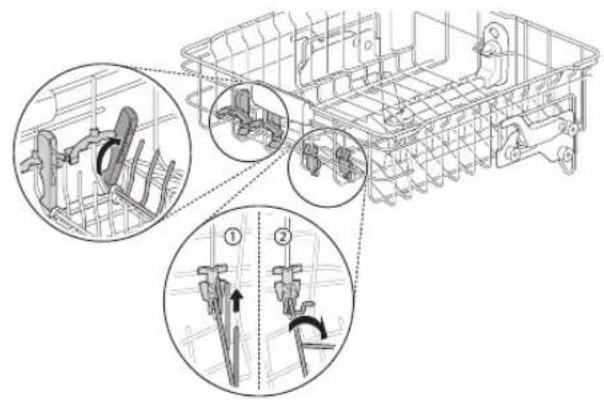

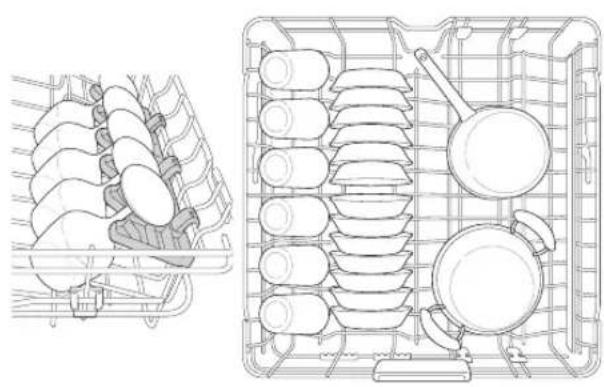

Folding Down the Upper Tines

Fold tines down to fit larger dishes; pull tines back up to fit smaller dishes.

Technical diagram showing mechanical assembly steps with numbered annotations indicating motion directions

Technical line drawing of a kitchen appliance grid with side and top views (no text or symbols)

Height Adjustable Upper Rack

The upper rack adjusts up and down. Raise the upper rack to allow items up to 14 inches tall in the lower rack. Lower the upper rack to allow dishes up to 12 inches tall in the upper rack. The dishwasher ships with the upper rack raised.

NOTE

After adjusting the rack, make sure that dishes in the upper and lower racks do not interfere with the rotation of the spray arm. Do not adjust the rack while it is loaded with dishes.

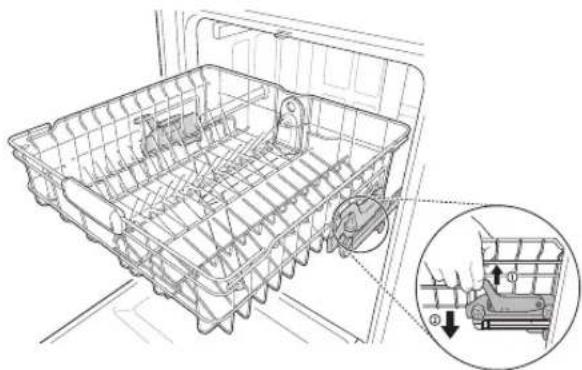

1 Lowering the Rack:

Hold the rack at the center of each side to support its weight. Then, lift the lever on each side to release the rack and lower it to the lower position.

Technical line drawing of a mechanical device with internal components and an inset showing a close-up of a component (no text or symbols present)

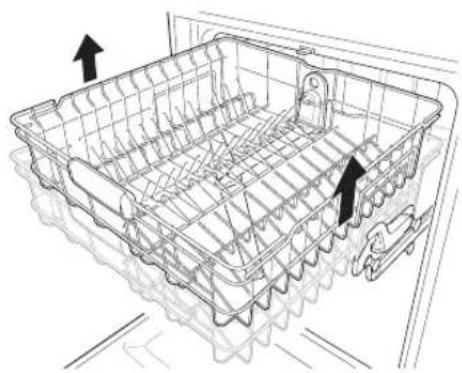

2 Raising the Rack:

Lift the rack at the center of each side until the rack locks into place in the upper position. It is not necessary to lift the lock levers to raise the rack.

Technical line drawing of a multi-compartment container with internal structure and directional arrows (no text or symbols)

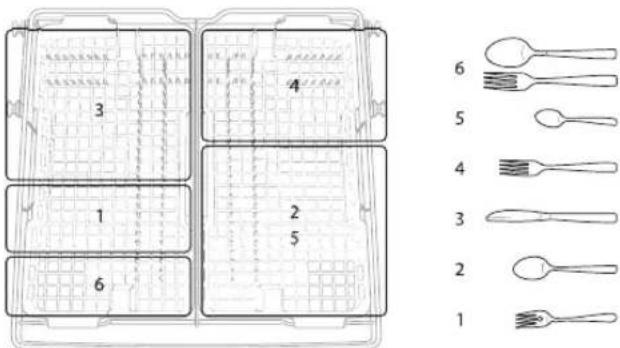

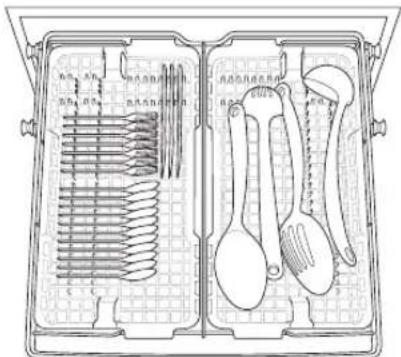

Loading the Cutlery Rack

The cutlery rack is best suited for flatware and most cooking or serving utensils. It can also fit small prep bowls and lids. The separators on the cutlery racks help keep flatware separated to avoid damage and improve cleaning.

NOTE

For best cleaning performance, place flatware in the silverware baskets. Heavily soiled utensils or items with baked on foods should be placed in the middle rack or spoon basket for best performance.

Technical diagram of a food preparation tray with labeled utensils and kitchen utensils

Sample 10-Place Settings

3 4 1 2 5 6 1 6 5 4 3 2 1

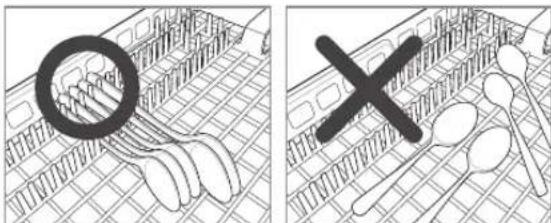

Two-panel illustration showing a grid with food items and a crossed-out 'X' symbol (no text or labels)

If the handles of your flatware are too thick, then reverse the pieces so that the handles face the other direction.

Isometric line drawing of a vehicle's roof structure with curved roof elements (no text or symbols)

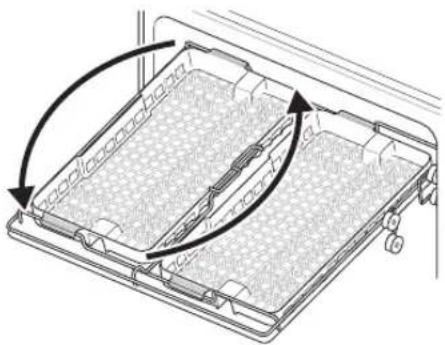

Height Adjustable Tray

Each side tray can be adjusted independently to a high or low position to accommodate utensils or cutlery of different sizes. Remove dishes before adjusting the tray. Adjust each tray by lifting it out and rotating it front to back.

Diagram of a mechanical device with two rectangular compartments and directional arrows indicating rotation or movement (no text or symbols)

Removing the Cutlery Rack

The entire cutlery rack can be removed if more space is needed on the upper rack for larger items.

NOTE

- Always remove the cutlery from the rack before removing the rack.

Pull the rack out to the end of the rails. Then, lift the front of the rack so that the rollers clear the stop on the end of the rail. The rack can now be slid forward and removed from the rails.

Pure mechanical diagram showing a conveyor belt system with rollers and a directional arrow (no text or symbols)

WARNING

Be careful when loading and unloading items with sharp edges. Load sharp knives with the blade down to reduce the risk of injury.

Adding Cleaning Detergent Adding Detergent to the Dispenser

• Only use detergent intended for automatic dishwashers.
• Put detergent into the detergent compartment before starting any cycle, except the Rinse Only cycle.
• Use less detergent if the dishes are only lightly soiled. Using excess detergent can leave a film on dishes as well as in the dishwasher, resulting in poor wash performance.
• The amount of detergent needed depends on the cycle, load size, and soil level of dishes.

NOTE

• Remove the label on the dispenser prior to running the dishwasher for the first time.
• Do not add detergent when the Rinse Only cycle is selected.

1 Press the lever on the bottom side of the lid to open the dispenser.

Diagram of a printer with a close-up view showing the printer's internal structure (no text or symbols)

2 Add dishwashing detergent to the main wash compartment until the level is between the lines marked 20 and 30. Fill to the 30 line for hard water or heavily soiled loads. Fill to the 20 line for soft water or lightly soiled loads. Close the lid firmly until it clicks.

Line drawing of a hand inserting a small object into a device (no text or symbols)

3 If a prewash is desired, fill the recessed prewash compartment area in the lid with detergent.

Line drawing of a hand inserting a small object into a device (no text or symbols)

NOTE

• Too much detergent can leave a film on dishes and in the dishwasher, resulting in poor wash performance.
• Do not use detergent tablets for shorter wash cycles. The tablet may not dissolve completely, causing detergent residue on dishes and inefficient cleaning. Using a wash booster helps remove spots, residue, and the white film caused by hard water. It does not help remove excess detergent residue.

CAUTION

Detergent Information

Use only detergent intended for automatic dishwashers. Incorrect detergent may cause the dishwasher to fill with suds during operation. Excess suds may reduce wash performance and may cause the dishwasher to leak. DO NOT use hand dishwashing detergent in this dishwasher.

Adding Rinse Aid to the Dispenser

The Low Rinse Aid indicator appears in the display when more rinse aid is needed.

The use of rinse aid is recommended to prevent water spots on dishes and to enhance drying performance.

NOTE

- Only use liquid rinse aid in the dishwasher.

1

Push the button to open the lid.

Diagram of a device with a scroll wheel and control knob, no text or symbols present

2

Add a liquid rinse aid to the maximum fill level. When filling the rinse aid dispenser, aim the rinse aid at the arrow. Make sure that the rinse aid is settled in the dispenser while filling.

Technical line drawing of a mechanical device with a hand inserting a component (no text or symbols)

3

Close the lid to lock the dispenser. Rinse aid is dispensed automatically during the final rinse cycle.

Diagram of a device with a circular component and directional arrow, no visible text or symbols

Rinse Aid Dispenser Adjustment

The rinse aid dispenser is set to level 4, which provides the best performance under most conditions. Adjust the setting higher if you have hard water and notice calcium buildup on your dishes.

If you notice a film on your dishes, use a lower setting. Setting the rinse aid control too low will contribute to spotting and streaking on dishes and poor drying performance. Setting the control too high can cause foaming, which will cause poor wash performance. To adjust the rinse aid dispenser setting, remove the cap and adjust the rinse aid lever to the desired setting. Point the arrow to the left for a lower setting, and to the right for a higher setting.

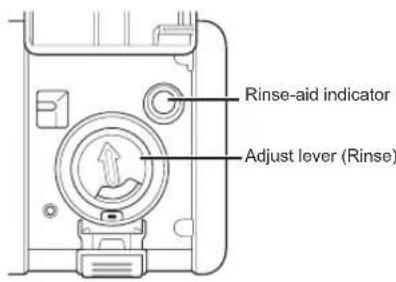

Rinse-aid indicator Adjust lever (Rinse)

Refilling the Rinse Aid

How often the dispenser needs to be refilled depends on how often dishes are washed and the rinse aid setting used. If the rinse aid level is low, the Rinse Aid light on the control panel illuminates.

Rinse Aid Filling Tips:

• The Low Rinse Aid indicator appears in the display when more rinse aid is needed.
• Do not overfill the rinse aid dispenser.
• Clean up any spilled rinse aid to prevent suds.

SMART FUNCTIONS

Application Installation

Search for the SIGNATURE KITCHEN SUITE application from the Google Play Store on a smart phone. Follow instructions to download and install the application.

Product Registration

1 Run the SIGNATURE KITCHEN SUITE application on a smart phone.
2 Create an account and sign in.
3 Select Register.
4 Select Dishwasher.
5 Follow the instructions on the smart phone to register the appliance and connect it to a Wi-Fi network.

- To verify the Wi-Fi connection, check the Wi-Fi icon 📤 on the control panel is lit.

NOTE

• SIGNATURE KITCHEN SUITE is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection.
• The machine supports 2.4 GHz Wi-Fi networks only.
• If the appliance is having trouble connecting to the Wi-Fi network, it may be too far from the router. Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.
• The Wi-Fi connection may not connect or may be interrupted because of the home network environment.
• The network connection may not work properly depending on the internet service provider.
• The surrounding wireless environment can make the wireless network service run slowly.
• This information is current at the time of publication. The application is subject to change for appliance improvement purposes without notice to users.

Using the Wi-Fi Function

Communicate with the appliance from a smart phone using the convenient smart features.

Using the Application

1 Select the appliance in the application and connect it to a Wi-Fi network.
2 Select the menu on the upper right side to access settings and features.

Push Alert

Turn on the Push Alerts to receive appliance status notifications.

The notifications are triggered even if the SIGNATURE KITCHEN SUITE application is off.

Monitoring

Check the current status, cycle, options, running time and cycle end time for the appliance on a single screen.

Smart Diagnosis™

This function provides useful information for diagnosing and solving issues with the appliance based on the pattern of use.

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.thesignaturekitchen.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

SIGNATURE KITCHEN SUITE will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail]. This offer is valid for three (3) years from the date on which you purchased the product.

Wireless module (LCW-003) Specifications

Frequency Range 24	12~2462 MHz
Output Power (max.)	IEEE 802.11 b : 14 dBmIEEE 802.11 g : 15 dBmIEEE 802.11 n : 14 dBm

FCC Notice (For transmitter module contained in this product)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) this device may not cause harmful interference and
2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This equipment should be installed and operated with minimum distance 20 cm (7.8 inches) between the antenna and your body. Users must follow the specific operating instructions for satisfying RF exposure compliance.

Using Smart Diagnosis™

Should you experience any problems with the appliance, it has the capability of transmitting data to a smart phone using the SIGNATURE KITCHEN SUITE Application or via the phone to the SIGNATURE KITCHEN SUITE call center.

Smart Diagnosis ^™ can not be activated unless the appliance is turned on by pressing the Power button. If the appliance is unable to turn on, then troubleshooting must be done without using Smart Diagnosis ^™ .

Max. 10 mm Smart Diagnosis™

Smart Diagnosis™ Using Your Smart Phone

1 Open the SIGNATURE KITCHEN SUITE application on the smart phone.
2 Select the appliance and then the menu on upper right side.
3 Select the Smart Diagnosis, then press Start Smart Diagnosis button.

NOTE

- If the diagnosis fails several times, use the following instructions.

4 Select the Try Again.

Smart Diagnosis™ Through the Call Center

1 Call the SIGNATURE KITCHEN SUITE call center at: 1-855-790-6655
2 When instructed to do so by the call center, place the mouthpiece of the phone close to the Smart Diagnosis™ icon. Do not press any other buttons.
3 Press and hold Rinse until a countdown displays on the appliance.
4 Keep the phone in place until the tone transmission has finished.

• For best results, do not move the phone while the tones are being transmitted.
• If the call center agent is not able to get an accurate recording of the data, you may be asked to try again.

Diagram showing a smartphone with a headset emitting signals to a human head silhouette, illustrating wireless communication or voice transmission.

5 Once the countdown is over and the tones have stopped, resume your conversation with the call center agent, who will then be able to assist you using the information transmitted for analysis.

NOTE

• The Smart Diagnosis™ function depends on the local call quality.
• The communication performance will improve and you can receive better service if you use the home phone.
• If the Smart Diagnosis™ data transfer is poor due to poor call quality, you may not receive the best Smart Diagnosis™ service.

MAINTENANCE

For best results, it is important to periodically check and care for the filter and spray arms.

WARNING

To prevent injury during care and maintenance or cleaning, wear gloves and/or protective clothing.

Cleaning the Filters

1 Remove the lower rack first.
2 Turn the mesh filter counterclockwise.
3 Take out the mesh filter, stainless steel filter and outer filter.
4 Clean the filters if necessary.
5 Replace the filters in reverse order.

NOTE

• For best wash performance, clean the filter after each load. If food debris remains in the filter, it may cause odor.
• For best cleaning performance, make sure the filter is assembled correctly before starting a cycle.
• In areas with hard water, clean the filter at least once a month.
• A soft brush may be required when cleaning the stainless steel filter.

WARNING

Be cautious of sharp edges when handling the stainless steel filter.

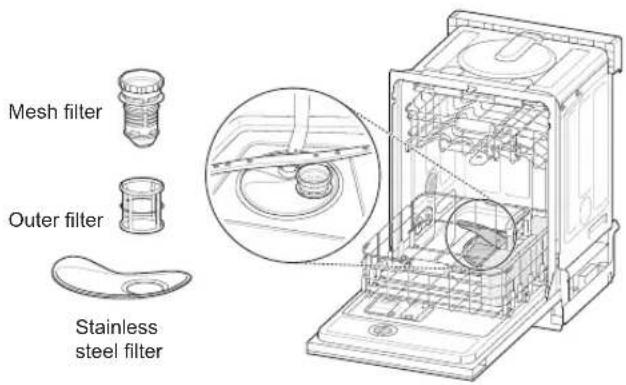

All three filters should be cleaned according to the chart recommendations below. Clean the filters using non-abrasive materials and warm running water. A soft brush may be required for hard to remove soil.

Mesh filter Outer filter Stainless steel filter

NOTE

Cross-sectional diagram of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

• The lower cover of the mesh filter can be opened for convenient cleaning.
• Close the lower cover before reassembling the filter.

Recommended filter cleaning chart:

Number of Loads Per Week	If you wash dishes before loading	If you scrape and rinse dishes before loading	If you only scrape dishes before loading	If you do not scrape or rinse dishes before loading
1-3 Every	6 months Once a	year Four times a year	Once a month
4-7 Every	6 months Once a	year Four times a year		Twice a month (every 15 days)
8-12 Every	6 months Every 6	months Every 1.5 months	Every week
13-14 Every	6 months Every 6	months Every 1.5 months	Twice a week

NOTE

• Check the drain air gap or in-sink disposer if the dishwasher is not draining well.
• The drain air gap and disposer are external plumbing devices that are not part of the dishwasher. The warranty provided with the dishwasher does not cover service costs directly associated with the cleaning or repair of external plumbing, including the drain air gap and disposer.

Cleaning the Interior

• Clean the interior of the dishwasher periodically with a soft, damp cloth or sponge to remove food and dirt particles.
• To remove white spots and odor from inside the dishwasher, run an empty cycle with detergent or run an empty cycle with one cup of white vinegar in a dishwasher safe glass or bowl placed on the upper rack. (Vinegar is an acid and with constant use it could damage the appliance.)

Cleaning the Exterior

- In most cases, the exterior of the dishwasher can be cleaned with a soft damp cloth or sponge, then dried with a soft cloth. If the dishwasher has a stainless steel exterior, use a stainless steel cleaner.

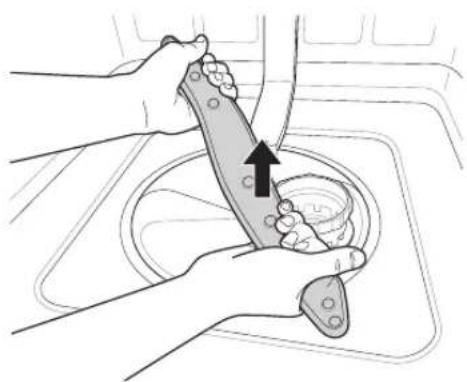

Cleaning the Lower Spray Arm

1 Make sure that the water jet holes are not blocked by food particles.
2 When cleaning is necessary, remove the lower spray arm by pulling up.
3 Remove food particles by rinsing or shaking the spray arm.
4 After cleaning the lower spray arm, replace it by pushing down until it clips into place. Be sure that the spray arm is able to turn freely.

Illustration of hands using a tool to clean or store items inside a car (no text or symbols visible)

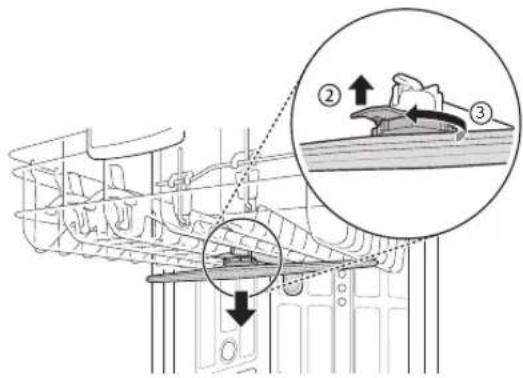

Cleaning the Upper Spray Arm

1 Pull the upper rack forward. Make sure that the water jet holes are not blocked by food particles.
2 Pull up a fixing part of the upper spray arm.

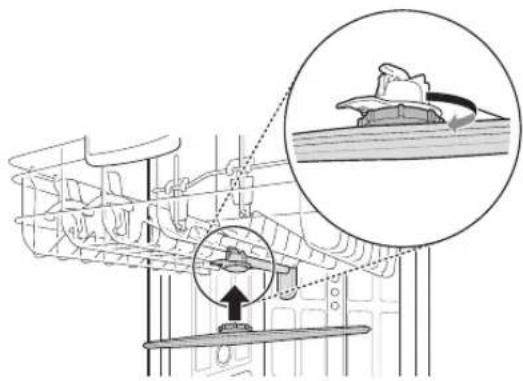

3 When cleaning is necessary, remove the upper spray arm by turning the nut on the bottom of the spray arm 1/8 turn counterclockwise and pulling down.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or movement.

4 Remove food particles by rinsing or shaking the spray arm.
5 After cleaning the upper spray arm, press it up into place. Turn the nut 1/8 turn clockwise to make sure that the nut locks back into place.

Technical diagram of a mechanical assembly with an inset showing a gear meshing tool interacting with a component (no text or symbols present)

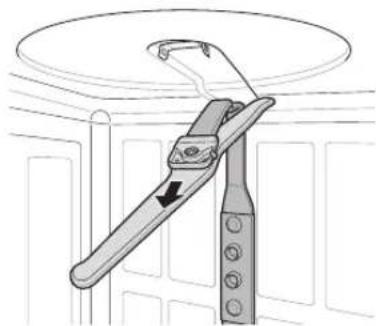

Cleaning the Top Spray Arm

1 Make sure that the water jet holes are not blocked by food particles. When cleaning is necessary, use a screwdriver to release the retainer clip from the bracket that holds the top spray arm assembly to the tub.

Technical line drawing of a mechanical component with an inset close-up showing a tool inserted into a housing (no text or symbols)

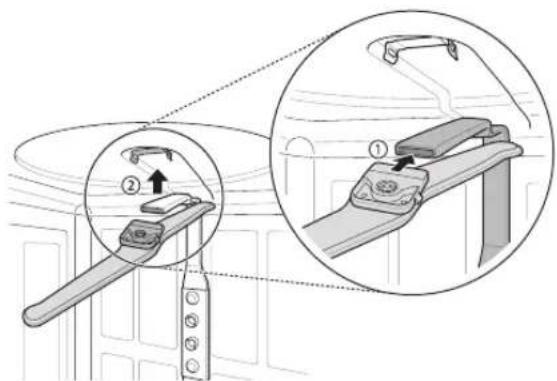

2 Pull the spray arm out.

Diagram of a mechanical clamp or tool with a circular top and arrow indicating direction (no text or symbols)

3 Remove food particles by rinsing or shaking the spray arm.

4 After cleaning the top spray arm, replace it. Slide it back into place and make sure the retainer clip engages.

Technical diagram showing a mechanical clamp mechanism with labeled parts and zoomed-in detail view

Seasonal Maintenance and Storage

• If you will be absent for an extended period of time during warmer months, close the water valve and unplug the power cord, or turn off the circuit breaker. Clean the filter, tub and dispenser to prevent odor.
• If you will be absent for an extended period of time during colder months and there is a possibility of freezing temperatures, winterize the water supply lines and the dishwasher itself. Winterization must be performed by experienced service personnel.

Clogged Drain Air Gap or In-Sink Disposal

Check the drain air gap or in-sink disposal if the dishwasher is not draining well.

Cleaning the Air Gap

1 Turn off the dishwasher.
2 Remove the air gap cover and the plastic cap underneath it.

Diagram showing water level changes in faucet components with upward arrows indicating movement

3 Clean out any debris with a toothpick or brush.

4 Replace the plastic cap and air gap cover.

Diagram showing two-step installation of a faucet with valve and sink components, indicating assembly or repair.

NOTE

• The drain air gap and disposal are external plumbing devices that are not part of the dishwasher.
• The warranty provided with the dishwasher does not cover service costs directly associated with the cleaning or repair of the external drain air gap and disposal.

TROUBLESHOOTING

FAQs: Frequently Asked Questions

Q: Does this dishwasher require a rinse aid to be used?

A: Rinse aid is strongly recommended to enhance the drying performance of the dishwasher. In order to be more energy efficient, the hybrid drying system does not use a heating element to assist in drying, so a rinse aid plays an integral role in the drying process. If a rinse aid is not used, water may remain on the dishes and the tub. Rinse aid helps to ensure that the majority of the water has been sheeted off of the dishes at the end of the rinse and that the load is ready for the dry cycle.

Q: What can be done if my dishes have a cloudy, white film on them after a wash?

A: The cloudy film is usually caused by minerals in the water reacting with the dishwasher detergent. First, be certain not to use too much detergent. Refer to Adding Detergent to the Dispenser section for recommended detergent amounts. Add an extra rinse to the cycle. SIGNATURE KITCHEN SUITE Dishwashers use less water than traditional dishwashers, so adding an extra rinse aids in rinsing the film away. If the water supply is hard, it may be necessary to add a performance booster that addresses the hard water condition.

Q: What is the Sanitary option and how is it activated?

A: When selected, the Sanitary option increases the temperature of the heated rinse to approximately 161 °F (72 °C). The normal heated rinse temperature varies from cycle to cycle. Depending on the model, activate the Sanitary option as follows: either press the Sanitary button, press the Option button repeatedly, or press the Rinse button repeatedly until the Sanitary light shows in the display.

Q: What steps can I take to improve drying results?

A: Drying performance is directly affected by the amount of heat that remains in the tub after the heated rinse is performed. If your dishwasher is far away from your home's hot water heater, it may be necessary to run the hot water tap in the sink before starting a wash cycle, to ensure that cool water is purged from the hot water lines. This will ensure your dishwasher has a consistent supply of hot water from start to finish. Using the Sanitary setting also aids in keeping the inner drum temperature and dishes hotter before drying begins.

SIGNATURE KITCHEN SUITE dishwashers are designed to be used in conjunction with a rinse aid. Using a rinse aid will maximize the amount of water that has already been sheeted away from the dishes before the dry cycle begins. If a rinse aid is used and the performance still needs a boost, adjust the amount of rinse aid used by the indicator on the rinse aid cap. 4 is the default setting, but if necessary set the level to 5 so more rinse aid is used.

Allow the dishwasher to completely finish the dry cycle before opening the door. If the door is opened in the middle of the dry cycle, the heat that is necessary for the hybrid dry system to work will escape. This will cause all of the dishes inside to remain wet once the cycle finishes.

Q: What is the hybrid drying system?

A: The dishwasher does not rely on a heating element for the drying process; instead, it relies on the heat that is retained by the dishes and the tub during the wash and rinse cycles to turn the moisture in the tub into humidity.

Warm, moist air in the dishwasher is then pulled into a condensing duct in the door by a fan. The air then cools, which causes the humidity to condense. Room temperature air is also drawn into the duct to help the air cool down faster. When this moisture condenses into a liquid, it is drained out.

NOTE

Rinse aid is required to enhance the drying performance. If no rinse aid is used, water may remain on the dishes and the tub.

Q: Why am I hearing a whistling sound from the dishwasher?

A: It is important to determine the duration of the noise and when it happens (what part of the cycle). When water is drawn into the dishwasher, a whistling noise can be heard. This is normal. If the water pressure is too high, it will be louder, so it may be necessary to adjust the water valve to lower the pressure if the noise is too loud.

Q: What is Steam Dual?

A: Steam Dual are an option that fully customizes the wash cycle intensity for the upper and lower racks independently in the same load. For example, wash delicate stemware in the upper rack and pots and pans in the lower rack by selecting a soft spray for the upper rack and a strong spray for the lower rack.

Q: What kinds of dishes can be placed in the dishwasher?

A: Ensure that the dishes you place in the dishwasher are dishwasher safe. Plastic dishware will not dry as effectively as glass and metal dishware. Plastic items do not retain heat as well as glass and metal dishware. Plastic cups and dishes may require some hand drying before being put away at the end of the cycle.

Q: Can I perform a drain only cycle?

A: To drain standing water, press and hold Cancel or Cancel and Drain until the display shows dr and the cycle stops. Once the dishwasher finishes draining, the power turns off. See the Operation section for how to select Cancel or Cancel and Drain for this model.

Q: How long does the clean indicator stay lit after the cycle is complete?

A: The clean indicator light on the dishwasher will stay lit for four minutes before turning off. However, you can program the dishwasher so that the clean light stays on until the dishwasher door opens by turning the power on and then pressing and holding the Extra Dry and Half Load buttons at the same time until Off or On appears in the display. The dishwasher will remember the setting until manually changed.

Q: Why does my dishwasher continuously beep if I open the door during a cycle or right after the cycle has finished?

A: This is normal. The dishwasher is letting you know that the interior temperatures of the unit are hot and to use caution when placing your hands inside. Once the unit has cooled down, the beeping will stop.

Q: What is the benefit of steam?

A: Steam allows for thorough cleaning of baked on foods while using less water than other Power Scrub methods. Steam also allows for enhanced cleaning performance when cleaning fine china and stemware items on a delicate cycle. Stream particles are smaller and more active, so their penetrating power is more effective. Steam also increases the interior temperature of the dishwasher, which helps in melting oily or waxy substances, like lipstick along the rim of a glass.

Q: What is Child Lock and how is it activated?

A: Child Lock is a feature that prevents the controls from being changed during the cycle. It does not prevent the door from being opened or the unit from being powered off. To activate or deactivate, press Spray and Rinse simultaneously for 3 seconds.

Q: Why is PF showing up on the display?

A: PF is not an error code indicating a malfunction. PF indicates that there was a power failure. This function protects the dishwasher in the event that the power goes out or the power to the unit is disrupted. When power is returned and a button is pushed, this will display for 10 seconds and then go away.

Q: Can I add an extension to the drain hose?

A: If an extension drain hose is required, use for connecting the two hose ends. 58 " or 78 " inside diameter, 2-3 ft. length hose and a coupler

Q: Before loading dishes, should I pre-rinse dishes?

A: No you don't need to pre-rinse the dishes before loading especially if using the Normal and Auto cycles. The dishwasher washes dishes clean without pre-rinsing.

Before Calling for Service

Your dishwasher is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If your dishwasher does not function properly or does not function at all, check the following before you call for service.

Problem Possible Cause Solutions
Dishwasher will not operate.	Door is not completely closed.	Make sure that the door is completely closed and latched.
	Power supply or power cord is not connected.	Connect the power supply or cord properly.
	Fuse is blown or circuit breaker tripped.	Replace the fuse or reset the circuit breaker.
Dishwasher operates too long.	Dishwasher is connected to cold water.	Check the water supply connection or water heater setting. (Heating cold water takes longer.)
Odor	The previous cycle was stopped before completion and residual water remains in the dishwasher.	Turn on the power, run the Cancel cycle option to remove the residual water, then run the Quick cycle using detergent but with the dishwasher empty.
	There is food in the bottom of the unit or in the filter.	Clean the filter and the interior according to the Maintenance section of the owner's manual.
	Unwashed dishes are left in the unit for a long time.	Cycle with one cup of white vinegar in a dishwasher safe glass or bowl placed on the upper rack. (Vinegar is an acid, and with constant use it could damage your appliance.)
Water remains in tub after completion of cycle.	Drain hose is kinked or clogged.	Adjust hose or clear blockage.
Food soil remains on dishes.	Improper cycle selection.	Select correct cycle based on soil level and type of dishware being washed.
	Water temperature is too low.	Check water supply connection or water heater setting.
	Dishwashing detergent was not used.	Use recommended detergent.
	Low inlet water pressure.	Water pressure should be between 20 and 80 psi.
	Water jet holes on spray arms blocked.	Clean the spray arms.
	Improper loading of dishes.	Make sure dishes do not block spray arm rotation or interfere with detergent dispenser.
	Filters are clogged.	Clean filters.
Cloudiness on glassware.	Combination of excessive detergent and hard water.	Use less detergent and use a rinse aid to minimize the problem.
Black or gray marks on dishes.	Aluminum items rubbing dishes during cycle.	Reposition the dishes.
Problem Possible	Cause Solutions
Spots and filming on dishes.	Low water temperature.	·Water supply should be at least 120 °F for best wash performance.
	Wrong amount of detergent used.	·Use the recommended amount of detergent.
	Overloading.	·Do not overload the dishwasher.
	Improper loading.	·See the Operation section.
	Insufficient water pressure.	·Water pressure should be between 20 and 80 psi.
	Insufficient detergent.	·Add the recommended amount of detergent. See the Operation section.
	Rinse aid dispenser is empty.	·Refill rinse aid dispenser.
	Extremely hard water	·The best way to eliminate spots on your dishes is to install a whole house water softener in your home. If a water softener is already installed or you do not plan on installing one, try adding the Extra Rinse option as part of the wash cycle to help minimize this condition. To add an extra rinse to the cycle, select the wash cycle and then press Rinse.NOTESelecting Extra Rinse will increase cycle times and water usage.
	Hard water buildup in the tub	·Remove all dishes, silverware and silverware holder from dishwasher. Only racks should remain in tub. For best results, use citric acid powder (can be found in canning sections of most grocery stores or online). Measure 3 tablespoons (45 g) of citric acid powder. Fill main wash compartment with measured powder. If you cannot find citric acid powder, pour approximately 1 3⁄4 -2 cups (400-500mL) of white vinegar into shallow bowl and place in lower rack. Run Normal cycle with Extra Rinse and Sanitary options. DO NOT USE DETERGENT.
Noise	Some level of noise is normal during operation.	·Detergent cover opening.·Drain pump at the beginning of drain cycle.
	The dishwasher is not level.	·Adjust leveling feet.
	Nozzle arm knocking against dishes.	·Reposition the dishes.
Yellow or brown film on inside surfaces of dishwasher.	Coffee or tea stains.	Eliminate the stain by using a stain removal product.
Dishes don’t dry. Rinse agent dispenser empty.		Check and refill the rinse agent dispenser if empty.
Lamps do not illuminate.	Power is not connected.	Connect power supply.
Sprays arms do not rotate smoothly.	Holes of spray arms are blocked by food particles.	Clean the holes of spray arms.
Upper rack is crooked. Rack is poorly adjusted.		See the Height Adjustable Upper Rack section.
Dishwasher continuously beeps when the door is opened, during or right after a cycle has completed.	The contents of the dishwasher are hot and care should be used when placing your hands inside the dishwasher.	Close the door until the dishwasher and dishes have cooled down. The beeping will stop if the door is closed or the interior temperature has cooled.

Error Codes

Problem Possible	Cause Solutions
IE Error Water inlet problem.		Check for a clogged, kinked or frozen water inlet hose.Check water supply.
OE Error	Drainage Problem.	Check for a clogged, kinked or frozen drain hose.
	Air gap or disposer is clogged.	Clean air gap or disposer.
	Filters are clogged.	Clean Filters.
FE Error Excessive Water supplied.		Please call an Authorized Service Center or SIGNATURE KITCHEN SUITE Sercive at 1-855-790-6655.
E1 or AE Error Water leakage problem.
HE Error Heater circuit failure.
tE Error	Thermistor failure or very high inlet water temperature (over 194 °F)
LE Error Motor trouble
nE Error Vario motor trouble

WARRANTY

Should your SIGNATURE KITCHEN SUITE Dishwasher fail due to a defect in materials or workmanship under normal home use, during the warranty period set forth below, SIGNATURE KITCHEN SUITE will at its option repair or replace the product. This limited warranty is valid only to the original retail purchaser of the product and applies only when purchased and used within the United States, including U.S. Territories. Proof of original retail purchase is required to obtain warranty service under this limited warranty.

Warranty Period Scope of Warranty HOW SERVICE IS HANDLED
Three (3) years from date of original retail purchase	Labor	SIGNATURE KITCHEN SUITE will also provide, free of charge, all labor and on-site service to replace the defective part.
Three (3) years from date of original retail purchase	Parts	Parts only. Customer will be responsible for any labor or on-site service costs.
Five (5) years from date of original retail purchase	Electronics / Racks	Electronic control board and dishwasher racks.Customer will be responsible for any labor or in-home service to replace defective parts.
Ten (10) years from date of original retail purchase	Direct Drive Motor	Direct Drive motor. Customer will be responsible for any labor or in-home service to replace defective parts.
Limited Lifetime Tub		Stainless steel door liner and tub. Customer will be responsible for any labor or in-home service to replace defective parts.

• Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
• Replacement products and parts may be new or remanufactured.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from state to state.

THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to deliver, pick up, or install or repair the product; instruction to the customer on operation of the product; repair or replacement of fuses or correction of wiring or plumbing, or correction of unauthorized repairs/installation.
• Failure of the product to perform during power failures and interrupted or inadequate electrical service.
• Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
• Damage resulting from operating the product in a corrosive atmosphere or contrary to the instructions outlined in the product's owner's manual.
• Damage to the product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of God.

• Damage or failure caused by unauthorized modification or alteration, or if it is used for other than the intended purpose, or any water leakage where the unit was not properly installed.

• Damage or failure caused by incorrect electrical current, voltage, or plumbing codes, commercial or industrial use, or use of accessories, components, or consumable cleaning products that are not approved by SIGNATURE KITCHEN SUITE.

• Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the finish of your product, unless such damage results from defects in materials or workmanship and is reported within one (1) week of delivery.
• Damage or missing items to any display, open box, discounted, or refurbished product.
• Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and serial numbers, along with original retail sales receipts, are required for warranty validation.
  • Increases in utility costs and additional utility expenses.
• Repairs when your product is used for other than normal and usual household use (e.g. commercial use, in offices and recreational facilities) or contrary to the instructions outlined in the product's owner's manual.
  • Costs associated with removal of your product from your home for repairs.
• The removal and reinstallation of the product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions, including SIGNATURE KITCHEN SUITE's owner's and installation manuals.
• Damage resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes use of parts not approved or specified by SIGNATURE KITCHEN SUITE.

Poor wash results caused by debris remaining in the filter.		• Clean the filter regularly.
Poor wash results caused by improper loading or over stacking: wash arm won't rotate or soap dispenser is held closed.		• Make certain that no dishes or utensils are in the path of the spray arms.• Do not place one dish on top of another.
Poor drying results caused by lack of rinse aid.		• Use rinse aid or combination detergent.
Water is not supplied because the water tap is not turned on.• IE error		• Check and turn on the water tap.
Water is not supplied because the inlet hose is kinked.• IE error		• Reinstall the inlet hose.
Not draining because drain hose is kinked. OE error		•Reinstall the drain hose.
The knock out plug in the garbage disposal is not removed. OE error		•Remove the plug on the disposal.
The disposal or air gap is blocked by debris. OE error		•Clean the disposal or the air gap.
Inlet valve and drain hose connection problem caused by improper installation. External leakage		•Reinstall the hose.
No power due to loose connection of power cord or electrical outlet problem.		•Reconnect the power cord or repair the electrical outlet.
Door movement or closing compromised by incorrect leveling.		•Adjust the lower front leveling legs to the required height.
Pick-up, electrical wiring, plumbing Installation		•You will be charged for the installation.

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION

For additional product information, visit the SIGNATURE KITCHEN SUITE website at

http://www.thesignaturekitchen.com

For assistance using this product or to schedule service, contact SIGNATURE KITCHEN SUITE at 1-855-790-6655.

For further assistance, write: SIGNATURE KITCHEN SUITE Electronics, 201 James Record Road, Huntsville, Alabama 35813.

Memo

Memo

Memo

Memo

Memo

SIGNATURE KITCHEN SUITE

MANUAL DEL PROPIETARIO

LAVAVAJILLAS

Technical diagram of a refrigerator with numbered parts labeled 1 through 7

Technical diagram of a washing machine with numbered parts for identification and assembly reference.

27½" (692 mm) 24⁵/8" (625 mm) 33½" (848 mm) 31½" (88.3 mm) 2½" (62.7 mm) 20³/8" (518 mm) 33½" (851 mm)

Diagram of a refrigerator with an open lid and two arrows indicating top-down components (no text or symbols present)

PRECAUCIÓN

Diagram of a washing machine with a circular component inserted, showing hand and panel assembly (no text or symbols)

Simple line drawing of a box with an 'X' mark and a handle, no text or symbols present

Technical illustration of a mechanical assembly with hand positioning and magnified detail (no text or symbols)

Simple line drawing of a vehicle chassis with a cross symbol on the side (no text or labels)

Ajuste de las patas

Technical line drawing of two mechanical components with adjustment knobs and fasteners (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with a central blade and circular base (no text or symbols)

Illustration showing two-step manual techniques for a tool application: one using a hammer to apply a tool, the other adding a sample into a container (no text or symbols present)

Line drawing of hands using a hammer to handle a pipe fitting (no text or symbols)

17 Connect (Conectar)

Technical line drawing of a mechanical component with internal channels and housing (no text or symbols)

Technical line drawing of a mechanical component with layered structure and mounting brackets (no text or symbols)

Technical diagram showing three mechanical assembly configurations with magnified views of the internal structure.

Line drawing of a kitchen drawer with cutlery and utensils (no text or symbols)

Line drawing of a multi-tiered kitchen appliance with two circular pots and a rack (no text or symbols)

Top-down line drawing of a multi-tiered kitchen appliance with pots and dish (no text or symbols)

Line drawing of a basket containing five identical cooking pots (no text or symbols)

Top-down schematic of a multi-tiered storage unit or rack system (no text or symbols)

Top-down schematic of a multi-layered storage unit with cylindrical tanks and a central circular component (no text or labels)

Technical diagram showing mechanical assembly steps with numbered annotations indicating motion directions

Technical line drawing of a multi-chamber appliance assembly (no text or symbols)

Bandeja superior con altura ajustable

Technical line drawing of a multi-compartment refrigerator with internal compartments and a close-up inset showing hand positioning (no text or symbols)

2 Para subir la bandeja:

Technical line drawing of a multi-level mechanical housing or chassis with internal components and directional arrows (no text or symbols)

Illustration of a food preparation tray with utensils and cutlery (no text or labels)

Two-panel illustration showing a magnifying glass over a grid and a cross symbol over a tray (no text or symbols)

Line drawing of a vehicle interior with curved tracks and windows (no text or symbols)

Bandeja con altura ajustable

Diagram of a mechanical device with two internal compartments and directional arrows indicating rotation or movement (no text or symbols present)

Diagram of a mechanical conveyor system with rollers and a directional arrow (no text or symbols)

ADVERTENCIA

Diagram showing a device with a screen and a close-up of its screen, no text or symbols present

Line drawing of a hand inserting a small object into a device (no text or symbols)

Line drawing of a hand using a tool to adjust or install a device (no text or symbols visible)

NOTA

Diagram of a device with a scroll wheel and control knob, no text or symbols present

2

Line drawing of a sewing machine with a hand inserting a button (no text or symbols)

3

Diagram of a device with a circular component and directional arrow indicating rotation (no text or symbols)

Diagram showing a smartphone emitting data to a headset, with a line indicating signal transmission.

Technical line drawing of a mechanical component labeled 'Cerrar Abrin' (no other text or symbols)

Technical line drawing of a mechanical connector or fitting (no text or symbols)

Illustration of hands using a knife to cut a car interior (no text or symbols visible)

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or movement.

Technical diagram of a mechanical assembly with an inset showing a component being lifted or compressed (no text or symbols present)

Technical line drawing of a mechanical component with an inset close-up showing a tool interacting with a bracket (no text or symbols present)

Diagram of a mechanical clamp or tool with a circular top and arrow indicating direction (no text or symbols)

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating movement or assembly.

Diagram showing a hand holding a water tap with an arrow indicating the process, and another hand holding a valve with an upward arrow.

Diagram showing two-step installation of a faucet with valve and handle, indicating change from left to right.

NOTA

Technical diagram showing mechanical assembly with spring-loaded components and a cross symbol indicating a specific part.

Diagram of a device interior with a hand operating the button (no text or symbols visible)

Simple line drawing of a coiled tube with a cross mark and a lightning bolt, no text or symbols present.

- Reinstale la manguera de entrada.

Customer Information Center

For inquiries or comments, call;

1-855-790-6655 USA, Consumer User
