Product type	Complete aquarium with cabinet and LED lighting
Brand	EHEIM
Model	incpiria 230
Dimensions (L × W × H)	70 × 60 × 144 cm
Water volume	230 liters
Empty weight	approx. 105 kg
Total weight when full	approx. 350 kg
Aquarium material	Glass
Lighting	Integrated EHEIM powerLED+ LED lamp
Power supply	Mains power supply unit
Protection class	III (low voltage)
Minimum lamp-water distance	15 mm
Recommended use	Freshwater, indoor, private use
Lamp and cabinet warranty	24 months
Aquarium glue warranty	36 months
Maintenance	Clean with a damp soft cloth, no aggressive cleaning agents
Safety	Do not look directly at the LED, unplug before maintenance
Repairs	By EHEIM customer service only
Spare parts	Use only original EHEIM parts
Included accessories	Drain, water inlet, covers, LED lamp, power supply unit

Frequently Asked Questions - incpiria 230 EHEIM

How do I install the LED lamp on the aquarium?

Pull out the extendable handles to adjust the lamp to the width of the aquarium, then place it in the profiles on the front. Make sure it is securely fixed and the cable is routed downwards.

What should be the distance between the lamp and the water?

The minimum distance between the bottom of the lamp and the highest water level must be 15 mm to avoid any risk of electric shock.

What to do if the LED lamp does not turn on?

Check that the power supply plug is properly connected. If it is, the lamp may be defective and must be replaced entirely.

How to clean the aquarium and its accessories?

Use a damp soft cloth to remove limescale deposits. Never use hard objects, aggressive cleaning agents, and do not put anything in the dishwasher.

Can I use the aquarium with saltwater?

No, the unit is designed exclusively for freshwater indoor use. Do not use with saltwater.

What is the warranty of the incpiria 230 aquarium?

The warranty is 24 months for the lamp and cabinet, and 36 months for the aquarium bonding, subject to compliance with installation instructions.

How to open the aquarium covers?

Slide the covers or lift them laterally. Before removing them, let the condensation water run back into the aquarium.

The cabinet lighting does not work with the remote control, what should I do?

Check that the remote control batteries are in good condition and inserted correctly. Replace them if necessary.

Can I install the aquarium on any surface?

The surface must be horizontal and solid. Use a spirit level to check. Consider the total weight (up to 350 kg) for floor load.

How to dispose of the unit at the end of its life?

Do not break the glass panels. Disassemble the unit and recycle the materials according to legal regulations. Do not dispose of it with household waste.

USER MANUAL incpiria 230 EHEIM

Exterior view of a modern petri dish with lush green plants and rocky water in the background (no text or symbols visible)

de	Bedienungsanleitung
en	Operating manual
fr	Mode d'emploi
it	Istruzioni per l'uso
es	Manual de instrucciones
pt	Manual de instruções
nl	Bedieningshandleiding
da	Betjeningsvejledning
sv	Bruksanvisning

no	Bruksanvisning
fi	Käyttöohje
pl	Instrukcja obsługi
cs	Návod k obsluze
sk	Návod na obsluhu
hu	Használati utasítás
sl	Navodilo za upravljanje
ro	Manual de utilizare
ru	Руководство по обслуживанию

A ①

B ② X

3D architectural diagram of a mechanical assembly with a checkmark indicating a detail (no text or symbols present)

D

F ③ ⑤ ④

Technical diagram of a structural frame assembly with labeled component (6), no readable text or symbols present

E ① ②

H ⑧ ⑦

< 85 mm > 15 mm ⑨ ⑦

J ⑪ ⑩

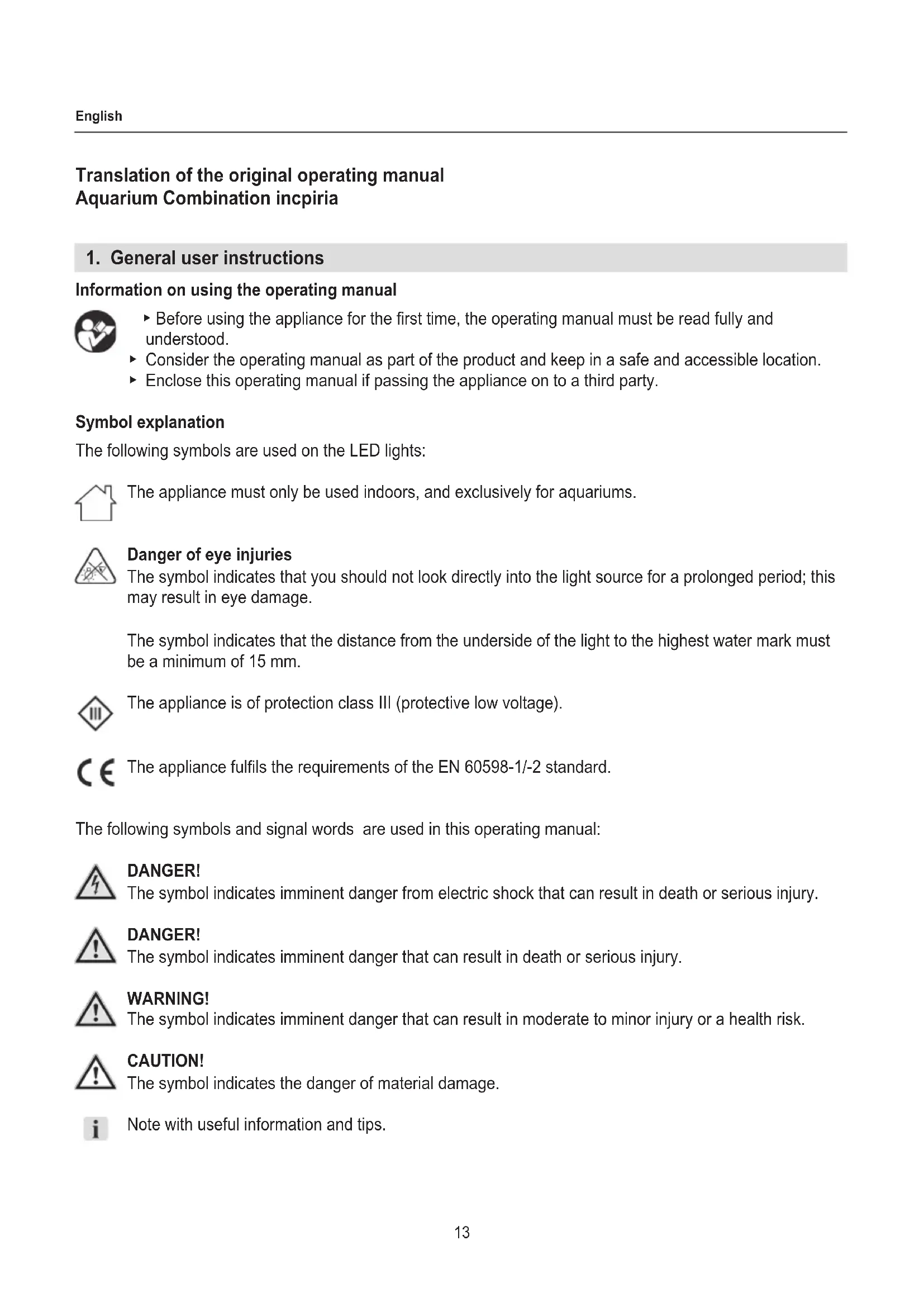

Translation of the original operating manual Aquarium Combination incpiria

1. General user instructions

Information on using the operating manual

▶ Before using the appliance for the first time, the operating manual must be read fully and understood.
- Consider the operating manual as part of the product and keep in a safe and accessible location.
▶ Enclose this operating manual if passing the appliance on to a third party.

Symbol explanation

The following symbols are used on the LED lights:

The appliance must only be used indoors, and exclusively for aquariums.

Danger of eye injuries

The symbol indicates that you should not look directly into the light source for a prolonged period; this may result in eye damage.

The symbol indicates that the distance from the underside of the light to the highest water mark must be a minimum of 15 mm.

The appliance is of protection class III (protective low voltage).

The appliance fulfils the requirements of the EN 60598-1/-2 standard.

The following symbols and signal words are used in this operating manual:

DANGER!

The symbol indicates imminent danger from electric shock that can result in death or serious injury.

DANGER!

The symbol indicates imminent danger that can result in death or serious injury.

WARNING!

The symbol indicates imminent danger that can result in moderate to minor injury or a health risk.

CAUTION!

The symbol indicates the danger of material damage.

Note with useful information and tips.

Typographical conventions:

☒A Reference to a figure, in this case, reference to figure A

▶ You are prompted for an action.

2. Application

The appliance and all parts included in the scope of delivery are intended for private use and must only be used:

· for aquarium-related purposes
· with fresh water
· indoors
· with attachment parts that are recommended by the manufacturer
· in compliance with the technical data

The following limitations apply to the appliance:

· do not use for commercial or industrial purposes

· not suitable for salt water

3. Safety instructions

Risks for persons and property can arise from this appliance if the appliance is improperly used or not used as intended or if the safety instructions are not heeded.

For your safety

- Do not let the appliance packaging get into the hands of children as hazards can arise (danger of suffocation!).

- This appliance can be used by children from the age of 8 and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised and have been instructed in the safe use of the appliance and have understood the resulting dangers. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are supervised.

- Before use, carry out a visual inspection to ensure that the appliance, especially the mains cable and plug, are undamaged.

- Do not look directly into the light source for a prolonged period; this may result in eye damage.

· Repairs must only be carried out by an EHEIM service centre.

• Only carry out the work described in these instructions.
• Only use original spare parts and accessories for the appliance.

- The appliance must be protected by a residual current protection device with a maximum rated residual current of 30 mA. Please contact an electrician if there are any questions or problems.

- In the event of leakage or when the residual current protection device is triggered, immediately disconnect all devices in the aquarium from the power supply.

- If they are not being used, always disconnect all devices in the aquarium from the power supply before you install/remove any parts and before all cleaning and maintenance work.

- Heed the operating manuals for the supplied LED lights, inlet and cabinet lighting, especially the chapters on safety, commissioning, operation and maintenance!

- Protect the mains socket and mains plug against moisture. It is recommended to form a drip loop with the mains cable to prevent any water running along the cable to the mains socket.

- The electrical data of the LED light must match the data of the power mains. This data is found on the type plate, the packaging and in these instructions.

- The distance from the underside of the light to the highest water mark must be a minimum of 15 mm.

4. Preparation

Unpacking

Carefully remove all components from the packaging and make sure that nothing is missing or damaged.

Caution! Risk of breaking the aquarium glass base.

The aquarium must not be placed on the connections ② (☒B).

Leave the aquarium on the transport sections.

5. Assembly

Location

• Avoid direct sunlight, and not too much daylight!
• Keep the aquarium away from heat sources.
• Keep the aquarium away from electrical equipment.
• Be aware of any nearby mains connections.

CAUTION! Material damage.

▶ Ensure that the surface is level and stable.
▶ Be mindful of the floor load provided by the entire weight.

Setting up and aligning the base cabinet (☒A)

1. Place the base cabinet in the desired position.
2. Align the base cabinet horizontally using a spirit level.

A stand can be used for horizontal alignment. Ensure that the stand rests fully on the surface.

Setting up the aquarium (☒C)

Danger! Personal injury or material damage.

The aquarium must not be transported or carried when in its filled state.

Caution! Material damage.

No foreign bodies, mats or bases must be placed between the aquarium and base cabinet.

• Thoroughly clean the top side of the base cabinet and the lower side of the aquarium base.

• Remove any foreign bodies, mats or bases.

• Place the empty aquarium on the base cabinet. Ensure that the connections lie in the section of the base cabinet's top side.

Adjusting/removing the doors

• You can readjust the doors (☒D).
• The doors can be quickly removed/attached via the quick-release function (☒E).

6. Commissioning

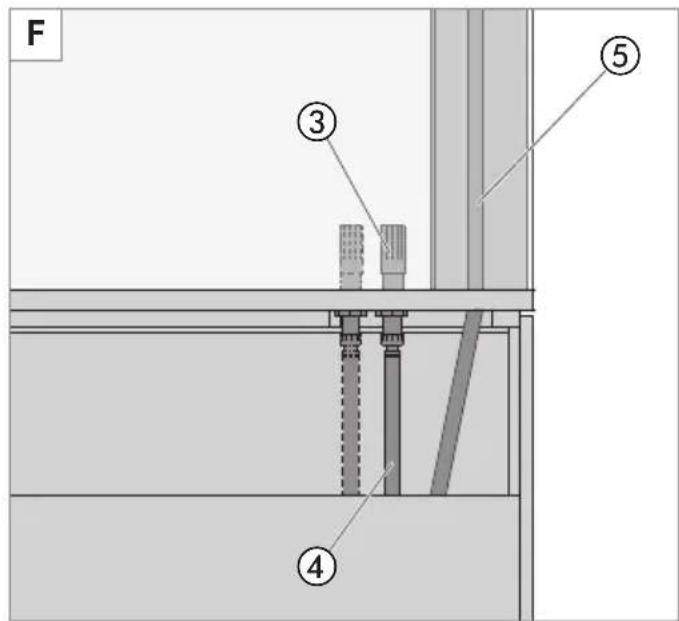

Installing drains (☒F)

· The drain is factory-installed.
- Types 230, 330 and 430 have a drain. Type 530 has two drains.
- Hint: Install an EHEIM double tap between the drainpipe and the filter to simplify maintenance.
- Check whether the drain(s) ①⑱⑤ secure.
- Place the filter in the base cabinet.
- Mount the hose of your filter on the drain neck. Please observe the operating manual of your filter.

Installing inlet (☒G)

1. Feed the inlet hose through the hole in the aquarium bottom and through the supply shaft.
2. Install the inlet. Please observe the operating manual, installation set.

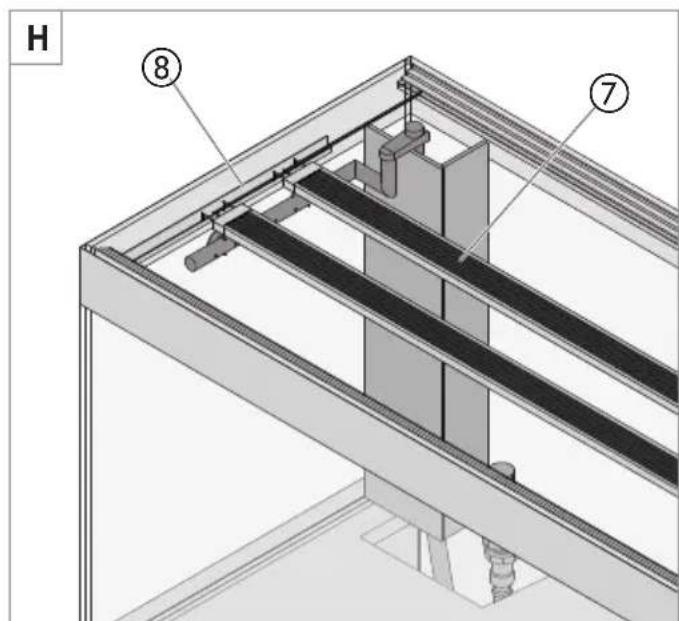

Installing aquarium lighting (☒H)

1. With the continuously adjustable pull-out brackets you can adjust the LED light ⑦ to the width of your aquarium. To do this, pull the pull-out brackets out of the lamp housings in the desired length.
2. Place the LED light in the profile ⑧ on the front sides of the aquarium. Make sure that the LED light is secure
3. Insert the LED light's power cable into the profile.
4. Feed the cable through the supply shaft into the base cabinet.
5. Connect the plug of the LED lights to the socket of the EHEIM power supply unit.

For maintenance work, the LED light can be pushed into the profile.

Installing cabinet lighting

1. Insert the cabinet lighting socket into the matching power supply unit. For this, heed the cabinet lighting operating manual.
2. Insert the power supply unit's mains plug into the mains socket.

7. Operation

Filling the aquarium (☒I)

CAUTION! Material damage.

- Do not use hard objects or cleaning agents for cleaning.

1. Before filling, thoroughly clean the aquarium with warm water and a soft, clean sponge.
2. Decorate the aquarium with gravel, stones, plants etc.

DANGER! Electrocution due to penetrating water!

The LED light is only protected against penetrating water if immersed temporarily.

▶ The distance from the underside of the light ^⑦ to the highest water mark must be a minimum of 15 mm.

1. Fill the aquarium with water to a maximum of 85 mm below the upper edge ⑨.

Switching the LED light on/off

1. To switch on the LED light, insert the power supply unit's mains plug into the mains socket.
2. To switch off the LED light, pull out the power supply unit's mains plug.

For a more comfortable switching on and off of the LED light we recommend a timer or individual programming of the EHEIM LED controller.

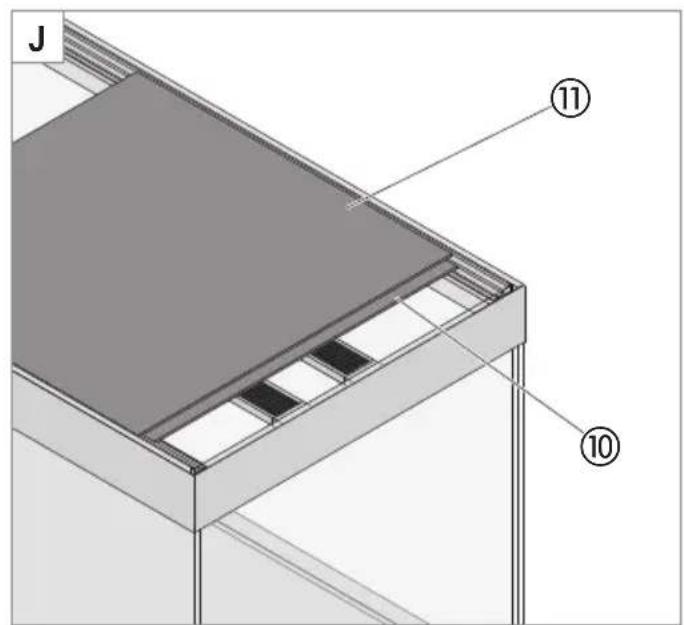

Laying on the cover (☒J)

The cover ⑩ is narrower in width than the cover ⑪.

1. Lay the cover ⑩ in the lower sliding surface of the cover frame.
2. Lay the cover ⑪ in the upper sliding surface of the cover frame.

Opening/closing the cover

CAUTION! Material damage.

Condensation can form on the underside of the covers.

▶ Only open the covers by pushing them sideways or folding them back to the side.
▶ Before removing the covers, allow the condensation to drip into the aquarium.

Switching the cabinet lighting on and off

1. Switch the cabinet lighting on or off with the remote control. Please observe the cabinet lighting's operating manual.

8. Maintenance

DANGER! Electrocution!

- All devices must be disconnected from the power supply before any maintenance work is carried out.

CAUTION! Material damage.

• Do not use hard objects or aggressive cleaning agents for cleaning.
• The appliance components are not dishwasher-proof. Do not clean the appliance or appliance parts in the dishwasher.

The following sections describe maintenance work necessary for optimum and fault-free operation. Regular maintenance prolongs the service life and assures functionality of the appliance over a long period.

1. Regularly remove lime scale deposits from the furniture, the glass and the LED light with a soft, damp cloth.
2. Regularly clean the sliding surfaces of the covers ⑩ and ⑪.

9. Clearing faults

DANGER! Electrocution!

- All devices must be disconnected from the power supply before clearing faults.

The LED light cannot be repaired. A defective appliance must be completely replaced.

Faults Possible cause Remedy

LED light does not illuminate	Mains plug of mains socket not connected	► Insert the mains plug in the mains socket
	LED light defective ► Replace the LED light
Cabinet light doesn’t light	Mains plug of mains socket not connected	► Insert the mains plug in the mains socket
Cabinet light’s remote control doesn’t work	Batteries missing/empty ► Insert/replace batteries

For other faults, please contact EHEIM Service.

10. Decommissioning and disposal

Storage

CAUTION! Material damage.

- Do not subject the appliance to adverse weather conditions or temperatures below freezing.

1. Clean the appliance
2. Store the appliance in a dry, frost-proof place.

Disposal

An appliance that can no longer be used should not be disposed of as a unit, but rather disassembled into individual parts according to the type of material and then recycled.

WARNING! Danger of cutting injuries. Eye injuries due to splinters of flying glass

Shattering the glass panes of the aquarium and filter basin can lead to eye injuries caused by splinters of flying glass, as well as cutting injuries.

▶ To dispose of the glass planes with the household waste, do not shatter them.

When disposing of the appliance, heed the respective statutory regulations.

The appliance may no longer be disposed of with the municipal or household waste. The appliance will be accepted free of charge at municipal collection points or recycling centres. The product packaging is made up of recyclable materials. Dispose of them in an environmentally responsible manner and take them for recycling.

11. Technical data

Type 230 330 430 530
Complete dimensions	70×60×144 cm	100×60×144 cm	130×60×144 cm	160×60×144 cm
Empty weight approx. 105 kg approx. 146 kg approx. 198 kg approx. 236 kg
Total weight, when filled approx. 350 kg approx. 500 kg approx. 650 kg approx. 800 kg
Aquarium
Water volume approx. 230 l approx. 330 l approx. 430 l approx. 530 l
Dimensions (L×W×H)	70×60×65 cm	100×60×65 cm	130×60×65 cm	160×60×65 cm
LED light
Type EHEIM power LED+

The technical data of the LED light is found in the associated operating manual.

12. Guarantee

Starting from the date of purchase, we will assume a guarantee period of 24 months for your aquarium light. This covers all defects on any installed electrical parts. This shall not include damage due to interventions by the purchaser himself.

The aquarium furniture has a guarantee period of 24 months for factory defects.

Starting from the date of purchase, we will assume a guarantee period of 36 months for the bonding and processing of your aquarium. However, this shall not include glass damage. As a prerequisite for this, the specified installation instructions must be observed. Even during the guarantee period, no liability will be assumed for fish, plants and accessories; this also applies to damage and consequential damage in the home. Please do not remove the labelling under the glass base, otherwise the guarantee will be declared void.

Throughout the guarantee period, we will carry out repairs free of charge. For the guarantee to be acknowledged, this certificate must be presented to your specialist dealer together with the dated purchase receipt.

Élimination/destruction

Ajustar/desmontar as portas

Instalar as descargas (☒F)

Reproduction or copying – even parts thereof – only with the express permission of the producer.
