incpiria 330 - Aquarium EHEIM - Free user manual and instructions

Product type	Complete aquarium with cabinet and LED lighting
Brand	EHEIM
Model	incpiria 330
Water volume	330 L
Overall dimensions (L x W x H)	100 x 60 x 144 cm
Aquarium dimensions (L x W x H)	100 x 60 x 65 cm
Weight empty	Approximately 146 kg
Total weight filled	Approximately 500 kg
Main lighting	EHEIM power LED+ LED lamp with adjustable width
Cabinet lighting	Yes, with remote control
Aquarium material	Glass
Usage	Freshwater only, indoor
Minimum lamp-water distance	15 mm
Power supply	Mains via power adapter (220-240 V)
Electrical protection	Class III (low voltage), 30 mA protection device recommended
Warranty	24 months on lighting and cabinet, 36 months on bonding and transformation of the aquarium
Included accessories	Sliding covers, pre-installed water inlet and outlet, user manual
Maintenance	Clean with soft damp cloth, no harsh products or dishwasher

Frequently Asked Questions - incpiria 330 EHEIM

What is the capacity of the EHEIM incpiria 330 aquarium?

The EHEIM incpiria 330 aquarium has a water volume of approximately 330 litres.

What are the dimensions of the incpiria 330 aquarium?

The overall dimensions of the unit (cabinet + aquarium) are 100 x 60 x 144 cm (L x W x H). The aquarium alone measures 100 x 60 x 65 cm.

What lamp is provided with the incpiria 330 aquarium?

The aquarium is equipped with an EHEIM power LED+ LED lamp, the width of which is adjustable using extendable handles.

Can I use the incpiria 330 aquarium for seawater?

No, this aquarium is designed only for freshwater. It is not suitable for saltwater use.

What minimum distance must I maintain between the LED lamp and the water?

The distance between the bottom of the lamp and the highest water level must be at least 15 mm.

How do I install the filter on the incpiria 330 aquarium?

The drain is pre-installed. Place the filter in the lower cabinet, then attach the filter hose to the drain tubes. See the filter's user manual for details.

How do I clean the aquarium and components?

Clean regularly with a soft damp cloth. Do not use hard objects or harsh products. Components are not dishwasher safe. Disconnect all devices before maintenance.

What should I do if the LED lamp does not turn on?

First check that the power adapter is plugged in. If the lamp still doesn't turn on, it is likely defective and must be replaced entirely.

What is the warranty on the incpiria 330 aquarium?

The warranty is 24 months on lighting and cabinet, and 36 months on the bonding and transformation of the aquarium (excluding glass breakage).

Can I remove the cabinet doors?

Yes, the cabinet doors can be easily removed and reinstalled using the quick-clamp function.

USER MANUAL incpiria 330 EHEIM

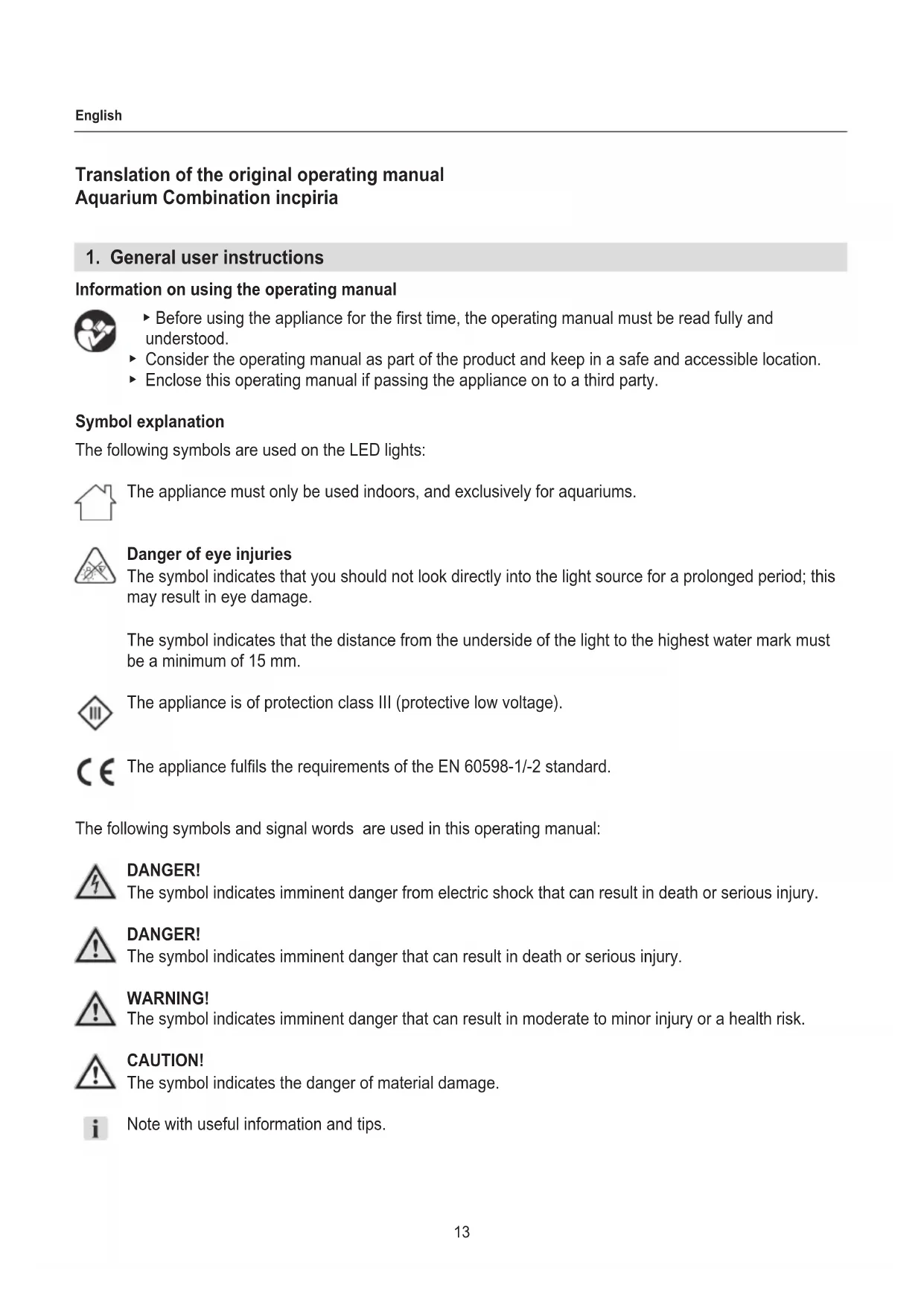

Translation of the original operating manual

Aquarium Combination incipria

1. General user instructions

Information on using the operating manual

Before using the appliance for the first time, the operating manual must be read fully and understood.
Consider the operating manual as part of the product and keep in a safe and accessible location.
Enclose this operating manual if passing the appliance on to a third party.

Symbol explanation

The following symbols are used on the LED lights:

The appliance must only be used indoors, and exclusively for aquariums.

Danger of eye injuries

The symbol indicates that you should not look directly into the light source for a prolonged period; this may result in eye damage.

The symbol indicates that the distance from the underside of the light to the highest water mark must be a minimum of 15mm .

The appliance is of protection class III (protective low voltage).

The appliance fulfils the requirements of the EN 60598-1/-2 standard.

The following symbols and signal words are used in this operating manual:

DANGER!

The symbol indicates imminent danger from electric shock that can result in death or serious injury.

DANGER!

The symbol indicates imminent danger that can result in death or serious injury.

WARNING!

The symbol indicates imminent danger that can result in moderate to minor injury or a health risk.

CAUTION!

The symbol indicates the danger of material damage.

Note with useful information and tips.

Typographical conventions:

A Reference to a figure, in this case, reference to figure A
You are prompted for an action.

2. Application

The appliance and all parts included in the scope of delivery are intended for private use and must only be used:

for aquarium-related purposes
with fresh water
·indoors
with attachment parts that are recommended by the manufacturer
in compliance with the technical data

The following limitations apply to the appliance:

do not use for commercial or industrial purposes
not suitable for salt water

3. Safety instructions

Risks for persons and property can arise from this appliance if the appliance is improperly used or not used as intended or if the safety instructions are not heeded.

For your safety

Do not let the appliance packaging get into the hands of children as hazards can arise (danger of suffocation!).
- This appliance can be used by children from the age of 8 and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised and have been instructed in the safe use of the appliance and have understood the resulting dangers. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are supervised.
- Before use, carry out a visual inspection to ensure that the appliance, especially the mains cable and plug, are undamaged.
- Do not look directly into the light source for a prolonged period; this may result in eye damage.
- Repairs must only be carried out by an EHEIM service centre.

• Only carry out the work described in these instructions.
• Only use original spare parts and accessories for the appliance.

• The appliance must be protected by a residual current protection device with a maximum rated residual current of 30mA . Please contact an electrician if there are any questions or problems.
• In the event of leakage or when the residual current protection device is triggered, immediately disconnect all devices in the aquarium from the power supply.
• If they are not being used, always disconnect all devices in the aquarium from the power supply before you install/remove any parts and before all cleaning and maintenance work.
• Heed the operating manuals for the supplied LED lights, inlet and cabinet lighting, especially the chapters on safety, commissioning, operation and maintenance!
• Protect the mains socket and mains plug against moisture. It is recommended to form a drip loop with the mains cable to prevent any water running along the cable to the mains socket.
• The electrical data of the LED light must match the data of the power mains. This data is found on the type plate, the packaging and in these instructions.
• The distance from the underside of the light to the highest water mark must be a minimum of 15mm .

4. Preparation

Unpacking

Carefully remove all components from the packaging and make sure that nothing is missing or damaged.

Caution! Risk of breaking the aquarium glass base.

The aquarium must not be placed on the connections ② (B).

Leave the aquarium on the transport sections.

5. Assembly

Location

• Avoid direct sunlight, and not too much daylight!
• Keep the aquarium away from heat sources.
• Keep the aquarium away from electrical equipment.
• Be aware of any nearby mains connections.

CAUTION! Material damage.

Ensure that the surface is level and stable.
Be mindful of the floor load provided by the entire weight.

Setting up and aligning the base cabinet (A)

1. Place the base cabinet in the desired position.
2. Align the base cabinet horizontally using a spirit level.

A stand can be used for horizontal alignment. Ensure that the stand rests fully on the surface.

Setting up the aquarium (C)

Danger! Personal injury or material damage.

The aquarium must not be transported or carried when in its filled state.

Caution! Material damage.

No foreign bodies, mats or bases must be placed between the aquarium and base cabinet.

Thoroughly clean the top side of the base cabinet and the lower side of the aquarium base.
Remove any foreign bodies, mats or bases.

1. Place the empty aquarium on the base cabinet. Ensure that the connections lie in the section of the base cabinet's top side.

Adjusting/removing the doors

• You can readjust the doors (D).

The doors can be quickly removed/attached via the quick-release function (E).

6. Commissioning

Installing drains ( F)

• The drain is factory-installed.
• Types 230, 330 and 430 have a drain. Type 530 has two drains.

Hint: Install an EHEIM double tap between the drainpipe and the filter to simplify maintenance.
- Check whether the drain(s) ①⑧⑤ secure.
- Place the filter in the base cabinet.
Mount the hose of your filter on the drain neck. Please observe the operating manual of your filter.

Installing inlet ( G)

1. Feed the inlet hose through the hole in the aquarium bottom and through the supply shaft.
2. Install the inlet. Please observe the operating manual, installation set.

Installing aquarium lighting (H)

1. With the continuously adjustable pull-out brackets you can adjust the LED light ⑦ to the width of your aquarium. To do this, pull the pull-out brackets out of the lamp housings in the desired length.
2. Place the LED light in the profile ⑧ on the front sides of the aquarium. Make sure that the LED light is secure
3. Insert the LED light's power cable into the profile.
4. Feed the cable through the supply shaft into the base cabinet.
5. Connect the plug of the LED lights to the socket of the EHEIM power supply unit.

For maintenance work, the LED light can be pushed into the profile.

Installing cabinet lighting

1. Insert the cabinet lighting socket into the matching power supply unit. For this, heed the cabinet lighting operating manual.
2. Insert the power supply unit's mains plug into the mains socket.

7. Operation

Filling the aquarium (×>l)

CAUTION! Material damage.

Do not use hard objects or cleaning agents for cleaning.

1. Before filling, thoroughly clean the aquarium with warm water and a soft, clean sponge.
2. Decorate the aquarium with gravel, stones, plants etc.

DANGER! Electrocution due to penetrating water!

The LED light is only protected against penetrating water if immersed temporarily.

The distance from the underside of the light to the highest water mark must be a minimum of 15 mm.

1. Fill the aquarium with water to a maximum of 85mm below the upper edge ⑨.

Switching the LED light on/off

1. To switch on the LED light, insert the power supply unit's mains plug into the mains socket.
2. To switch off the LED light, pull out the power supply unit's mains plug.

For a more comfortable switching on and off of the LED light we recommend a timer or individual pro- gramming of the EHEIM LED controller.

Laying on the cover ( J)

The cover 10 is narrower in width than the cover 11.

1. Lay the cover ⑩ in the lower sliding surface of the cover frame.
2. Lay the cover 11 in the upper sliding surface of the cover frame.

Opening/closing the cover

CAUTION! Material damage.

Condensation can form on the underside of the covers.

• Only open the covers by pushing them sideways or folding them back to the side.
  Before removing the covers, allow the condensation to drip into the aquarium.

Switching the cabinet lighting on and off

1. Switch the cabinet lighting on or off with the remote control. Please observe the cabinet lighting's operating manual.

8. Maintenance

DANGER! Electrocution!

All devices must be disconnected from the power supply before any maintenance work is carried out.

CAUTION! Material damage.

Do not use hard objects or aggressive cleaning agents for cleaning.
The appliance components are not dishwasher-proof. Do not clean the appliance or appliance parts in the dishwasher.

The following sections describe maintenance work necessary for optimum and fault-free operation. Regular maintenance prolongs the service life and assures functionality of the appliance over a long period.

1. Regularly remove lime scale deposits from the furniture, the glass and the LED light with a soft, damp cloth.
2. Regularly clean the sliding surfaces of the covers 10 and 11.

9. Clearing faults

DANGER! Electrocution!

All devices must be disconnected from the power supply before clearing faults.

The LED light cannot be repaired. A defective appliance must be completely replaced.

Faults Possible cause Remedy

LED light does not illuminate	Mains plug of mains socket not connected	► Insert the mains plug in the mains socket
	LED light defective ➔ Replace the LED light
Cabinet light doesn't light Mains plug of mains socket not connected		► Insert the mains plug in the mains socket
Cabinet light's remote control doesn't work	Batteries missing/empty ➔ Insert/replace batteries

For other faults, please contact EHEIM Service.

10. Decommissioning and disposal

Storage

CAUTION! Material damage.

Do not subject the appliance to adverse weather conditions or temperatures below freezing.

1. Clean the appliance
2. Store the appliance in a dry, frost-proof place.

Disposal

An appliance that can no longer be used should not be disposed of as a unit, but rather disassembled into individual parts according to the type of material and then recycled.

WARNING! Danger of cutting injuries. Eye injuries due to splinters of flying glass

Shattering the glass panes of the aquarium and filter basin can lead to eye injuries caused by splinters of flying glass, as well as cutting injuries.

To dispose of the glass planes with the household waste, do not shatter them.

When disposing of the appliance, heed the respective statutory regulations.

The appliance may no longer be disposed of with the municipal or household waste. The appliance will be accepted free of charge at municipal collection points or recycling centres. The product packaging is made up of recyclable materials. Dispos of them in an environmentally responsible manner and take them for recycling.

11. Technical data

Type 230 330 430 530
Complete dimensions	70×60×144 cm	100×60×144 cm	130×60×144 cm	160×60×144 cm
Empty weight approx. 105 kg approx. 145 kg approx. 198 kg approx. 236 kg
Total weight, when filled approx. 350 kg approx. 500 kg approx. 650 kg approx. 800 kg
Aquarium
Water volume approx. 230 l approx. 330 l approx. 430 l approx. 530 l
Dimensions (L×W×H)	70×60×65 cm	100×60×65 cm	130×60×65 cm	160×60×65 cm
LED light
Type EHEIM power LED+

The technical data of the LED light is found in the associated operating manual.

12. Guarantee

Starting from the date of purchase, we will assume a guarantee period of 24 months for your aquarium light. This covers all defects on any installed electrical parts. This shall not include damage due to interventions by the purchaser himself.

The aquarium furniture has a guarantee period of 24 months for factory defects.

Starting from the date of purchase, we will assume a guarantee period of 36 months for the bonding and processing of your aquarium. However, this shall not include glass damage. As a prerequisite for this, the specified installation instructions must be observed. Even during the guarantee period, no liability will be assumed for fish, plants and accessories; this also applies to damage and consequential damage in the home. Please do not remove the labelling under the glass base, otherwise the guarantee will be declared void.

Throughout the guarantee period, we will carry out repairs free of charge. For the guarantee to be acknowledged, this certificate must be presented to your specialist dealer together with the dated purchase receipt.

Élimination/destruction

Ajustar/desmontar as portas

As portas poder ser reajustadas ( D)
Afuncao de fixacao rapiida permite una desmontagem/montagem rapiida das portas (一 E)

Instalar as descargas (口 F)

Installation at tillb (G)

Taand/sluk for LED-lysarmaturet

1. Sæt strømforsyningens stik i stikkontakten for atænde for LED-lysarmaturet.
2. Tag strømforsyningens stik ud af stikkontakten for at slukke for LED-lysarmaturet.

OcToPoxHo H3BnEKeHtE BCE KOMNoHEHTbI N3 yNaKOBKn Iy6eHntEcB TOM, YTO HeT OTCyTCTByUxN INI NOBpeXJDeHHbIX KOMNoHEHTOB.

OcToPoxKHo! OnaChocTb nobpeXdEHHcTeKNa Ha dHe aKBapnMyMa.

3anpeuaeTcyaTaHaBnBaTb aKBapnym Ha coeHHTeNbHbte 3JeMeHtbl ② (B).

CHIMITEcakBapnyma TpaHCnopTnpOBOHbIe PnAHN.

5. MoHTax

MecTo pa3MeueHnA

He donyckaIte nonaHaHn npAmbix coJIneHbIX nyuei, orpaHunBaIte KOInyeCTBO dHeBHorO CBeta!
-Держп Te aKbapn ym BdJI N O T nCTOuHnKOB TeIJIa.
-Держп Te akварун m BdAn OТ јелктpo6opydoBaHnЯ.
- O6ecnebyte HannueceTeBOBpo3eTKB6JIn3nakBapnyMa.

OCTOPOXHO! MaTePnaIbHbI yIepe6.

• POnrTOBbTe TropnOHTaJIbHoe OCHOBaHne C DoCTaTOUHO HeCyUe CnOCo6HoCTbIO.
  YuHTbIbAIte Harpy3KHa nOJ ot o6uero Beca akBapnMa.

YcTaHOBka N BbIpaBHBaHne Tym6OouKn (A)

1. NocTaBbTe TymboKy B HxHHe NOJIOKeHne.
2. TouHO BbipOBHraIe Tym6Ouy Kno rOpN3oHTaIIc NOMOJIbBO BaTePnaca.

Дя Вьравиьага NO ropn3oHTaN MOxH No pIoXuTb onOpHyO CTOnKy. Пpr 3tOM Heo6xOdmo npocIeINb 3a TeM, YTO6bl ONOpHra CToKa npInerala NO Bce NOBepxHocTn.

YcTaHOBka aKBapnyma (C)

Onachoctb! Onachoctb TpaBMPOBaHnIIOeN MaTePnaJIbHoro yuepe6a.

3anpeaetcTpaHcnopTnpoBaTnInepeHocntbakBapymB HanoJIHeHHOM COCTOHN.

OcToPoxHo! MaTePnaIbHbI yIepe6.

Mekny akbapnom n TymboKo He doJnxHO 6bTb noCTOpOHnX PpeMeTOB, KObpNKOB n NOknaDOK.

TtataTeIbHO ONUCTnTe BepXHIOU YacTb TymboKIN HNXHIOU CTOpOHy DnHua aKBapNMya.
▶ Y6epnte IIO6bIe NocToPOHHne PpeMeTbI, KOBpIKN I NOdknAKn.

1. Pa3mecTeIpyToI aKbapnym Ha TymboUke. PpI 3TOM Heo6xOIMO npocJeNTb 3a TeM, YTO6bl CoeINHTbHbIe 3JIeMeHTb I nonaII B na3 BepXHei CTOpOHbI TymboUKN.

PerynpoBka/EmoHTax DBepeu

-Дерць MOKHO NOIDPERyINPOBaTb (D).
ФункцябьICTpo3axIMmaNo3BOJЯET6bICTpoДeMOHTnPOBaTb/MOHTnPOBaTbДВерцbl(E).

6. Bbod B 3Kcnnyaatauio

YcTaHOBkaCTOKOB (一 F)

CTOKyctaHaBnBaETcHa3aBoe.
·MoJIeI 230,330 n 430 ochaueHbI ODNHM CTOKOM. MoJIeN b 530 ochaueHa DByM rCTOKAMn.
Cobet: Mekdy trpyboi ctoka n qnilbtpom yctaHOBNTe dBOHON kpaH EHEIM - 3TO ynpocntn TexHHueckoe o6cnyKBAHne.

1. PpOBepbTe npOuHocTh KpeNJIeHnA CToKa nIIN CTOKOB ③.
2. Pa3mecntte nIbTp B Tym6oUke.
3. CoeHnHTe 7IaHr fNbTpa CO CnBbIM 7Tuepom. Ppr 3Tom cO6IouaIte Tpe6oBaHna pyKOBOD-CTBa IIO 3KcNpyatauIN fNbTpa.

YcTaHOBKa BnycKa (G)

1. Порунystе вусяншалг черз OTberpстп В дHe akВаруma И черз OTberpстп Дпя KMMyнkaци.
2. YctaHOBIne Bnysk. PpN 3tOM co6IIOaIte Tpe6OBaHna pyKOBoDcTBa nO 3KcPnyatauHa6opa dJa yCTaHOBKn.

YcTaHOBkaOCBeueHnAkBapnyma（H)

1. C NOMOUIIINABHO peryInpyeMbIX BbIDBHXbIX KPOHHTeHOB MOXHO yCTaHOBtB CBETNOHDhIB CNBtINbHnK ⑦ B COOTBeTcTBnC wnpHOn aKBapnyMa. IJIr 3TORO BblDINbTe KPOHHTeHbI IN3 KOpNyca Ha JeJaMyo DnHy.
2. YctaHOBNTe CBeToNDHbI CBETNJIbHNK B npOoHb ⑧ Ha TOpcaX akBapnMy. PpN 3TOM Heo6xOIMO pOcJIeNTb 3a NOJIOKeHHem CBeTIbHnKa
3. POnBeInTe ceTeBOI Ka6eJIb CBeTINbHnka B npOΦnJIb.
   4.ПOTЯНTE Ka6eIb uepe3 OTBepCTne JIA KOMMyHkaCn B Tym6OuKe.
4. BctaBbTe coeHHTeHbI hI TeKepe CBToIOHOrO CBtHbHnKa B rHe3do 6Ioka nITaHnEHEIM.

TExHueckoro 6cIyKbHaM MoXHO CdBnraT CBETOIOHbI CBETNJIbHk B npOΦnJIe.

YctaHOBKa CBetNJIbHNKOB dIy Tym6OuKn

1. BcTaBbTe coeHHTeHbHbI WTeKeP CBeTnHbNka IJa TymboUKN B COOTBeTCTByUOee rHe3do Ha 6Noke nHTaHn. Ppr 3tOM c6blOdaIte Tpe6oBaHn pyKOBODCTBa NO 3KcPiyatauIN CBeTnHbNka.
2. BcTaBbTe BnIky ceTeBOrO Ka6eJia 6Joka nTahnBa P03eKy.

7. 06cnyxnbHne

HanoJIHeHne akBapnyma (I)

OCTOPOXKHO! MaTePnaIbHbI yIeep6.

He nCnoIb3yIte dIa OUHCTKJ XeCTKJIpeDMeTbI N UcTЯIJIe CpeDcTBA.

1. Pape 3aOpJIHeHem TuaTeIbHO Ounchte aKbApnM TeIIIOB OdoN MmIKo YcCTO r6ko.
   2.ДeКориPyIteakBapnymraIbKoJ,KAMHMy,paCTeHnMnT.D.

ONACHOCTb! Onachoctb ydapa TOKOM B pezylTaTe nonaHaHnBodbl!

CBeToIIOHbI CBeTnIbHnK 3aUuHcH OT IOnaHaHnB ODbI TObKO pN KpaTKOBpeMeHHOM NorpyxeHn B Body!

PacctoHne OT HxHero Kpa CBtINbHnK 7 Do MaKcMaIbHO yPOBHa BObl DOJXHO COCTaBJIaTb MInHMym 15 MM.

1. HanoJIHnTe aKBapnM BOoI MaKcIMyM Do ypoBHa 85 MM HIXe BepxHero Kpar ⑨.

BkIoueHHe/BbIKIoueHHe CBeToIOHOHoro CBETINbHNKa

1. UTo6bI BkIIOUHTb CBETOJNOIDHbI CBETINbHnK, BCTaBbTe BnIKy CeTeBOrO Ka6eJa 6noka nITaHnBa p03eTKy.
2. YTO6bI BbIKIOHTb CBeTODNOHbI CBETINbHnK, BblHbTe BNky CeTeBOrO Ka6eJa 6Joka NITaHnA n3 po3eTKn.

YTo6bI ObecneuHTb KOMΦopTHoe BKIOUeHne/BbIKIOUeHne CBETOINODHOro CBETINbHnka, Mbl peKoMeHnyem NcNoJIb3OBaTb peIe BpeMeHn IIN INHdNBUdyaJIbHbIe HAcTPOJKN CBETOINODHOrO KOHTpONPe-pa EHEIM.

YcTaHOBka KpbIuIKN (J)

UmpHa KpbIuKn ⑩ MeHbWe, Yem UnpHa KpbIuKn ⑪.

1. NomeCTnTe KpbIuKy 10 B HIXHIOU CKOJIb3aIyIO NOBepXHOCTb paMbI KpbIuKn.
2. Nomecnte KpbliuKy ⑪ B BepxHIOO cKOJIb3aIyIO NOBepxHOCTb paMbIKpbIiKN.

OTkpbltne/3akpbItne KpbIuKn

OCTOPOXHO! MaTePnaIbHbI yIepe6.

Ha HIXKHeI CTOPOHe KpbIWeK MoXeT O6pa3OBbIBaTbcRA KOHDeHcaT.

• OTKpbIiBaIe KpbIiKn, TOnbKO cDnBraJ B6OK nJIn OTKpbIBaR c6Oky.
  NpeD CHrTHeM KpbIuKn DaIte KOHDeHcAty CTeMbAkapnym.

BkIIOueHHe/BBIKIOueHHe CBeTNbHnKOB Tym6OuKn

1.ДяВКЛЮЧЕнЯИ ВБКЛЮЧЕнЯ CBETINьнкOB Tym60чKN IcNoIb3yIte NpIbT DnCTaHIOHORO ynpabJIeHЯ.Iprn 3tOM co6JIoJaIte Tpe6OBaHЯpykoBoDcTBa NO 3KcNJIyaTaUIM CBETINьнкOB Tym60чKN.

8. Texo6cnyxnbHne

ONACHOCTb! Onachoctb ydapa TOKOM!

Reproduction or copying - even parts thereof - only with the express permission of the producer.
