air pump 200 - Air purifier EHEIM - Free user manual and instructions

Product type	Aquarium aerator
Brand	EHEIM
Model	Air pump 200
Article number	3702
Intended use	Aquarium keeping, indoor use only
Main functions	Oxygen enrichment, operation of filters and air-driven decorative elements, water current generation
Air flow	Adjustable via regulation knob
Number of air outlets	2 (use a T-connector if necessary)
Installation type	Above water level, using the supplied wall mount
Safety	30 mA residual current device recommended; do not use if cord is damaged
Air filter maintenance	Check regularly and replace according to soiling
Diffuser maintenance	Regularly change the felt disc to prevent clogging
Included accessories	Air hose, diffuser with suction cup, wall mount
Noise level	Very quiet operation (new housing design)
Warranty	See manufacturer's conditions

Frequently Asked Questions - air pump 200 EHEIM

How to install the EHEIM air pump 200 aerator?

Place the aerator above the water level and outside the aquarium. Fix it to the wall with the mounting eyelet. Connect the air hose to the diffuser, then place the diffuser in the aquarium with its suction cup. Plug the male plug into the power outlet.

Where to place the device to avoid any risk?

The device must be installed above the water to prevent backflow. Do not place it on the aquarium. Use the wall mount and form a drip loop on the cord to prevent water from reaching the outlet.

How to adjust the air flow?

Turn the regulation knob (mark ①) to adjust the flow. At the diffuser, you can also change the bubble diffusion pattern using a coin.

How to clean the air filter?

Check the air filter (mark ⑨) regularly. If it is dirty, replace it. Do not clean the device in the dishwasher.

How to change the felt disc of the diffuser?

The felt disc of the diffuser can become clogged over time. Change it regularly to maintain good air flow and avoid diaphragm wear.

What to do if the device does not work correctly?

First check that the power cord is not damaged. Make sure the air filter is not clogged. If the problem persists, do not attempt to repair it yourself; contact EHEIM after-sales service.

Is the aerator noisy?

No, the new housing design ensures very quiet operation. The non-slip feet dampen vibrations.

Can I use the device continuously?

Yes, the EHEIM air pump is designed for continuous use. Make sure to follow safety instructions, especially to form a drip loop and use a residual current device.

What are the important safety precautions?

Always unplug the device before any maintenance. Never grasp the plug with wet hands. If the cord is damaged, have it replaced by a professional. Use a 30 mA residual current device.

Is the air pump 200 compatible with all aquariums?

Yes, it is suitable for any aquarium, provided the aerator is placed above the water level. The diffuser can be positioned as needed.

USER MANUAL air pump 200 EHEIM

air pump 100 200 400

de Aquarium-Durchlüfter
en Aquarium aerator
fr Aérateur d'aquarium
Aquarium-beluchtingspomp
Akvarieluftpump
no Akvarie-lufteapparat
fN Akvaario-tuuletin
da Cirkulationsapparat til akvarier
it Iniettore d'aria per acquario
es Bomba de aire para acuario
pt Bomba de ar para aquario
el Aεpavλia ενuδρεiou
cs Vzduchovaci aerpadlo
hu Akvariumi leveg sztet's
pl Napowietrzacz do akwariów
sk Vzduchovacie aerpadlo
sI Akvarijski prezraevalnik
ro Aerator pentru acvariu
tr Akvaryum Havalandirma Sistemi
ru AKBapnymhbl KOMnpecccop
BbBeHTnlaTOp 3a aKBapnym
zh水族箱氧气泵

A

1
air pump 200 / 400 1x

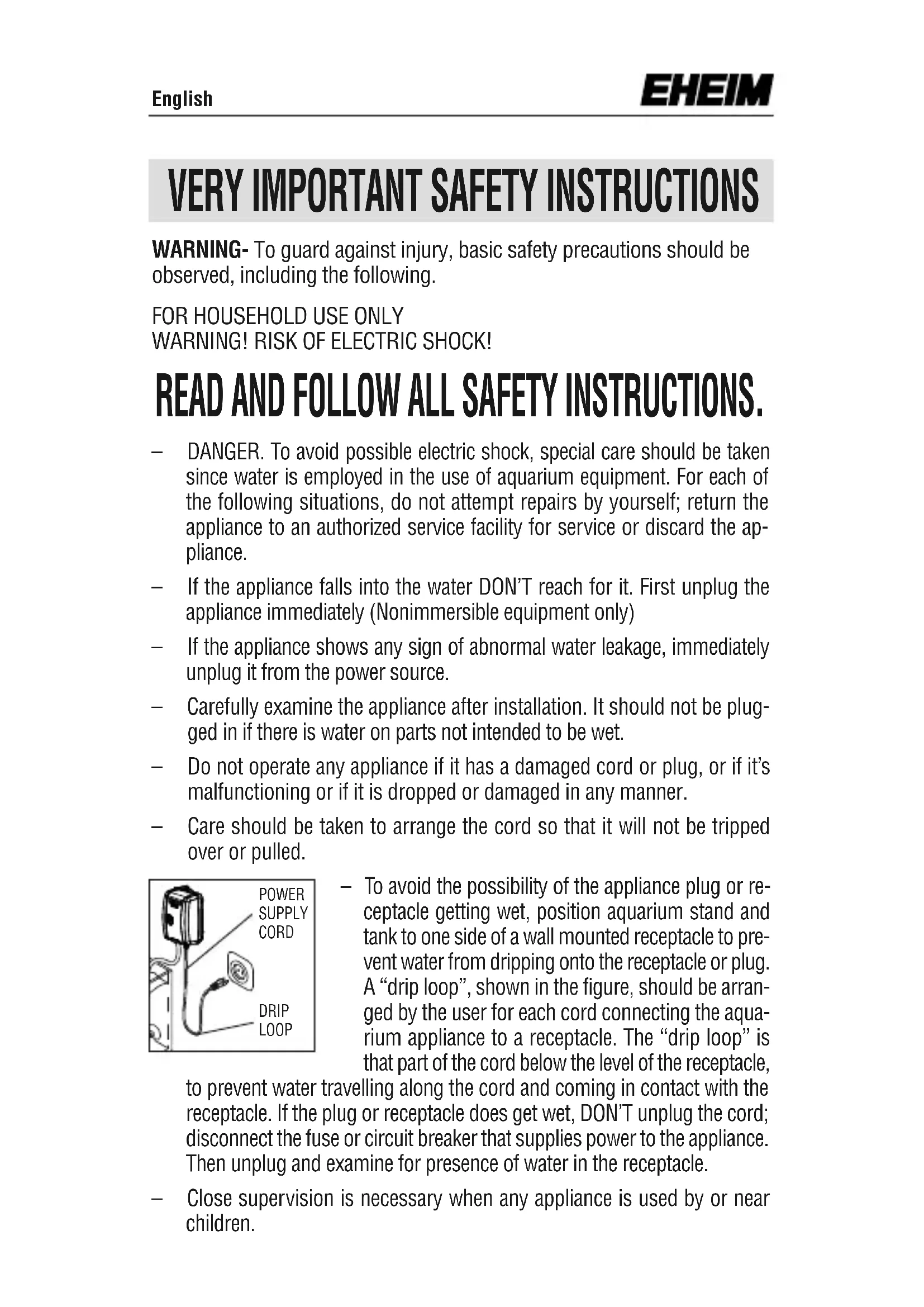

VERY IMPORTANT SAFETY INSTRUCTIONS

WARNING- To guard against injury, basic safety precautions should be observed, including the following.

FOR HOUSEHOLD USE ONLY WARNING! RISK OF ELECTRIC SHOCK!

READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

DANGER. To avoid possible electric shock, special care should be taken since water is employed in the use of aquarium equipment. For each of the following situations, do not attempt repairs by yourself; return the appliance to an authorized service facility for service or discard the appliance.
If the appliance falls into the water DON'T reach for it. First unplug the appliance immediately (Nonimmersible equipment only)
If the appliance shows any sign of abnormal water leakage, immediately unplug it from the power source.
- Carefully examine the appliance after installation. It should not be plugged in if there is water on parts not intended to be wet.
- Do not operate any appliance if it has a damaged cord or plug, or if it's malfunctioning or if it is dropped or damaged in any manner.
- Care should be taken to arrange the cord so that it will not be tripped over or pulled.

• To avoid the possibility of the appliance plug or receptacle getting wet, position aquarium stand and tank to one side of a wall mounted receptacle to prevent water from dripping onto the receptacle or plug. A "drip loop", shown in the figure, should be arranged by the user for each cord connecting the aquarium appliance to a receptacle. The "drip loop" is that part of the cord below the level of the receptacle,

to prevent water travelling along the cord and coming in contact with the receptacle. If the plug or receptacle does get wet, DON'T unplug the cord; disconnect the fuse or circuit breaker that supplies power to the appliance. Then unplug and examine for presence of water in the receptacle.

• Close supervision is necessary when any appliance is used by or near children.

• To avoid injury, do not contact moving parts.

• Always unplug an appliance from an outlet when not in use, before putting or taking off parts, and before cleaning. Never yank cord to pull plug from outlet. Grasp the plug and pull to disconnect.
• Do not use an appliance for other than intended use. The use of attachments not recommended or sold by the appliance manufacturer may cause an unsafe condition.
• Do not install or store the appliance where it will be exposed to the weather or to temperatures below freezing.
• Make sure an appliance mounted on a tank is securely installed before operating it.
• Read and observe all the important notices on the appliance and its cord.
• If an extension cord is necessary, a cord with a proper rating should be used. A cord rated for less amperes or watts than the appliance rating may overheat. Care should be taken to arrange the cord so that it will not be tripped over or pulled.
• Check that the voltage shown on the label of the unit corresponds to the voltage of the mains supply.
• Disconnect all electrical appliances from the mains before placing hands in the water.
• The line cord of this unit cannot be replaced or repaired. Should the line cord become damaged the appliance must be discarded.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

air pump 100 (Art.-No. 3701)

air pump 200 (Art.-No. 3702)

air pump 400 (Art.-No. 3704)

Model: see type plate on motor body

Thank you

for buying the new EHEIM aquarium aerator. You have chosen aquality product from EHEIM. The EHEIM air pump is finished to ahigh standard and is extremely reliable. The new housing designtype ensures that noise is kept to the level of a whisper. YourEHEIM air pump is delivered complete with air hose and outlet andcan be used for a variety of functions within the aquarium.

Some application examples: oxygen enrichment of the aquarium water, operation of filters and decorative elements or for creating a watercurrent. Before putting your EHEIM air pump in operation or performing maintenance work, please take a few minutes to read the following instructions carefully.

Safety instructions

Read the operating and safety instructions carefully and comply with all instructions prior to operating this (Keep these operating instructions in a safe place.

Never touch mains plug with wet hands.

Before undertaking any maintenance work, switch off all units in the aquarium or unplug the mains plug! In order to avoid danger, always have damaged power cords ② replaced by the manufacturer, the manufacturer's servicepersonnel or similarly qualified persons.

For indoor use only. For use with aquariums.

This equipment can be used by children above the age of 8 or by persons with reduced physical, mental or sensory capacities or a lack of experience or knowledge, provided they are supervised or have received instruction in the safe use of the equipment and therefore understand the risks involved. Do not allow children to play with this equipment. Do not allow children to clean or conduct user maintenance without supervision.

For your own safety we recommend that you make a drip loop with the power cord. This drip loop prevents any water running along the cord from reaching the electrical socket. If an extension lead with several sockets or an external power

supply is used, place it above the pump power connection.

When the line is damaged, the device must no longer be used.

To protect against contact voltage being too high, the fixture must have a residual current device with a rated release fault current not exceeding 30mA . Ask your electrician.

Do not clean the unit – or parts of it – in the dishwasher. Not dishwasher resistant.

Do not dispose of this product as normal household waste. Take it to your local refuse collection site.

The product is approved in accordance with the respective national regulations and guidelines and complies with the EU standards.

Function

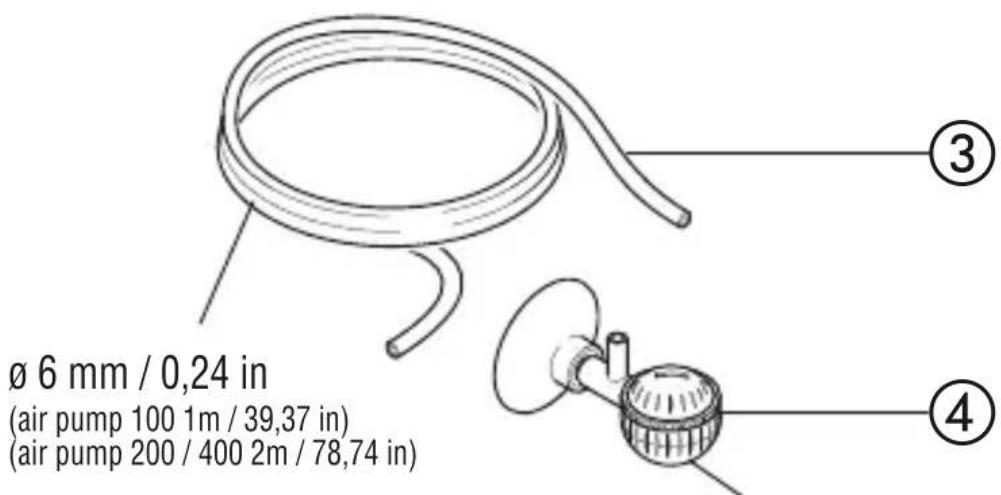

① Control knob (air volume) ② power supply cord ③ air hose ④ outlet ⑤ bubble pattern ⑥ wall mountingeyelet ⑦ drip loop ⑧ antiskid feet and vibrationdamper ⑨ air filter.

Putting into operation

• Check the unit for damage and for completeness.

Mounting location / Positioning:

• Always install above the water level and outside the aquarium (Fig. B) to prevent water from running back into the air pump
• Do not place on or above the aquarium. Choose the mounting location / positioning so that the aerator cannot drop into the water or "walk".

We recommend mounting using the wall mounting eyelet (Fig. B).

• Cut the hose ③ to the required length and connect the outlet ④ to the aquarium aerator. Place the outlet with suction device in the aquarium (Fig. B). If only one accessory is connected to EHEIM air pumps 200 and 400, which are provided with two air connections, please use a T-type connector available from your dealer. Never operate an air connection without a „load“, i.e. without hose and outlet.

• Place the outlet ④ in the aquarium.

• Connect the mains plug with the socket. Monitor the water level and ensure the correct ⑦ drip loop. (Fig. B)

Air volume adjustment

• The required air volume can be adjusted by turning the control knob ①.
• Set the required bubble pattern ⑤ at the outlet ④ (e.g. using a coin) (Fig. B).

Care and Cleaning

• Regularly check air filter (Fig. C) for contamination, and replace if required.
• The felt washer of the EHEIM outlet ④ may become clogged after some time. This will lead to an increased counter pressure reducing the flowrate and increasing the wear to the diaphragm. You should therefore replace the felt washer of your EHEIM outlet at regular intervals.
