Product type	Cordless stick vacuum
Model	SC3 (ASC0003 / ASC0003-UK)
Brand	AENO
Dimensions (L×W×H)	1060×230×218 mm
Net weight	1.4 kg
Battery type	Lithium-ion (22.2 V)
Battery capacity	2000 mAh
Adapter input voltage	100–240 VAC, 50/60 Hz
Adapter output voltage	26.5 VDC, 0.5 A
Rated power	250.0 W
Maximum suction power	28 kPa
Noise level	Min 60 dB
Runtime (normal mode)	Up to 45 minutes
Runtime (turbo mode)	Up to 12 minutes
Charging time	4 to 5 hours
Display	LED (battery indicator)
Filter	Washable MIF filter
Included accessories	Roller brush, crevice tool, flat brush, extension tube, charging base, wall mount
Operating modes	Eco, Medium, Turbo
Operating temperature	0°C to +40°C
Warranty	2 years
Manufacturer	ASBISc Enterprises PLC, Cyprus (made in China)

Frequently Asked Questions - SC3 AENO

How to charge the AENO SC3 vacuum cleaner?

Fix the charging base to the wall using the wall mount kit, plug the power adapter into an outlet, then place the vacuum on the base by inserting the base plug into the socket on the handle. Let it charge for 4 to 5 hours until all four LED bars are lit.

What is the full charging time of the battery?

The full charging time is 4 to 5 hours.

How to turn the vacuum on and off?

Press the trigger switch on the handle (item 17) to turn the device on or off.

How to change the suction mode?

Once the vacuum is on, press the button on the back of the battery pack (item 14) to cycle through Eco, Medium, and Turbo modes in sequence.

What to do if the vacuum does not turn on?

Check that the battery is sufficiently charged. If not, recharge it. Also make sure there is no clogging in the tube or brush that could block operation. If the problem persists, contact customer service.

How to clean the MIF filter?

Remove the dust tank, then the MIF filter. Detach the filter and the funnel cover. Rinse all parts under running water, dry them thoroughly, then reassemble and replace the filter in the tank.

How to clean the roller brush?

Use a screwdriver or a knife to turn the brush lock on the right side. Remove the brush roller, remove hair and debris using a non-sharp tool. Do not wash the roller with water and do not use your fingers.

What to do if suction power decreases?

Check that the dust tank is not full and clean it if necessary. Also clean the MIF filter and the roller brush. Make sure the extension tube is not blocked.

Can I use the vacuum to pick up liquids?

No, never vacuum liquids, flammable substances, or construction debris. The vacuum is designed only for dust and small dry waste.

Where can I download the full manual?

The full manual is available for free in PDF format on notice-facile.com or on aeno.com/documents.

USER MANUAL SC3 AENO

Line drawing of a vacuum cleaner with long handle and base, against black background (no text or symbols)

User Manual

Cordless

Vacuum

Cleaner

SC3, SC3-UK

(Models: ASC0003, ASC0003-UK)

19.04.2023 | v 3.2.1

ENG....8

ARA.... 13

BUL.... 16

CES.... 22

DEU 27

ELL.... 33

EST.... 38

FRA.... 43

HRV 49

HUN.... 54

HYE 59

ITA.... 64

KAT 70

KAZ....76

LAV 82

LIT 87

NLD....92

POL....97

POR.... 102

RON.... 107

RUS.... 112

SLK.... 118

SPA.... 123

SRP 128

UKR.... 134

UZB.... 140

ZHO....146

Technical diagram of a hair dryer with labeled parts including spray gun, holder, and accessories

4 aeno.com/documents

c) d) e)

f)

Technical line drawing of a mechanical device with gear and shaft assembly (no text or symbols)

g)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

6 aeno.com/documents

h)

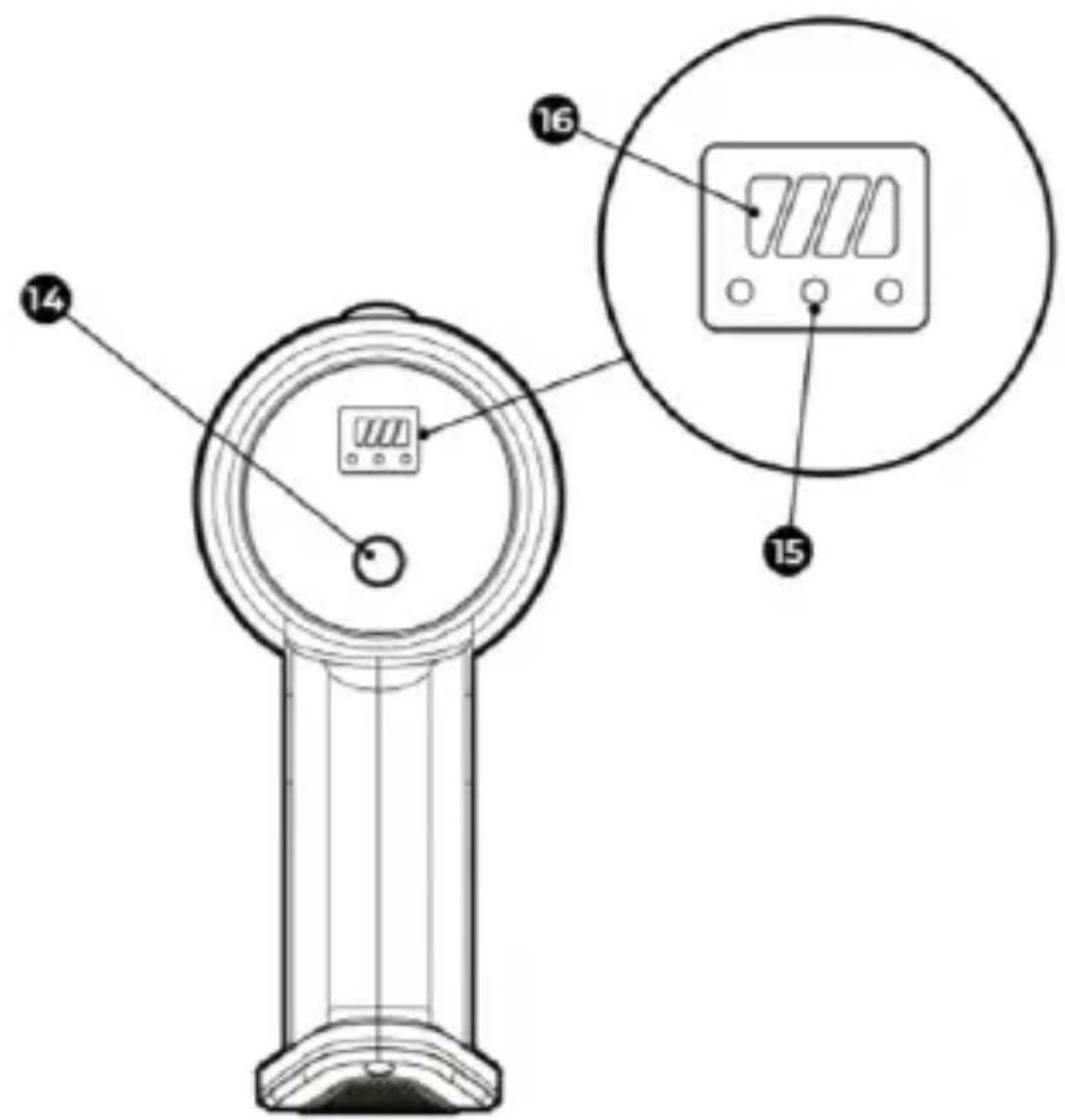

Technical diagram of a device with labeled parts including 14, 15, and 16, showing a display and control panel.

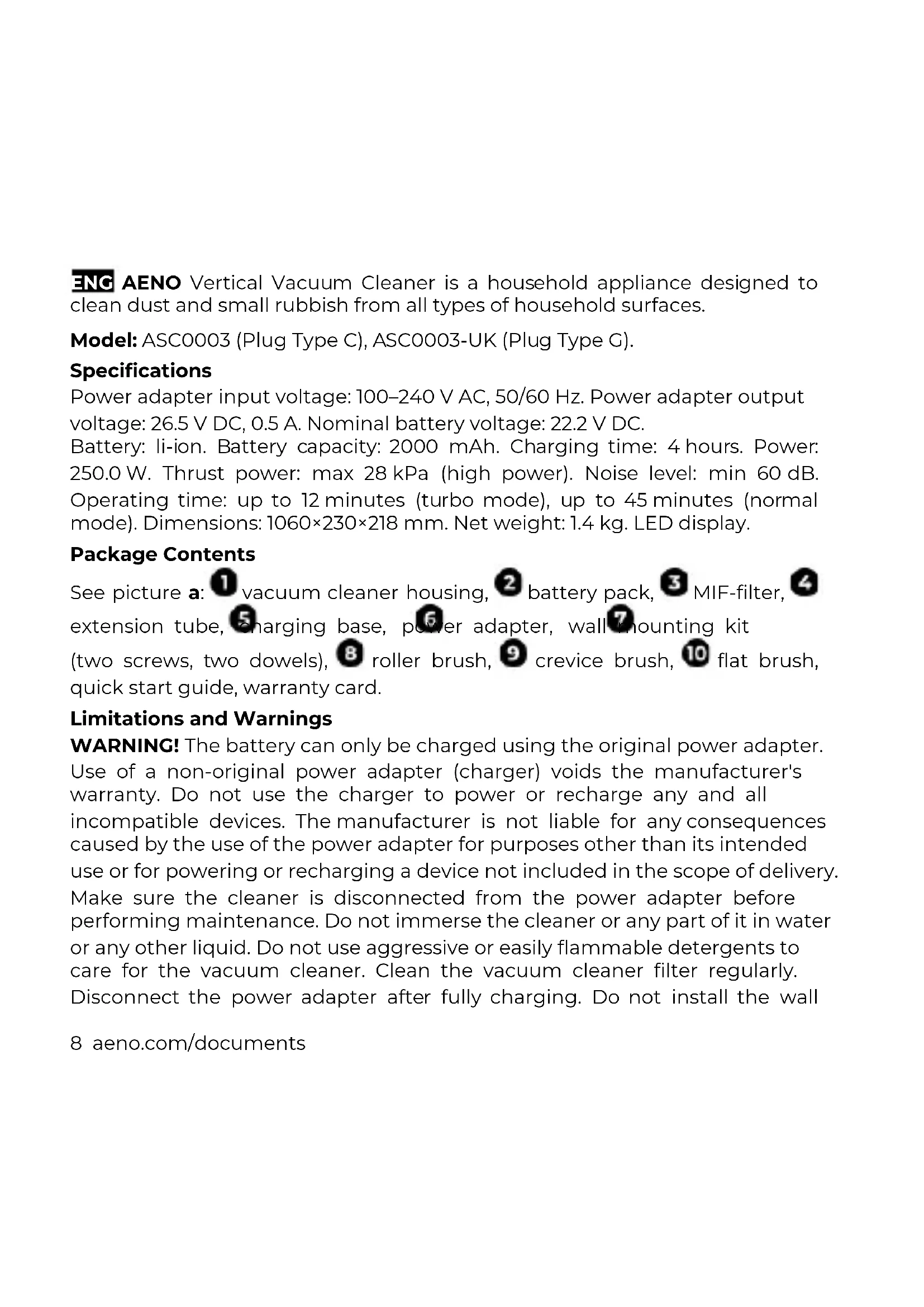

ENG AENO Vertical Vacuum Cleaner is a household appliance designed to clean dust and small rubbish from all types of household surfaces.

Model: ASC0003 (Plug Type C), ASC0003-UK (Plug Type G).

Specifications

Power adapter input voltage: 100–240 V AC, 50/60 Hz. Power adapter output voltage: 26.5 V DC, 0.5 A. Nominal battery voltage: 22.2 V DC.

Battery: li-ion. Battery capacity: 2000 mAh. Charging time: 4 hours. Power: 250.0 W. Thrust power: max 28 kPa (high power). Noise level: min 60 dB. Operating time: up to 12 minutes (turbo mode), up to 45 minutes (normal mode). Dimensions: 1060×230×218 mm. Net weight: 1.4 kg. LED display.

Package Contents

See picture a: 1 vacuum cleaner housing, 2 battery pack, 3 MIF-filter, 4 extension tube, 5 charging base, 6 power adapter, wall mounting kit (two screws, two dowels), 8 roller brush, 9 crevice brush, 10 flat brush, quick start guide, warranty card.

Limitations and Warnings

WARNING! The battery can only be charged using the original power adapter. Use of a non-original power adapter (charger) voids the manufacturer's warranty. Do not use the charger to power or recharge any and all incompatible devices. The manufacturer is not liable for any consequences caused by the use of the power adapter for purposes other than its intended use or for powering or recharging a device not included in the scope of delivery. Make sure the cleaner is disconnected from the power adapter before performing maintenance. Do not immerse the cleaner or any part of it in water or any other liquid. Do not use aggressive or easily flammable detergents to care for the vacuum cleaner. Clean the vacuum cleaner filter regularly. Disconnect the power adapter after fully charging. Do not install the wall

8 aeno.com/documents

bracket in locations exposed to direct sunlight or excessive heat. Do not use the power adapter if the plug or cord is damaged. Do not attempt to vacuum flammable objects (cigarette butts, matches, ashes) or excessively crushed construction debris (e.g., lime, cement, plaster powder), large sharp objects and fragments (e.g., glass, nails, needles), aggressive liquids (solvent, cleaner, acids), flammable or explosive liquids (e.g., gasoline, alcoholic products). Keep hair, loose clothing, fingers and other body parts away from the air duct and moving parts of the cleaner. Do not point vacuum cleaner air tube, handle or other tools at eyes, ears or other sensitive areas of the body. Carefully examine the area to be cleaned before turning on the vacuum cleaner. If it contains large pieces or lumps of paper, plastic or cloth, sharp objects, or objects larger than the diameter of the vacuum cleaner tube, remove them from the cleaning area beforehand. Otherwise, the tube of the vacuum cleaner may get clogged, which will decrease its suction power. If the cleaner gets too hot, you hear an abnormal sound, the suction power has decreased, or there is an unpleasant odor, stop using it immediately. Inspect the dust container regularly. If there is a lot of rubbish and dust in it, clean it out.

Assembly and operation

Attach the extension tube to the vacuum cleaner housing, pushing the tube into the slot until it clicks into place. To the other end of the extension tube, attach one of the brushes, or insert the brush into the groove of the tube until it clicks into place (see figure c). You can also attach the brushes directly to the vacuum cleaner housing (without the metal extension tube). You must charge the vacuum cleaner before using it for the first time. To do this, attach the charging base together with the power adapter rigidly attached to the wall using the wall mount kit

NOTE. The charging base should be at least 1 meter above the floor and no further than 1 meter from an AC power outlet.

Plug the power adapter into a power outlet and place the vacuum cleaner in the charging base so that the charging base plug fits into the socket on the handle of the vacuum cleaner housing. It takes 4–5 hours to charge the battery fully. When the battery is fully charged, all four bars will be lit on the battery pack indicator (see figure h).

When fully charged, remove the vacuum cleaner from the charging base. To turn the cleaner on or off, press the trigger switch located on the handle of the vacuum cleaner housing (see illustration a). Use the button on the back of the battery pack (see figure h) to change the vacuum cleaner's operating mode if the unit is already on. The vacuum cleaner operates in three modes: economy mode, medium mode and turbo mode. The modes are switched with the button one by one.

Table of vacuum cleaner operation modes

Vacuum cleane stater	User actions	Result
The vacuum cleaner is off	Press the switch [XBAC]	The vacuum cleaner turns on and operates in economy mode
The vacuum cleaner is on and operates in economy mode	Click [WSTW]	The vacuum cleaner operates in medium mode
The vacuum cleaner operates in medium mode	Press the more time	The vacuum cleaner operates in turbo mode
The vacuum cleaner operates in turbo mode	Press the more time	The vacuum cleaner operates in economy mode

10 aeno.com/documents

The vacuum cleaner operates in any mode

Press the switch17

The vacuum cleaner turns off

Before cleaning the dustbag housing 18 , disconnect it from the vacuum cleaner housing by pressing the round button on the dustbag housing end (see figure f). Press the latch to open the bottom lid of the dustbag housing is opened. Shake dust and other rubbish out of the dustbag housing. The MIF-filter is to be flushed with water at least once every three months. To do this, pull the MIF filter out of the dustbag housing (see figure g). Then remove the filter and the overlay from the funnel of the MIF filter . Rins the MIF filter parts with running water and dry them. Then assemble the MIF filter and insert it into the dustbag housing. Put the dustbag housing back into place in the vacuum cleaner housing.

The roller brush requires regular cleaning of trapped hair and other rubbish. To do this, turn the brush lock on the right side (see figure e) by a screwdriver or knife. Then remove the clogged brush roll and clean it. Use only a special brush for this. Do not wash the roller with water or cleaning detergents and do not remove rubbish with your fingers.

Troubleshooting

The vacuum cleaner does not turn on. Possible causes: low charge level, clogging. Solution: charge the battery, clean the clogs.

Weak suction power. Possible causes: overfilled dustbag, clogged brush. Solution: clean the dustbag, filters and the brush.

Strong noise, extraneous sounds. Possible causes: clogged metal extension tube. Solution: clean the tube.

The main brush roll does not rotate. Possible causes: clogging. Solution: disassemble the main brush, remove the roller and the clog.

The LED indicator lights up blue, then it starts blinking red and the cleaner shuts off. Possible causes: the battery has overheated or overcooled because the room temperature is too high or too low. Solution: use the vacuum cleaner at temperatures between 0 °C and +40 °C.

The charge indicator does not change its reading during charging. Possible causes: non-original power adapter used, the battery is out of order. Solution: Use only the original power adapter to charge the vacuum cleaner.

ATTENTION! If your problem persists, please contact your local supplier or the service center for support. Please do not disassemble the device or try to repair it on your own.

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

These symbols indicate that you must follow the Waste Electrical and Electronic Equipment (WEEE) and Waste Battery and Battery Regulations when disposing of the device, its batteries and accumulators, and its electrical and electronic accessories. According to the rules, this equipment must be disposed of separately at the end of its service life. Do not dispose of the device, its batteries and accumulators, or its electrical and electronic accessories together with unsorted municipal waste, as this will harm the environment. To dispose of this equipment, it must be returned to the

point of sale or turned in to a local recycling facility. You should contact your local household waste disposal service for details.

ASBISc reserves the right to modify the device and to make edits and changes to this document without prior notice to users.

The warranty period and service life shall be 2 years as from the date of purchase of the device. Information about the manufacturer: ASBISc Enterprises PLC, lapetou, 1, Agios Athanasios, 4101, Limassol, Cyprus. Made in China.

For current information and details on the device description and specification, as well as connection process, certificates, warranty and quality issues, see relevant Installation and Operation Manuals available for downloading at aeno.com/documents. All trademarks and names herein are the property of their respective owners.
