Product Type	Negative refrigerated display
Brand	Polar
Model	CB921
Capacity	365 liters
Use	Storage of frozen products or ice cream
Power supply	220-240 V / 50 Hz
Temperature range	Adjustable via control panel
Defrost	Manual with dedicated button
Control panel	Digital with display and SET buttons
Interior lighting	Replaceable bulb
Locking	Door with lock and keys provided
Door reversal	Not applicable (model CB921)
Feet	Adjustable feet, optional casters
Accessories included	2 keys, 2 spacers, user manual
Exterior material	Lacquered steel
Cleaning and maintenance	Regular interior cleaning, condenser cleaning recommended
Safety	Grounding required, power cord replaceable by professional
Repairability	Spare parts available via Polar or qualified technician
Compliance	CE standards, WEEE

Frequently Asked Questions - CB921 POLAR

What to do if the indicator light does not turn on?

Check that the appliance is plugged in and turned on. If the plug and cord are damaged, contact a Polar agent or a qualified technician. Also check the mains power supply.

Why is the temperature inside too high or too low?

Possible causes: excess ice on the evaporator (defrost the appliance), dirty condenser (clean it), doors not closed properly (check seals), appliance near a heat source (move it), or stored food that is too hot.

How to reverse the door opening direction?

Door reversal is not possible on model CB921. For other models, follow the procedure in the manual: disassemble the lower right hinge, remove the door, install hinges on the left and reassemble.

How to perform a manual defrost?

Press and hold the defrost button (symbolized by 'aux') for 2 seconds. The defrost light turns on. The appliance defrosts automatically.

What to do in case of water leakage?

Check that the appliance is level (adjust the feet). Clean the drain if it is clogged. If the water tray is damaged or the defrost pan overflows, contact a professional.

How to clean the appliance?

Turn off and unplug the appliance. Clean the inside with soapy water, without abrasive products. Clean the door seal with warm soapy water and dry it. Be careful at the back (sharp edges).

How to replace the interior bulb?

Turn off and unplug the appliance. Remove the plastic cover, rotate the bulb to release it, replace with a bulb of the same wattage, then replace the cover.

What to do if the appliance is very noisy?

Check that the safety strap has been removed. Tighten nuts and screws. Make sure the appliance is on a stable and level surface.

What foods can I store in this refrigerator?

This appliance is designed for storing frozen products or ice cream. Only store cooled food, cover it, and do not block the interior fans.

How to adjust the operating temperature?

Press and hold the SET button for 3 seconds until the display flashes. Use the buttons to choose the desired temperature, then press SET to confirm.

USER MANUAL CB921 POLAR

600 / 400 / 150 litre series Refrigerators/Freezers

Instruction manual

NL Koelkast/Vrieskast 10

Handleiding

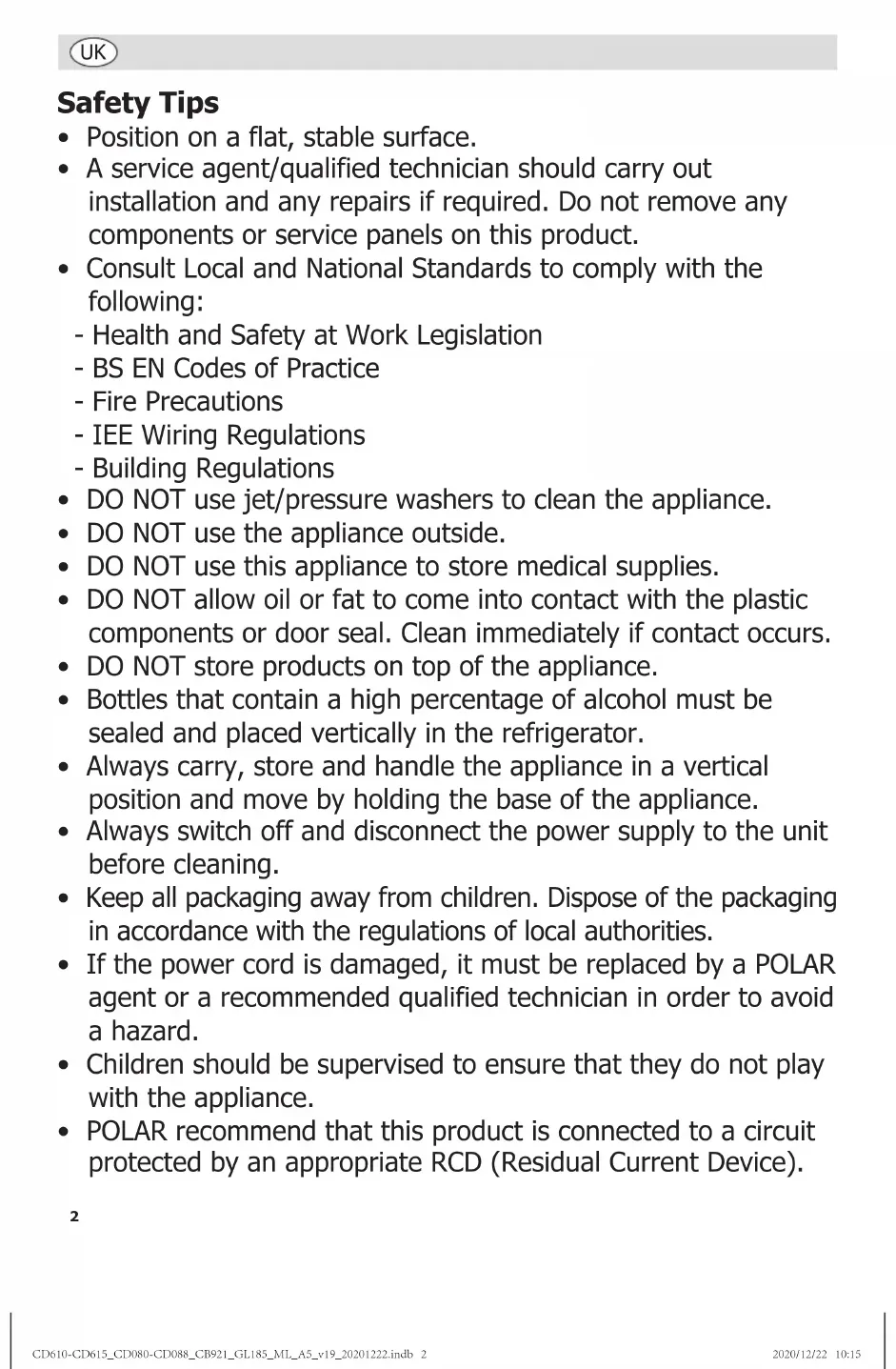

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.

• Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation

• BS EN Codes of Practice
• Fire Precautions
• IEE Wiring Regulations

• Building Regulations

• DO NOT use jet/pressure washers to clean the appliance.
  DO NOT use the appliance outside.

• DO NOT use this appliance to store medical supplies.
• DO NOT allow oil or fat to come into contact with the plastic components or door seal. Clean immediately if contact occurs.
• DO NOT store products on top of the appliance.
• Bottles that contain a high percentage of alcohol must be sealed and placed vertically in the refrigerator.
• Always carry, store and handle the appliance in a vertical position and move by holding the base of the appliance.
• Always switch off and disconnect the power supply to the unit before cleaning.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified technician in order to avoid a hazard.
• Children should be supervised to ensure that they do not play with the appliance.

• POLAR recommend that this product is connected to a circuit protected by an appropriate RCD (Residual Current Device).

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

• POLAR recommend that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity and Functional Testing.

Caution Risk of Fire

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Keep all ventilation openings clear of obstruction. Unit should not be boxed in without adequate ventilation.

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

Product Description

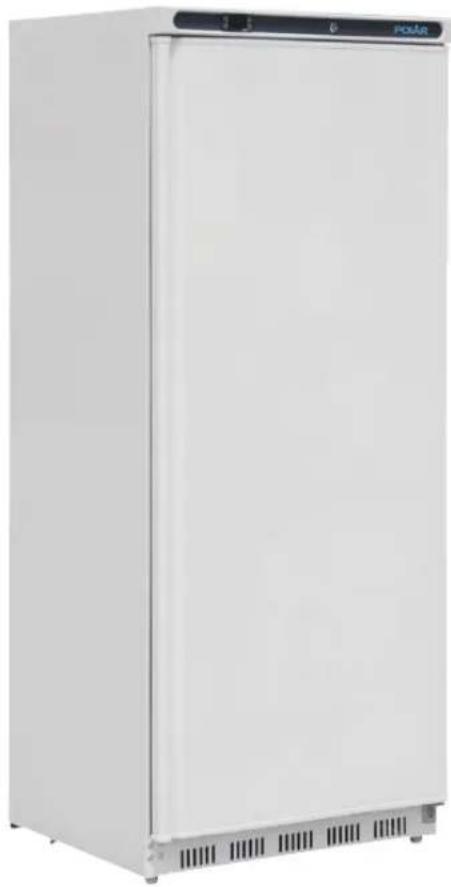

CD610 - 150 litre Refrigerator CD611 - 140 litre Freezer

CD612 - 400 litre Refrigerator CD613 - 365 litre Freezer

CD614 - 600 litre Refrigerator CD615 - 600 litre Freezer

CD086 - 150 litre Glass-Door Refrigerator CD087 - 400 litre Glass-Door Refrigerator

CD080 - 150 litre Stainless Steel Refrigerator CD081 - 140 litre Stainless Steel Freezer

CD082 - 400 litre Stainless Steel Refrigerator CD083 - 365 litre Stainless Freezer

CD084 - 600 litre Stainless Steel Refrigerator CD085 - 600 litre Stainless Steel Freezer

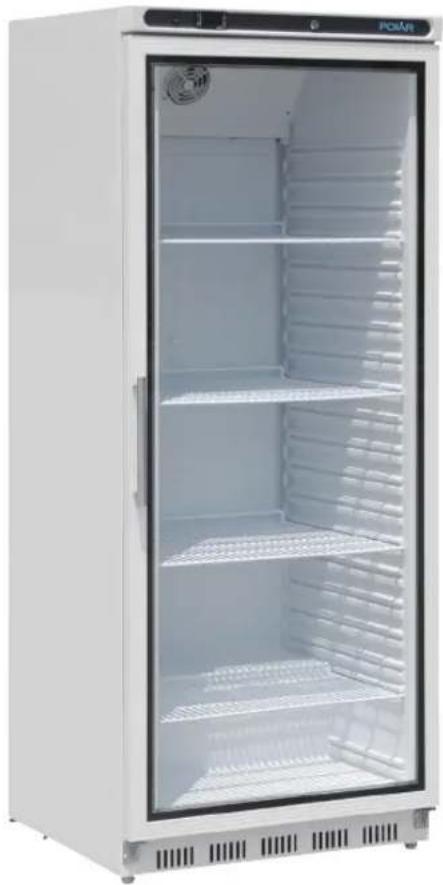

CD088 - 600 litre Glass-Door Refrigerator CB921 - 365 litre Glass-Door Freezer

GL185 - 522 litre Bakery Refrigerator

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your POLAR product.

UK

Pack Contents

The following is included:

POLAR Refrigerator / Freezer
Shelves - Refrigerator only

CD610/CD080/CD086 x 3

CD612/CD082/CD087×4

CD614/CD084/CD088 x 4

• Tray Guides - Bakery refrigerator only
  GL185 x 12
• Keys x 2
• Spacers x 2
• Instruction Manual

POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

Installation

Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand.

1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are thoroughly removed from all surfaces.
2. Maintain a distance of 20 cm (7 inches) between the unit and walls or other objects for ventilation.

NEVER LOCATE NEXT TO OR NEAR A HEAT SOURCE.

Note: Before using the appliance for the first time, clean the shelves and interior with soapy water.

The appliance is supplied with feet by default. However, castors can be supplied as an option from serial number range: 8124199-UK / 8128873-EU onwards.

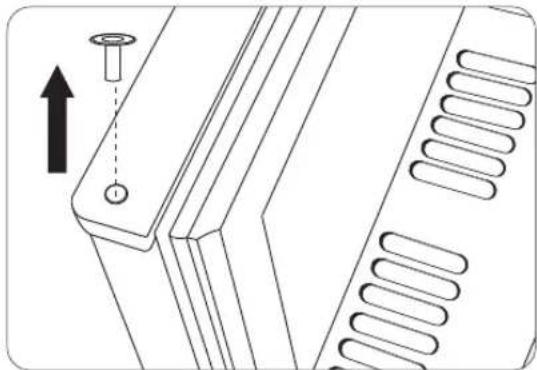

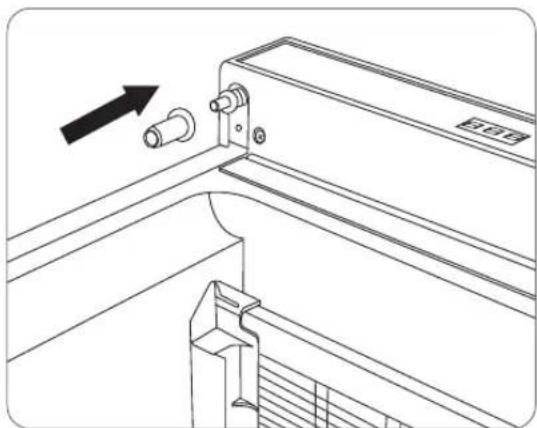

Reversing the door (Excluding model CB921)

Depending on the location of the appliance, it may be necessary to change the direction the door opens by changing the side of the door handle.

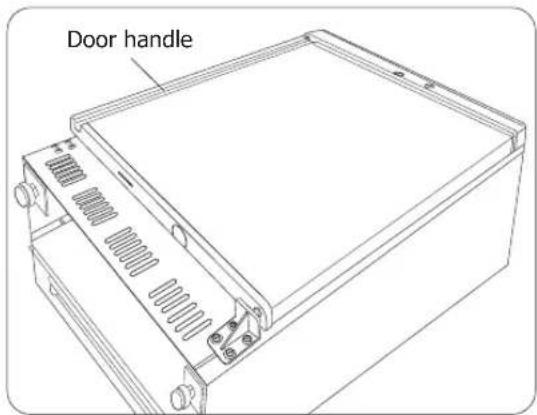

To reverse the door handle:

1. The door handle is on the left side. Disassemble the right lower hinge.

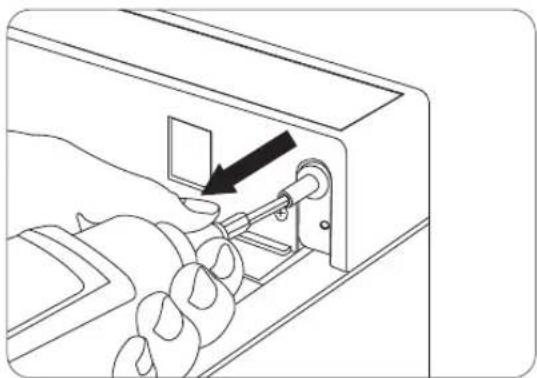

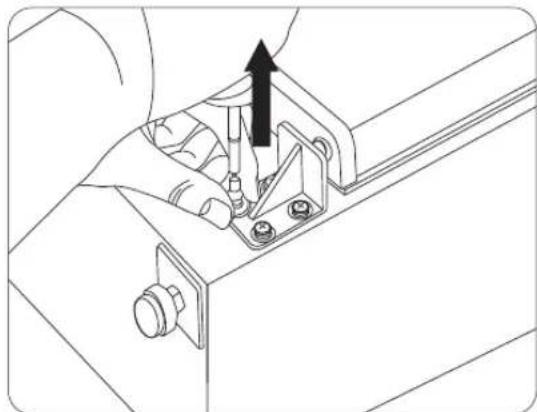

1. Remove the door from the right upper hinge. Then remove the hinge sleeve from the door top.

1. Remove the right upper hinge and install it on the left side. Afterwards, install the hinge sleeve onto the hinge.

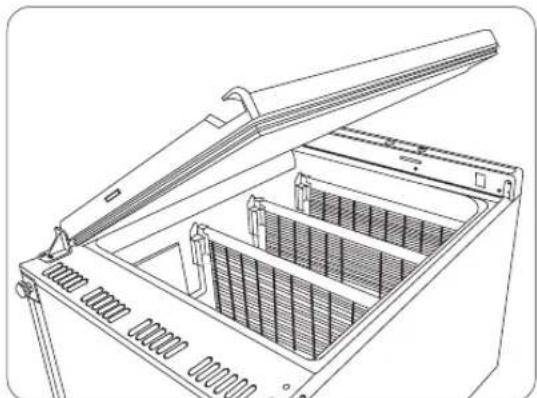

1. Reverse the door and hang it onto the left upper hinge.

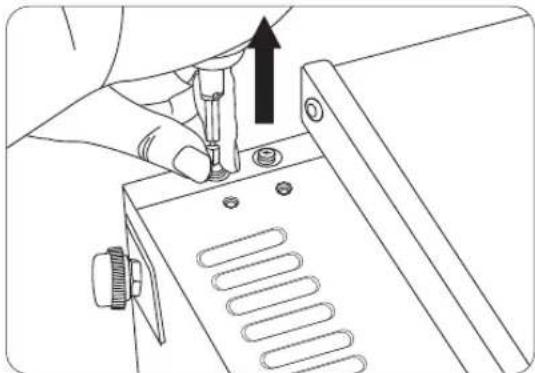

1. Remove the pre-mounted screws on the left lower side.

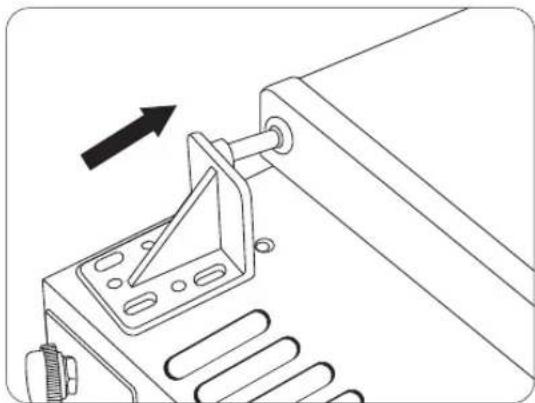

1. Install the previously removed right lower hinge on the left side.

UK

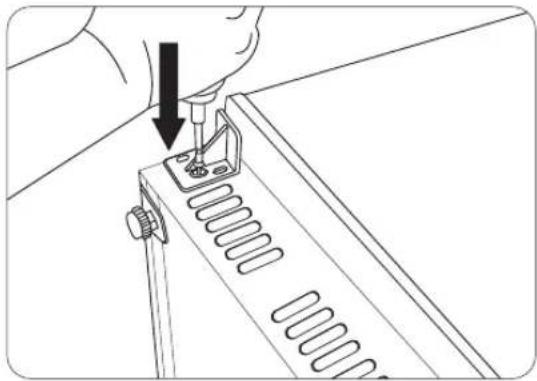

1. Secure the hinge in place using the previously removed screws.

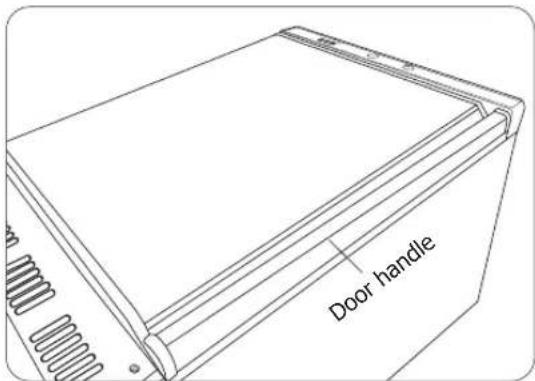

1. Now the door handle is installed on the right side.

Operation

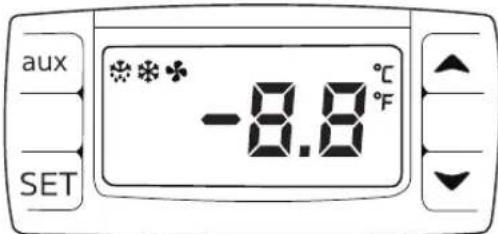

Control Panel

The control panel is located on the front of the appliance.

Turn On

1. Close the door of the appliance.
2. Connect the appliance to a mains power supply.

Set the Operating Temperature

1. Press the SET button for 3 seconds. The display will flash.
2. Press the button to display the required temperature.
3. Press the SET button to store the temperature.

Manual Defrost

Press and hold the defrost button "aux" for
2 seconds to begin a manual defrost. The defrost light illuminates.

Storing Food

To get the best results from your POLAR appliance, follow these instructions:

Only store foodstuffs in the appliance when it has reached the correct operating temperature.
- Do not place uncovered hot food or liquid inside the appliance.
- Wrap or cover food where possible.
- Do not obstruct the fans inside the appliance.
- Avoid opening the doors for prolonged periods of time.

Lock/Unlock the Doors

• A lock is fitted to the doors to ensure foodstuffs are kept secure within your POLAR appliance.
• Use the keys provided to lock/unlock the door.

Cleaning, Care & Maintenance

Switch off and disconnect from the power supply before cleaning.

• Clean the interior of the appliance as often as possible.
• Do not use abrasive cleaning agents. These can leave harmful residues.

• Clean the door seal with warm soapy water.
  Always wipe dry after cleaning.

• Do not allow water used in cleaning to run through the drain hole into the evaporation pan.
  Take care when cleaning the rear of the appliance. Sharp edges can cut.

• A POLAR agent or qualified technician must carry out repairs if required.

Cleaning the Condenser

Periodically cleaning the condenser can extend the life of the appliance.

POLAR recommend that a POLAR agent or qualified technician should clean the condenser.

Replacing the Lamp (CD086, CD087, CD088, CB921)

1. Switch Off and disconnect the appliance from the power supply
2. Remove the plastic cover
3. Twist the lamp in its socket and release
4. Remove the lamp and replace the new one of the same power rating
5. Replace the plastic cover

Troubleshooting

If your POLAR appliance develops a fault, please check the following table before making a call to the Helpline or your POLAR dealer.

Fault Probable Cause Solution
The appliance is not working	The unit is not switched on Check the unit is plugged in correctly and switched on	the unit is plugged in correctly and switched on
	Plug and lead are damaged Call POLAR agent or qualified Technician	AR agent or qualified Technician
	Fuse in the plug has blown Replace the fuse	the fuse
	Power supply Check power supply
	Internal wiring fault Call POLAR agent or qualified Technician
The appliance turns on, but the temperature is too high/low	Too much ice on the evaporator Defrost the appliance
	Condenser blocked with dust Clean the condenser
	Doors are not shut properly Check doors are shut and seals are not damaged
	Appliance is located near a heat source or air flow to the condenser is being interrupted	Move the refrigerator to a more suitable location
	Ambient temperature is too high Inccrease ventilation or move appliance to a cooler position
	Unsuitable foodstuffs are being stored in the appliance	Remove any excessive hot foodstuffs or blockages to the fan
	Appliance is overloaded	Reduce the amount of food stored in the appliance
The appliance is leaking water	The appliance is not properly levelled	Adjust the screw feet to level the appliance (if applicable)
	The discharge outlet is blocked	Clear the discharge outlet

UK

Fault Probable Cause Solution
The appliance is leaking water	Movement of water to the drain is obstructed	Clear the floor of the appliance (if applicable)
	The water container is damaged Call POLAR agent or qualified Technician
	The drip tray is overflowing Empty	the drip tray (if applicable)
The appliance is unusually loud	The safety band has not been removed	Remove the safety band
	Loose nut/screw Check and tighten	all nuts and screws
	The appliance has not been installed in a level or stable position	Check installation position and change if necessary
The display lamp does not light	Replace lamp Call POLAR agent or qualified Technician

Technical Specifications

Model Voltage Power Current			Temperature Range	Capacity (litres)	Refrigerant	Dimensions H x W x D mm	Weight (kg)
CD610	230V	150 1.0A 2°C to	8°C 150 R600a		(35g)	850 x 600 x 600	44
CD080	50Hz
CD611	230V	150 1.0A -10°C to -25°C 140 R600a			(36g)	850 x 600 x 600	44.5
CD081	50Hz
CD612	230V	185 1.5A 2°C to	8°C 400 R600a		(75g)	1850 x 600 x 600	69
CD082	50Hz
CD613	230V	210 2A	-10°C to -25°C	365 R600a	(90g)	1850 x 600 x 600	71
CD083	50Hz
CD614	230V	185 1.5A 2°C to	8°C 600 R600a		(100g)	1890 x 777 x 695	90
CD084	50Hz
CD615	230V	350 3.5A -10°C to -25°C 600 R600a			(130g)	1890 x 777 x 695	94
CD085	50Hz
CD086	230V	150 1.0A 2°C to	8°C 150 R600a		(35g)	850 x 600 x 600	47
CD087	50Hz	185 1.5A 2°C to	8°C 400 R600a		(90g)	1850 x 600 x 600	72
CD088	230V	185 1.5A 2°C to	8°C 600 R600a		(115g)	1890 x 777 x 695	93
CB921	230V	500	2.35A	-10°C to -25°C	365	R290	1850 x 600 x 600
	50Hz					(110g)
GL185	230V	130 0.9A 0°C to	8°C 522 R600a		(95g)	1720 x 777 x 725	90
	50Hz

Electrical Wiring

POLAR appliances are supplied with a 3 pin BS1363 plug and lead.

The plug is to be connected to a suitable mains socket.

POLAR appliances are wired as follows:

Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Disposal

EU regulations require refrigeration product to be disposed of by specialist companies who remove or recycle all gasses, metal and plastic components.

Consult your local waste collection authority regarding disposal of your appliance. Local authorities are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally.

Alternatively call the POLAR helpline for details of national disposal companies within the EU.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

POLAR products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.

Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to change specifications without notice.

NL

Veiligheidstips

Specifications techniques

Modèle	Tension	Puis-sance	Courant	Plage de température	Capacité (litres)	Réfrigé-rant	Dimensions h x l x p mm	Poids (kg)
CD610	230V	150 1,	0A 2°C ~ 8°C 150 R600a			(35g)	850 x 600 x 600	44
CD080	50Hz
CD611	230V	150 1,	0A -10°C ~ -25°C 140 R600a			(36g)	850 x 600 x 600	44,5
CD081	50Hz
CD612	230V	185 1,	5A 2°C ~ 8°C 400 R600a			(75g)	1850 x 600 x 600	69
CD082	50Hz
CD613	230V	210	2A	-10°C ~ -25°C	365 R600a		1850 x 600 x 600	71
CD083	50Hz					(90g)
CD614	230V	185 1,	5A 2°C ~ 8°C 600 R600a			(100g)	1890 x 777 x 695	90
CD084	50Hz
CD615	230V	350 3,	5A -10°C ~ -25°C 600 R600a			(130g)	1890 x 777 x 695	94
CD085	50Hz
CD086	230V	150 1,	0A 2°C ~ 8°C 150 R600a			(35g)	850 x 600 x 600	47
	50Hz
CD087	230V	185 1,	5A 2°C ~ 8°C 400 R600a			(90g)	1850 x 600 x 600	72
	50Hz
CD088	230V	185 1,	5A 2°C ~ 8°C 600 R600a			(115g)	1890 x 777 x 695	93
	50Hz
CB921	230V	500	2,35A	-10°C ~ -25°C	365 R290		1850 x 600 x 600	76
	50Hz					(110g)
GL185	230V	130 0,	9A 0°C tot	8°C 522 R600a		(95g)	1720 x 777 x 725	90
	50Hz

Trancar/Destrancar as portas

DECLARATION OF CONFORMITY

• Conformiteitsverklaring - Déclaration de conformité - Konformitätserklärung - Dichiarazione di conformità

• Declaración de conformidad - Declaração de conformidade

Equipment Type • Uitrustingtype • Type d'équipment • Gerätotyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento		Model • Modèle • Model • Modelo • Malli
1. Glass Door Display Freezer - 400Lltr 2. St/St Undercounter Fridge 150Lltr 3. St/St Freezer - 365Lltr 4. 600Lltr St/St Fridge 5. Glass Door Fridge - 600Lltr 6. Undercounter Fridge - 150Lltr 7. Undercounter Freezer - 140Lltr 8. Upright Freezer - 600Lltr 9. Upright Freezer - 365Lltr	10. Upright Fridge - 600Lltr 11. 400Lltr St/St Fridge 12. 600Lltr St/St Freezer 13. Glass Door Fridge - 150Lltr 14. Glass Door Fridge - 400Lltr 15. St/St Undercounter Freezer 140Lltr 16. Upright Fridge - 400Lltr 17. G-Series Patisserie Refrigerator - White	1. CB921 (& -E) 2. CD080 (& -E - A) 3. CD083 (& -E - A) 4. CD084 (& -E - A) 5. CD088 (& -E - A) 6. CD610 (& -E - A) 7. CD611 (& -E - A) 8. CD615 (& -E - A) 9. CD613 (& -E - A)	10. CD614 ( & -E - A) 11. CD082 ( & -E - A) 12. CD085 ( & -E - A) 13. CD086 ( & -E - A) 14. CD087 ( & -E - A) 15. CD081 ( & -E - A) 16. CD612 ( & -E - A) 17. GL185 ( & -E - A)
Application of Territory Legislation & Council Directives(s) Toepassing van Europese Richtlijn(en) • Application de la/des directive(s) du Conseil • Anwendbare EU-Richtlinie(n) • Applicazione delle Direttive • Aplicación de la(s) directiva(s) del consejo • Aplicação de directiva(s) do Conselho	Machinery Directive 2006/42/EC EN 60335-1:2012 +A11:2014 +A13:2017 EN 60335-2:89:2010 +A1:2016 +A2:2017 EN 62233:2008 Electro-Magnetic Compatibility (EMC) Directive 2014/30/EU - recast of 2004/108/EC EN 55014-1:2017 EN 55014-2:2015 EN 61000-3-2:2014 EN 61000-3-3:2013 Restriction of Hazardous Substances Directive (RoHS) 2015/863 amending Annex II to Directive 2011/65/EU	Electrical Safety AS/NZS 60335.1:2011 +A1:2012 +A2:2014 +A3:2015 +A4:2017 AS/NZS 60335.2.89:2010 +A1:2013 +A2:2016 Electromagnetic Compatibility EN 55014-1:2017 EN 55014-2:2015 EN 61000-3-2:2014 EN 61000-3-3:2013
Producer Name • Naam fabrikant • Nom du produit • Name des Herstellers • Nome del produttore • Nombre del fabricante • Nome do fabricante	Polar

I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s) and Standard(s).

3rdDecember 2020
DocuSigned by: Ashley Hooper B39382C9FD9C478...	DocuSigned by: Coghan Donnellan D352874F7FAB460...	DocuSigned by: Josie Holt 3582E210C40S40A...
Ashley Hooper	Eoghan Donnellan	Josie Holt
Technical & Quality Manager	Commercial Manager/ Importer	Commercial Manager/ Responsible Supplier
Fourth Way, Avonmouth, Bristol, BS11 8TB United Kingdom	42 North Point Business Park New Mallow Road Cork Ireland	15 Bagdally Road, Campbelltown NSW 2560

C

UK	[phone]
Eire
NL 040 – 2628080
FR 01 60	34 28 80
BE-NL 0800-29129
BE-FR 0800-29229
DE 0800 – 1860806
IT N/A
ES 901-100 133
PT [e-mail]

POLAR

http://www.polar-refrigerator.com/

CD610-CD615_CD080-CD088_CB921_GL185_ML_A5_v19_20201222
