USER MANUAL GH131 POLAR

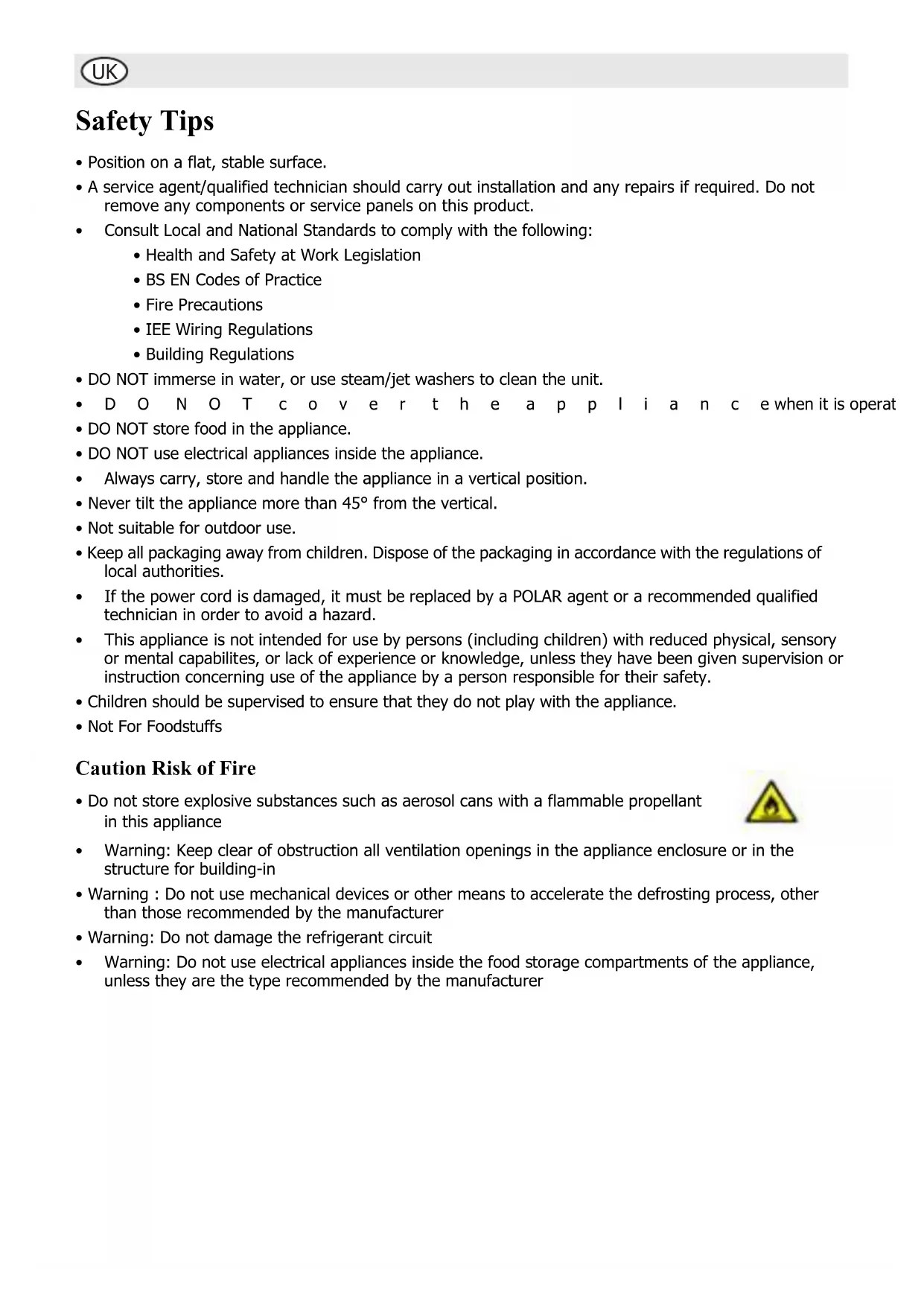

• Position on a flat, stable surface.

• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.

• Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation

• IEE Wiring Regulations

• Building Regulations

• DO NOT immerse in water, or use steam/jet washers to clean the unit.

• DO NOT cover the appliance when it is operating.

• DO NOT store food in the appliance.

• DO NOT use electrical appliances inside the appliance.

• Always carry, store and handle the appliance in a vertical position.

• Never tilt the appliance more than 45° from the vertical.

• Not suitable for outdoor use.

• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.

• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified technician in order to avoid a hazard.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilites, or lack of experience or knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Not For Foodstuffs Caution Risk of Fire

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance

• Warning: Keep clear of obstruction all ventilation openings in the appliance enclosure or in the structure for building-in

• Warning : Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer

• Warning: Do not damage the refrigerant circuit

• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturerUK Telephone Helpline: 0845 146 2887 (United Kingdom) Product Description Introduction Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your POLAR product. Pack Contents The following is included: POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage. Should you find any damage as a result of transit, please contact your POLAR dealer immediately. Installation

1. Remove the appliance from the packaging and the protective film from all surfaces.

2. Avoid positioning the appliance in direct sunlight or damp areas.

3. Insert the slide-out shelf/shelves at the desired levels

4. If necessary, adjust the screw feet of the appliance to make it level.

Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand. Note: Before using the appliance for the first time, clean the shelves and interior with soapy water.

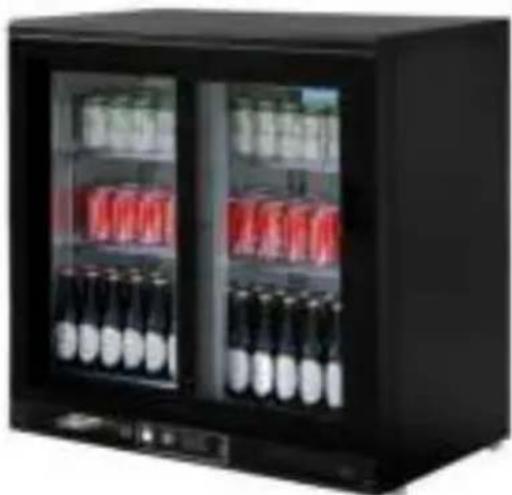

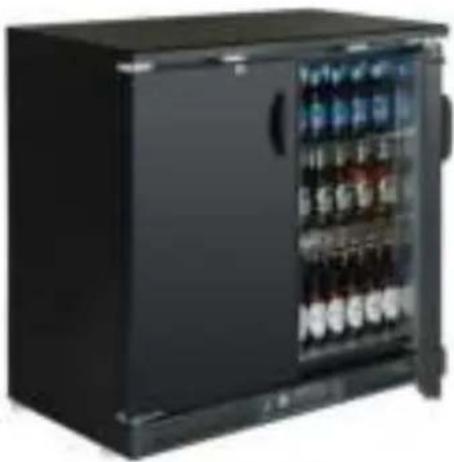

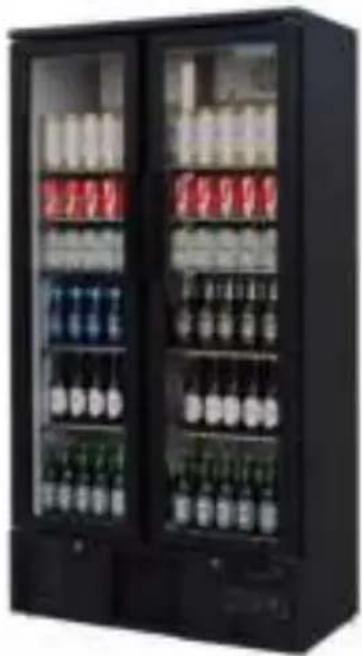

• CB929 - Single Door Back Bar Chiller• CB930 - Double Door Back Bar Chiller• CB931 - Double Door (Sliding) Back Bar Chiller• CB932 - Three Door Back Bar Chiller• CC601 - Double Door (Sliding) Back Bar Chiller• CC605- Three Door Back Bar Chiller (Sliding)• CD089 - Single Split Door Back Bar Chiller• CE205 - Single Door Back Bar Chiller• CE206 - Double Door Back Bar Chiller• CE207 - Three Door Back Bar Chiller• CF759 - Double Door (Sliding) Back Bar Chiller (Reduced Height)• GH132 - Single Door Back Bar Chiller (Solid Door)• GH133 - Double Door Back Bar Chiller (Solid Door)• GH134 - Three Door Back Bar Chiller (Solid Door)• DP286 - Single Door Back Bar Chiller (Reduced Height)• DP287 - Double Door Back Bar Chiller (Reduced Height)• GJ447 - Single Door Upright Back Bar Chiller• GJ448 - Double Door (Sliding) Upright Back Bar Chiller• GJ449 - Double Door (Hinged) Upright Back Bar Chiller ALL MODELS

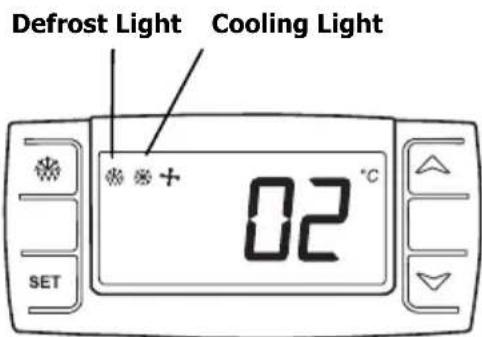

• 6 adjustable shelvesUK Operation Control Panel The control panel is located below the doors on the front of the appliance. Turn On

1. Close the door of the appliance.

2. Connect the appliance to a mains power supply..

To Change the Operating Temperature The default operating temperature is 2 °C. To display the operating temperature (set point), press and immediately release the button. To change the operating temperature;

1. Press and Hold the button for 2 seconds, the “°C” will start to flash.

2. Press the or buttons to change the temperature.

3. Press the button to store the temperature.

Manual Defrost POLAR Back Bar Chillers feature an automatic defrost. However, should the appliance require an additional defrost period press and hold the button for 2 seconds. Automatic defrost cycles are every 6 hours and last 20 minutes (factory defaults). Cleaning, Care & Maintenance

• Switch off and disconnect from the power supply before cleaning.

• Clean the interior of the appliance as often as possible.

• Do not use abrasive cleaning agents. These can leave harmful residues.

• Always wipe dry after cleaning.

• A POLAR agent or qualified technician must carry out repairs if required. Cleaning the Condenser Periodically cleaning the condenser can extend the life of the appliance. The condenser is located at the back of the appliance. Note: The Cooling Light is illuminated when the appliance is chilling the interior cabinet. Note: If a manual defrost is started this resets the automatic defrost timer. During defrost periods the Defrost light is illuminated. Note: Use a soft brush or vacuum cleaner to clean the fins of the condenser, taking care not to damage the fins. Defrost Light Cooling LightUK Telephone Helpline: 0845 146 2887 (United Kingdom) Troubleshooting If your appliance develops a fault, please check the following table before making a call to the Helpline. Technical Specifications Fault Probable Cause Action The appliance is not working The unit is not switched on Check the unit is plugged in correctly and switched on Plug and lead are damaged Call POLAR agent or qualified Technician Fuse in the plug has blown Replace the fuse Power supply Check power supply Internal wiring fault Call POLAR agent or qualified Technician The appliance turns on, but the temperature is too high/low Condenser blocked with dust Clean Condenser Doors are not shut properly Check doors are shut and seals are not damaged Appliance is located near a heat source or air flow to the condenser is being interrupted Move the appliance to a more suitable location Ambient temperature is too high Increase ventilation or move appliance to a cooler position Insufficient airflow to the fans Remove any blockages to the fans Appliance is overloaded Reduce the amount stored in the appliance Factory default parameters adjusted Call POLAR agent or qualified Technician The appliance is unusually loud The appliance is touching a neighbouring object Check installation position and change if necessary The appliance has not been installed in a level or stable position Check installation position and change if necessary Model Voltage Power Current Temperature Range Capacity (litres) Refrigerant Dimensions H x W x D (mm) Weight (kg) CB929 230V 50Hz 160W 1.1A 2°C to 8°C 140 R600a 40g 925 x 600 x 540 54 CB930 230V 50Hz 280W 1.8A 2°C to 8°C 223 R600a 55g 925 x 920 x 540 75 CB931 230V 50Hz 280W 1.8A 2°C to 8°C 223 R600a 55g 925 x 920 x 535 72 CB932 230V 50Hz 315W 1.9A 2°C to 8°C 335 R600a 60g 925 x 1350 x 540 95 CC601 230V 50Hz 280W 1.8A 2°C to 8°C 223 R600a 55g 925 x 920 x 535 95 CC605 230V 50Hz 315W 1.9A 2°C to 8°C 335 R600a 60g 925 x 1350 x 535 91 CD089 230V 50Hz 160W 1.1A 2°C to 8°C 140 R600a 40g 925 x 600 x 535 54 CE205 230V 50Hz 160W 1.1A 2°C to 8°C 140 R600a 40g 925 x 600 x 540 54 CE206 230V 50Hz 280W 1.8A 2°C to 8°C 223 R600a 55g 925 x 920 x 540 75 CE207 230V 50Hz 315W 1.9A 2°C to 8°C 335 R600a 60g 925 x 1350 x 540 95 CF759 230V 50Hz 280W 1.8A 2°C to 8°C 223 R600a 55g 870 x 920 x 535 62 GH132 230V 50Hz 160W 1.1A 2°C to 8°C 140 R600a 40g 925 x 600 x 540 54 GH133 230V 50Hz 280W 1.8A 2°C to 8°C 223 R600a 55g 925 x 920 x 540 75 GH134 230V 50Hz 315W 1.9A 2°C to 8°C 335 R600a 60g 925 x 1350 x 540 95 DP286 230V 50Hz 160W 1.1A 2°C to 8°C 140 R600a 40g 870 x 600 x 540 54 DP287 230V 50Hz 280W 1.8A 2°C to 8°C 223 R600a 55g 870 x 920 x 540 75 GJ447 230V 50Hz 300W 1.2A 2°C to 8°C 307 R600a 85g 1880 x 600 x 514 112UK Electrical Wiring This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 3 amp fuse as standard. The plug is to be connected to a suitable mains socket. This appliance is wired as follows:

• Live wire (coloured brown) to terminal marked L

• Neutral wire (coloured blue) to terminal marked N

• Earth wire (coloured green/yellow) to terminal marked E This appliance must be earthed, using a dedicated earthing circuit. If in doubt consult a qualified electrician. Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible. Disposal EU regulations require refrigeration product to be disposed of by specialist companies who remove or recycle all gasses, metal and plastic components. Consult your local waste collection authority regarding disposal of your appliance. Local authorities are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally. Alternatively call the POLAR helpline for details of national disposal companies within the EU. Compliance The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area. POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities. POLAR products have been approved to carry the following symbol: All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR. Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to change specifications without notice. Model Voltage Power Current Temperature Range Capacity (litres) Refrigerant Dimensions H x W x D (mm) Weight (kg) GJ448 230V 50Hz 400W 1.5A 2°C to 8°C 490 R600a 100g 1880 x 920 x 514 143 GJ449 230V 50Hz 400W 1.5A 2°C to 8°C 490 R600a 100g 1880 x 920 x 514 140NL Klantenondersteuning: 040 – 2628080 (Nederland) Veiligheidstips
