USER MANUAL CF750 POLAR

White refrigerator with clear glass doors, no visible text or symbols on the cabinet surface

NL Koeler 8

Handleiding

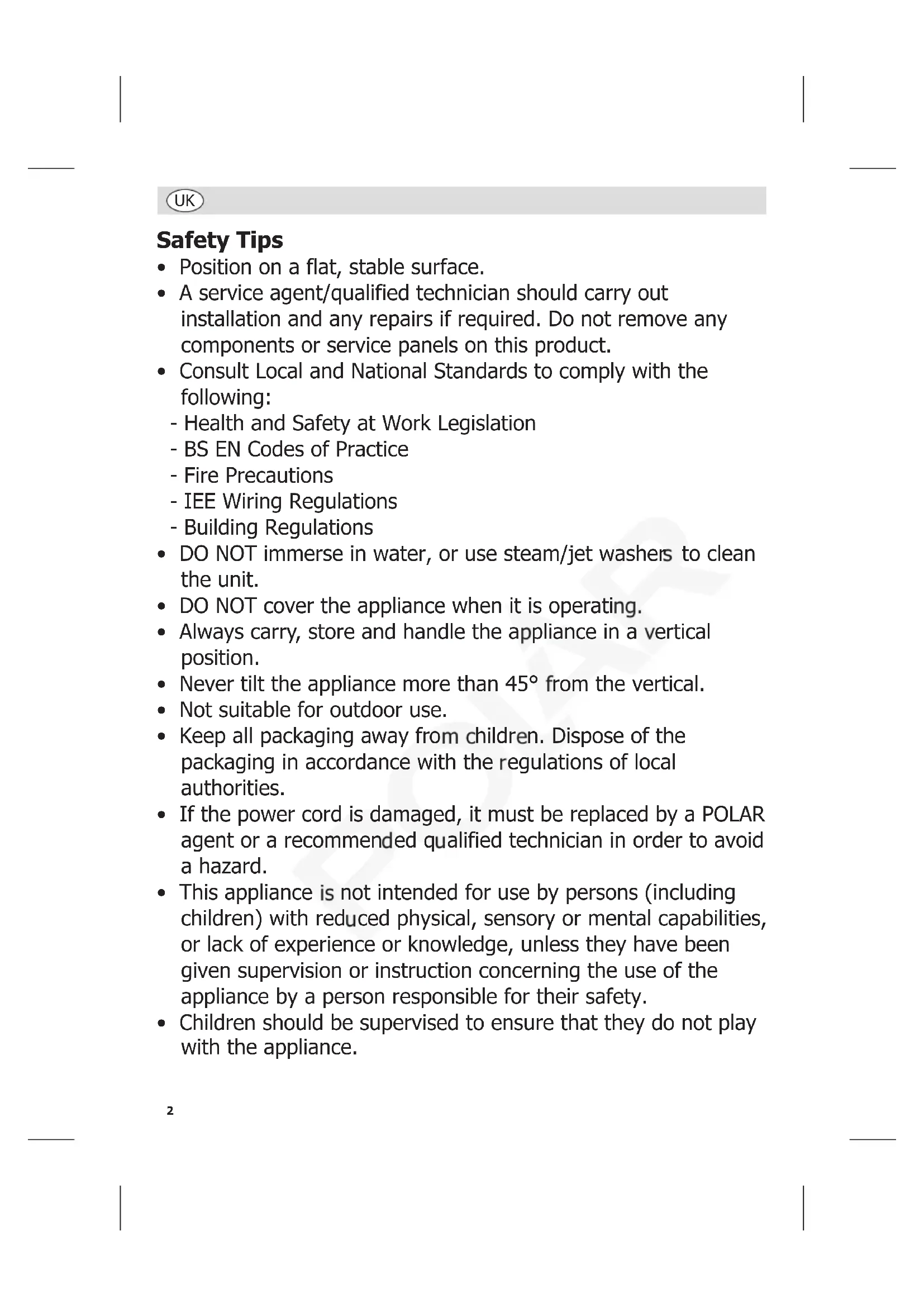

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.

• Consult Local and National Standards to comply with the following:

• Health and Safety at Work Legislation

• BS EN Codes of Practice
• Fire Precautions
• IEE Wiring Regulations

• Building Regulations

• DO NOT immerse in water, or use steam/jet washers to clean the unit.

• DO NOT cover the appliance when it is operating.
• Always carry, store and handle the appliance in a vertical position.
• Never tilt the appliance more than 45^ from the vertical.
• Not suitable for outdoor use.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified technician in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Polar recommend that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity and Functional Testing.

• Polar recommend that this product is connected to a circuit protected by an appropriate RCD (Residual Current Device).

Warning: Risk of Fire / flammable materials

• The refrigerant gas contained in this appliance is isobutene (R600a), which is low-polluting but flammable.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Warning: Keep all ventilation openings clear of obstruction. Unit should not be boxed in without adequate ventilation.

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your POLAR product.

Pack Contents

The following is included:

• Display Chiller
• Instruction manual

POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

UK

Installation

Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand.

1. Remove the appliance from the packaging and the protective film from all surfaces.
2. Avoid positioning the cooler in direct sunlight or damp areas.
3. To optimize performance and longevity, ensure a minimum clearance of 2.5cm is maintained between the unit and walls and other objects, with a minimum 5cm clearance on the top. NEVER LOCATE NEXT TO A HEAT SOURCE.
4. If necessary, adjust the screw legs of the cooler to make it level.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

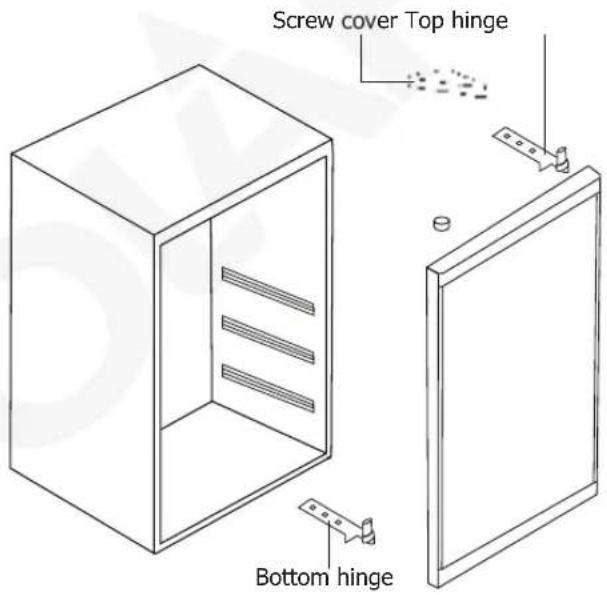

Reversing the Door

Depending on the location of the appliance, it may be necessary to change the direction the door of the cooler opens by changing the side of the door handle.

To reverse the door handle:

1. Ensure the appliance is disconnected from the power supply.
2. Tilt the appliance back slightly and prop it securely. The appliance must not be tipped back by more than 45 degrees.
3. Unscrew the door hinge screws on the base of the door and remove the Hinge.
4. Open the door slightly and remove the door in a downwards direction.
5. Remove the plastic screw cover from the top of the cooler by levering it off with a small screwdriver.
6. Unscrew and remove the hinge from the top of the appliance.
7. Screw the reversed door frame Hinge to the opposite side of the appliance and reattach the screw cover.
8. Fit the door into plac e ty locatin gthe upper Hinge first then closing the door.
9. Reattach the Bottom hinge onto the opposite side of the door.
10. The appliance can now be lowered into position.

Screw cover Top hinge Bottom hinge

Operation

Controller

The controller is located inside the cabinet. These models have an integrated light that can be switched on using the switch on the controller.

The thermostat is graded from 0 (warm) to 7 (cold).

• The display Cooler is recommended to be set at temperature 4^ .
• This appliance is intended to operate in climates where the maximum temperature and humidity are 25^ C and 60% respectively.
• Please refer to the following table to select the suitable temperature setting.

The chart below indicates the ideal storage temperatures for different types of food and beverage:
°C °F	Beverage style
12 53	Water
10 50	Black Ale
8 46	Juice
7 45	Sour Beers
7 45	Pale Ale
7 45	Dark Lagers
6 43	Iced Coffee
5 42	Premium rs Lage
4 40	Wheat Beer s
3 38		Light, Pales La s ger
3 38		Co Cola-
2 35		Dairy

Note: Setting the temperature too high can cause the wine to spoil, and setting the temperature too low can waste electricity.

UK

Cleaning, Care & Maintenance

• Always switch off and disconnect the power supply before cleaning.
- Warm, soapy water is recommended for cleaning. Cleaning agents may leave harmful residues.
- A POLAR agent or qualified technician should carry out repairs if required.
- Periodically clean the bottom of the cooler compartment to remove any build-up of condensation.

Troubleshooting

If your POLAR appliance develops a fault, please check the following table before making a call to the Helpline or your POLAR dealer.

Fault Probable	Cause Solution
The appliance is not working	The unit is not switched on Check the unit is plugged in correctly and switched on
	Plug or lead is damaged Call POLAR agent or qualified Technician
	Fuse in the plug has blown Replace the fuse
	Power supply Check power supp ly
Appliance is noisy or works intermittently	Appliance is not level Adjust the fee o level th t t liance e app
Cooler cabinet is not cold enough	Temperature set incorrectly Check temperature d reset if necessary
	External environment may require colder temperature	Check temperature and reset if necessary
	The door is opened too often Onl peny w en necessary
	Door seal is worn Call P R agent or qualified technician
The light does not work	Bulb has blown Replace bulb
	Light switch set to Off	Set light switch to On
Doors will not close properly	Cooler is not level Adjust the feet
	Door has been reversed and not properly fitted	See “Reversing the Door”
	Shelves are out of position	Check all shelves are properly inserted
	Door seal is dirty	Wipe clean with a damp cloth

Technical Specifications

Model	Voltage	Power	Current	Refrigerant	Temp. Range	Dimensions H x W x D mm	Weight (kg)
CF750	220-240V 50Hz	85W	0.55A	R600a	1-12°C	825 x 430 x 480	26

Electrical Wiring

POLAR appliances are supplied with a 3 pin BS1363 plug and lead.

The plug is to be connected to a suitable mains socket.

POLAR appliances are wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Disposal

EU regulations require refrigeration product to be disposed of by specialist companies who remove or recycle all gasses, metal and plastic components.

Consult your local waste collection authority regarding disposal of your appliance. Local authorities are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally.

Alternatively call the POLAR helpline for details of national disposal companies within the EU.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

POLAR products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.

Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to change specifications without notice.

NL

Veiligheidstips

DECLARATION OF CONFORMITY

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •

- Declaración de conformidad • Declaração de conformidade

Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp• Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento		Model • Modèle • Modell • Modello• Modelo • Malli
Undercounter Display Refrigerator - 88Ltr		CF750 (& -E -A)
Application of Territory Legislation & Council Directives(s)Toepassing van EuropeseRichtlijn(en) • Application de la/des directive(s) du Conseil • Anwendbare EU-Richtlinie(n) • Applicazione delle Direttive• Aplicación de la(s) directiva(s) del consejo • Aplicação de directiva(s) do Conselho	Low Voltage Directive (LVD) - 2014/35/EUElectrical Equipment (Safety) Regulations 2016EN 60335-1:2012 +A11:2014EN 60335-2-24:2010EN 62233:2008Electro-Magnetic Compatibility (EMC)Directive 2014/30/EU - recast of 2004/108/ECElectromagnetic Compatibility Regulations 2016 (S.I. 2016/1091)EN55014-1:2017EN 55014-2:2015EN 61000-3-2:2014EN 61000-3-3:2013Restriction of Hazardous Substances Directive (RoHS) 2015/863 amending Annex II to Directive 2011/65/EURestriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (S.I. 2012/3032)	Electrical SafetyAS/NZS 60335.1:2011: +A1:2012+A2:2014 +A3:2015 +A4:2017AS/NZS 60335.2.24:2010 +A1:2013Electromagnetic CompatibilityEN55014-1:2017EN 55014-2:2015EN 61000-3-2:2014EN 61000-3-3:2013
Producer Name • Naam fabrikant • Nom du producteur • Name des Herstellers• Nome del produttore • Nombre del fabricante • Nome do fabricante		Polar

I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s) and Standard(s).

3rdJune 2021
Ashley Hooper	Eoghan Donnellan	Josie Holt
Technical & Quality Manager	Commercial Manager/ Importer	Commercial Manager/ Responsible Supplier
Fourth Way, Avonmouth, Bristol, BS11 8TB United Kingdom	42 North Point Business Park New Mallow Road Cork Ireland	15 Bagdally Road, Campbelltown NSW 2560

UK	[phone]
Eire
NL 040 –	2628080
FR 01 60	34 28 80
BE-NL 0800-29129
BE-FR 0800-29229
DE 0800 –	1860806
IT N/A
ES 901-100 133
PT [e-mail]

$$ | | | | $$

POLAR

QR code image with a central logo, likely linking to a digital resource or website.

http://www.polar-refrigerator.com/

CF750_ML_A5_v7_20210610
