USER MANUAL GBTS 350 Güde

Translation of the original instructions Concrete cutter

English Technical Data / Device description / Safety Warnings / Specied Conditions of Use / Emergency procedure / Symbols / Maintenance / Disposal / Guarantee / Service

98 mm Tightening torque Cutting disc 26 Nm Width across ats working spindle 15 mm Max. speed of the cutting tool 4400 min

Noise details Measured according to DIN EN ISO 19432-1:2020 Attachment B; Uncertainty K = 3 dB (A) Sound pressure level L

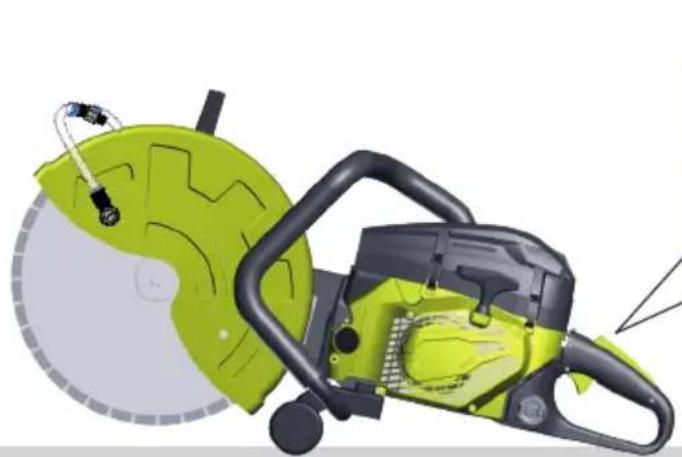

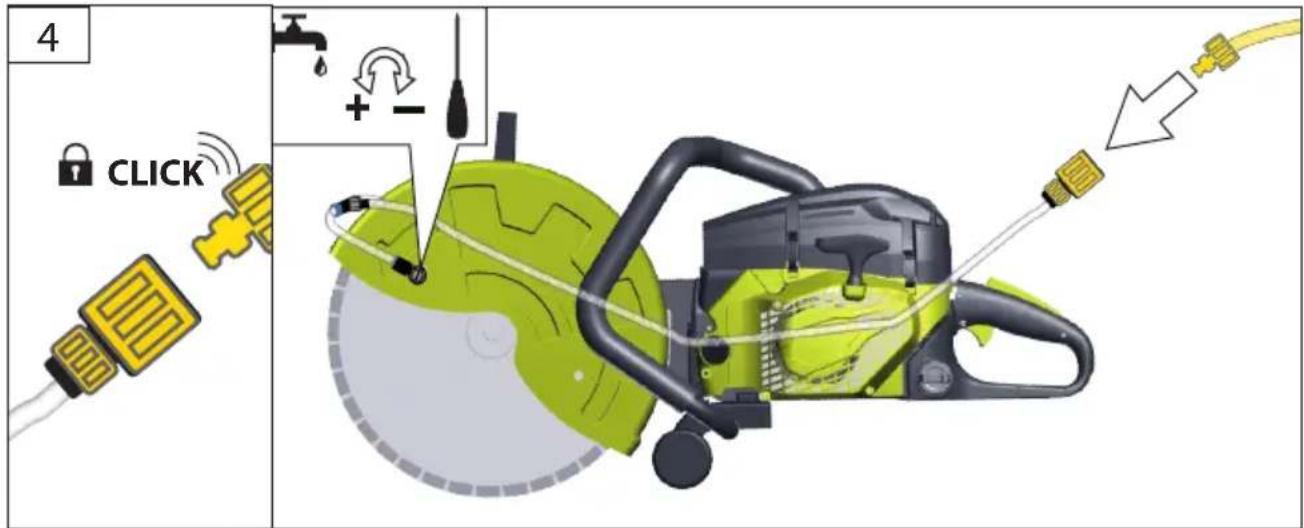

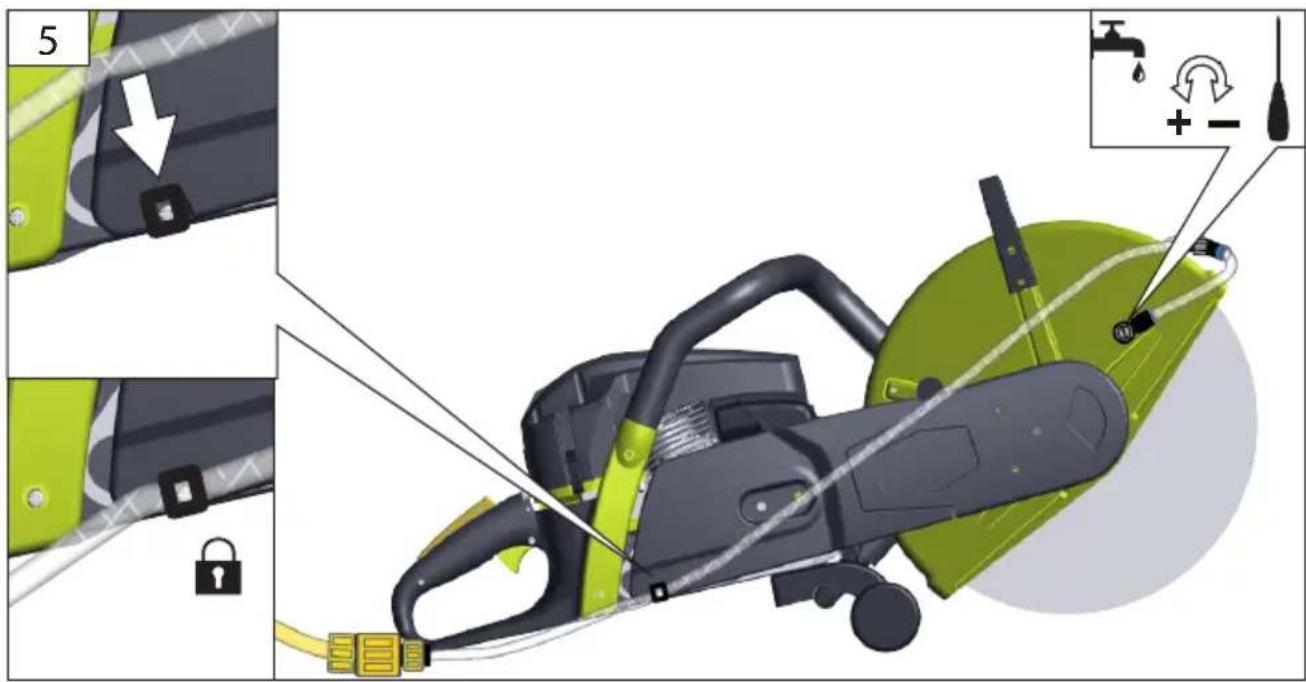

Vibration emission value a hw(Id) 9,822 m/s² Read and understand the operating instructions before using the appliance. Familiarise with the control elements and how to use the appliance properly.Observe all the safety measures listed in the instructions. Behave responsibly towards other people. The operator is responsible for accidents or risks to third parties. Specied Conditions of Use The concrete cutter is suitable for working on kerbs, deep kerbs, concrete surfaces, paving stones and bone stones. The unit can operate in wet or dry cutting mode. Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages. Residual Risk Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks. Despite the observance of the operating instructions there still may be some hidden residual risks. EN25

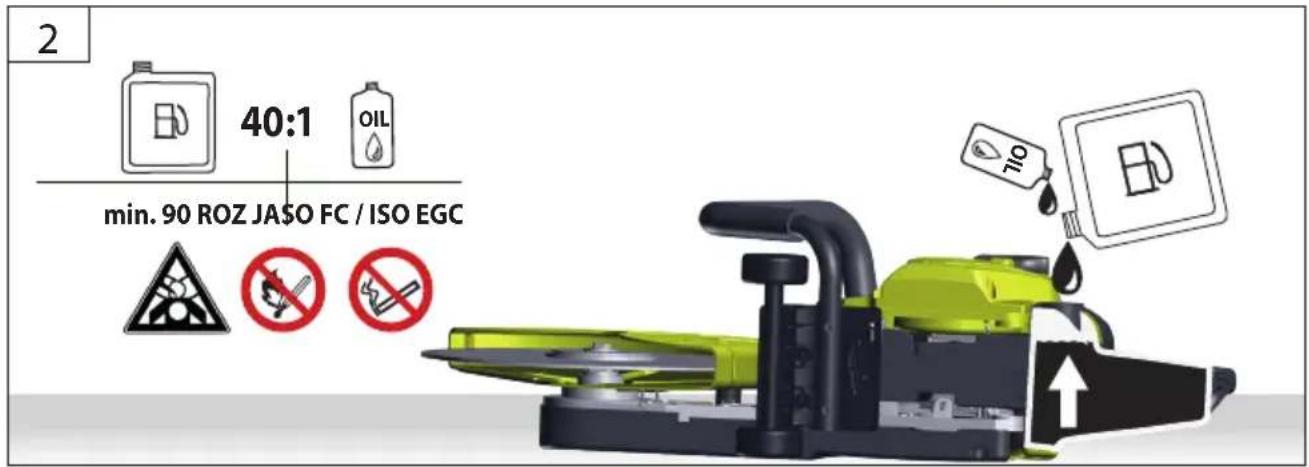

ENGLISH Symbols Warning / Attention! Switch o the motor and wait for the cutting disc to come to a standstill To reduce the risk of injury, user must read instruction manual Weare a protective helmet. Wear gloves! Wear hearing protection Wear safety goggles Wear a suitable dust protection mask. Wear protective clothing Safety shoes to be used Kickback can lead to casualties. Exhaust fumes, fuel and lubricants are toxic substances. Breathing in exhaust fumes may be fatal! Fuel mixture 40:1 Hazardous dust and gas emission Fire hazard due to glowing material particles Keep a distance from the ejection opening at all times. Keep distance of persons Observe to keep out of dangerous zone Warning against risk of tripping Warning against hot surfaces!

Sound power level Manually controlled lever winch The use of damaged cutting discs is not permitted. The use of a saw blade is prohibited. Prohibited smoking and open re using. Open ames are prohibited Keep dry at all times. Never expose tool to rain. To be used outdoors only. Keep the machine out of reach of children. Protect against cold max. Spindle speed CE marking Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres. General Safety Rules Read all safety warnings and all instructions. Save all warnings and instructions for future reference. Do not use the appliance if you are tired, ill, under inu

ence of drugs, alcohol drinks or medicaments. Use protective equipment which t you. Wear safety goggles and ear protection at all times. The operating personnel must have received sucient training in use, setup and maintenance. Persons over 16 years of age can only workon the appli

ance.An exception includes youngsters trained in order to reachknowledge under supervision of the trainer duringoccupational education. Keep children and other persons including animals in a safe distance when using the appliance. It is necessary to comply with the regulations applicable26 ENGLISH in the country where the truck is used. Cutting discs Only use undamaged cutting discs that comply with the technical data stated in this manual and that meet national or regional standards/regulations, such as for example.

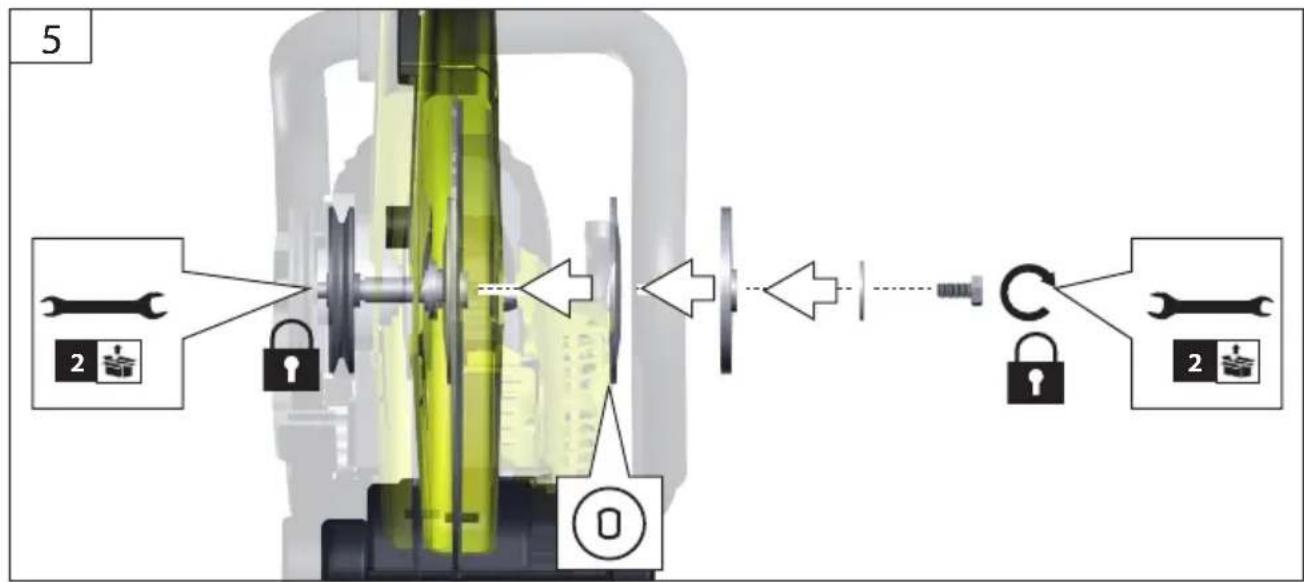

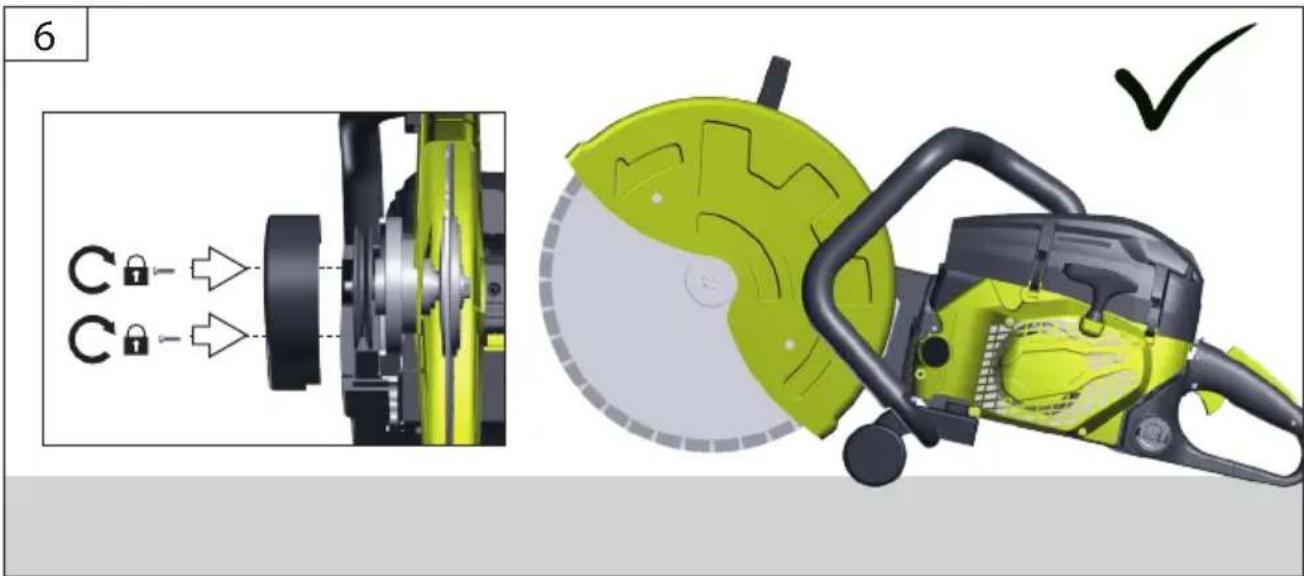

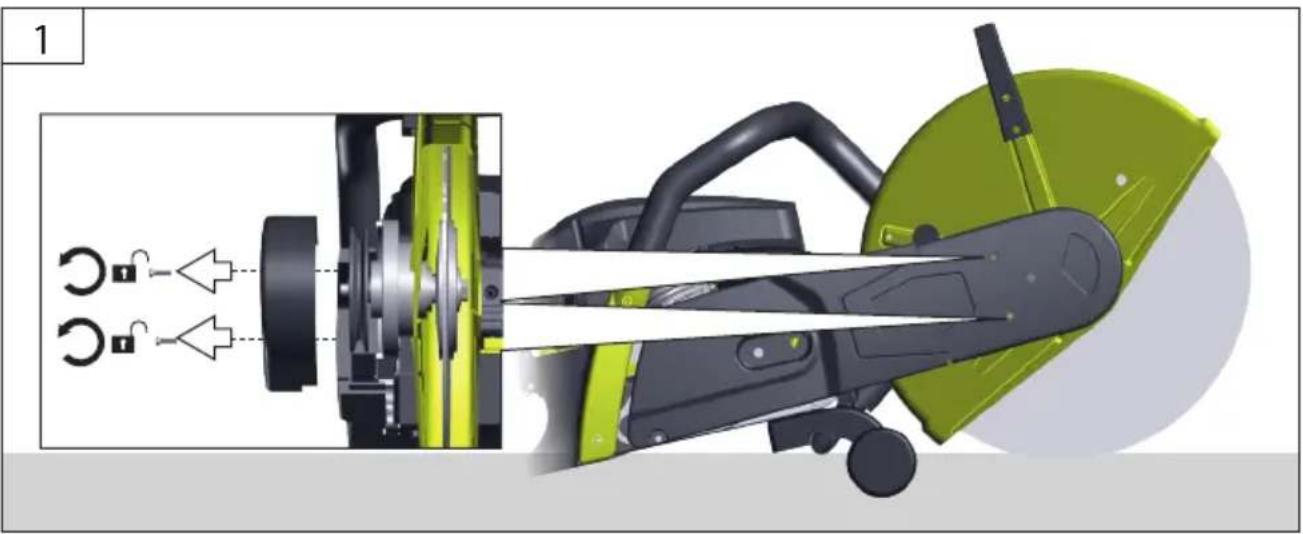

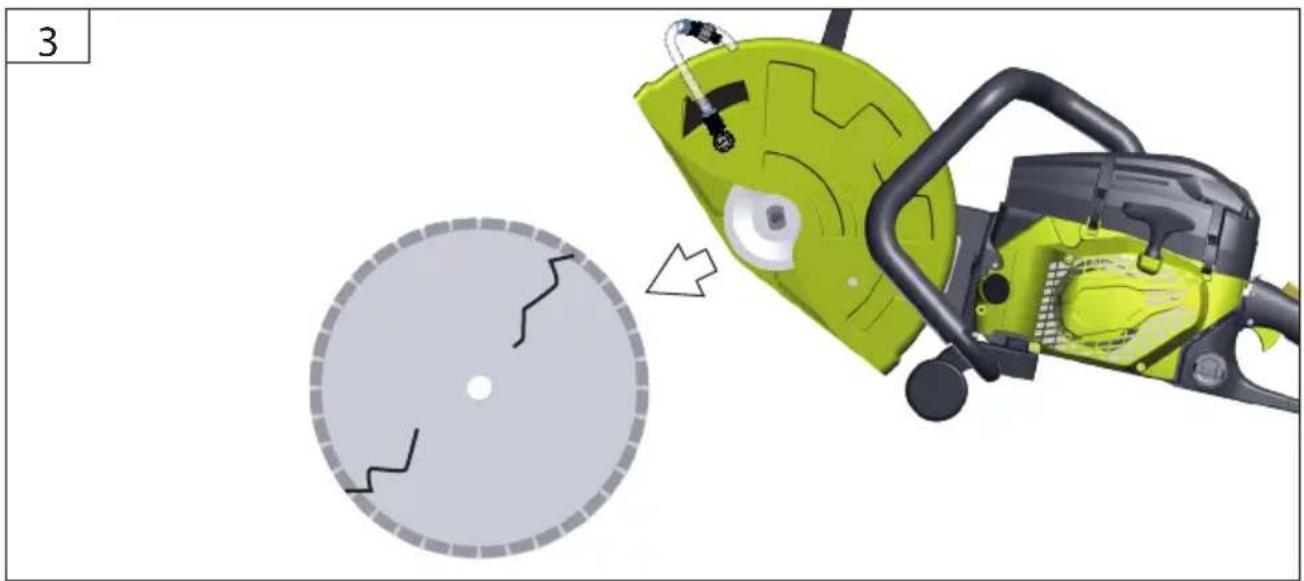

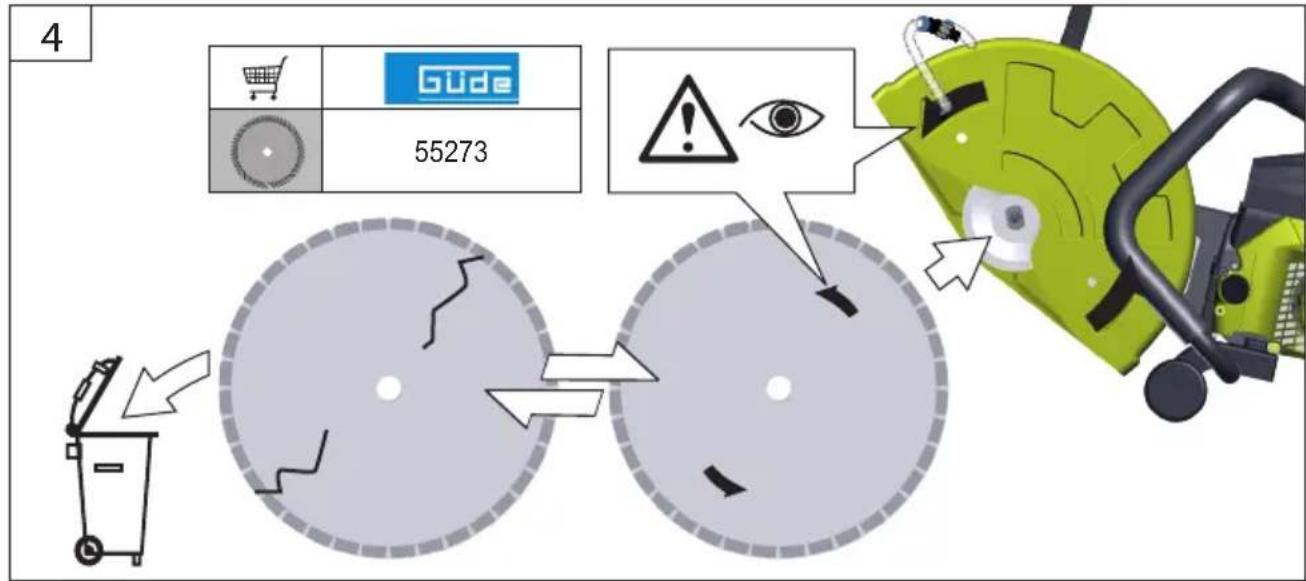

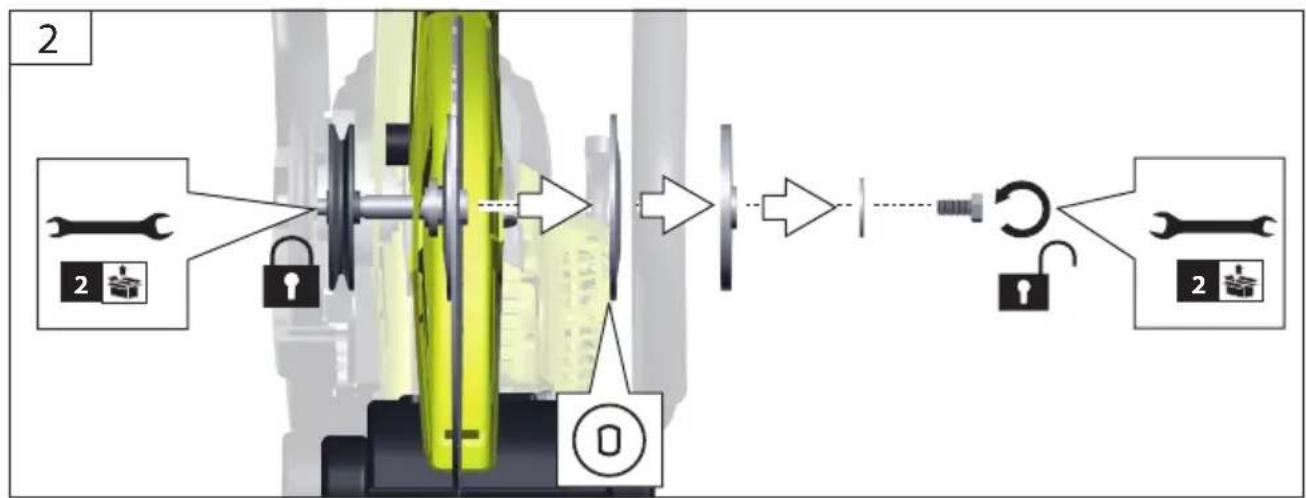

• ANSI B7.1 The use of other cutting accessories that deviate from the technical data, such as circular saw blades, is prohibited. Cutting discs must be checked for cracks, deformation and imbalance before use. Cutting discs may only be xed with the anges supplied with the machine. The use of other parts for fastening such as reducing bushes and spindle bushes is prohibited. Use only original accessories and original spare parts. Components for which there are no instructions for ex

changing should be replaced by the manufacturer only. Using other spare parts can result in accidents/injuries of the user. The manufacturer will not be liable for any such damage. Please contact our service department if you need accessories or spare parts.

WARNING AGAINST CUTTING INJURIES

Guide the machine with a rm grip on both handles. Position the machine as described in this manual. Never leave the machine running unattended. Do not carry the machine when it is running and the cutting disc is rotating. No turning or tilting or moving during operation. Never set the machine down on the ground while the cutting disc is rotating. Whenever you stop work, switch o the engine and al

ways wait until the cutting disc has come to a complete standstill. Ensure the working space has sucient general or targeted lighting. WARNING Risk of re, Risk of explosion Do not work with the unit in an environment with a risk of explosion where there are ammable liquids, gases or dust. Ensure adequate workplace ventilation. WARNING Exhaust gases, fuel and lubricants are toxic. During operation, exhaust gases are produced that contain hydrocarbons and benzenes and are therefore harmful to health. Ensure adequate workplace ventila

tion.Bear this in mind not only when operating indoors, but also when working in trenches, troughs or other conned spaces. If nausea, headaches, visual disturbances (e.g. reduced eld of vision), hearing disturbances, dizziness or loss of concentration occur, stop working with the machine im

mediately. These symptoms can be caused, among other things, by excessive exhaust gas concentrations. WARNING Damage to hearing due to exposure to noise Wear hearing protection and limit exposure. Increased attention and caution is required when wea

ring hearing protection. – The perception of sounds an- nouncing danger (screams, signal tones, etc.) is limited. Take timely breaks from work WARNING - Vibration It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud’s Syndrome in certain individuals. Symptoms may inclu- de tingling, numbness, and blanching of the ngers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the eects of vibration: Keep your body warm in cold weather. When operating the unit wear gloves to keep the hands and wrists warm. After each period of operation, exercise to increase blood circulation. Take frequent work breaks. Limit the amount of expo

sure per day. If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor. DANGER - Reaction forces Reaction forces occur suddenly and can cause fatal injuries due to loss of control. The following reaction forces usually occur:

• Kickback: In the event of kickback, the machine is thrown back to the user. Kickback occurs when the cutting disc utters due to damage, imbalance or tilting and then gets jammed in the cutting gap or is slowed down sharply

• Drawing in: The machine pulls away from the user when the cutting disc touches the workpiece from above.

• Falling in the direction of separation: At the end of the cut, the machine loses the support provided by the cutting disc in the breakthrough kerf Now the user has to balance the weight of the machine. Bring your body and arms into a position allowing you to absorb the recoil forces. Never change the cutting direction and the angle to the workpiece after the ma

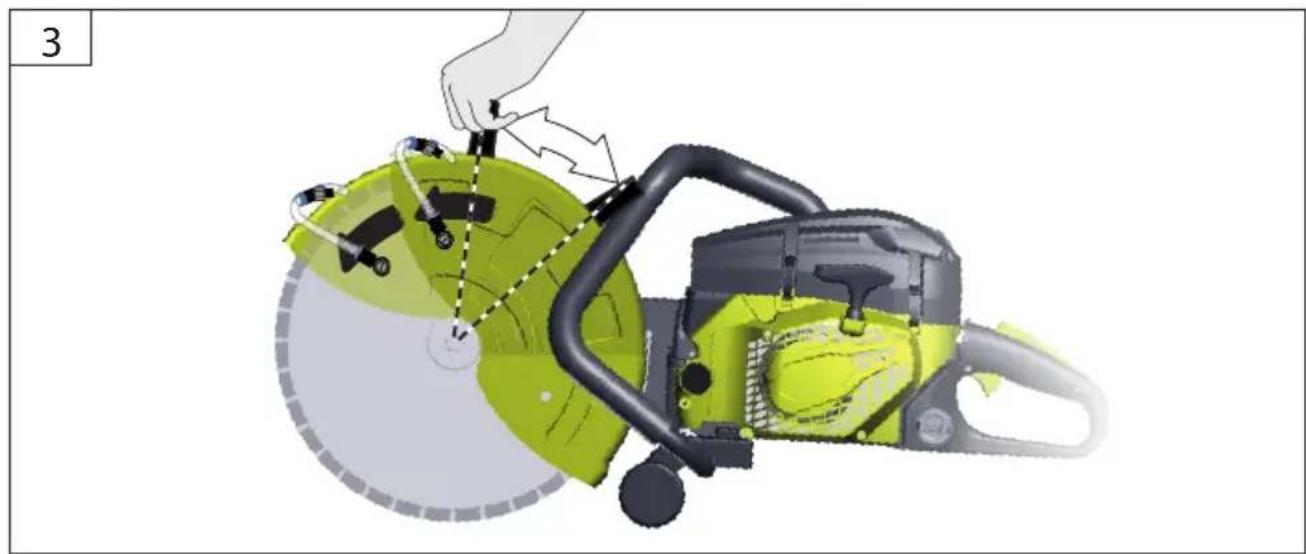

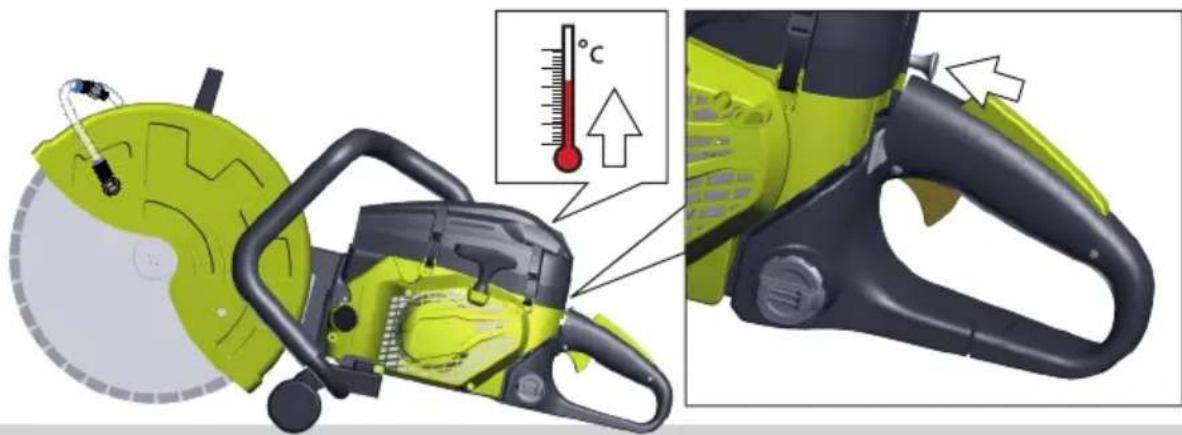

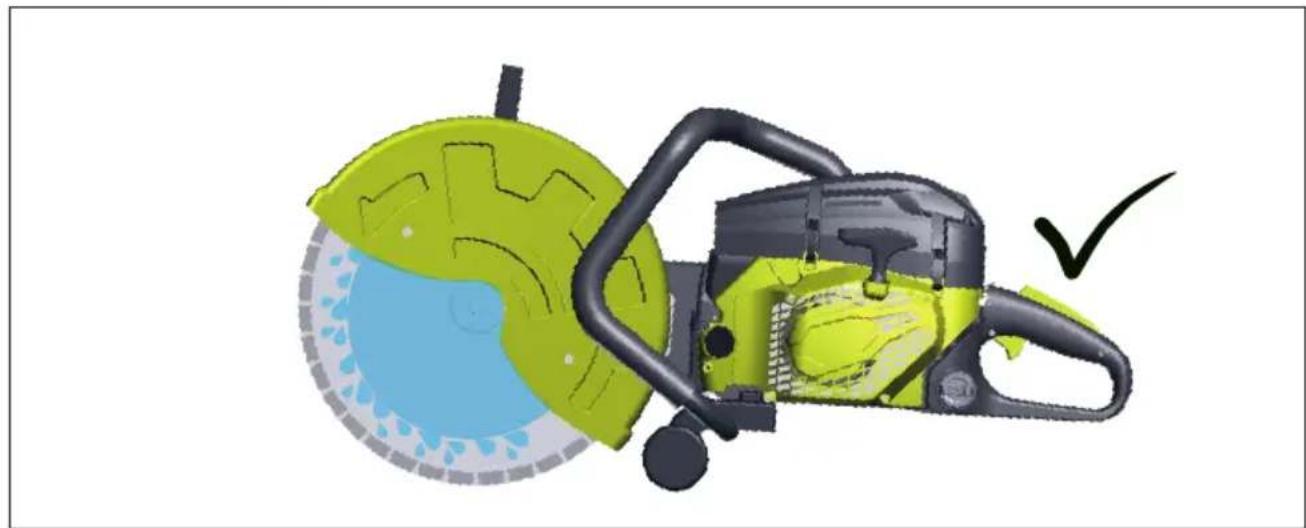

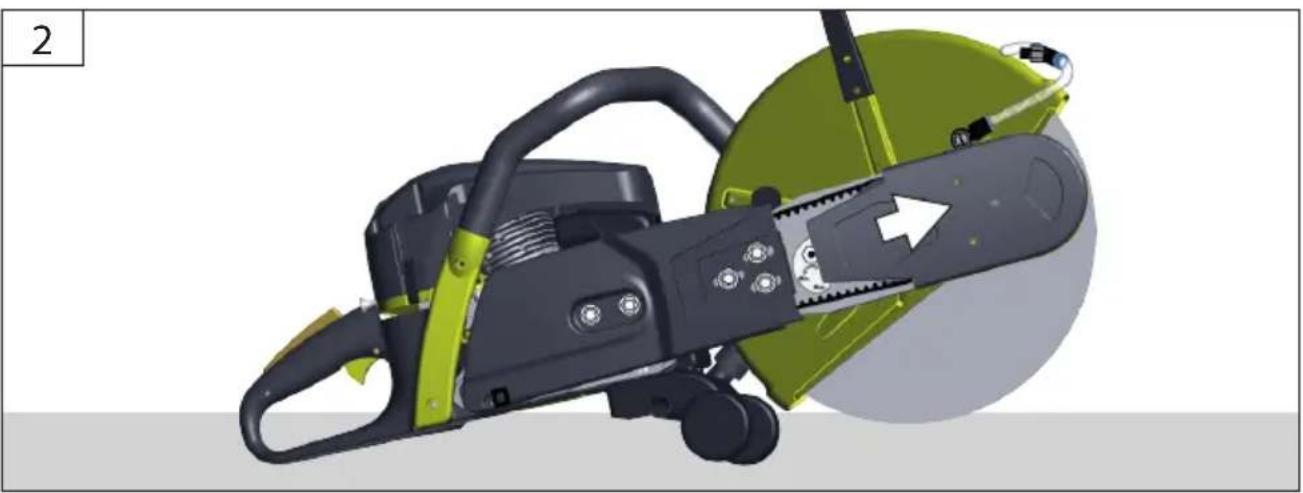

chine has been set up. Secure the workpiece suciently against shifting. Position the machine so that the cutting disc cannot tilt.Follow all instructions in this manual WARNING - High dust formation Eye injuries and respiratory diseases caused by ying material particles. Wear goggles. Adjust the guard plate for the cutting disc so that the material particles are deected away from the user and the machine. EN27 ENGLISH Note the direction of ight of the separated material particles. Observe to keep out of dangerous zone If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Do not machine any materials that present a danger to health (e.g. asbestos). DANGER Fuel is highly ammable. The appliance may only be refuelled outdoors and not near open re or burning cigarettes. Prohibited smoking and open re using. Emergency procedure After use, let the unit cool down for at least 5 minutes before refuelling. Dust can accumulate on the housing, which can beco

me saturated with accidentally spilled or leaked petrol, creating a burn hazard. Therefore, clean the machine of dust regularly and especially before refuelling. In the tank pressure may develop. Loosen the tank cap slowly to allow this pressure to gradually decrease. Make sure the fuel does not overow. If the fuel over

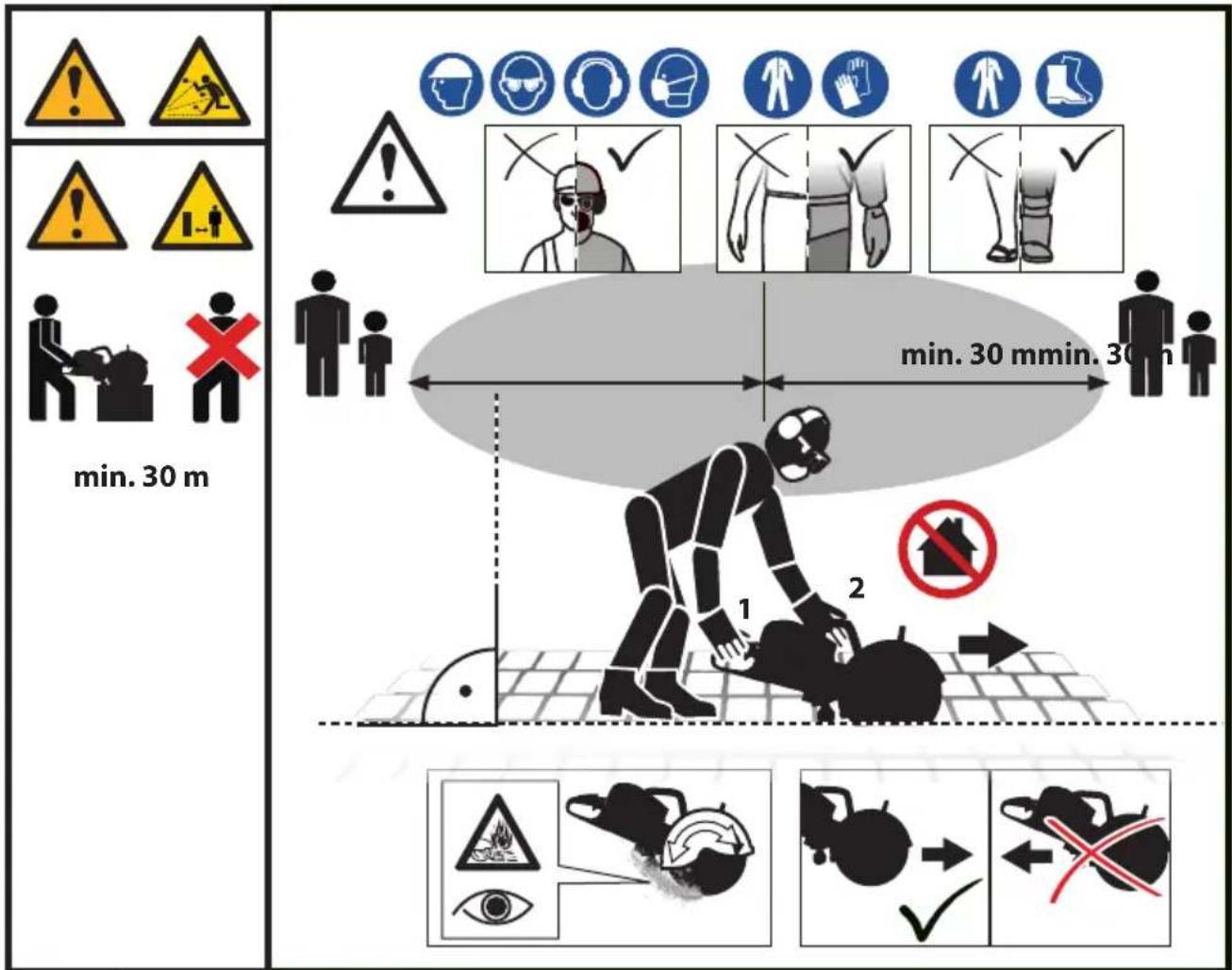

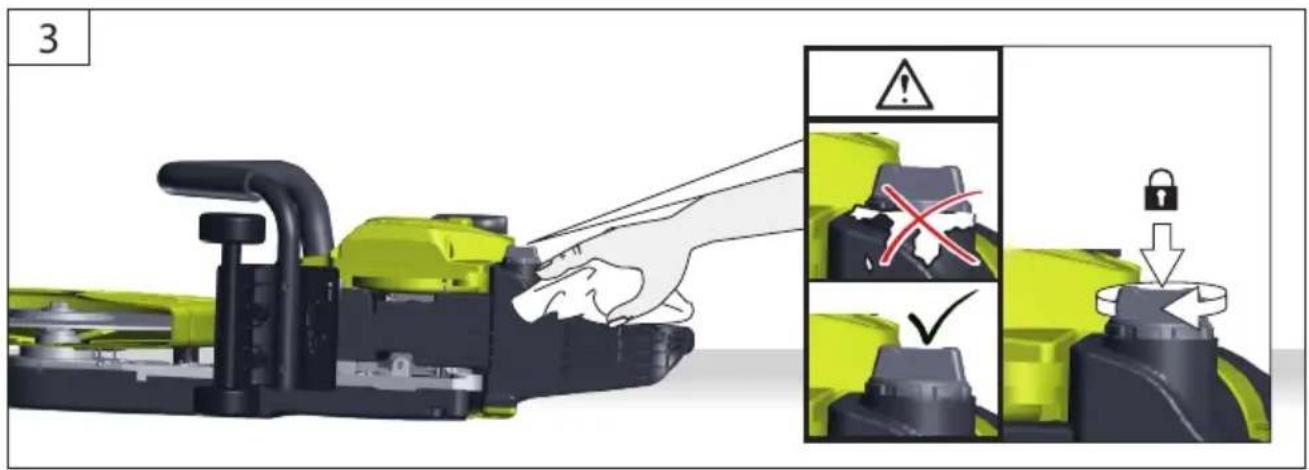

ows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated. Do not let fuel get on your clothes. Otherwise, change the clothes before starting the machine. Replace all fuel tank and container caps securely. Do not store any fuel near the unit. Keep the fuel in suitable containers only. Fuel tank to be emptied outdoors only. Never keep the unit with petrol in the tank inside a building where petrol vapours could get in contact with open re or sparks. Working Instructions Organise the work to be carried out in advance and explore the site to exclude hazards due to the following causes electrical lines Flammable materials Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Determine if warning signs need to be erected. Maintenance

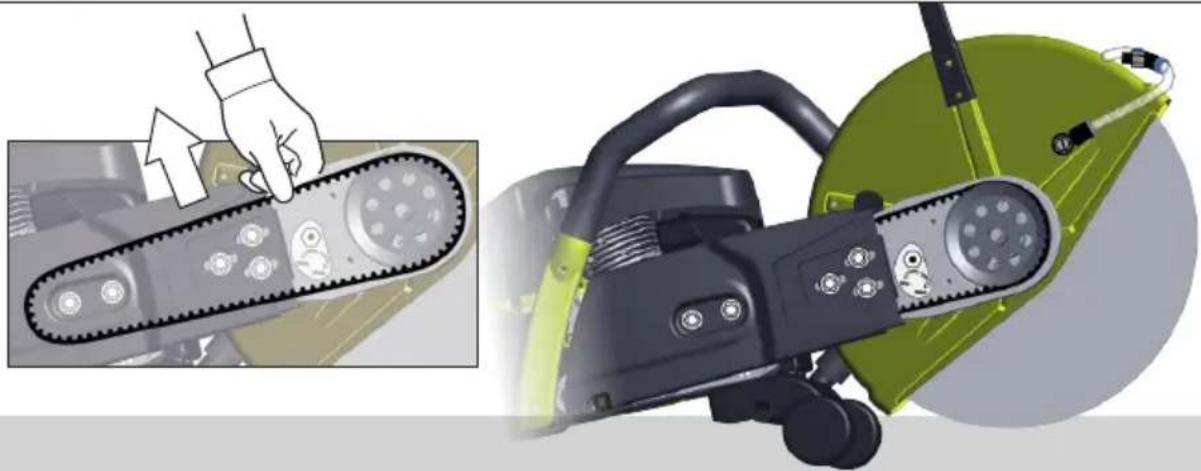

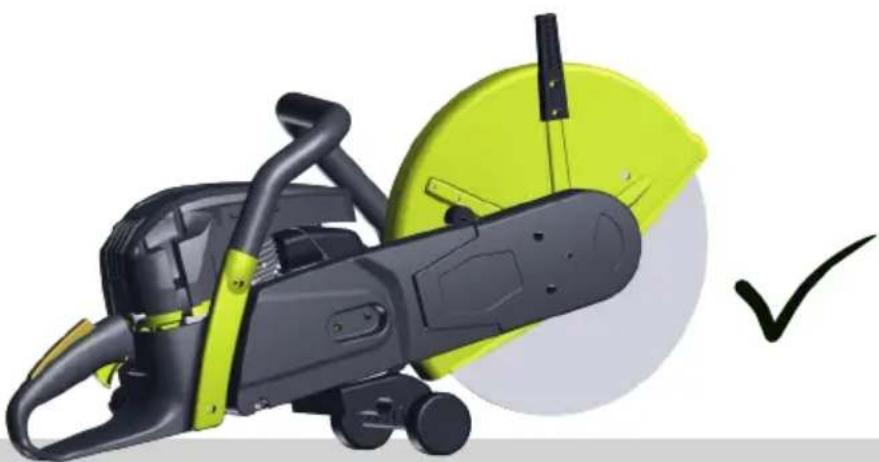

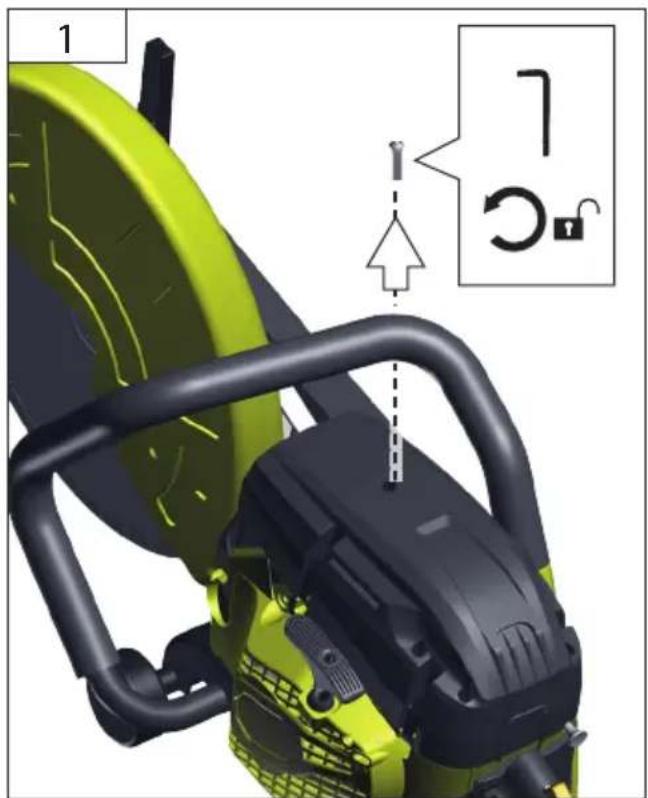

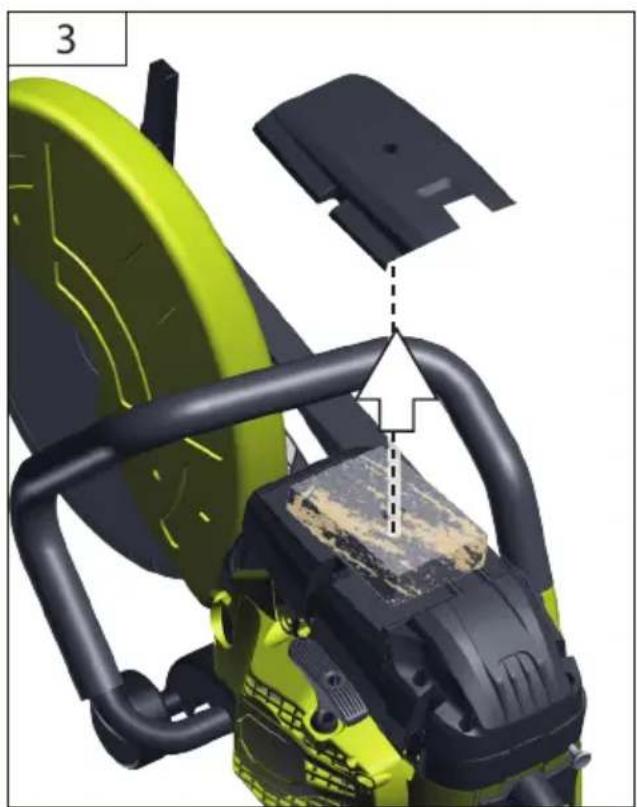

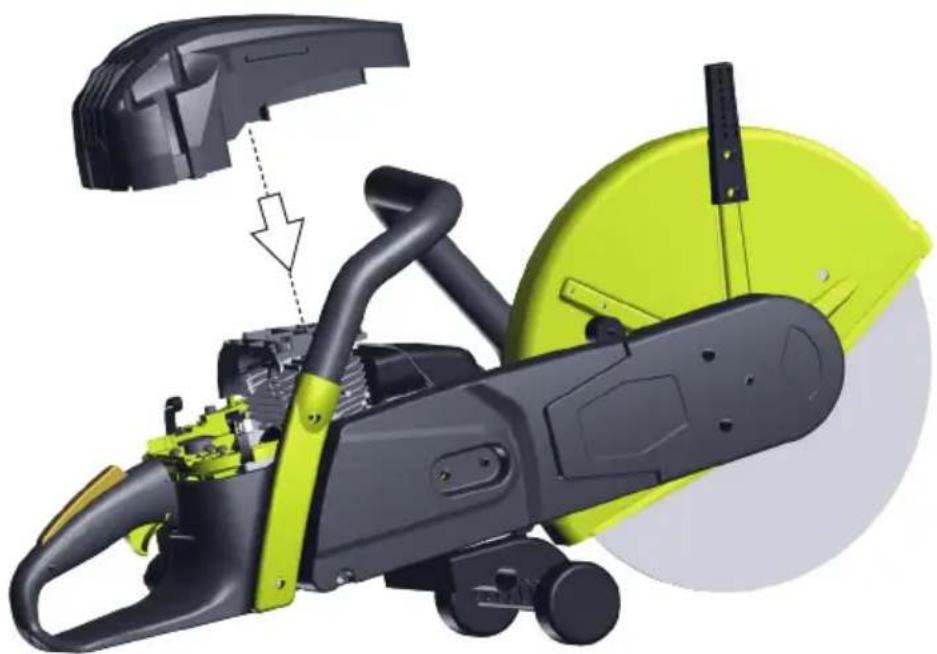

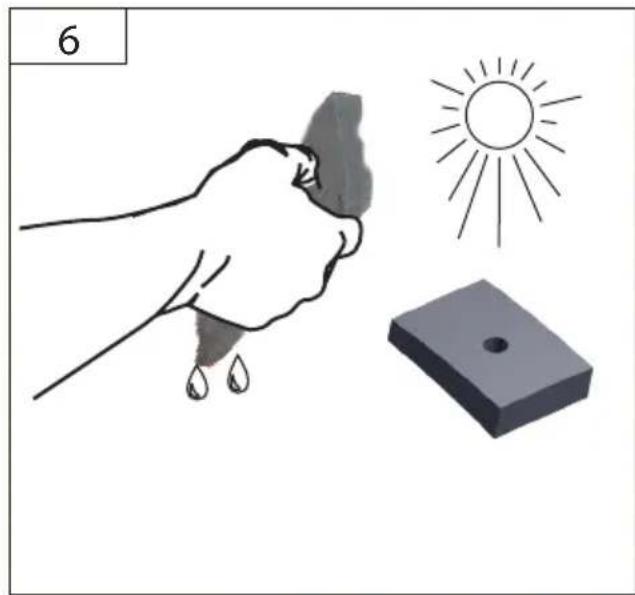

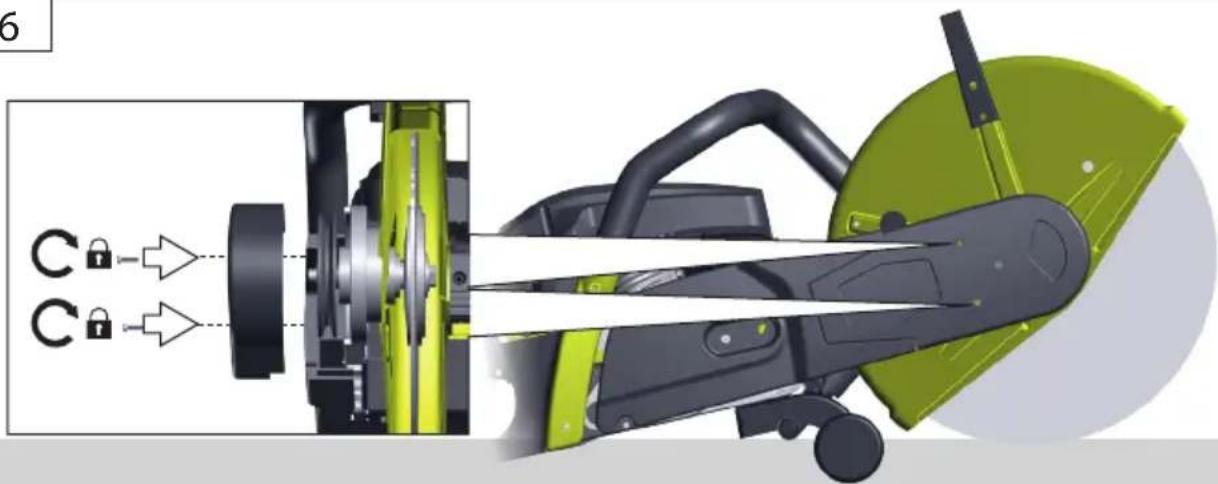

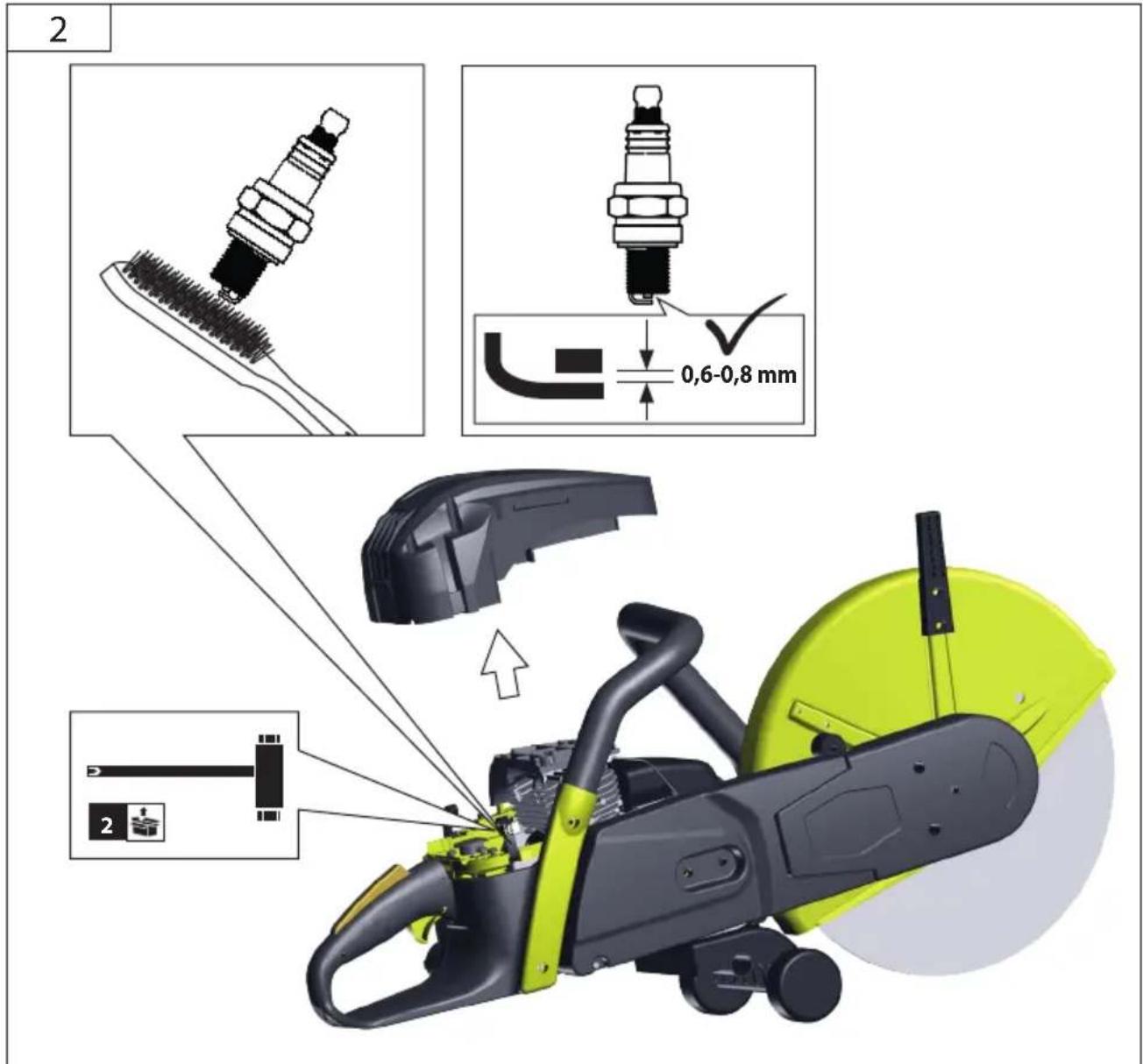

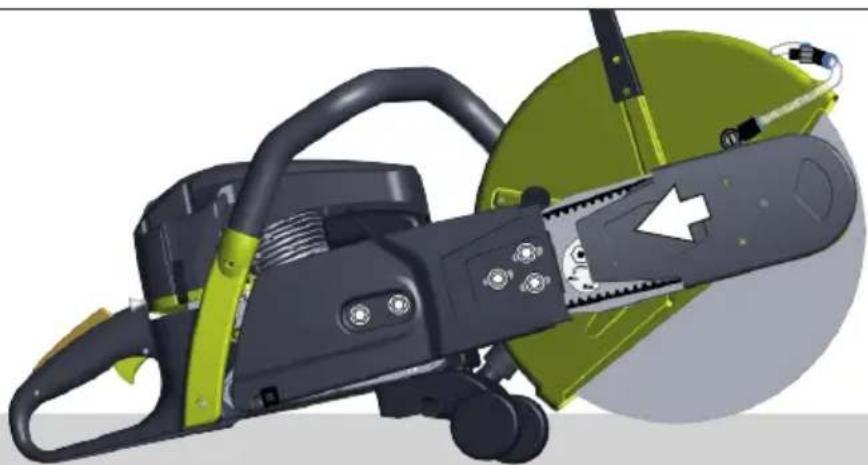

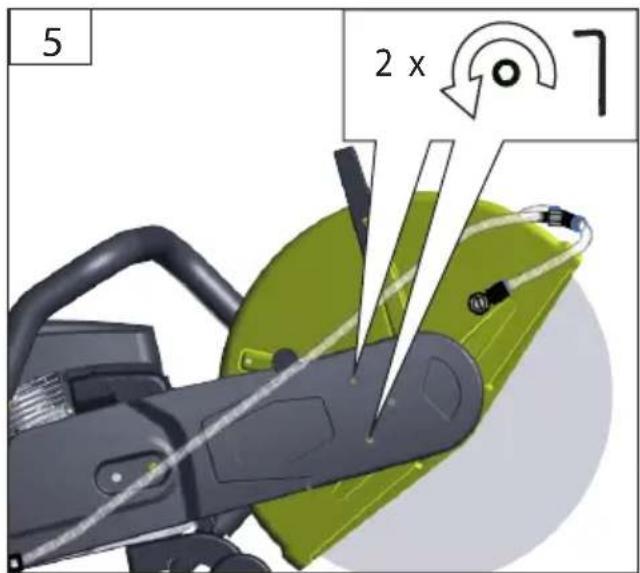

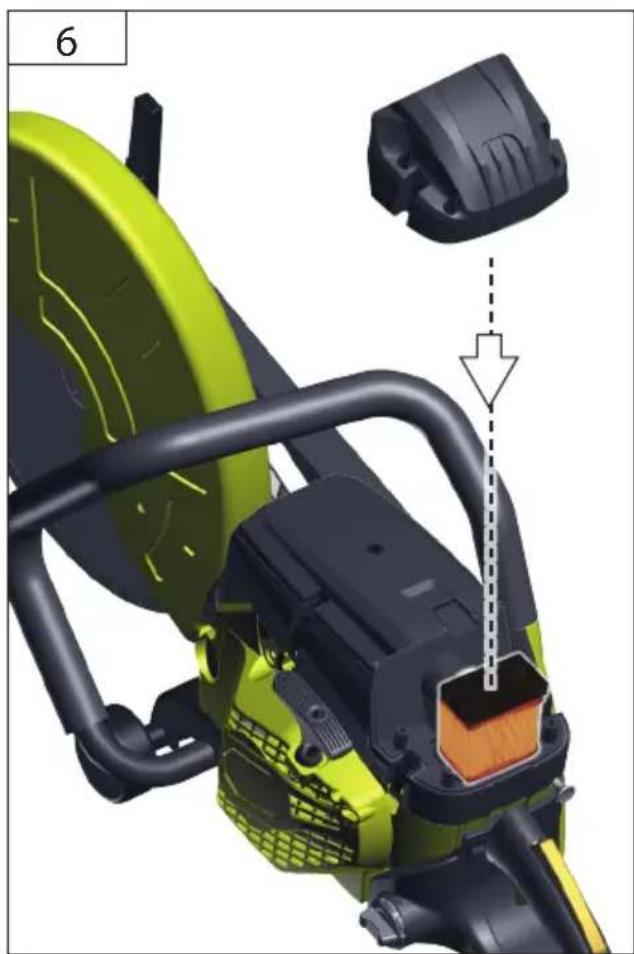

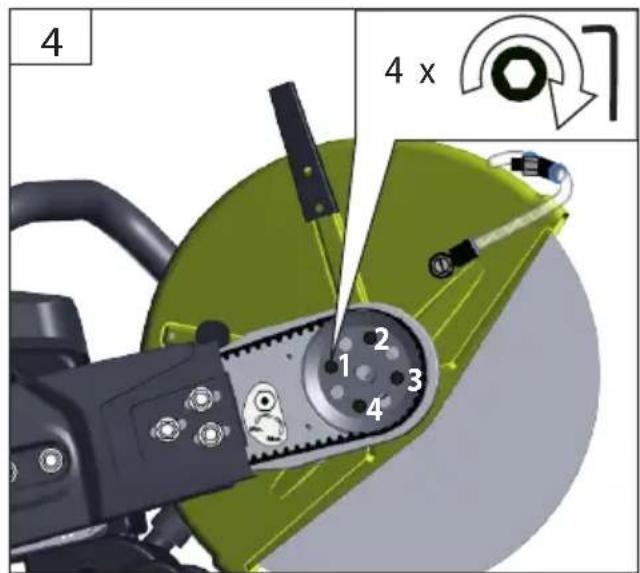

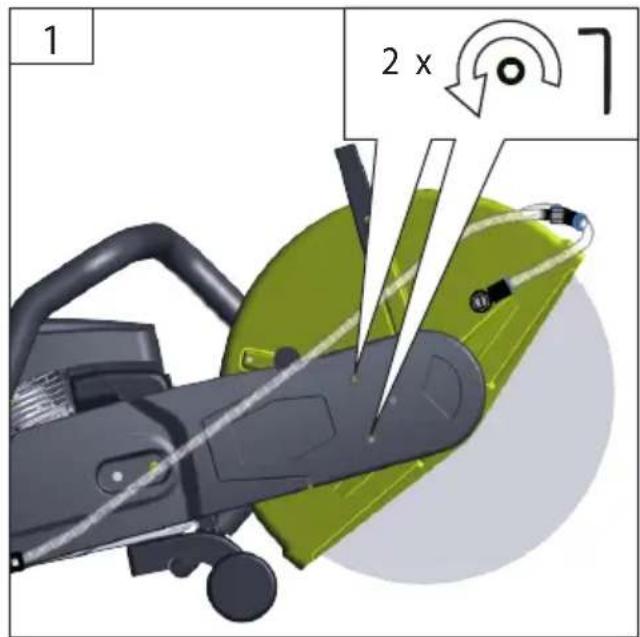

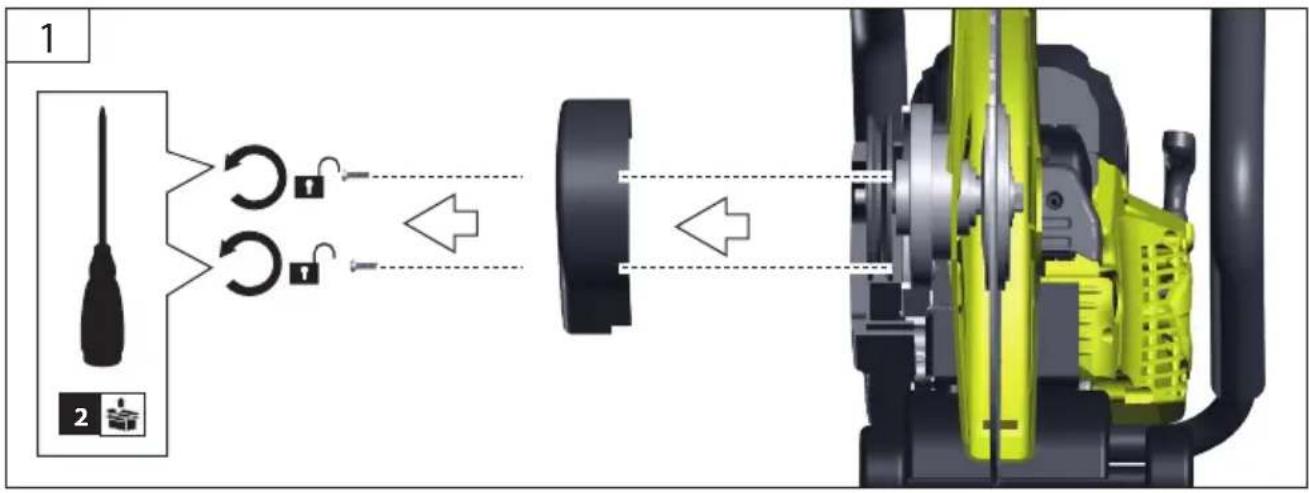

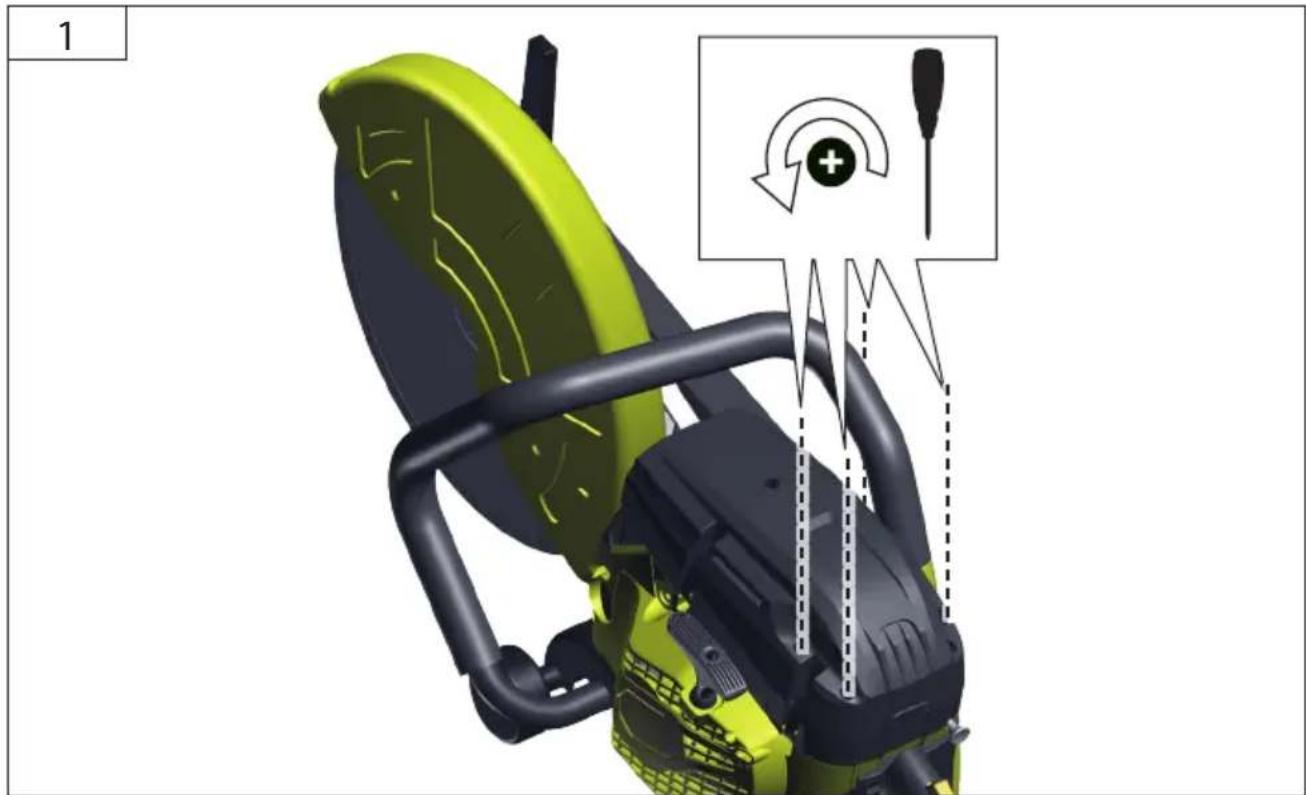

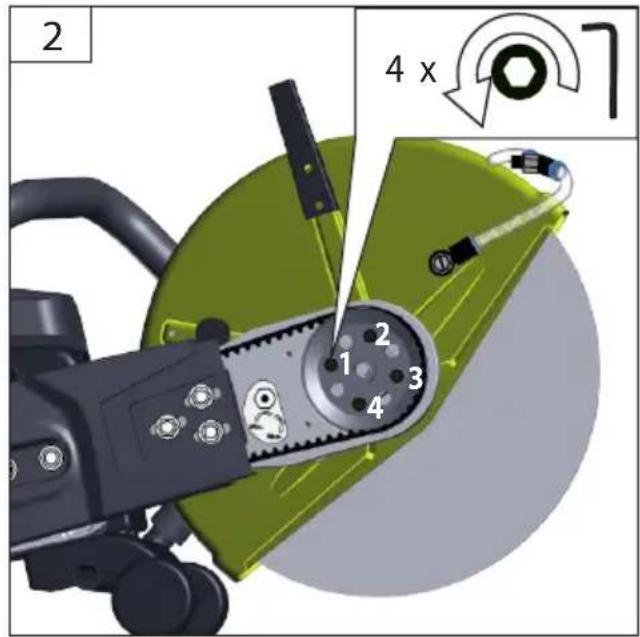

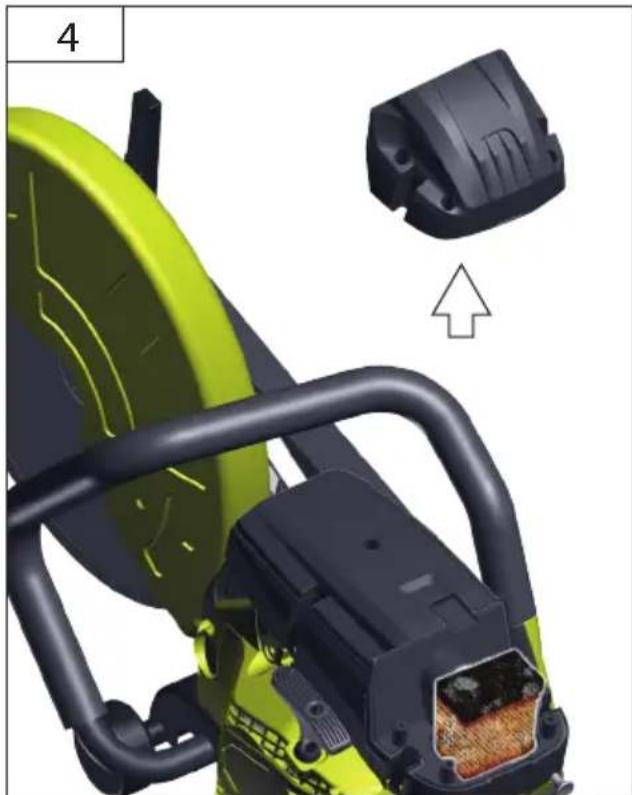

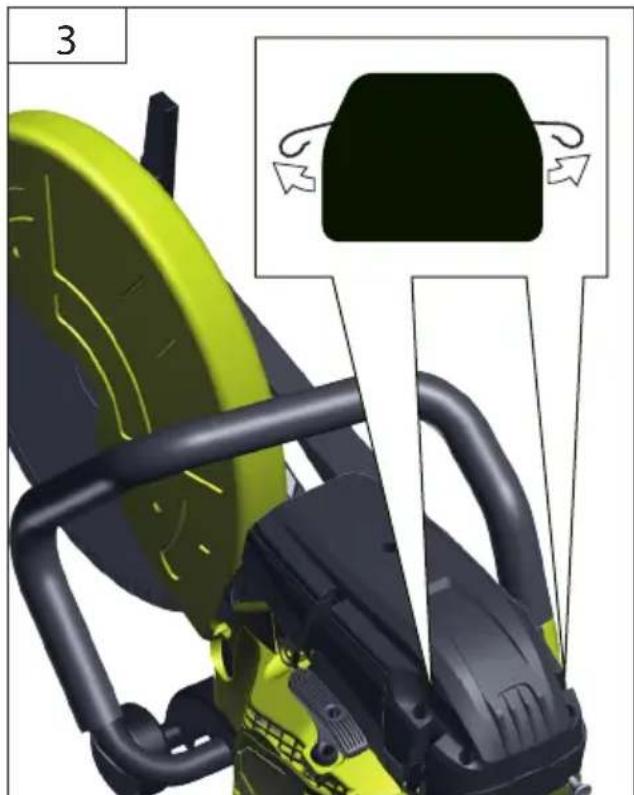

• For all work on the cutting machine

• Wear protective gloves.

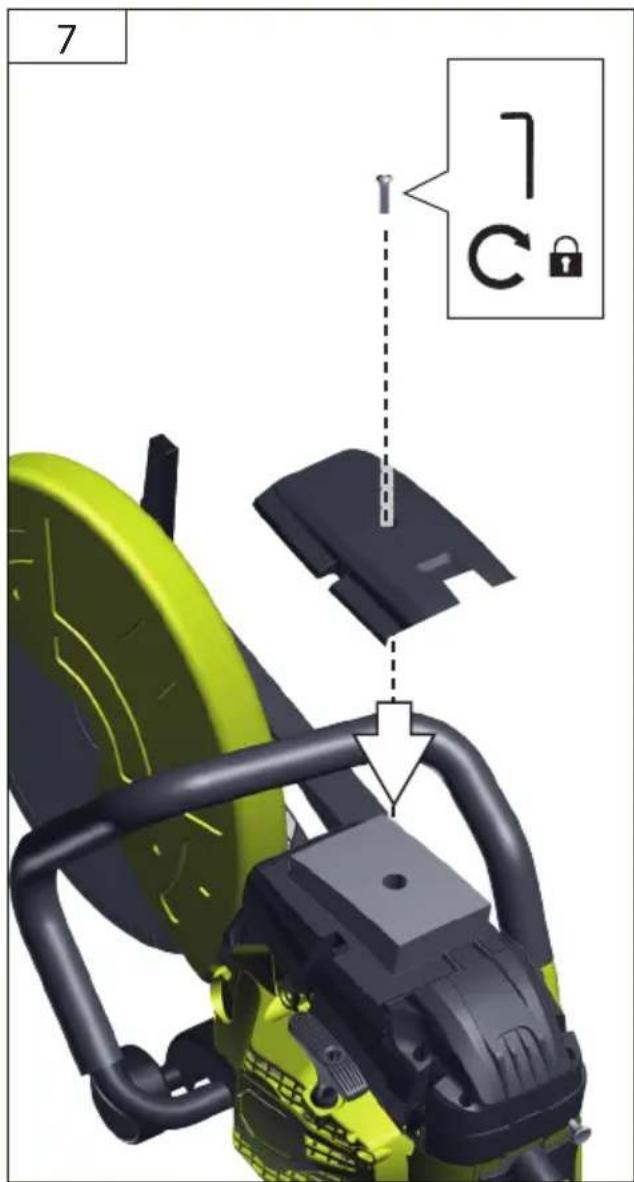

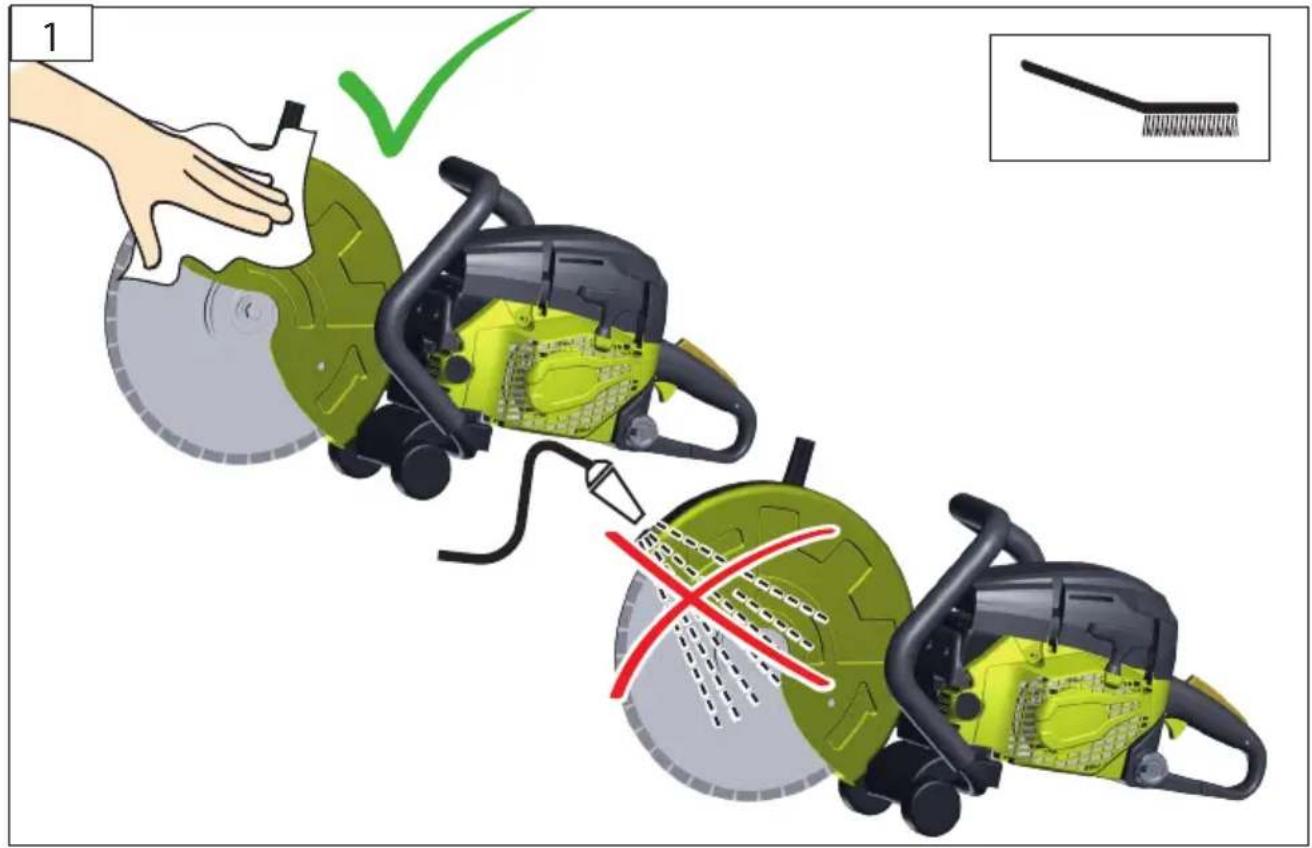

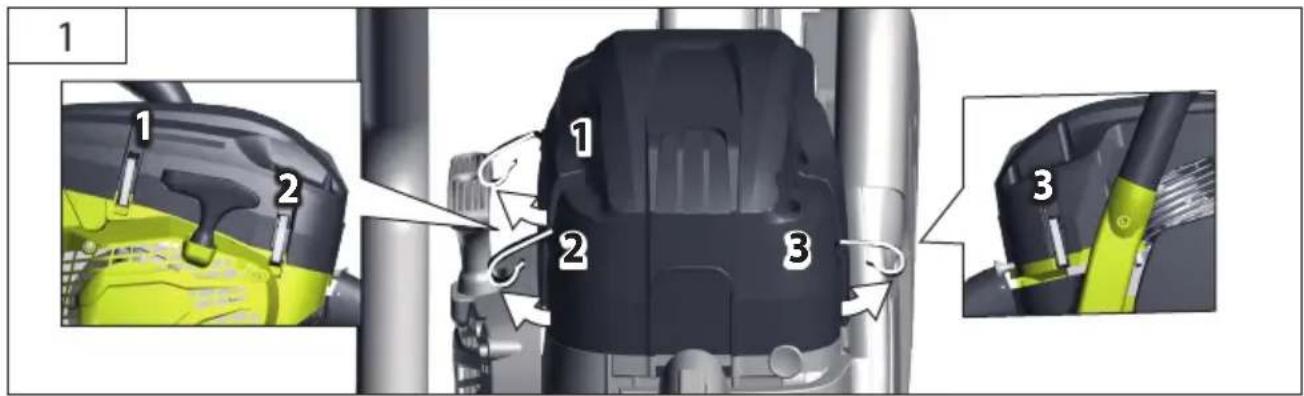

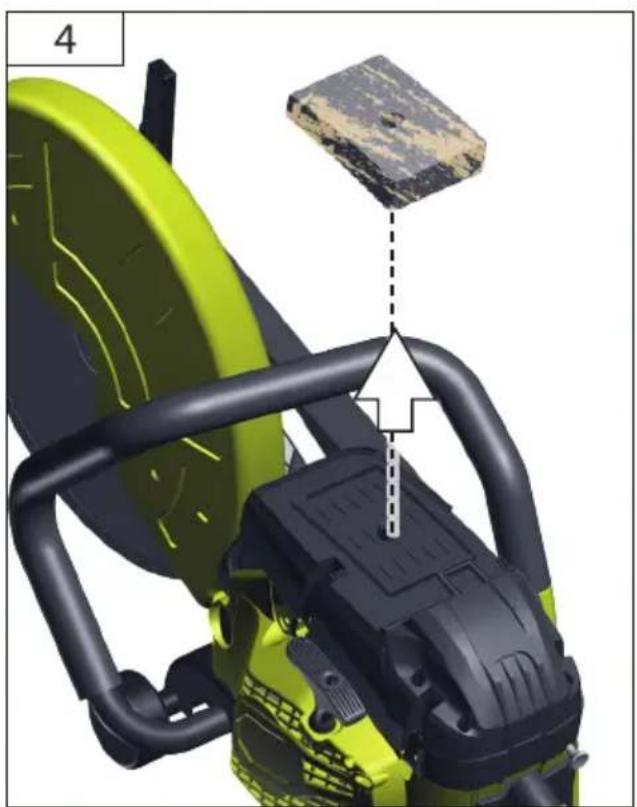

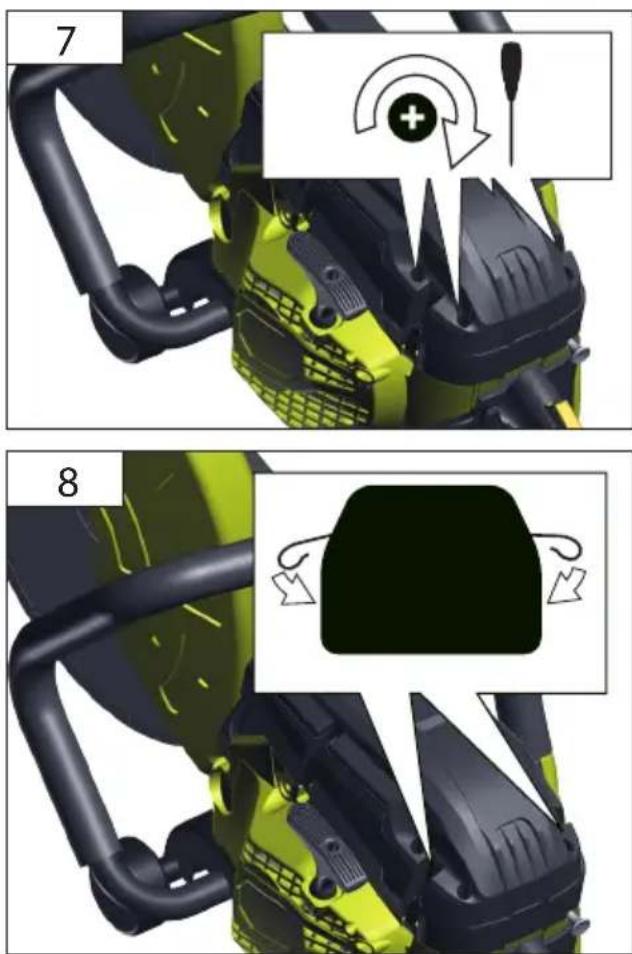

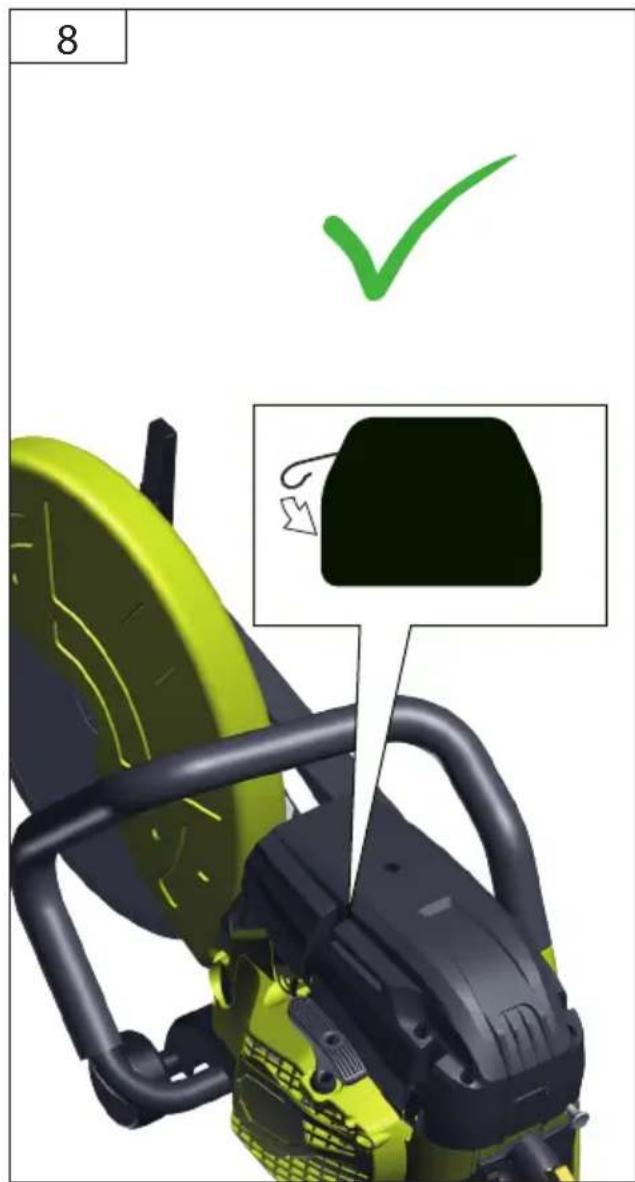

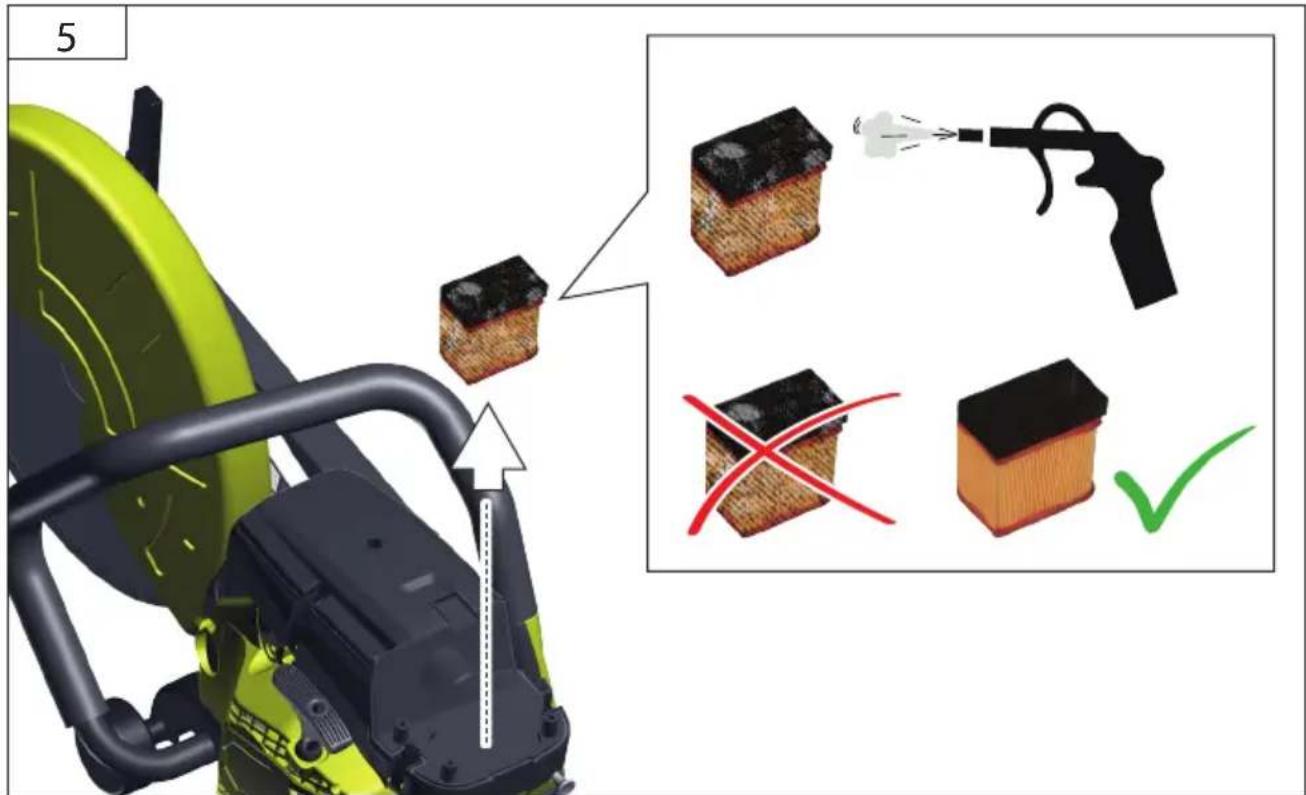

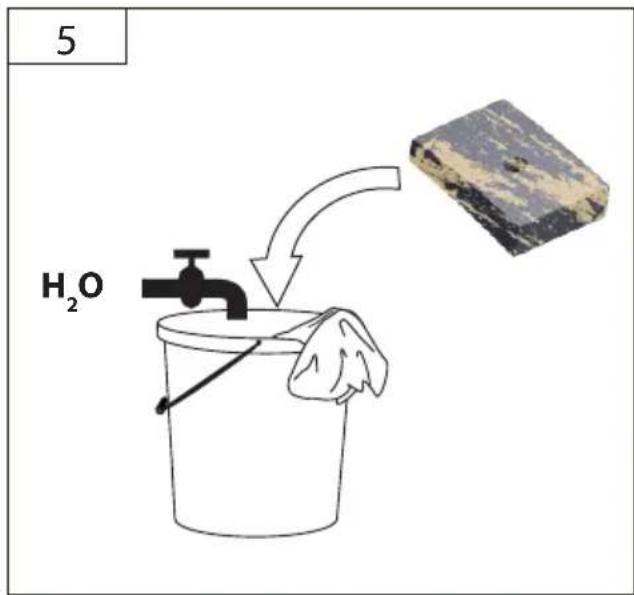

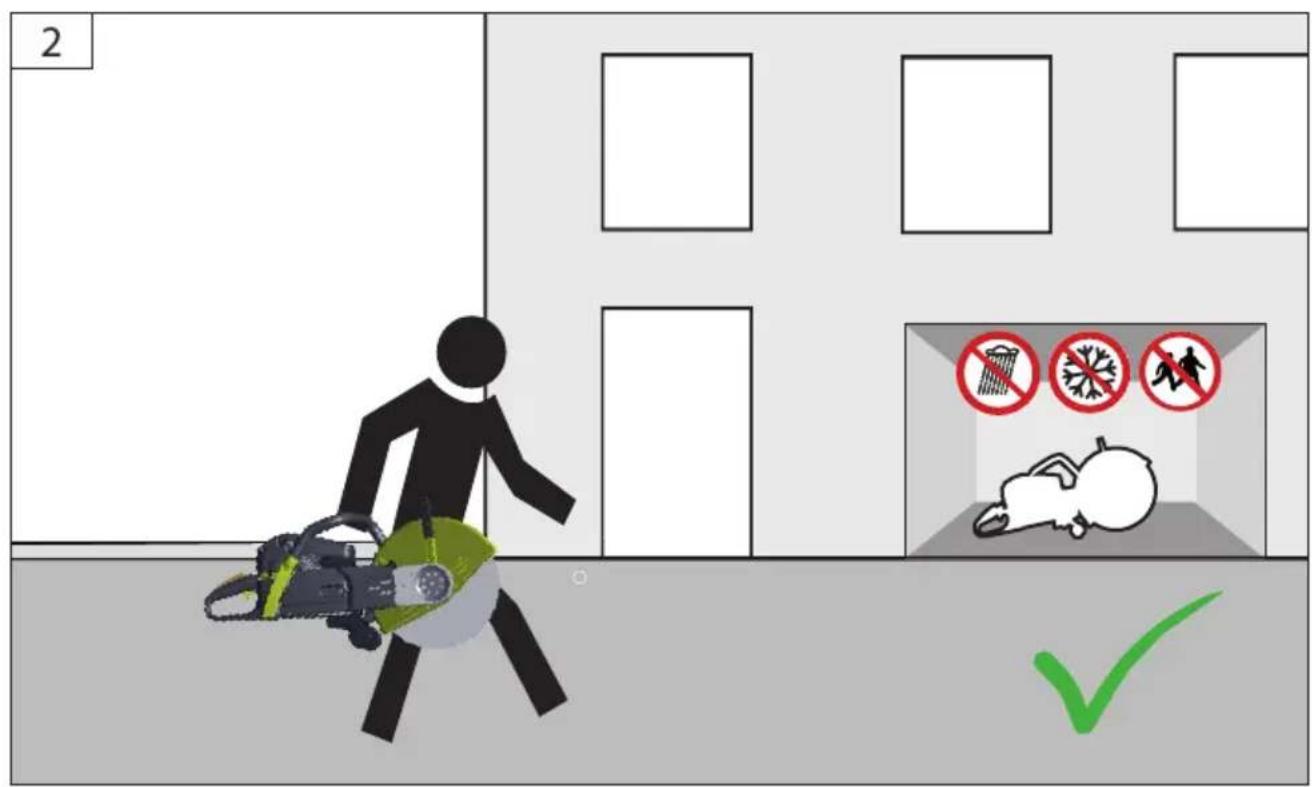

• Switch o engine General notes Repairs and works specied in these instructions may only be performed by qualied authorised sta. Use only original accessories and original spare parts. Components for which there are no instructions for ex- changing should be replaced by the manufacturer only. Keep the device, in particular the air vents, clean at all times. Never spray water on the device body! Never clean the machine and its components with solvents, ammable or toxic liquids. Us only a damp cloth making. Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insucient maintenance and care can lead to unforeseen accidents and injuries. If necessary, a list of spare parts can be found at www. guede.com. Storage For breaks in operation from approx. 3 months onwards Empty and clean the fuel tank in a well-ventilated place. Drain the carburettor, otherwise the diaphragms in the carburettor may stick. Store the machine in a cool, dry, and well-ventilated place that is inaccessible to children. Disposal Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres. Transport packaging disposal The packaging protects the machine against damage during transport. Packaging materials are usually chosen based on environment aspects and waste treatment principles and are therefore recyclable. Returning the pa- ckaging into material circulation saves raw materials and reduces waste production. Parts of packagings (e.g. foils, styropor®) can be dangerous for children. Danger of asphyxiation! Keep parts of the packagings out of reach of children and dispose them as soon as possible. Guarantee Warranty period of 12 months applies to commercial use and 24 months applies to private use and commen- ces on the day of purchase of the device. The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be sub

mitted for any claim in the guarantee period. The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee. Important information for the customer Please note that returns within or outside the warran- ty period should always be in the original packaging. This measure eectively avoids unnecessary trans- port damage and any associated disputed ruling. Your equipment is optimally protected only in the original box, and keeping it in that box will ensure smooth processing. EN28 ENGLISH
