Product Type	Concrete Saw
Brand	Güde
Model	GBTS 350
Order Number	55559
Engine	Two-stroke Engine
Engine Power	2.9 kW / 3.9 PS
Displacement	65 cm³
Idle Speed	2800 - 3200 min⁻¹
Maximum Cutting Depth	130 mm
Fuel	Gasoline min. 90 RON
Engine Oil	2-stroke JASO FC / ISO EGC
Fuel Mixture (fuel:oil)	40:1
Starting System	Reverse Start
Net Weight	16 kg
Empty Weight (without disc, empty tank)	11.5 kg
Tank Volume	0.55 l
Max. Cutting Disc Diameter	350 mm
Disc Bore	25.4 mm
Disc Tightening Torque	26 Nm
Required Water Pressure	0.15 - 0.35 mPa
Required Water Quantity	9 - 12 l/min
Sound Pressure Level (LpA)	92.5 dB(A)
Guaranteed Sound Power Level (LwA)	116 dB(A)
Vibration Emission Value (ahw)	9.822 m/s²
Application	Wet or Dry Cutting
Required Protective Equipment	Helmet, gloves, goggles, hearing protection, dust mask, safety shoes, protective clothing
Warranty (professional / consumer use)	12 months / 24 months
After-Sales Service	www.guede.com, [e-mail]

Frequently Asked Questions - GBTS 350 Güde

What type of fuel should I use for the Güde GBTS 350 concrete saw?

Use a gasoline-oil mixture at a ratio of 40:1. The gasoline must have an octane rating of at least 90 RON and the engine oil must be of JASO FC / ISO EGC quality for two-stroke engines.

How do I start the GBTS 350 concrete saw?

Ensure the tank contains the proper fuel mixture and the switch is set to on. Use the reverse start by pulling sharply on the starter cord. Follow the detailed instructions in the user manual.

What is the maximum cutting depth of the GBTS 350?

The maximum cutting depth is 130 mm with a suitable cutting disc diameter.

Which cutting discs can I use with the GBTS 350 saw?

Use cutting discs with a maximum diameter of 350 mm and a bore of 25.4 mm. They must comply with standards EN 13236, EN 12413, or ANSI B7.1. Never use circular saw blades.

What regular maintenance is required for the concrete saw?

Keep ventilation openings clean and never spray water on the device. Clean with a damp cloth. For prolonged storage, empty the fuel tank and let the engine run idle to prevent diaphragms from sticking.

What personal protective equipment should I wear?

Always wear a safety helmet, gloves, safety goggles, hearing protection, dust mask, safety shoes and appropriate protective clothing.

What is the warranty of the Güde GBTS 350 concrete saw?

The warranty is 12 months for industrial use and 24 months for end consumers. It covers material and manufacturing defects. Keep the proof of purchase.

Where can I find spare parts for the GBTS 350?

Spare parts are available on the website www.guede.com in the 'Service' section. You will need the serial number, order number, and year of manufacture.

How do I store the concrete saw safely?

For storage over 3 months, empty the fuel tank in a well-ventilated area and run the engine idle. Store the machine in a cool, dry, and well-ventilated place, out of reach of children.

What should I do in case of kickback?

Hold both handles firmly to maintain control. Never change the direction or cutting angle after positioning the machine. Secure the workpiece and strictly follow the safety instructions in the manual.

USER MANUAL GBTS 350 Güde

3D rendering of a green and black cut-off saw cutting machine (no text or symbols visible)

GBTS 350

55559

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

ENGLISH Please read the instructions carefully before starting the machine.

Scanned document with numbered list items and a blue circular button labeled 'OK' in the corner.

3D rendering of a green and black power saw cutting a circular blade (no text or symbols visible)

Black silhouette of various hand tools including wrench, screwdriver, hammer, and screwdriver (no text or symbols)

3D illustration of a wooden block with black top and brown base, next to a black square labeled '3' (no text or symbols on the block itself)

Inbetriebnahme

EN starting-up the device FR Mise en service IT Messa in funzione

ES Puesta en marcha NL Toestel in gebruik nemen cz Uvedení do provozu

1 °C °C X

2 40:1 min. 90 ROZ JASO FC / ISO EGC TIO

3 !

4 CLICK

Diagram showing a green-handled power saw cutting process with labeled parts and directional arrows indicating tool movement.

Illustration of a green and blue mechanical device with a black handle, showing a circular blade and gear (no text or symbols)

1 2 x

2 4 x

Illustration of a green-handled chain saw cutting a large blade, with a hand adjusting the blade (no text or symbols present)

4 4 x

5 2 x 7

Diagram showing a green chain-linking tool with two labeled parts (1 and 2) indicating lock positions.

Illustration of a green and black electric saw cutting a large blade, with a numbered component labeled '3' pointing to the blade (no text or symbols on the saw itself)

3
START

Technical diagram of a green-handled chain saw with temperature measurement annotation and directional arrows

4
START

Close-up of a green-handled chain-linking tool with labeled parts (1 and 2), showing internal components and part outline (no text or symbols beyond labels)

STOP

Green and black electric saw cutting a circular blade (no text or symbols visible)

Close-up of a green and black industrial tool handle with directional arrows indicating movement or force (no text or symbols)

2 1

Illustration of a green power saw cutting a circular blade with zigzag markings (no text or symbols)

4 Gude 55273

6 C C

6 h

1

3D model of a mechanical device with green and black components, showing a close-up of a black component (no text or symbols visible)

3D rendering of a green and black power saw blade assembly with a close-up of its internal components (no text or symbols visible)

5

3D mechanical assembly diagram showing a green cutting tool and its internal component with a dashed arrow indicating a process (no text or symbols present)

7 8

Simple 3D block icon with a dot and an arrow indicating refresh time (no text or symbols)

Technical diagram of a mechanical device with labeled parts and a close-up view showing a tool interacting with the handle.

3D model of a green and black power saw with attached lever mechanism, shown with a close-up inset showing a component (no text or symbols)

3D model of a green and black motorcycle with attached black frame and mechanical components (no text or symbols visible)

3D model of a green and black motorcycle with a close-up of its top component (no text or symbols visible)

5 H₂O

Illustration of a bird feeding with a sun and a block, no text or symbols present

7 C

8

1 1 2 2 3 3

2 0,6-0,8 mm 2

3

3D rendering of a mechanical cutting tool with green and black components, showing internal assembly and part alignment (no text or symbols)

4

Technical diagram showing three labeled parts of a mechanical device with numbered annotations indicating assembly or installation steps.

4

3D rendering of a mechanical cutting tool with a yellow blade and black handle, no visible text or symbols

Illustration of a mechanical device with a belt drive mechanism (no text or symbols visible)

1

3D rendering of a mechanical chain saw with green blade and black handle (no text or symbols)

3 + - Max - Max 2

4

TEST

Illustration of a green power saw cutting through a chain, showing mechanical components and a hand adjusting the edge (no text or symbols present)

5

3D rendering of a green and black chain-coated saw cutting machine (no text or symbols visible)

6

6 C C

1 √

2 ✓

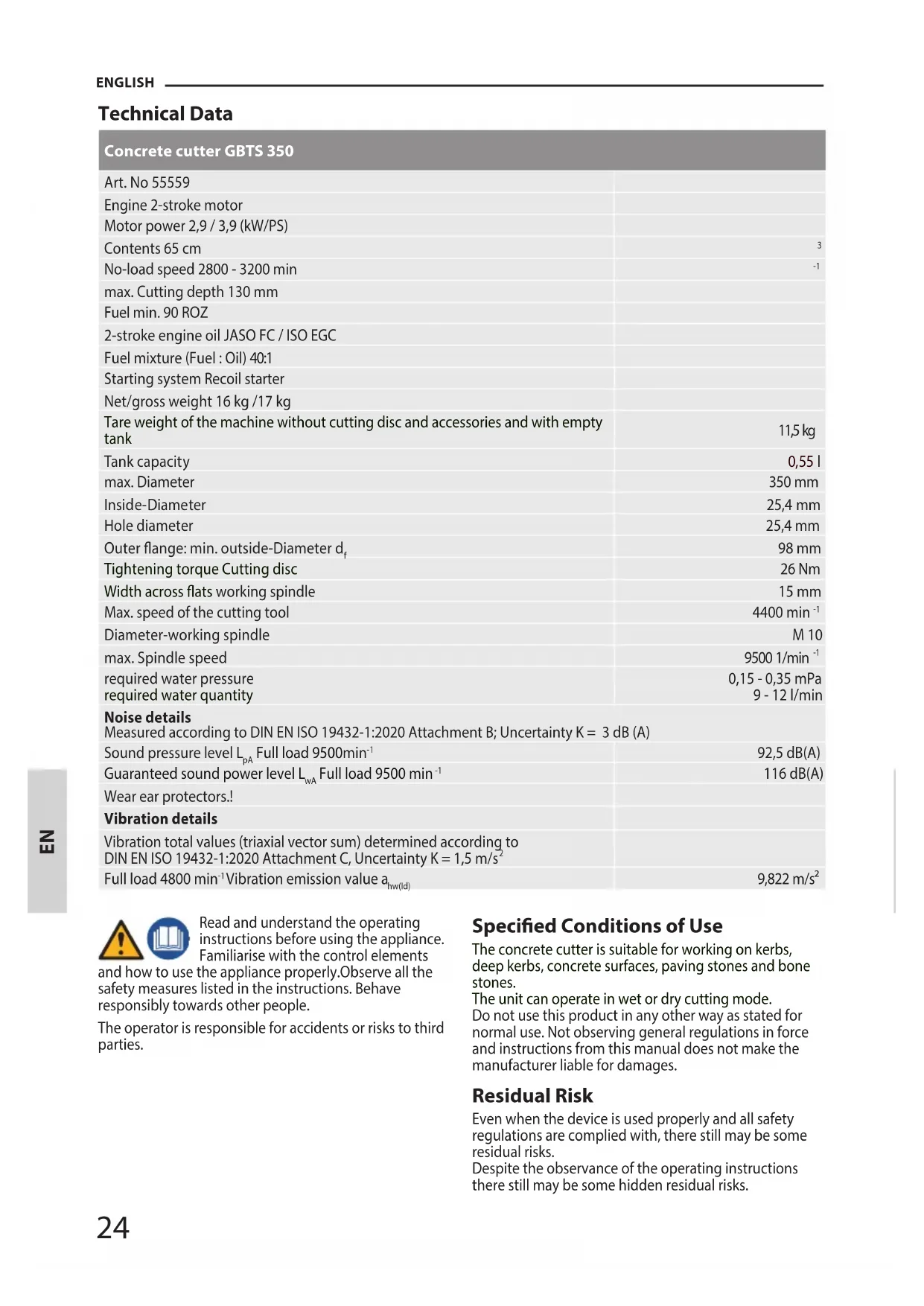

Technische Daten
