Product type	Unmanaged switch
Brand	Digitus
Model	DN80230
Number of ports	8 RJ45 ports 10/100/1000/2500 Mbit/s (4 speeds)
Backplane bandwidth	40 Gbit/s
Switching frequency	3.72 Mpps (at 2.5 Gbit/s)
Switching type	Store-and-forward
MAC address table	16,000 entries
Buffer memory	12 Mbit
Jumbo frames	12 KB (supported)
Power supply	External power adapter: input 100-240 V AC, 50/60 Hz; output 12 V DC, 1.8 A
Power consumption	12 W maximum
Dimensions (W x D x H)	190 x 120 x 30 mm
Weight	735 g
Operating temperature	0 °C to 40 °C
Storage temperature	-10 °C to 60 °C
Operating relative humidity	10 % to 90 % (non-condensing)
Cooling	Fanless (natural convection)
LED indicators	Power (green), 2.5G Link/Act (green), 1000M/100M/10M Link/Act (green)
Supported network standards	IEEE 802.3, 802.3u, 802.3ab, 802.3bz
Additional functions	Auto-negotiation, Auto MDI/MDI-X, IEEE 802.3x full-duplex flow control
Mounting	Desktop or wall mount (mounting kit included)
Box contents	Switch, power adapter, wall mount kit, quick installation guide
Warranty and support	Consult the manufacturer (Assmann Electronic GmbH); spare parts not available, repair by a professional

Frequently Asked Questions - DN80230 Digitus

How to install the Digitus DN80230 switch?

The switch is ready to use without configuration. Plug the power adapter into a power outlet (100-240 V) and connect your network cables (straight or crossover, auto-detection) to the RJ45 ports. The LED indicators will light up to confirm the links.

What do the LED indicators on the front panel mean?

The Power LED (green) lights up when the device is powered on. The 2.5G Link/Act LEDs (green) indicate a 2.5 Gbit/s connection (steady) or network activity (blinking). The 1000M/100M/10M Link/Act LEDs (green) indicate a connection at 1000, 100 or 10 Mbit/s.

What type of power supply is needed for the DN80230?

The included power adapter provides 12 V DC with a current of 1.8 A (max consumption 12 W). It plugs into a 100-240 V AC, 50/60 Hz power outlet.

Can I mount the switch on the wall?

Yes, the switch can be wall mounted using the included wall mount kit. Use screws and wall plugs suitable for your wall (not provided). Ensure the device has adequate airflow for optimal cooling.

What types of network cables can I use?

The ports support Auto MDI/MDI-X, so you can use either straight or crossover cables of category 5e or higher for speeds up to 2.5 Gbit/s.

Is the switch compatible with all operating systems?

Yes, because it is an unmanaged switch that operates independently of the operating system. Simply connect the network devices.

What speeds are supported on each port?

Each port supports the following speeds: 10 Mbit/s, 100 Mbit/s, 1 Gbit/s and 2.5 Gbit/s in full-duplex or half-duplex, with auto-negotiation.

How to clean the switch?

Unplug the device before cleaning. Use a soft, dry cloth to remove dust. Do not use liquid or abrasive products.

What to do if a link LED does not light up?

Check that the cable is properly connected on both ends and is not damaged. Ensure the connected device is on and its network interface is working. Test with another cable or port.

Where to find spare parts or technical support?

The switch contains no user-serviceable parts. In case of problems, contact the manufacturer Assmann Electronic GmbH (Germany) or your retailer. The declaration of conformity is included in the box.

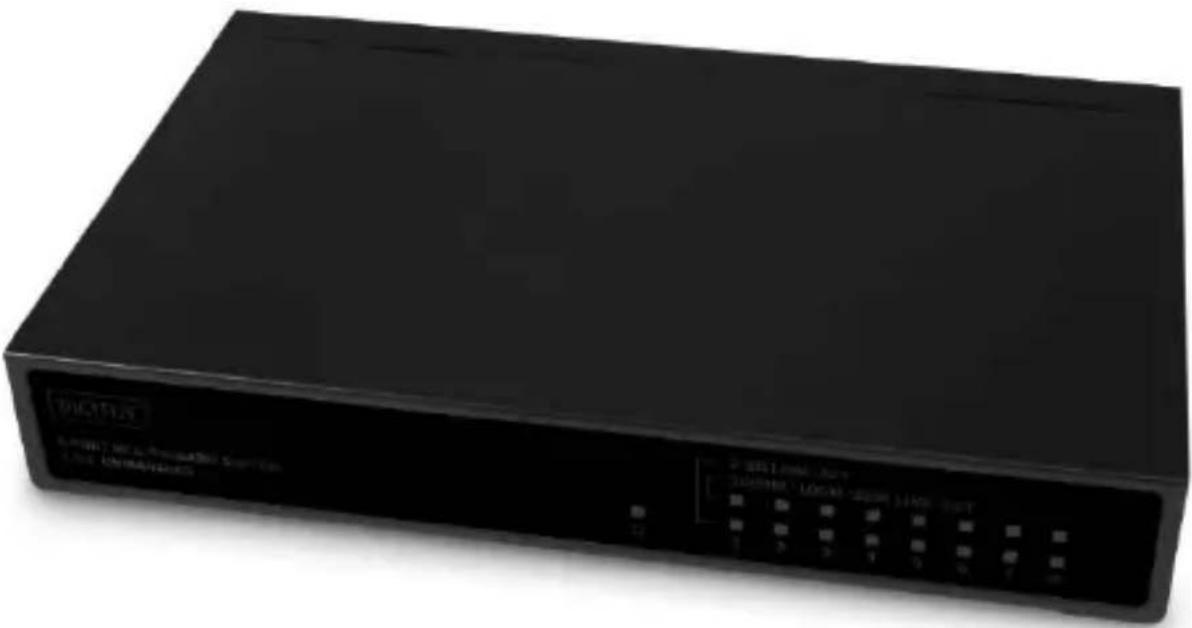

USER MANUAL DN80230 Digitus

8-Port Multi-Gigabit Switch, 2.5G, unmanaged

Black electronic device with control panel and indicator lights (no readable text or symbols)

Quick Installation Guide

DN-80230

1. Introduction

The 8-Port Multi-Gigabit Switch (4-Speed) from DIGITUS® provides 8 x RJ45 ports with 2.5 Gbps bandwidth each. Expand your existing network easily with the available backplane bandwidth of 40 Gbps. No configuration is required on the switch itself; thanks to auto-negotiation and auto MDI/MDI-X, cables and speeds are also automatically detected. The switch can be used as a desktop variant or mounted on a wall with the included mounting accessories. Thanks to the external power adapter, the switch does not need a fan at all. Ideal for expanding / setting up small home or business networks with data rates of up to 2.5 Gbps - so even high workloads due to high-resolution streams or high data volumes are no problem.

2. Features

• Anzahl der Ports: 8 x 10/100/1000/2500 Mbps (4-Speed)
• Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz
  • Auto-negotiation: Auto MDI/MDI-X
• IEEE 802.3x full-duplex flow control
• Backplane bandwidth: 40 Gbps
• Transfer method: Store and forward
• Switching rate: 3.72 Mpps (@2.5G)
• LED displays: 10/100/1000 Mbps Link/Act, 2.5 Gbps Link/Act, Power

• Jumbo frames: 12 KB
  • Buffer memory: 12 Mbit
  • L2 MAC table: 16K

• Fanless design

• Operating voltage: 12 V DC / 1.8 A
  • Power consumption: 12 W max.
• Power supply, power adapter: 100 - 240 V AC, 50/60 Hz, 21.6 W
• Plug type, power adapter: Euro plug Type C (CEE 7/16)
• Plug type, device side: Coaxial plug (DC) 5.5 mm / 2.1 mm
• Operating temperature: 0 °C to +40 °C
• Operating humidity: 10% - 90% RH (non-condensing)
• Storage temperature: -10 °C to +60 °C
• Fanless design (air flow cooling)
• Dimensions: W 190 x D 120 x H 30 mm
• Weight: 735 g

3. Package Content

• 1 x 8-Port Gigabit Switch, 2.5G, Unmanaged
• 1 x Power adapter
• 1 x Accessories for wall mounting
• 1 x Quick start guide

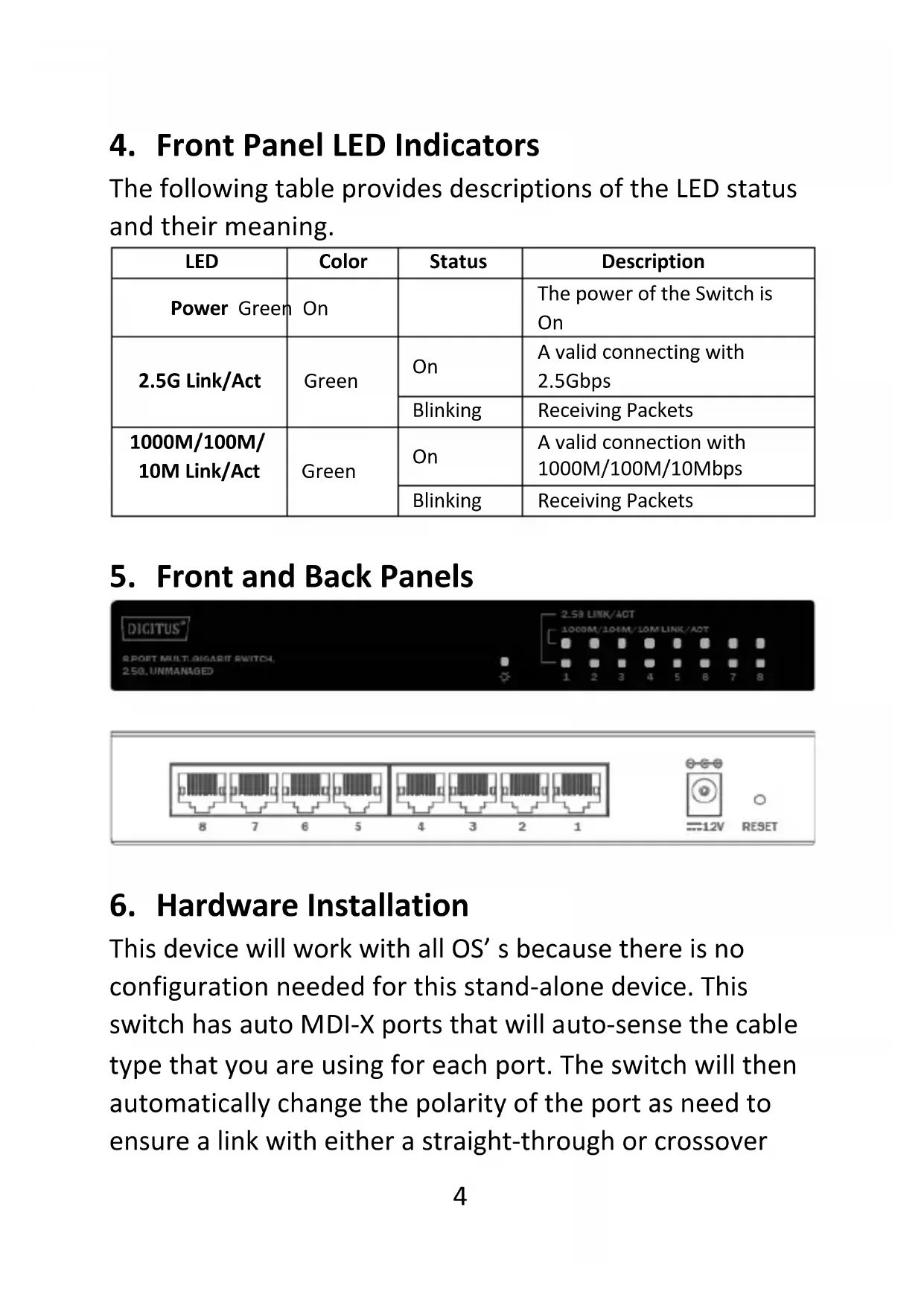

4. Front Panel LED Indicators

The following table provides descriptions of the LED status and their meaning.

LED	Color	Status	Description
Power Green On			The power of the Switch is On
2.5G Link/Act	Green	On	A valid connecting with 2.5Gbps
		Blinking	Receiving Packets
1000M/100M/10M Link/Act	Green	On	A valid connection with 1000M/100M/10Mbps
		Blinking	Receiving Packets

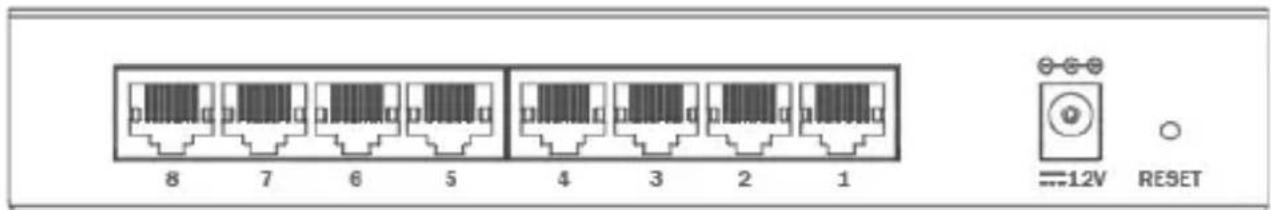

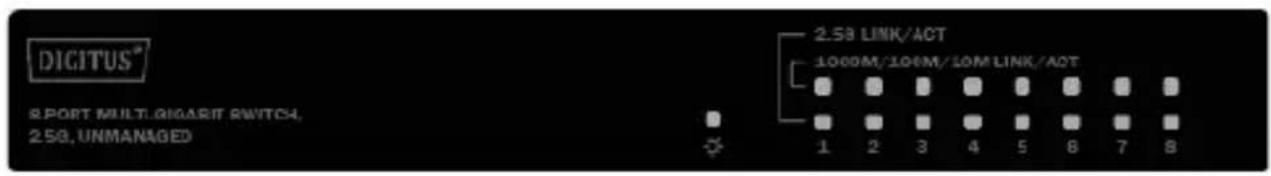

5. Front and Back Panels

DIGITUS® 8 PORT MULTILIGARIT SWITCH, 2.58, UNMANAGED 2.58 LINK/ACT 1000M/100M/10M LINK/ACT 1 2 3 4 5 6 7 8

8 7 6 5 4 3 2 1 ≡12V RESET

6. Hardware Installation

This device will work with all OS's because there is no configuration needed for this stand-alone device. This switch has auto MDI-X ports that will auto-sense the cable type that you are using for each port. The switch will then automatically change the polarity of the port as need to ensure a link with either a straight-through or crossover

cable. Remember, if you have a link light then you are using the correct cable.

1. Specifications

Lan Port	RJ-45 x 8 Ports
Other Ports	1x DC Jack, 1x Rest Button
LED Indicators	8x G+G stacked LED (2.5G Link/Act, 1000/100/100M Link/Act)1x Green LED (Power)
Ethernet Standard	IEEE802.3: 100BASE-TX (802.3u)1000BASE-T (802.3ab)2.5G BASE-T (802.3bz)
Link Speed	100BASE-TX: 100 Mbps1000BASE-T: 1 Gbps2.5G BASE-T: 2.5 Gbps
Duplex	Supports both full duplex/half duplex
Autonegotiation	Support on all ports
AutoMDI/MDI-X	Support on all ports
Jumbo Frame	Support (more than 9,216 bytes)
Type of switching	Store and forward
Switching rate	100BASE-TX: 148,810 pps1000BASE-T: 1,488,095 pps2.5BASE-T: 3,720,238 pps
Switched fabric	40 Gbps
Operating temperature	0 – 45 °C
Storage temperature	-10 – 60 °C
Humidity range	~ 90 %
Dimensions (WxDxH)	190 x 120 x 30 mm
Color	Black
Cooling Fan	Non (air flow cooling without fan)
Power Adapter	12 V / 1.8 A

This is a Class B product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures.

Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany

CE
