| Product type | Oil-free portable compressor |
| Brand | PowerPlus |
| Model | POWX1723 |
| Rated voltage | 230 V |
| Rated frequency | 50 Hz |
| Rated power | 1100 W / 1.5 hp |
| Rotational speed | 3400 min⁻¹ |
| Rated pressure | 10 bar / 145 PSI |
| Tank capacity | 12 liters |
| Air flow | 180 l/min |
| Weight | 13 kg |
| Drive type | Belt-driven |
| Lubrication | Oil-free (self-lubricating) |
| Sound pressure level (LpA) | 74 dB(A) |
| Sound power level (LwA) | 97 dB(A) |
| Operating ambient temperature | +5 °C to +40 °C |
| Duty cycle | S3-25 (2.5 min operation, 7.5 min stop) |
| Thermal protection | Yes (automatic shutdown in case of overheating) |
| Safety valve | Preset for max tank pressure |
| Condensate drain | Drain valve under the tank |
| Warranty | 36 months |
Frequently Asked Questions - POWX1723 PowerPlus
User questions about POWX1723 PowerPlus
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Compressor in PDF format for free! Find your manual POWX1723 - PowerPlus and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. POWX1723 by PowerPlus.
USER MANUAL POWX1723 PowerPlus
FR FRANÇAIS TRADUCTION DU MODE D'EMPLOI D'ORIGINE
EN ENGLISH ORIGINAL INSTRUCTION MANUAL
1 TOEPASSINGSGEBIED 2
2 BESCHRIJVING (FIG. A) 2
3 INHOUD VAN DE VERPAKKING 2
4 TOELICHTING VAN DE SYMBOLEN 2
5 ALGEMENE VEILIGHEIDSVOORSCHRIFTEN 3

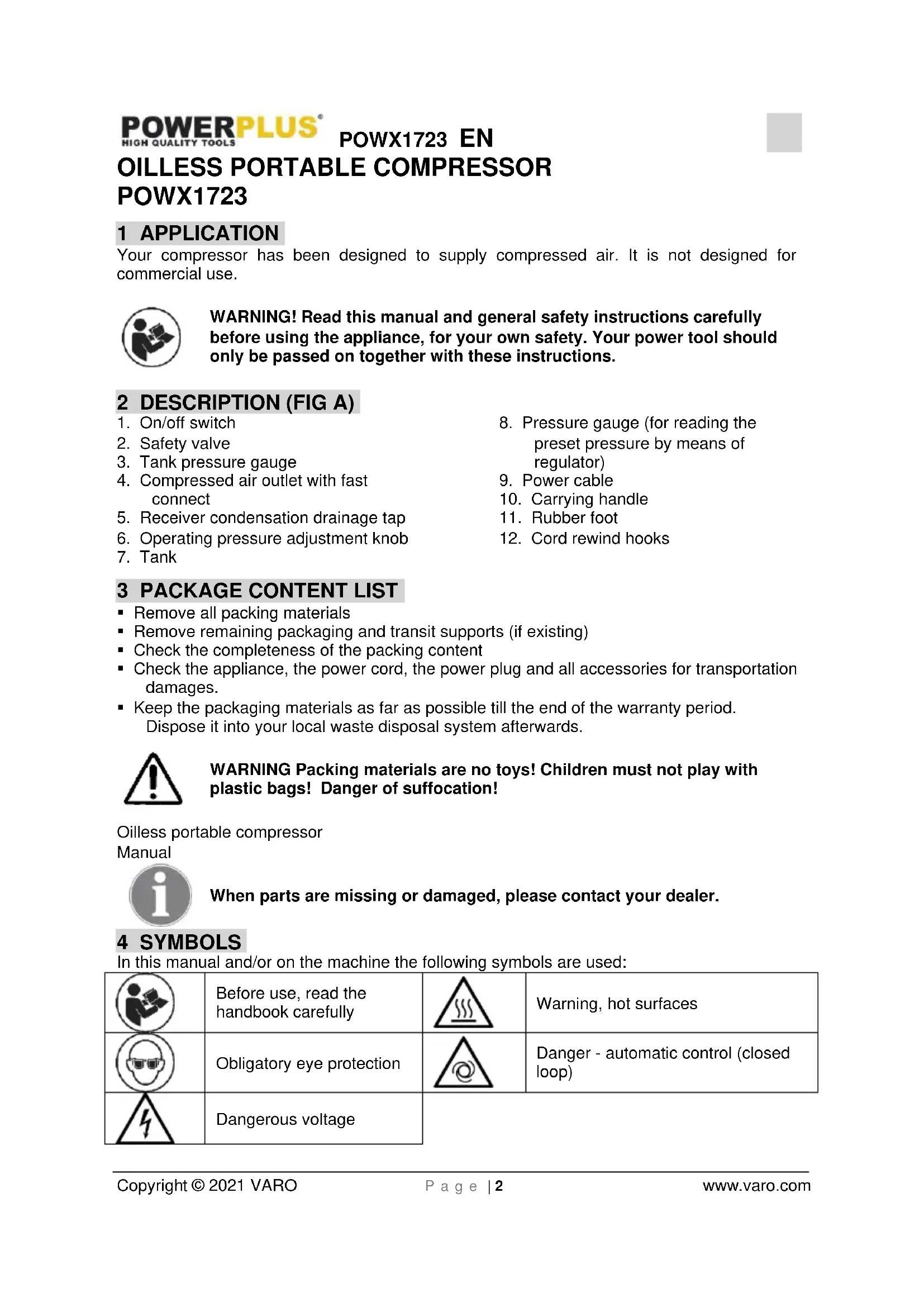

2 BESCHRIJVING (FIG. A)
Your compressor has been designed to supply compressed air. It is not designed for commercial use.
WARNING! Read this manual and general safety instructions carefully before using the appliance, for your own safety. Your power tool should only be passed on together with these instructions.
2 DESCRIPTION (FIG A)
- On/off switch
- Safety valve
- Tank pressure gauge
- Compressed air outlet with fast connect
- Receiver condensation drainage tap
- Operating pressure adjustment knob
-
Tank
-
Pressure gauge (for reading the preset pressure by means of regulator)
- Power cable
- Carrying handle
- Rubber foot
- Cord rewind hooks
3 PACKAGE CONTENT LIST
■ Remove all packing materials
- Remove remaining packaging and transit supports (if existing)
- Check the completeness of the packing content
- Check the appliance, the power cord, the power plug and all accessories for transportation damages.
- Keep the packaging materials as far as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.
WARNING Packing materials are no toys! Children must not play with plastic bags! Danger of suffocation!
Oilless portable compressor
Manual
When parts are missing or damaged, please contact your dealer.
4 SYMBOLS
In this manual and/or on the machine the following symbols are used:
 | Before use, read the handbook carefully |  | Warning, hot surfaces |
 | Obligatory eye protection |  | Danger - automatic control (closed loop) |
 | Dangerous voltage | ||
5 GENERAL POWER TOOL SAFETY WARNINGS
Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
5.1 Work area
- Keep work area clean and well lit. Cluttered and dark areas invite accidents.
- Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
- Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
5.2 Electrical safety
Always check that the power supply corresponds to the voltage on the rating plate.
- Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock
- If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
5.3 Personal safety
- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used whenever conditions require will reduce personal injuries.
- Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.
- Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
- Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
- If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.
5.4 Power tool use and care
- Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
- Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
- Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
- Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or sticking of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to stick and are easier to control.
- Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended could lead to a hazardous situation.
5.5 Service
- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
6 SPECIFIC SAFETY WARNINGS
This symbol indicates warnings to be read before using the product so as to prevent injury to the user.
Compressed air is a potentially dangerous form of energy; always take great care when using the compressor and its accessories.
Warning: the compressor may restart when power is restored following a blackout.
An ACOUSTIC PRESSURE's value of 2 m. corresponds to the ACOUSTIC POWER's value stated on the yellow label located on the compressor, minus 20 dB.
6.1 Do's
- The compressor must be used in a suitable environment (well ventilated with an ambient temperature of between +5°C and +40°C) and never in places with dust, acids, vapors, explosive or flammable gases.
- Keep the work area free. When operating, the compressor must be placed on a stable surface.
- Safety goggles should be worn when using the compressor in order to protect the eyes against any foreign bodies lifted by the jet of air.
-
If possible, when using air-powered accessories, wear safety clothing.
-
Always maintain a safety distance of at least 2 meters between the compressor and the work area.
- Check for correspondence between the compressor plate data with the actual specifications of the electrical system. A variation of ± 10% with respect of the rated value is allowed.
- Insert the plug of the electrical cable in a socket of suitable shape, voltage and frequency complying with current regulations.
- Use extension cables with a maximum length of 5 meters and with a cable cross-section of not less than 1.5 mm2. Use of extension cables of different length and cross-section and also of adapters and multiple sockets should be avoided.
■ Always use the handle to move the compressor. - When using compressed air, you must know and comply with the safety precautions to be adopted for each type of application (inflation, airpowered tools, painting, washing with water-based detergents only, clinching, etc.).
- To avoid overheating of the electric motor, this compressor is designed for intermittent duty operation as indicated on the technical dataplate (for example, S3-15 means 1.5 minutes On, 8.5 minutes OFF). In case of overheating, the thermal cutout of the motor is released, automatically cutting off the power when the temperature is too high due to excess current take-off. The motor restarts automatically when normal temperature conditions are restored.
6.2 Don'ts
■ Never direct the jet of air towards persons, animals or your body.
- Never let the compressor come into contact with water or other liquids and never direct the jet of liquids sprayed by tools connected to the compressor towards the compressor: as the appliance is live, this could cause electrocution or short-circuits.
- Never use the appliance with bare feet or wet hands or feet.
- Never yank the power cable to disconnect the plug from the power outlet or to move the compressor.
- Never leave the appliance exposed to adverse weather conditions (rain, sun, fog, snow).
- If this compressor is used outdoors, always remember to stow it after use in a covered or closed place
■ Never use the compressor outdoors in rain or bad weather.
- Never allow inexpert persons to use the compressor without suitable surveillance. Keep animals at a distance from the work area.
- The compressed air produced by the compressor cannot not be used for pharmaceutical, food or medical purposes or to fill the air bottles of scuba divers.
- Do not place flammable or nylon/fabric objects close to and/or on the compressor.
- Do not cover the air inlets on the compressor.
- Do not open or tamper with any part of the compressor. Contact an authorized Service Center.
7 USE OF THE COMPRESSOR
7.1 Voltage
The compressor is equipped with a mains cable with shock-proof plug. Before you use the machine, make sure that the mains voltage complies with the specifications on the rating plate. Long supply cables, extensions, cable reels etc. cause a drop in voltage and can impede motor start-up. In the case of low temperatures below +5°C, motor start-up is jeopardized as a result of stiffness.
7.2 Switching ON/OFF
To switch on the equipment set the On/Off push the switch (ref. 1). Push the On/Off switch (ref. 1) again to switch off the equipment.
7.3 Adjusting the pressure
■ The pressure in the receiver can be checked on the gauge provided (3)
- The compressor is fitted with a pressure adjustment knob (6). With this knob the air pressure can be regulated so as to optimize use of pneumatic tools.
■ The value set can be checked on the gauge (8)
- The set pressure can be taken from the quick lock coupling (4).
- Please check that the air consumption and the maximum working pressure of the pneumatic tool to be used are compatible with the pressure set on the pressure regulator and with the amount of air supplied by the compressor.
As soon as the tank pressure is built up, the motor switches off automatically.
The motor switches automatically on as soon as the tank pressure becomes too low.
7.4 Safety valve
The safety valve (2) has been set for the highest permitted pressure of the pressure vessel. It is prohibited to adjust the safety valve or remove its seal
Actuate the safety valve from time to time to ensure that it works when required. Therefore you need to remove the protection cover.
8 CLEANING AND MAINTENANCE
8.1 Maintenance
Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making sure you have unplugged the compressor from the current outlet.
After approx. 2 hours of use, the condensate that has formed must be drained from the receiver. First of all, vent all the air using the accessory connected, as described above. Back off vent valve (5) (fig.1) located underneath the compressor (switched off beforehand) by two turns, taking care to maintain the compressor in a vertical position. After draining all the water, draw up the valve tightly.
Warning: if the water that condenses is not drained, it may corrode the receiver, reducing its capacity and impairing safety.
As it is a contaminating product, condensate must be DISPOSED of in accordance with laws on protection of the environment and current legislation
9 TECHNICAL DATA
| Type | POWX1723 |
| Rated voltage | 230 V |
| Rated frequency | 50 Hz |
| Rated Power | 1100 W / 1,5 pk |
| Rotation speed | 3400 min^-1 |
| Rated Pressure | 10 bar / 145PSI |
| Tank capacity | 12 l |
| Air debit (capacity) | 180 l/min |
| Weight | 13 kg |
10 NOISE
Noise emission values measured according to relevant standard. (K=3)
Acoustic pressure level LpA
74 dB(A)
Acoustic power level LwA
97 dB(A)
ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).
11 WARRANTY
- This product is warranted for a 36-month period effective from the date of purchase by the first user.
- This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.
- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.
- We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.
- Repairs may only be carried out by an authorised customer service centre for Powerplus tools.
- You can always obtain more information at the number 00 32 3 292 92 90.
- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.
- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.
- Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.
- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.
- Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.
- We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).
- Your purchase receipt must be kept as proof of date of purchase.
- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.
12 ENVIRONMENT
Should your appliance need replacement after extended use, do not discard it with the household rubbish but dispose of it in an environmentally safe way.
Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.
