TMS2001S - Microwave Oven Tomado - Free user manual and instructions

Brand	Tomado
Model	TMS2001S
Product Type	Microwave Oven
Voltage	230-240 V ~ 50 Hz
Connected Power	1100 W
Microwave Power	700 W
Timer	0 to 30 minutes
Capacity	20 liters
Turntable Diameter	245 mm
External Dimensions (W x D x H)	446 x 332 x 245 mm
Internal Dimensions (W x D x H)	298 x 309 x 202 mm
Net Weight	9.4 kg
Power Levels	6 levels (120 W, 280 W, 360 W, 500 W, 600 W, 700 W)
Functions	Cooking, reheating, defrosting
Control Type	Rotary knobs (power and timer)
Safety	Door lock, automatic stop, protection against empty operation
Materials	Stainless steel (exterior), glass (door), plastic (knobs)
Included Accessories	Glass turntable, guide ring
Cleaning	Damp cloth, soapy water, turntable and ring dishwasher safe
Installation	Flat surface, free space above 30 cm, sides 20 cm, minimum height 85 cm
Warranty	24 months
Recycling	Do not dispose with household waste (WEEE)

Frequently Asked Questions - TMS2001S Tomado

How to use the Tomado TMS2001S microwave oven?

Place food in a suitable dish, close the door, set the power with the top rotary knob and the time (0 to 30 min) with the bottom knob. The oven starts automatically. An audible signal indicates the end.

What are the available power levels?

Six levels: 120 W (softening butter/ice), 280 W (defrosting), 360 W (puree, fish), 500 W (fish, chicken, minced meat), 600 W (rice), 700 W (reheating, boiling water).

Can I use metal containers in the microwave?

No, metal utensils, aluminum trays, and metal closures are prohibited. Only use suitable materials: glass, ceramic, heat-resistant plastic, aluminum foil (small pieces), paper, cling film.

How to clean the microwave oven?

Unplug the appliance and let it cool down. Clean the interior with a damp cloth, the exterior with a sponge and mild detergent. The turntable and ring can be washed in the dishwasher.

What to do in case of smoke or fire?

Stop the oven, unplug it and keep the door closed to smother the flames. Do not open the door until the fire is out.

Why does the microwave not turn on?

Check that the plug is properly inserted, the door is closed correctly, and the timer is not set to 0. If the problem persists, the fuse or circuit breaker may have blown. Contact a technician.

Can you heat hard-boiled eggs or sealed containers?

No, eggs in their shells and sealed containers can explode due to pressure. Always remove lids and pierce foods with thick skin.

What is the oven capacity and its dimensions?

Capacity of 20 liters. External dimensions: 446 x 332 x 245 mm (W x D x H). Internal dimensions: 298 x 309 x 202 mm.

How to install the microwave oven?

Place it on a stable and flat surface. Leave a free space of 30 cm above, 20 cm on the sides and at the back. The minimum installation height is 85 cm. Do not block the ventilation openings.

What is the product warranty?

The Tomado TMS2001S is warranted for 24 months from the date of purchase, for domestic use in accordance with the instruction manual. Keep the proof of purchase. For more details, visit www.tomado.com/support.

USER MANUAL TMS2001S Tomado

White TOMADO microwave oven with dual control knobs and a black screen (no visible text or symbols on main body)

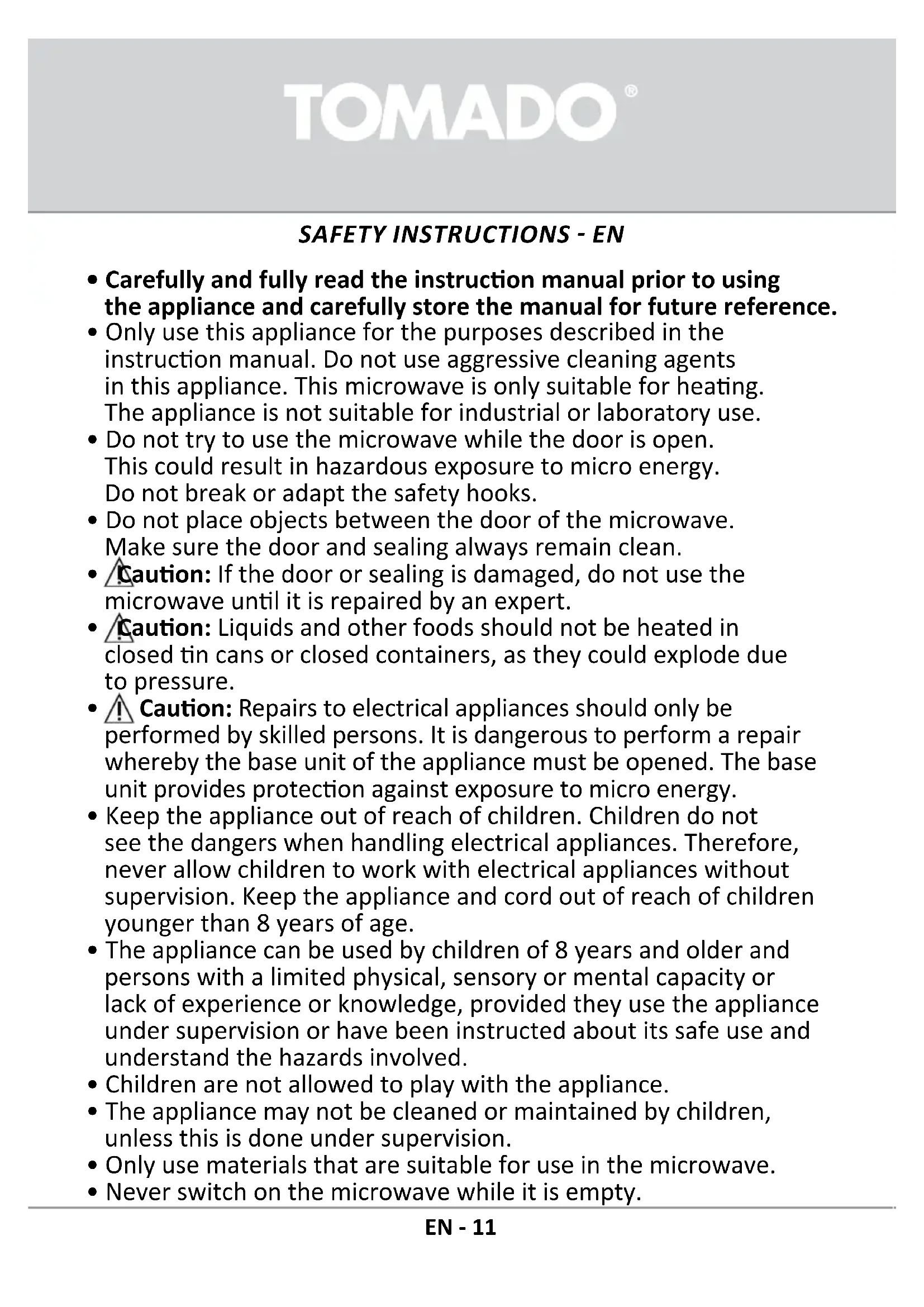

EN Safety instructions

EN Safety instructions

• Carefully and fully read the instruction manual prior to using the appliance and carefully store the manual for future reference.
• Only use this appliance for the purposes described in the instruction manual. Do not use aggressive cleaning agents in this appliance. This microwave is only suitable for heating. The appliance is not suitable for industrial or laboratory use.
• Do not try to use the microwave while the door is open. This could result in hazardous exposure to micro energy. Do not break or adapt the safety hooks.
• Do not place objects between the door of the microwave. Make sure the door and sealing always remain clean.
• Caution: If the door or sealing is damaged, do not use the microwave until it is repaired by an expert.
• Caution: Liquids and other foods should not be heated in closed tin cans or closed containers, as they could explode due to pressure.
• Caution: Repairs to electrical appliances should only be performed by skilled persons. It is dangerous to perform a repair whereby the base unit of the appliance must be opened. The base unit provides protection against exposure to micro energy.
• Keep the appliance out of reach of children. Children do not see the dangers when handling electrical appliances. Therefore, never allow children to work with electrical appliances without supervision. Keep the appliance and cord out of reach of children younger than 8 years of age.
• The appliance can be used by children of 8 years and older and persons with a limited physical, sensory or mental capacity or lack of experience or knowledge, provided they use the appliance under supervision or have been instructed about its safe use and understand the hazards involved.
• Children are not allowed to play with the appliance.
• The appliance may not be cleaned or maintained by children, unless this is done under supervision.
• Only use materials that are suitable for use in the microwave.
• Never switch on the microwave while it is empty.

TOMADO®

• Regularly clean the microwave and remove food residues.
• Keep an eye on the microwave when heating food in a plastic or paper container. It could combust spontaneously.
• In case of smoke, switch off the microwave and remove the plug from the socket. Keep the door closed to smother the flames.

- Do not overcook the food.

- Do not use the interior of the microwave as storage room. Do not store any biscuits, bread, etc. in the appliance.

- Remove metal sealing strips and metal handles from paper or plastic containers/bags, before placing them in the microwave.

- Only install the microwave in accordance with the instructions.

- Eggs in their shells and hard boiled eggs should not be heated in the microwave, as they could explode. Even after the microwave has been switched off.

- Do not use the appliance if the plug, cord or appliance are damaged, or if the appliance no longer functions properly or if it is damaged in any other way. If this is the case, consult the shop or our technical service. Never replace the plug or cord yourself.

- Only use and store the appliance indoors.

- Do not use the microwave near water, in a damp basement/garage or near a swimming pool.

- Avoid contact with hot surfaces when the appliance is switched on. The exterior becomes hot!

• Never cover the ventilation holes.
• Never bend the power cord sharply or allow it to run across hot parts.
• Not keeping the microwave clean could lead to wear and tear which, in its turn, will have an effect on the life span and could result in dangerous situations.
• The contents of baby bottles and jars of baby food should be stirred or shaken prior to consumption. Check the temperature to prevent burns.

- Caution: Heating liquids could result in explosive boiling over of the liquid. Also after the microwave has been switched off. Be careful when removing the cup or container from the microwave. Therefore, always place a plastic or ceramic spoon in the cup when heating.

TOMADO®

• The microwave cannot be used with a timer or a separate remote control.
• Always make sure the appliance is placed on an sturdy, flat heat-resistant surface.
• Only connect the appliance to alternate current, to an earthed wall socket, with a mains voltage that corresponds with the information provided on the information plate of the appliance.
• Do not leave the appliance unsupervised if the appliance is operational.
• If you want to move the appliance, make sure the appliance is switched off. Use both hands when moving the appliance.
• Never use the appliance with parts that are not recommended or supplied by the manufacturer.
• Do not pull the cord and/or appliance to remove the plug from the wall socket. Never touch the appliance with wet or moist hands.
• If you decide not to use the appliance any more due to a defect, we recommend cutting off the cord after removing the plug from the wall socket. Take the appliance to the waste processing department concerned of your municipality.
• If the appliance does not function after it has been switched on, it is possible that the fuse or earth leakage circuit breaker has been activated in the electrical distribution box. The group can be overloaded or an earth leakage current may have occurred.
• In case of a breakdown, never make repairs yourself; a blown safety device in the appliance could indicate a defect that cannot be remedied by removing or replacing this safety device. Only original parts should ever be used.
• Never submerge the appliance, cord or plug in water.
• This appliance is only suitable for household use. If the appliance is not used as intended, no compensation can be claimed in case of defects or accidents and the warranty will be invalidated.
• This appliance is intended for household and similar use, such as:
• in staff kitchens, in shops, offices and other work environments;
• by guests of hotels, motels and other residential environments;
• in Bed&Breakfast type environments;
• farms.

TOMADO®

• The microwave is only suitable for heating food and drink.
  Drying of food or clothes and heating of heating pads, slippers, sponges, damp cloths, etc., could pose a hazard that could lead to injury, combustion or fire.
• Never clean the microwave with a high pressure cleaner or steam cleaner.
• Be careful with the following materials and make sure that they may be used in the microwave:

- aluminium foil yes*

- paper yes**

- cling film yes

- aluminium container no

- microwave crockery yes

- heat-resistant plastic yes

- unglazed pottery no

- metal cookware no

- ovenproof glass and ceramics yes

- normal glass yes

- metal closing strip no

- plate with metal decorative rim no

- mercury thermometer no

- closed jar no***

- bottle with narrow neck no

- oven bag yes

* Use small pieces to prevent thinner parts of the chicken, for example, from being cooked too quickly.

** Use non-decorated kitchen paper to cover food and absorb fat.

*** Remove the cover and make sure the jar is not heated too long. The glass may burst.

TOMADO®

PRODUCT DESCRIPTION

1. Rotating knob for microwave power
2. Rotating knob for timer (0 to 30 minutes)
3. Ring for rotating platform
4. Cam for rotating platform
5. Rotating platform
6. Door
7. Safety hooks
8. Window

PRIOR TO FIRST USE

Before using the appliance for the first time, please proceed as follows: carefully unpack the microwave and remove all packaging material. Keep the packaging (plastic bags and cardboard) out of the reach of children. After unpacking the appliance, check it for external damage that may have occurred during transport. Place the appliance on a sturdy, flat heat-resistant

surface and make sure there is enough space all around for sufficient ventilation.

The minimum installation height is 85 cm. There must be 30 cm of free space at the top side and minimum 20 cm of free space between the microwave and any adjacent wall. Do not remove the adjustable feet from the microwave. Do not cover the ventilation holes.

Use of the microwave could interfere with your television and radio signals. Therefore do not place the microwave near such equipment. Do not place the microwave near heat sources such as heating or cooker.

Clean the microwave and accessories with a slightly damp cloth. The machine is now ready for use. It is possible that the microwave smells "new" when used for the first time,

this is entirely normal, will do no harm and the smell will disappear automatically.

Check that the voltage corresponds with what is stated on the information plate and insert the plug in an earthed socket.

Attention! The silver plate on the right side in the microwave ensures distribution of the microwaves in the appliance. This should never be removed.

PREPARING FOOD IN THE MICROWAVE OVEN

• Place the food to be prepared in the microwave on a plate or microwave dish and close the door.
• Set the required microwave power using the rotating knob.
• Use the lower rotating knob to set the preparation time (between 0 and 30 minutes).
• The microwave starts automatically after setting preparation time and wattage.
• Once the preparation time has been completed, a sound signal can be heard and the microwave switches off automatically.
• When the microwave is not being used, always set the timer to 0.

Microwave power Application
120 Watts Softening butter or ice cream
280 Watts	Soup, mash pot or defrosting
360 Watts Mash pot, fish
500 Watts Fish, chicken, minced meat
600 Watts Rice
700 Watts Heating, milk, boiling water, vegetables, heating drinks

In order to defrost meals or meat, it would be best to use the 280W position. This position is specifically intended for defrosting. The required time for defrosting depends on the weight of the food to be defrosted. Only if the preparation time is less than 2 minutes, you could turn the timer knob to 5 minutes, for example, and then turn it back to the required time.

CLEANING AND MAINTENANCE

Just before cleaning your microwave, switch off the appliance, remove the plug from the wall socket and allow the appliance to cool down fully.

Interior

Clean the interior of the appliance after each use. Use a damp cloth. For thorough cleaning, use warm water with washing-up liquid and properly wipe the interior dry with a cloth.

Accessories

Clean loose accessories such as the rotating platform and the ring for the rotating platform with warm water and washing-up liquid. These accessories may also be cleaned in the dishwasher. Properly dry everything before using it again.

Exterior

Clean the exterior of the appliance with a damp cloth or sponge. If necessary, you can clean the exterior of the appliance by means of a mild washing-up liquid. Also properly clean the door and door rubber.

TECHNICAL DATA

Type number TMS2001S

Voltage 230-240Volt \~50Hz

Input power 1100 Watt

Microwave power 700 Watt

Timer 30 minutes

Capacity 20 litres

Rotating platform diameter ∅ 245 mm

Dimensions exterior - wxdxh 446 x 332 x 245 mm

Dimensions interior - wxdxh 298 x 309 x 202 mm

Nett weight 9.4 kg

RECYCLING

This symbol means that this product should not be disposed of with regular household waste (2012/19/EU).

Observe the applicable rules in your country for the separate collection of electric and electronic products.

By disposing of the product correctly, you prevent negative consequences for the environment and for public health.

The packaging material of this product can be recycled 100%, return packaging material separately.

TOMADO®

Go to www.tomado.com/support to purchase accessories or spare parts.

WARRANTY CONDITIONS

A 24 month warranty is provided for this product. Your warranty is valid if the product has been used in accordance with the instruction manual and for the purpose for which it was made. Also the original proof of purchase must be submitted, stating the date of purchase, the name of the retailer and the item number of the product. For extensive warranty information you are referred to our website: www.tomado.com/support
