TMS2002S - Microwave Oven Tomado - Free user manual and instructions

Product type	Microwave oven
Brand	Tomado
Model	TMS2002S
External dimensions (W x D x H)	440 x 359 x 259 mm
Internal dimensions (W x D x H)	306 x 304 x 206 mm
Capacity	20 liters
Net weight	10.25 kg
Turntable diameter	255 mm
Power supply	230 V ~ 50 Hz
Rated power	1050 Watts
Microwave power	700 Watts (10 levels: P10 to P100)
Timer	Up to 95 minutes
Main functions	Microwave, weight defrost (100-2000 g) and time defrost, delayed cooking, 8 pre-programmed menus, quick start +30s, child lock
Microwave-safe materials	Glass, heat-resistant ceramic, microwave-safe plastic, aluminum foil (small pieces), paper, cling film, cooking bag
Unsuitable materials	Metal, aluminum tray, unglazed ceramic, sealed jars, narrow-neck bottles, mercury thermometer
Care and cleaning	Interior: damp cloth; turntable and ring: dishwasher safe; exterior: mild dish soap
Safety	Child lock, automatic shut-off in case of smoke, do not heat sealed containers, do not use empty
Installation	Minimum height 85 cm, free space 30 cm above, 20 cm on sides and rear
Warranty	24 months
Intended use	Domestic and analog (staff kitchens, hotels, farms); only for reheating food and drinks
Service and spare parts	www.tomado.com/support

Frequently Asked Questions - TMS2002S Tomado

How to set the clock on the Tomado TMS2002S microwave oven?

Press the CLOCK button twice. Turn the rotary knob to set the hour (0-23), then press CLOCK once. Set the minutes (0-59) and confirm by pressing CLOCK again. The colon blinks.

How to use quick start?

Press the START/+30 SEC button to heat at full power (700 W) for 30 seconds. Each press adds 30 seconds, up to 95 minutes. You can also turn the knob left to set the time directly before pressing START/+30 SEC.

What are the available power levels and their uses?

P10 (70 W): soften butter or ice cream. P30 (210 W): soups, purees, defrost. P50 (350 W): vegetable puree, fish. P80 (560 W): rice, fish, chicken, minced meat. P100 (700 W): reheat, milk, boil water, vegetables, drinks.

How to defrost food with this microwave?

There are two modes: weight defrost (dEF1: press DEFROST once, choose weight between 100 and 2000 g) and time defrost (dEF2: press DEFROST twice, set time up to 95 min). Confirm with START/+30 SEC.

Can I use metal containers in the microwave?

No, metal utensils, aluminum trays, plates with metallic decorative trim, and metal twist ties are prohibited. Use glass, heat-resistant ceramic, microwave-safe plastic, or aluminum foil in small pieces.

What to do if the microwave does not work?

Check that the plug is properly inserted and the fuse has not blown. Make sure the door is properly closed. If the problem persists, do not repair yourself; contact the dealer or technical service via www.tomado.com/support.

How to activate and deactivate the child lock?

To activate, press and hold the STOP button for 3 seconds until you hear a long beep and see a symbol on the display. To deactivate, press and hold STOP again for 3 seconds.

What are the pre-programmed menus and how to use them?

Turn the knob right to select a menu (A-1 to A-8): A-1 Reheat, A-2 Vegetables, A-3 Fish, A-4 Meat, A-5 Pasta, A-6 Potatoes, A-7 Pizza, A-8 Soup. Press START/+30 SEC, set the weight, then press again to start.

How to clean the Tomado TMS2002S microwave?

Before cleaning, unplug and let it cool. Clean the interior with a damp cloth; for deep cleaning, use hot water and dish soap. The turntable and ring are dishwasher safe. Clean the exterior with a damp cloth and mild detergent.

What safety precautions are essential?

Never operate the oven empty. Do not heat sealed cans or eggs in their shells. Do not use the appliance if the door or seals are damaged. Monitor food in plastic/paper containers. Keep out of reach of children under 8 years.

USER MANUAL TMS2002S Tomado

Modern white microwave oven with digital display showing 16:15 time (no visible text or symbols beyond branding)

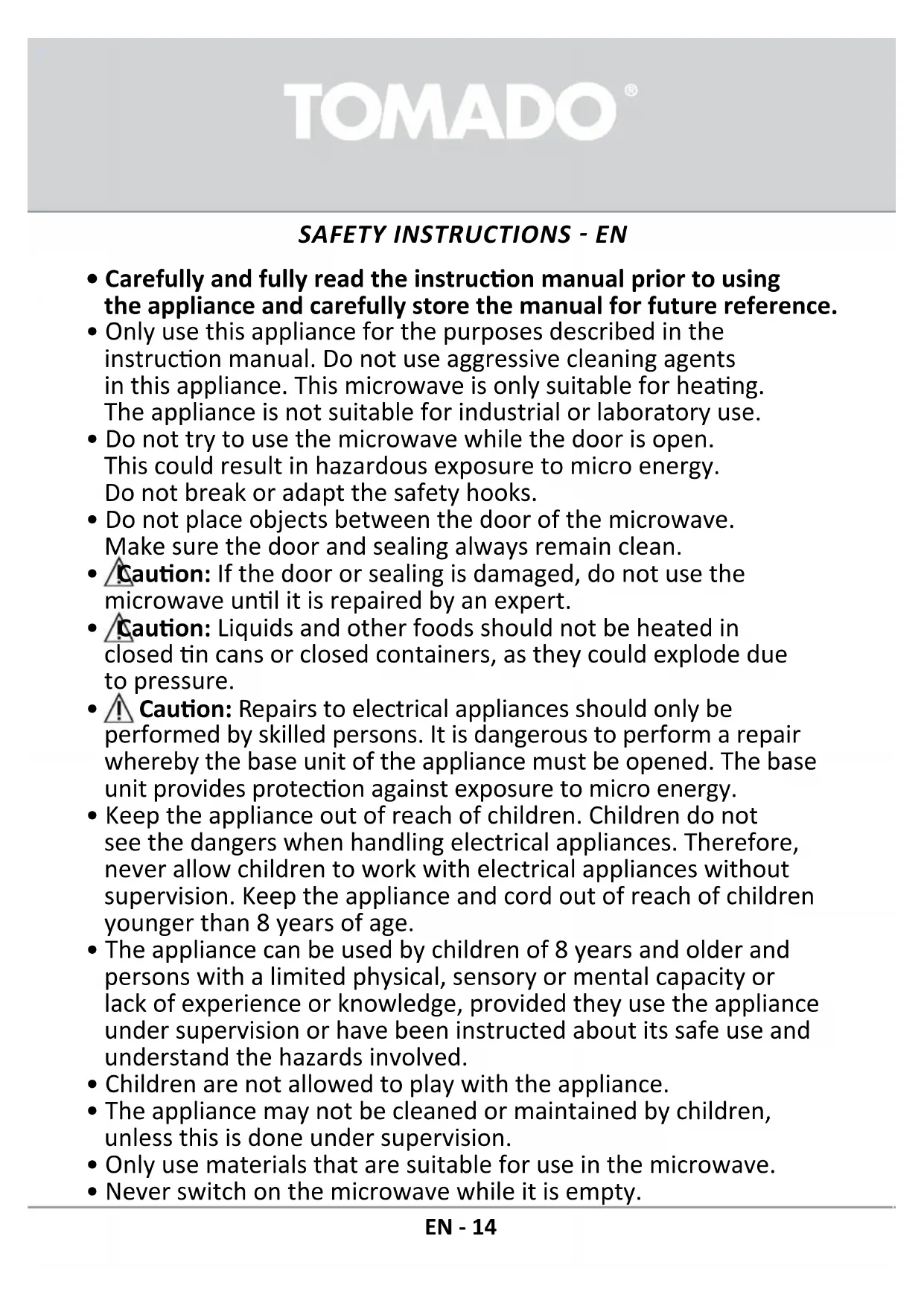

EN Safety instructions

EN Safety instructions

KOKEN MET MEERDERE FUNCTIONS

• Carefully and fully read the instruction manual prior to using the appliance and carefully store the manual for future reference.
• Only use this appliance for the purposes described in the instruction manual. Do not use aggressive cleaning agents in this appliance. This microwave is only suitable for heating. The appliance is not suitable for industrial or laboratory use.
• Do not try to use the microwave while the door is open. This could result in hazardous exposure to micro energy. Do not break or adapt the safety hooks.
• Do not place objects between the door of the microwave. Make sure the door and sealing always remain clean.
• Caution: If the door or sealing is damaged, do not use the microwave until it is repaired by an expert.
• Caution: Liquids and other foods should not be heated in closed tin cans or closed containers, as they could explode due to pressure.
• Caution: Repairs to electrical appliances should only be performed by skilled persons. It is dangerous to perform a repair whereby the base unit of the appliance must be opened. The base unit provides protection against exposure to micro energy.
• Keep the appliance out of reach of children. Children do not see the dangers when handling electrical appliances. Therefore, never allow children to work with electrical appliances without supervision. Keep the appliance and cord out of reach of children younger than 8 years of age.
• The appliance can be used by children of 8 years and older and persons with a limited physical, sensory or mental capacity or lack of experience or knowledge, provided they use the appliance under supervision or have been instructed about its safe use and understand the hazards involved.
• Children are not allowed to play with the appliance.
• The appliance may not be cleaned or maintained by children, unless this is done under supervision.
• Only use materials that are suitable for use in the microwave.
• Never switch on the microwave while it is empty.

TOMADO®

• Regularly clean the microwave and remove food residues.
• Keep an eye on the microwave when heating food in a plastic or paper container. It could combust spontaneously.
• In case of smoke, switch off the microwave and remove the plug from the socket. Keep the door closed to smother the flames.

- Do not overcook the food.

- Do not use the interior of the microwave as storage room. Do not store any biscuits, bread, etc. in the appliance.

- Remove metal sealing strips and metal handles from paper or plastic containers/bags, before placing them in the microwave.

- Only install the microwave in accordance with the instructions.

- Eggs in their shells and hard boiled eggs should not be heated in the microwave, as they could explode. Even after the microwave has been switched off.

- Do not use the appliance if the plug, cord or appliance are damaged, or if the appliance no longer functions properly or if it is damaged in any other way. If this is the case, consult the shop or our technical service. Never replace the plug or cord yourself.

- Only use and store the appliance indoors.

- Do not use the microwave near water, in a damp basement/garage or near a swimming pool.

- Avoid contact with hot surfaces when the appliance is switched on. The exterior becomes hot!

• Never cover the ventilation holes.
• Never bend the power cord sharply or allow it to run across hot parts.
• Not keeping the microwave clean could lead to wear and tear which, in its turn, will have an effect on the life span and could result in dangerous situations.
• The contents of baby bottles and jars of baby food should be stirred or shaken prior to consumption. Check the temperature to prevent burns.

- Caution: Heating liquids could result in explosive boiling over of the liquid. Also after the microwave has been switched off. Be careful when removing the cup or container from the microwave. Therefore, always place a plastic or ceramic spoon in the cup when heating.

TOMADO®

• The microwave cannot be used with a timer or a separate remote control.
• Always make sure the appliance is placed on an sturdy, flat heat-resistant surface.
• Only connect the appliance to alternate current, to an earthed wall socket, with a mains voltage that corresponds with the information provided on the information plate of the appliance.
• Do not leave the appliance unsupervised if the appliance is operational.
• If you want to move the appliance, make sure the appliance is switched off. Use both hands when moving the appliance.
• Never use the appliance with parts that are not recommended or supplied by the manufacturer.
• Do not pull the cord and/or appliance to remove the plug from the wall socket. Never touch the appliance with wet or moist hands.
• If you decide not to use the appliance any more due to a defect, we recommend cutting off the cord after removing the plug from the wall socket. Take the appliance to the waste processing department concerned of your municipality.
• If the appliance does not function after it has been switched on, it is possible that the fuse or earth leakage circuit breaker has been activated in the electrical distribution box. The group can be overloaded or an earth leakage current may have occurred.
• In case of a breakdown, never make repairs yourself; a blown safety device in the appliance could indicate a defect that cannot be remedied by removing or replacing this safety device. Only original parts should ever be used.
• Never submerge the appliance, cord or plug in water.
• This appliance is only suitable for household use. If the appliance is not used as intended, no compensation can be claimed in case of defects or accidents and the warranty will be invalidated.
• This appliance is intended for household and similar use, such as: - in staff kitchens, in shops, offices and other work environments; - by guests of hotels, motels and other residential environments; - in Bed&Breakfast type environments; - farms.

TOMADO®

• The microwave is only suitable for heating food and drink.
  Drying of food or clothes and heating of heating pads, slippers, sponges, damp cloths, etc., could pose a hazard that could lead to injury, combustion or fire.
• Never clean the microwave with a high pressure cleaner or steam cleaner.

• Be careful with the following materials and make sure that they may be used in the microwave:

• aluminium foil yes*

• paper yes**
• cling film yes
• aluminium container no
• microwave crockery yes
• heat-resistant plastic yes
• unglazed pottery no
• metal cookware no
• ovenproof glass and ceramics yes
• normal glass yes
• metal closing strip no
• plate with metal decorative rim no
• mercury thermometer no
• closed jar no***
• bottle with narrow neck no
• oven bag yes

* Use small pieces to prevent thinner parts of the chicken, for example, from being cooked too quickly.

** Use non-decorated kitchen paper to cover food and absorb fat.

*** Remove the cover and make sure the jar is not heated too long. The glass may burst.

TOMADO®

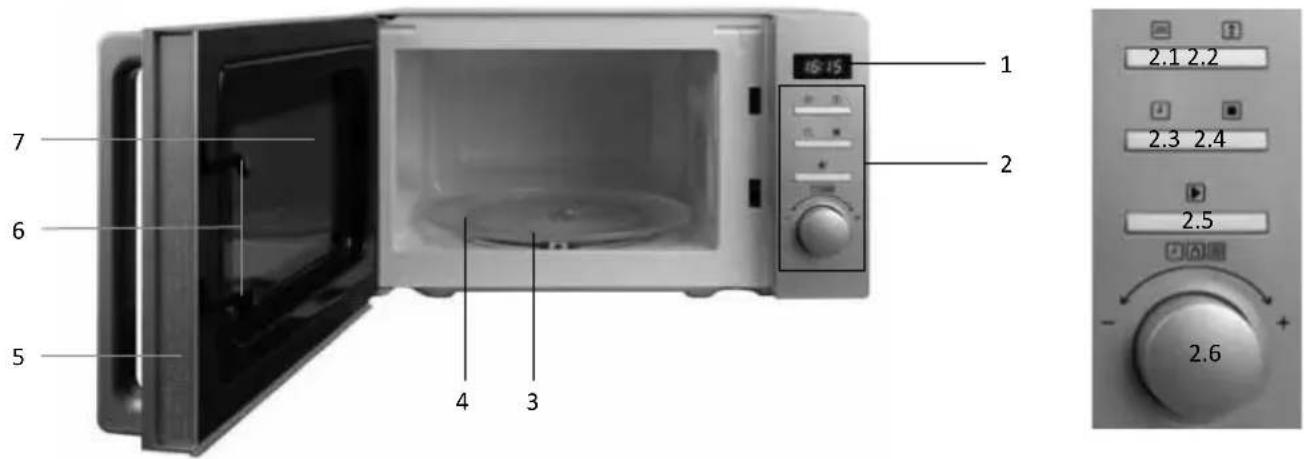

PRODUCT DESCRIPTION

1 2 2.1 2.2 2.3 2.4 2.5 - 2.6 7 6 5 4 3

1. Display
2. Control panel
3. Turntable ring assembly
4. Glass tray
5. Door
6. Safety interlock system
7. Observation window

2.1 Button for microwave setting
2.2 Button for defrost setting
2.3 Button for time
2.4 STOP/ reset-button
2.5 START/+30 SEC-button
2.6 Turn knob for adjusting or choosing auto menu

PRIOR TO FIRST USE

Before using the appliance for the first time, please proceed as follows: carefully unpack the microwave and remove all packaging material. Keep the packaging (plastic bags and cardboard) out of the reach of children. After unpacking the appliance, check it for external damage that may have occurred during transport. Place the appliance on a sturdy, flat heat-resistant

surface and make sure there is enough space all around for sufficient ventilation.

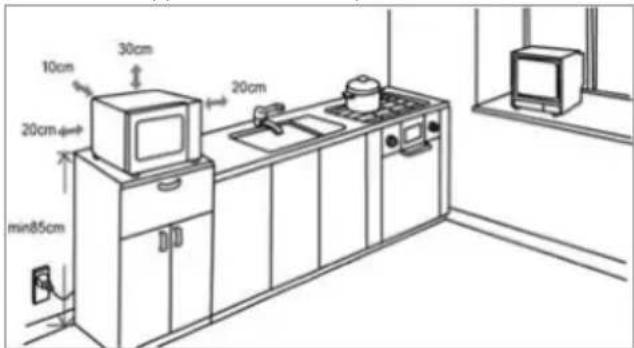

The minimum installation height is 85 cm. There must be 30 cm of free space at the top side and minimum 20 cm of free space between the microwave and any adjacent wall. Do not remove the adjustable feet from the microwave. Do not cover the ventilation holes.

Use of the microwave could interfere with your television and radio signals. Therefore do not place the microwave near such equipment. Do not place the microwave near heat sources such as heating or cooker.

10cm 30cm 20cm 20cm min85cm 20cm

Clean the microwave and accessories with a slightly damp cloth. The machine is now ready for use. It is possible that the microwave smells "new" when used for the first time,

this is entirely normal, will do no harm and the smell will disappear automatically.

Check that the voltage corresponds with what is stated on the information plate and insert the plug in an earthed socket.

Attention! The silver plate on the right side in the microwave ensures distribution of the microwaves in the appliance. This should never be removed.

SETTING THE CLOCK

As soon as the microwave oven is plugged in, it will display 0:00 and the buzzer will ring once.

• Press the button CLOCK once. The display shows 00:00.
• Turn 🔔 to adjust the hour. The input should be between 0-23 (24 hour).
• Press the button CLOCK again and the minutes will flash.
• Turn to adjust the minutes. The input should be between - 0-59.

• Press the button CLOCK again to confirm the time. The colon ":" will blink.

• If the clock is not set, it would not function when powered. The display will show 0:00.

• If you press STOP during the process of setting the clock the microwave oven will return to the previous setting.

• Press the button MICROWAVE and the display will show P100. Press the button MICROWAVE repeatedly to change the power or use 📋 - P100-P80-P50-P30-P10.
• Press the button START/+30 SEC. to confirm the power.
• Turn to adjust the cooking time. The cooking time can be set from 0:05 to 95:00.
• Press the button START/+30 SEC. again to confirm the cooking time and start the microwave.

Microwave power Application
P10 = 70 Watt Softening	butter or ice cream
P30 = 210 Watt Soup, hotchpot or defrosting
P50 = 350 Watt Hotchpot, fish
P80 = 560 Watt Rice, fish, chicken, grounded meat
P100 = 700 Watt Heating, milk, boiling water, vegetables, heating beverages

The step quantities for adjusting the time are as follows:

0-1 minute : 5 seconds

1-5 minutes : 10 seconds

5-10 minutes : 30 seconds

10-30 minutes : 1 minute

30-95 minutes : 5 minutes

QUICKSTART

• Press the button START/+30 SEC. to cook with full power (700 Watt) for 30 seconds. Each press on the same button increases the time with 30 seconds. The maximum is 95 minutes.
  or
• Turn 📋 to the left to set the cooking time instantly and press START/+ 30 SEC. to heat the microwave to full power (700 Watt).
• During the microwave and time defrost process, press the button START/+30 SEC. to increase the cooking time with 30 seconds. When pressed repeatedly on the same button the time increases with 30 seconds.

DEFROSTING

DEFROST BY WEIGHT

• Press the button DEFROST once to defrost by weight. The display shows dEF1.
• Turn to select the weight of the food. The weight should be between 100 and 2000 gram.
• Press the button START/+30 SEC. to start defrosting.

Note: if half the defrost time passes, the microwave oven sounds twice, this is normal. In order to have a better effect of defrosting, you should turn the food over, close the door, and press START/+30 SEC. again to continue defrosting. If no operation, the microwave oven will continue working.

DEFROST BY TIME

• Press the button DEFROST twice to defrost by time. In the display appears dEF2.
• Turn 📋 to select the desired defrosting time. The maximum time is 95 minutes.
• Press the button START/+30 SEC. to start defrosting.

MULTI-STAGE COOKING

You can set a maximum of two stages at once with the microwave oven. If one stage is defrosting, it should be put as the first stage. The buzzer will ring once after each stage and when the next stage will begin.

EXAMPLE: if you want to defrost the food for 5 minutes and then cook it with 80% microwave power for 7 minutes follow the next steps:

• Press the button DEFROST twice and the display shows dEF2.
• Turn to adjust the defrosting time to 5 minutes.
• Press the button MICROWAVE and use to set the microwave power to 80% - P80.
• Press the button START/+30 SEC. to confirm the setting.
• Turn 🔍 to adjust the cooking time to 7 minutes.
• Press the button START/+30 SEC. to start cooking.

PRE-SET COOKING

Make sure the clock is set for this function. (Consult the instruction chapter 4 on how to set the clock.) Input the cooking program. Two stages can be set at most. Defrosting should not be set in preset cooking.

EXAMPLE: if you want to cook with 80% microwave power for 7 minutes, follow the next steps:

- Press MICROWAVE once and turn 📋 to choose 80% microwave power till P80 is displayed.

- Press START/+30 SEC. to confirm.

- Turn 🔍 to adjust the cooking time of 7 minutes. Do NOT press START/+30 SEC., but follow the next steps.

- Press once on the button CLOCK. The hour figures flash.

- Turn 📷 to adjust the hour figures, the input time should be within 0-23.

- Press the button CLOCK again, the minute figures will flash.

- Turn 🔍 to adjust the minute figures, the input time should be within 0-59.

- Press START/+30 SEC. to finish setting. The clock will light. The buzzer will ring twice when the time arrives, then cooking will start automatically.

PARENTAL CONTROL

This microwave oven has parental control. You can block the control panel so your child can not accidentally activate the microwave oven.

ACTIVATING THE LOCK-OUT:

Press the button STOP for 3 seconds. A long beep will sound and the display will show ____.

DE-ACTIVATING THE LOCK OUT:

To deactivate the lock out, press the button STOP for 3 seconds. A long beep will sound.

AUTO MENU

• Turn 📋 to the right to select the desired menu and A-1, A-2, A-3..... A-8 will be displayed.
• Press the button START/+30 SEC. to confirm the menu.
• Turn 🔍 to select the desired weight and the display will show g.
• Press the button START/+30 SEC. to start the menu.
  • After cooking finishes, the buzzer will sound five times.

OVERVIEW AUTO MENU

Menu Weight (g) Display Power
A-1 REHEAT	200 200		100%400 400
	600 600
A-2 VEGETABLE	200 200		100%300 300
	400 400
A-3 FISH	250 250		80%350 350
	450 450
A-4 MEAT	250 250		100%350 350
	450 450
A-5 PASTA	50 (with 450 ml. water) 50		80%
	100 (with 800 ml. water) 100
A-6 POTATO	200 200		100%400 400
	600 600
A-7 PIZZA	200 200		100%
	400 400
A-8 SOUP	200 200		80%
	400 400

EXTRA

• When using the microwave oven, press CLOCK to see the current time for 2-3 seconds.
• While using a function of the microwave oven, you can check the setting by the button MICROWAVE. The power will be displayed for 2-3 seconds.
• The buzzer will ring once when turning 🔍 at the beginning.
• START/+30 SEC. must be pressed again to continue cooking after the door has been openend.
• On the program is set, but not activated within 1 minute, the setting will be canceled and the current time will be displayed (when set)
• The buzzer will only sound once by sufficient pressing the button. If you do not press the button correctly there will be no soundsignal and the function will not activate.
• The buzzer will ring five times to remind you when the cooking has ended.

CLEANING AND MAINTENANCE

Before cleaning the microwave be sure to switch it off and unplug it. Leave the microwave to cool down completely.

Interior

Clean the inside of the appliance after every use. Use a damp cloth. For a thorough cleaning use warm soapy water and dry the interior.

Accessories

Clean the separate accessories such as the turntable and roller stay with warm soapy water. These accessories can also be cleaned in the dishwasher. Thoroughly dry everything before using them again.

Exterior

Clean the exterior of the appliance with a damp cloth or sponge. If necessary use a mild detergent. Also clean the door and the door seal.

PROBLEMS AND SOLUTIONS

Check the solutions below before contacting your supplier or our technical department in case of a problem.

Problem Solution
The microwave does not start Is the power cord plugged in?Is the fuse or circuit breaker blown?
The microwave does not heat	Did the door close correctly? Open the door and shut it well again.
The turntable makes noise	Clean the roller ring for the turntable and the bottom of the microwave.
The food is not well defrosted	Has the power and time been set correctly? Did you stir or turn the food at least once whilst defrosting?

TECHNICAL DATA

Type number TMS2002S

Voltage 230Volt \~50Hz

Input power 1050 Watt

Microwave power 700 Watt

Timer 95 minutes

Capacity 20 litres

Rotating platform diameter ∅ 255 mm

Dimensions exterior - wxdxh 440 x 359 x 259 mm

Dimensions interior - wxdxh 306 x 304 x 206 mm

Nett weight 10,25 kg

RECYCLING

This symbol means that this product should not be disposed of with regular household waste (2012/19/EU).

Observe the applicable rules in your country for the separate collection of electric and electronic products.

By disposing of the product correctly, you prevent negative consequences for the environment and for public health.

The packaging material of this product can be recycled 100%, return packaging material separately.

TOMADO®

INDSTILLING AF KLOKKESLÆT

TILBEREDNING MED UDSKUDT START

2.5 Przycisk START/+30 SEC

PROBLEMY I ROZWIĄZANIA

Go to www.tomado.com/support to purchase accessories or spare parts.

WARRANTY CONDITIONS

A 24 month warranty is provided for this product. Your warranty is valid if the product has been used in accordance with the instruction manual and for the purpose for which it was made. Also the original proof of purchase must be submitted, stating the date of purchase, the name of the retailer and the item number of the product. For extensive warranty information you are referred to our website: www.tomado.com/support

CONDITIONS DE LA GARANTIE
