ODW 6011 A2 FS B - Dishwasher OK - Free user manual and instructions

Product type	Dishwasher
Brand	OK
Model	ODW 6011 A2 FS B
Capacity	12 place settings
Wash programs	Intensive, ECO, 90 min, 45°C
Voltage / Frequency	220-240 V ~ 50 Hz
Power consumption	1760-2100 W
Water pressure	0.4-10 bar (0.04-1 MPa)
Annual energy consumption	258 kWh/year (based on 280 standard cycles)
Annual water consumption	3080 L/year (based on 280 standard cycles)
Energy efficiency class	A++
Drying efficiency class	A
Noise level	49 dB(A)
ECO program duration	225 minutes
Energy consumption (ECO cycle)	0.9 kWh
Water consumption (ECO cycle)	11 L
Special functions	Half load, Delayed start (3/6/9 h)
Water softener	With salt container (adjustable according to hardness)
Rinse aid	Integrated compartment, adjustable dosage
Installation type	Freestanding, not built-in
Maintenance and cleaning	Removable filters (coarse, micro, main), detachable spray arms
Safety	Auto-off, door opening during pause, overflow protection

Frequently Asked Questions - ODW 6011 A2 FS B OK

What wash programs are available?

The dishwasher offers four programs: Intensive (heavily soiled, 175 min), ECO (normal, 225 min), 90 min (lightly soiled, 90 min) and 45°C (delicate items, 30 min).

How to add water softener salt?

Remove the lower basket, unscrew the cap of the salt container (H2). Before first use, pour 1.5 L of water then about 1.5 kg of dishwasher salt using the provided funnel. Screw the cap back on and immediately start a quick program to avoid corrosion.

How to adjust water hardness?

Close the door within 60 seconds after turning on, press and hold the Start/Pause button for 5 seconds. Use the Start/Reset button to select the level according to your hardness (0-55 °dH). Refer to the table in the manual for the corresponding setting.

What to do if the dishwasher does not start?

Check the power supply, that the water tap is open, and the door is properly closed. If the problem persists, consult the error code table (e.g., 45° flashing = water intake problem).

How to clean the filters?

Turn the filter plug (C) counterclockwise to remove the assembly. Separate the main filter (A), micro filter (B), and coarse filter (C). Rinse them under running water and reassemble, checking proper positioning.

Why does the dishware remain wet after the cycle?

This may be due to improper loading (dishware not tilted), too low rinse aid level, or an unsuitable program. Increase the rinse aid dosage (setting 4 by default) and wait a few minutes before emptying the dishwasher.

How to use the half load function?

Press the 1/2 button after selecting a program (Intensive, ECO or 90 min). The indicator lights up. This mode reduces water and energy consumption when the dishwasher is not full.

What do the error codes mean?

The 45° and/or 90° indicators flash: water intake problems (45° indicator steady) or temperature issues (flashing). The ECO indicator flashes: overflow. Refer to the table in the manual for detailed solutions.

Can dishes be added during a cycle?

Yes, press Start/Pause to pause. Wait for the spray arms to stop, open the door, add dishes (if the detergent compartment is not opened), close the door and press Start/Pause again.

Which detergent to use?

Use only a dishwasher-specific detergent (powder, gel or tablets). Follow the dosages indicated on the packaging. Never use liquid dishwasher detergent in the prewash compartment.

USER MANUAL ODW 6011 A2 FS B OK

Thank you for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.

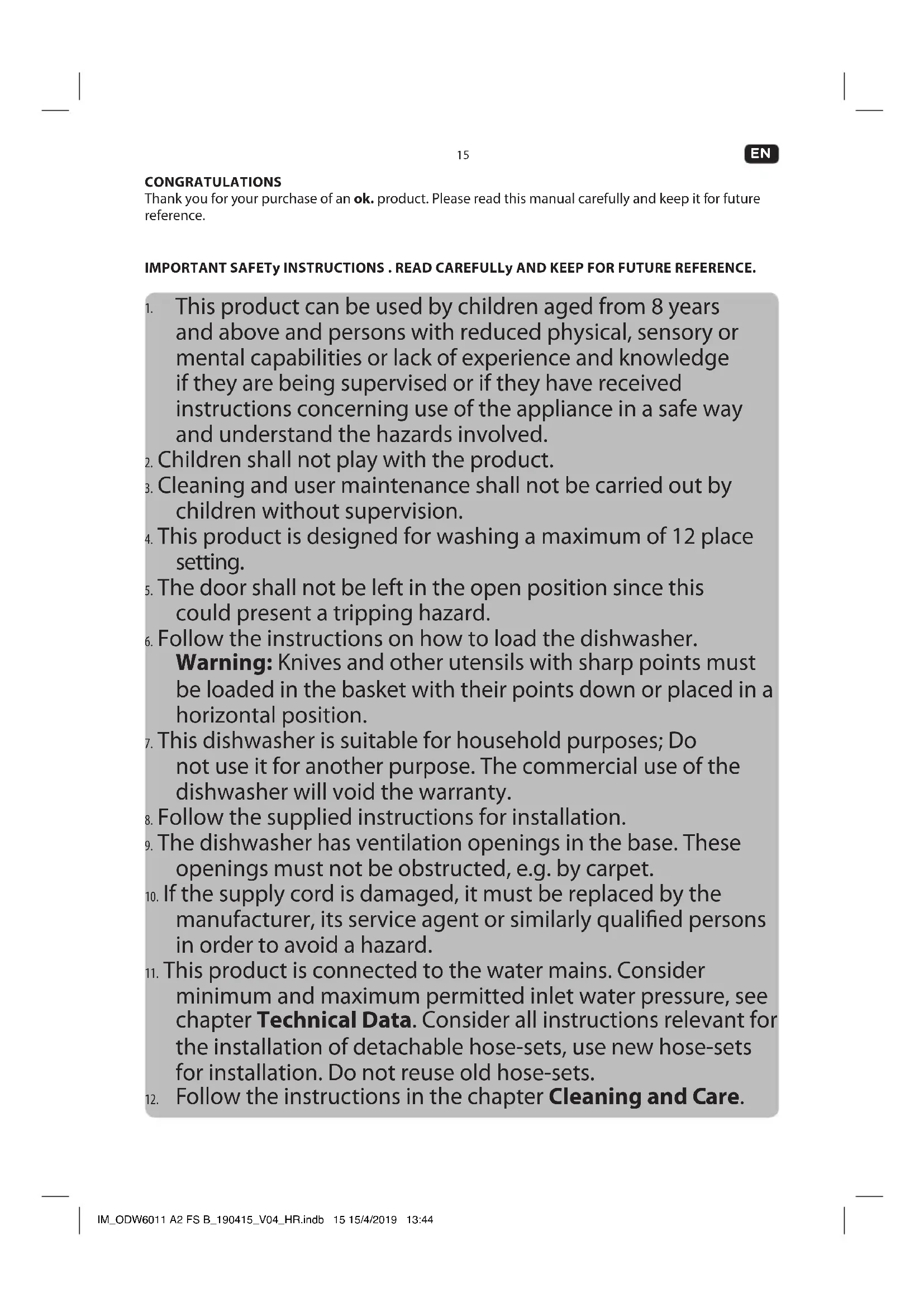

IMPORTANT SAFETY INSTRUCTIONS . READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or if they have received instructions concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the product.
3. Cleaning and user maintenance shall not be carried out by children without supervision.
4. This product is designed for washing a maximum of 12 place setting.
5. The door shall not be left in the open position since this could present a tripping hazard.
6. Follow the instructions on how to load the dishwasher. Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
7. This dishwasher is suitable for household purposes; Do not use it for another purpose. The commercial use of the dishwasher will void the warranty.
8. Follow the supplied instructions for installation.
9. The dishwasher has ventilation openings in the base. These openings must not be obstructed, e.g. by carpet.
10. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
11. This product is connected to the water mains. Consider minimum and maximum permitted inlet water pressure, see chapter Technical Data. Consider all instructions relevant for the installation of detachable hose-sets, use new hose-sets for installation. Do not reuse old hose-sets.
12. Follow the instructions in the chapter Cleaning and Care.

EN

16

1. Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
2. Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
3. Never leave the product unsupervised while it is switched on.
4. Do not under any circumstances attempt to repair the product yourself (e.g. power supply cord has been damaged, product has been dropped during installation). For servicing and repairs, please consult an authorised service agent.
5. The mains voltage must match the information on the rating label of the product.
6. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
7. Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
8. Only unplug from the power socket by the plug itself. Do not pull on the cord.

9. Unplug the product ...

10. when the product is not being used,
    -in case of malfunctions,

11. before attaching / detaching accessories and

12. before cleaning the product.

13. Use this product in dry indoor areas only and never outdoors.

14. This product is not intended for commercial use. It is designed for household use only.

INTENDED USE

This product is only intended for cleaning dishes and cutlery which are dishwasher proof or suitable for dishwashers. Any other use may result in damage to product or injuries. This product is designed for household use only and not intended for commercial use.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

CONTROLS AND COMPONENTS

A. Operation panel

A1. On/off button
A2. Program selection button P
A3. Program display
A4. Signal LEDs - rinse aid - water softener salt , water detector
A5. Timer display ①_3h 6g 9h
A6. Timer button
A7. Half load indicator1/2
A8. Half load button1/2
A9.Start/Pause button

B. Handle

C. Door
D. Cutlery basket
E. Upper dish basket
F. Lower dish basket

G. Fill compartment

Detergent tab/powder compartment

G1. Cover
G2. Compartment for main washing
G3. Lock
G4. Compartment for pre-washing

Rinse aid compartment

G5. Fill indicator
G6. Rinse aid container

H. Inside

H1. Overflow bypass
H2. Salt container
H3. Water outlet with filter set
H4. Lower spray arm

Backside

I. Power cord with plug
J. Waste water hose (pre-assemble)
K. Hose for water inlet (pre-assemble)

Accessories

Funnel (not shown)

BEFORE FIRST TIME USE

• Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.
• Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.
  After unpacking, please refer to chapter Cleaning and care.

EN

18

INSTALLATION

Note: The dishwasher is equipped with power cord and plug. Make sure before installation that a wall outlet is at the desired place of installation.

Consider the dimension of the product for placing and installation.

Place the dishwasher on an even, horizontal and steady surface.

Note: The dishwasher is not intended to be built in.

The dishwasher must be connected to drainage.

1. The hose is already connected the waste water outlet. Cut the straps and unwind the hose.
2. Connect the end to a drainpipe (Option A or B). Observe the max. height of the outlet of drainage hose.

Note:

A suitable hose holder is available as optional accessories.

3 Connect the water inlet to tap water supply (3 / 4^ ) using the pre-assembled hose and make sure it fastened tightly.

Note: If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.

4 Connect the power plug to the mains.

Note: Before using the product for the first time, make sure, that all hydrophilic connections of the product are correctly sealed and connected to both the device as well as the water mains. Check all connections periodically to avoid possible leakage.

PREPARATION

Filling salt into the salt container

Depending on your tap water hardness (hardness degree) use additional salt (water softener). Always consider instruction provided with the salt.

1. Remove the basket and then unscrew and remove the cap from the salt container.
2. Before first wash, add 1.5 lt. of water in the salt container of your machine.
3. Place the end of the funnel (supplied) into the hole and introduce about 1.5kg of salt. It is normal for a small amount of water to come out of the salt container.
4. After filling the container, screw the cap tightly back clockwise.
5. Immediately after filling the salt into the salt container, a washing program should be started (rapid program suggested). Otherwise filter system, pump or other important parts of the machine may be damaged by salty water which voids the warranty.

Note: Depending on how fully the salt dissolves, the salt warning light may still be on even though the salt container is filled.

Warning!

• Only use salt specifically designed for use in dishwashers! All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any caused damages.
  If salt has been spilled a soak or a rapid program should be run to remove the excess salt.
• Only fill with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been split, remaining of the bottom of the machine for any period of time, which may cause corrosion.
• The salt container must only be refilled when the salt warning light in the control panel comes on.

Adjusting salt consumption

1. Activate the setup mode: Close the door within 60 seconds after power ON, press the button and hold it for 5 seconds, the machine will enter setting mode which is indicated by the blinking indicator light of salt and
2. Adjust level of salt consumption: Press the button to select the proper setting according to your local environment. Follow table below to find correct setting.

Water Hardness level		Setting Digital display stalls
°dH 1)	mmol/l 2)
0-5 0-0.941			45°
6-11 1.0-2.02			90°
12-17 2.1-3.03			90°, 45°
18-22 3.1-4.04*			ECO
23-34 4.1-6.05			ECO 45°
35-55 6.1-9.86			90'

1. The product will exit the setup mode automatically 5 seconds after last setting/operation of switch.

Note:

1 German degree of measurement for the water hardness
2) Millimol, international unit for water hardness
*) Factory setting

Contact your local water board for information on the hardness of your water supply.

EN

20

Adding detergent

The dispenser must be refilled before the start of each wash cycle.
- For the correct amount follow the instructions provided with the detergent.

1. Press release button. The lid springs open.
2. Always add the detergent just before starting each wash cycle, otherwise it could get damp and will not dissolve properly.
3. If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

Consider the difference of two compartments:

a) Compartment for detergent for main wash cycle.
b) Compartment for detergent for pre-wash cycle.

1. Close the lid and press until it locks in place.

Note: Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.

Fill rinse aid dispenser

Your dishwasher is designed to use liquid rinse aids which are released during the final rinse to prevent water from forming droplets on your dishes.

1. Open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml .

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.

Indicator Status
●	Full
◎	3/4 full
◎	1/2 full
◎	1/4 full
○	Empty

• Replace the cap by inserting it aligned with "open" arrow and turning it to the "closed" (right) arrow.

Note: Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

1. Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
2. If the rinse aid dispenser is empty the rinse aid signal lamp will turn on red.

Adjust the rinse aid dispenser

The dosage can be adjusted in 6 levels. Default level is 4. This setting is a recommendation.

Note:

• Set the dosage level higher, if stains remain on the dishes.
• Set the dosage lower, if clouds or streaks remain on the dishes.
  Use a coin to change the setting.

Loading the dishwasher basket

• Only clean dishes and cutlery which are dishwasher proof or suitable for dishwashers. Follow instructions of the manufacturers.
• Scrape off any large amounts of leftover food. Soften remnants of burnt-in food in pans, pots etc.
  It is not necessary to rinse the dishes under running water.

• Place objects in the dishwasher in the following way:

• Items such as cups, glasses, pots/pans, etc. face down.
  -Curved items, or those with recesses, should be loaded at a slant so that water can run off.

• All utensils must be stacked securely so they cannot tip over.
• All utensils must be placed in the way that the spray arms can rotated freely during washing.
• Arrange small dishes in the upper basket, e.g. lightweight and delicate items such as saucers, cups, glasses, dessert bowls etc.
• Arrange large and heavy parts in the lower basket, such as plates, sheets, pots, bowls etc.

Note: Very small items should not be washed in the dishwasher as they could easily fall out of the basket and damage the appliance.

Warning!

• Long bladed knives stored in an upright position are a potential hazard.
• Do not let any item extend through the bottom of the baskets.
  Always load sharp utensils with the sharp points down!
• Do not overload your dishwasher as this will impair the results.

9 Observe the general plan for placing dishes and cutlery into the basket. See table below for possible part designations.

10 Observe the plan for placing cutlery into the cutlery basket. See table below for possible part designations.

① Soup spoons	② Forks	③ Knives	④ Teaspoons
⑤ Dessert spoons	⑥ Serving spoons	⑦ Serving forks	⑧ Gravy ladies

EN

22

OPERATION

Washing dishes

• Consider following steps to start the washing process:

• Load the dishwasher basket.

• Add detergent or rinse aid.

Important: Make sure the water-tap/water supply is open, the appliance is connected to the mains and the door is closed correctly.

1. Push the switch to turn on the dishwasher.
2. Press P to choose your program, refer to chapter Choosing Program. If the dishwasher is not completely loaded, then you can additionally select the half load mode. This mode allows you to save both water and electricity when using the bottom and top basket of your dishwasher. Press the button 1/2 and the half load indicator lights up.

Note:

• This mode can only be used with the program setting Intensive, ECO and 90 min.
  We recommend to use the half load function if the dishes are only slightly soiled.

• For timer function (delay), please refer to chapter TIMER - DELAY WASHING. Push the D button.

To stop the process push the button again.

Note: The program lights show the state of the dishwasher:

a) Program light on: standby or pause.
b) Program light blinking: washing process ongoing.

1. When the working cycle has finished, the buzzer of dishwasher will sound 8 seconds, then stop.

2. Turn off the appliance using the button and shut off the water supply.

3. Open the door of the dishwasher.

Warning! It is dangerous to open the door when washing, because the hot water may scald you.

• Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.
• Unload the dishwasher.

Change/ pause the washing cycle

• You can modify the washing program when the dishwasher just runs for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water.

• Press the button and then the Program selection button P for more than 3 seconds. The machine will switch to standby mode.

• Change the program to the desired cycle setting.
• Press the button again to continue washing process.

Note: If you open the door during washing, the machine will pause. When you close the door, the machine will continue working after 10 seconds.

If you forgot a dish you can pause the process and add it, but make sure the detergent compartment has not already opened.

1. Press button to pause the washing process.
2. After the spray arms have come to rest, you can open the door completely.
3. Add forgotten dishes.
4. Close the door and press the button again and the dishwasher will continue after 10 seconds.

CHOOSING PROGRAM

12 Consider below table to choose the correct program according your needs.

Program	Purpose Description	Of Cycle	Detergent Pre/Main	Running Time (min)	Energy (Kwh)	Water (L)	Rinse Aid
Intensive	For heaviest soiled crockery, and normally soiled pots, pans, dishes, etc. with dried on soiling.	Pre-wash 50 °C Wash 60 °C Rinse Rinse Rinse 70 °C Drying	5/25 g (1 or 2 pieces)	175 1.6	17.5		●
ECO (*EN 50242)	This is standard programme; It is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.	Pre-wash Wash 45 °C Rinse 60 °C Drying	5/25 g (1 or 2 pieces)	225 0.9	11		●
J90' 90 Mins	For lightly soiled loads that do not need excellent drying efficiency.	Wash 65 °C Rinse Rinse 65 °C Drying	30 g (1 piece)	90 1.35	12.5		●
J45°	For lightly soiled crockery and glass.	Wash (45 °C Rinse 50 °C Rinse 55 °C	20 g 30	0.75 11			○

Legal note:

• EN 50242: This program is the test cycle. The information for comparability test in accordance with EN 50242, is as following:
• Capacity : 12 setting (ODW 6011 A2 FS B)
• Upper basket : top wheels on rail.
  -Rinse aid setting : 4
• The power consumption of : off-mode is 0.45 W

left-on mode is 0.49 W

EN

24

TIMER-DELAY WASHING

13 The dishwasher is equipped with a timer function that enables subsequent rinsing. Choose from 3, 6, or 9 hours delay.

• Select the desired delay time with the delay button (start time delay). The selected time will be indicated by a red LED. The washing process starts with the set delay.

CLEANING AND CARE

• Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Clean the exterior surfaces of the product with a slightly damp cloth and dry them well. Make sure that no water enters the product interior (e.g. at the switches).
• Clean the edge around the door using a soft, warm and damp cloth only. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Cleaning the filter assembly

The filter prevents larger remnants of food or other objects from getting inside the pump. Inspect the filters for blocking every time the dishwasher has been used.

The filter system consists of a coarse filter, a flat (main filter) and a micro filter (fine filter).

• Main filter A: Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down to drain.
• Fine filter B: This filter holds soil and food residue in the sump area and prevents it from being deposited on the dishes during the wash cycle.
• Coarse filter C: Larger items, such as pieces of bones or glass that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift out.

Disassemble and clean the filter according to following steps:

• Turn the filter cap (filter C) anti-clockwise and take off whole filter assembly.
  Take out filters B and C.
  Take out filter C.
• Wash filters under running water.
• Reassembling is done in reverse order. Make sure the filter assembly is installed correctly.

Note: Do not use the dishwasher with filter system not installed.

Cleaning the spray arms

The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible clogging.

• Grasp the middle of the spray arm, pull it upwards to remove it.
• Wash the arms under a jet of running water.
• Return them carefully to their seat and make sure that the spray arms are installed correctly and can turn freely.

ERROR CODES

Code Meaning Possible causes
The 45° is on.	Longer inlet time	·Faucets is not opened ·Water intake is restricted ·Water pressure is too low
The 45° and indicators flicker frequently	Not reaching required temperature	·Malfunction of heating elements
The ECO light flickers.	Overflow	·Some component of dishwasher leaks

TROUBLESHOOTING

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible causes Solution
Product does not work	Interrupted power supply	Check the power supply
	Water pressure is low·Check whether water supply is connected properly and water is turned on
	Dishwasher door is not closed properly	Ensure door is closed properly
Water isn't pumped from dishwasher	·Kink in drain hose·Check the drain hose
	·Filter is clogged	·Check and clean the coarse filter
	·Kitchen sink is clogged·Check if the kitchen sink is draining well or call a service agent for help
Sud in the tub · Improper detergent	·Only use special dishwasher detergent
	·Spilled rinse aid·Wipe up rinse-aid spills
Stained tub interior · Detergent	·Only use detergent without colourant was used
White film on inside surfact	·Hard water minerals	·Clean the interior with a damp sponge regular
Rust stains on cutlery	·Cutlery are not corrosion resistant	·Do not wash these items in the dishwasher
	·A programme was not run after refilling salt	·Always run a short programme (Kurz 45°C) after adding salt
	·Softener lid is loose	·Check and properly close it
Knocking noise in the cabinet	·Spray arm is knocking against an item in the basket	·Interrupt the program and re-arrange the items
Rattling noise	·Items of crockery are loose in the cabinet
Knocking noise in water pipes	·Caused by on-site installation or cross section of the piping	·This has no influence in the dishwasher function

EN

26

Problem Possible causes Solution
Dishes aren't cleaned	· Dishes not loaded correctly	· Re-arrange the dishes
	· Spray arms are blocked
	· Not enough detergent · Add more detergent
	· Program was not powerful enough	· Choose another program
	· Filter is dirty or not correctly inserted	· Clean the filter and ensure it's fitted correctly
Cloudiness on glassware	· Too much detergent	· Use less detergent and choose shortest cycle for cleaning glasses
Black or grey marks on dishes	Aluminum utensils have rubbed against dishes	· Use a mild abrasive cleaner
Detergent left in dispenser cups	· Detergent cups are blocked	Re-arrange the dishes
Dishes are not drying · Improper loading · Wechseln Sie das Reinigerprodukt oder fällen Sie Klarspüler ein
			· Rinse-aid level is too low · Increase the rinse-aid level
			· Dishes removed too soon · Do not removed the dishes immediately after washing.

TECHNICAL DATA

Power consumption	1760 - 2100 W
Rated voltage / frequency	220 - 240 V ~ 50 Hz
Water pressure (flow pressure)	0.4 - 10 bar / 0.04 - 1 MPa

This is a Dishwasher.
- Erp-testing was done according to EN50242:2008+A11, Directive (EU)1016/2010, Directive (EU)1059/2010.
- See website below for detailed technical information or ask your vendor for specification sheet. www.ok-online.com.

DISPOSAL

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

ENHORABUENA

Wasmiddel, tablet/poeder compartment

Spoelmiddelcompartment

G5.Vulindicator
G6. Spoelmiddelreservoir

H. Binnenkant
