Tomado TVC0401B - Vacuum Cleaner

TVC0401B - Vacuum Cleaner Tomado - Free user manual and instructions

Find the device manual for free TVC0401B Tomado in PDF.

English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
📄

Document temporarily unavailable

The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.

Pick your language and provide your email: we'll send you a specifically translated version.
Product type2-in-1 stick vacuum (upright and handheld)
BrandTomado
ModelTVC0401B
Power supplyMains (power cord)
Rated voltage220-240 V ~
Suction typeBagless, cyclonic system
Dust container capacityApprox. 0.5 L (max line)
FiltersMotor filter + cyclonic system (washable)
Included accessoriesFloor nozzle, crevice tool, brush tool, hanging device
UsageCarpet, hard floors, furniture, car seats
Cord lengthApprox. 5 m (estimated)
WeightApprox. 3 kg (estimated)
Dimensions (L x W x H)Approx. 25 x 25 x 110 cm (with handle)
Noise levelApprox. 75 dB (estimated)
PowerApprox. 600 W (estimated)
SwitchOn/off button on handle
MaintenanceEmpty container after each use; clean cyclonic system and filters every 4 empties

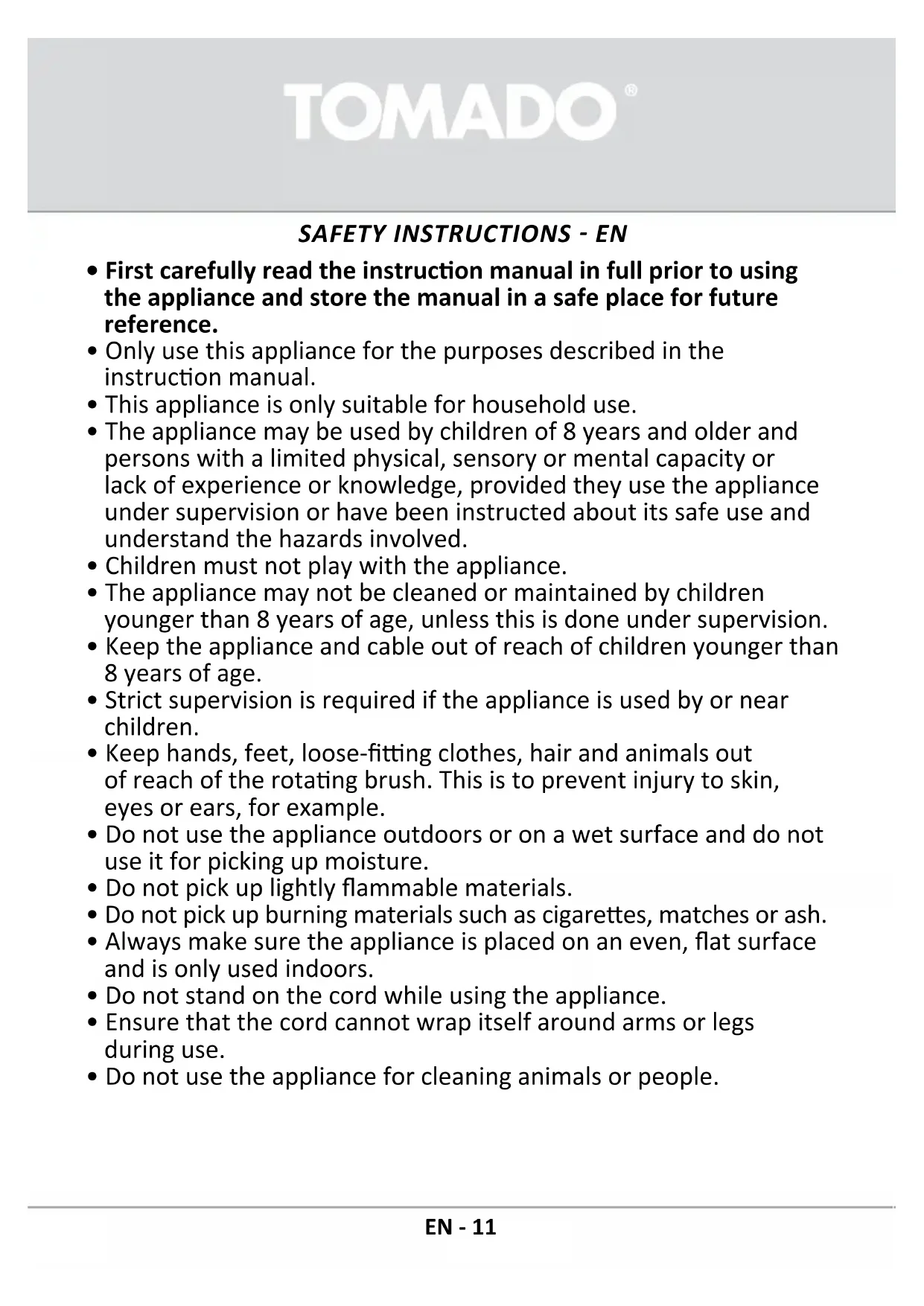

SafetyDo not vacuum liquids or flammable materials; keep out of reach of children under 8 years
Warranty24 months
Spare parts and repairabilityAccessories and spare parts available at www.tomado.com/support

Frequently Asked Questions - TVC0401B Tomado

How to assemble the Tomado TVC0401B vacuum cleaner?
Align the floor nozzle connector with the handle connector and snap firmly. Then align the handle connector with the vacuum connector and snap. To disassemble, press the designated buttons.

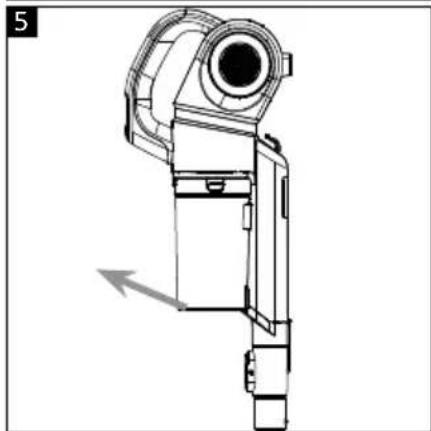

How to empty the dust container?
Press the button to detach the container, remove the assembly. Take the cyclonic system out of the container, empty the dust. Put the cyclonic system back and snap the container onto the vacuum.

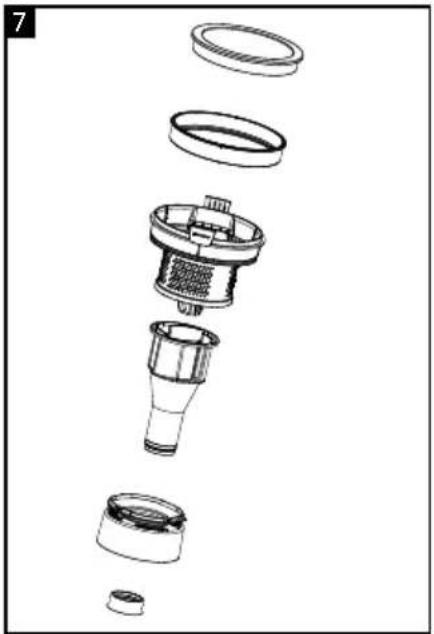

How to clean the cyclonic system and filters?
After 4 empties, remove the container, take out the cyclonic system. Disassemble parts, wash in warm water (no detergent or brush). Let air dry completely before reassembling. Do not use the vacuum without the complete cyclonic system.
Can I use the vacuum to vacuum liquids?
No, the vacuum is intended for dry cleaning only. Never vacuum liquids, as this could damage the appliance and cause electric shock.
Can the vacuum be used by children?
Children aged 8 and above may use it under supervision. Children must not play with the appliance. Cleaning and maintenance must not be performed by children under 8 without supervision.
What to do if the power cord is damaged?
Do not use the appliance. Contact the dealer or customer service. Never replace the plug or cord yourself. This would void the warranty and could cause danger.
How to use the vacuum in handheld mode?
Remove the handle by pressing the designated button. Directly attach an accessory (crevice tool, brush tool, or floor nozzle) to the vacuum opening. Use the handle to clean furniture, car seats, etc.
How to mount the hanging device on the wall?
Mark the holes with a pencil, drill two holes 4 cm deep, insert wall plugs, then place the device and screw it firmly. Hang the vacuum after each use.
What accessories are included with the Tomado TVC0401B vacuum?
The floor nozzle, crevice tool, brush tool, and hanging device are included.
Where can I buy spare parts or additional accessories?
Visit www.tomado.com/support to order original spare parts and compatible accessories.

User questions about TVC0401B Tomado

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual TVC0401B - Tomado and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TVC0401B by Tomado.

USER MANUAL TVC0401B Tomado

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Tomado

Model : TVC0401B

Category : Vacuum Cleaner
