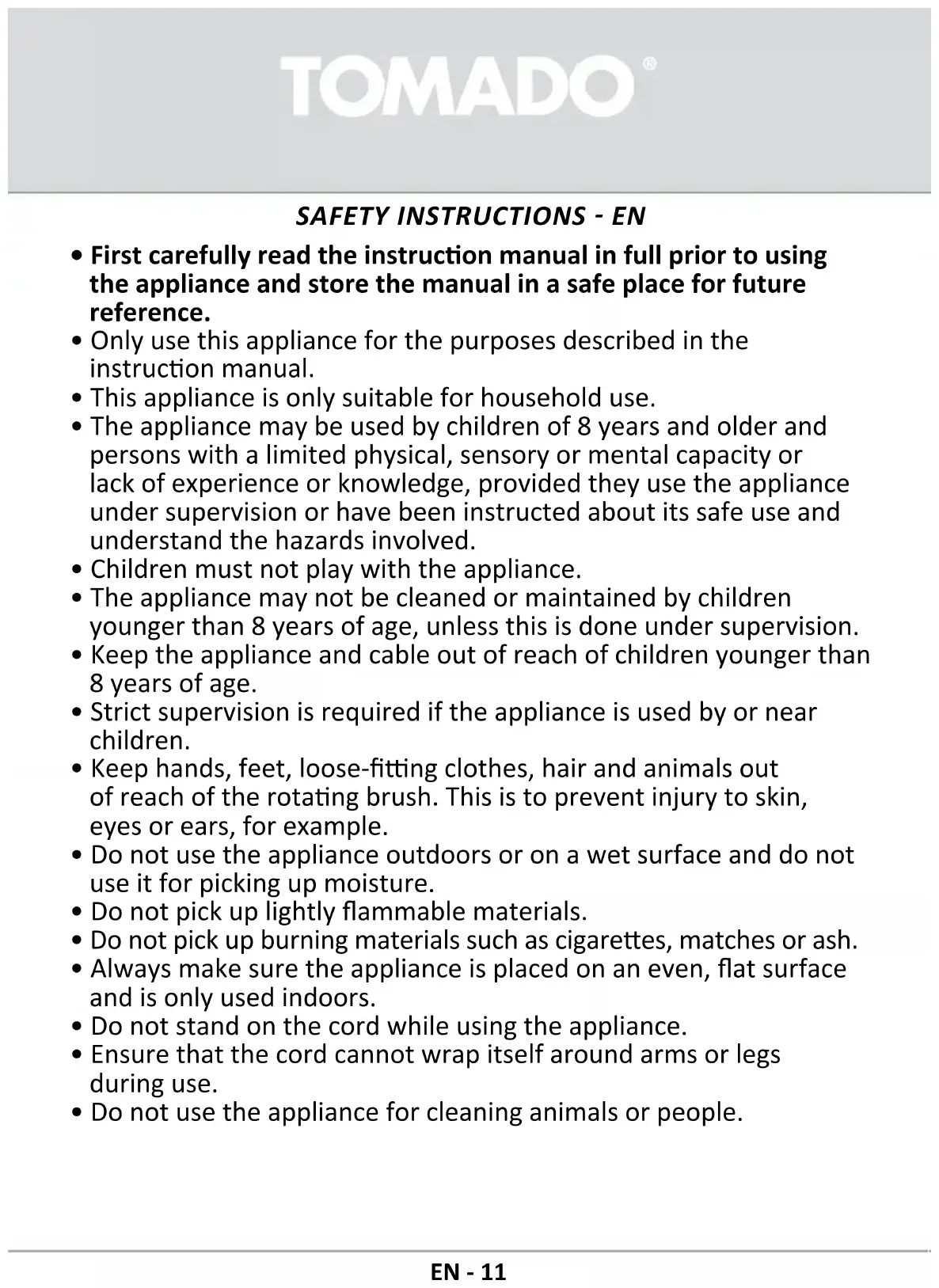

• First carefully read the instruction manual in full prior to using the appliance and store the manual in a safe place for future reference.
• Only use this appliance for the purposes described in the instruction manual.
• This appliance is only suitable for household use.
• The appliance may be used by children of 8 years and older and persons with a limited physical, sensory or mental capacity or lack of experience or knowledge, provided they use the appliance under supervision or have been instructed about its safe use and understand the hazards involved.
• Children must not play with the appliance.
• The appliance may not be cleaned or maintained by children younger than 8 years of age, unless this is done under supervision.
• Keep the appliance and cable out of reach of children younger than 8 years of age.
• Strict supervision is required if the appliance is used by or near children.
• Keep hands, feet, loose-fitting clothes, hair and animals out of reach of the rotating brush. This is to prevent injury to skin, eyes or ears, for example.
• Do not use the appliance outdoors or on a wet surface and do not use it for picking up moisture.
• Do not pick up lightly flammable materials.
• Do not pick up burning materials such as cigarettes, matches or ash.
• Always make sure the appliance is placed on an even, flat surface and is only used indoors.
• Do not stand on the cord while using the appliance.
• Ensure that the cord cannot wrap itself around arms or legs during use.
• Do not use the appliance for cleaning animals or people.

TOMADO®

• This appliance is intended for household and similar use, such as:
• in staff kitchens, shops, offices and other work environments;
• by guests of hotels, motels and other residential environments;
• in Bed&Breakfast type environments;
• farms.

- Caution: the appliance may not be used with an external timer or a separate remote control.

- Only connect the appliance to alternate current, to an earthed wall socket, with a mains voltage that corresponds with the information provided on the information plate of the appliance.

- Never bend the power cord sharply or allow it to run across hot parts.

- Do not use the appliance if the plug, cord or appliance are damaged, or if the appliance no longer functions properly or if it is damaged in any other way. In that case, consult the shop or our customer service. Never replace the plug or cord yourself.

- The use of accessories not recommended or sold by Tomado may cause fire, electrical shocks or injuries.

- The brush and vacuum cleaner were specially designed for use on carpets and hard floors. In rare cases, and depending on the type of floor, it is possible that scratches are made in the surface to be cleaned. Tomato is not responsible for any damage made on the floor.

- If the appliance is not being used or if parts or accessories must be mounted or removed or if the appliance is being cleaned, fully switch off the appliance and remove the plug from the socket.

- Do not leave the appliance unsupervised if the appliance is operational.

- Never place the appliance near appliances that give off heat, such as ovens, gas cookers, hotplates, etc.

- If the appliance is not used as intended or if the instructions in the manual are not observed, no compensation can be claimed in case of defects or accidents and the warranty will be invalidated.

TOMADO®

• Correct installation and maintenance of the motor filter and dust reservoir in accordance with the instructions in the manual is necessary to prevent defects in the appliance. In case of defects caused by incorrect use or not placing the dust reservoir and filters, the warranty becomes invalid.
• Never submerge the appliance, cord or plug in water.
• Make sure that children are unable to touch the cable or appliance.
• Do not allow the cable to run over sharp edges, hot components or other sources of heat.
• Do not pull the cord and/or appliance to remove the plug from the wall socket. Never touch the appliance with wet or damp hands.
• If you decide to cease using the appliance due to a defect, we recommend cutting off the cord after removing the plug from the wall socket.

PRODUCT DESCRIPTION

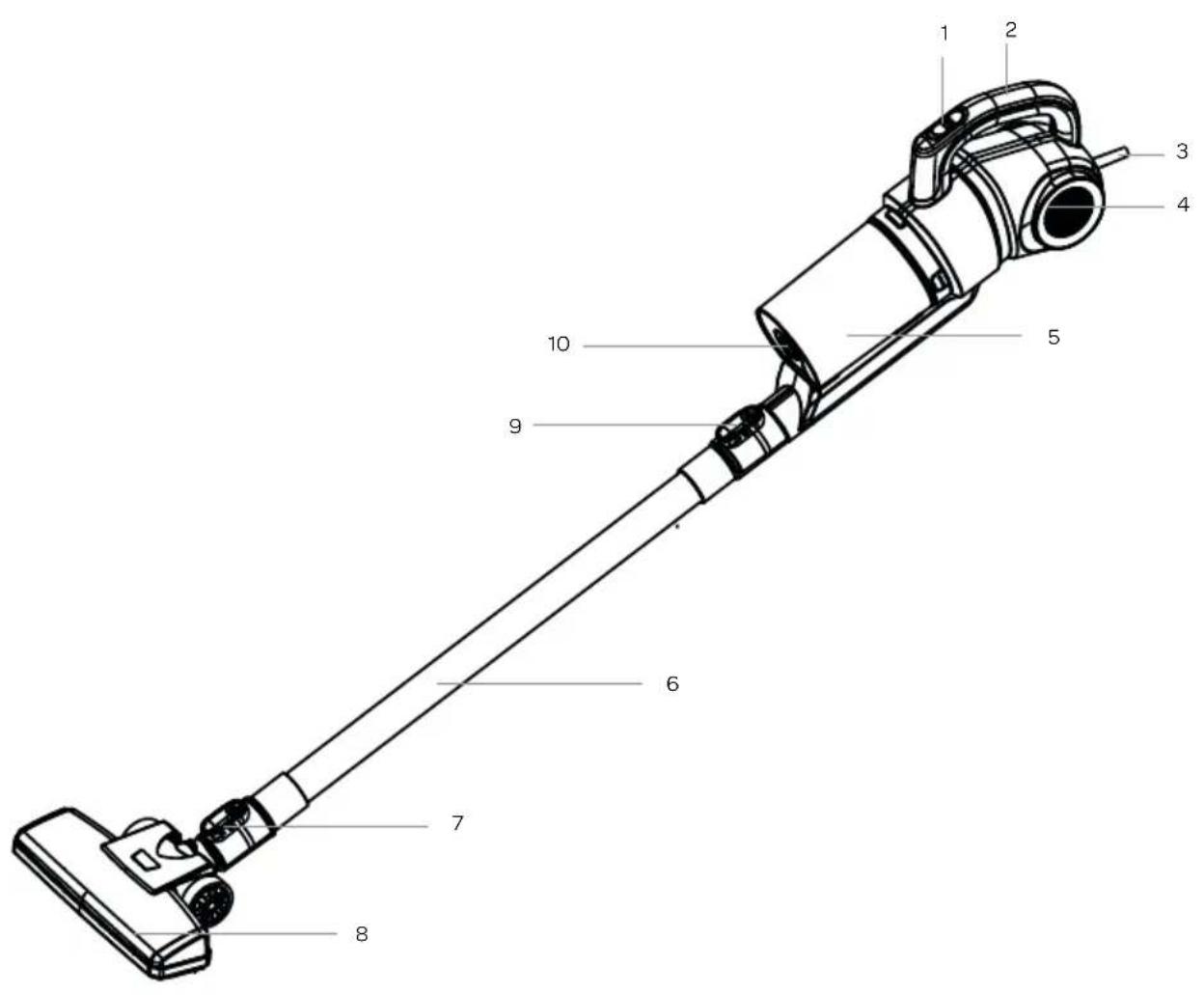

1. On/off switch Ⓘ
2. Handle
3. Cord
4. Motor casing
5. Dust reservoir with filter
6. Stick
7. Knob for disconnecting the floor nozzle
8. Floor nozzle
9. Knob for disconnecting the stick
10. Knob for disconnecting the dust reservoir
11. Crack nozzle
12. Brush nozzle
13. Suspension bracket

PRIOR TO FIRST USE

Follow these instructions when using the vacuum cleaner for the first time: Carefully remove the vacuum cleaner and all accessories from the packaging and remove all packaging material. Keep the packaging (plastic bags and cardboard) out of reach of children. After unpacking the appliance, carefully check it for external damage that may have occurred during transport. Place the vacuum cleaner on a sturdy, dry and flat surface.

ASSEMBLY

MOUNTING AND REMOVING THE FLOOR NOZZLE

Hold the connection of the floor nozzle in line with the connection of the stick and connect both parts in such a way that they snap in place.

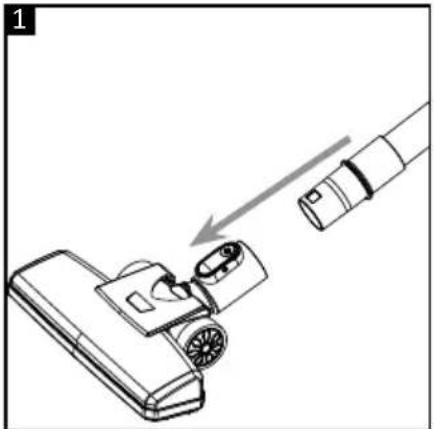

Press the knob on the tube to disconnect the floor nozzle - fig. 1.

MOUNTING AND REMOVING THE STICK

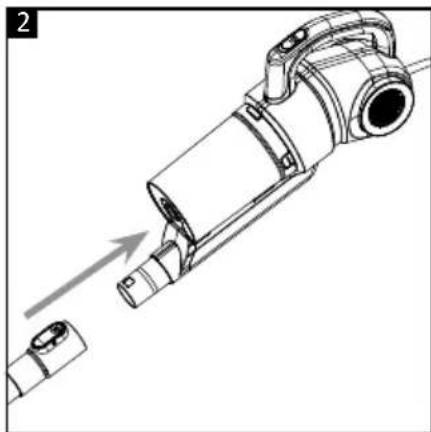

Hold the connection of the stick in line with the connection of the vacuum cleaner and connect both parts in such a way that they snap in place - fig. 2. Press the knob to disconnect the vacuum cleaner again.

USE

SWITCHING THE VACUUM CLEANER ON AND OFF

Press the on/off button Ⓐ on the handle to switch on the vacuum cleaner. Slide the on/off button back to switch off the vacuum cleaner and remove the plug from the socket.

USING THE VACUUM CLEANER AS A HANDHELD VACUUM CLEANER

The vacuum cleaner can also be used as a handheld vacuum cleaner, in order to clean furniture or car seats for instance.

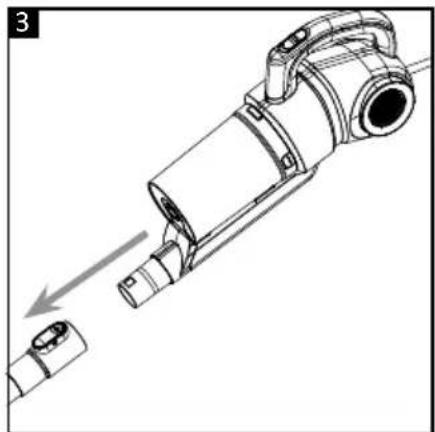

Remove the stick - fig. 3 and place one of the accessories on the nozzle of the vacuum cleaner.

The handheld vacuum cleaner can be used with the floor nozzle, crack nozzle or brush nozzle.

Press the on/off button Ⓐ on the handle to switch on the vacuum cleaner.

Slide the on/off button back to switch off the vacuum cleaner and remove the plug from the socket.

After each use, place the vacuum cleaner back on the suspension bracket.

MAINTENANCE

Regularly check the filters to prevent problems. Empty the dust reservoir when it is full and clean or replace the filters when they are dirty.

EMPTYING THE DUST RESERVOIR

It is recommended emptying the dust reservoir after each use. The dust reservoir is full when the amount of dirt has reached the max line.

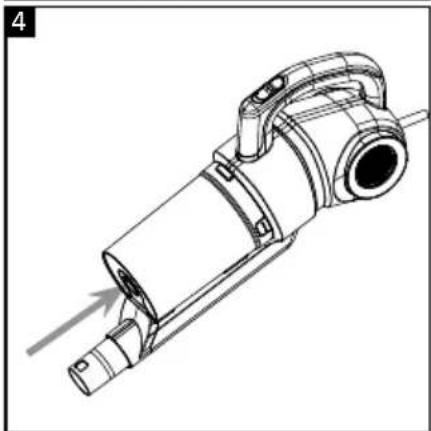

• Press the knob to disconnect the dust reservoir and remove the dust reservoir from the vacuum cleaner - fig. 4.

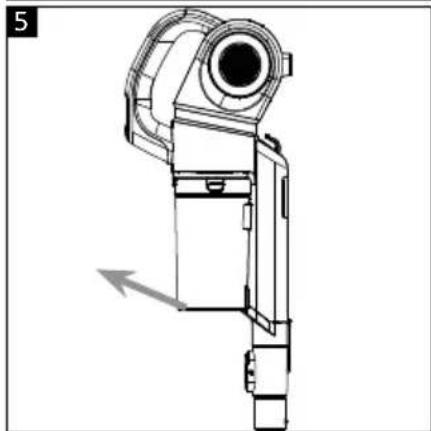

• The entire dust reservoir comes away from the vacuum cleaner - fig. 5. Make sure you hold the dust reservoir upright to prevent the cyclone system from falling out.

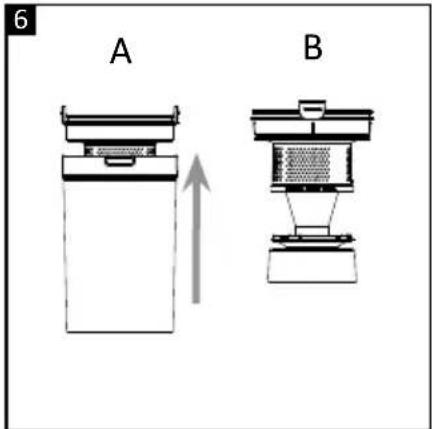

• Remove the cyclone system [B] from the dust reservoir [A] and empty the dust reservoir - fig. 6.
• Place the cyclone system in the dust reservoir and snap it in place to the vacuum cleaner.

CLEANING THE CYCLONE SYSTEM AND FILTERS

First remove the accessories and empty the dust reservoir before cleaning the vacuum cleaner - fig. 4. Clean the filters and cyclone system after each 4th time that the dust reservoir is emptied.

• Press the knob to disconnect the dust reservoir and remove the dust reservoir from the vacuum cleaner - fig. 4.
• The entire dust reservoir comes away from the vacuum cleaner - fig. 5. Make sure you hold the dust reservoir upright to prevent the cyclone system from falling out.
• Remove the cyclone system [B] from the dust reservoir [A] and empty the dust reservoir - fig. 6.

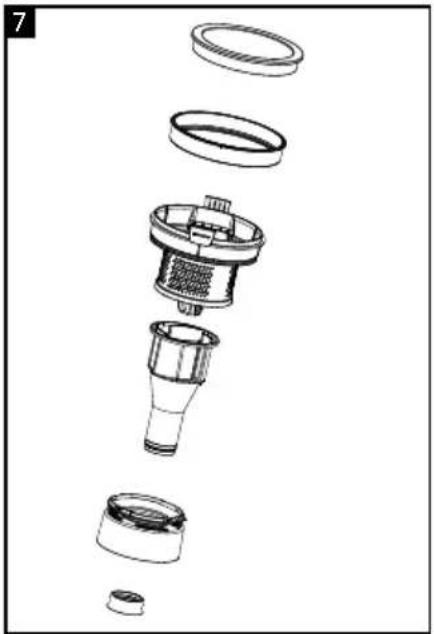

• The cyclone system consists of several parts - fig. 7. In order to clean the cyclone system thoroughly, you can dismantle the cyclone system. Clean the parts with lukewarm running water. Do not use cleaning agents or brushes. Allow the parts to dry in the air. It is possible that the motor filter does not return to its original colour after cleaning. This discolouration does not have an effect on its function.
• Re-assemble all parts when everything is fully dry and place them back in the dust reservoir in reverse order. Caution: the cyclone system fits in the dust reservoir in only one way.
• Properly connect the dust reservoir to the vacuum cleaner and make sure it snaps in place.

Attention

• Only use the vacuum cleaner when the complete cyclone system has been placed. If not, the suction power could be reduced or the motor could be damaged.
• Torn or not properly sealing filters could damage the motor. When a filter is defective, it must be replaced by a new original filter.

STORAGE

After each use, place the vacuum cleaner back on the suspension bracket.

ATTACHING THE SUSPENSION BRACKET

Attach the suspension bracket to the wall by means of the screws and plugs.

• Hold the suspension bracket against the wall at the required position.
  • Demarcate the two screw holes on the wall using a pencil.
• Use a drill to make two holes of at least 4 cm deep on the marks.
• Insert the plugs in the holes.
• Place the suspension bracket on the wall and fasten it with the screws.

RECYCLING
