2834 AG - Drill SKIL - Free user manual and instructions

Product Type	Cordless Hammer Drill/Driver
Brand	Skil
Model	2834 AG
Intended Use	Drilling (wood, metal, ceramic, plastic), hammer drilling (brick), screwdriving and threading
Power Supply	Lithium-ion battery (model Skil 2610Z08494)
Compatible Charger	Skil 2610Z08496 (5h) or 2610Z08495 (3h)
Max Torque (hard screwdriving)	54 Nm (according to ISO 5393)
Torque Adjustment	VariTorque: 19 positions + drill position + hammer drill position
Speeds	2 speeds (LOW: slow, high torque; HIGH: fast, low torque)
Variable Speed	Electronic trigger (0 to max)
Rotation Direction	Reversible (right/left)
Chuck	Keyless (self-tightening)
Lighting	Integrated LED light (turns on automatically)
Weight	Approximately 1.5 kg (with battery)
Sound Level	Sound pressure: 84 dB(A); sound power: 95 dB(A) (uncertainty 3 dB)
Vibration (metal drilling)	< 2.5 m/s²
Vibration (hammer drilling concrete)	10.9 m/s²
Temperature range (operation)	-20 °C to +50 °C
Temperature range (charging)	0 °C to +45 °C
Protection	Double insulation; battery protection (overload, temperature, deep discharge)
Maintenance and Cleaning	Clean the tool and charger; clean charger contacts with alcohol
Spare parts and repairability	Repair exclusively by Skil authorized service; use original parts
Included accessories	Charger, battery, bits (not detailed) – refer to packaging

Frequently Asked Questions - 2834 AG SKIL

How to charge the battery of the Skil 2834 AG drill?

Remove the battery from the tool. Plug the charger (model Skil 2610Z08496 or 2610Z08495) into a mains socket. The green LED lights up. Insert the battery into the charger; the red LED indicates charging. Full charging takes about 3 hours (2610Z08495) or 5 hours (2610Z08496). The green LED lights up again when charging is complete.

What to do if the battery does not charge?

Check that the battery is at room temperature (0-45°C). If it is too cold or too hot, the red LED does not light up. Wait for the battery to reach the permitted temperature range. Also ensure that the contacts are clean and dry.

How to adjust the screwdriving torque?

Use the adjustment ring (VariTorque) located behind the chuck. Turn it from position 1 (low torque) to 19 (high torque). For drilling without hammer, select the position marked with a drill bit; for hammer drilling, the position marked with a hammer. Always start with low torque and increase gradually.

How to use the hammer function?

Set the torque adjustment ring to the 'hammer drilling' position (hammer symbol). Make sure the speed switch is in HIGH position (high speed). Only use hammer for hard materials like brick or concrete. Avoid drilling wood, metal, or ceramic in hammer mode.

How to change the rotation direction?

Use the switch located above the trigger. Push it left for right rotation (screwing), right for left rotation (unscrewing). Only change direction when the tool is completely stopped.

How to select the speed?

Use the two-position speed switch (LOW/HIGH) located on top of the tool. LOW offers slow speed with high torque for screwdriving and drilling large diameters. HIGH offers fast speed with low torque for hammer drilling and small diameters. Only change speed when the tool is running slowly.

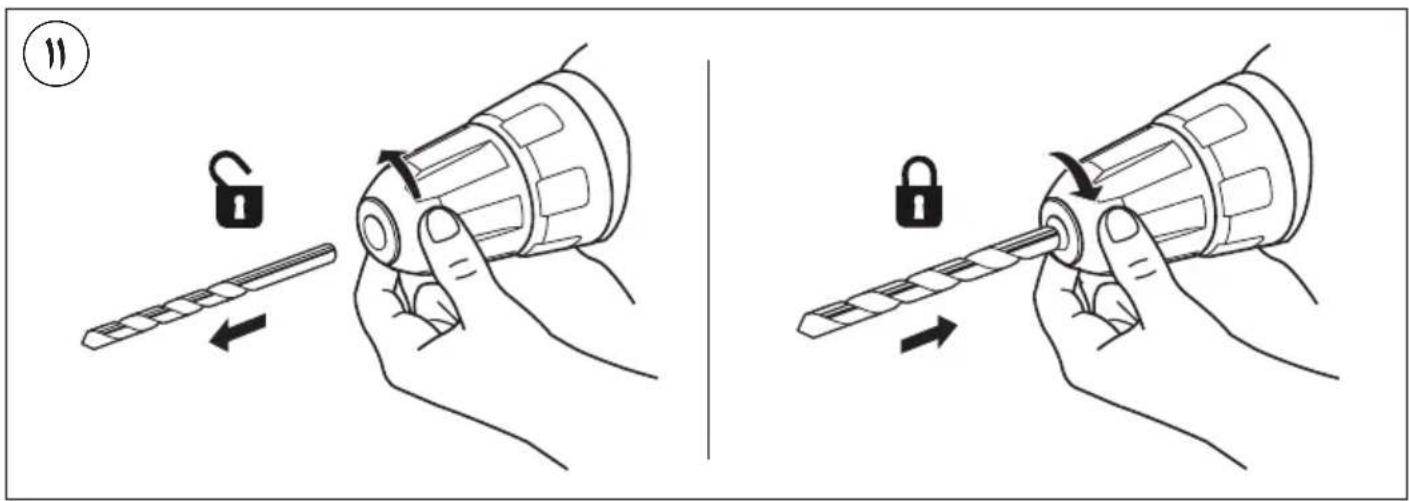

How to change a bit or drill bit?

The tool is equipped with a keyless chuck. Turn the chuck ring by hand to open the jaws, insert the bit or drill bit, then tighten firmly by turning the ring in the opposite direction. Do not use bits with a damaged shank.

What to do if the tool stops suddenly?

The tool is protected against overloads, excessive temperatures, and deep battery discharge. If the tool stops automatically, release the trigger and wait a few moments. If the battery is empty, recharge it. If the problem persists, contact a Skil authorized service center.

How to maintain the Skil 2834 AG drill?

Keep the tool and charger clean and dry. Clean the charger contacts with alcohol. Never use water. Make sure the ventilation slots are not blocked. For any repairs, take the tool to a Skil authorized service center.

What accessories are compatible with this drill?

Use only accessories recommended by Skil. Drill bits and bits must be well sharpened and suitable for the material. The maximum speed of the accessory must be at least equal to the no-load speed of the tool (not specified, but generally 1500 rpm in HIGH). For batteries and chargers, use exclusively Skil models 2610Z08494 (battery), 2610Z08495 or 2610Z08496 (chargers).

USER MANUAL 2834 AG SKIL

Illustration of a SKIL electric drill with labeled grip and blade (no text or symbols beyond branding)

GB ORIGINAL INSTRUCTIONS 9
F NOTICE ORIGINALE 12
D ORIGINALBETRIEBSANLEITUNG 17
NL ORIGINELE GEBRUIKSAANWIJZING 22
S BRUKSANVISNING I ORIGINAL 26
DK ORIGINAL BRUGSANVISNING 30
N ORIGINAL BRUKSANVISNING 34
FIN ALKUPERÄISET OHJEET 38
E MANUAL ORIGINAL 42
P MANUAL ORIGINAL 47
I ISTRUZIONI ORIGINALI 51
H EREDETI HASZNÁLATI UTASÍTÁS 56
CZ PÚVODNÍM NÁVODEM K POUŽÍVÁNÍ 60
TR ORIJINAL İŞLETME TALİMATI 64
PL INSTRUKCJA ORYGINALNA 68
UA ОРИГІНАЛЬНА ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 73

GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 78
RO INSTRUCTIUNI DE FOLOSIRE ORIGINALE 83
BG ОРИГИНАЛНО РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ 87
SK PÔVODNÝ NÁVOD NA POUŽITIE 92
HR ORIGINALNE UPUTE ZA RAD 96
SRB ORIGINALNO UPUTSTVO ZA RAD 100
SLO IZVIRNA NAVODILA 104
EST ALGUPÄRANE KASUTUSJUHEND 108
LV ORIGINALA LIETOŠANAS PAMACIBA 112
LT ORIGINALI INSTRUKCIJA 117
МК ИЗВОРНО УПАТСТВО ЗА РАБОТА 121
AL UDHËZIMET ORIGJINALE 126
AR دليل الاستعمال 138
④ RAHENMAI AUSLI 135

www.skil.com

CE

1014/2834

GB	EU Declaration of conformityCordless impact drill/driver Article number	We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.Technical file at:★
F	Déclaration de conformité UEPerceuse à percussion/visseuse sans fil Numéro d'article	Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.Dossier technique auprès de:★
D	EU-KonformitätserklärungAkku-Schlagbohrmaschine/-Schrauber Sachnummer	Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.Technische Unterlagen bei:★
NL	EU-conformiteitsverklaringOplaadbare klopboor/-schroefmachine Productnummer	Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordningen en overeenstemmen met de volgende normen.Technisch dossier bij:★
S	EU-konformitetsförklaringSladdlös slagborrmaskin/skruvdragare Produktnummer	Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att de stämmer överens med följande normer.Teknisk dokumentation:★
DK	EU-overensstemmelseserklæringAkkuslagbore-/skruemaskine Typenummer	Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestemmelser i følgende direktiver og forordninger og opfylder følgende standarder.Tekniske bilag ved:★
N	EU-samsvarserklæringOppladbar slagbormaskin/skrutrekker Produktnummer	Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og forordningene nedenfor og med følgende standarder.Teknisk dokumentasjon hos:★
FIN	EU-vaatimustenmukaisuusvakuutusAkkuruuvinväännin/-iskuporakone Tuotenumero	Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.Tekniset asiakirjat saatavana:★
E	Declaración de conformidad UETaladradora percutor/atornilladora sin cable Número de artículo	Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las directivas y los reglamentos mencionados a continuación y están en conformidad con las siguientes normas.Documentos técnicos de:★
P	Declaração de conformidade CEBerbequim de percussão/aparafusadora sem fio Número do produto	Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.Documentação técnica pertencente à:★
I	Dichiarazione di conformità UETrapano a percussione/avvitatore a batteria Codice prodotto	Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle direttive e dei regolamenti elencati di seguito, nonché alle seguenti normative.Documentione tecnica presso:★
H	EU konformitási nyilatkozatAkkumulátoros ütvefúró/csavarozó Cikkszám	Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi idevágó előírásainak és megfelelnek a következő szabványoknak.Műszaki dokumentumok megőrzési pontja:★
CZ	EU prohlásení o shoděAku mulátorový příklepovávrtačka/šroubovák Objednací číslo	Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení niže uvedených směrnic a nařízení a je v souladu s následujícimi normami.Technické podklady u:★
TR	AB Uygunluk beyanıAkülü darbeli delme/vidalama makinesi Urün kodu	Tek sorumlu olarak, tanımlanan ŭrünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz.Teknik belgelerin bulunduğu yer:★
PL	Deklaracja zgodności UEAku umulatorowa wiertarkaudarowa/wkrętarkaNumer katalogowy	Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz ze są zgodne z następującymi normami.Dokumentacja techniczna:★
RU	Заявление о соответствии ЕСАккумуляторная ударнаядрель-шуруповерт Товарный номер	Мы заявляем под нашу единоличную ответственность, что названные продукты соответствуют всем действующим предписаниям нижеуказанных директив и распоряжений, а также нижеуказанных норм.Техническая документация хранится у:★
UA	Заява про відповідність ЄСБездротова ударная дриль/викрутнаТоварний номер	Мизаявляемо під нашу одноособову відповідальність, що названі вироби відповідають усім чинним положенням нищеозначених директив і розпоряджень, а також нижчеозначеним нормам.Технічна документація зберігається у:★

GR	Δήλωση πιστότητας EEΕπαναφορτιζόμενοκρόυστικο δράπανο/κατσάβιδο	Αριθμός ευρετηρίου	Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.Τεχνικά έγγραφα στη:★
RO	Declarație de conformitate UEMașină de găurit cu percuție/şurubelnită cu acumulatori	Număr de identificare	Declarăm pe proprie răspundere că produsele menționate corespund tuturor dispozitiilor relevante ale directivelor și reglementărilor enumerate în cele ce urmează și sunt în conformitate cu următoarele standarde.Documentație tehnică la:★
BG	EC декларация за съответствиеАкумулаторен ударен бормашиен/винтоверт	Каталожен номер	С пълна отговорност ние декларираме, че посочените продукти отговарят на всички валидни изисквания на директивите и разпоредбите по-долу и съответства на следните стандарти.Техническа документация при:★
SK	EU vyhlásenie o zhodeAkumulátorový príklepová vřtačka/skrutkovač	Vecné číslo	Vyhlasujeme na výhradnu zodpovednosť, že uvedený výrobok spína všetky príslušné ustanovenia nižšie uvedených smerníc a nariadení a je v súlade s nasledujúcimi normami.Technické podklady má spoločnosť:★
HR	EU izjava o sukladnostiAkumulatorska udarna bušilica/odvijač	Kataloški broj	Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svim relevantnim odredbama direktiva i propisima navedenima u nastavku i da su sukladni sa sljedećim normama.Tehnička dokumentacija se može dobiti kod:★
SRB	EU-izjava o usaglašenostiAkumulatorska vibraciona bušilica/uvrtač	Broj predmeta	Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svim dotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu sa sledećim standardima.Tehnička dokumentacija kod:★
SLO	Izjava o skladnosti ES Akumulatorski vibracijski vrtalnik/vijačnik	Številka artikla	Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vsemi relevantnimi določili direktiv in uredb ter ustreza naslednjim standardom.Tehnična dokumentacija pri:★
EST	EL-vastavusdeklaratsioonAkulöökpuurtrell/-kruvikeeraja	Tootenumber	Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletud direktiivide ja määruste köikidele asjaomastele nõuetele ja on kooskõlas järgmiste normidega.Tehnilised dokumendid saadaval:★
LV	Deklarăcija par atbilstību EK standartiemAkumulatora triecienurbjmašina/skrüvgriezis	Izstrādājuma numurs	Mēs ar pilnu atbildību paziņojam, ka šeit aplūkotie izstrādājumi atbilst visiem tālāk minētajās direktiīvās un rīkojumos ietvertajām saistošajām nostādnēm, kā arī sekojošiem standartiem.Tehniskā dokumentācija no:★
LT	ES atitikties deklaracija Akumuliatorinis smūginis gręžtuvas/suktuvas	Gaminio numeris	Atsakingai pareiškiame, kad išvardyti gaminiai atitinka visus privalomus žemiau nurodytų direktyvų ir reglamentų reikalavimus ir šiuos standartus.Techninė dokumentacija saugoma:★
MK	EU-Изјава за сообразностАкумулаторска вибрациска дупчалка/одвртувач	Број на артикл	Со целосна одговорност изјавуваме, дека опишаните производи се во согласност со сите релевантни одредби на следните регулативи и прописи и се во согласност со следните норми.Техничка документација кај:★
AL	EU Deklarata e konformitetitTrapano me goditje/vidator me bateri	Numri i nenit	Ne deklarojmě me përgjegjësině toně të vetme se produktet e paraqitura janë në përputhje me të gjitha dispozitat e zbatueshme të direktivave dhe rregulloreve të listuara mė poshtė dhe janë në përputhje me standardet si mė poshtė.Dosja teknike nė:★
	10142834	F0151014..F0152834..	2006/42/ECEN 60745-1:2009 + A11:20102014/30/EUEN 60745-2-1:20102011/65/EUEN 55014-1:2006 + A1:2009 + A2:2011EN 55014-2:2015EN 50581:2012
			Skil BVKonijnenberg 624825 BD BredaThe Netherlands
			Olaf DijkgraafApproval ManagerSKIL BV, Konijnenberg 62, 4825 BD Breda, NL01.06.2017

① 1014/2834

2610Z08495

2610Z08496/2610Z08604

② DEF H K SKL G A K J C B L

Simple line drawing of a house with number 4 above it (no text or symbols on the house itself)

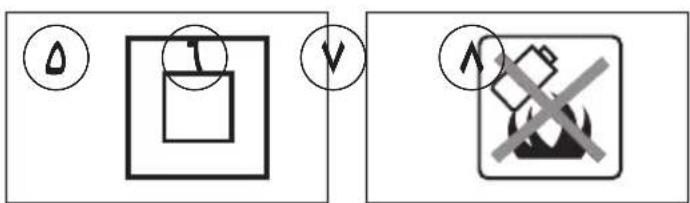

⑤⑥⑦⑧

Warning sign with crossed-out boxes and flames, indicating no fire or explosion hazard

max.50 °C

Simple line drawing of a trash bin with no text or symbols

⑨a ⑨b

C B

C B S72

⑨c

C B SKL

⑨d

d C B 2610Z08495 2610Z08496 2610Z08604 (UK)

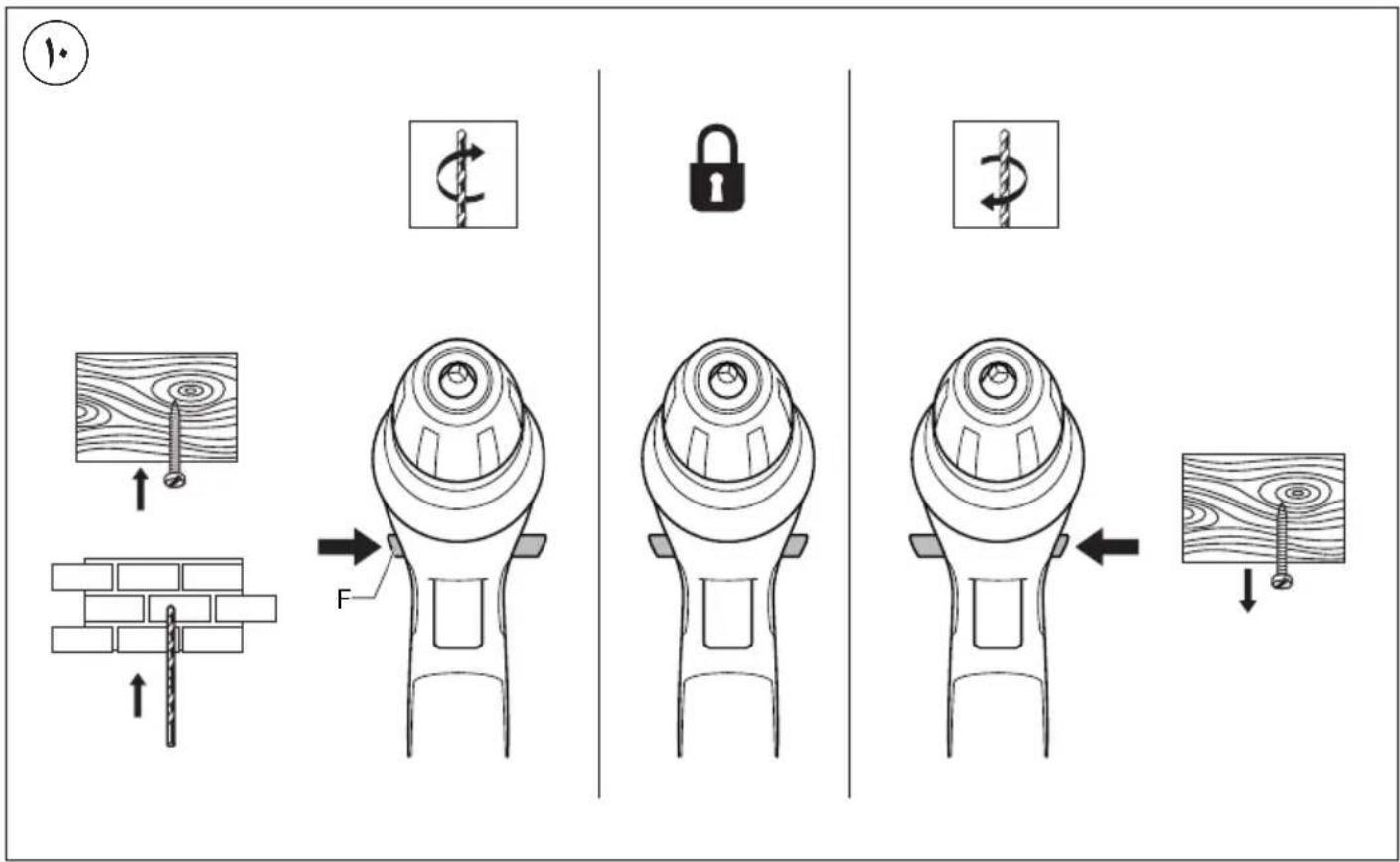

(10) ↓ ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← → F

Illustration showing two-step instructions for using a lock to adjust the internal components of a mechanical device, with numbered callouts.

⑫ C 19 ← 1 D E 1:3.5

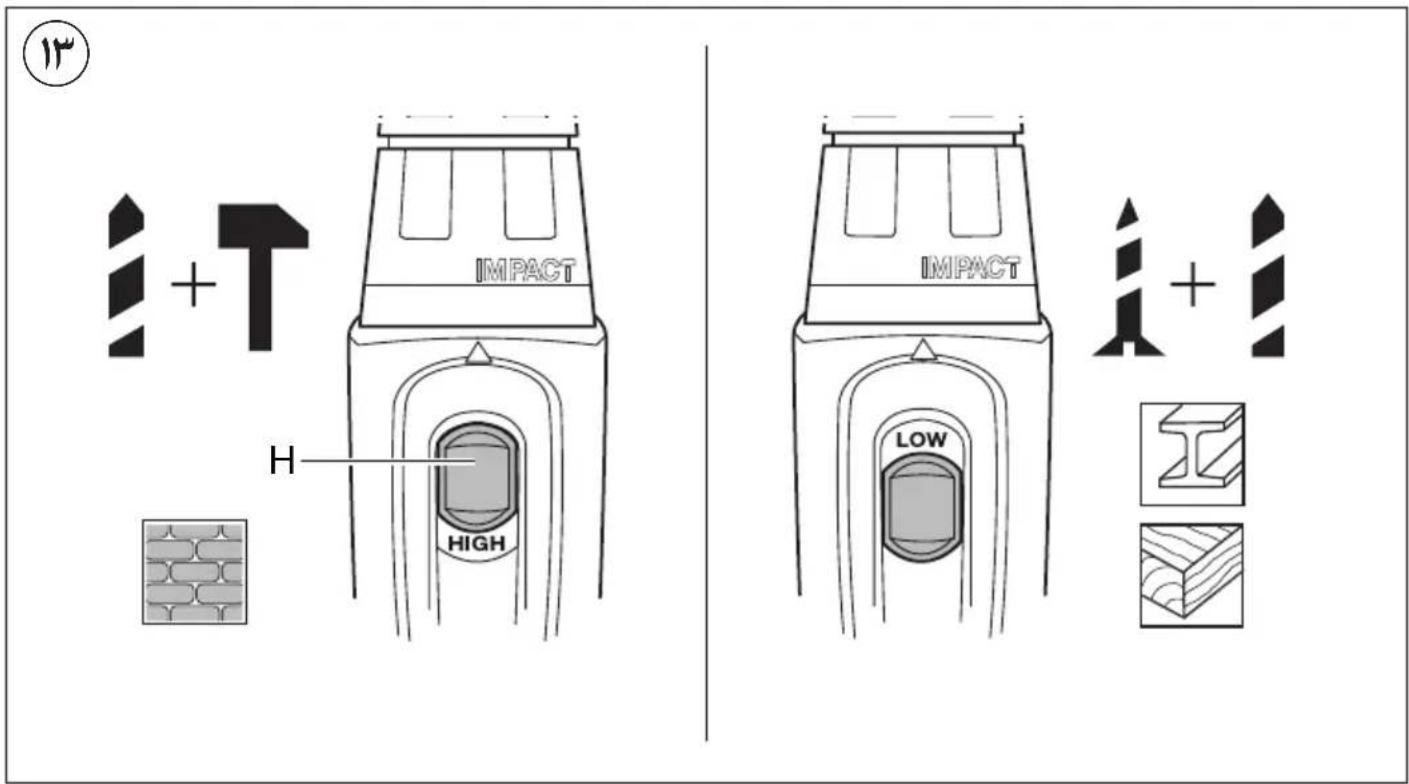

⑬ IMPACT H HIGH IMPACT LOW ⑰

Technical diagram showing two different types of SKIL electric drillers, labeled with parts 14 and 15, indicating tool positioning or assembly.

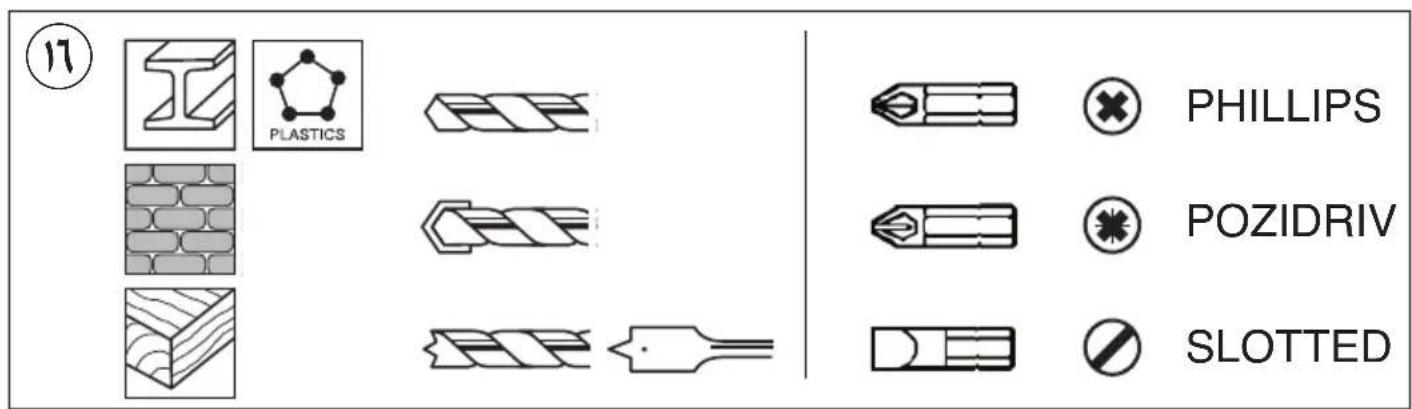

(16) PLASTICS PHILLIPS POZIDRIV SLOTTED

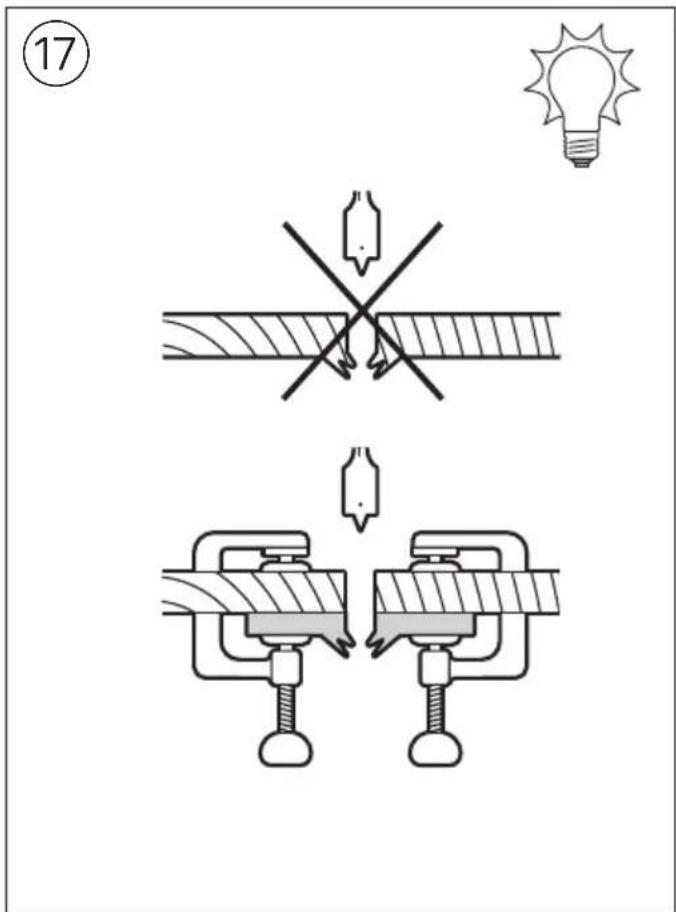

(17)

Line drawing of a hand holding a SKIL electric shaver with a light bulb icon nearby (no text or symbols on the diagram itself)

19 TEN/NIS SKIL

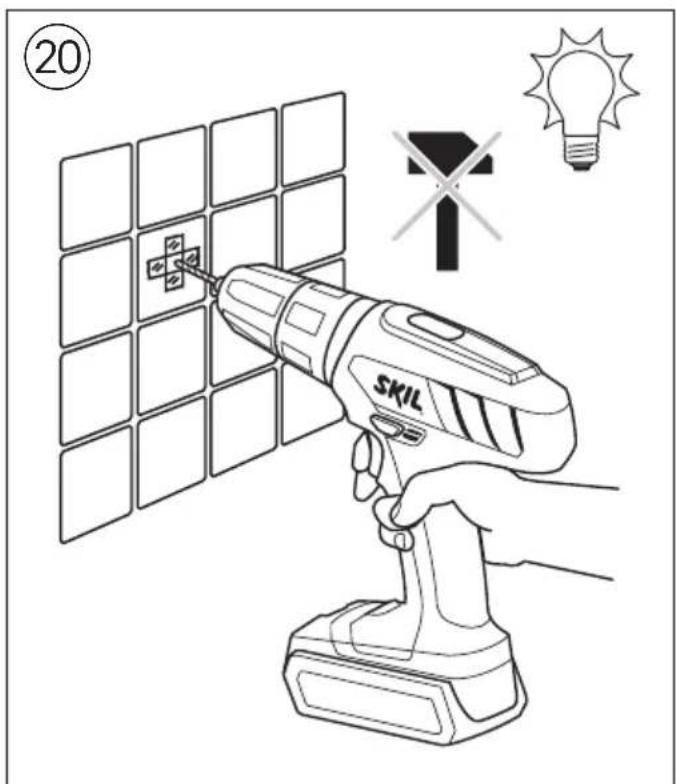

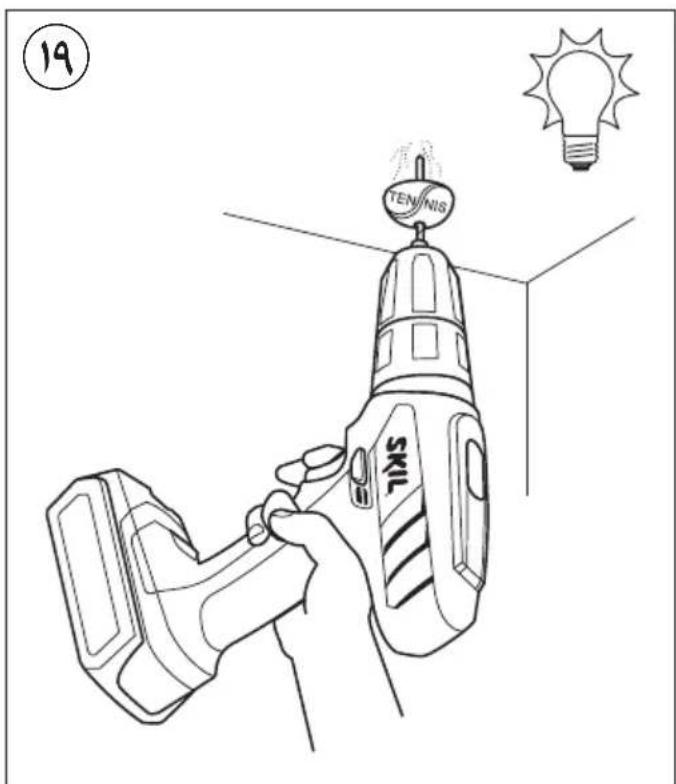

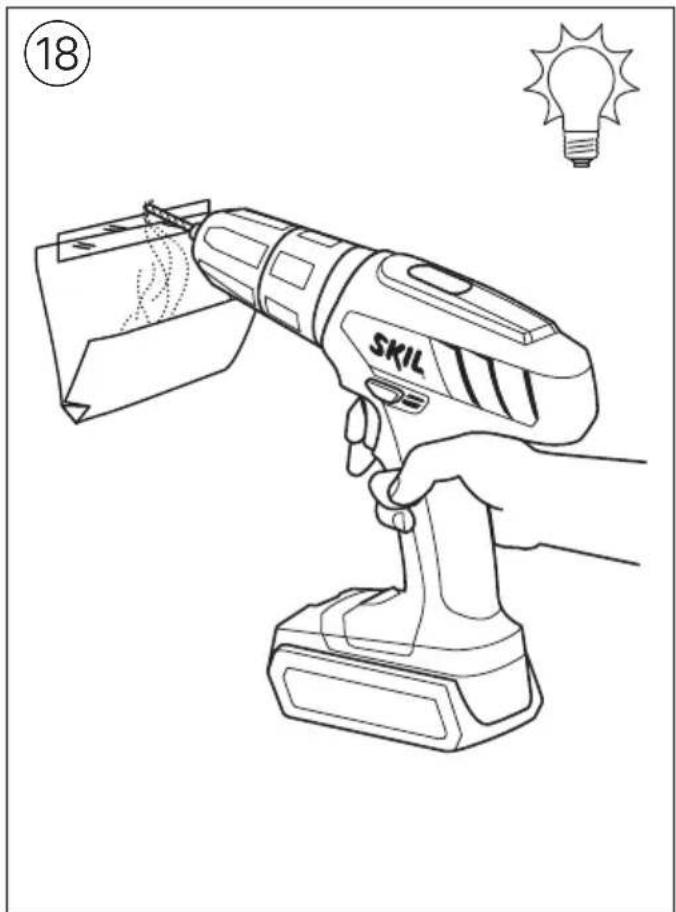

20 SKIL

ACCESSORIES

→ WWW.SKIL.COM

GB

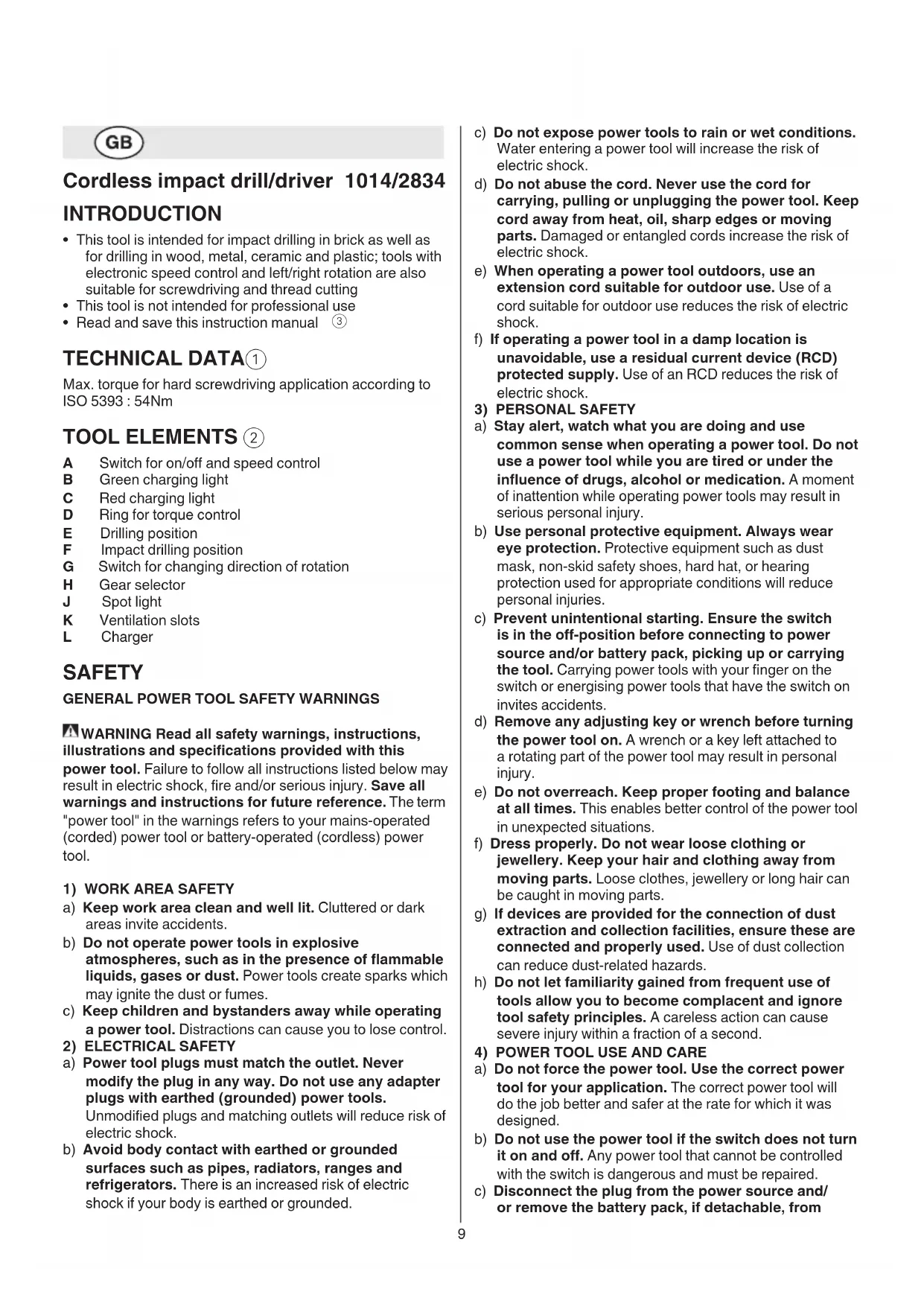

Cordless impact drill/driver 1014/2834 INTRODUCTION

• This tool is intended for impact drilling in brick as well as for drilling in wood, metal, ceramic and plastic; tools with electronic speed control and left/right rotation are also suitable for screwdriving and thread cutting
  • This tool is not intended for professional use
• Read and save this instruction manual ③

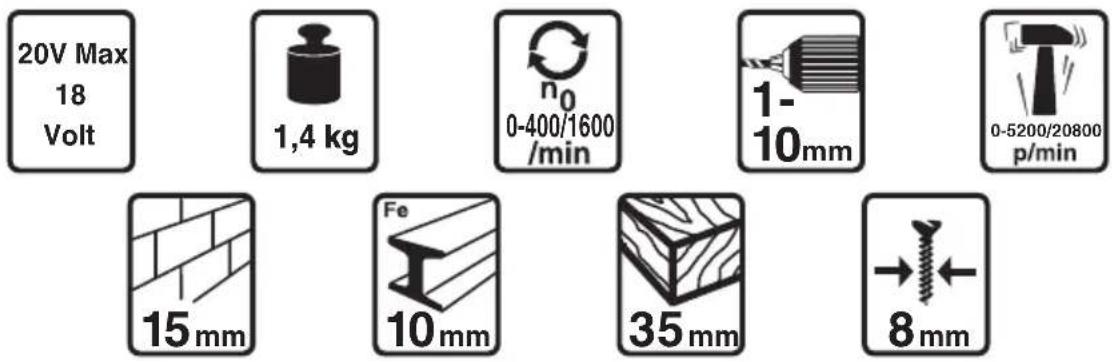

TECHNICAL DATA①

Max. torque for hard screwdriving application according to ISO 5393 : 54Nm

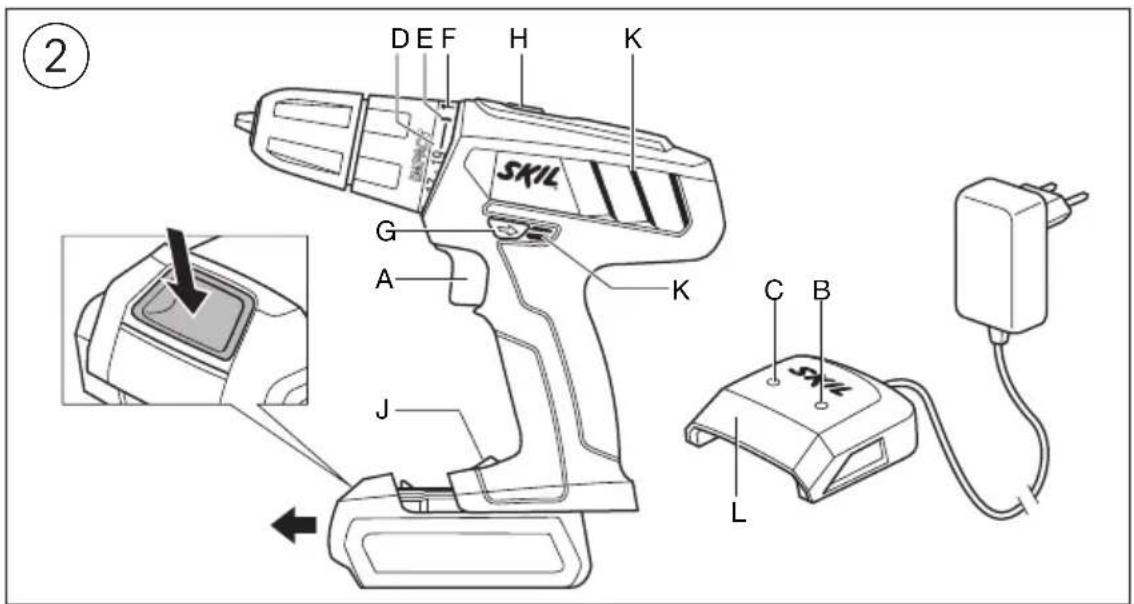

TOOL ELEMENTS ②

A Switch for on/off and speed control

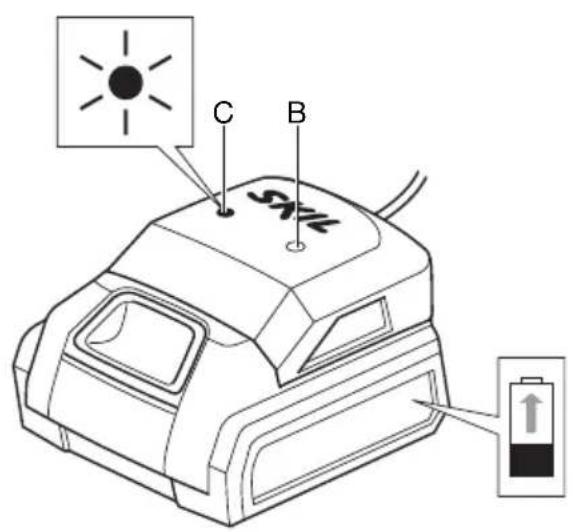

B Green charging light
C Red charging light

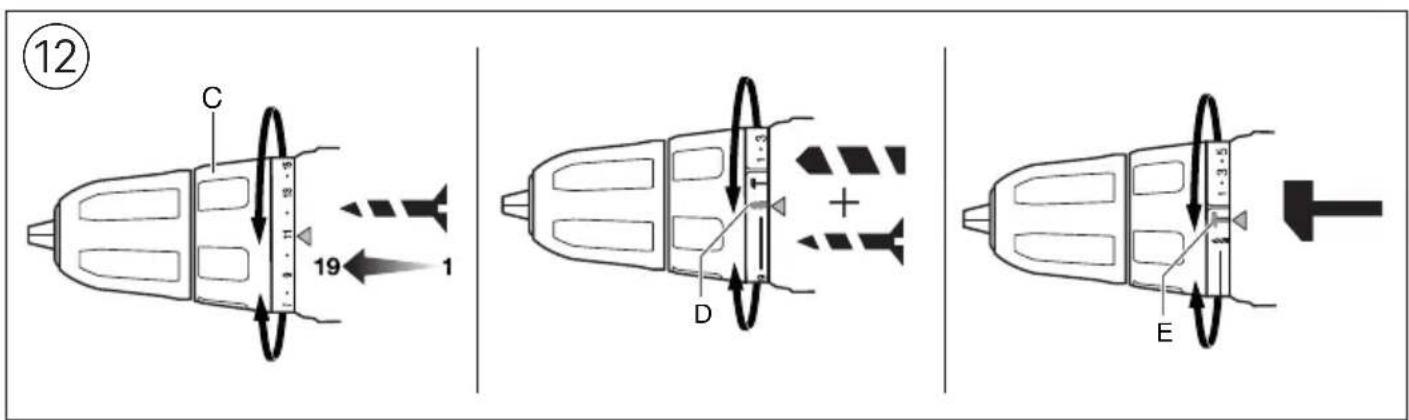

D Ring for torque control
E Drilling position
F Impact drilling position
G Switch for changing direction of rotation
H Gear selector

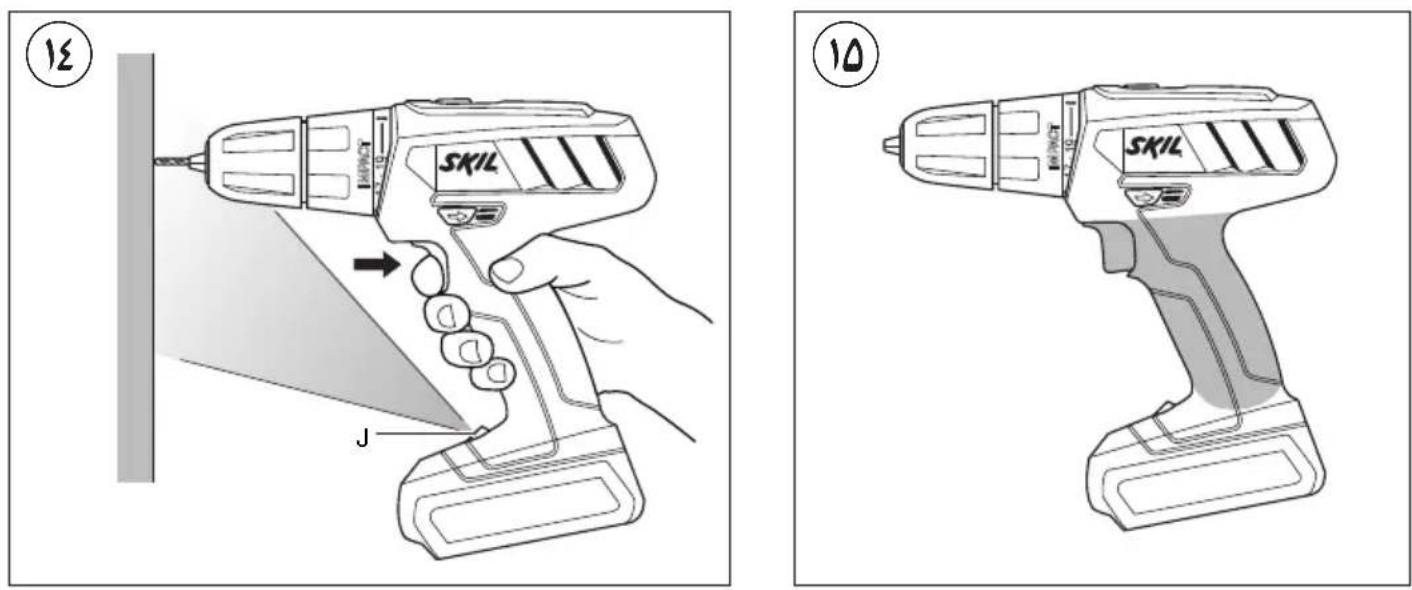

J Spot light
K Ventilation slots
L Charger

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

A WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

2) ELECTRICAL SAFETY

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from

3) PERSONAL SAFETY

4) POWER TOOL USE AND CARE

the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ C may cause explosion.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SAFETY INSTRUCTIONS FOR CORDLESS DRILL/DRIVERS

GENERAL

- Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable

- Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable

- Follow the dust-related national requirements for the materials you want to work with

- Do not work materials containing asbestos (asbestos is considered carcinogenic)

- Ensure that switch G ② is in the middle (locking) position before making any adjustments or changing accessories as well as when carrying or storing the tool

ACCESSORIES

- SKIL can assure flawless functioning of the tool only when original accessories are used

- Use only accessories with an allowable speed matching at least the highest no-load speed of the tool

BEFORE USE

- Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working

- Always check that the supply voltage is the same as the voltage indicated on the nameplate of the charger

- Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than by hand)

- Use suitable detectors to find hidden utility lines or call the local utility company for assistance (contact with electric lines can lead to fire or electrical shock; damaging a gas line can result in an explosion; penetrating a water pipe will cause property damage or an electrical shock)

DURING USE

- Wear ear protectors when impact drilling (exposure to noise can cause hearing loss)

- Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fastener may contact hidden wiring (cutting accessory and fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock)

- In case of electrical or mechanical malfunction, immediately switch off the tool or unplug charger from power source

CHARGING/BATTERIES

- This charger can be used by children aged 8 and above and by persons who

have physical, sensory or mental limitations or a lack of experience or knowledge if a person responsible for their safety supervises them or has instructed them in the safe operation of the charger and they understand the associated dangers (otherwise, there is a danger of operating errors and injuries)

- Supervise children (this will ensure that children do not play with the charger)

- Cleaning and user maintenance of the battery charger shall not be made by children without supervision

• Only use SKIL charger 2610Z08496 (Ü.K. 2610Z08604) or 2610Z08495 and SKIL battery pack 2610Z08494 with this tool
• Charge battery only with the charger that is supplied with the tool
• Do not touch the contacts in the charger
• Do not expose tool/charger/battery to rain
• Do not charge battery in damp or wet environments
• Do not use charger when damaged; take it to one of the officially registered SKIL Service Stations for a safety check
• Do not use charger when cord or plug is damaged; cord or plug should be replaced immediately at one of the officially registered SKIL Service Stations
• Do not use battery when damaged; it should be replaced immediately
• Do not disassemble charger or battery
• Do not attempt to recharge non-rechargeable batteries with the charger
• Permitted ambient temperature (tool/charger/battery):
• when charging 0...+45°C
• during operation -20...+50°C
• during storage -20...+50°C

EXPLANATION OF SYMBOLS ON TOOL/CHARGER/BATTERY

③ Read the instruction manual before use
④ Only use the charger indoors
⑤ Double insulation (no earth wire required)
⑥ Batteries may explode when disposed of in fire, so do not burn battery for any reason
⑦ Store tool/charger/battery in locations where temperature will not exceed 50°C
⑧ Do not dispose of electric tools and batteries together with household waste material

USE

- Combined switch for on/off and speed control A ② Control the speed steplessly from zero to maximum by putting less or more pressure on the trigger

- Charging battery ⑨

!remove battery from tool

-connect charger to power source as illustrated ⑨a

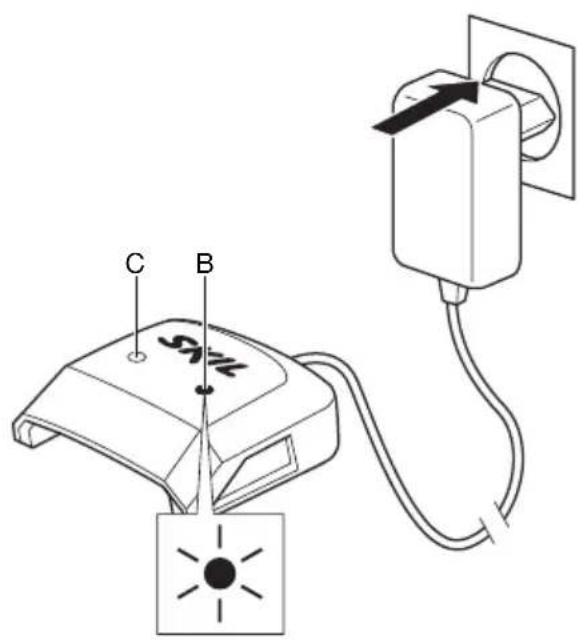

-green light B will turn on indicating that the charger is ready for operation ^9 a

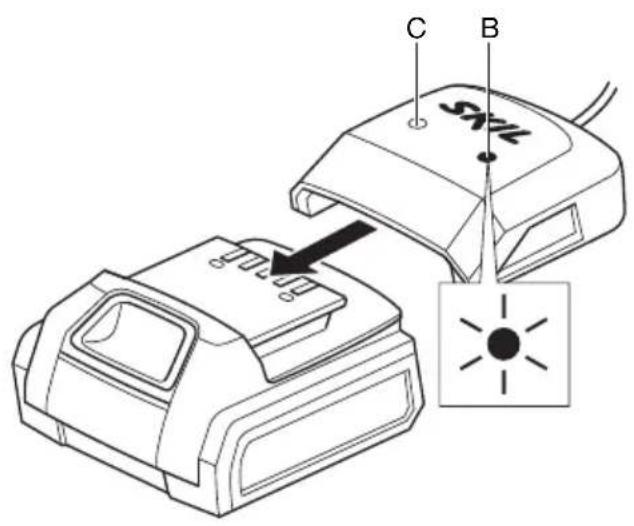

-insert battery into charger as illustrated ⑨b

-red light C will turn on indicating that the battery is being charged ⑨c

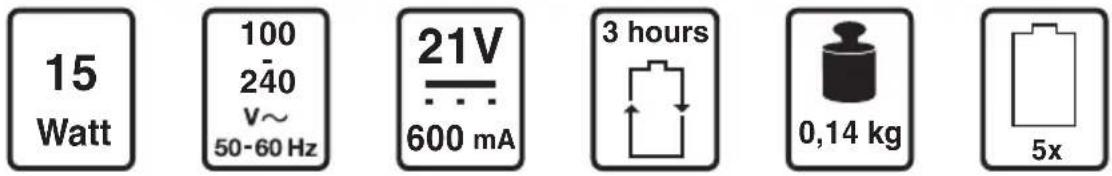

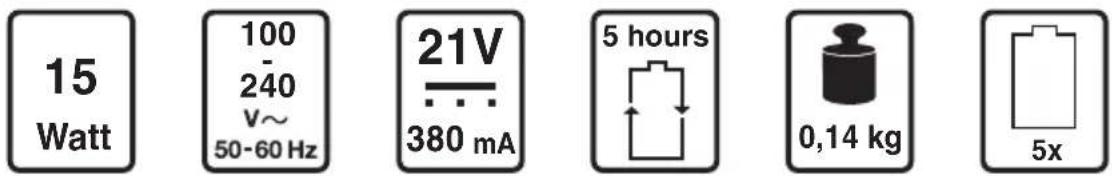

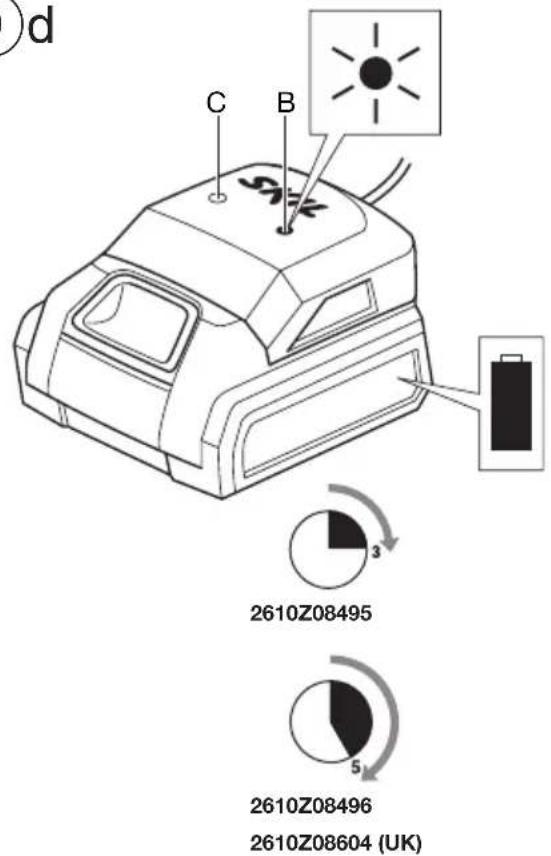

- after approximately 3 hours (2610Z08495) / 5 hours (2610Z08604) the battery is fully charged and green light B turns on ⑨d

!remove battery from charger after charging period has ended thereby lengthening the service life of the battery

IMPORTANT:

-if red light C does not turn on after inserting a battery, this may mean that the battery is too cold or too hot (charger only charges batteries when its temperature is between 0°C and 45°C)

-the lithium-ion battery can be charged at any time (interrupting the charging procedure does not damage the battery)

-the lithium-ion battery does not have to be empty before charging (no "memory-effect" as with nickel-cadmium batteries)

-while charging, the charger and the battery may become warm to touch; this is normal and does not indicate a problem

-ensure that the outside surface of the battery is clean and dry before inserting into charger

-do not remove battery from tool while it is running

-if you anticipate long periods of non-use for the tool, it is best to unplug the charger from its power source

-when the lithium-ion battery is empty, the tool is switched off automatically

-a significantly reduced working period after charging indicates that the battery is worn out and should be replaced

- Changing direction of rotation ⑩

-when not properly set in left/right position, switch A② cannot be activated

!change direction of rotation only when tool is at a complete standstill

- Changing bits ⑪

!do not use bits with a damaged shank

- Torque control (VariTorque) ⑫

-output torque will increase as clutch ring D is rotated from 1 to 19

-when turning in a screw, first try VariTorque position 1 and increase until the desired depth has been reached

-position E will lock up the clutch to permit (non-impact) drilling or driving heavy-duty work

-position F will lock up the clutch to permit impact drilling only

!ensure that gear selector H is in position HIGH when clutch ring D is in impact drilling position !do not use impact drilling position F for drilling in wood, metal, ceramic and plastic to prevent the drill/screw bit from being damaged

• Mechanical gear selection13-set selector H to desired speed!actuate the gear selector while tool is running slowlyLOW-low speed-high torque-for screwdriving and drilling large diameters-for tapping threadHIGH-high speed-lower torque-for impact drilling-for drilling small diameters

Battery protectionSwitches off the tool or prevents the tool from being switched on, when-the load is too high-the battery temperature is not within the allowable operating temperature range of -20 to +50°C-the lithium-ion battery is nearly empty (to protect against deep discharge)!do not continue to press the on/off switch after the tool is switched off automatically; battery may be damaged

- Spot light J ⑭

Spot light J automatically lights on when activating switch A ②

- Holding and guiding the tool ⑮ !while working, always hold the tool at the grey-coloured grip area(s)

-keep ventilation slots K② uncovered

-do not apply too much pressure on the tool; let the tool do the work for you

APPLICATION ADVICE

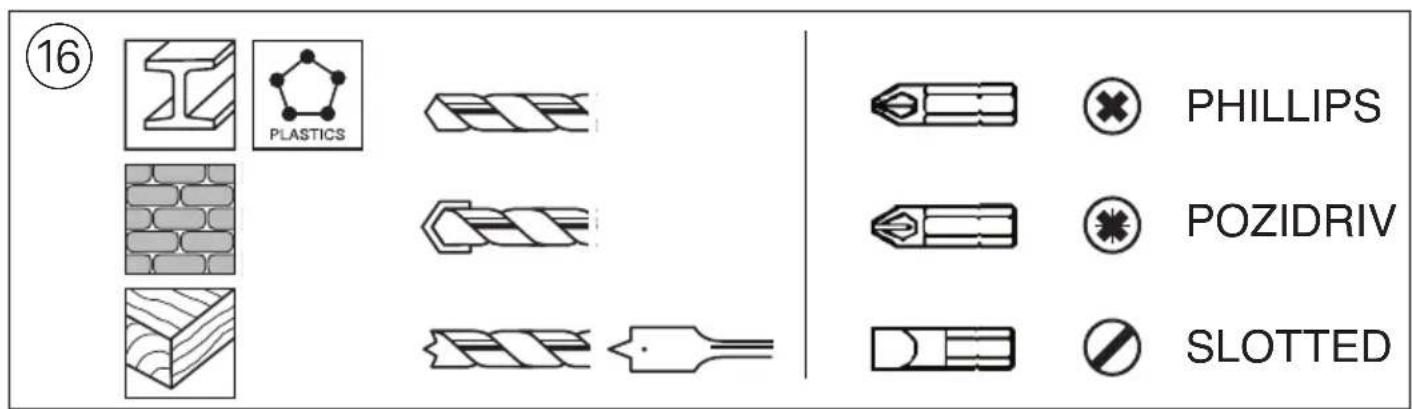

• Use the appropriate bits ⑯ !only use sharp bits
• When drilling ferrous metals
• pre-drill a smaller hole, when a large hole is required
• lubricate drill bit occasionally with oil
• When turning in a screw at/near the cross cut end or an edge of wood, pre-drill a hole in order to avoid cracking of the wood
• For an optimal use of the tool a steady pressure on the screw is required, especially while removing
• When screwdriving in hard wood one should pre-drill a hole
• Splinterfree drilling in wood ⑰
  • Dustfree drilling in walls ⑱

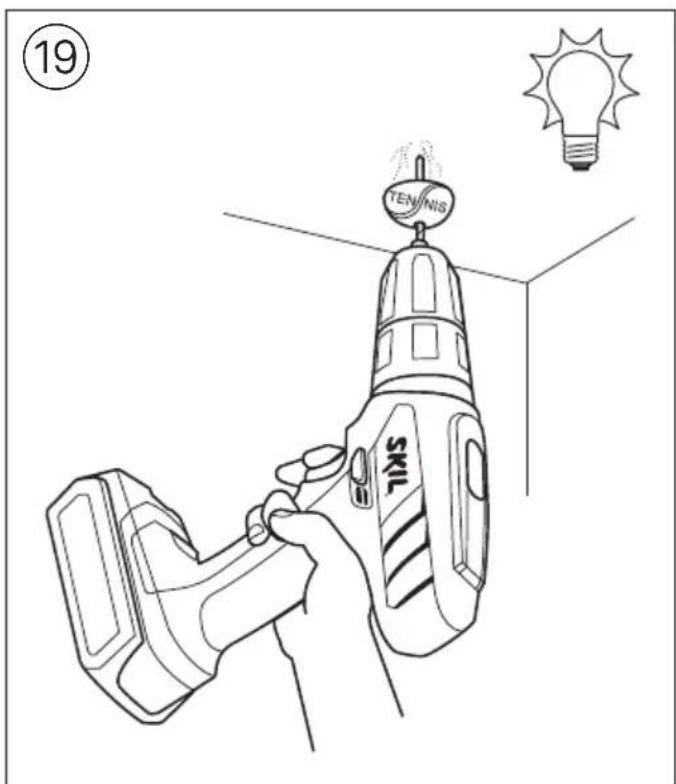

  • Dustfree drilling in ceilings ⑲

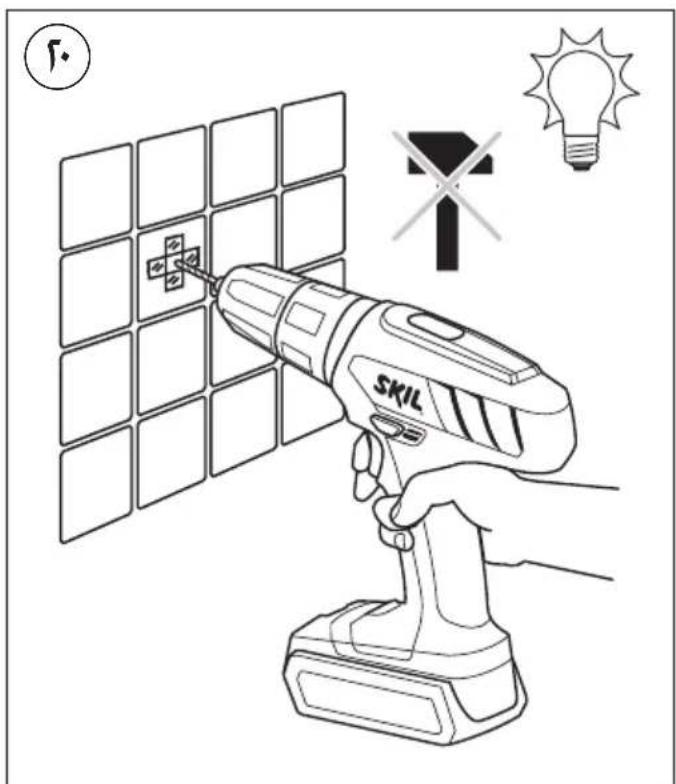

• Drilling in tiles without skidding ⑳
• For more tips see www.skil.com

MAINTENANCE / SERVICE

• This tool is not intended for professional use
- Keep tool and charger clean -clean charging contacts in charger with alcohol or contact cleaner !unplug charger from power source before cleaning

- If the tool/charger should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

• send the tool or charger undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)
• in case of a defective charger send both charger and battery to your dealer or the SKIL service station

ENVIRONMENT

• Do not dispose of electric tools, batteries, accessories and packaging together with household waste material (only for EU countries)
  -in observance of European Directive 2012/19/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility
  -symbol ⑧ will remind you of this when the need for disposing occurs
  !prior to disposal protect battery terminals with heavy tape to prevent short-circuit

NOISE / VIBRATION

• Measured in accordance with EN 60745 the sound pressure level of this tool is 84 dB(A) and the sound power level 95 dB(A) (standard deviation: 3 dB), and the vibration * (triax vector sum; uncertainty K = 1.5 m/s^2 )
  * when drilling in metal < 2.5 m/s ^2
  * when impact drilling in concrete 10.9 m/s ^2

- The vibration emission level has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

-using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
-the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

!protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

- Splitterfreies Bohren in Holz ⑰

1) SIKKERHET PÅ ARBEIDSPLASSEN

a) Hold arbeidsområdet rent og ryddig. Rotete arbeidsområder eller arbeidsområder uten lys kan føre til ulykker.
b) Ikke arbeid med elektroverktøyet i eksplosjonsutsatte omgivelser – der det befinner

VEDLIKEHOLD / SERVICE

APKALPOŠANA / APKOPE

TECHNINIAI DUOMENYS ①

Simple line drawing of a pencil (no text or symbols)

Diagram illustrating light bulb installation and mounting process with labeled components and cross-sections

Line drawing of a hand holding a SKIL electric shaver with a light bulb icon nearby (no text or symbols on the device itself)

19 TEN/NIS SKIL

Illustration of a hand using a SKIL power tool to install a solar panel, with icons for light bulb, wind direction, and switch.

IMPACT H HIGH IMPACT LOW I + I

Technical diagram showing two different tool configurations: one with a hand holding a SKIL electric drill, the other with a second labeled SKIL.

17 PLASTICS PHILLIPS POZIDRIV SLOTTED

Illustration showing two-step instructions for using a lock on a mechanical component, with numbered callouts.

C 19 ← 1 D E 1:3.5

⑨a ⑨b

C B

C B SZN

⑨c

C B SKL

9d

d C B 2610Z08495 2610Z08496 2610Z08604 (UK)

1
1014/2834

2610Z08495

2610Z08496/2610Z08604

DEF H K SXL G A K J C B L

Symbolic icon showing a person using a laptop and a document, with a circular icon containing a stylized number 1 (no text or symbols present)

Simple line drawing of a house with a circled number 3 above it (no text or symbols on the house itself)

Two safety symbols: one with warning symbol and two without crossed-out firecracker, both marked with icons.

max.50 °C

Simple line drawing of a trash bin with no text or symbols

Black SKIL electric drill put with visible impact and brand mark (no text or symbols on the tool body)

دليل الاستعمال AR راهنماي اصلی FA
