USER MANUAL 60.2032.54 TFA

⑥ Instruction manual

Thank you for choosing this instrument from TFA.

Before you use this product

• Please make sure you read the instruction manual carefully.
• The operating instructions are enclosed with the device or can be downloaded at
  www.tfa-dostmann.de/en/service/downloads/instruction-manuals
• This product should only be used as described within these instructions.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from
  detects due to incorrect use. We shall not be liable for any damage occurring as a result of non-following of these instructions.
• Please take particular note of the safety advice:
• Please keep this instruction manual sale for future reference.

Pure electrical circuit lines without any symbols

B2B3B4B5B6B7 ON OFF TIME SET OFF DIP ALARM SET ON OFF C 2C 2 ON OFF B8C1B9

B 6: ALARM SET Taste

Digital alarm clock with various alarm sounds

1. Delivery contents

• Digital alarm clock

- Micro USB cable

• Instruction manual

2. Range of application and all the benefits of your new instrument at a glance

• 13 alarm sounds (melodies and nature sounds)
• Two alarm times and snooze function
• 3 volume levels
• In particular temperature (°C)
- Mirrored colour display with 4 brightness levels

GB

• Display turns off automatically after 6 seconds (Energy saving fea-
  (ture)
• Touch or clap-activated display
  • ON/OFF switch
• Integrated battery for charging via micro-USB cable (included)

3. For your safety

• This product is exclusively intended for the range of application
described above. It should only be used as described within these
Instru
- Unauthorised repairs, alterations or changes to the product are prohibited.

Digital alarm clock with various alarm sounds

GB

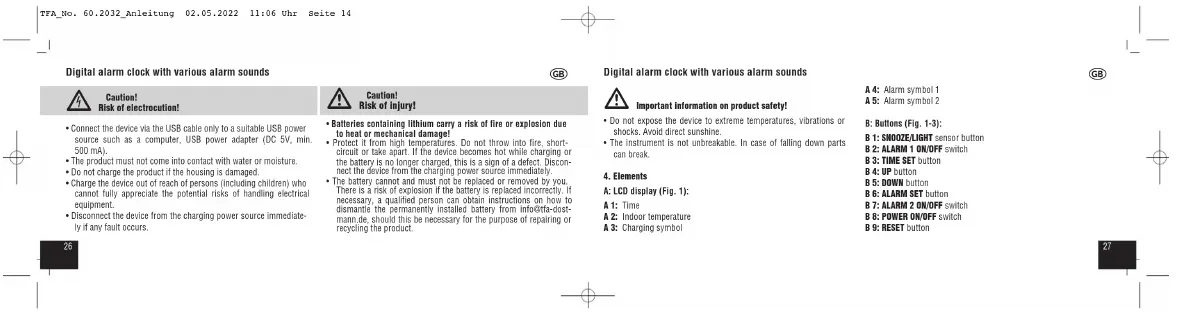

Caution! Risk of electrocution!

• Connect the device via the USB cable only to a suitable USB power source such as a computer, USB power adapter (DC 5V, min 500 mA).
  • The product must not come into contact with water or moisture.
• Do not charge the product if the housing is damaged.
• Charge the device out of reach of persons (including children) who cannot fully appreciate the potential risks of handling electrical equipment.
• Disconnect the device from the charging power source immediately if any fault occurs.

Caution! Risk of injury!

• Batteries containing lithium carry a risk of fire or explosion due to heat or mechanical damage!
• Protect it from high temperatures. Do not throw into fire, short-circuit or take apart. If the device becomes hot while charging or the battery is no longer charged, this is a sign of a defect. Disconnect the device from the charging power source immediately.
• The battery cannot and must not be replaced or removed by you. There is a risk of explosion if the battery is replaced incorrectly. If necessary, a qualified person can obtain instructions on how to dismantle the permanently installed battery from [e-mail], should this be necessary for the purpose of repairing or recycling the product.

Digital alarm clock with various alarm sounds

Important information on product safety!

• Do not expose the device to extreme temperatures, vibrations or shocks. Avoid direct sunshine.
• The instrument is not unbreakable. In case of falling down parts can break.

4. Elements

A: LCD display (Fig. 1):

A 1: Time
A 2: Indoor temperature
A 3: Charging symbol

A 4: Alarm symbol 1

A 5: Alarm symbol 2

B: Buttons (Fig. 1-3):

B 1: SNOOZE/LIGHT sensor button
B 2: ALARM 1 ON/OFF switch
B 3: TIME SET button
B 4: UP button
B 5: DOWN button
B 6: ALARM SET button
B 7: ALARM 2 ON/OFF switch
B 8: POWER ON/OFF switch
B 9: RESET button

GB

Digital alarm clock with various alarm sounds

C: Housing (Fig. 2):

C 1: USB 5V port

C 2: Speaker

1. Charging

• The red charging symbol appears when the battery needs to be
charged. Please charge the device immediately to preserve battery life.
- Plan the supplied USB-cable into the designated port on the c
and connect the unit to a suitable USB power source.
- Do not apply excessive force when connecting a USB cable. The
USB plug fits only one way into the USB port.
- To fully charge, leave the device connected for approximately 6 hours.

• The red charging symbol indicates now that the built-in rechargeable battery is charging. As soon as the charging symbol turns off, the built-in rechargeable battery is fully charged.
• Disconnect the device from the charging power source.
• Recharge the battery every six months, even if the product is not in use.

6. Getting started

• Before the first use, please charge it fully
- Slide the POWER ON/OFF switch to ON.
• The display appears for 6 seconds
• 12:00 and the indoor temperature appear on the display.

Digital alarm clock with various alarm sounds

1. Illumination

- Press the SMOOZE/LIGHT sensor button to adjust the brightness in 4 levels.

• To save energy, the display switches off automatically after 6 seconds if the device is not connected to the mains. The display remains permanently active when you leave the unit connected to a USB power source.
- To temporarily activate the display, touch the alarm clock slightly or make a loud sound (such as clapping your hands).

1. Operation
   8.1 Time setting
2. Press and hold the TIME SET button for three seconds to enter the setting mode.

• The hour digit will be flashing. Press the UP or DOWN button to
• Confirm the setting with the TIME SET button and set minutes in the same way.
• Confirm the setting with the TIME SET button.
  • The display shows the current time
• The device will automatically quit the setting mode if no button is pressed for 9 seconds.

8.2 12/24-hour display setting

- Press the TIME SET button briefly in normal mode to set the 12 HR or 24 HR system (default 24 Hr). In the 12 Hr system AM or PM (after 12 a'clock) appears on the display.

Digital alarm clock with various alarm sounds

8.3 Temperature unit setting

- Press the UP button in normal mode to change between °C (Celsius) or °F (Fahrenheit) as temperature units.

9. Alarm clock function

9.1 Alarm time setting

• Press and hold the ALARM SET button in normal mode for three seconds to enter the alarm setting mode.
• 6:00 (default) or the last adjusted alarm time 1 appears on the display.
  • The hour digit and the alarm symbol 1 start flashing.
• Press the UP or DOWN button to adjust the hours. Press and hold the buttons for fast mode.
• Confirm the setting with the ALARM SET button.

• Set the minutes in the same way.
• Confirm the setting with the ALARM SET button.
• "1" flashes on the display and the first alarm melody sounds. 13 different alarm sounds are available (melodies and nature sounds). Press the UP or DOWN button to select the alarm sound. Confirm the setting with the ALARM SET button.
• 6:00 (default) or the last adjusted alarm time 2 appears on the display. The hour digit and the alarm symbol 2 start flashing.
• Alarm 2 can be adjusted in the same way.
• Confirm the setting with the ALARM SETbutton.
  • The display shows the current time.
• Note: You can exit the alarm setting mode at any time. Wait 9 seconds, the device will automatically use the settings you have made so far.

Digital alarm clock with various alarm sounds

9.2 Activate and deactivate the alarm

• To activate or deactivate alarm 1 and / or 2, slide the respective ALARM ON/OFF switch to ON or OFF.

- When the alarm is activated, the respective alarm symbol will appear on the display.

9.3 Wake-up process

• When the set alarm time is reached, the alarm clock will wake you up with the selected setting. The display is activated. The corresponding alarm symbol flashes
• Press any button (except SHOOZE/LIGHT) and the alarm will stop.
• The alarm sound automatically turns off after 2 minutes if not stopped manually.

• When the alarm rings, press the SNOOZE/LIGHT sensor button
  briefly and the snooze function is activated.
• Once the snooze function is activated, the alarm symbol will be flashing on the display.
  • The alarm will be interrupted for 5 minutes.
• Press any button (except SNOOZE/LIGHT) and the snooze function will stop

9.4 Sleep mode

• Press the ALARM SET button in normal mode. An alarm sound (melody or nature sound) sounds for 5 minutes
• Press the ALARM SET button and the alarm sound will stop. Press the ALARM SET button again to select the next alarm sound (13 options).

Digital alarm clock with various alarm sounds

9.5 Volume setting

- Press the DOWN button in normal mode. An alarm sound sounds. Press the DOWN button to adjust the respective volume (3 levels). - Confirm the setting with the ALARM SET, TIME SET or UP button or wait 5 seconds.

10. Care and maintenance

- Clean the device with a soft damp cloth. Do not use solvents or scouring agents.

- Turn off the device if you do not use it for a long period of time. Slide the POWER ON/OFF switch to OFF. The settings are saved. - Store the device in a dry place.

11. Troubleshooting

Problem Solution

Novineak display → Slide the POWER ON/OFF

on the device switch to ON

→ Charge the device
→ Set the brightness with the
SNOOZE/LIGHT button
→ Short-term activation of the
display by touch or sound
Permanent operation with USB Impairs operating or

USB-/mains connection only!

Incorrect indication → Set the clock

Digital alarm clock with various alarm sounds

→ Restart the instrument

according to the manual

→ Use a pin to press the RESET button

Alarm clock does not ring → Slide the ALARM switch 1 and

or 2 to ON

If your device fails to work despite these measures, please contact the retailer where you purchased the product from for advice.

12. Waste disposal

This product and its packaging have been manufactured using high-grade materials and components which can be recycled and reused.

This reduces waste and protects the environment.

Dispose of the packaging in an environmentally friendly manner using the collection systems that have been set up.

Disposal of the electrical device

Caution! This device contains a built-in battery that cannot be removed without damaging the housing. Improper removal represents a safety risk. Hand in the device unopened at the collection point; the device and battery will be disposed of properly. This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). This product must not be disposed of in ordinary household waste.

Digital alarm clock with various alarm sounds

As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal. Observe the current regulations in place!

Batteries containing lithium can explode

- Old batteries and rechargeable batteries containing lithium (Li=llithium) present a high risk of fire and explosion due to heat or mechanical damage with potentially serious consequences for people and the environment. Pay particular attention to correct disposal.

GB

13. Specifications

Power consumption Built-in Li-Ion rechargeable battery

Capacity / Energy 3.7V / 1200 mAh

Charging power source Micro-USB 5V, 500mA

Accessories Charging cable

Charging time About 6 hours

Energy-saving mode Stand-by after 6 seconds

[In battery operation] Noise sensor switches display on at

90 dB volume level

Digital alarm clock with various alarm sounds

Measuring range

temperature 0 °C ... +50°C (32°F...122°F)

Temperature accuracy ±1.0 °C

Housing dimension 145 x 65 x 32 mm

Weight 161 g (device only)

GB

He part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.

The latest technical data and information about the product can be found in our homepage by simply entering the product number in the search box
