Product type	Electric scooter
Brand and model	Segway KickScooter P100SE
Dimensions (unfolded)	Approx. 1,360 x 540 x 1,260 mm
Dimensions (folded)	Approx. 466 x 250 x 252 mm
Net weight	Approx. 37.0 kg
Max load	100 kg
Max speed	25 km/h
Range	Up to 100 km
Max incline	23 %
Motor	Rear hub, 650 W nominal
Battery	Lithium-ion, 1066 Wh, 42.2 V
Charging time	Approx. 7 hours
Suspension	Front and rear torsion bar suspension
Brakes	Front disc brake and rear regenerative brake
Tires	Tubeless pneumatic tires, 30-45 PSI
Lighting	LED headlight, tail light, turn signals, daytime running lights
Main features	Walk, Assist, ECO, Drive, Sport modes; Bluetooth, NFC, mobile app
Maintenance and cleaning	Clean with a damp cloth; check tire pressure and brakes regularly
Safety	Wear a helmet; respect load and speed limits; use on suitable terrain
Spare parts and repairability	Contact Segway after-sales service; parts available through authorized dealers

Frequently Asked Questions - KickScooter P100SE SEGWAY

How to turn the KickScooter P100SE on and off?

Press the power button to turn the scooter on or off. When on, the dashboard lights up.

How to change the speed mode?

Press the mode change button twice to cycle between ECO, DRIVE and SPORT modes. Walk and ASSIST modes are set via the Segway Ninebot app.

How to pair the scooter with the mobile app?

Download the Segway Ninebot app from iOS or Android. Enable Bluetooth on your phone, open the app, and follow the instructions to pair with the scooter. The Bluetooth icon on the dashboard lights up when connected.

What to do if an error code appears on the dashboard?

Error codes (e.g., 10, 11, 21) indicate specific issues. Check the manual for the exact meaning. If in doubt, contact Segway after-sales service.

What is the actual battery range?

Range can reach 100 km under ideal conditions (75 kg load, 28°C, average speed 12 km/h). Actual range varies depending on speed, terrain, temperature, and riding style.

How to charge the battery?

Plug the supplied charger into a mains socket (100-240 V) and connect it to the charging port on the scooter. Charging time is approximately 7 hours. Use only the original charger.

What is the maximum supported weight?

The maximum user weight is 100 kg (265 lbs). Do not exceed this limit to avoid damage or accident.

Is the scooter water-resistant?

The scooter has IPX5 protection (splash-resistant). Avoid riding in heavy rain or submerging the scooter. Do not clean with a water jet.

How to fold and unfold the scooter?

To fold, press the quick-release lever on the folding mechanism and fold the handlebar back. To unfold, raise the handlebar until the mechanism clicks into place.

Where to find spare parts or get the scooter repaired?

Contact Segway after-sales service or an authorized dealer. Original parts are available. Do not attempt to repair electrical components yourself without expertise.

USER MANUAL KickScooter P100SE SEGWAY

EN The manufacturer reserves the right to make changes to the product, release timeware updates, and update this manual at any time. Visit www.segway.com or check the Segway-Kineket app to download the latest user materials. You must install the apo. activate your KickScoter, and obtain the latest updates and safety instructions.

NL The manufacturer reserves the right to make changes to the product release firmware updates, and update this manual at any time. Visit app-end segway.com or check the Sejway Ninebot apto to download the latest user materials. You must install the spo, activate your Kick scooter, and obtain the latest updates and safety instructions.

EN: The pictures shown are for illustration purposes only. The actual product may vary.

HarmonyOS Sans fonts are used in Arabic in this manual.

Segway KickScooter

EN Product Manual

Manuel du Produit

Produkt-Handbuch

1. Diagram and Functions 01
2. Specifications 05
3. Common failures 07
4. Certifications 08
5. Trademark-11

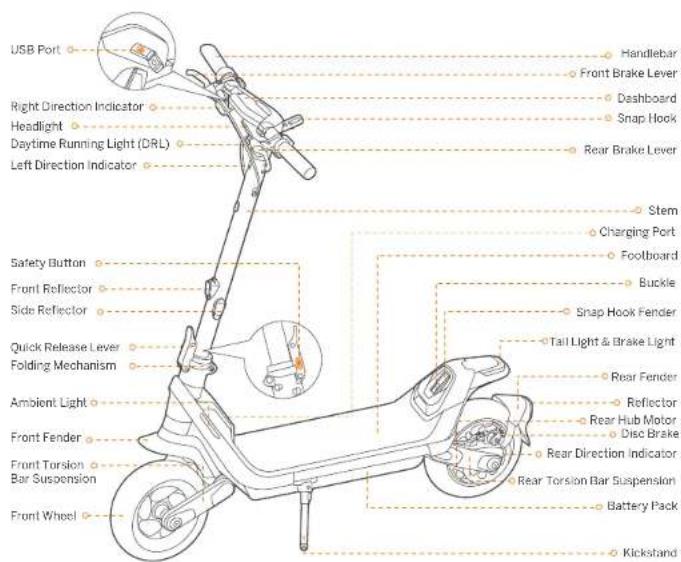

■ Diagram and Functions

USB Port Right Direction Indicator Headlight Daytime Running Light (DRL) Left Direction Indicator Safety Button Front Reflector Side Reflector Quick Release Lever Folding Mechanism Ambient Light Front Fender Front Torsion Bar Suspension Front Wheel Handlebar Front Brake Lever Dashboard Snap Hook Rear Brake Lever Stem Charging Port Footboard Buckle Snap Hook Fender Tail Light & Brake Light Rear Fender Reflector Rear Hub Motor Disc Brake Rear Direction Indicator Rear Torsion Bar Suspension Battery Pack Kickstand

O

01

EN EN

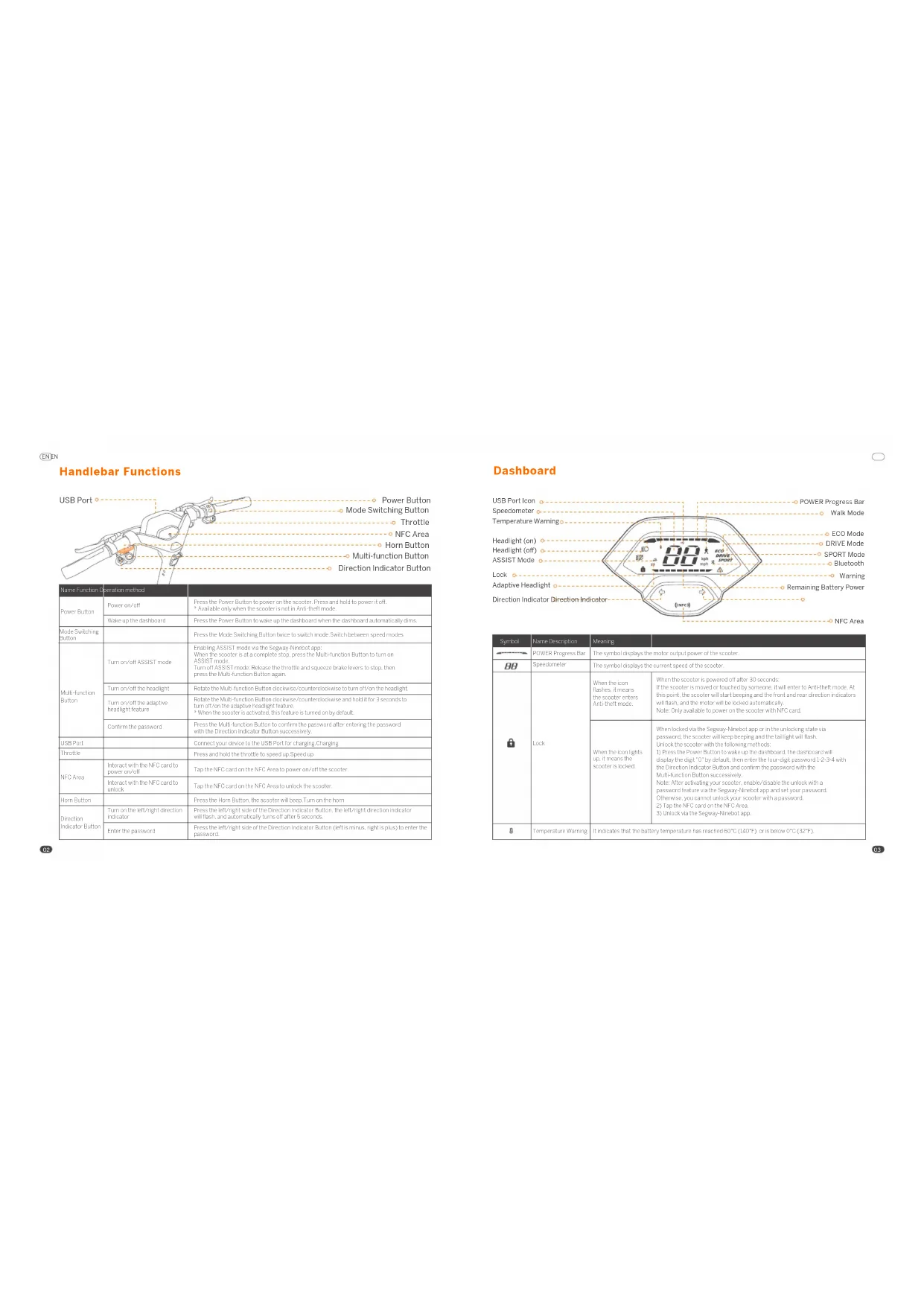

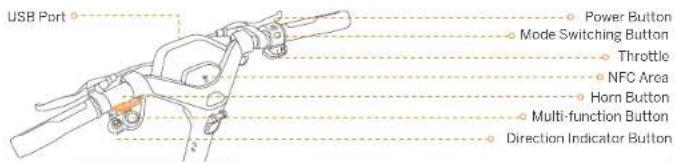

Handlebar Functions

USB Port Power Button Mode Switching Button Throttle NFC Area Horn Button Multi-function Button Direction Indicator Button

Name of function Operation method
Power Button	Power on/off	Press the "Power Button" to power on the socket. Press and hold to power it off. * Available only when the socket is not in Andated, inside.
	Wake up the dashboard	Press the "Power Button" to wake up the backboard when the backboard automatically dm's.
Close Switching Button		Press the "Close Switching Button" twice to switch mode 600 between speedmcode
Multi-function Button	Turn on/off ASSIST mode	Tracing ASSIST mode via the Segany Nominal appWhen the worker is a complete step, provides the Multi-function Button to turn on ASSIST mode.Turno TASSIST mode. Release the throttle and squeeze drive levels to stop, then press the Multi-function Button again.
	Turn on/off the headlight	Rotate the Multi-function Button close to/counter clockwise to turn off on the headlight.
	Turn on/off the adaptive headlight fixture	Rotate the Multi-function Button close to/on interconnects and read for all seconds to turn off for the adaptive headlight feature.* When the socket is extracted, this feature is turned on by default.
	Continue the password	Press the Multi-band on Button to turn from the password after entering the password within the Direction Indicator Button successfully.
USB Port		Connect your device to the USB Port for charging Charging
Throttle		Press and hold the throttle to save us Speed up.
NFC Area	Into network the NFC card to power on/off	Tap the NFC card on the NFC Area. In power on/off the socket.
	Into load the NFC card to unlock	Tap the NFC card on the NFC Area. In order the socket.
Union Button		Press the Union Button the socket will keep Turn on the home.
Direction Indicator Button	Turn on the right side direction indicator	Press the right side of the Direction Indicator Button, the left/right direction indicator will throw, and automatically turns off after a session.
	Enter the password	Press the left/right side of the Direction Indicator Button (left, is minus, right is just to enter the password).

02

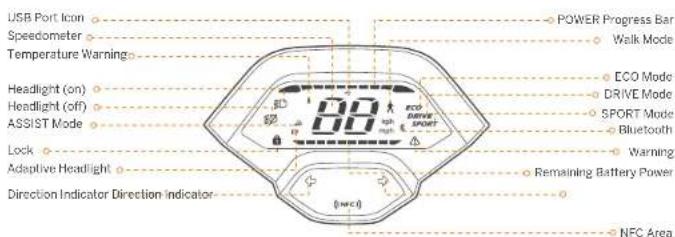

Dashboard

USB Port Icon Speedometer Temperature Warning Headlight (on) Headlight (off) ASSIST Mode Lock Adaptive Headlight Direction Indicator Direction Indicator POWER Progress Bar Walk Mode ECO Mode DRIVE Mode SPORT Mode Bluetooth Warning Remaining Battery Power NFC Area

Symbol	Name Description	Meaning
	HOLD Progress Bar	The symbol displays the motor subat power of the scooter.
80	Speedometer	The symbol displays the current speed of the scooter.
	Lock	When the icon flashes, it means the scooter enters And its mode.	When the scooter is powered of after 30 seconds. If the scooter is turned or stayed by someone, it will listen to all the mode. All this point, the scooter will start looping and the front and rear direction indicates will lead, are the motor will be looked absolutely. Note: Only available to power on the scooter with NFC card.
		When the icon lights to, it means the scooter is locked.	When looked in the Segeway-Ninetic space in the unlocking side is a password, the scooter will keep hopping and the tollight will finish. Also see the scooter with the following methods: 1) Press a Power Button to wake up the deal brand, the dashboard will display the digit '02 by default thereon. The four-digit passwords 1-2-4 with the Onshore Indicator Button and can't use the passwords with the Multi-function button successfully. Note: Allen activating your socket, encoder/usable the at lock will a password fixture via the Segeway-Ninetic app and let your passwords otherwise you can switch up your scator with a password. 2) Use the NFC card on the NFC Area. 3) Unlock via the Segeway-Ninetic app.
	Temperature/War-ing	It indicates that the battery temperature has reached 60°C (140°F), or is below 0°C (50°F).

O

03

LN LN

Symbol	Name Description	Meaning
	USB port con	When the USB port con lights up, it means that the device (not fully charged) is connected to the USB port.
	Ritchman	It indicates that the scooter is connected to the Gateway-limdest app.
	Warning	The symbol indicates that the scooter has detected an answer. The error code will display on the dashboards. Please contact the other sales encoder to repair.
	Remaining battery power	The symbol displays the remaining battery power in battery bar.
	Acupable headlight	When the icon 'leafed, it means the Active headlight that acupifies on.	When the features are turned on, the headlight will work automatically to select for a variety of situations and conditions and repelluminate the way.

Speed Modes Introduction

Mode/mode	-100% (speed rail)	Switching methods
(Walk)	3-5 km/h(1.9-3.7 mph)	Enable Usable Walk mode via the Safety-Ninebot app. Note: The headlight is always on and/or all lights will keep flashing in Walk mode.
(ASSIST)	3-5 km/h(1.9-3.7 mph)	Feeding ASS ST mode via the Safety-Ninebot app. When the scooter is at a complete stop, press the Multi-function Button to turn on ASSIST mode. Note: When turned, the scooter will keep once and the front and rear closed indicates all limb once on ASSIST mode. Release the track and squeeze brake lever to stop, then press the Multi-function Button again.
ECO	12 cm/h (12.2 mph)	Press the Mode Switching Button twice.
DRIVE	20 km/h(24.4 mph)	Press the Mode Switching Button twice.
SPORT	25 cm/h (5.5 mph)	Press the Mode Switching Button twice.

Specifications

	Item Parameter
Product	Name	Segway KuxSoccer
	Model	PC005E
	Length x Width x Height	Approx. 1254 x 934 x 1257 mm (76.6 x 28 x 93.7 m)
	Follow Length x Width x Height	Approx. 1.58 x 634 x 640 mm (46.6 x 26 x 25.3 m)
	Hot Weight	Approx. (32.9 kg (72.5 lbs))
Rider	Max Payload	100 kg (76.5 kg)
	Return ended Age	18-60 years old
	Recruited Height	180-200 cm (52"~66")
Machine	Wheelbase	300 mm (35.4 m)
	Ground Clearance	268 mm (6 m)
	Max Speed	Approx. 25 km/h (2.5 m/s)
	Typical Range*	Approx. 100 km (52.1 miles)
	Max Slope	Approx. 23%
	Temperature Terrain	Reversible, parks, computers and motor of the far mode conditions and system. Relig on maps
	Operating Temperature	-15 to 42°C (-4 to 104°C)
	Storage Temperature	10 to 50°C (-4 to 120°C)
	IP Rating	IPX5
	Duration of Charging	Approx. 7 h
Battery	Model NCD-8825E
	Nominal Voltage	47.2 V = =
	Max Charging Voltage	54.6 V = =
	Nominal Tracy	1066 V/m
	Nominal Capacity	23 A/h
	Charging Ambient Temperature	0-45°C (38-109°F)
	Battery Management System	Over-healing, short circuit, over-current, over-dischange and over-charge protection
Motor	Motor Type	Bruckness DC (HJDC) motor
	Nominal Power	545 kW 650 W
Charger	Type	Palm in
	Input Voltage	100 - 240 V/50 - 60 Hz / 20 A/40Hz
	Max Output Voltage	54.6 V/mm
	Rated Output	53.5 V=3 A

LN LN

	Heavy Parameter
Charger	Output Power	0.15 kW, 350 W
	Mode	NEW542803DCE
Tire	Type	30-5 inch Soir-sealing tucclose bins
	Fire Treasure	30-45 ps
	Material	Rubber
Others	Sound Mode	Walk mode, ASS ST mode, FCOM mode, DBXT mode and SPORT mode
	Suspension System	Front and monitoring par suscressor
	Drake System	Disc brake & Direct canache

[1]. Tyrosal Range: tested while riding with a full battery, 75 kg (160 lbs) bed, 28" C (/°-), at the speed of 9.9 mph (26 km/h) on average on government.
Some of the factors that affect range include speed, number of stops and stops, ambient temperature, etc.

Common Failures

Error code: Pass of clauses
10	OLC Bluetooth communication error
11	Motor 1A phrase current sampling failure
12	Motor 1B phrase current sampling failure
13	Motor 1C phrase current sampling failure
14	Throttle Hall sensor abnormality
15	Brako Hall sensor abnormality
16	Hall sensor abnormality
21	BMS communication error
22	BMS password error
23	BMS default serial number
24	System voltage detection abnormality
26	Flash storage error
27	Control board password error
28	Motor MOS error upper bridge short circuit
29	Motor MOS driver lower bridge error
30	Program slip error
35	Venice default serial number
38	Battery temperature sensor error
41	Turn signal abnormality
42	Headlight abnormality
45	Abnormal bus current top-amp circuit

ENEN

Certifications

This product is certified, a ANS/CAN/UL-22/2 by TUV Rheinland.

The battery complies with UN/DOI 38.3.

The battery complies with TRANSICAN/OL-2271.

European Union Compliance Statement

Information on Disposal for Users of Waste Electrical & Electronic Equipment

This symbol on the product or on its packaging indicates that used electricity and electronic products should not be mixed with unsorted municipal waste. For proper treatment, it is your responsibility to dispose of your waste equipment by an existing to return it to designated collection points.

- Spacing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.

Penalties may be applicable for incorrect disposal of this waste. In accordance with your national legislation

Please contact your local authority for further details of your nearest designated collection point

Battery recycling information for the European Union

This symbol means that batteries and accumulators, at their end-of-life should not be mixed with unsorted municipal waste. Your participation is an important part of the effort to minimize the impact of batteries and accumulators on the environment and on human health. For proper recycling, you can return this product or the baler or or accumulators it contains to your supplier or to a designated collection point.

- Spacing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.

Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. There are separate collection systems for use batteries and actuators.

Please, dispose of batteries and accumulators correctly a your local community waste collection or recycling center.

US

Radio Equipment Directive

Ninehot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/PL.

Restriction of the use of certain hazardous substances (RoHS) Directive

Ninebot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of RoHS Directive 2017/65/FU and amendment Commission Delegated Directive (FU) 2015/863 on the

restriction of the use of certain hazardous substances in electrical and electronic equipment ("Rel S recast" or "Rel IS 2.0").

Machinery Directive

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section company with the essential requirements and other relevant provisions of the Machinery Directive 2006/42/TC.

EU Authorised Representative:

Segway-Ninebot Europe

Dynamostraat 7.1014 EN Amsterdam, The Netherlands.

Nincout (Changzhou) Tech Co., Ltd. hereby declared that the product model P100S2 complies with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/55/EU, the machinery directive 2006/42/FC and the RoHS Directive 2011/65/EU and amendment Commission De agated Directive (EU) 2015/953.

The declaration of conformity can be viewed at the following address: http://su-en.sogway.com/support-instructions

UK Compliance Statement

Radio Equipment Regulations 2017

Nineoot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of Radio Equipment Regulations 2017

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

Nimcoel (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on), meets the requirements of The Restriction of the Use of Certa in Hazardous Sustances in Electrical and Electronic Equipment Regulations 2012

Supply of Machinery (Safety) Regulations 2008

Ninepot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of The Safety of Supply of Machinery (Safety) Regulations 2008.

O

[Unreadable]

UKCA

UK Authorised Representative:

UKCA Experts Ltd.

Dept 302, 43 Owston Road Carcroft, Doncaster, DN5 8DA United Kingcom

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product mode: P100SE complies with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017, Supply of Machinery (Safety) Regulations 2006 and the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

The declaration of conformity can be viewed at the following address: www.segway.com

Bluetooth	Frequency Band(s)	2.4000 - 2.4835GHz
	Max. RF Power	20 mW

5 Trademark

Segway and the Ricer Design are the trademarks of Segway Inc.; Android is the trademark of Google Inc.. App Store is a service mark of Apple Inc. The respective owners reserve the rights of their trademarks and copyrights, etc. referred to in this manual.

We have a computer to include descriptors and instructions for all the functions of the KickScooter at the time of printing. However, due to constant improvement of product features and changes of design, your KickScooter may differ slightly from the one shown in this document. Visit the Apple App Store (iOS) on the Goog e Play Store (Android) to download and install the Segway-Pinebot App, I case note that there are more, Tools Segway and Vincscot models with different functions, and some of the functions mentioned here may not be applicable to your unit. The manufacturer receives the right to change the design and functionality of the KickScooter product and documentation without prior update; (※ The Segway-Pinebot App can support KickScooter with built-in Bluetooth).

© 2022 Ninecot (Beijing) Tech Co. Ltd. A rights reserved.
