USER MANUAL Ninebot eKickScooter E2 E SEGWAY

EN The manufacturer reserves the right to make changes to the product, release firmware updates, and update this manual at any time. Visit www.sagway.com or check the Sagway-Nineart app to download the latest user materials. You must install the app activate your KickScooter and obtain the latest updates and safety instructions.

EN The pictures shown are for illustration purposes only. The actual product may vary.

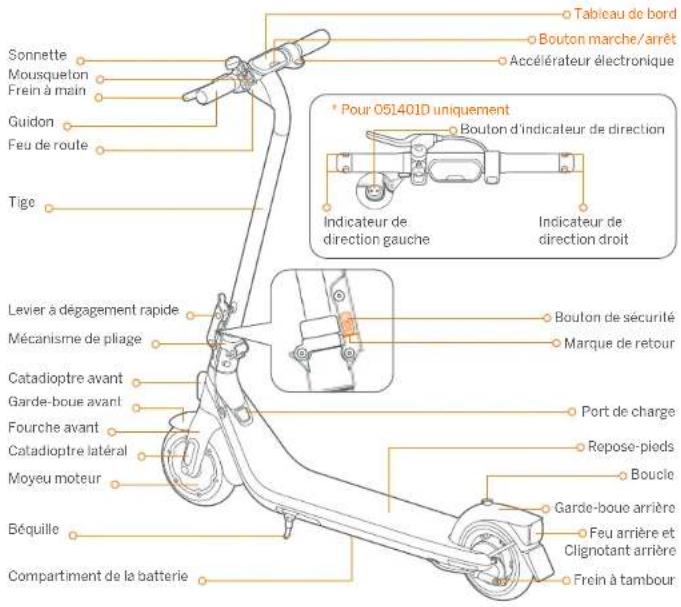

Bell Snap Hook Brake Lever Handlebar Headlight Stem Quick-release Lever Folding Mechanism Front Reflector Front Fender Front Fork Side Reflector Hub Motor Kickstand Battery Compartment Dashboard Power Button Electronic Throttle For 051401D only Direction Indicator Switch Left Direction Indicator Right Direction Indicator Safely Button Returning mark Charge Port Footboard Buckle Rear Fender Tail Light & Rear Reflector Drum Brake

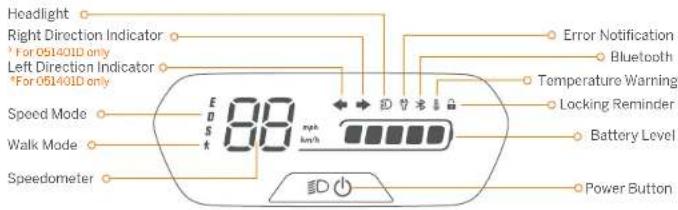

Dashboard & Power Button

Headlight Right Direction Indicator * For 051401D only Left Direction Indicator *For 051401D only Speed Mode Walk Mode Speedometer 88 mph km/h Error Notification Bluetooth Temperature Warning Locking Reminder Battery Level Power Button

Power Buttons: Press the button to power on the second press and hold the button for 2 seconds in power if c". When the second is true, press the button to turn off the headlight and the all light, and press twice to switch between the speed modes. Press five times in switch the unit between km/h and mph

Speedometer: It displays the current speed of the scooter, as well as error codes.

Walk Mode: The headlight and fall light are always or and can't be turned off.

Speed Mode: There are 4 modes available. The top speed is as follows:

Mode	Model	E2 Speed limit	E2 Plus Speed limit	E2 Ranges ^1	E2 Plus Ranges ^2
E (Energy-saving model)		15 km/h (8.3 mph)	15 km/h (8.3 mph)	25 km (15.5 miles)	25 km (15.5 miles)
D (Standard mode)		20 km/h (12.4 mph)	20 km/h (12.4 mph)	20 km (12.4 miles)	25 km (15.5 miles)
S (Sport mode)		20 km/h (12.4 mph)	25 km/h (15.5 mph)	20 km (12.4 miles)	20 km (12.4 miles)
W (Walk mode)		5 km/h (3.7 mph)	5 km/h (3.1 mph)	25 km (15.5 miles)	25 km (15.5 miles)

Changes of Splice Modles tested while riding with a full battery 75 kg (165.0 kg) load, 75 °C (77°), or the max speed of each speed mode are average performance. Left Direction Indicate: When this iron lines, it indicates that the circle be indicators on the left side are turned on.

Right Direction Indicator: When this icon binks it indicates that the direction indicators on the right side are turned

cn. Error Notification: It indicates that the scooter has detected an error,

Temperature Warning: It indicates that the battery temperature has reached 55°C (31°) or is below 0°C (32°).

* At this point, the scooter cannot accelerate normally and may not be charged. Do not use until the temperature has reverted to

the norma range.

Bluetooth: It indicates that the presenter has been successfully connected to the mobile device.

Battery Level: The level battery power signals 5 bars.

* The battery power is very low when the first battery bar is red. Please change your scooter immediately

Locking Reminder: When the icon lights up, it means the scooter is clicked. If abnormal movements are detected, the scooter will start ceeping and the tail light will finish.

②Specifications

	Item Parameter
Product	Name	Nincbol KickScout® E2
	Model	0514011	0514011 0514011
	Length × Width × Height	Approx. 1070 × 445 × 1140 mm(421 × 17.5 × 44.9 in)		Approx. 1070 × 473 × 1140 mm(421 × 10.6 × 44.9 in)
	Rated Length × Width × Height	Approx. 1070 × 445 × 504 mm(421 × 17.5 × 19.8 in)		Approx. 1070 × 473 × 504 mm(421 × 10.6 × 19.8 in)
		Approx. 15 kg (331 lbs Not Waigh)		Approx. 151 kg (33.3 lbs)
Rider	Max. Payload	90 kg (198 lbs)
	Recommended Apc	14-60 years old
	Required Height	130-190 cm (43"~62")
Machine	Max. Speed	Approx. 20 km/h (224 mph)
	Theoretical Range	Approx. 25 km (5.5 miles)
	Range at Max. Speed at	Approx. 20 km (12.4 miles)
	Max. Slope	Approx. 12%
	Traversable Terrain	Mostly smooth roads or normal asphalt, tarmac roads
	Operating Temperature	-10-40°C (24-164°F)
	Storage Temperature	-10-50°C (14-122°F)
	IP Rating	IPX
	Duration of Charging	Approx. 7.5 h
Battery	Nominal Voltage	2.6 V=
	Max. Charging voltage	25.2 V=
	Charging Temperature	0°C, 44°C (37-111°F)
	Nominal Energy	220 W=
	Nominal Capacity	10.2 Ah
	Battery Management System	Protection against overvoltage/undervoltage/short circuit/overcurrent/overtemperature
Motor	Nominal Power 0.25 kW, 750 W
	Max power 0.45 kW, =50 W
Charger	Mccer	NRW250/0.05kV-FU	NRW250/0.05kV-JIS NFW250/0.05kV-FU
	Output Power	36.3 W
	Input Voltage	100-230 V~50-60 Hz
	Max. Output Voltage	75.7 V=
	Ratio Output L	24.2 V±5 A
Tire	Tires	8.1-inch inner hollow shock-absorbing tires
Other	Direction Indicators	N/A		Front and rear direction indicators

☐ theoretical Range tested while ridging with a full battery 150 lbs (75 kg) load, 7/11 (25°) / 10% of max. speed on average on pavement. 03
[2] Range at Max Speed, tests while riding with a full battery, 75 kg (H)lbs food. 2h '10, (2/3) at the max speed or average on pavement. "Some of the factors that affect range include speed loss, number of starts and slopes, ambient temperature etc."

	Item Parameter
Product	Name	Ninebel KickScoolor 82 Plus
	Model	051402H	051402H
	Length × Width × Height	Approx 1070 × 445 × 1140 mm (42.1 × 17.5 × 44.9 lb)
	Folder Length × Width × Height	Approx 1070 × 445 × 504 mm (42.1 × 17.5 × 18.6 lb)
	Net Weight	Approx 15.3 kg (33.7 lbs)
Rider	Max. Payload	90 kg (198 lbs)
	Recommended Age	14-60 years old
	Recrued Height	130-190 cm (45"-62")
Machine	Max. Speed	Approx 25 km/h (15.5 mph)
	Theoretical Range	Approx 25 km (15.5 miles)
	Range at Max. Speed m	Approx 20 km (2.4 miles)
	Max. Scope	Approx 12%
	Traversable Terrain	Mostly smooth roads or normal asphalt, termac roads
	Operating Temperature	-10-40°C (14-104°F)
	Storage Temperature	-10-50°C (14-222°F)
	IP Rating	IPX4
	Duration of Charging	Approx 7.5 h
Battery	Nominal Voltage	21.6 V = =
	Max. Charging Voltage	25.2 V = =
	Charging Temperature	0°C -44°C (32-111°F)
	Nominal Erosy	220 Wh
	Nominal Capacity	10.2 Ah
	Battery Management System	Protection against overvoltage/indovoltage/short circuit/overcurrent-down power temperature
Motor	Nominal Power 0.3 kW, 300 W
	Max. power 0.50 kW, 500 W
Charger	Model: NBW25D201D5N-EU	36.3 W	NBW25D201D5N-US
	Output Power	100-240 V=50-80 Hz
	Input Voltage	25.2 V = =
	Max. Output Voltage	24.2 V ±5 A
Tire	Rated Output	6.2-inch inner hollow shock-absorbing Ltrs

1. Theoretical range tested when the ring with a full battery, 15% to 15% grain load, 7% (25°C), 70% of max. speed on average or pavement. 2) Range at Max. Speed: tested while rolling with a full battery, 15% to 25% grain load, 25% (7-7%), at the max. speed on average or pavement. 3) Some of the factors that affect range include speed, load, number of stars and holes, ambient temperature etc.

EN EN

3 Certifications

This product is certified to ANSI/CAN/UL-2272 by TUV Rheinland.

The battery compiles with UN/DOT 38.3.

The battery complies with ANSI/CAN/UL-2271.

European Union Compliance Statement

Important WEEE information

This symbol on the product or on its packaging indicates that used electrical and electronic products should not be mixed with unsorted municipal waste. For proper treatment, it is your responsibility to dispose of your waste equipment by arranging to return it to designated collection points. Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation. Please contact your local authority for further details of your nearest designated collection point.

Battery recycling information for Users

This symbol means that batteries and accumulators, at their end-of-life, should not be mixed with unsorted municipal waste. Your participation is an important part of the effort to minimize the impact of batteries and accumulators on the environment and on human health. For proper recycling you can return this product or the batteries or accumulators it contains to your supplier or to a designated collection point. Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation, there are separate collection systems for used batteries and accumulators.

Please, dispose of batteries and accumulators correctly at your local community waste collection/recycling center.

Radio Equipment Directive

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU.

Restriction of the use of certain hazardous substances (RoHS) Directive Ninebot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on).

meets the requirements of RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment ("RoHS recast" or "RoHS 2.0").

Machinery Directive

Ninebot (Changzhou) Tech Co., Ltd, hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Machinery Directive 2006/42/EC.

EU Authorised Representative:

Segway-Ninebot Europe

Dynamostraat 7,1014 BN Amsterdam. The Netherlands. Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: 051401E, 051401B, 051401D, 051402E, 051402B comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU, the machinery directive 2008/42/EC, and the RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863.

The declaration of conformity can be viewed at the following address:

https://eu-en.segway.com/instruction-manuals

UK Compliance Statement

Radio Equipment Regulations 2017

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of Radio Equipment Regulations 2017.

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

Ninebot (Changzhou) Tech Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012.

Supply of Machinery (Safety) Regulations 2008

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of The Safety of Supply of Machinery (Safety) Regulations 2008.

UK Authorised Representative:

UKCA Experts Ltd.

Dept 302, 43 Owston Road Carcroft, Doncaster, DN6 8DA, United Kingdom

EN EN

Ninebot (Changzhou) Tech Co., Ltd. hereby declares that the product model: 051401B, 051402B comply with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017, Supply of Machinery (Safety) Regulations 2008 and the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012.

The declaration of conformity can be viewed at the following address: www.segway.com

Bluetooth	Frequency Band(s)	2.4000-2.4835GHz
	Max. RF Power	lmW

4Trademark

Ninebot is the trademark of Ninebot (Beijing) Tech Co., Ltd: Segway and the Ricer Design are the registered trademarks of Segway Inc., App Store and Apple Logo are trademarks of Apple Inc. Google Play and the Google Play logo are trademarks of Google LLC. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Segway-Ninebot is under license. Other trademarks and trade names are those of their respective

owners. The KickScooter is covered by relevant patents. For patent information, go to http://www.segway.com

We have attempted to include descriptions and instructions for all the functions of the KickScooter at the time of printing. However, due to constant improvement of product features and changes of design, your KickScooter may differ slightly from the one shown in this document. Scan the QR code or visit the Apple App Store (iOS) or the Google Play Store (Android) to download and install the App.

Please note that there are multiple Segway and Ninebot models with different functions, and some of the functions mentioned herein may not be applicable to your unit. The manufacturer reserves the right to change the design and functionality of the KickScooter product and documentation without prior notice.

© 2023 Ninebot (Beijing) Tech Co. Ltd. All rights reserved.

( = The Segway-Ninebot App can support KickScounter with built-in Bluetooth)

5 Common Failures

	Possible causes Error code Solution
10	Bluetooth communication failure	Check the connection of the dashboard communication wire and the control cable or contact after sales service or an authorized dealer.
11	Abnormal 1A phase current sampling of motor	Please contact after-sales service or an authorized dealer.
12	Abnormal 1B phase current sampling of motor
13	Abnormal 1C phase current sampling of motor
14	Abnormal throttle hall sampling	Check whether the throttle is pressed when powered on, or contact after-sales service or an authorized dealer.
15	Abnormal brake ball sampling	Check whether the broke level is subsidized when powered on, or contact after sales service or an authorized dealer.
24	Abnormal default voltage	Check whether the write connected with the battery cable and the controller is loose, or contact after-sales service or an authorized dealer.
26	Abnormal data writing/heading	Please contact after-sales service or an authorized dealer.
31	Incorrect FLASH operation
35	Default SIN	Check whether the KickScooter's SIN is the correct SIN.
39	Abnormal battery temperature	Check the working environment of battery, or contact after-sales service or an authorized dealer.
40	Abnormal controller temperature	Controller temperature is too high, please contact after-sales service or an authorized dealer.
41	Abnormal motor temperature
42	Motor not ca brated	Please contact after sales service or an authorized dealer.
45	Abnormal bus current sampling
53	Motor phase loss	Check whether the wire connected with the motor and the controller is loose, or contact after-sales service or an authorized dealer.
52	Motor stalled	Check whether the KickScooter is overload, or contact after sales service or an authorized dealer.

EN EN

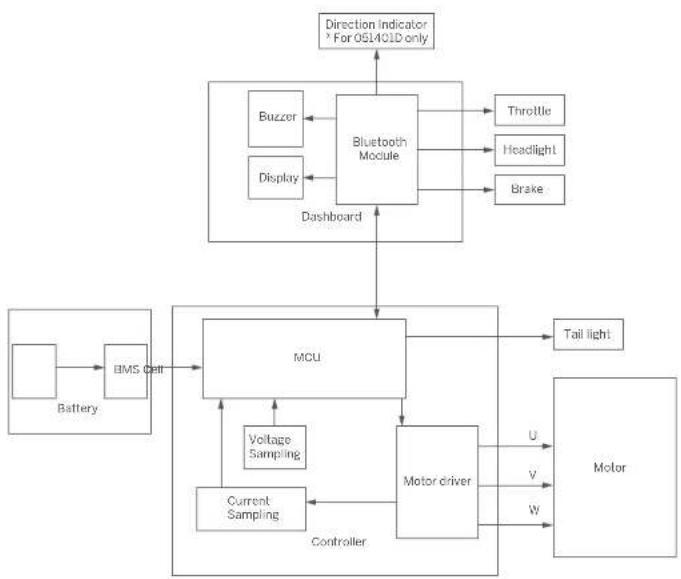

5 Wiring Diagram

7Recommended Maintenance Schedule

To ensure safe riding, day to day care and regular maintenance are essential. You, the owner have control and knowledge of now often you use your scooter, how "hard you use it" and "where you use it," it is the owner's responsibility to perform regular checks and bring your scooter to authorized service center for inspection and service. Please refer to the maintenance schedule below.

Note: This maintenance schedule charges a service fee.

Item Component	Maintenance Method	Does 5 months on Endy's story 310 months in line (kPa) km	After 7 years or the total mileage > 3107 miles (5000 km)	***
Mainframe maintenance	Vain-frame parts	Use a soft, wet cloth to wipe the mainframe clean.		***
	Tire wrist	Check if the tires are cracked, performed, or stir-fitally worn.		*
	Screws on the skam top	Tighten the six screws fixed with the condenser and the stem. The suggested torque is 5.5 ± 0.3 Nm.		***
		Tighten the screw on the throttle. The suggests and torque is 2 ± 0.1 Nm.I tighten the screws on the brake levels. The suggested torque is 5 0.1 Nm Tighten the screws on the stem top. The suggested torque is 2 0.1 Nm.		**
Function Insertion	lub motor	To accelerate and decelerate, check if the hub motor is stalled or has abnormal sounds.		*
	Bar wheel maintenance	Check if the rear wheel is stalled or gets shaky, or the above wall is unbalanced.		*
	Drum Brake	1 Spin the rear wheel it stops normally. The rear wheel shall not stuck or make abnormal sounds. Note: Stent nois directly not affected riding safely, but if the drum stops makers be full nose when you apply brakes, please contact custom service for support.21 Squeeze the brake lever, the rear wheel stops moving.		*

EN EN

Item Component Maintenance Method			Every 6 months or Frame 3000 miles (500 km)	After 2 years or first mileage > 310/ miles (5000 km)
Function Inspection	Headlight Check the headlight and, seen if lights briefly.			a
	Direction-indicators * For OSI4CLO density	Toggle the direction indicator switch to the e-light right somewhere check if the direction indicates on the e-light side each normally.		a
	Dashboard Power on the scooter: the dashboard works properly.			a
	In bottle	Press and lock the throttle, from release it, checking for acceleration and deceleration.		a
	Tail detection	After connecting with the Sagway Nincol apex. Update the firmware of the head version 2. Check if the notification of the corresponding end ends and possible causes will prompt when the scooter detects an error.		a
	Charging	Change the scooter;Check if the current battery power displays on the dashboard; 2. Check the LED indicator on the battery chargerChanging and Fully changed green.		a
	Buttons	Press or toggle the button 2 times without failure		a
	Steaming	Test with left turns and light turns at the steering centre is 500, Nonresistance or lag when turning.		a
Important parts	Battery assembly	The battery need to be replaced when it is charged and discharged for 500 times or the total mileage is more than 6215 miles (10000 km). Note: This recommended to charge once every 50 days for long-term storage.
	Controller	It is replaced by the original Sagway Nincol toolbar but used for recalls and replacements.
	Hub major

Item Component	Maintenance Method	Every 6 months or Form 3 years, 30 months, miles (500 km)	After 2 years or Industrial mileage × 310/ mile × 5000 km
Functional parts	Rear wheel assembly	It is required that original Segway-Ninebot parts shall be used for trains and replacements.
	Throttle & Brake levers
	Front fork assembly
	Folding mechanism
	Drum brake assembly
	Laserocord
