USER MANUAL StandardSpray WAGNER

Translation of the original operating instructions

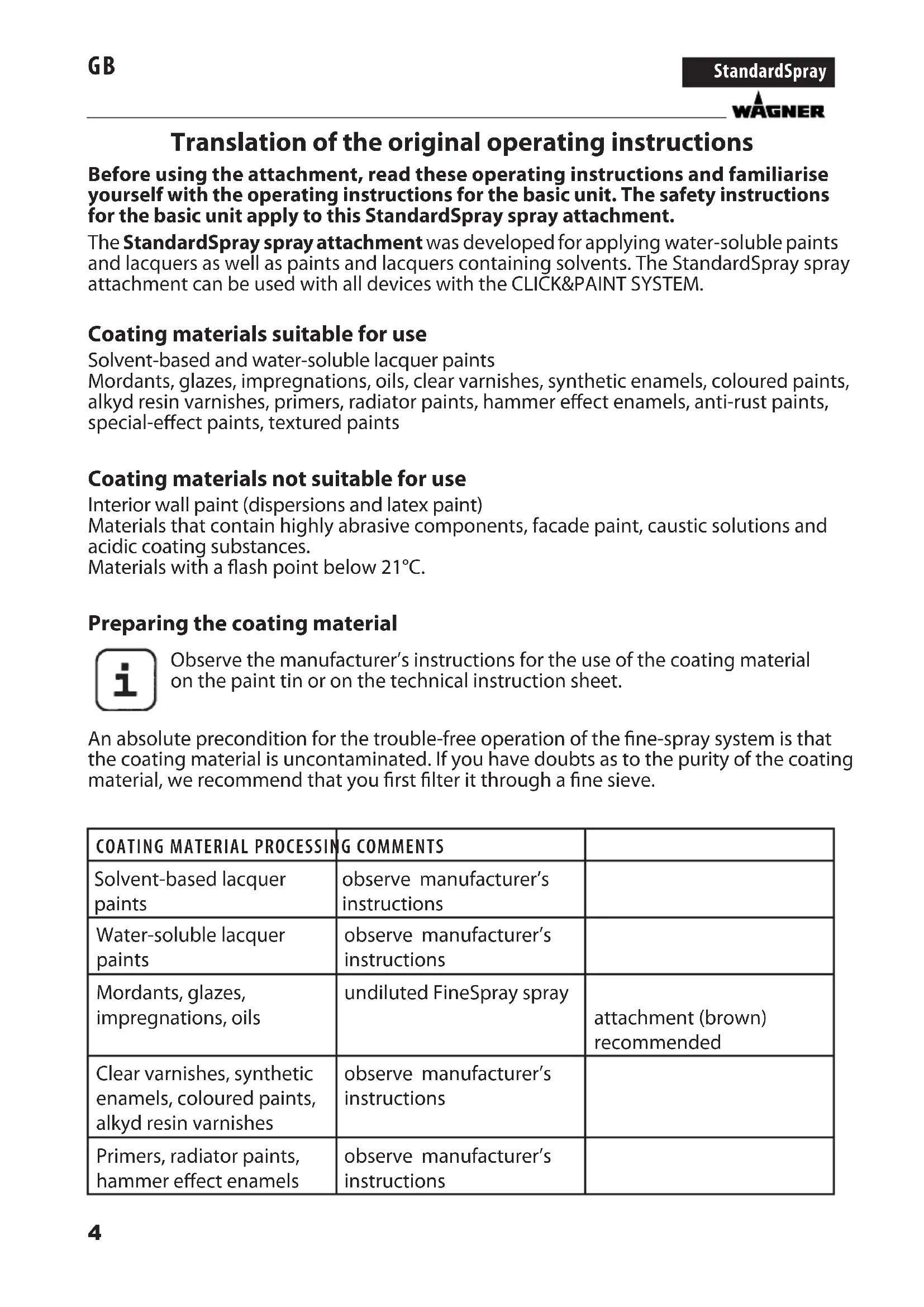

Before using the attachment, read these operating instructions and familiarise yourself with the operating instructions for the basic unit. The safety instructions for the basic unit apply to this StandardSpray spray attachment.

The StandardSpray spray attachment was developed for applying water-soluble paints and lacquers as well as paints and lacquers containing solvents. The StandardSpray spray attachment can be used with all devices with the CLICK&PAINT SYSTEM.

Coating materials suitable for use

Solvent-based and water-soluble lacquer paints

Mordants, glazes, impregnations, oils, clear varnishes, synthetic enamels, coloured paints, alkyd resin varnishes, primers, radiator paints, hammer effect enamels, anti-rust paints, special-effect paints, textured paints

Coating materials not suitable for use

Interior wall paint (dispersions and latex paint)

Materials that contain highly abrasive components, facade paint, caustic solutions and acidic coating substances.

Materials with a flash point below 21^

Preparing the coating material

Observe the manufacturer's instructions for the use of the coating material on the paint tin or on the technical instruction sheet.

An absolute precondition for the trouble-free operation of the fine-spray system is that the coating material is uncontaminated. If you have doubts as to the purity of the coating material, we recommend that you first filter it through a fine sieve.

COATING MATERIAL PROCESSING	G COMMENTS
Solvent-based lacquer paints	observe manufacturer's instructions
Water-soluble lacquer paints	observe manufacturer's instructions
Mordants, glazes, impregnations, oils	undiluted FineSpray spray	attachment (brown) recommended
Clear varnishes, synthetic enamels, coloured paints, alkyd resin varnishes	observe manufacturer's instructions
Primers, radiator paints, hammer effect enamels	observe manufacturer's instructions
COATING MATERIAL PROCESSING COMMENTS
Anti-rust paints, special-effect paints	observe manufacturer's instructions
Multicolor paints, textured paints	observe manufacturer's instructions	WallSpray spray attachment (white) recommended

Assembly

For assembly, insert the spray attachment into the gun handle so that the two arrows point at each other. Turn the gun handle 90^ in the arrow direction until it audibly engages. (Fig. 1)

To remove the spray attachment, push the catch (Fig. 1, A) beneath the trigger down and turn the spray attachment by 90^ .

For further information on setting the spray pattern and the correct spraying technique refer to the instructions of the basic device.

Spare Parts (Fig. 2)

You cannot combine different-coloured parts of other attachments.

POS.	ORDER NO.	DESIGN	NATION
1	2321	879 Standard	Spray spray attachment (yellow) complete
2	2314	594 Spray jet	width adjusting lever (shaping air)
3	2314	591 Spray jet	level adjusting ring (vertical/horizontal)
4	2317	807 Air cap
5	2314	585 Air screen
6	2317	423 Nozzle (S	4.1)
7	2323	934 Nozzle seal
8	2304	027 Non-return	valve (Ventilating hose, valve cover, diaphragm)
9	0417	308 O-ring of	spray attachment
10	2324	250 Body of	gun (including position 8)
11	231	9 223 Container	seal
12	231	9 222 Feed tube

POS. ORDER NO. DESIGN	NATION
13 232 24 248	Fine feed tube filter (red, 5 pc.)
2324 249	Coarse feed tube (white, 5 pc.)
14 232 2 451 Container with cover 1000 ml
	2315 539 Lubricating grease

Environmental protection

The appliance and accessories should be recycled in an environmentally friendly way. Do not dispose of the appliance with household waste. Support environmental protection by taking the appliance to a local collection point or obtain information from a specialist retailer.

Important Note regarding Product Liability!

Using other accessories and spare parts can lead to partial or total loss of liability and guarantee claims. With original WAGNER accessories and spare parts, you have the guarantee that all safety regulations are fulf lled.
