G280 - Barbecue LOTUSGRILL - Free user manual and instructions

Product type	Portable charcoal barbecue
Brand	LotusGrill
Model	G280
Weight	2.8 kg
Dimensions (top)	∅ 292 mm
Dimensions (bottom)	∅ 220 mm
Height	210 mm
Grid diameter	258 mm
Materials	Stainless steel, steel, plastic
Power supply	4 AA 1.5 V batteries (6 V) or USB cable (adapter not included)
Fan	Integrated, adjustable via thermostat
Ignition	With fire starter gel (LotusGrill recommended)
Cooking temperature	Adjustable via thermostat
Maintenance and cleaning	Grid and inner bowl dishwasher safe; outer bowl cleaned with a damp cloth; charcoal reservoir cleaned dry
Safety	Do not use indoors; use fire starters compliant with EN 1860-3; wear gloves; do not use alcohol or gasoline; never leave unattended
Spare parts and repairability	Charcoal reservoir (wear part), other parts available via LotusGrill
Warranty	2 years for manufacturing defects (subject to proper use)
General information	Exclusive private use; not suitable for professional use

Frequently Asked Questions - G280 LOTUSGRILL

How to light the LotusGrill G280 barbecue?

Place a ring of fire starter gel (LotusGrill recommended) in the center of the ignition plate. Light the gel with a lit match while leaving the fan on (switch on and thermostat at maximum). After a few minutes, the charcoal becomes glowing.

Can I use the barbecue indoors?

No, the barbecue must not be used indoors due to the risk of asphyxiation. Always use it outdoors on a stable surface.

How to clean the grid after cooking?

Wait until the barbecue has completely cooled down. The grid and inner bowl can be cleaned in the dishwasher or by hand with dish soap. For stubborn residues, use a special barbecue cleaner.

What type of charcoal is recommended?

We recommend LotusGrill beech charcoal or any other quality wood charcoal. Fill the charcoal reservoir completely before ignition.

Can the barbecue work without batteries?

Yes, you can use the supplied USB cable with a USB power adapter (not included). Plug the round connector into the barbecue to disable the battery compartment.

How to adjust the cooking temperature?

Turn the thermostat knob located on the outer bowl. The more you turn to the right, the higher the temperature. The fan remains on throughout cooking.

What to do if the charcoal does not light?

Check that batteries are properly installed (observe polarity) or that the USB cable is connected. Make sure the fan is working: the switch must be on. If the gel does not ignite, use a fire starter compliant with standard EN 1860-3.

How to safely extinguish the barbecue?

Never pour water on the charcoal. Let the barbecue cool completely in the open air. The fan stops automatically when you turn off the switch. Dispose of ashes in a metal container.

What are the important safety instructions?

Always wear protective gloves. Keep children and pets at a distance. Do not use alcohol or gasoline for lighting. Never leave the hot barbecue unattended. Ensure it is placed on a stable surface.

How to replace the batteries?

Wait until the barbecue is completely cold. Open the battery compartment at the bottom of the outer bowl and replace the 4 AA batteries, observing polarity. Close the lid. Do not replace batteries while operating.

USER MANUAL G280 LOTUSGRILL

Exterior view of a black cylindrical appliance with a circular grille and ventilation slots (no text or symbols visible)

Green portable electric stove fan with white grille and control panel (no visible text or symbols)

Red portable kitchen fan with mesh grille and circular vent, no visible text or symbols

INSTRUCTION MANUAL

Charcoal Table Grill

Type G280, G340, G435

MODE D'EMPLOI

Barbecue à poser

à charbon de bois

Type G280, G340, G435

ISTRUZIONI PER L'USO

Barbecue da tavolo

Tipo G280, G340, G435

Safety warning sign with pictogram of person using a device, indicating no errors or failures

DEU Betreiben Sie den Grill nicht in geschlossenen und/oder bewohnbaren Räumen, z. B. Gebäuden, Zelten, Wohnwagen, Wohnmobilen, Booten. Es besteht Lebensgefahr durch Kohlenmonoxid-Vergiftung.
ENG Do not use the barbecue in a confined and / or habitable space e.g. houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality.
FRA Ne pas utiliser le barbecue dans un espace confiné et/ou habitable par exemple des maisons, tentes, caravanes, camping-cars, bateaux. Risque de décès par empoisonnement au monoxyde de carbone.
ITA Non utilizzare il barbecue in uno spazio confinato e/o abitabile, per esempio in case, tende, caravan, case mobili, barche. Pericolo di morte per avvelenamento da monossido di carbonio.
SPA No use la barbacoa en un espacio cerrado y/o habitable, p.e. vivienda, tienda de campaña, caravana, autocaravana, embarcación. Peligro de envenenamiento mortal por monóxido de carbono.
NED De barbecue mag niet in afgesloten en/of bewoonbare ruimtes, zoals gebouwen, tenten, caravans, campers en boten, gebruikt worden. Hierdoor ontstaat een levensbedreigend gevaar op koolmonoxidevergiftiging.
FIN Älä käytä grilliä suljetuissa ja/tai asuintiloissa, kuten rakennuksissa, teltoissa, asuntovaunuissa, matkailuautoissa tai veneissä. Hiilimonoksidimyrkytys voi aiheuttaa hengenvaaran.
SWE Använd inte grillen i slutna och/eller beboeliga rum, t.ex. byggnader, tält, husvagnar, husbilar, båtar. Det är livsfarligt på grund av risken för kolmonoxidförgiftning.
CZE Nepoužívat rožně v uzavřeném prostoru a/nebo obytném prostoru, např. v domech, stanech, karavanech, lodích nebo jiném uzavřeném prostoru. Existuje nebezpečí otravy oxidem uhelnatým.
SVK Nepoužívajte gril v uzavretých a/alebo obytných priestoroch, napr. v budovách, stanoch, obytných prívesoch, karavanoch, člnoch. Hrozí nebezpečenstvo ohrozenia života otravou oxidom uhol'natým.
RUS Не используйте гриль в закрытых и/или жилых помещениях, например, в зданиях, палатках, автофургонах, жилых автоприцепах, на лодках. Существует опасность отравления угарным газом.
CRO Roštilj nemojte upotrebljavati u zatvorenim i / ili prostorima predviđenim za boravljenje, kao što su npr. zgrade, šatori, kamp-kućice, kamperi, brodovi. Postoji opasnost za život od trovanja ugljičnim monoksidom.

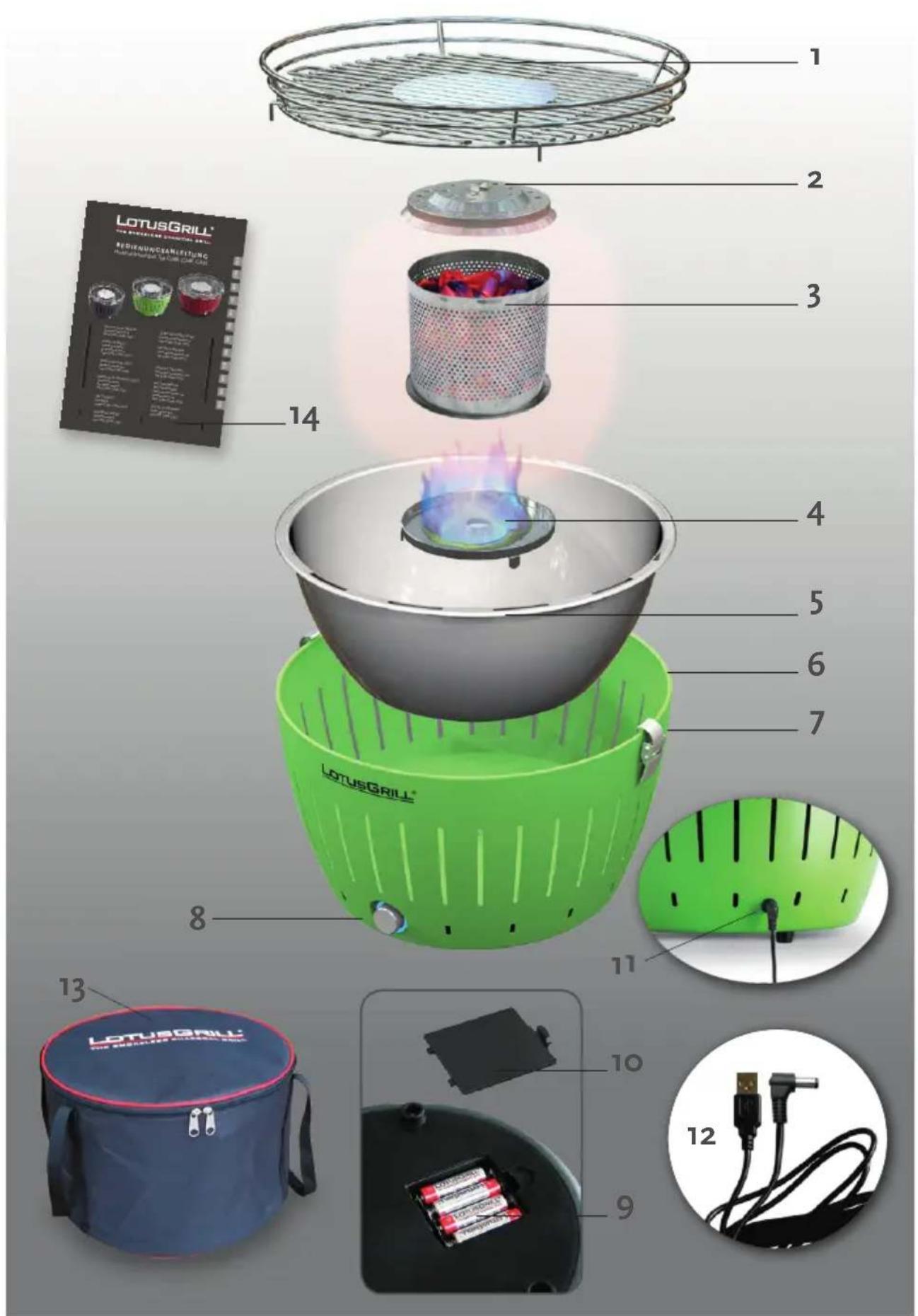

ENG List of Components

1 - 1 x Grill Grid
2 - 1 x Charcoal Container Cover
3 - 1 x Charcoal Container
4 - 1 x Ignition Plate
5 - 1 x Inner Bowl
6 - 1 x Outer Bowl with integrated Battery Case
7 - 2 x Latch
8 - 1 x On/Off Switch for Heat Regulation with Light Indicator
9 - 4 x Battery AA 1,5V DC
10 - 1 x Battery Case Cover
11 - 1 x Plug-in connector
12 - 1 x USB power cable
13 - 1 x Carrying Bag
14 - 1 x Instruction Manual

Before using the Charcoal Table Grill for the first time, read the manual thoroughly.

Keep the manual for your reference during the complete product life and pass it on to any other grill users.

Technical Data G280 G340 G435
Weight (approx)	2,8 kg 3,7 kg 6,5 kg
Main Dimensions (approx)	top ∅ 292 mmbottom ∅ 220 mmheight 210 mmgrid ∅ 258 mm	top ∅ 350 mmbottom ∅ 260 mmheight 234 mmgrid ∅ 320 mm	top ∅ 435 mmbottom ∅ 350 mmheight 257 mmgrid ∅ 405 mm
Material	Steel and shock-resistant plastics, Grill grid. Inner bowl, charcoal container and latches: stainless steel. Operated with 4 x 1.5 VV batteries (6 Volt).

Safety information

Important symbols and precautionary measures

IMPORTANT	Be attentive!
ATTENTION	Inaccurate use could cause damage to material.
CAUTION	Inaccurate use could cause small injuries or damage to material.
WARNING	Inaccurate use could cause heavy injuries or even lethal outcome.

WARNING	- Do not use spirit or petrol for lighting or re-lighting!
	- Risk of burns!
	- Risk of suffocation!
	- Do not use indoors!

CAUTION

- Use only firelighters complying to EN 1860-3! - Keep the grill away from children and animals! - Wear gloves when touching the hot grill grid. - Replace batteries only when grill is completely cooled down.

ATTENTION	- Let the grill cool off entirely before cleaning.
	- Never pour water into the charcoal container in order to extinguish the charcoal.

IMPORTANT

- The bbq must be placed on a stable support before use. - Use barbecue tongs. We recommend LotusGrill Accessories. - Never leave the hot grill unattended. - When grilling very fatty foods, ensure that the inner bowl is emptied on a regular basis. - Test the batteries each time before firing the grill. - Do not replace exhausted batteries while using the grill.

Safety information

Secure handling and disposal of used batteries

Please note: Only use commercially approved AA-batteries.

Remember to dispose batteries properly according to local regulation, i.e. at a battery collection point.

Batteries may not be disposed with domestic waste.

Proper disposal of charcoal

Dispose charcoal in proper non-combustible or metal containers only. Do not dispose in plastic or inflammable containers.

Environmentally friendly disposal of electrical equipment

Please dispose your old grill at proper collection points, which the manufacturer can point out to you at request. Do not dispose your old device with domestic waste.

Intended Use

The LotusGrill may be used to grill meals using charcoal. Do not use this grill in unventilated spaces.

All guidelines provided in this manual must be observed.

The LotusGrill grill is intended for private use only!

Assembly: General Information

Read the assembly instructions carefully and follow the safety information. Be sure to have enough time at your disposal. Create ample space. Remove grill from packaging!

Assembly: Preparation

Check list of components and chart to make sure all items are included in delivery:

- Remove the pre-assembled grill grid and charcoal container.

- Take off packaging.

First Use

The Charcoal Container may contain a thin oil film on the metal, due to its production process. This oil can cause smoke only in the first use.

Maintenance and Storage

IMPORTANT

The grill must cool off completely before cleaning.

CAUTION

Do not use water to cool off the hot grill. Burns and scalding might occur.

Clean grill grid, inner bowl and other dirty parts after each use. The grill must cool off entirely before cleaning, otherwise burning injuries might occur.

Grill grid and inner bowl are dishwasher safe or can be cleaned with standard washing-up liquid.

We recommend for cleaning of tenacious residues commercially available barbecue cleaners e.g. the LotusGrill Cleaner for BBQ- and Oven.

Clean outer bowl (containing electronic unit) only with wet cloth or brush.

Do not use acidic, solvent or other flammable liquids.

Remove batteries during a longer period of storage.

The charcoal container may be cleaned only dry, e. g. with a brush.

ATTENTION

Never use water to clean the charcoal container!

Warranty

The LotusGrill has a 2-years-warranty from date of purchase against manufacturing defects, given that it was used according to instructions of use. For proof of warranty, please retain your sales receipt with indicated date of purchase.

Abrasion, rust, deformation or staining of parts exposed directly to flame (especially stainless steel parts) are normal wear after use and are under no circumstance considered to be manufacturing defects. The charcoal container is a wearing part and should be changed from time to time.

Assembly and Operation Instructions Assembly

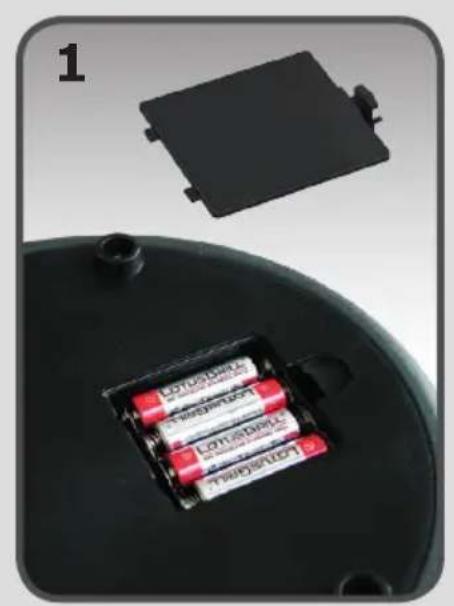

1. Open the battery case ^(10) at the bottom of the outer bowl ^(6) . Insert four AA batteries ^(9) . Mind polarity. Close the battery case.

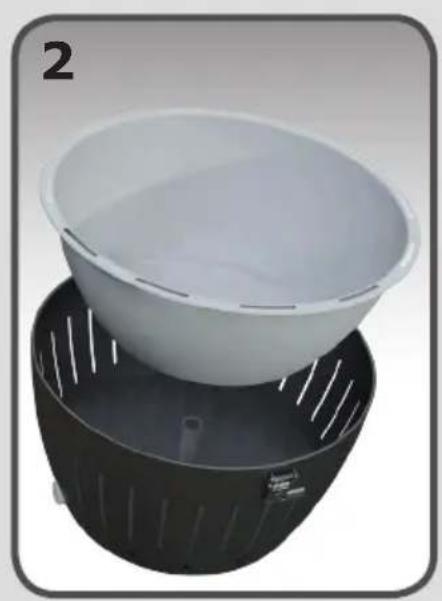

2. Place the inner bowl ^(5) into the outer bowl ^(6) .

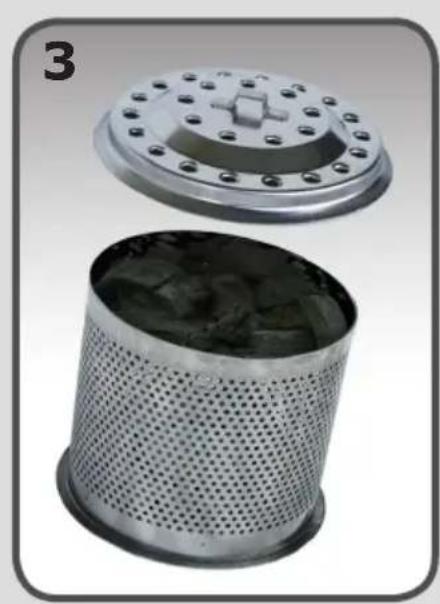

3. Fill the charcoal container ^(3) completely with charcoal e. g. LotusGrill Beech Charcoal* Put cover on charcoal container ^(2) .

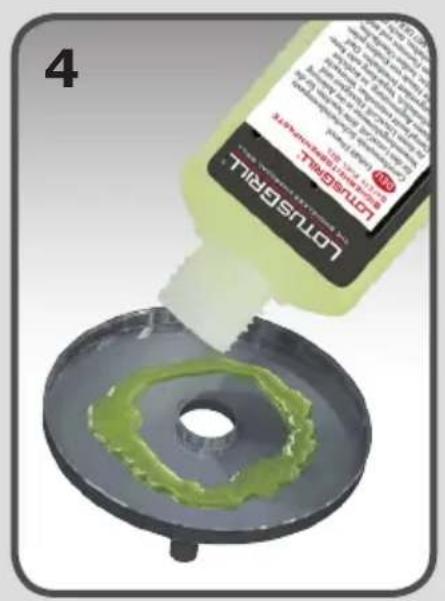

4. Apply a circular layer of lighter gel on ignition plate ^(4) , approx 10 mm (0.4 inches) wide. Place ignition plate ^(4) into inner bowl ^(5) . We recommend the LotusGrill Safety Fuel Gel.

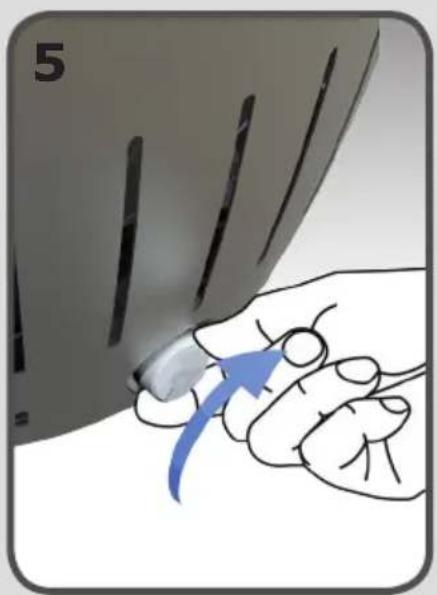

5. Turn the round ventilation control button ^(8) on outer bowl ^(6) on. Turn it clockwise to maximum position.

IMPORTANT rned on.

In order not to quench the flame, the ventilation needs to be

Do not touch the flame!

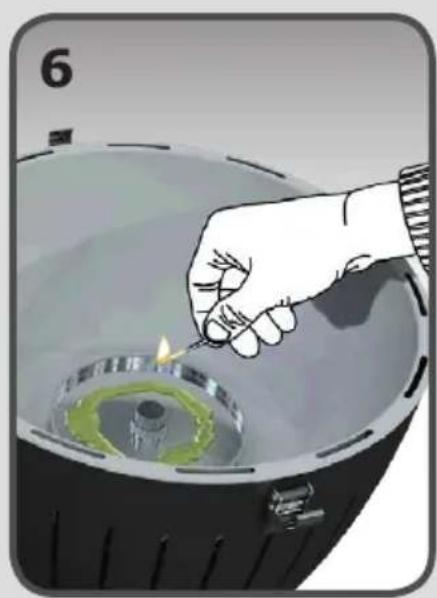

1. Light gel until it burns.

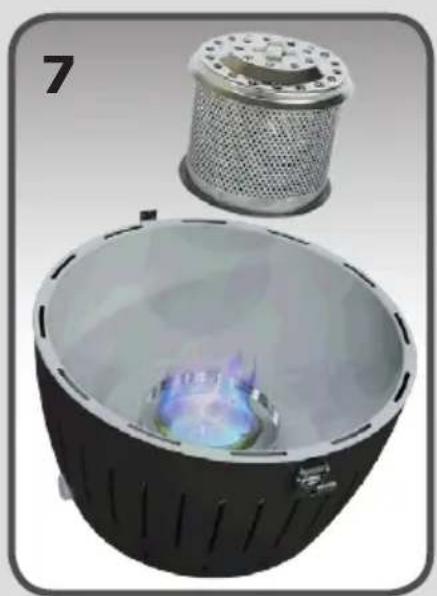

2. Put the cover ^(2) on the filled charcoal container ^(3) and place container on ignition plate ^(4) . Within a short period of time, the charcoal will be glowing.

CAUTION The charcoal container carefully and evenly on the ignition plate!

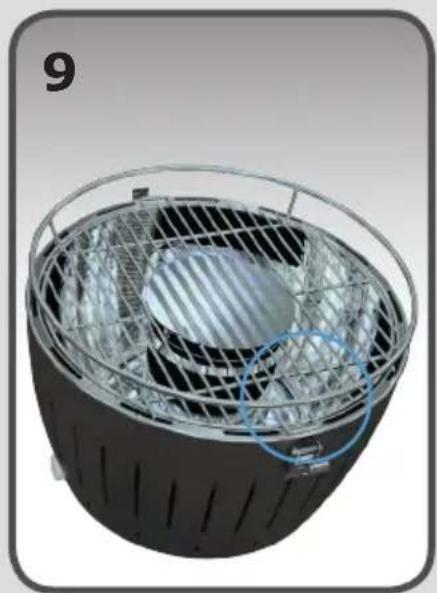

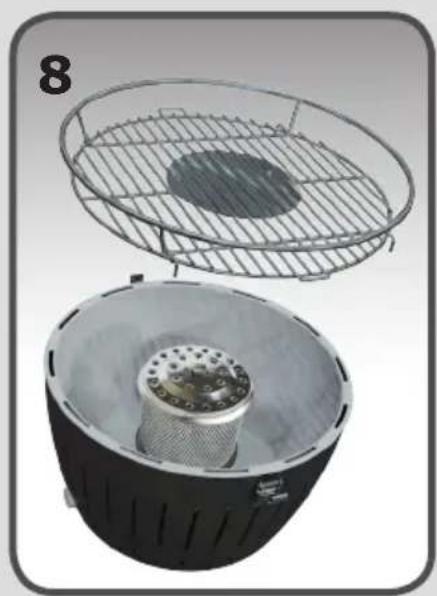

1. Put the grill grid ^(1) on top of the inner bowl ^(5) . Make sure to insert the four metal legs into the slots of the inner bowl ^(5) . Both metal loops at the side of the grill grid ^(1) have to be aligned with the latches ^(7) .
2. Hook the latches into the metal loops, and pull down to lock the device. The grill is now a connected and compact unit.
3. After approx. 3-4 minutes, LotusGrill is ready for use. Use the On/Off Switch for heat regulation (8) to regulate heat. The fan stays on during the entire barbecue session.

Using the USB power cord

The LotusGrill can be operated either with batteries or using the USB power cord supplied and a USB power pack (not included in the scope of supply). The battery compartment is disconnected when the round connector is plugged into the grill.

IMPORTANT

The USB power cable can not be used to charge rechargeable batteries.

Avant-propos

Lotus Grill portable grill with black grille and white base (no visible text or symbols)

d Glashnaube LotusGrill® ping grease e development

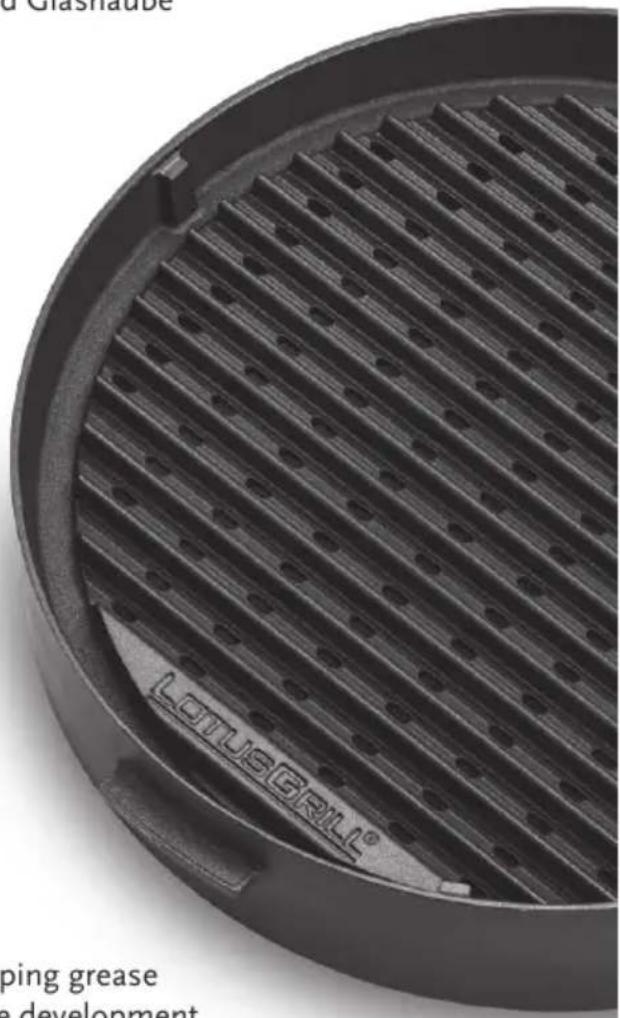

CAST GRILL GRID

• Even heat distribution over the entire cast grill grid
• The healthy way to barbecue since it drains away any dripping grease
- Grease ca not drip on the charcoal, lowest possible smoke development
- Great grill pattern
• The grill is easier to clean since the grease is drained away
- Easy-to-clean thanks to the high-quality non-stick coating
- Compatible with LotusGrill accessories, e.g., glass hood and grill hood

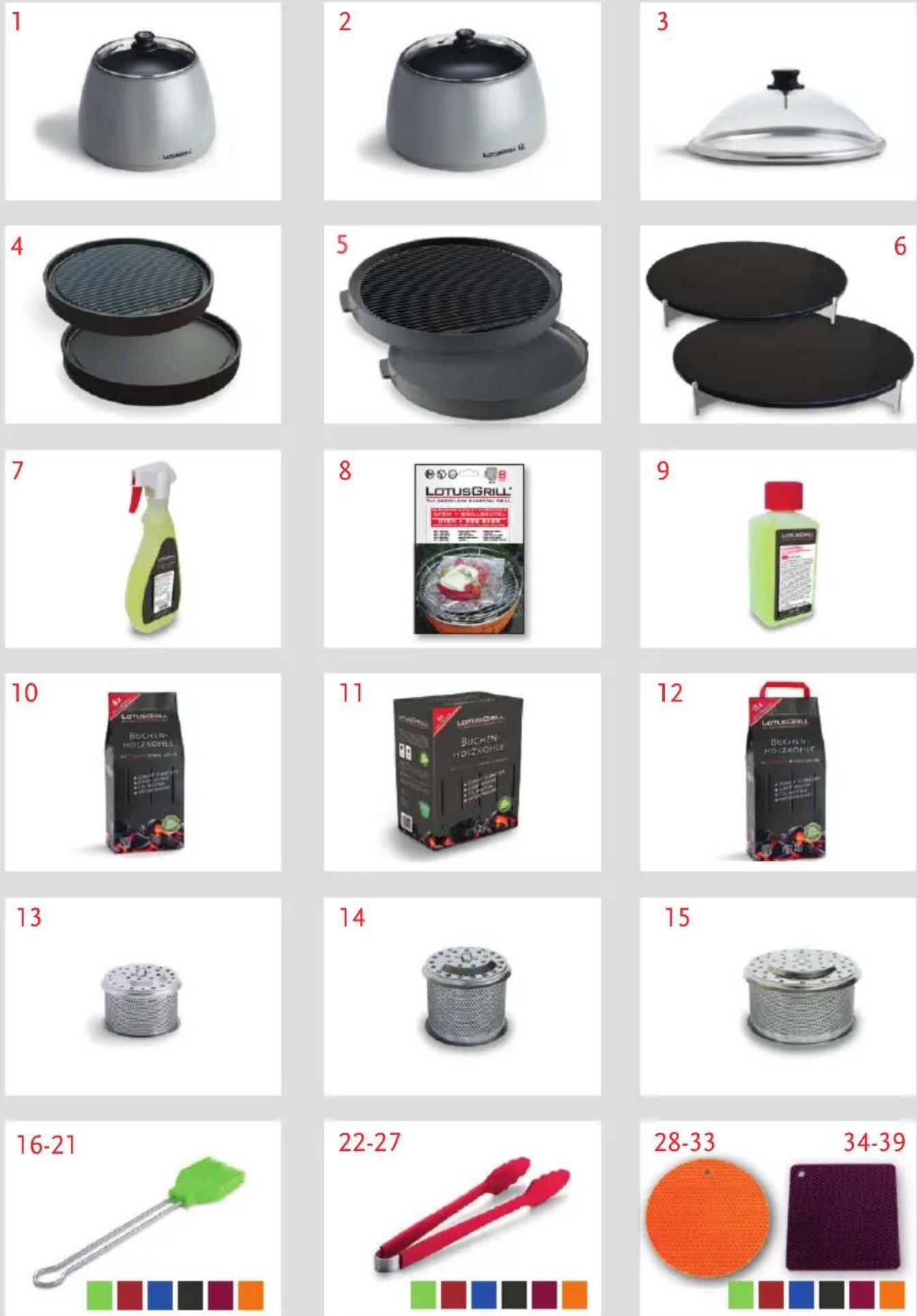

Zubehör

Close-up of a black electronic device showing two batteries with red and black segments, one partially open and another above it (no visible text or symbols)

3D rendering of a white bowl placed on a black base with ventilation grilles (no text or symbols visible)

Two views of a metallic cylindrical device: top shows top-down view of a circular component with bolt holes, bottom shows internal perforated material (no text or symbols visible)

4 LUNUSBRL LUNUSBRL

Illustration of a hand holding a pen with a blue arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to lit a flame inside a container (no text or symbols visible)

Two cylindrical containers with internal lighting, one emitting a glowing purple-blue substance (no text or symbols visible)

Two views of a portable stove burner with a mesh net and internal filter (no text or symbols visible)

3D rendering of a black cylindrical device with a mesh fan and blue cable, no visible text or symbols

LOTUSGRILL®

reddot design award winner 2013
